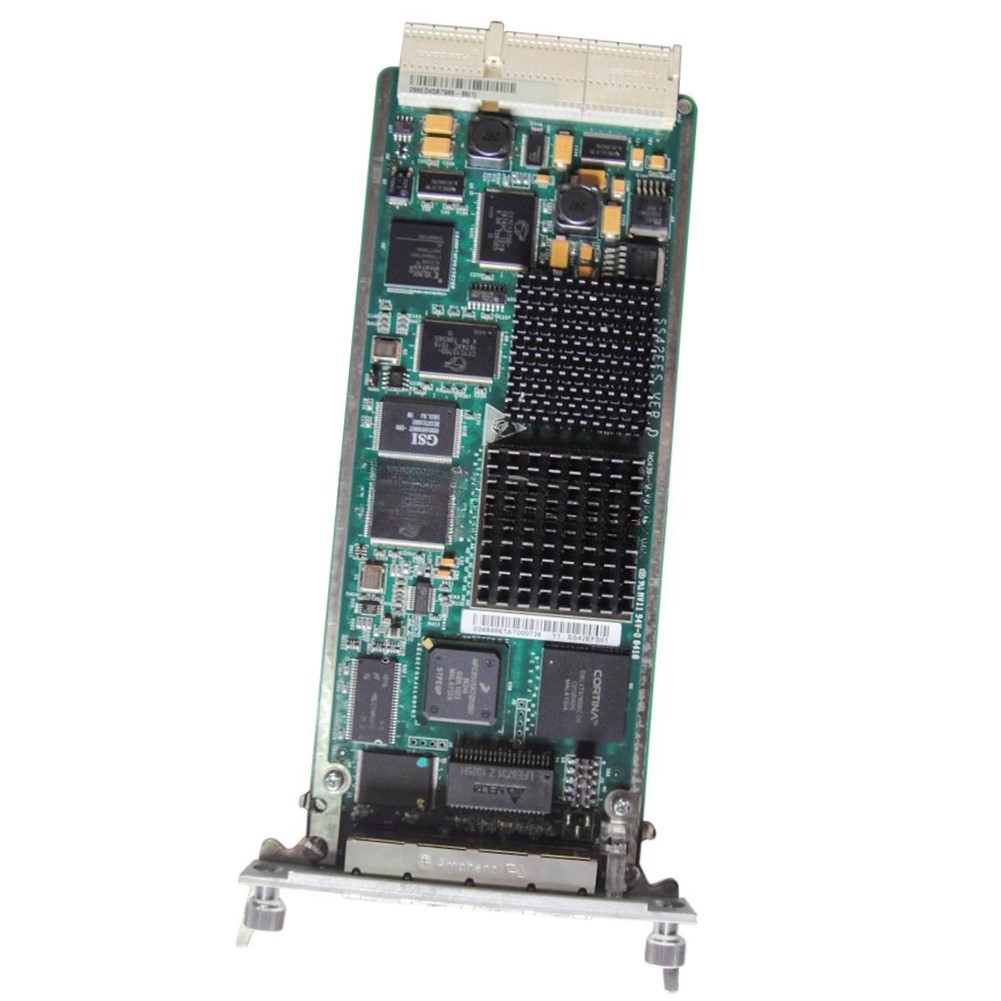

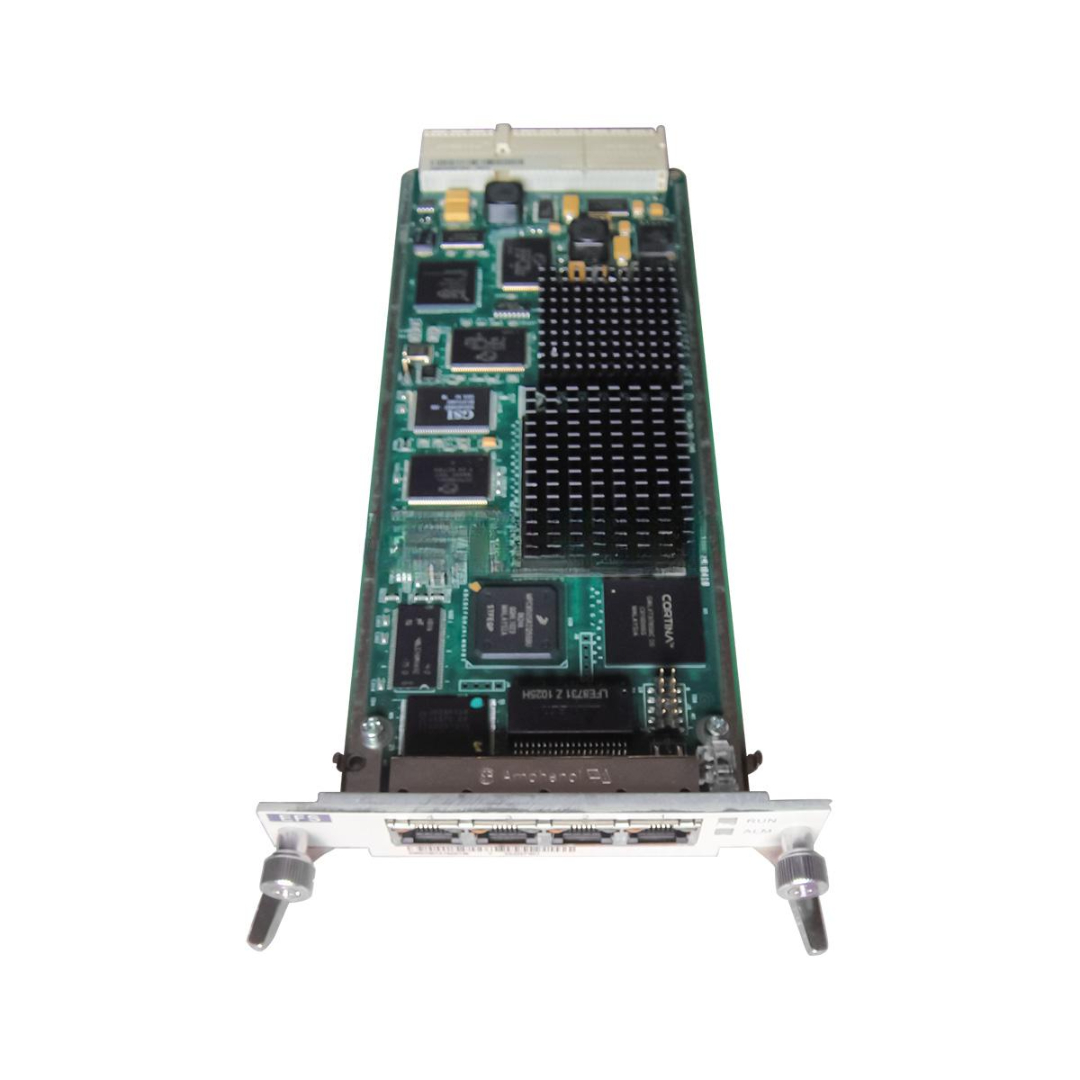

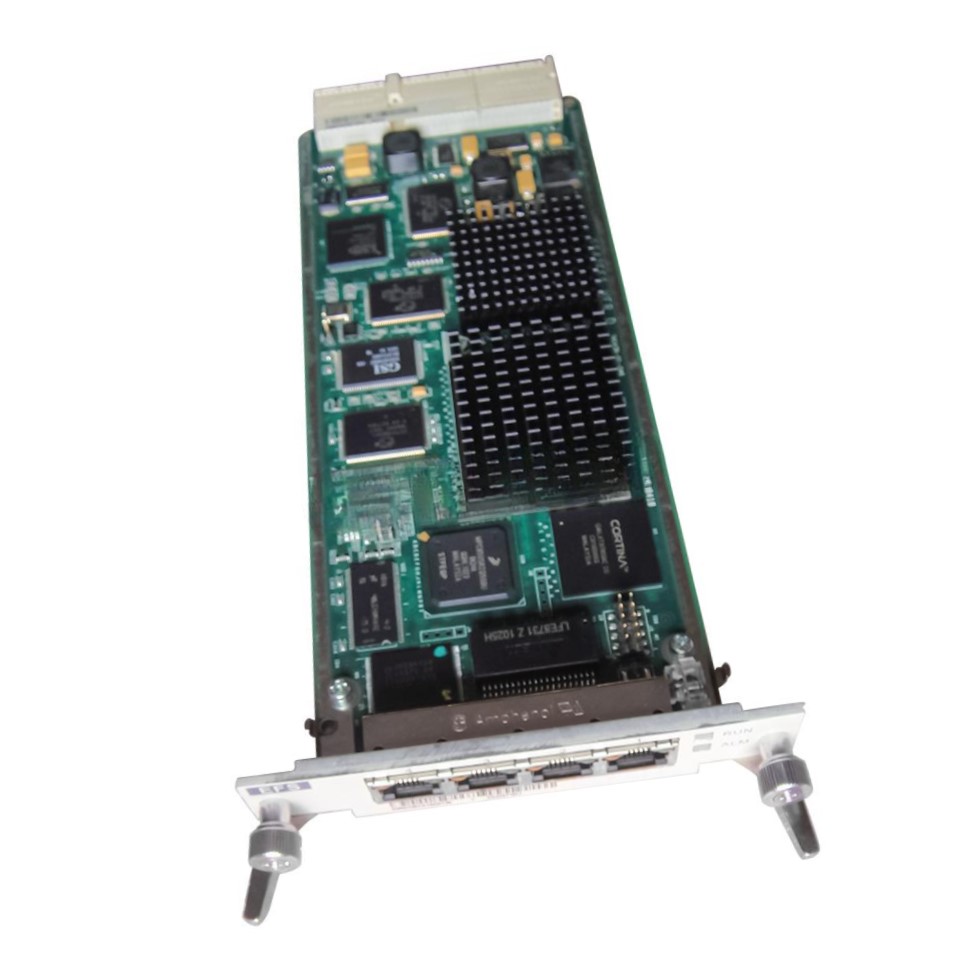

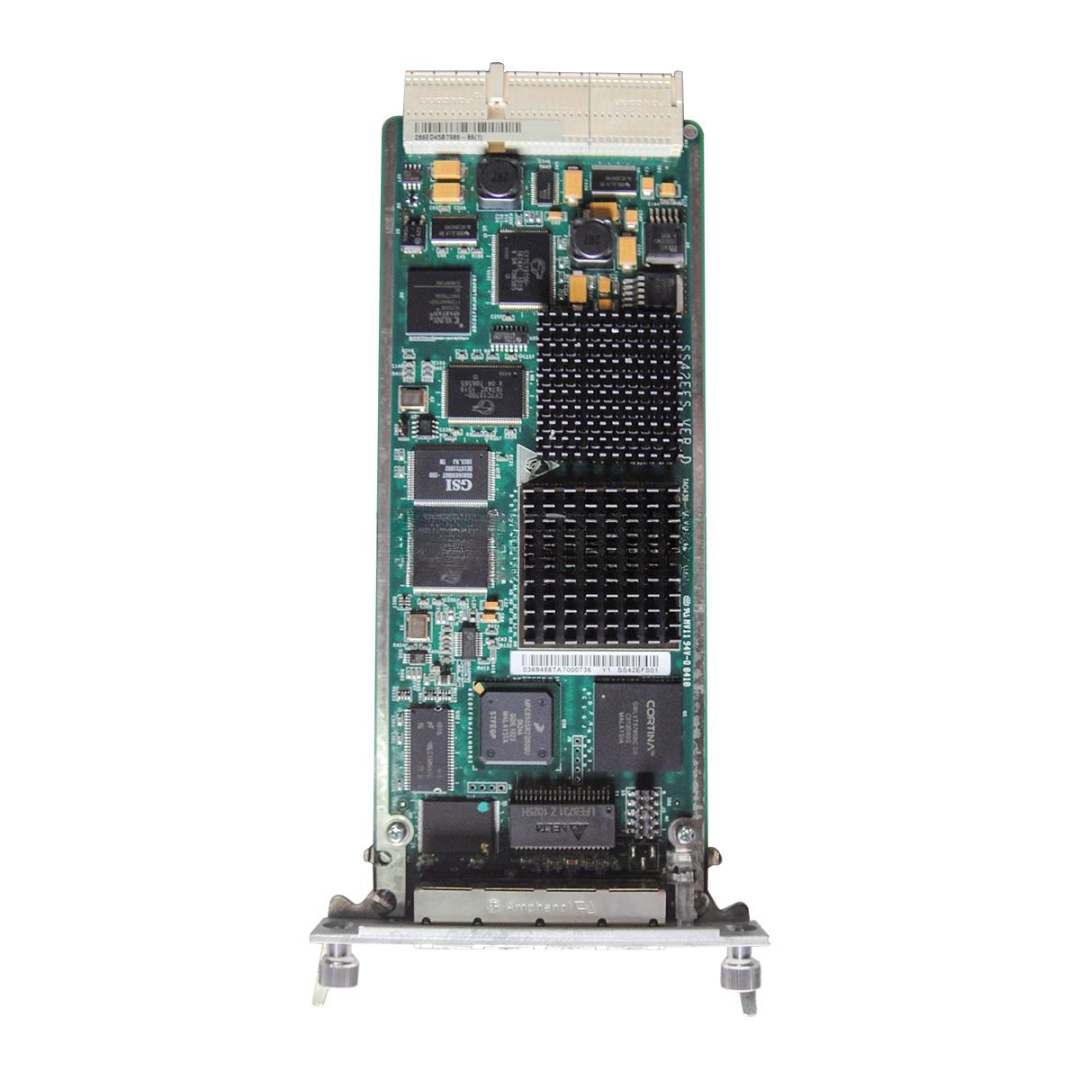

SS42EFS Huawei High Quality Metro Ethernet Processing Board
The SS42EFS Huawei Metro Ethernet Processing Board is a high-performance, carrier-grade Ethernet service interface module designed for Huawei’s OptiX OSN series, such as OSN3500, OSN7500, and OSN7500 II. It provides four 10/100Base-T Ethernet ports, supporting Layer 2 switching, VLAN management, and service isolation — making it ideal for metro Ethernet access, enterprise edge deployments, and utility network integrations.
Built for scalability, the SS42EFS ensures secure and efficient packet transmission in high-demand environments, with comprehensive support for QoS, MAC filtering, broadcast control, and OAM capabilities.
Key Features
-
Model: SS42EFS
-
Condition: 100% Brand New, Original Huawei
-
Port Configuration: 4 × 10/100Base-T (RJ45) Ethernet Ports
-
Service Type: Fast Ethernet Access (Layer 2 Switching)
-
VLAN Support: IEEE 802.1Q (4K VLAN entries), VLAN stacking (Q-in-Q)
-
QoS Features: Priority queuing, bandwidth control, and traffic classification
-
OAM Support: IEEE 802.3ah for link monitoring and diagnostics
-
Plug-and-Play: Hot-swappable module, easy integration into live networks
-
Network Management: Full control via Huawei U2000 or NCE-T platforms
Technical Specifications
| Specification | Details |
|---|---|
| Model | SS42EFS |
| Port Type | 4 × 10/100Base-T Ethernet (RJ45) |
| Switching Capability | Layer 2 switching with port isolation and MAC filtering |
| VLAN Capacity | Up to 4096 VLANs (802.1Q); Q-in-Q double tagging |
| MAC Address Table | Up to 8,192 MAC addresses |
| Jumbo Frame Support | Up to 1600 bytes |
| Protocol Support | 802.1D, 802.1p, 802.1Q, STP/RSTP, 802.3x flow control |
| QoS Features | 4 priority queues per port, port-based rate limiting |
| Power Consumption | ≤10W (Typical) |
| Operating Temperature | -5°C to +55°C |
| Humidity | 5% – 95% RH, non-condensing |
| Compatibility | Huawei OSN3500 / OSN7500 Series |
| Compliance | CE, RoHS, ITU-T G.8010/Y.1731 OAM |
| Warranty | 1–3 Years Manufacturer Warranty |
SS42EFS Huawei Applications
-
Metro Ethernet Access — Aggregates customer Ethernet traffic at the metro edge
-
Enterprise LAN Extension — Secure and scalable connectivity for corporate offices
-
Utility & Transportation — Enables IP-based monitoring and control systems
-
Government & Education — Supports video surveillance, VoIP, and secure intranets
-
SDH Packet Transport — Bridges Ethernet to SDH/MPLS-TP networks via MSTP
Customization & OEM Options
-
Custom Firmware — Port pre-configuration, VLAN tagging, or rate limiting available
-
Labeling & Branding — OEM/private-label logo and model branding for resellers
-
Integration Packages — Bundled with matching optical boards and management software
-
Extended Testing — Environmental stress tests for military/industrial-grade deployments
-
Service Templates — VLAN and QoS templates preloaded for enterprise rollouts
SS42EFS Huawei Wholesale & Global Procurement
-
Authentic OEM Supply — 100% original Huawei modules with verifiable barcodes
-
Inventory Availability — Ready stock for global telecom rollouts and critical deployments
-
Secure Packaging — Anti-static, foam-protected OEM boxing for safe transportation
-
Global Delivery — Fast shipping options worldwide, export-compliant logistics
-
Documentation Included — OEM datasheets, MIB files, and installation guides
-
Support Services — Expert team available for integration, testing, and after-sales help
Why Choose the SS42EFS Huawei Metro Ethernet Board
-
Enterprise-Grade Reliability — Stable and secure Ethernet switching with L2 isolation
-
Optimized for MSTP — Enables Ethernet transport over SDH/Packet hybrid networks
-
Low Power Consumption — Ideal for dense installations with high efficiency
-
Huawei Quality Assurance — Trusted across telecom, government, and critical sectors
-
Future-Proof Design — Easily integrates with evolving service and topology requirements
Contact Us for Bulk Pricing, Technical Details & Lead Time
Upgrade your metro and access networks with the Huawei SS42EFS Metro Ethernet Processing Board — engineered for high reliability, secure switching, and seamless MSTP integration. Reach out now for wholesale quotes, datasheets, OEM options, and fast shipping.
