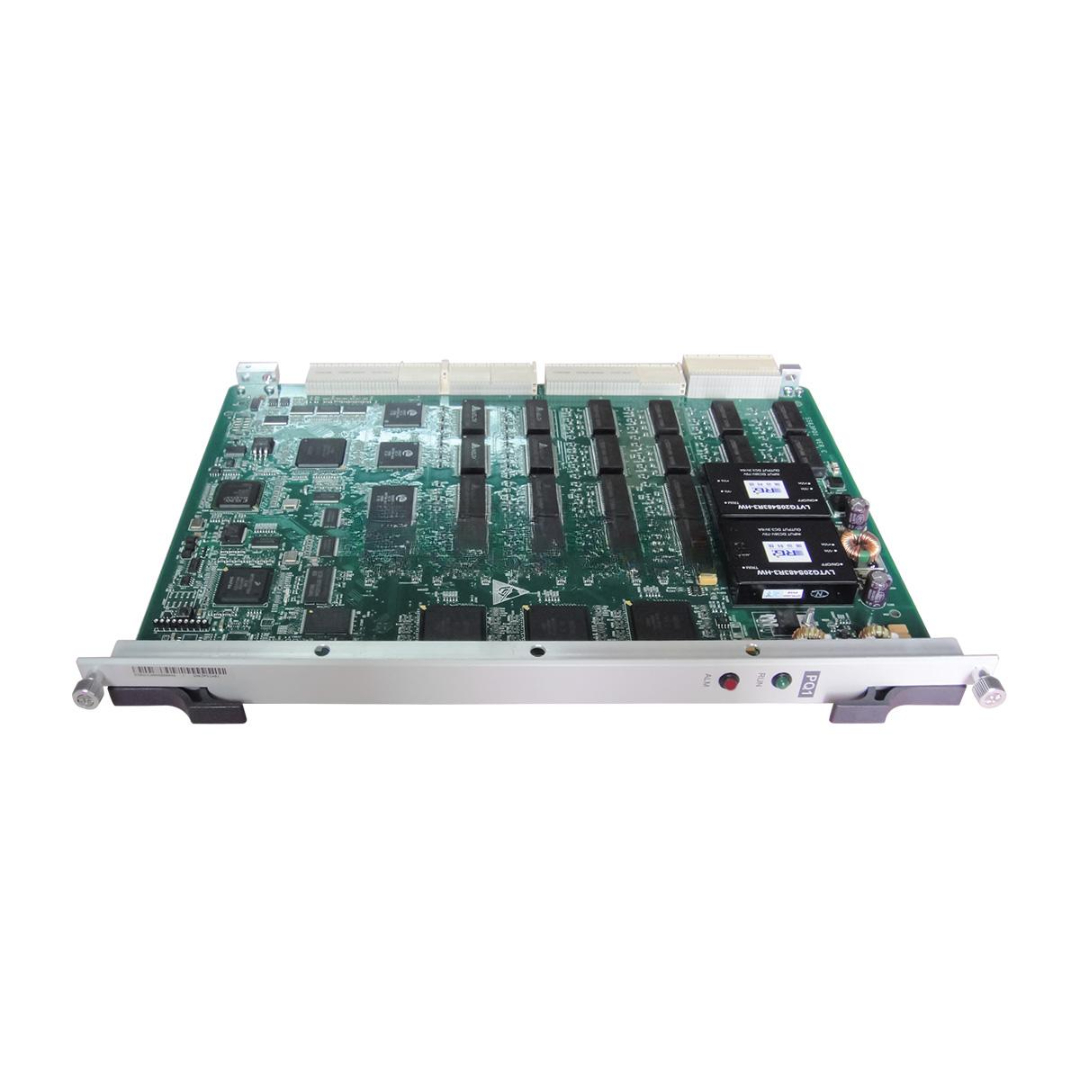

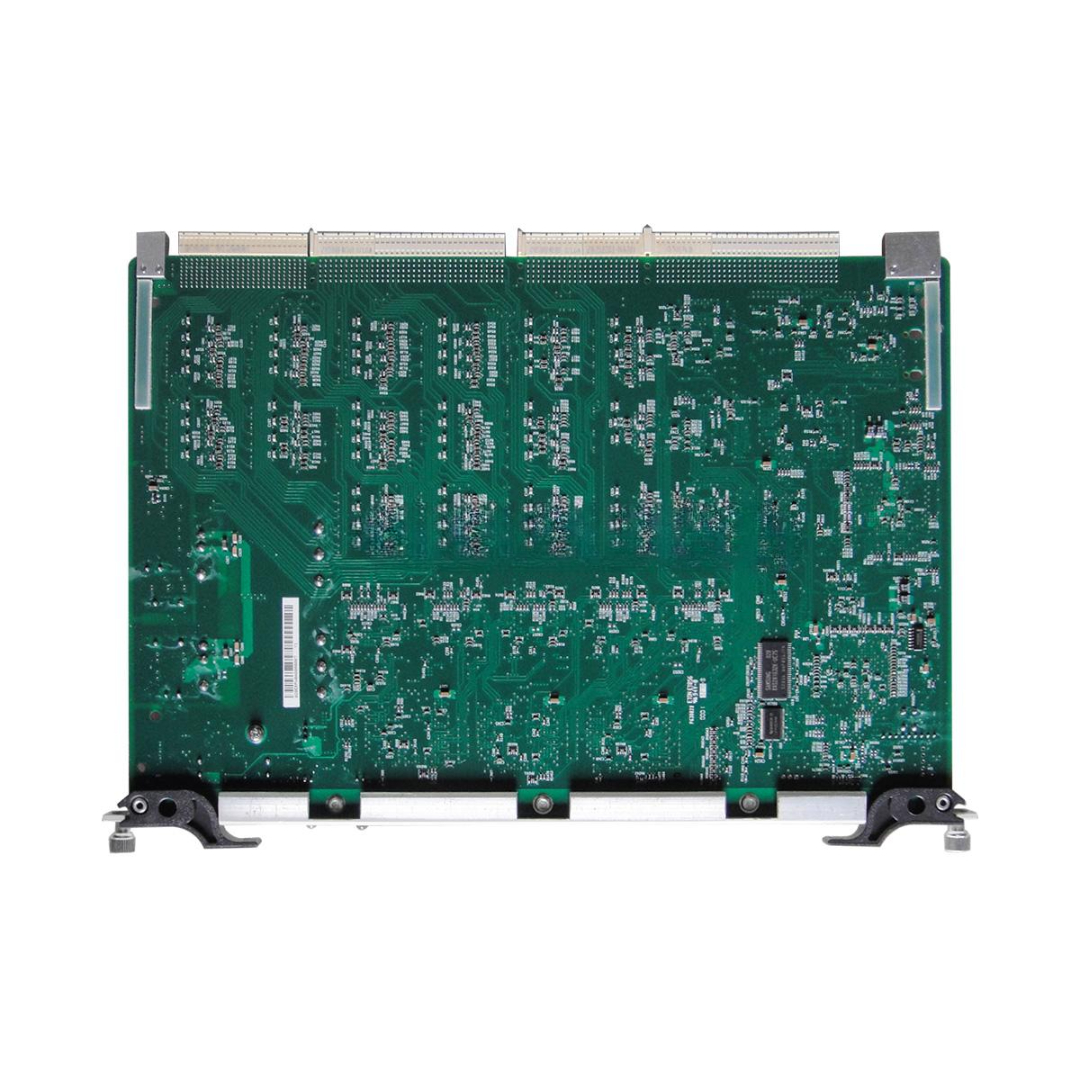

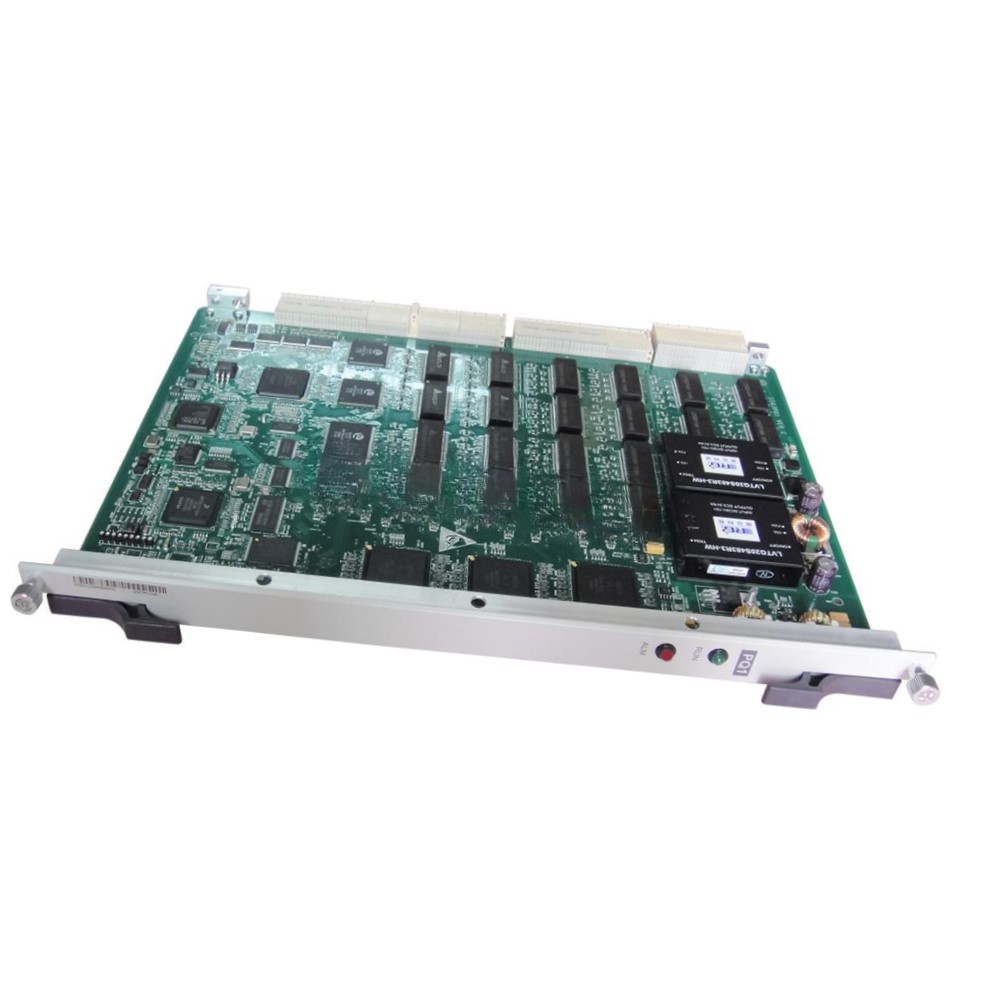

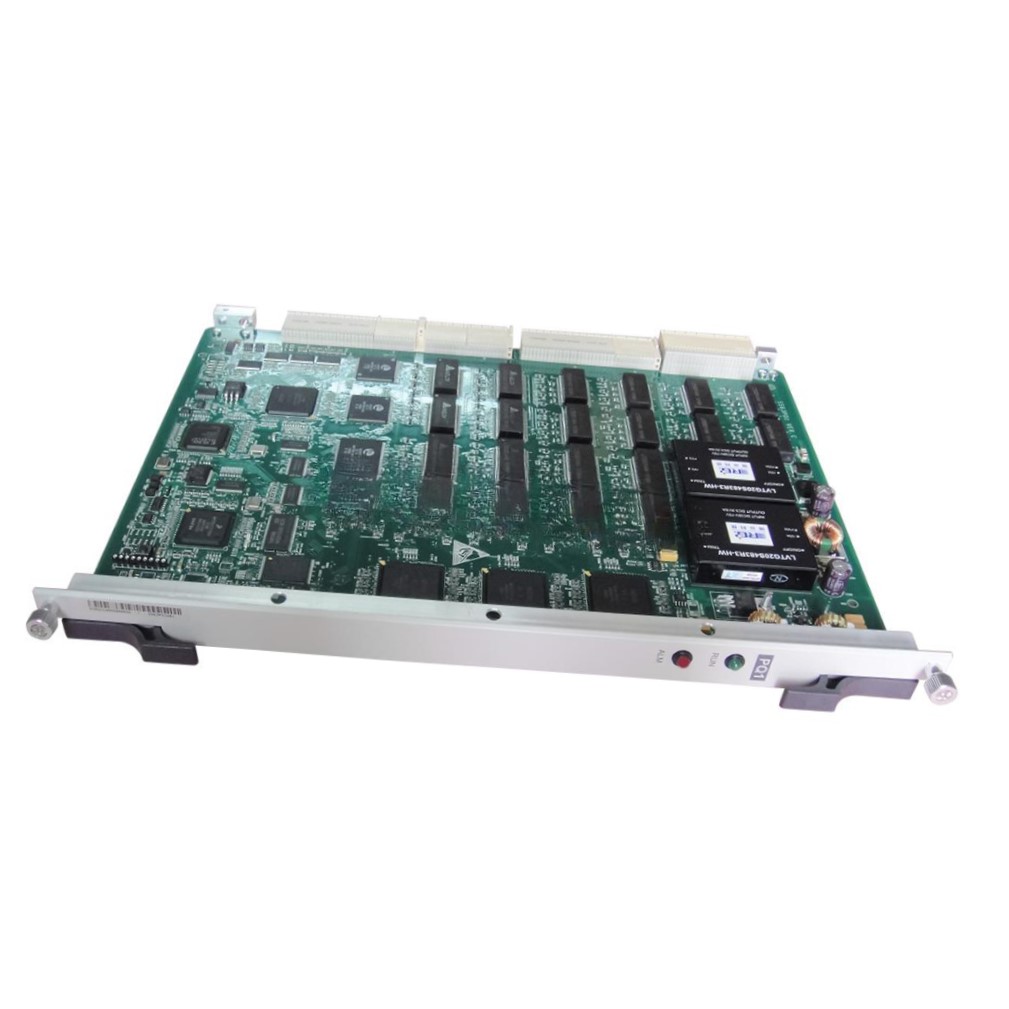

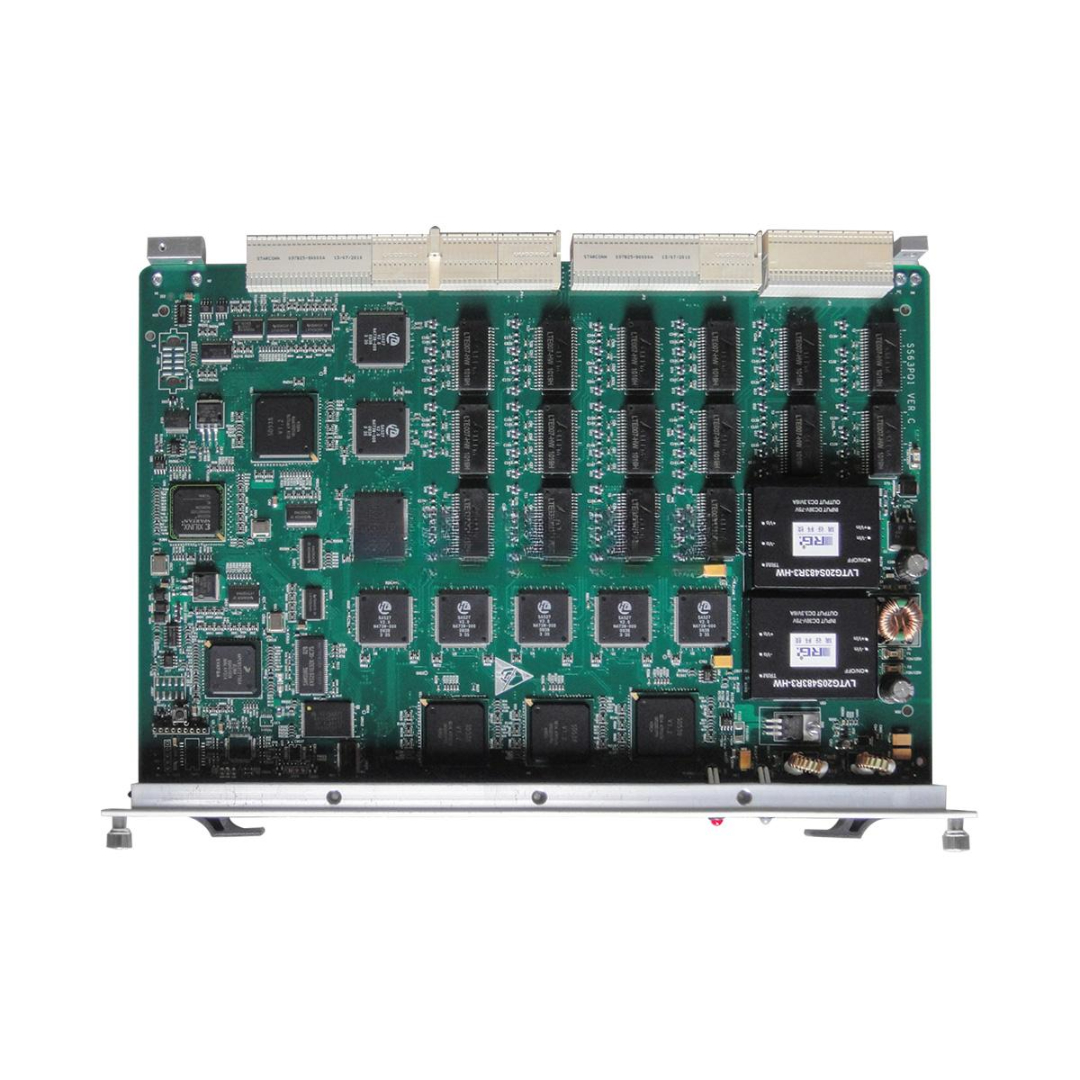

SS63PQ1A Huawei High Quality 63xE1 Service Processing Board
The SS63PQ1A Huawei is a high-density 63×E1 service processing board designed for Huawei’s OptiX OSN series including OSN 3500 and OSN 7500. It supports TDM service access and grooming with 2 Mbps (E1) interfaces, making it ideal for legacy SDH networks requiring reliable and scalable voice and data transport.
With advanced grooming, mapping, and cross-connect capabilities, the SS63PQ1A provides efficient time-division multiplexing for carrier-grade applications. It is perfectly suited for telecom, utility, government, and transportation networks demanding high E1 port density.
Key Features
-
Model: SS63PQ1A
-
Condition: 100% Brand New, Huawei Original
-
Service Type: E1 (2 Mbps) Transmission and Aggregation
-
Interface Quantity: 63 × E1 Ports (75Ω or 120Ω selectable)
-
Transmission Rate: 2.048 Mbps per E1
-
Framing Modes: G.703, G.704 with CRC4/no CRC
-
Protection Features: SNCP, MSP, 1+1 board-level protection
-
Multiplexing Capability: Supports mapping to VC-12 containers
-
Network Management: Full control via U2000/NCE-T platform
-
Installation: Plug-in module, hot-swappable
Technical Specifications
| Specification | Details |
|---|---|
| Model | SS63PQ1A |
| Board Type | High-Density E1 Service Board |
| Interface Quantity | 63 × E1 (balanced/unbalanced options) |
| Interface Type | 75Ω coaxial (BNC) or 120Ω twisted-pair (RJ-45) |
| Transmission Speed | 2.048 Mbps (per E1) |
| Framing Modes | G.703, G.704 (with/without CRC-4) |
| Mapping Standard | ITU-T G.707 VC-12 mapping |
| Protection Mechanism | 1+1 backup, SNCP, MSP |
| Power Consumption | ≤ 20W (typical) |
| Compatibility | OSN3500, OSN7500, OSN1500 (via extension shelf) |
| Operating Temperature | -5°C to +55°C |
| Humidity | 5% to 95% RH, non-condensing |
| Management Interface | Via Huawei U2000/NCE-T |
| Warranty | 1–3 Years Manufacturer Warranty |
SS63PQ1A Huawei Applications
-
Telecom TDM Networks — Aggregating legacy voice/data over STM-based backbone
-
Power Grid Communications — SCADA and telemetry transport via E1 lines
-
Government Networks — Secure voice/data transmission over redundant SDH
-
Railways & Transportation — Signal, voice, and control data over E1 interfaces
-
Private Enterprises — Interfacing with PBX, routers, and leased line equipment
Customization & OEM Options
-
Connector Type: Choose between 75Ω (BNC) or 120Ω (RJ-45) at order
-
Labeling: Private/OEM branding available for large integrators
-
Preloaded Configurations: Custom time slot, protection, or topology mapping
-
Chassis Kits: Bundled with OSN subrack and power supply for turnkey deployment
-
Environmental Hardening: Optional industrial-grade for extended temp/humidity
SS63PQ1A Huawei Wholesale & Global Supply
-
Huawei Original Product: Verified authenticity with traceable serial and barcode
-
Stock Ready: Bulk availability for rapid project deployment
-
Secure Shipping: Foam-sealed anti-static packaging for international logistics
-
Full Documentation: Includes user manual, configuration guide, and datasheet
-
Integration Support: Expert help for topology design and U2000 configuration
Why Choose the SS63PQ1A Huawei 63xE1 Service Board
-
High-Density E1 Access — Reduce footprint and cost per E1 channel
-
Flexible Interface Options — Compatible with both balanced and unbalanced E1 lines
-
Huawei OEM Quality — Field-proven stability in critical infrastructure networks
-
Rich SDH Features — Integrated cross-connect, grooming, and protection
-
Global Support — Available with expert guidance and post-sale service
Contact Us Today for competitive pricing, technical datasheets, or to place bulk orders for the SS63PQ1A Huawei E1 Service Processing Board — your optimal choice for high-capacity, reliable, and standards-compliant TDM transport.
