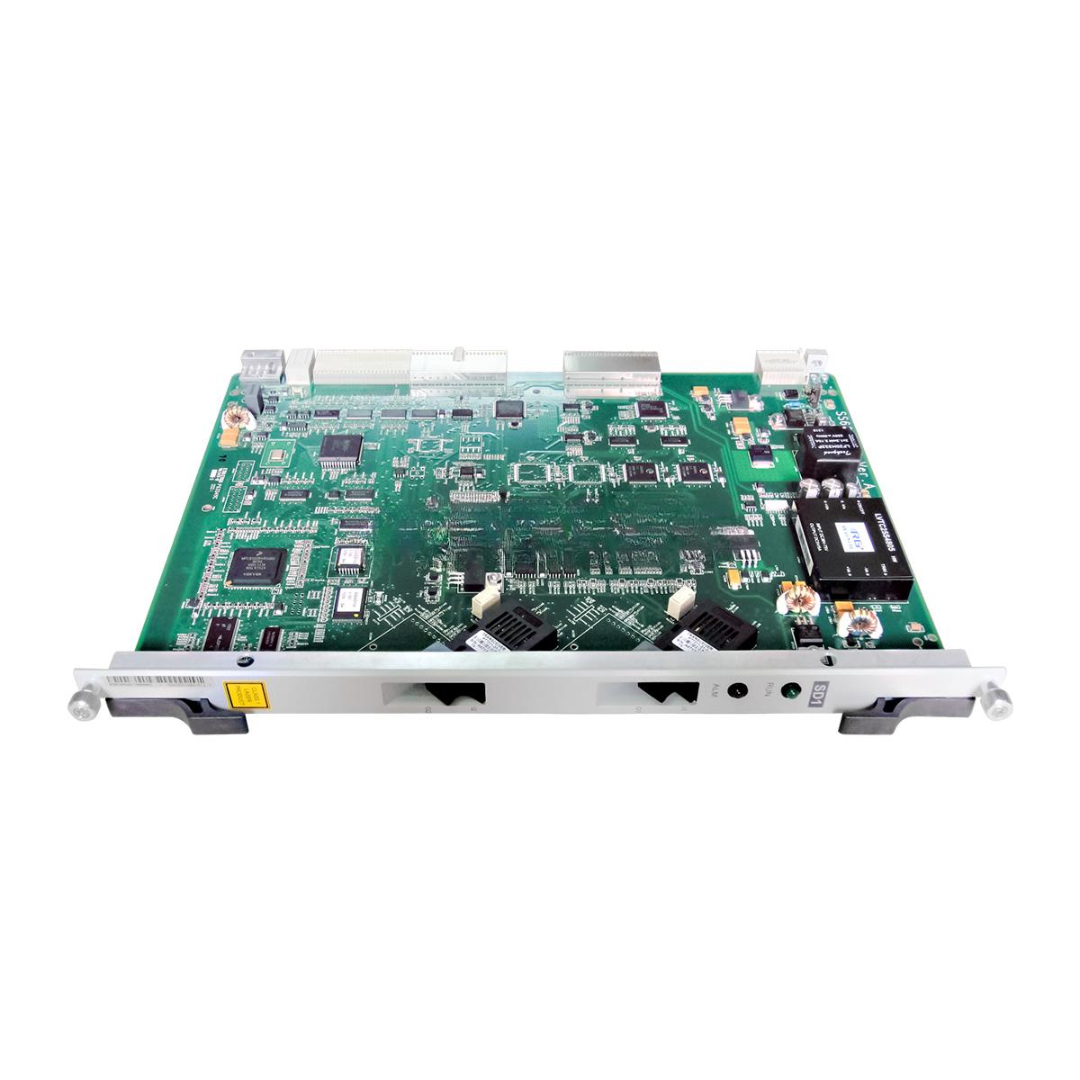

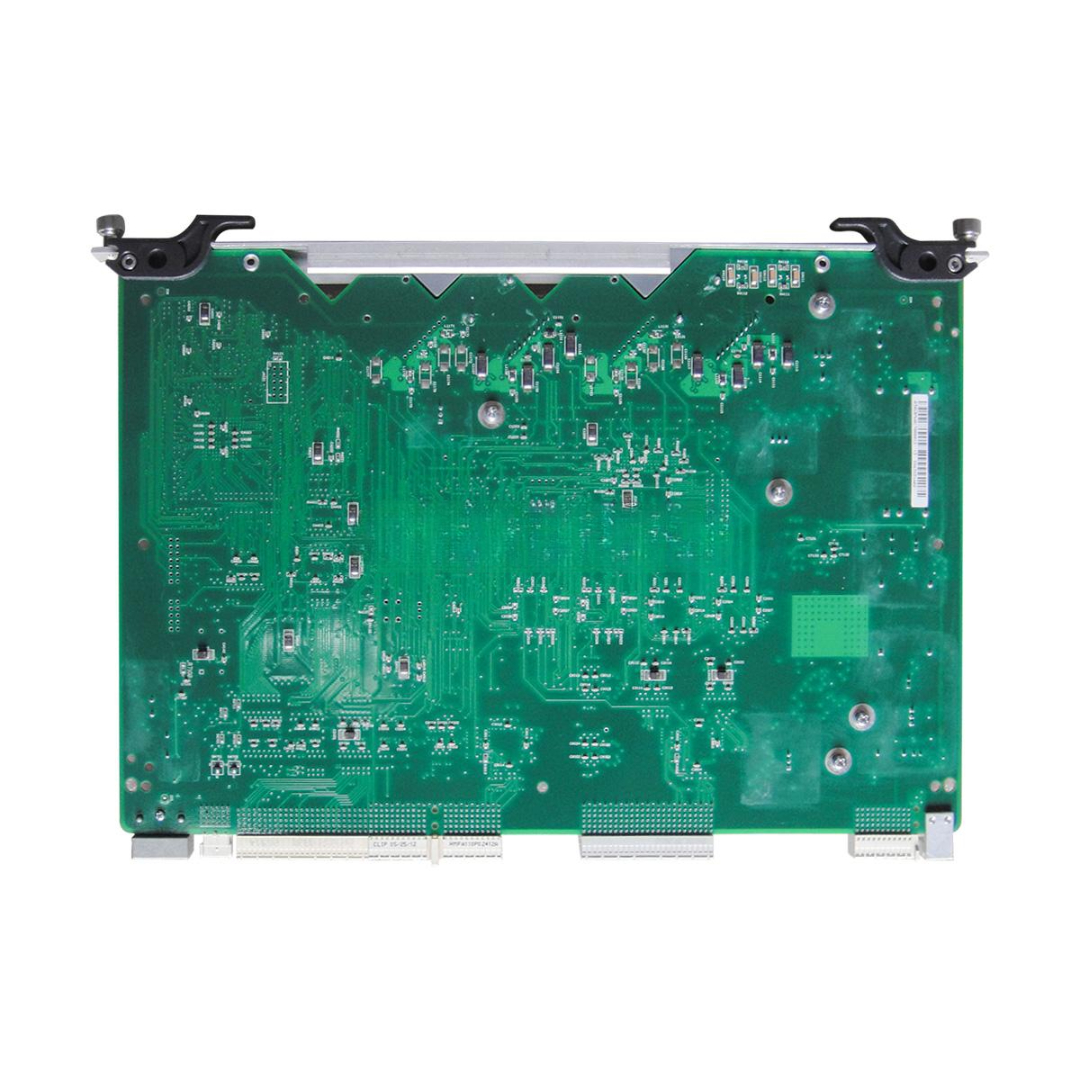

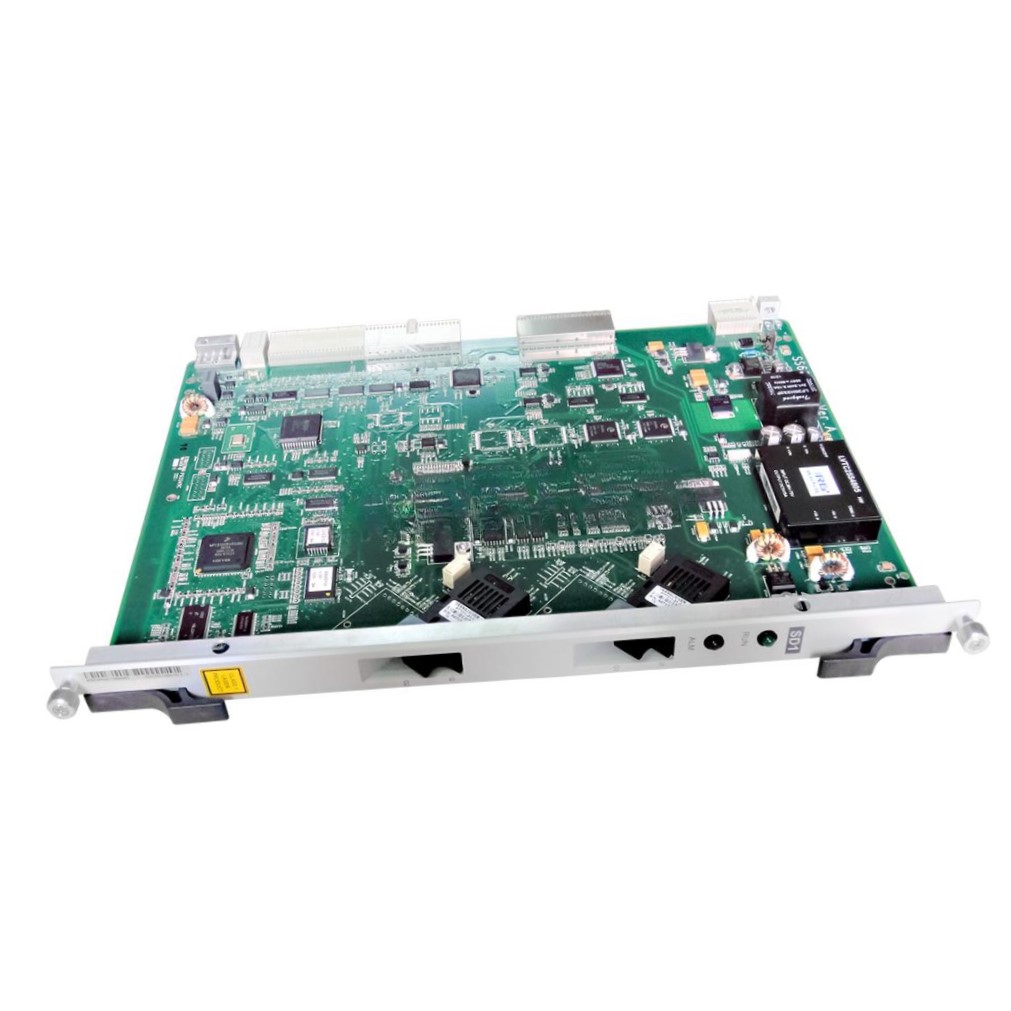

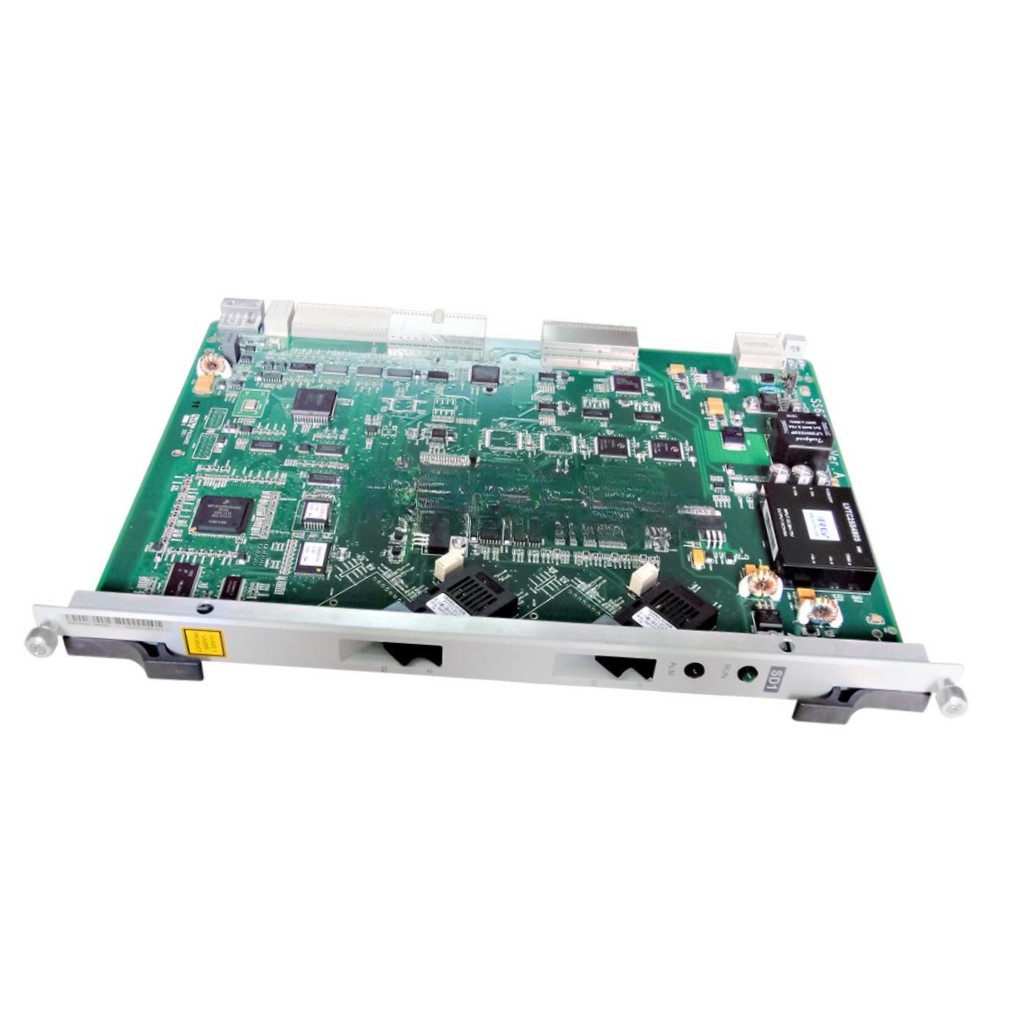

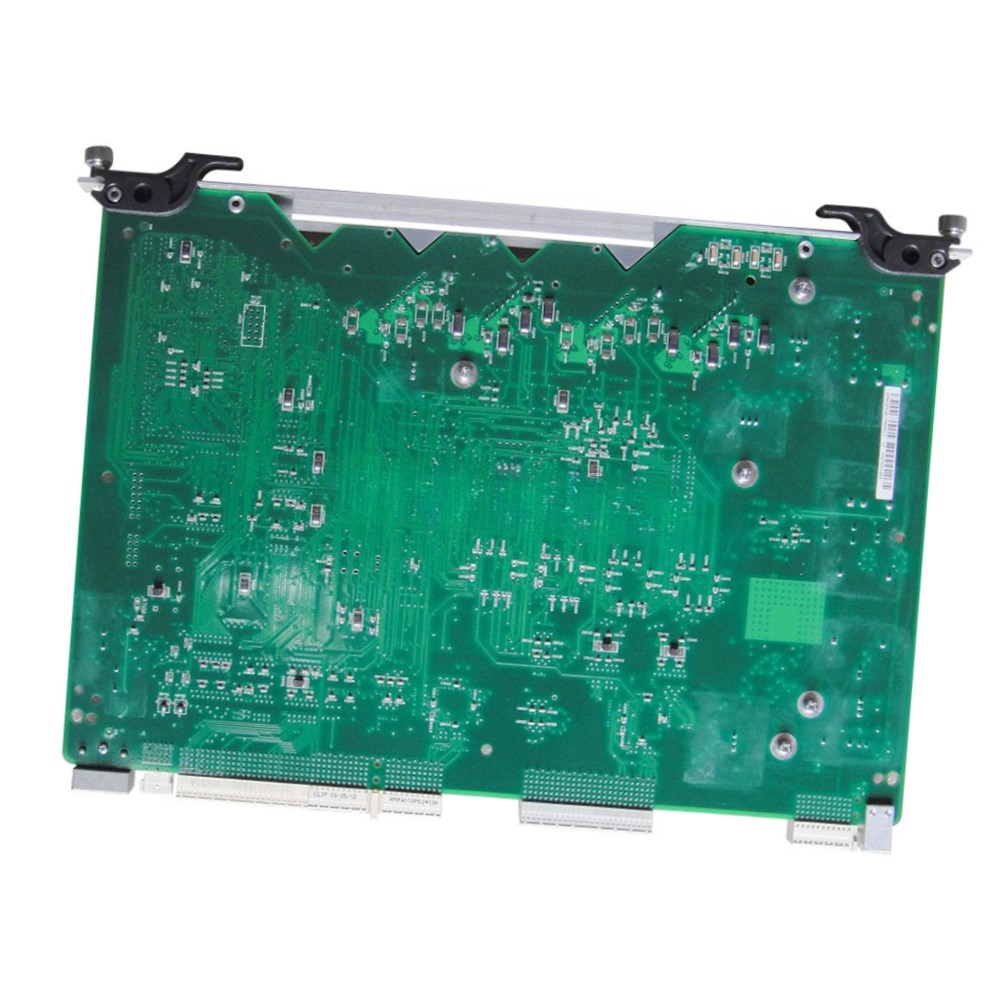

SS63SD1(S-1.1,SC) Huawei High Quality 155M Interface Board
The SS63SD1(S-1.1,SC) Huawei is a high-quality 2-port STM-1 optical interface board engineered by Huawei for SDH-based transmission systems. Operating at 155 Mbps per port and complying with the S-1.1 short-reach standard, this board is ideal for short-distance fiber transmission (up to 2 km). It is designed for integration into Huawei’s Metro 3000 series and OptiX OSN platforms, making it a powerful solution for enterprise, government, utility, and metro access network applications.
With full compliance to ITU-T SDH protocols, support for multiple alarms, and hot-swappable design, the SS63SD1 ensures seamless service delivery and reliable operation.
Key Features
-
Model: SS63SD1(S-1.1,SC)
-
Condition: 100% Brand New, Original Huawei
-
Service Type: STM-1 (155 Mbps SDH Optical Interface)
-
Connector: SC Duplex Interface
-
Transmission Distance: Short-reach (up to 2 km)
-
Port Type: 2 × STM-1 Optical Ports
-
Built-in Functions: Alarm reporting, clock recovery, error monitoring
-
Hot-Swappable: Supports online plug-and-play operation
-
Application: Ideal for metro access, utility, and enterprise SDH transport
Technical Specifications
| Specification | Details |
|---|---|
| Model | SS63SD1(S-1.1,SC) |
| Board Type | STM-1 Optical Interface Board |
| Interface Rate | 155 Mbps (STM-1) |
| Port Quantity | 2 Ports |
| Connector Type | SC Duplex |
| Fiber Type | Single-mode |
| Reach | Up to 2 km (Short Reach S-1.1 Standard) |
| Compatible Platforms | Metro 3000 Series, OSN1500, OSN2500 |
| Hot Swapping | Supported |
| Operating Temperature | -5°C to +55°C |
| Humidity | 5% – 95% RH, non-condensing |
| Power Consumption | ≤8W |
| Compliance | ITU-T G.707, G.957, G.783 |
| Warranty | 1–3 Years Manufacturer Warranty |
SS63SD1(S-1.1,SC) Huawei Applications
-
Metro Access Networks – Efficient STM-1 handoff in edge transmission
-
Government Networks – Secure and redundant optical transmission
-
Enterprise Connectivity – Short-haul SDH service for corporate campuses
-
Industrial & Utility Networks – Transmission backbone for SCADA & control systems
-
Transportation Systems – Real-time signal transfer and monitoring
Customization & OEM Options
-
Private Labeling – OEM branding with company logo and custom part numbers
-
Pre-Configured Boards – Alarm thresholds, loopbacks, and port mappings set before delivery
-
Diagnostic Reports – Optional performance testing and burn-in logs
-
Full Rack Solutions – Bundled with OSN chassis, patch panels, and cabling
-
Local Language Labeling – Labels and manuals in requested regional languages
SS63SD1(S-1.1,SC) Wholesale & Global Supply
-
Original Huawei Stock – Factory-sealed with anti-static protection and barcode ID
-
Global Logistics – Safe, fast shipping with full documentation
-
Volume Discounts – Tiered pricing available for bulk procurement
-
Inventory Availability – Ready-to-ship for urgent project needs
-
Technical Documentation – Datasheets, CLI commands, and NMS integration guides included
Why Choose SS63SD1(S-1.1,SC) Huawei 155M Board
Dual STM-1 Optical Ports — Maximizes interface density per slot
Proven Huawei Quality — Deployed worldwide in critical networks
ITU-T Protocol Compliance — Seamless SDH network integration
Cost-Effective — Compact board with low power consumption
Reliable for Short-Haul Links — Ideal for up to 2 km transmission
Get in Touch Today for pricing, technical documents, and global shipping options for the SS63SD1(S-1.1,SC) Huawei High Quality 155M Interface Board — the smart choice for scalable and stable metro SDH transmission.
