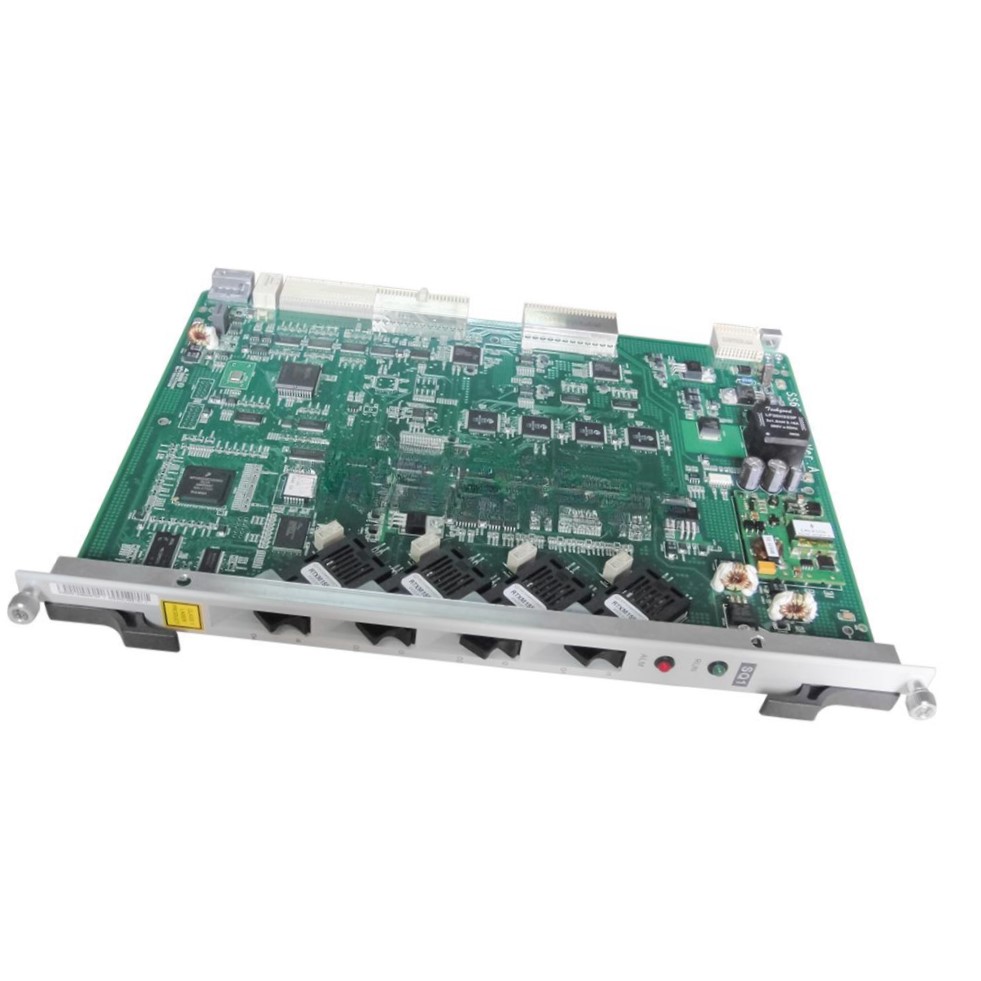

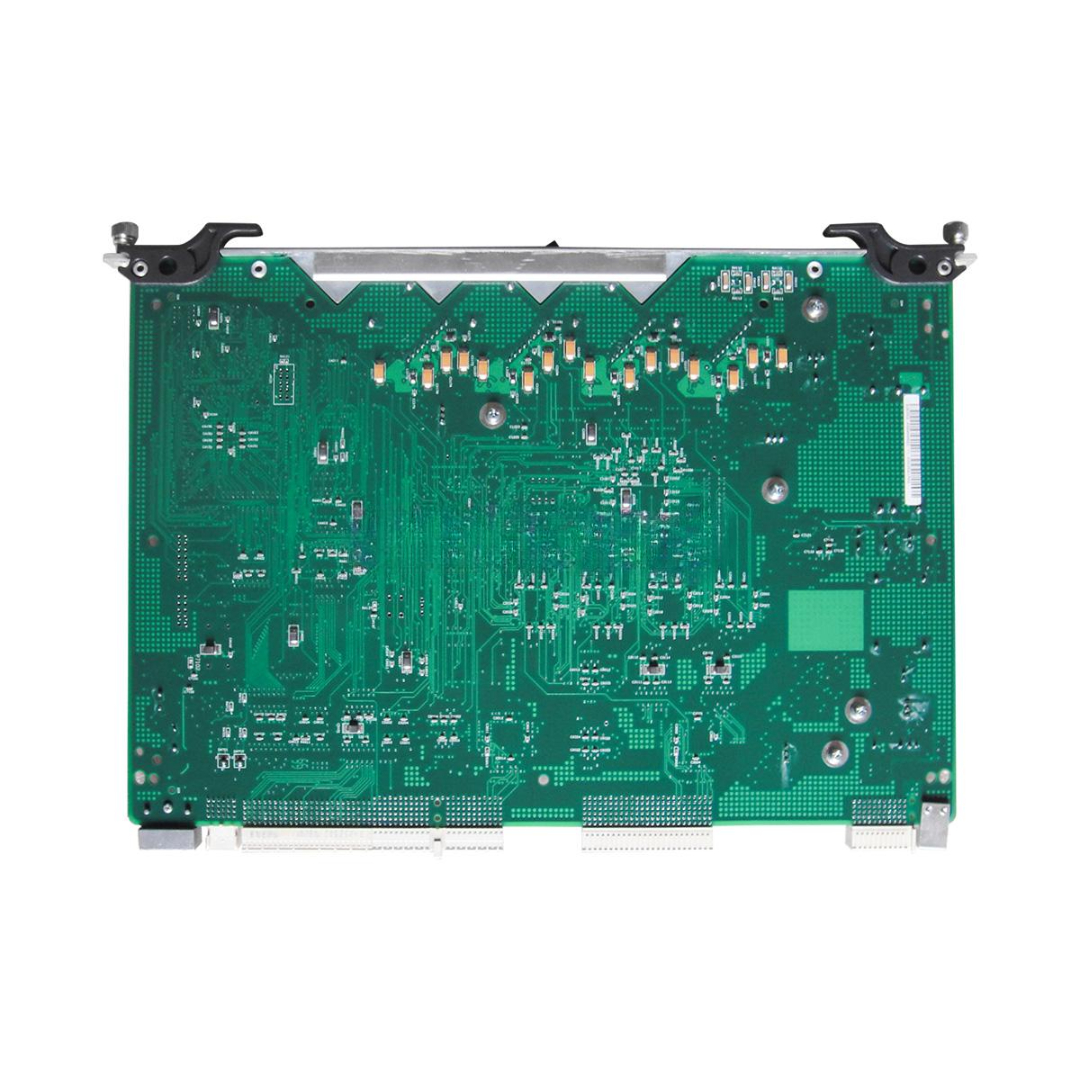

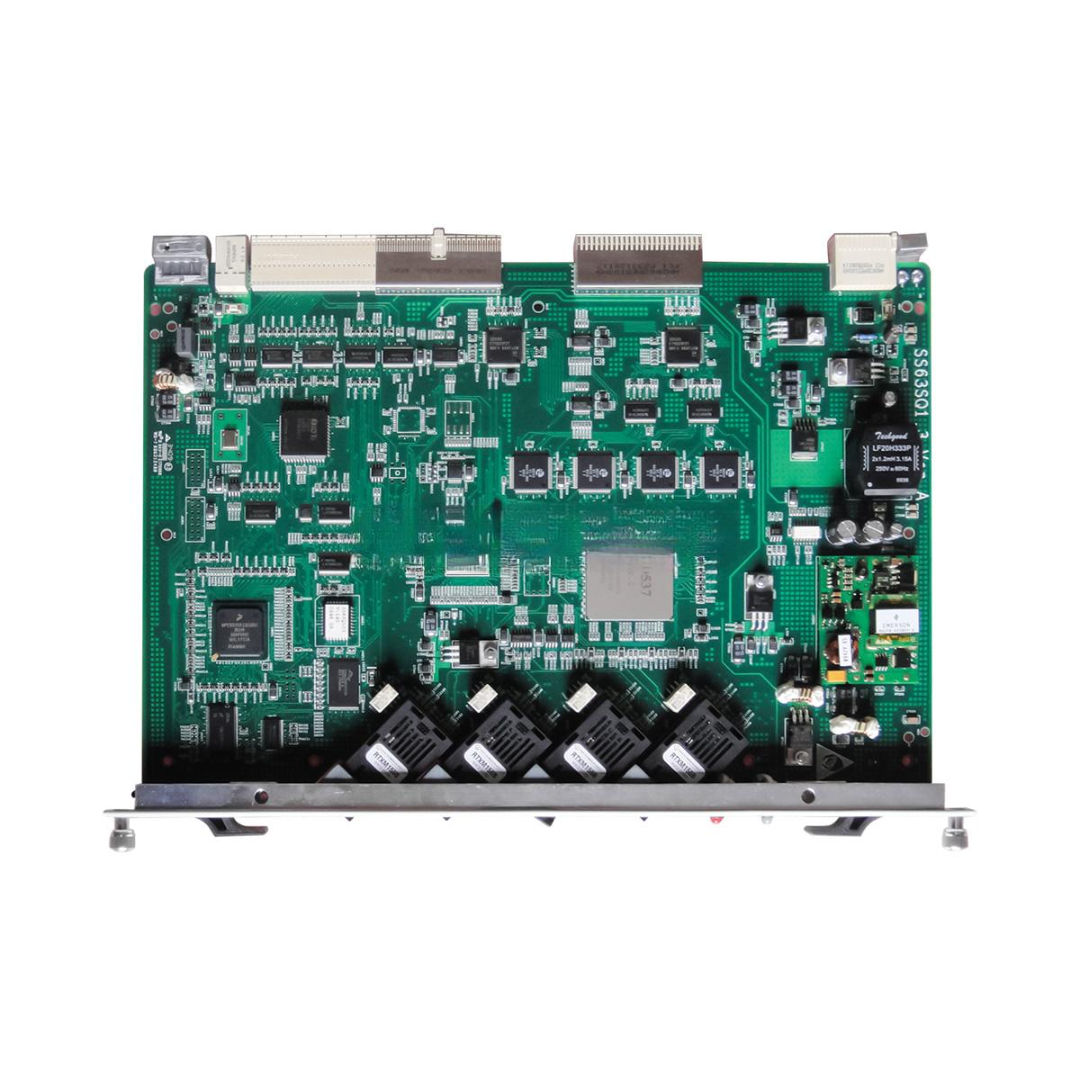

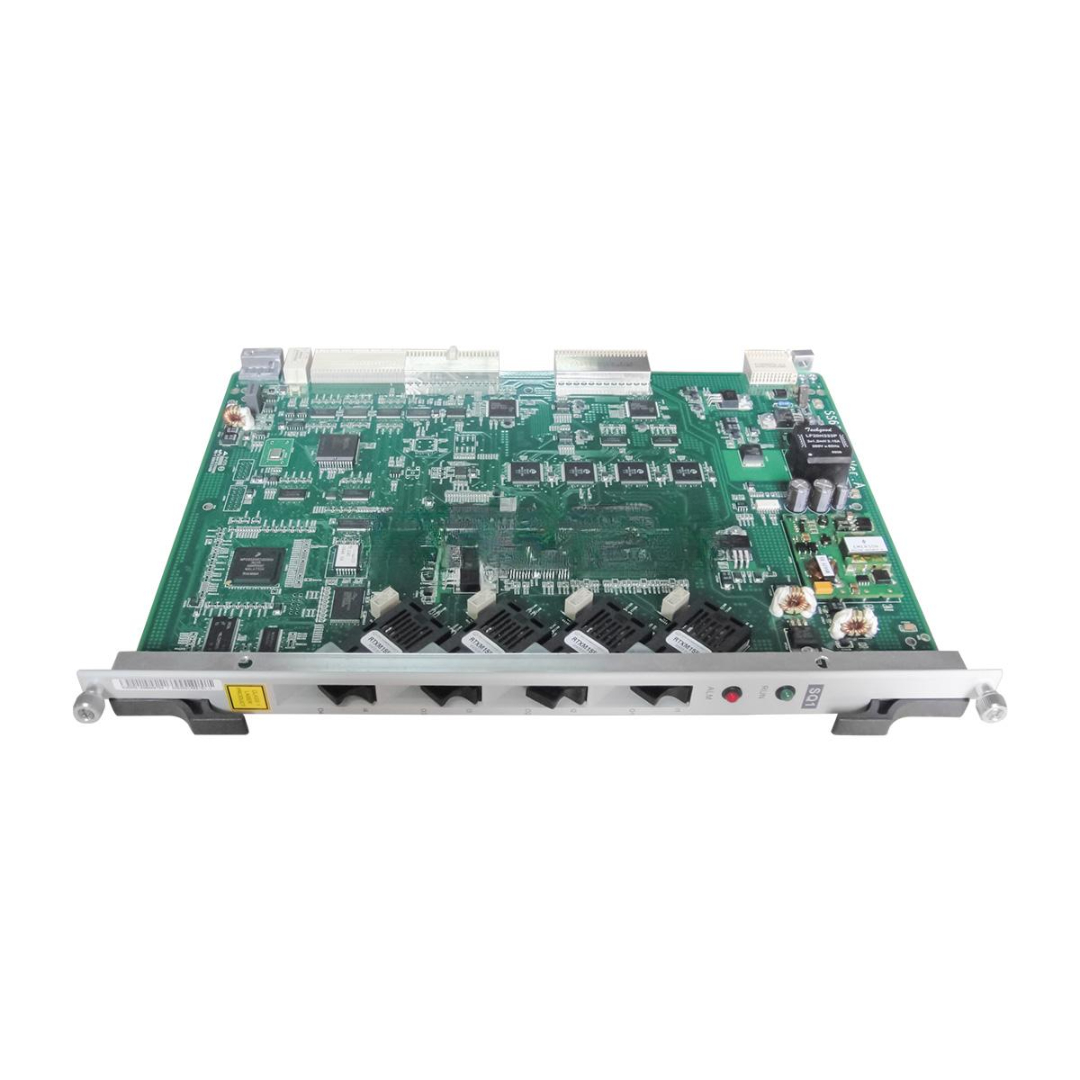

SS63SQ1A(S-1.1,SC) Huawei High Quality Metro Interface Board
The SS63SQ1A(S-1.1,SC) Huawei is a high-performance 4-port STM-1 optical interface board designed for Huawei’s MSTP and SDH optical transmission platforms, including OptiX OSN3500, OSN2500, and OSN1500. Each port supports a data rate of 155 Mbps, utilizing S-1.1 short-reach (2 km) specifications over SC-type single-mode fiber interfaces.
Engineered for reliable operation in metro aggregation and access network environments, this board ensures efficient signal multiplexing, error monitoring, and SDH-compliant service delivery.
Key Features
-
Model: SS63SQ1A(S-1.1,SC)
-
Type: STM-1 Optical Interface Board
-
Port Quantity: 4 Ports
-
Data Rate: 155 Mbps per port
-
Interface Type: SC/UPC Single-mode
-
Reach: Up to 2 km (S-1.1 short-reach standard)
-
Compatibility: Huawei OSN1500 / OSN2500 / OSN3500 series
-
Functionality: SDH signal termination, performance monitoring, loopbacks
-
Hot-Swappable: Yes
Technical Specifications
| Specification | Details |
|---|---|
| Board Model | SS63SQ1A(S-1.1,SC) |
| Service Type | 4 × STM-1 Optical Interfaces |
| Port Speed | 155 Mbps |
| Connector Type | SC/UPC |
| Transmission Distance | Up to 2 km |
| Fiber Type | Single-mode (ITU-T G.652) |
| Protocol Support | ITU-T G.707, G.783, G.957 |
| Power Consumption | ≤ 10W |
| Operating Temp. | -5°C to +55°C |
| Humidity | 5% – 95% RH, non-condensing |
| Alarms & Monitoring | LOS, LOF, MS-AIS, B1/B2 errors, loopback tests |
| Dimensions | Standard Huawei service board size |
| Warranty | 1–3 Years Manufacturer Warranty |
SS63SQ1A(S-1.1,SC) Huawei Applications
-
Metro Aggregation Networks – Consolidating STM-1 links from access rings
-
Carrier-Grade SDH Networks – High reliability and redundancy for telecom operators
-
Enterprise Transmission Systems – Point-to-point and ring topologies for business connectivity
-
Utility & Power Grids – Data delivery for monitoring and control in critical infrastructure
-
Rail & Transport Networks – STM-1 links for signaling and automation control
Customization & OEM Options
-
Pre-configured Boards – Port parameters, loopbacks, and performance settings
-
OEM Branding – Custom logo, labeling, and part number support
-
Solution Bundles – Provided with OSN chassis, fiber patch cords, and SFPs
-
Documentation Packages – Includes manuals, MIBs, and configuration guides
-
Extended Testing – High-stress burn-in testing available upon request
SS63SQ1A(S-1.1,SC) Huawei Wholesale Supply & Global Distribution
-
Genuine Huawei Products – Barcode-verifiable, new-in-box equipment
-
Fast Logistics – Global delivery with secure and static-safe packaging
-
Available in Bulk – Ready-to-ship stock for urgent projects
-
Full Documentation – OEM install guides and datasheets included
-
Technical Support – Pre-sales design assistance and post-sales troubleshooting
Why Choose SSS63SQ1A(S-1.1,SC) Huawei for Your Network
Compact 4-Port Design – Reduces board slot consumption in the subrack
Reliable Metro-Grade Performance – Proven in thousands of deployments
Fully Compliant – Works seamlessly within ITU-T SDH environments
Hot-Pluggable Convenience – Simplified maintenance and upgrades
Optimized for Access & Aggregation – Ideal for short-haul optical networks
Contact Us Today for a quote, lead time, or technical consultation regarding the SS63SQ1A(S-1.1,SC) Huawei High Quality Metro Interface Board — your go-to solution for reliable STM-1 optical transmission in carrier and enterprise networks.
