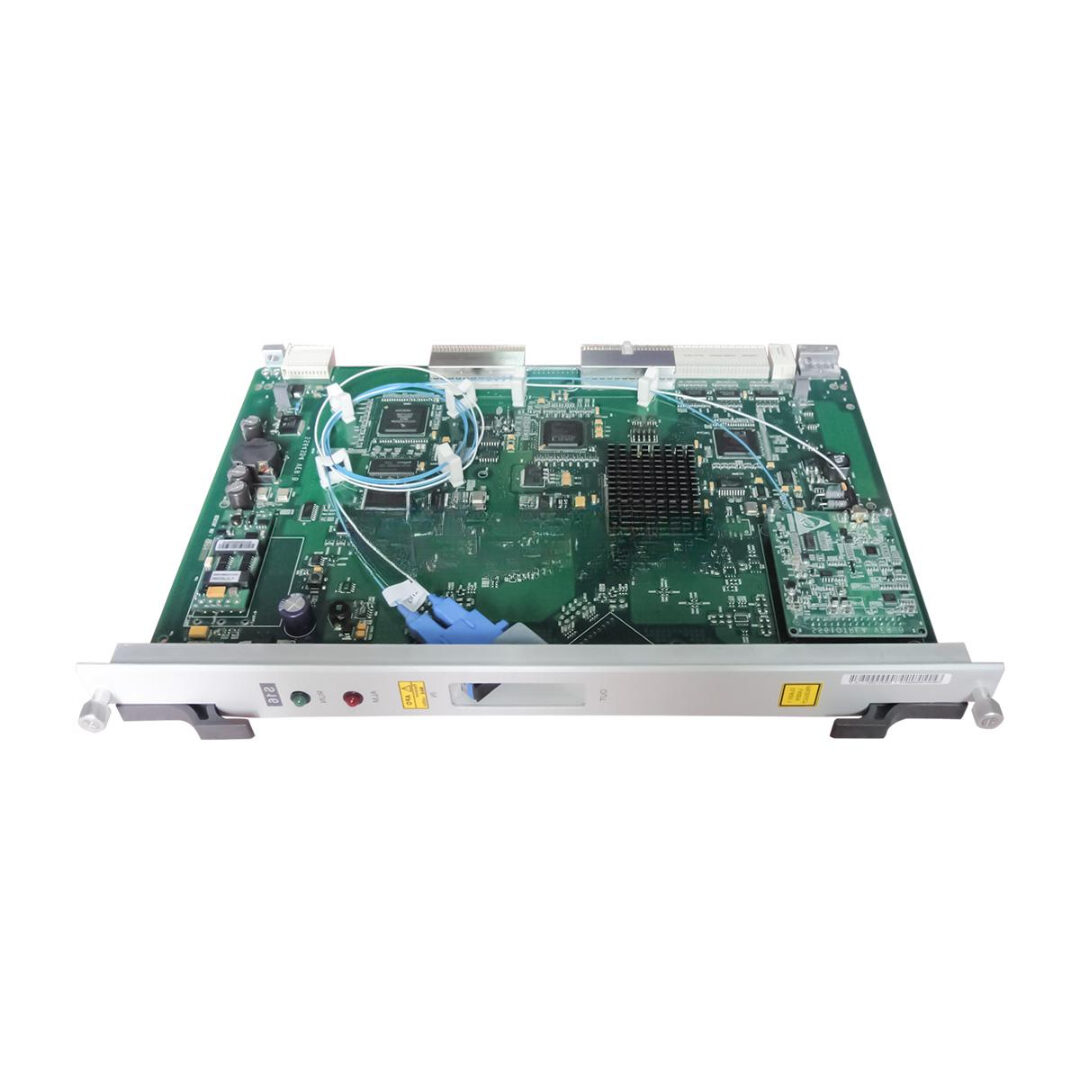

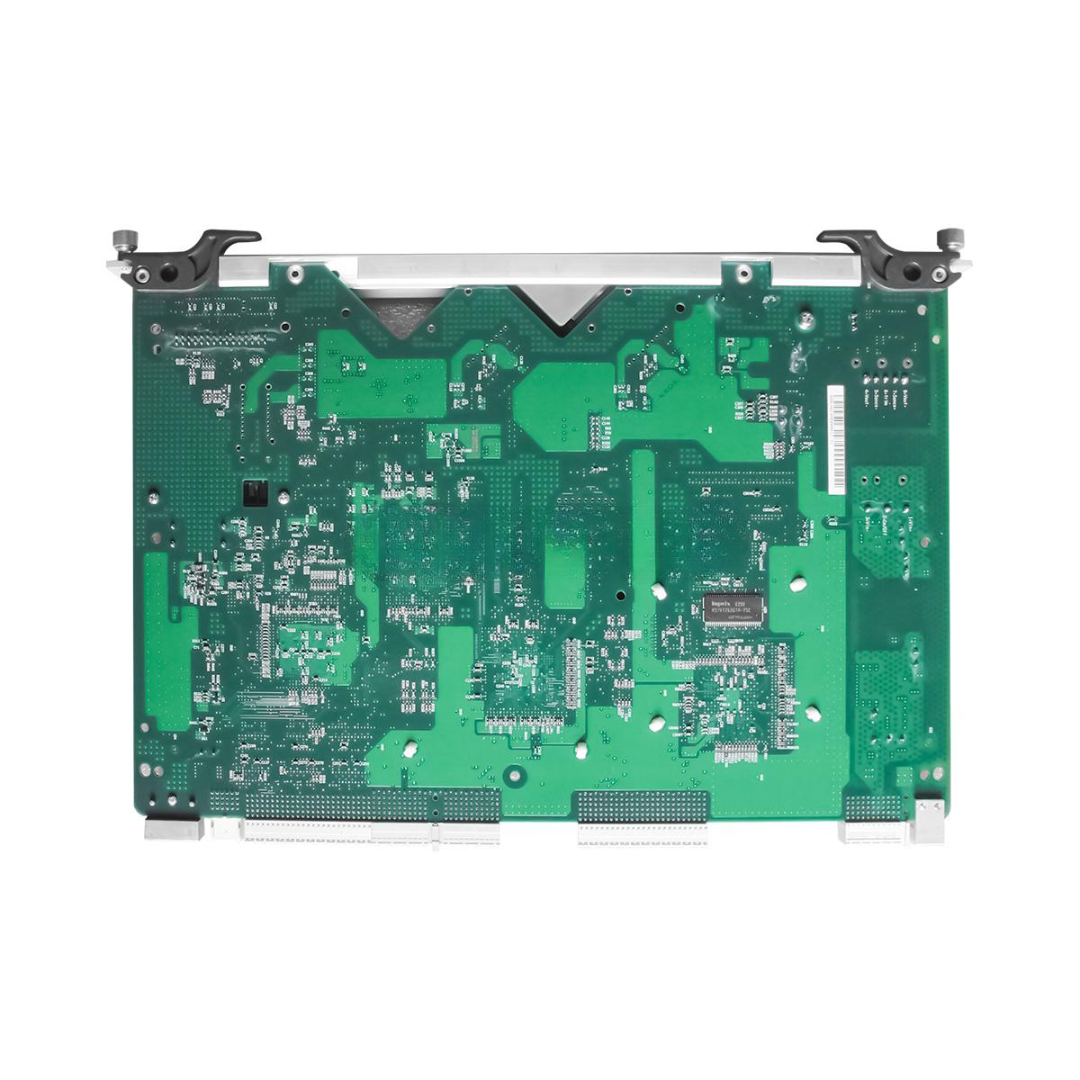

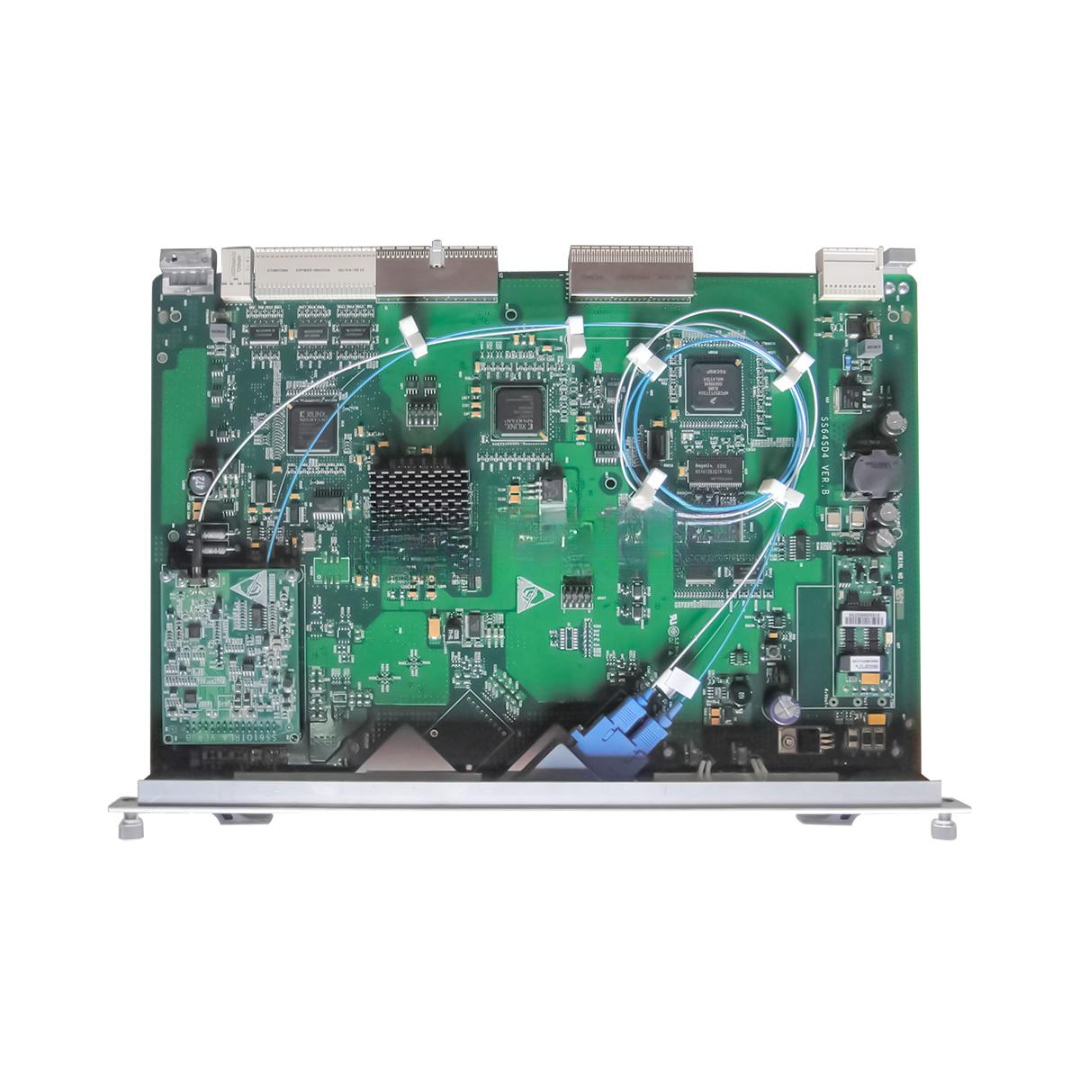

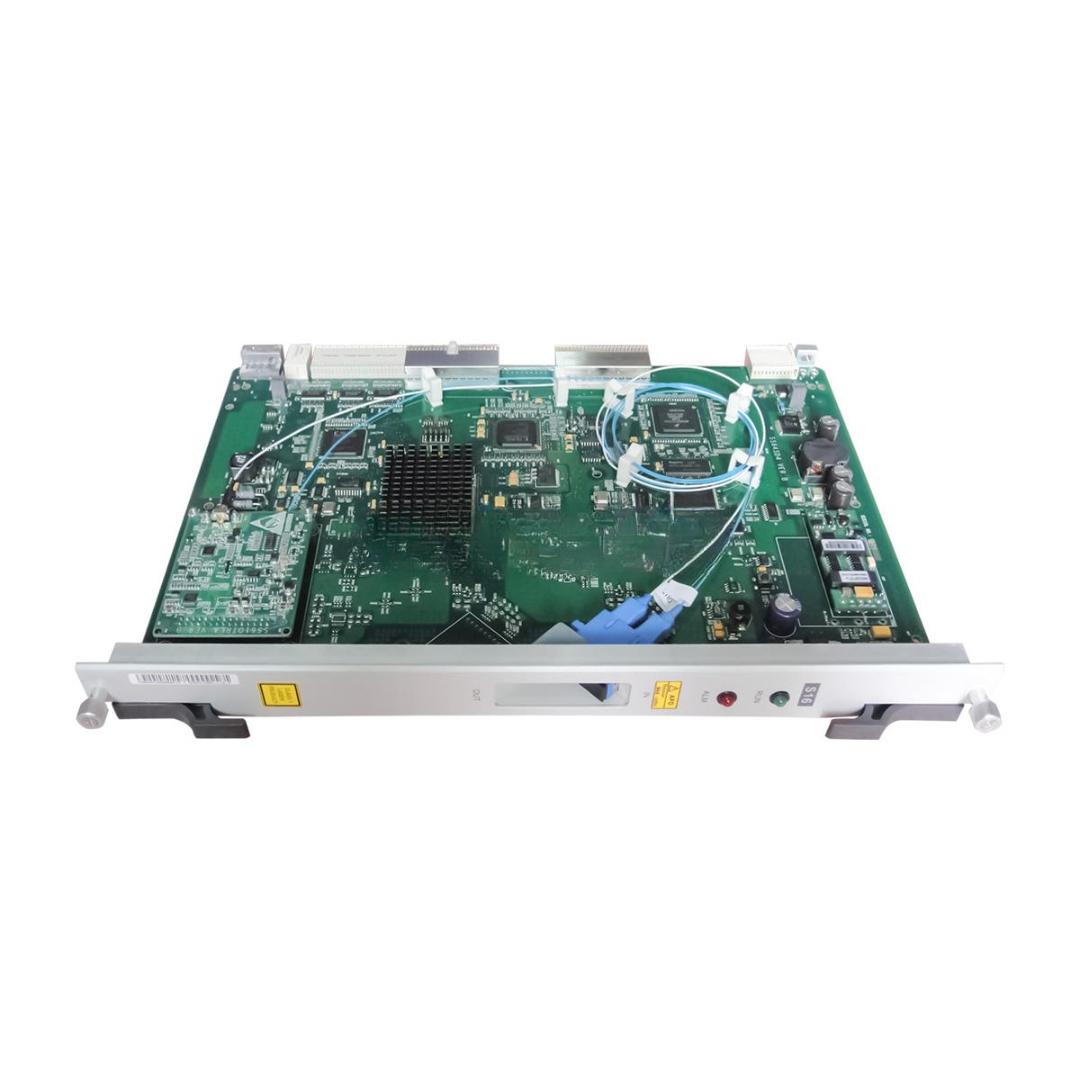

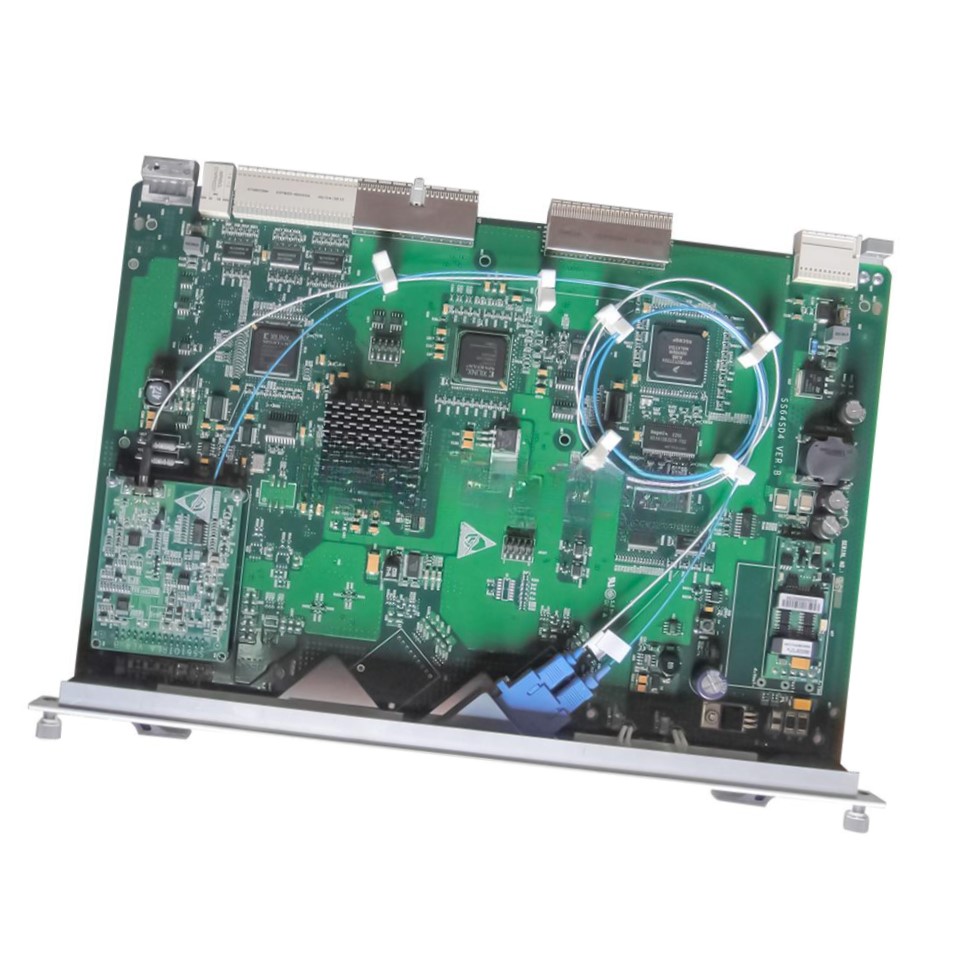

SS64S16A(L-16.2,SC) Huawei Brand New 2.5G Interface Board
The SS64S16A(L-16.2,SC) Huawei high-performance STM-16 optical interface board designed to deliver 2.5 Gbps long-haul transmission across SDH transport networks. Operating at a 1550 nm wavelength, this interface module supports up to 120 km transmission distance and is ideal for telecom backbone, metro networks, and enterprise-grade fiber infrastructure.
Part of the Metro3000 system, the SS64S16A ensures excellent optical performance and stability under varying environmental conditions. With SC-type optical connectors and full compliance with ITU-T standards, it guarantees seamless integration into existing SDH platforms.
Key Features
- Model: SS64S16A(L-16.2,SC)
- Condition: 100% Brand New, Original Huawei OEM
- Transmission Rate: 2.5 Gbps (STM-16)
- Wavelength: 1550 nm
- Transmission Distance: Up to 120 km
- Connector Type: SC/PC Duplex
- Form Factor: Interface board for Huawei Metro3000
- Laser Type: Cooled DFB Laser
- Hot-Swappable: Yes
- Compatible Systems: Huawei OptiX Metro3000 series
- Management: Fully supported via Huawei U2000 NMS
Technical Specifications
| Specification | Details |
|---|---|
| Model | SS64S16A(L-16.2,SC) |
| Data Rate | 2.5 Gbps (STM-16) |
| Optical Standard | ITU-T G.707, G.957 |
| Wavelength | 1550 nm |
| Transmission Distance | ≤ 120 km |
| Fiber Type | Single-Mode Fiber (SMF) |
| Connector Interface | SC/PC Duplex |
| Laser Type | Cooled DFB |
| Launch Power | 0 to +5 dBm |
| Receiver Sensitivity | ≤ -28 dBm |
| Power Consumption | ≤ 6W |
| Operating Temperature | -5°C to +45°C |
| Storage Temperature | -40°C to +70°C |
| Humidity | 5% – 95% RH, non-condensing |
| Compliance | RoHS, CE, FCC |
SS64S16A(L-16.2,SC) Huawei Applications
- Backbone Transport Networks – High-capacity long-distance STM-16 transmission
- Metro Aggregation – Aggregation of multiple E1/STM signals for metro cores
- Enterprise Fiber Links – Reliable, long-reach circuits for private networks
- Carrier-Grade Infrastructure – Stable and scalable fiber transport
- Data Centers – Redundant long-range fiber extensions between facilities
Customization & OEM Options
- Connector Customization — SC/APC or LC variants available on request
- Private Labeling — OEM branding, SN, and configuration services
- Wavelength Adjustment — DWDM/CWDM customization for multiplexing systems
- Factory Testing Reports — Custom BER and eye-diagram validation available
- Packaging Variants — Anti-static trays, custom labeling, or sealed kits
Wholesale & Global Supply Information
- Direct OEM Source — Huawei-certified interface boards with warranty
- Stock Availability — Ready-to-ship for global ISP and integrator needs
- Logistics & Compliance — Full export documentation and secured transport
- Volume Discounts — Cost-efficient pricing for bulk and recurring orders
- Technical Assistance — Compatibility and installation support included
Why Choose SS64S16A(L-16.2,SC) Huawei
Extended Transmission Range (up to 120 km)
Optimized for Huawei Metro3000 systems
Telecom-Grade Reliability and Compliance
High Optical Budget for long-reach fiber paths
Energy-Efficient, Compact, and Durable
Request Your Wholesale Quote Today
Elevate your transport network with the Huawei SS64S16A(L-16.2,SC) 2.5G Interface Board — designed for high-reliability, long-distance, and high-capacity SDH transmission.
Contact us now for datasheets, pricing, bulk supply, and OEM services.
