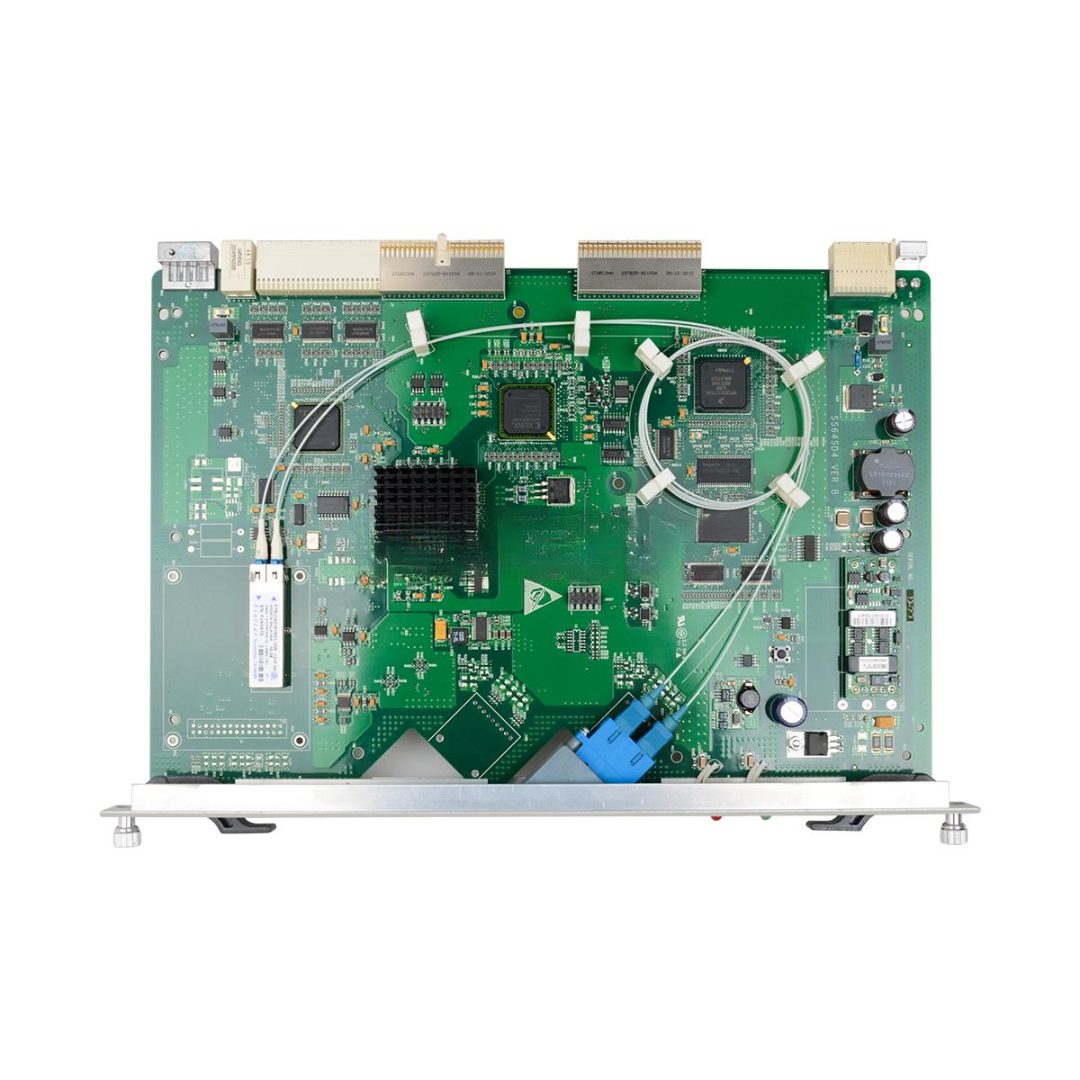

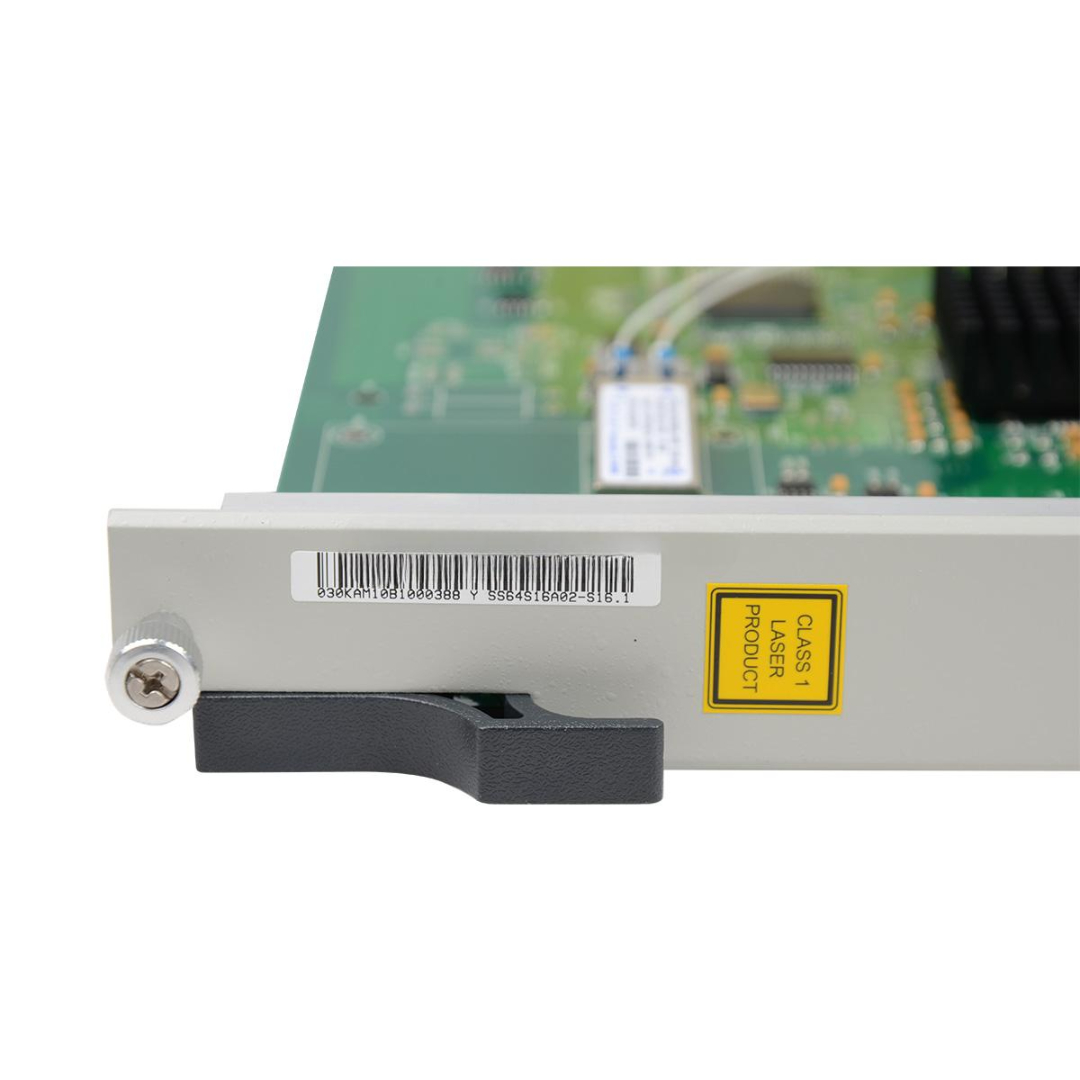

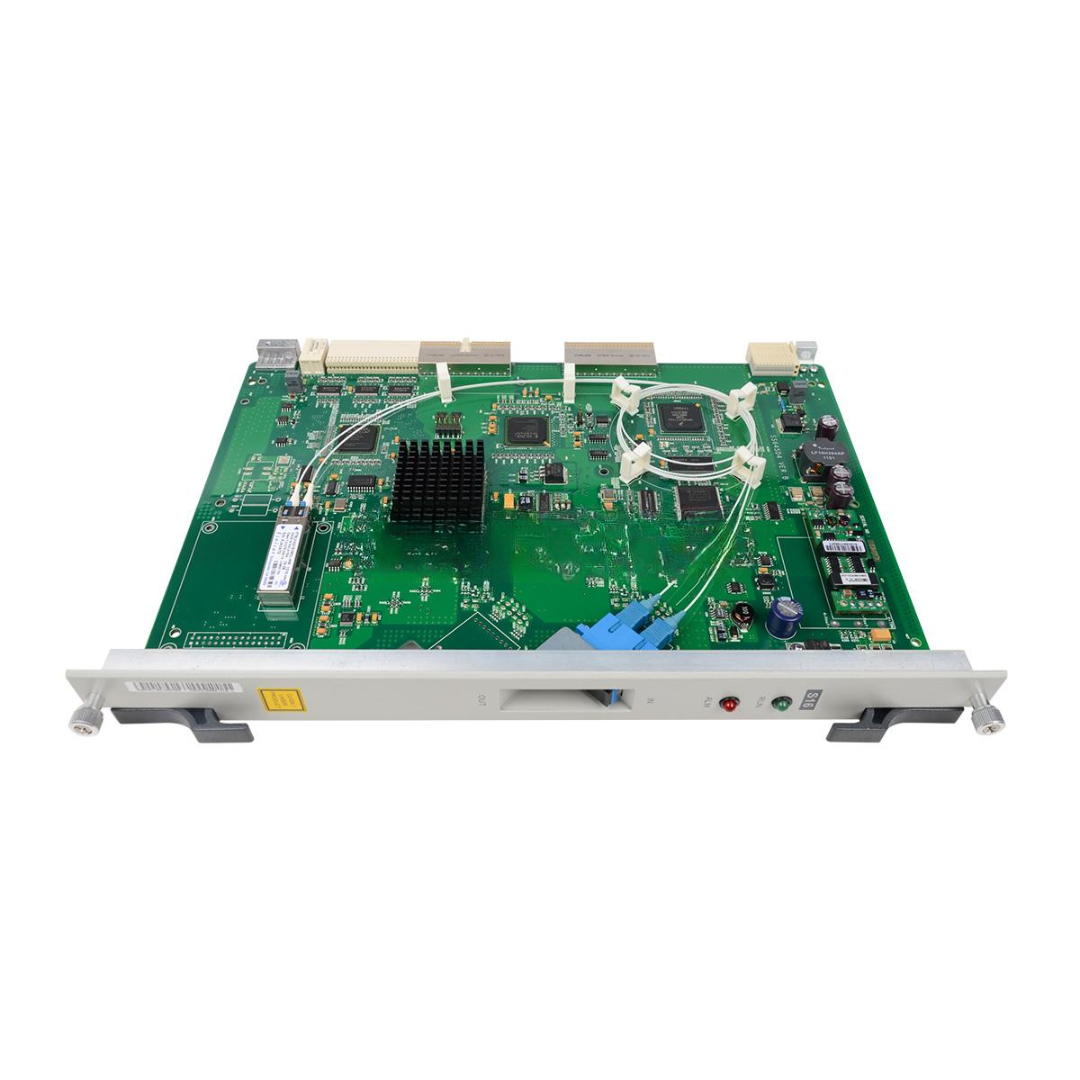

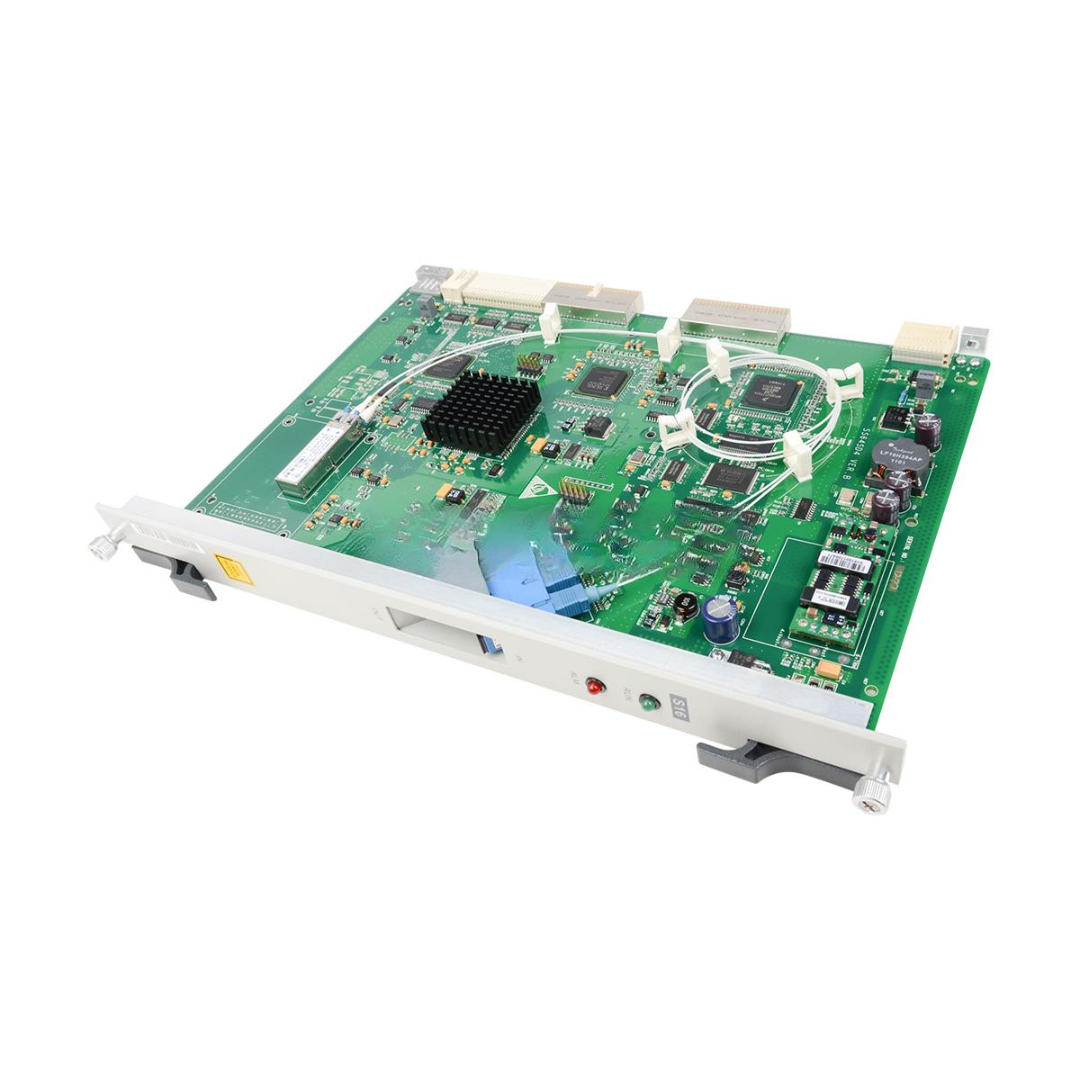

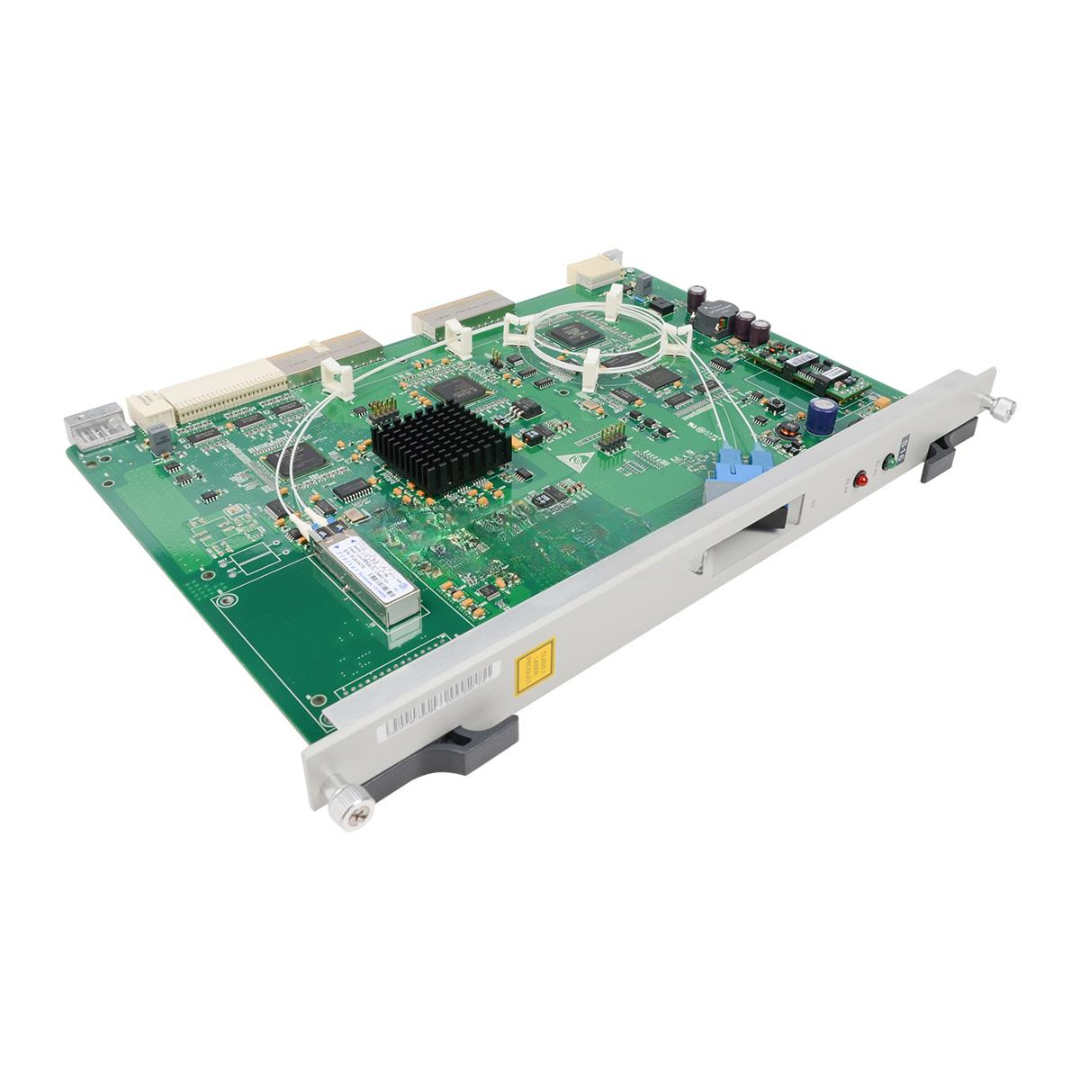

SS64S16A(S-16.1,SC) Huawei Brand New 2.5G Optical Interface Board
The SS64S16A(S-16.1,SC) Huawei is a high-performance 2.5G optical interface board designed to support STM-16 transmission (2.488 Gbps) over single-mode fiber. It uses a short-haul (S-16.1) interface type and features a standard SC optical connector with a wavelength of 1310 nm, suitable for distances up to 2 km.
Ideal for deployment in Huawei OSN transmission platforms, this board provides stable, reliable transmission of SDH services in metro and access networks. It ensures high availability and low latency with built-in performance monitoring and plug-and-play capability.
Key Features
- Model: SS64S16A(S-16.1,SC)
- Condition: 100% Brand New, Original Huawei OEM
- Service Rate: STM-16 (2.5 Gbps)
- Optical Interface Type: S-16.1
- Connector Type: SC
- Wavelength: 1310 nm
- Transmission Distance: Up to 2 km
- Fiber Type: Single-Mode Fiber (G.652)
- Form Factor: 1-Port Optical Interface Board
- Hot-Pluggable: Yes
- Network Compatibility: OSN1500, OSN2500, OSN3500, OSN7500
- Network Management: Supported via Huawei U2000 NMS
Technical Specifications
| Specification | Details |
|---|---|
| Model | SS64S16A(S-16.1,SC) |
| Service Type | SDH STM-16 |
| Bit Rate | 2.488 Gbps |
| Optical Connector | SC |
| Wavelength | 1310 nm |
| Transmission Distance | ≤ 2 km |
| Fiber Type | Single-Mode Fiber (G.652) |
| Laser Type | Uncooled DFB |
| TX Power | -15 to -8 dBm |
| Receiver Sensitivity | ≤ -28 dBm |
| DDM/DOM | Supported |
| Power Supply | 3.3V typical |
| Power Consumption | ≤ 10W |
| Operating Temperature | -5°C to +45°C |
| Storage Temperature | -40°C to +70°C |
| Compliance | ITU-T G.707, G.957, RoHS, CE, FCC |
SS64S16A(S-16.1,SC) Huawei Applications
- Metro Transmission Rings — Ideal for high-capacity, short-reach SDH transport
- Access Layer Aggregation — Connection between edge and aggregation layers
- Industrial and Utility Networks — Reliable SDH backbone for secure environments
- Government and Financial Networks — High-availability infrastructure nodes
- Transport Networks — Short-range links in core transport scenarios
Customization & OEM Options
- Labeling & Branding — OEM branding, serial number laser engraving
- Custom Testing Reports — BER, optical margin validation upon request
- Packaging Options — Bulk trays or branded boxed units
- Compatibility Coding — Firmware-adjusted versions for different OSN systems
- Temperature-Grade Options — Custom industrial-temp variants available
Wholesale & Global Supply Information
- 100% Huawei Original OEM — Direct from certified source
- Inventory Ready — Immediate shipping for bulk orders
- Logistics Support — Customs-friendly packaging & documentation
- Tiered Pricing — Discounts for distributors and long-term partners
- Technical Team Support — Pre-sale consultation and post-sale setup help
Why Choose SS64S16A(S-16.1,SC) Huawei
2.5G High-Speed STM-16 Transport for short-distance links
Huawei Original Quality for stable network integration
Plug-and-Play compatibility with OSN transmission systems
Energy-Efficient Design with reliable performance
Ideal for Metro and Enterprise Environments
Request Pricing & Datasheets
Upgrade your SDH transmission network with the Huawei SS64S16A(S-16.1,SC) — the high-reliability interface board trusted by telecom operators worldwide.
Contact us now for a quote, lead times, and technical documentation.
