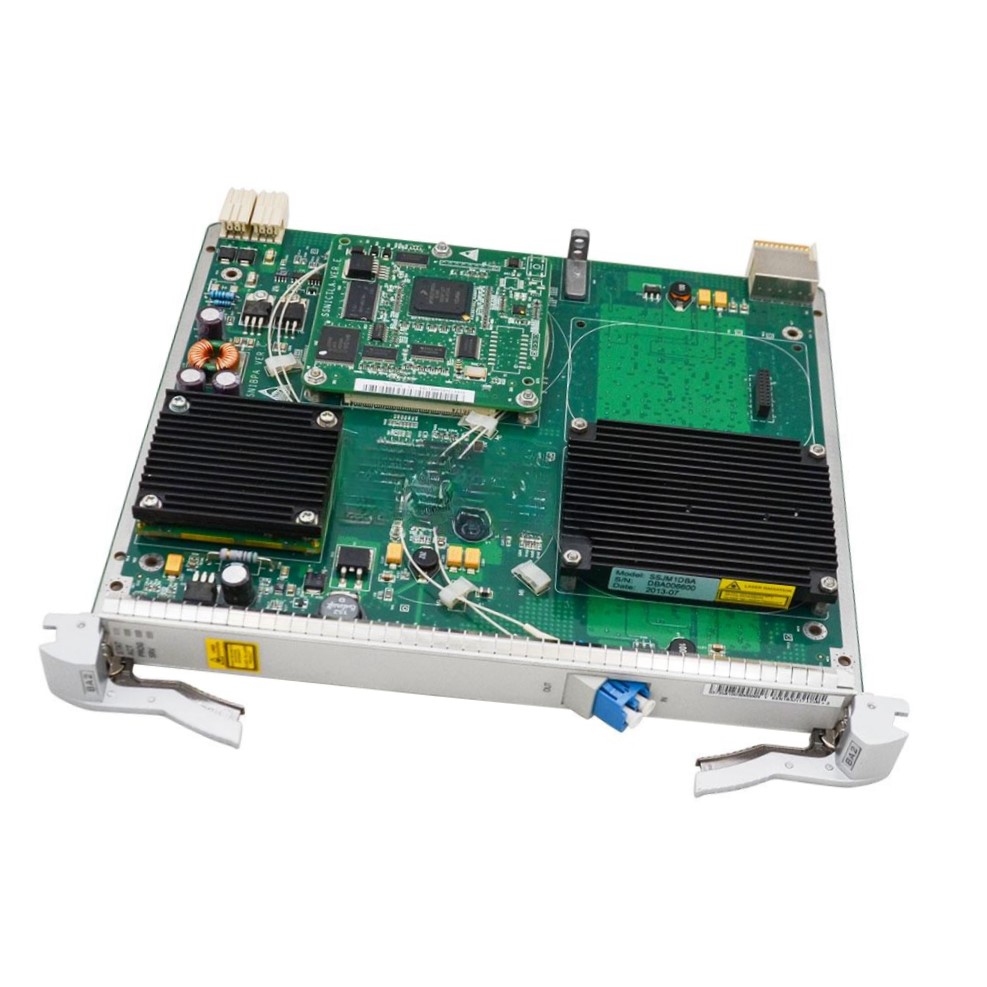

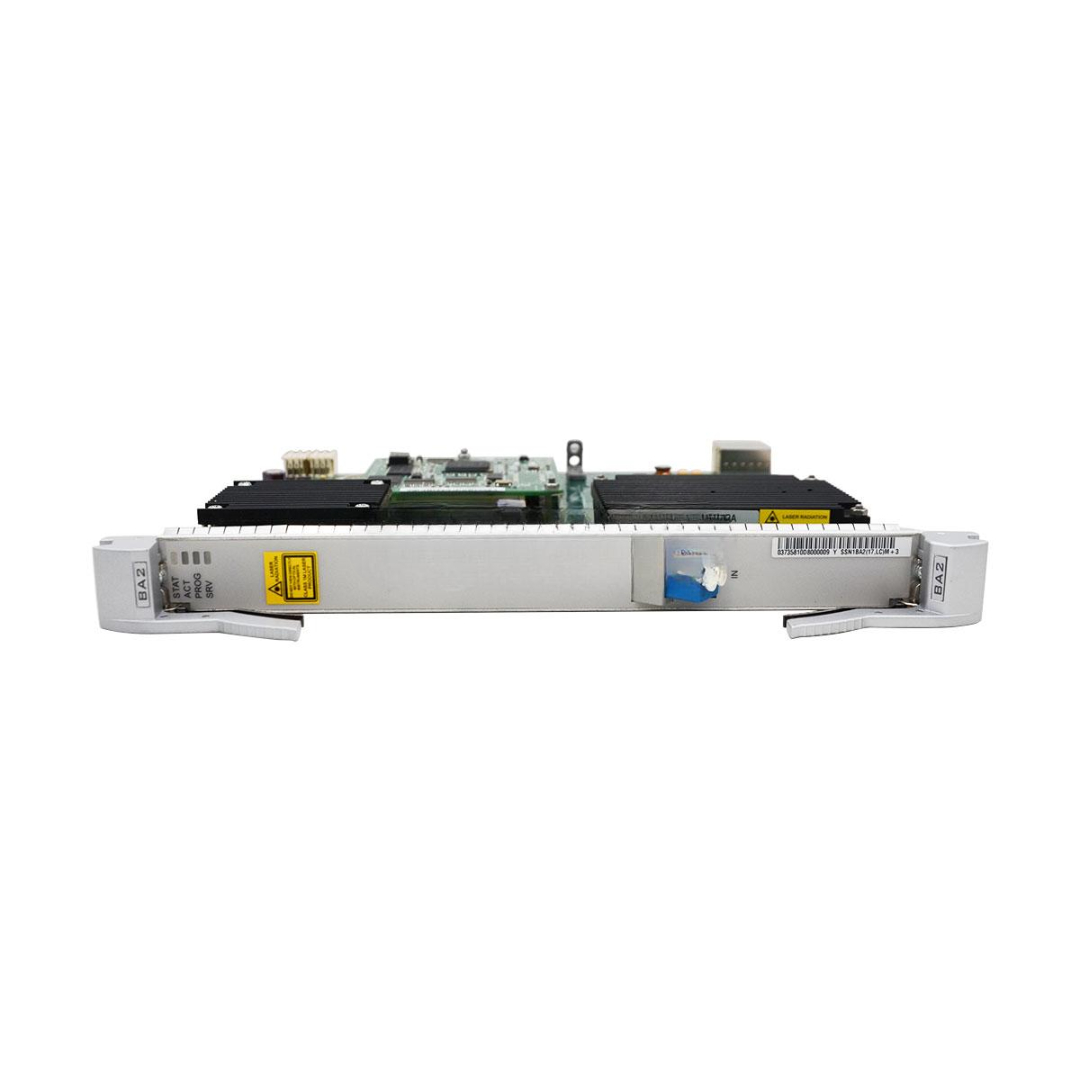

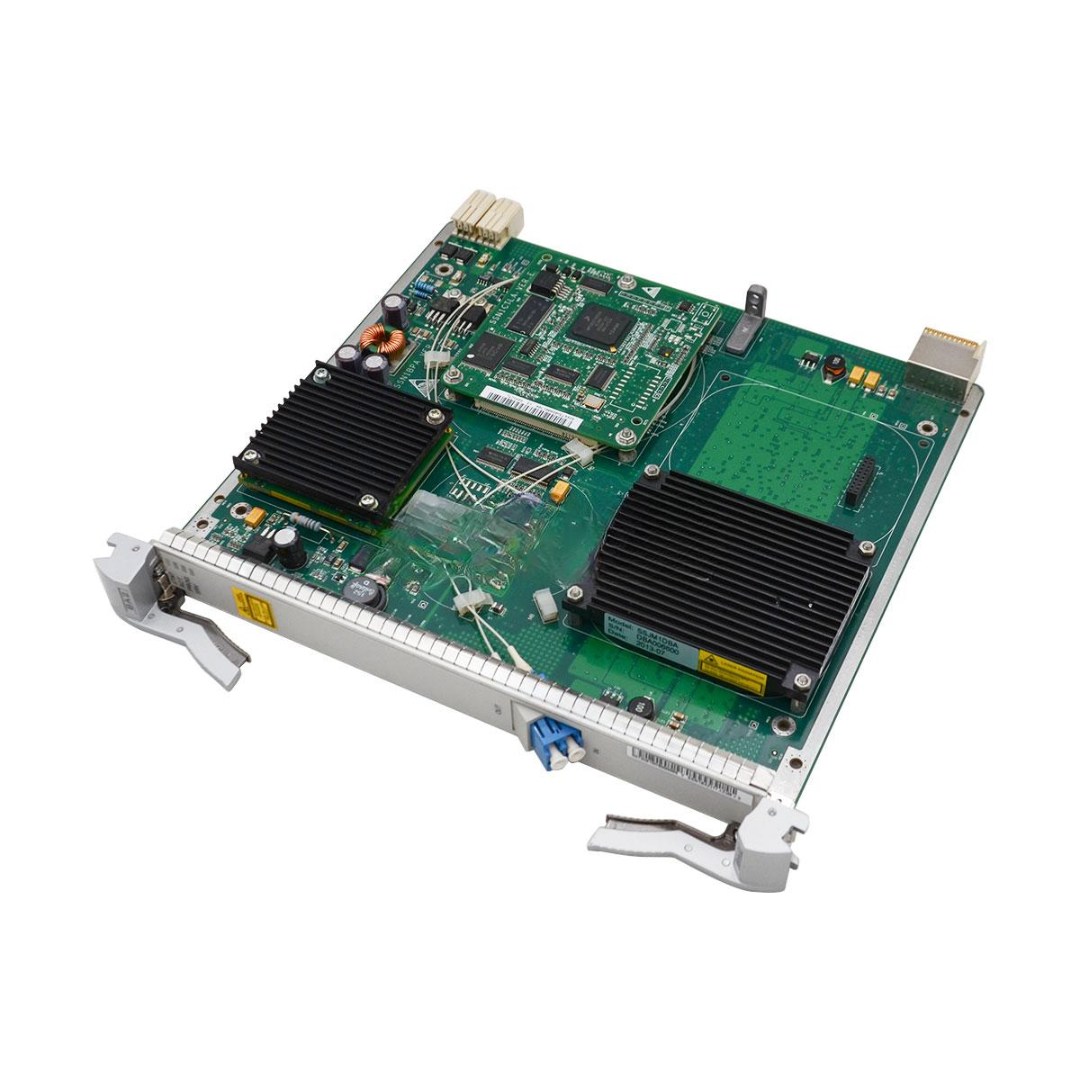

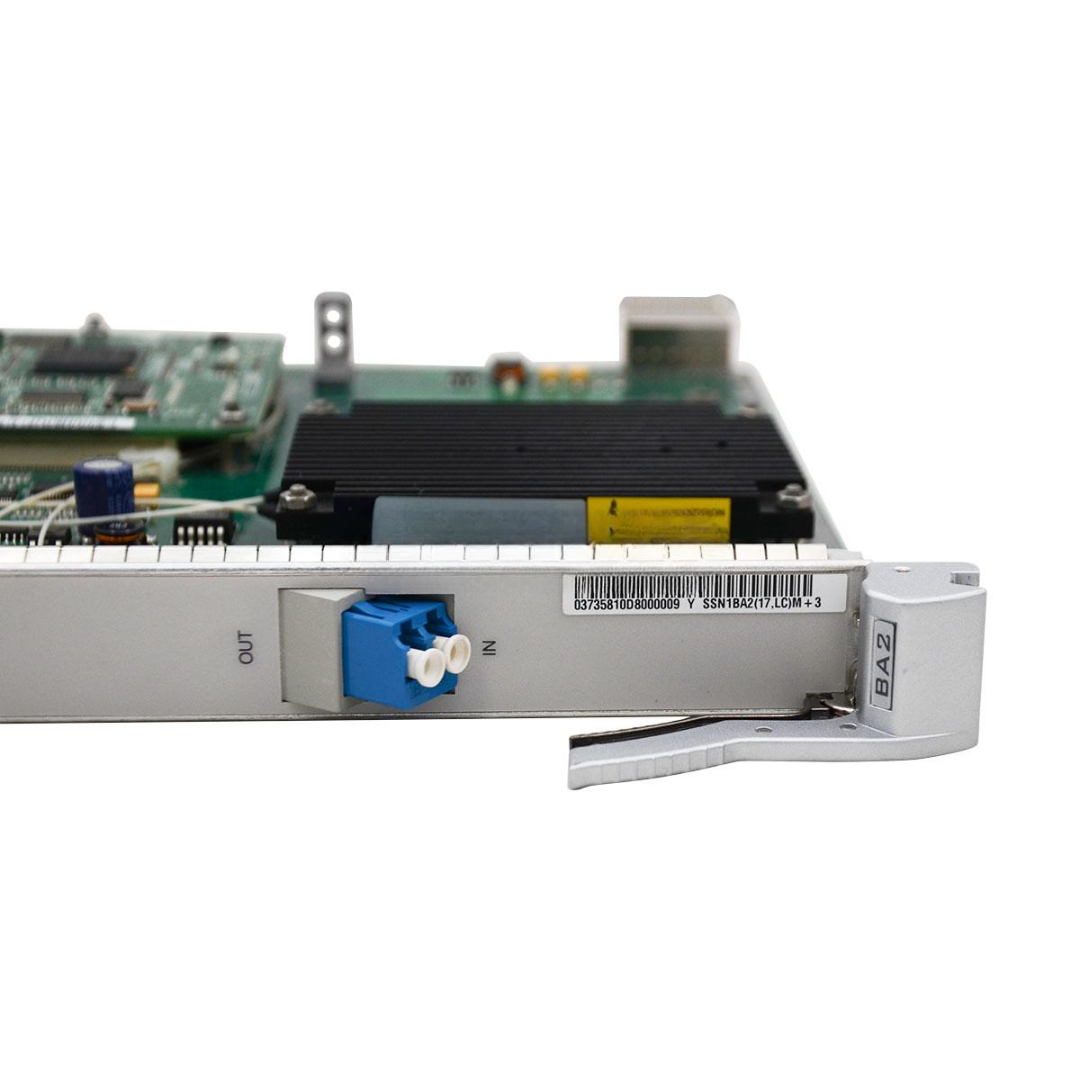

SSN1BA2(17/17,LC) Huawei Brand New Dual Booster Amplifier Board
The SSN1BA2(17,LC) Booster is a high-performance Dual Booster Amplifier Board designed for the Huawei OSN Series optical transport platforms. Engineered for long-haul and ultra-long-haul transmission systems, this board is equipped with dual booster amplifiers, providing stable optical signal amplification and enhanced transmission reach over dense wavelength-division multiplexing (DWDM) systems.
Optimized for LC connector fiber interfaces and configured for 17/17 dBm output, the board is ideal for telecom carriers, ISPs, and optical backbone deployments requiring consistent signal strength and low noise amplification.
Key Features
-
Model: SSN1BA2(17/17,LC)
-
Condition: 100% Brand New, Original Huawei
-
Function: Dual Booster Amplifier for signal amplification at transmitter side
-
Output Power: +17 dBm (per channel)
-
Connector Type: LC (Low Insertion Loss, High Density)
-
Amplifier Type: EDFAs (Erbium-Doped Fiber Amplifiers)
-
Low Noise Figure: High SNR for long-distance transmission
-
Dual Channel Design: Independent dual-path amplification
-
Real-Time Monitoring: Integrated with NMS via DCC channel
Technical Specifications
| Specification | Details |
|---|---|
| Model | SSN1BA2(17/17,LC) |
| Amplifier Type | EDFA (Dual Booster) |
| Output Optical Power | +17 dBm × 2 channels |
| Input Optical Power | -25 dBm to +5 dBm |
| Connector Type | LC/UPC (default) |
| Wavelength Range | C-Band: 1528 nm – 1563 nm |
| Gain Flatness | ≤1.5 dB (across full band) |
| Noise Figure | ≤5.5 dB typical |
| Installation | Slot-based in Huawei OSN1500/3500/7500 |
| Monitoring Interface | RS232, DCC (via OSN management) |
| Power Consumption | ≤25W |
| Operating Temperature | -5°C to +45°C (standard); -40°C to +70°C (storage) |
| Humidity | 5% – 95% RH, non-condensing |
| Compliance | CE, RoHS, ISO9001, Telcordia GR-1312 |
| Warranty | 1–3 years manufacturer-backed |
SSN1BA2(17,LC) Booster Applications
-
Long-Haul DWDM Links — Boost transmission power for long-distance optical fiber
-
Metro Core Networks — Support dense wavelength backbone transport
-
National/Provincial Backbone Rings — Stabilize signal performance over extended reach
-
Enterprise Fiber Backbones — High-reliability signal boosting for large private networks
-
Repeater Stations — Install between spans for optimal signal regeneration
Customization & OEM Services
-
Connector Type Selection — SC/APC, LC/UPC, or custom upon request
-
Power Calibration — Pre-configure output power level or gain setting
-
Monitoring Protocols — RS232/RS485 customization or SNMP integration
-
Private Label — OEM branding and packaging for integrators and distributors
-
Full Kits Available — Optional pigtails, patch cords, and 1U chassis with ventilation
SSN1BA2(17,LC) Booster Wholesale & Bulk Supply Advantages
-
Factory Pricing — Competitive rates for projects, OEMs, and government networks
-
Genuine Huawei — Full verification with barcode and security QR code
-
Global Logistics — Fast shipping with certified export packaging (DG Ready if required)
-
Engineering Support — Integration help and documentation for NMS setup
-
Long-Term Supply — Ideal for multi-phase telecom deployments
Why Choose the SSN1BA2(17,LC) Booster Amplifier Board?
Reliable Optical Boosting — High-output EDFA with excellent thermal and gain stability
Compact Integration — Fits directly into Huawei OSN slots for space-saving designs
Advanced Monitoring — Integrated into Huawei U2000/NMS for network-level visibility
Low Noise & High Gain — Supports critical applications with minimal signal degradation
Field Proven — Trusted across global DWDM and OTN networks
Contact Us Now for Pricing, Datasheets, and OEM Options!
Upgrade your fiber optic backbone with the SSN1BA2(17/17,LC) Huawei Dual Booster Amplifier Board — ideal for telecom transmission networks that demand high-quality optical signal performance and reliability.
