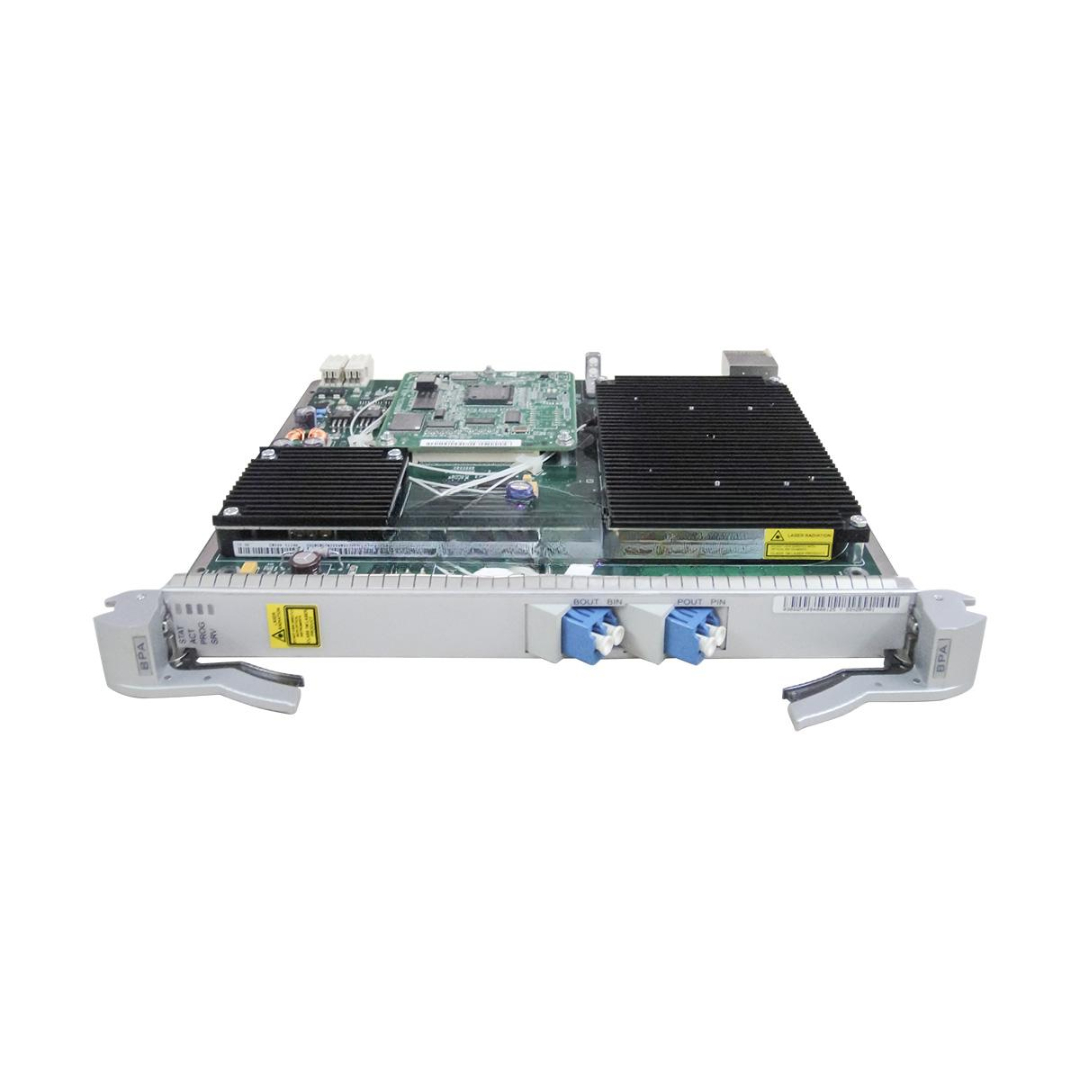

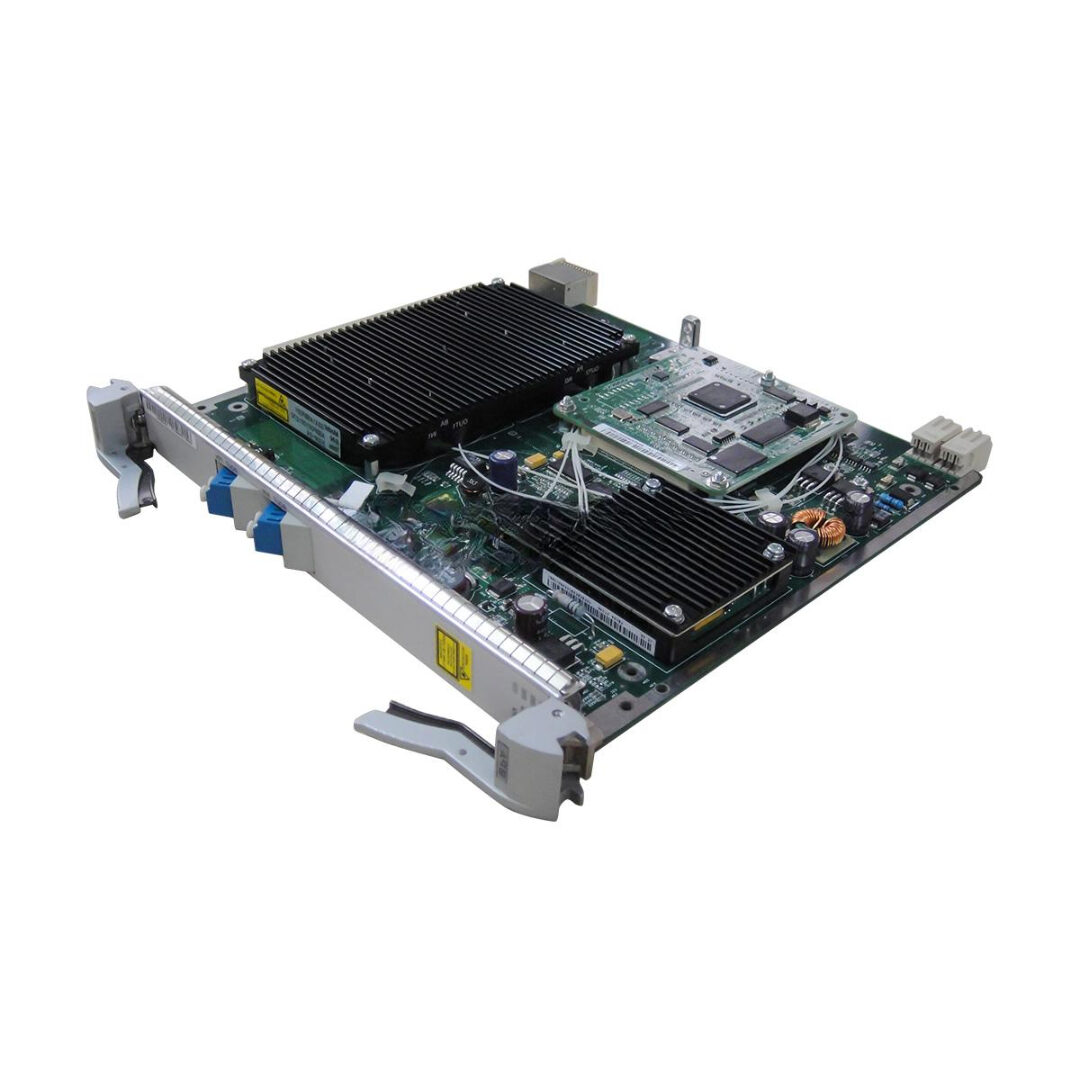

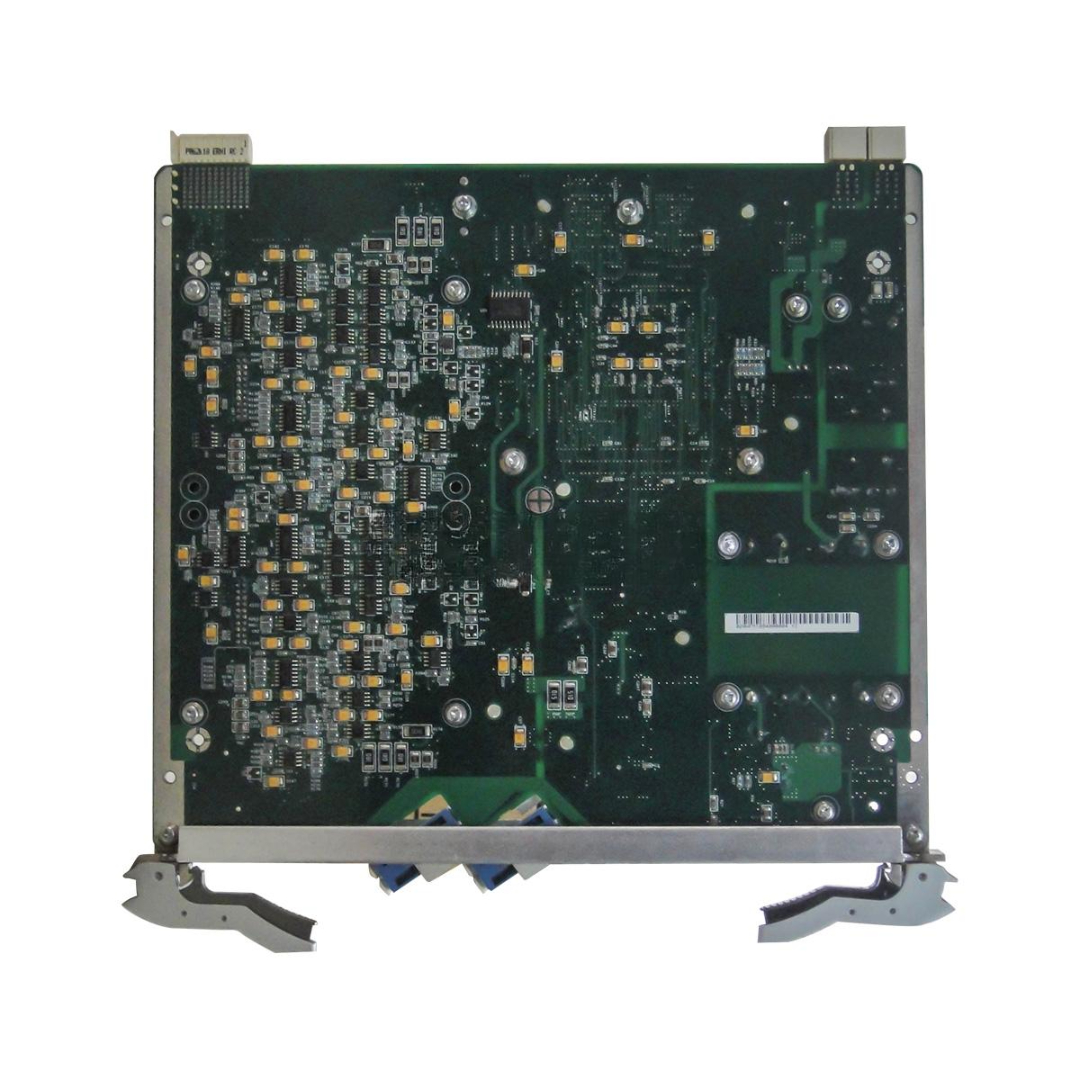

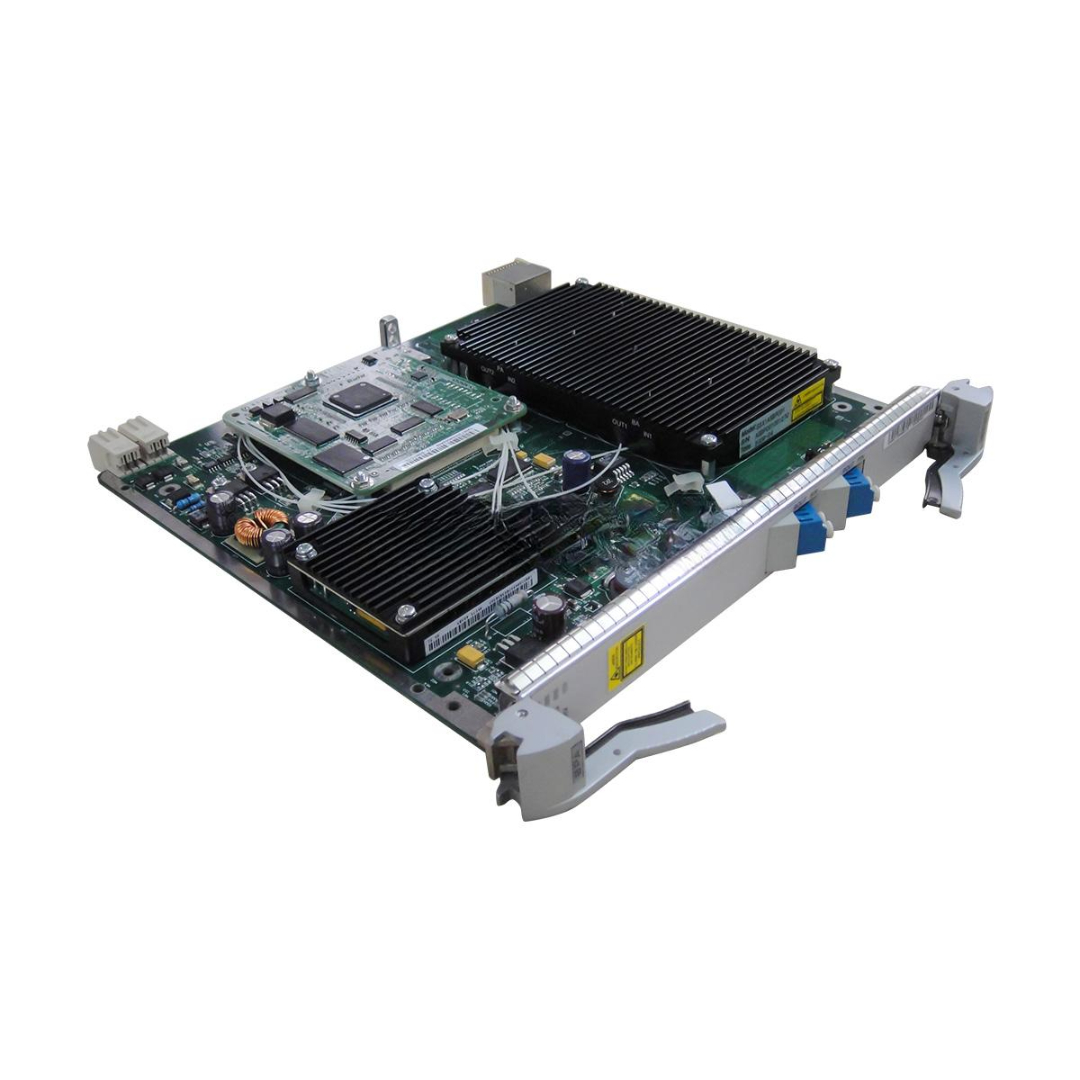

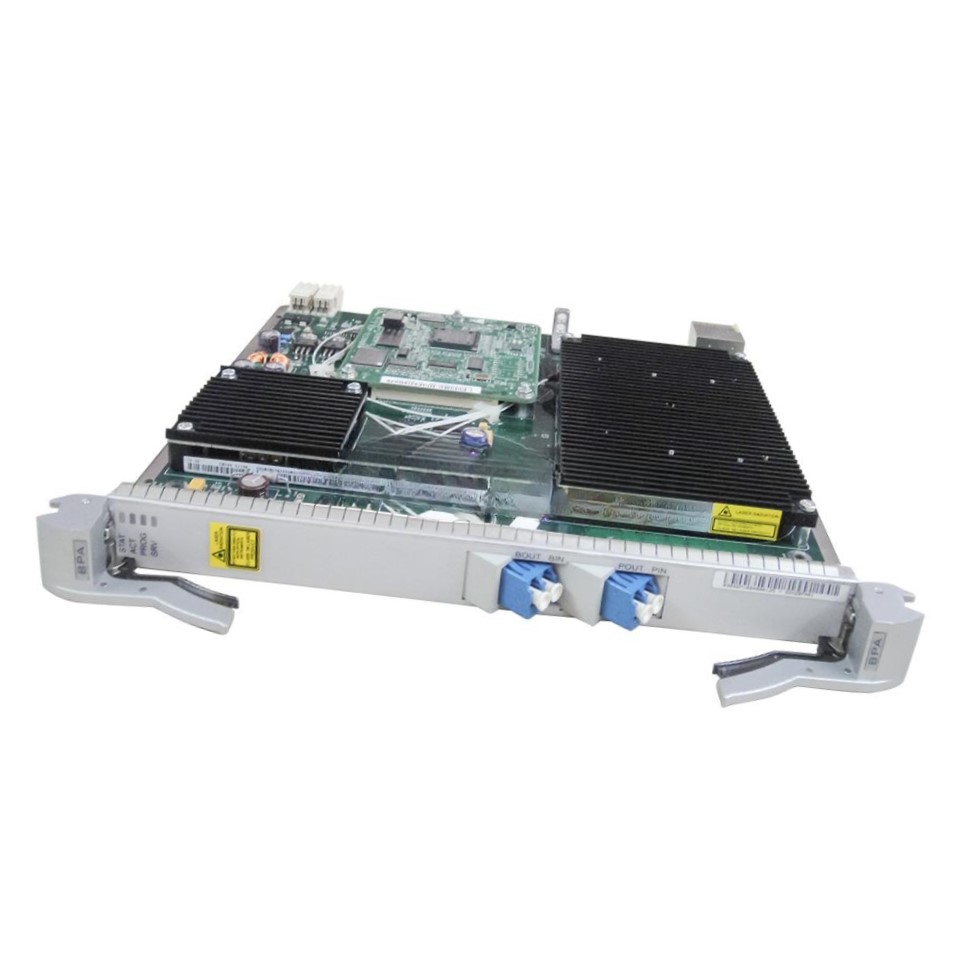

SSN1BPA(17/-38,LC) High Quality Optical Pre-Amplifier Board
The SSN1BPA(17/-38,LC) is a high-performance optical pre-amplifier board developed by Huawei for use in long-haul optical transport networks. Designed for deployment in Huawei’s OptiX OSN series platforms (such as OSN 3500, OSN 7500, and OSN 9500), this board provides optical signal amplification at the receiving end to improve sensitivity and extend the transmission distance of DWDM/SDH/OTN networks. Utilizing EDFA (Erbium-Doped Fiber Amplifier) technology, it ensures reliable signal gain with low noise for high-capacity fiber links.
Key Features
- Model: SSN1BPA(17/-38,LC)
- Condition: 100% Brand New, Original Huawei
- Function: Optical Pre-Amplification (Receive Side)
- Input Power Range: –38 dBm to –17 dBm
- Output Power: Factory-configured gain with low noise
- Connector Type: LC Duplex (single-mode)
- Amplification Type: EDFA (Erbium-Doped Fiber Amplifier)
- Low Noise Figure: Ensures optimal signal-to-noise performance
- Hot-Swappable: Plug-and-play field deployment
Technical Specifications
| Specification | Details |
|---|---|
| Model | SSN1BPA(17/-38,LC) |
| Amplifier Type | Optical Pre-Amplifier (EDFA-based) |
| Input Optical Power | –38 dBm to –17 dBm |
| Connector | LC Duplex (single-mode fiber) |
| Noise Figure | ≤5.5 dB (typical) |
| Gain Range | Factory-set per channel plan |
| Optical Wavelength | C-Band (1528 to 1563 nm) |
| Compatibility | OSN 3500, OSN 7500, OSN 9500 |
| Power Consumption | ≤15W (typical) |
| Operating Temperature | –5°C to +55°C |
| Humidity Range | 5% to 95% RH, non-condensing |
| Protocols Supported | ITU-T G.661, G.662 |
| Alarms & Monitoring | Input/Output Power, Laser Status, Gain, LOS |
| Warranty | 1–3 Years Manufacturer Warranty |
Applications of SSN1BPA(17/-38,LC) Huawei Amplifier Board
- Long-Haul DWDM Systems – Boosts signal at the receive end to ensure long-reach optical transmission
- Metro Core and Edge Networks – Enhances optical budget in high-capacity transport networks
- OTN/SDH Interconnects – Supports advanced optical amplification for multiplexed systems
- Backbone Networks – Essential for high-bandwidth intercity or cross-regional fiber networks
- Submarine Cable Extensions – Used in land-based regeneration sites for undersea systems
Customization & OEM Options
- Custom Gain Configuration – Factory-configured gain profiles based on deployment plan
- Pre-Installed Firmware – Custom software loadouts and channel plans
- Brand Labeling – Private label options with client-specific part numbers
- Bundled Solutions – Patch cords, DWDM filters, and rack kits on request
- Testing & Reports – Extended burn-in and QA reports for critical deployments
Wholesale & Global Procurement
- Direct OEM Supply – 100% Original Huawei optical amplifier units
- Bulk Order Support – Competitive discounts for network integrators and ISPs
- Global Fulfillment – Warehouses in Asia, Middle East, EU, and North America
- Secure International Shipping – Foam-packed, anti-static, and compliant packaging
- Technical Support – Pre-sales engineering and post-deployment troubleshooting
Why Choose SSN1BPA(17/-38,LC) Huawei Pre-Amplifier Board
High Sensitivity – Enhances weak signal detection for long-haul fiber links
Huawei OEM Reliability – Industry-proven EDFA performance
Seamless Integration – Works natively with Huawei DWDM/OTN/SDH systems
Low Noise – Maintains signal integrity across extended distances
Service-Ready – Fully monitored and manageable via Huawei NMS platforms
Contact Us Today for Pricing & Technical Documents
Request real-time pricing, datasheets, and integration support for the Huawei SSN1BPA(17/-38,LC) — a powerful and reliable optical pre-amplifier board designed for modern high-capacity optical transport networks.
