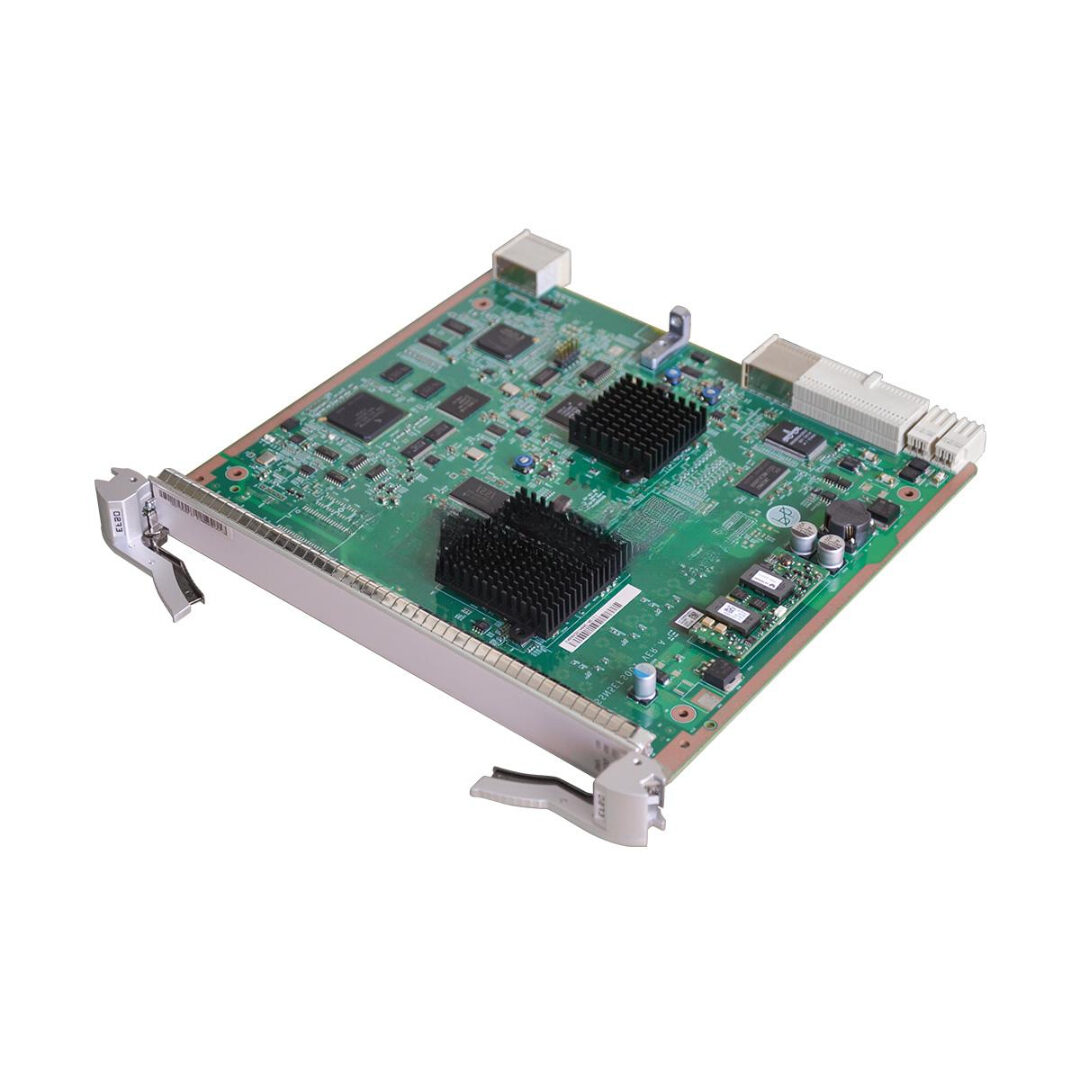

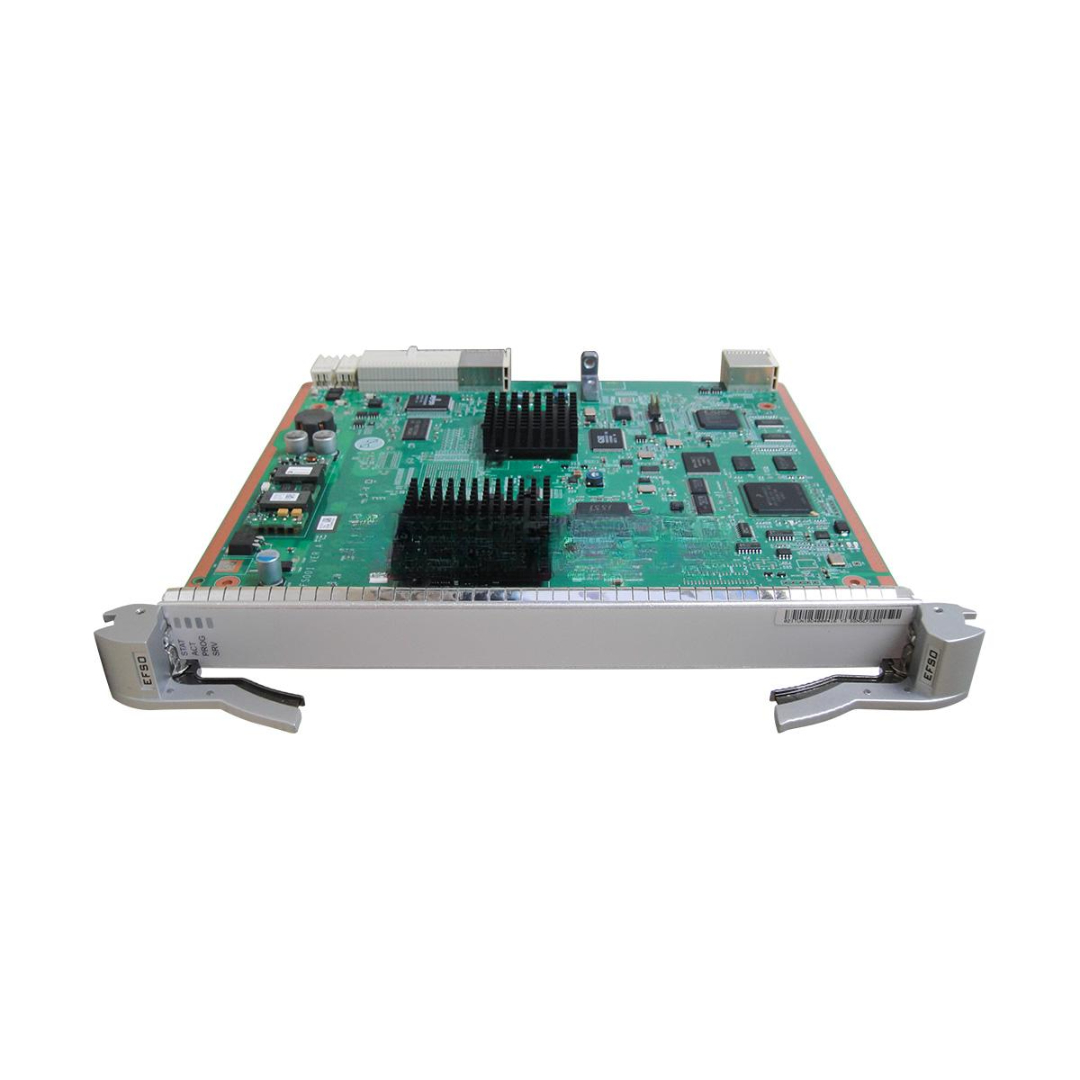

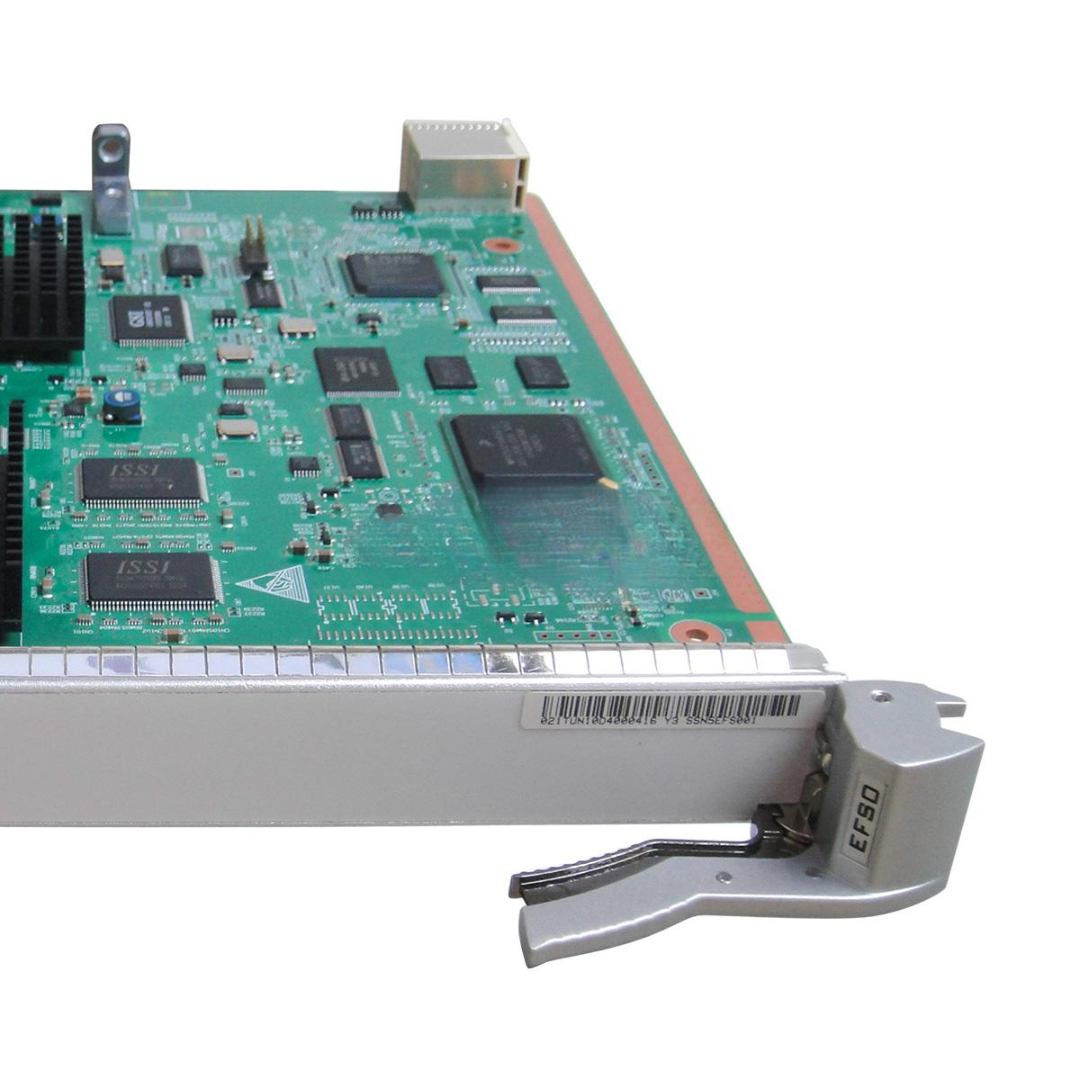

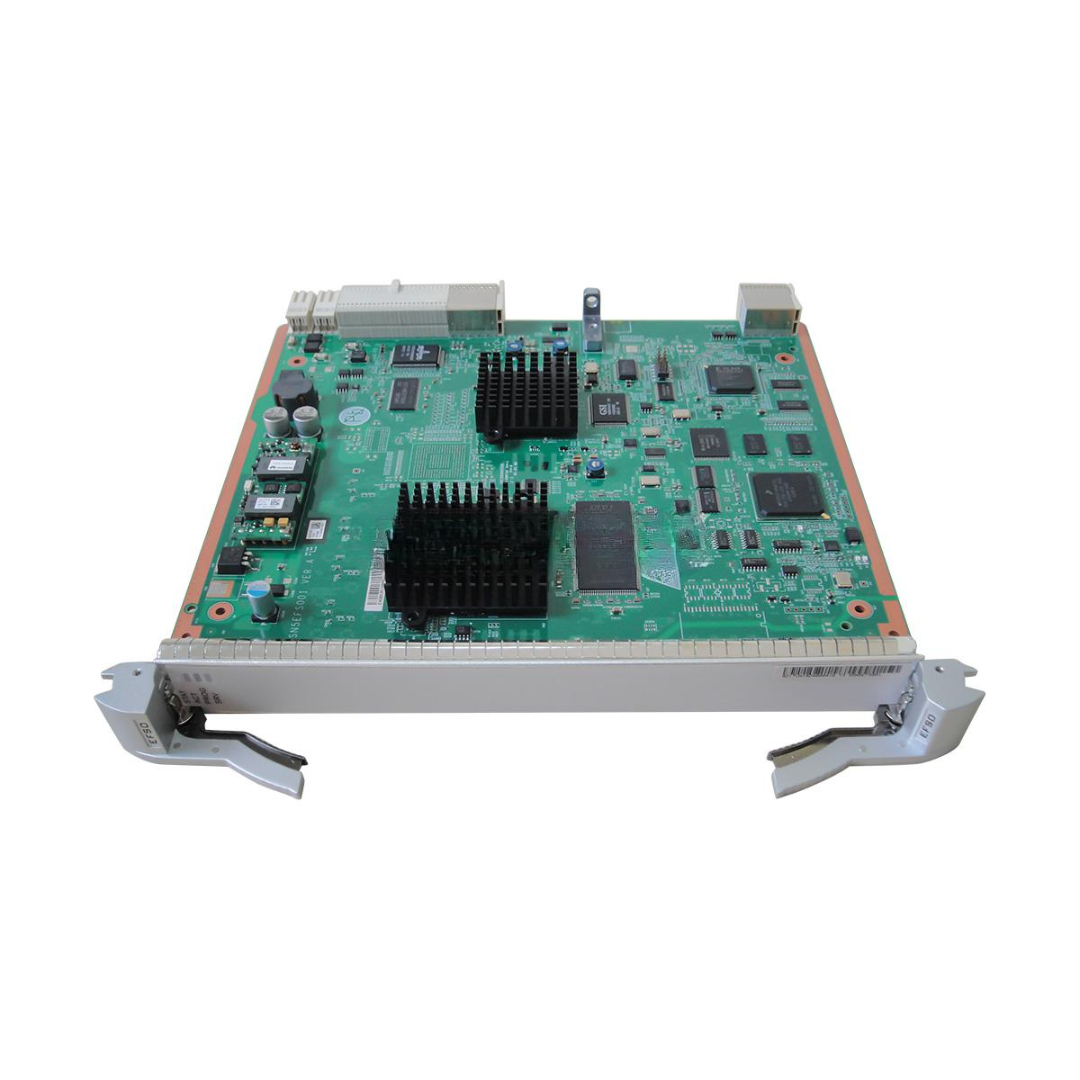

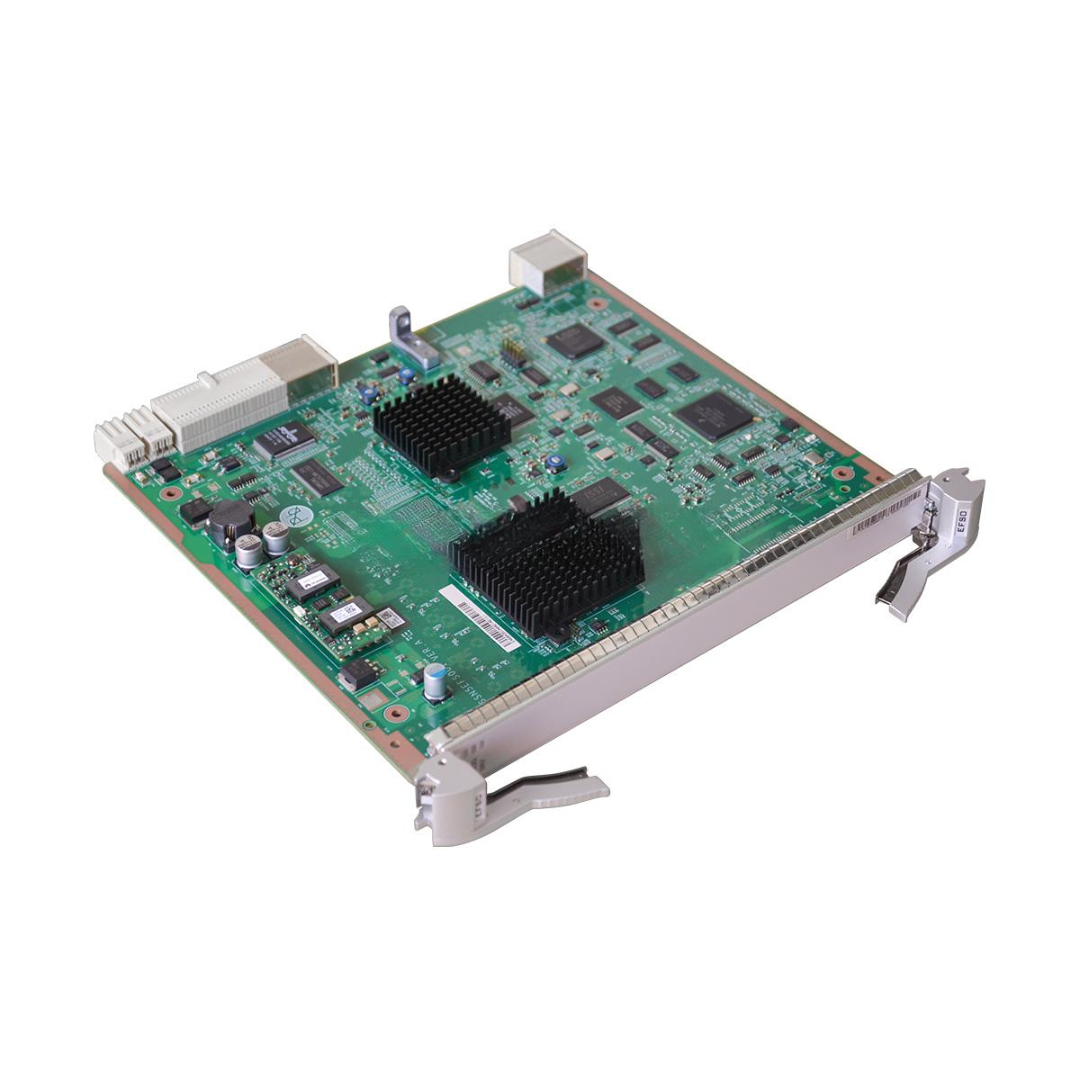

SSN1EFS0A Huawei High Quality Fast Ethernet Processing Board
The SSN1EFS0A Huawei Fast Ethernet Processing Board is a high-performance interface card designed for Huawei’s OptiX OSN series transmission equipment, including OSN1500B, OSN2500, OSN3500, and OSN7500. Equipped with 8 × 10/100Base-TX (RJ45) Ethernet ports, it enables efficient adaptation of Fast Ethernet services into SDH networks, supporting GFP encapsulation and VC mapping.
This board is ideal for applications requiring reliable Ethernet over SDH transport, such as enterprise LAN backhaul, utility communications, and metro network aggregation.
Key Features
-
Model: SSN1EFS0A
-
Condition: 100% Brand New, Huawei Original
-
Port Configuration: 8 × Fast Ethernet (10/100 Mbps RJ45 interfaces)
-
Encapsulation: GFP-F (Generic Framing Procedure – Framed Mode)
-
SDH Mapping: VC12, VC3, or VC4
-
VLAN Support: IEEE 802.1Q VLAN tagging and port-based VLAN configuration
-
Traffic Management: Supports QoS, priority queues, traffic shaping
-
MAC Address Learning: Dynamic and static MAC address support
-
Hot Swappable: Supports online maintenance without service interruption
-
Network Management: Fully compatible with Huawei U2000/NCE-T platforms
Technical Specifications
| Specification | Details |
|---|---|
| Model | SSN1EFS0A |
| Port Type | 8 × RJ45 (10/100 Mbps auto-negotiation) |
| Encapsulation Protocol | GFP-F |
| Mapping Options | VC12 / VC3 / VC4 |
| Max Bandwidth per Port | 100 Mbps |
| MAC Table Capacity | Supports dynamic MAC learning and static entries |
| Power Consumption | ≤ 12W |
| Operating Temperature | -5°C to +55°C |
| Storage Temperature | -40°C to +70°C |
| Humidity | 5% – 95% RH, non-condensing |
| Protocol Compliance | IEEE 802.3, IEEE 802.1Q, ITU-T G.7041 |
| Platform Compatibility | OSN1500B, OSN2500, OSN3500, OSN7500 |
| Warranty | 1–3 Years Manufacturer Warranty |
SSN1EFS0A Huawei Applications
-
Enterprise Ethernet Access – LAN-to-WAN bridging via SDH transport
-
Metro Aggregation Networks – Multi-port Ethernet delivery over optical rings
-
Utility & Energy Networks – High-reliability SCADA backhaul and monitoring systems
-
Transportation & Rail – Real-time traffic control and monitoring over SDH
-
Government & Defense – Secure Ethernet communication through legacy SDH
Customization & OEM Options
-
Preloaded VLAN Configurations – VLANs and port mapping based on user topology
-
OEM Branding – Custom logo, label, and packaging options for resellers
-
Factory Settings Adjustment – Pre-configured port speeds, encapsulations, or QoS settings
-
Custom Burn-In Testing – Enhanced QA for mission-critical and industrial applications
-
Bundled Solutions – Available with patch cables, rack mounts, and SFP modules
SSN1EFS0A Huawei Wholesale & Global Procurement
-
Genuine Huawei OEM Stock – Verified barcodes and manufacturer-sealed units
-
In-Stock Availability – Ready for dispatch to support fast rollouts
-
Protective Packaging – Shock-proof and anti-static materials for global shipping
-
Comprehensive Documentation – Datasheets, CLI commands, and user manuals included
-
Pre/Post Sales Support – Technical guidance, integration support, and configuration help
Why Choose the SSN1EFS0A Huawei Ethernet Processing Board
-
High-Port Density – 8 Fast Ethernet ports for efficient service consolidation
-
Carrier-Class Design – Industrial-grade stability for 24/7 operations
-
Advanced QoS & VLAN – Perfect for traffic shaping, segmentation, and policy enforcement
-
Scalable and Flexible – Easily integrated into Huawei OSN transport environments
-
Globally Trusted Solution – Widely used in telecom, utility, and enterprise networks
Request a Quote or Bulk Purchase Today
Enhance your SDH network with the Huawei SSN1EFS0A — a robust and scalable Fast Ethernet processing board tailored for reliable service delivery across demanding environments. Ideal for global carriers, enterprises, and system integrators.
