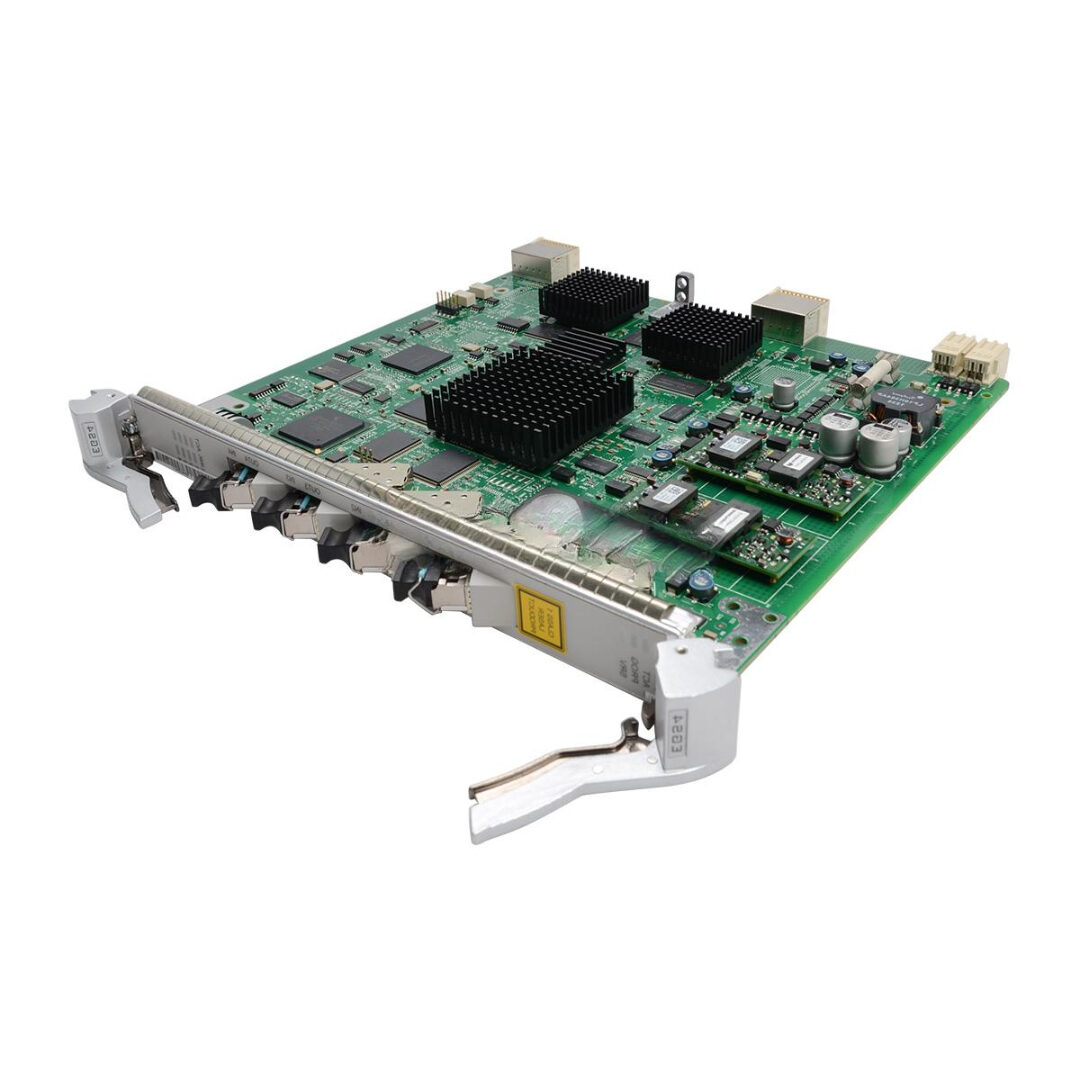

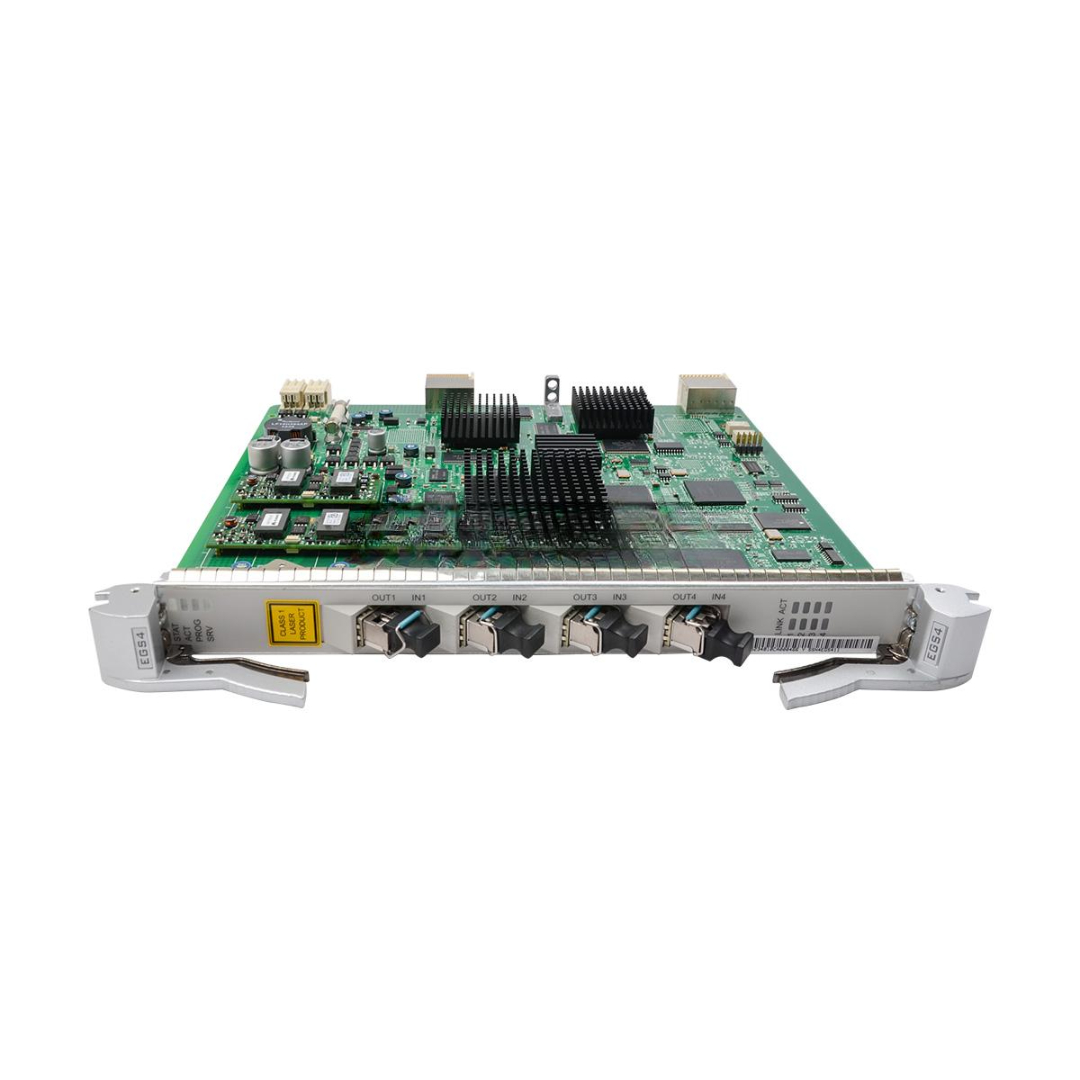

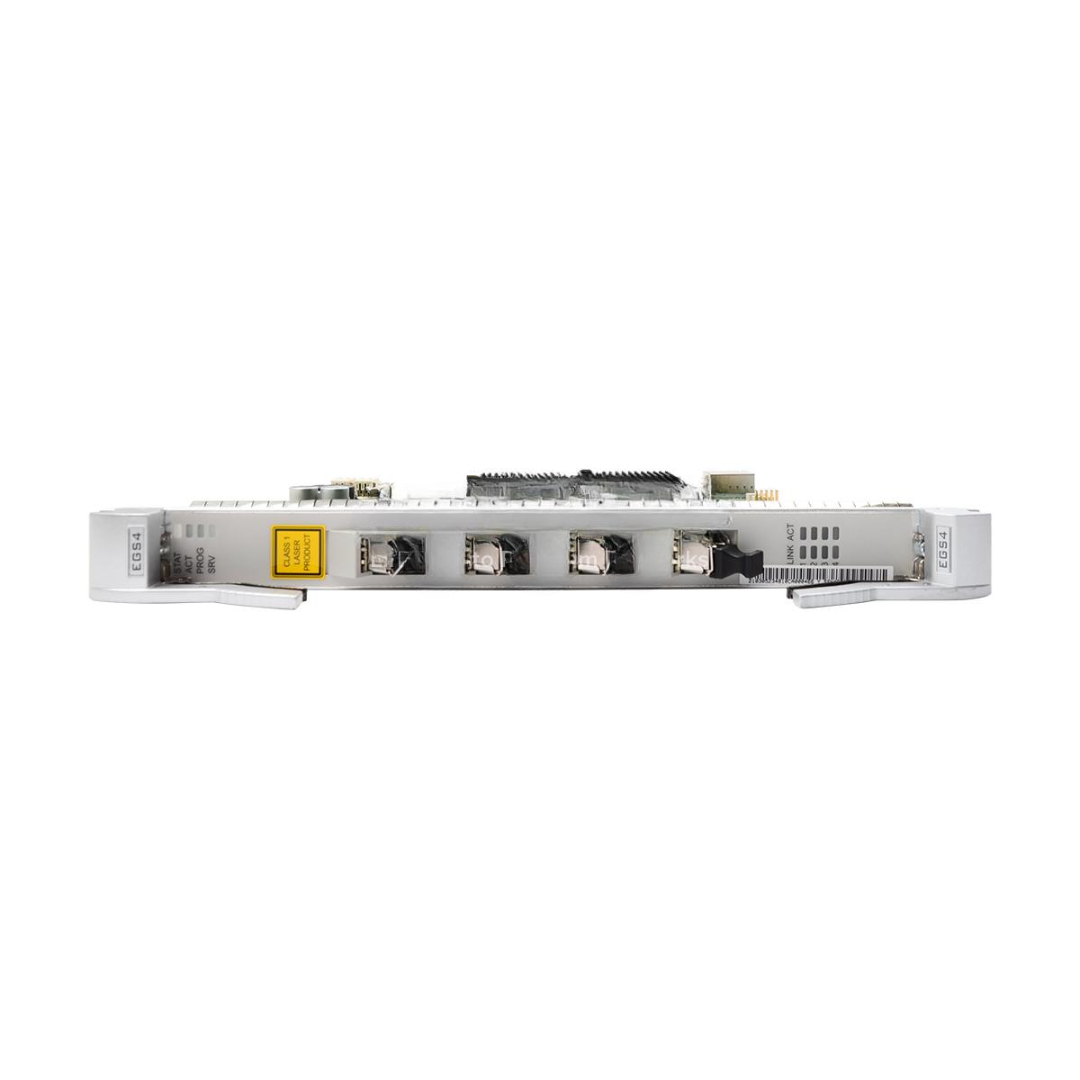

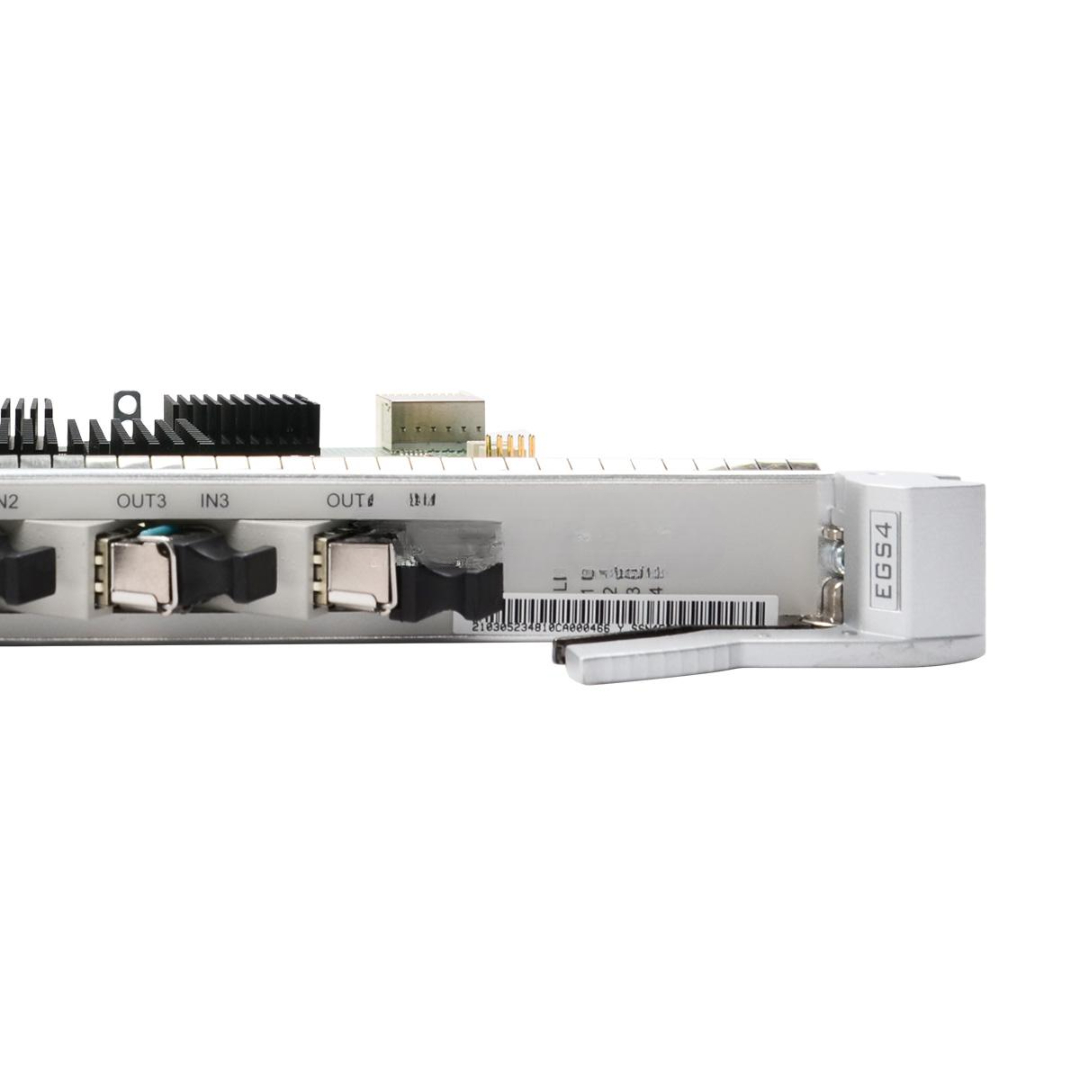

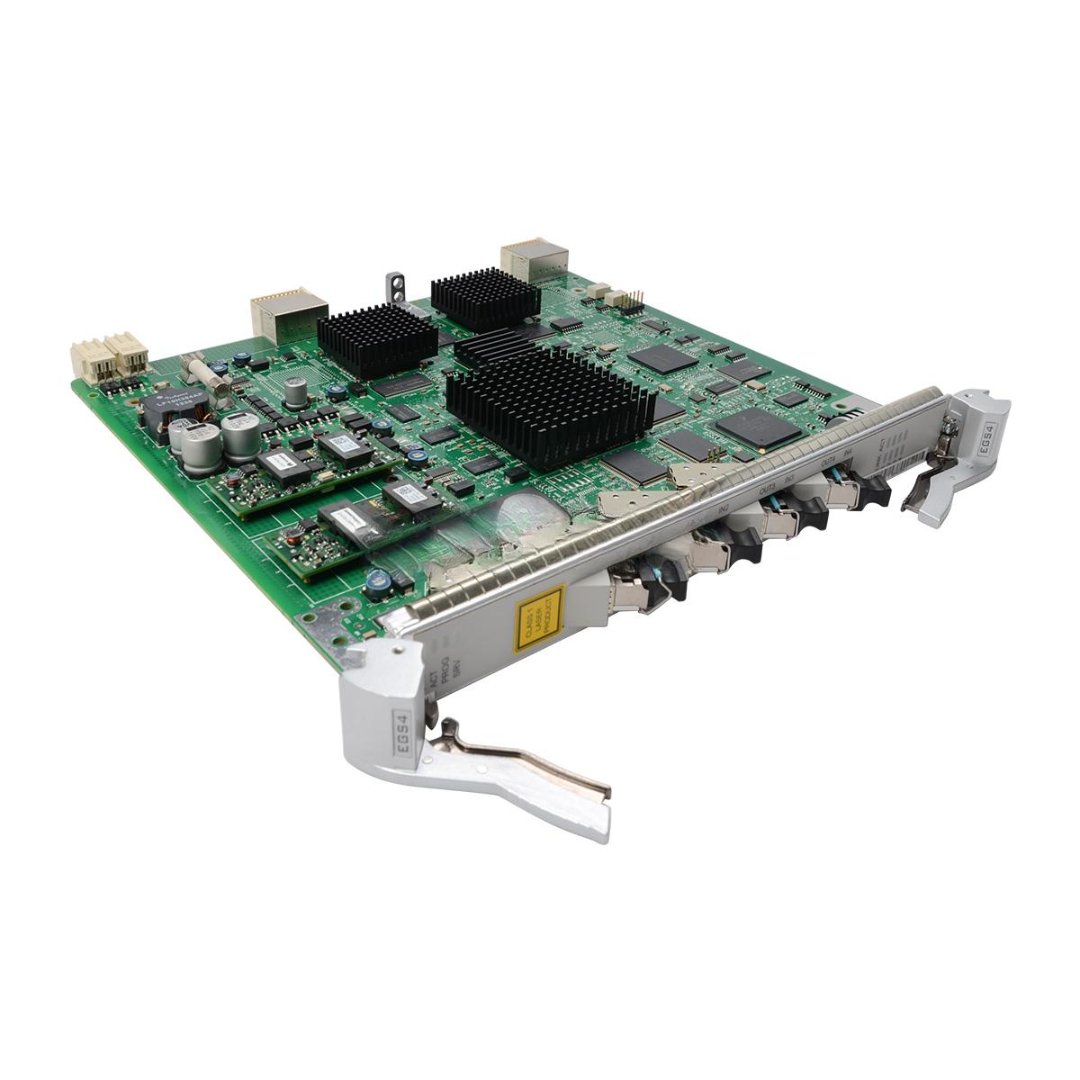

SSN1EGS4 Huawei High Quality Fast Ethernet Processing Board
The SSN1EGS4 Huawei is a high-performance Fast Ethernet processing board designed for Huawei’s OptiX OSN series, including OSN1500, OSN2500, OSN3500, and OSN7500. It delivers reliable 10/100 Mbps Ethernet service access and switching with full compliance to industry standards, ensuring smooth transmission and integration across carrier-grade transport networks.
With 4 Ethernet ports, the SSN1EGS4 supports Layer 2 switching, VLAN tagging, port isolation, and traffic shaping—making it ideal for enterprise services, government networks, and multi-service backbone systems.
Key Features
-
Model: SSN1EGS4
-
Condition: 100% Brand New, Original Huawei
-
Ethernet Ports: 4 × 10/100 Mbps auto-negotiation ports
-
Switching Capacity: Layer 2 switching with VLAN and QoS support
-
Traffic Management: Supports bandwidth control, port mirroring, MAC filtering
-
Protection Features: Link aggregation, STP, RSTP
-
Board Type: Service interface board for Fast Ethernet services
-
Management: Fully manageable via Huawei U2000/NCE-T platforms
-
Installation: Hot-swappable and plug-and-play capable
Technical Specifications
| Specification | Details |
|---|---|
| Model | SSN1EGS4 |
| Port Configuration | 4 × 10/100Base-TX (RJ-45) Ethernet ports |
| Interface Type | Full-duplex / Half-duplex, auto-negotiation |
| Switching Capability | Fast Ethernet Layer 2 switching |
| MAC Table Capacity | ≥ 16K entries |
| VLAN Support | IEEE 802.1Q, QinQ (VLAN stacking) |
| QoS Support | IEEE 802.1p priority, traffic policing/shaping |
| Frame Size Support | Up to 9,216 bytes (jumbo frames) |
| Power Consumption | ≤ 15W (typical) |
| Operating Temperature | -5°C to +55°C |
| Humidity | 5% – 95% RH, non-condensing |
| Standards Compliance | IEEE 802.3, 802.3u, 802.1Q, 802.1p, STP, RSTP |
| Management System | Huawei U2000 / NCE-T |
| Warranty | 1–3 Years Manufacturer Warranty |
SSN1EGS4 Huawei Applications
-
Enterprise WAN Access — Delivering Ethernet over SDH/Hybrid networks
-
Utility & Transport Networks — Reliable, time-sensitive data communication
-
Government & Defense — Isolated and secured L2 communication links
-
Metro Access Networks — High-performance L2 aggregation and service handoff
-
Campus Backbone Networks — Scalable Ethernet distribution with VLAN segmentation
Customization & OEM Options
-
Port Labeling: Custom port IDs, VLAN pre-configuration, or tagging schemes
-
Firmware Configuration: Pre-loaded MAC filtering rules and bandwidth profiles
-
Branding & Packaging: Private label options for systems integrators and OEMs
-
Pre-Assembled Units: Delivery with pre-integrated Huawei subracks and power systems
-
Extended Testing: Burn-in and compliance testing for critical environments
SSN1EGS4 Huawei Wholesale & Global Distribution
-
Authentic Huawei OEM: Verified, factory-sealed, and traceable with barcode
-
Bulk Availability: In-stock for large-scale deployments and rapid delivery
-
Safe Shipping: Anti-static, shock-proof packaging for international logistics
-
Documentation Support: Datasheets, test reports, and installation manuals included
-
Technical Services: Remote setup, provisioning support, and NMS integration help
Why Choose SSN1EGS4 Huawei Fast Ethernet Board
-
Carrier-Class Performance — Consistent and secure Layer 2 service delivery
-
Compact & Efficient — 4 FE ports on a single board with full VLAN/QoS capabilities
-
Highly Compatible — Works with major Huawei OSN transmission systems
-
Proven Reliability — Thousands of deployments in telecom and industrial networks
-
Future-Ready Investment — Long-term support with upgrade options
Contact Us Today for pricing, lead times, and datasheets for the SSN1EGS4 Huawei Fast Ethernet Processing Board — trusted for reliable, scalable, and standards-compliant network connectivity.
