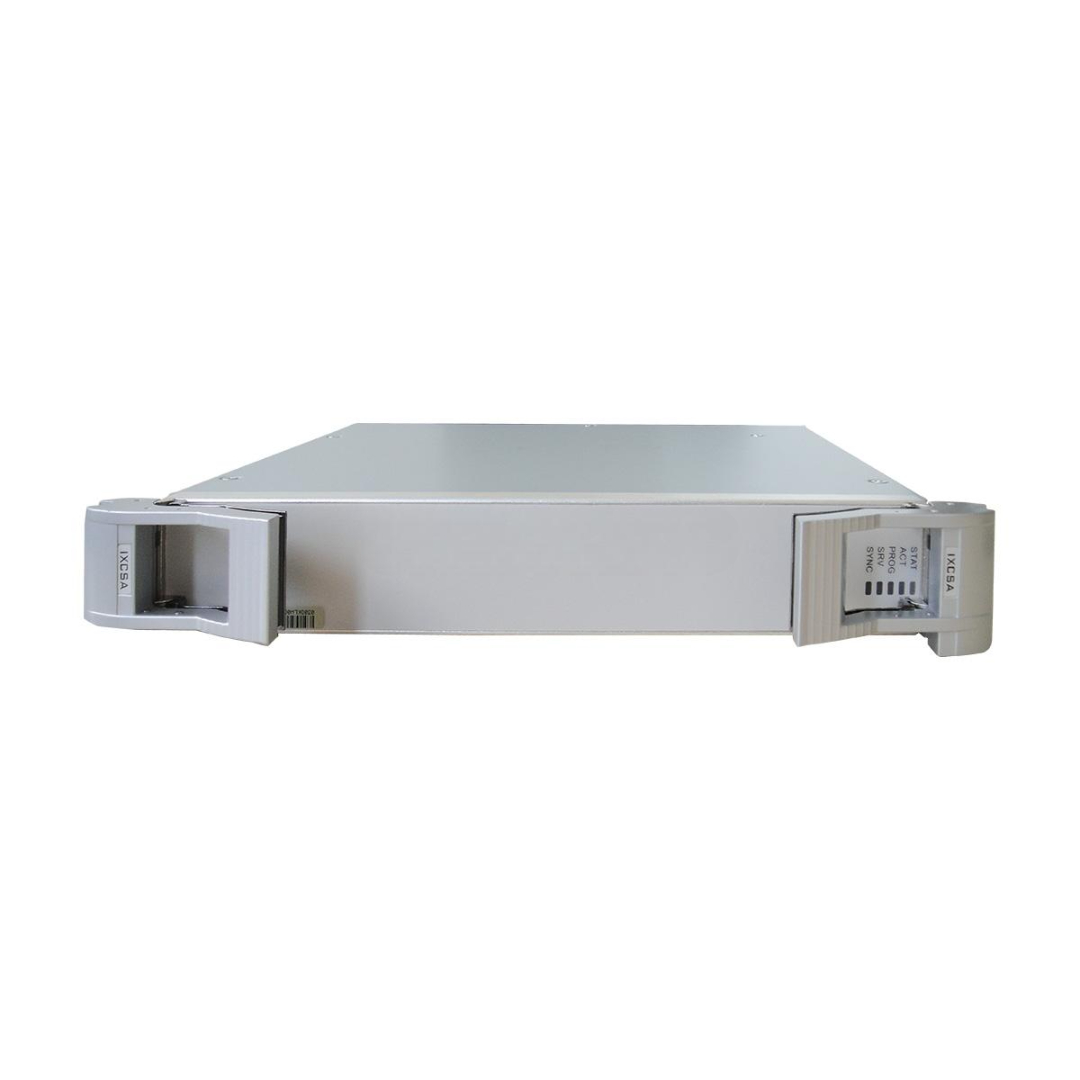

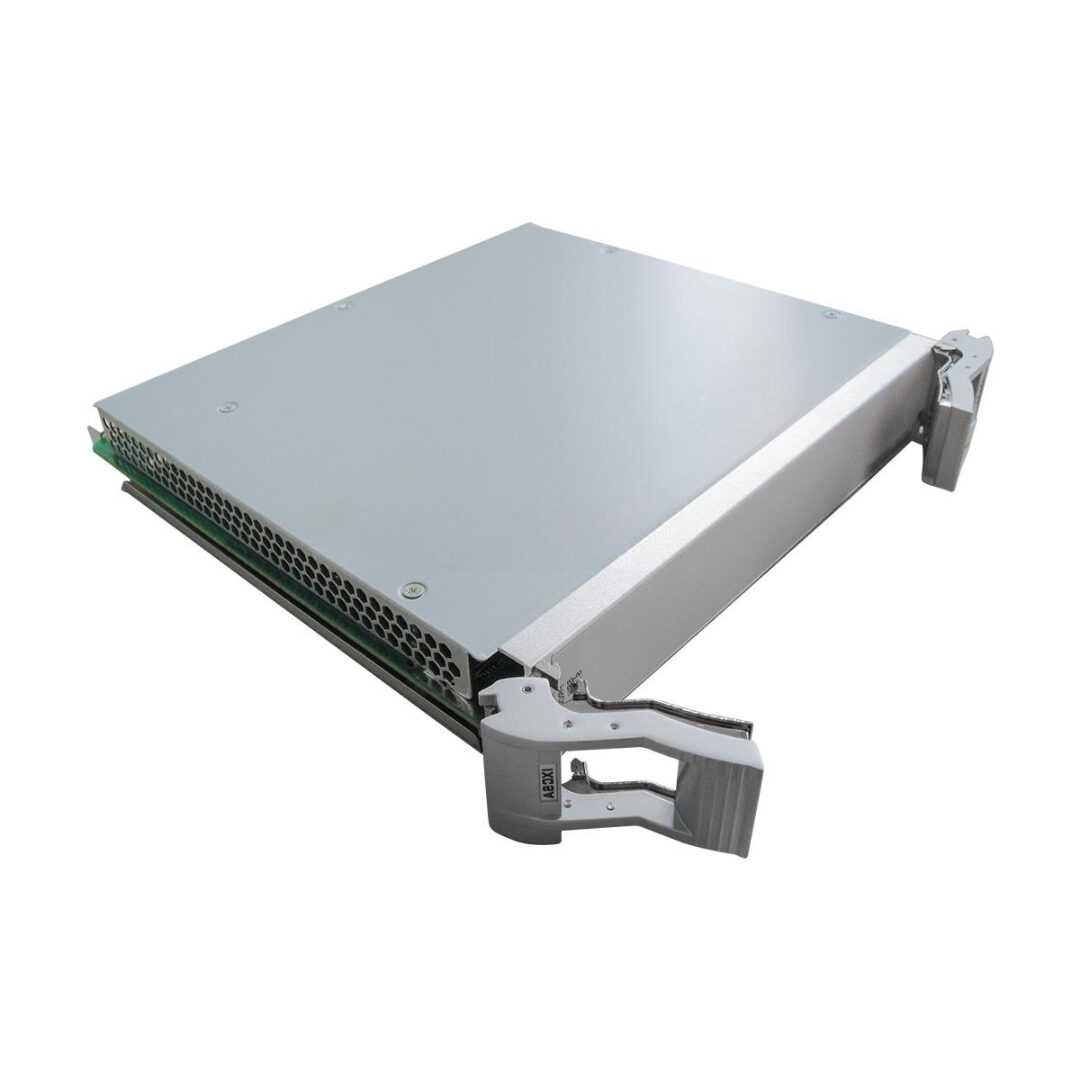

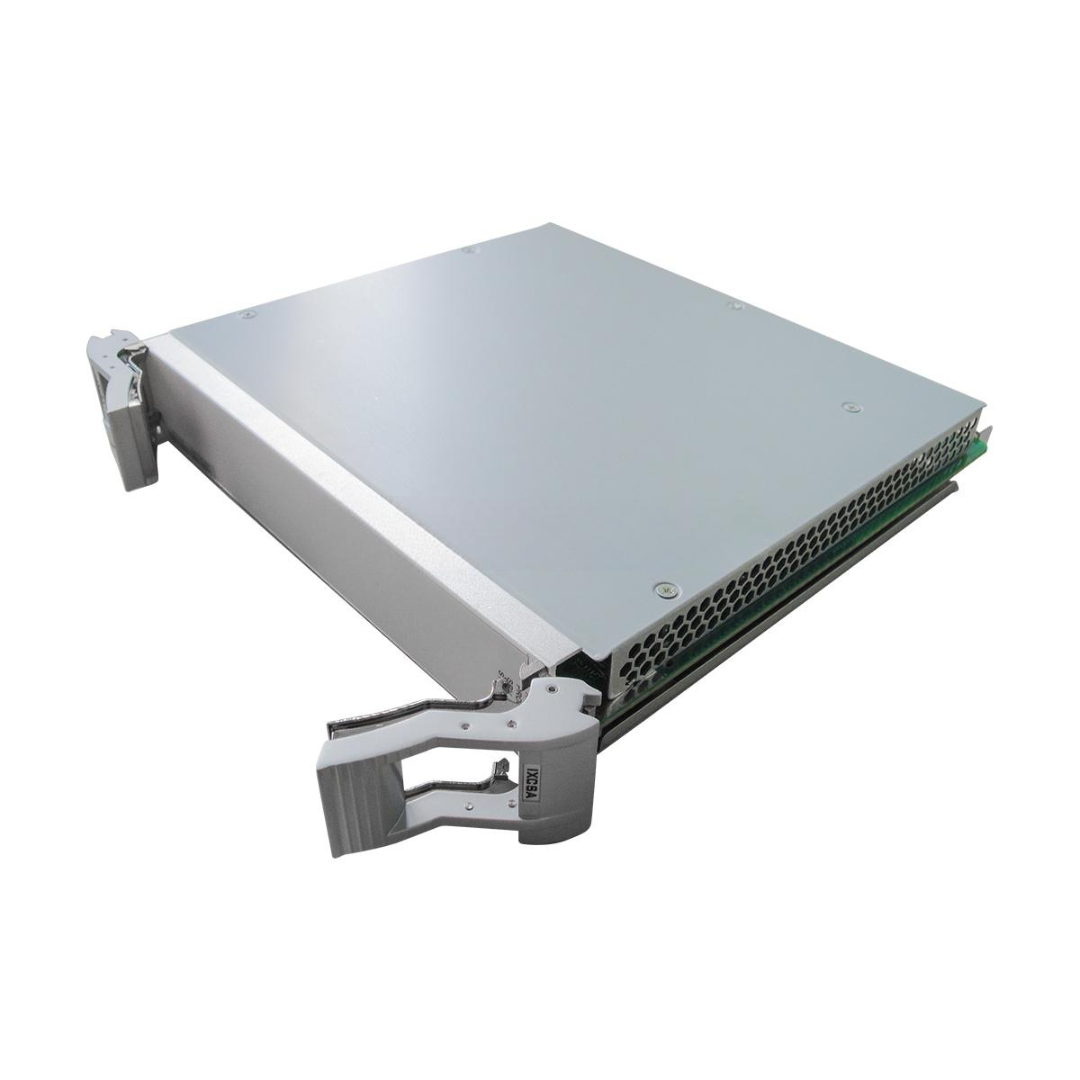

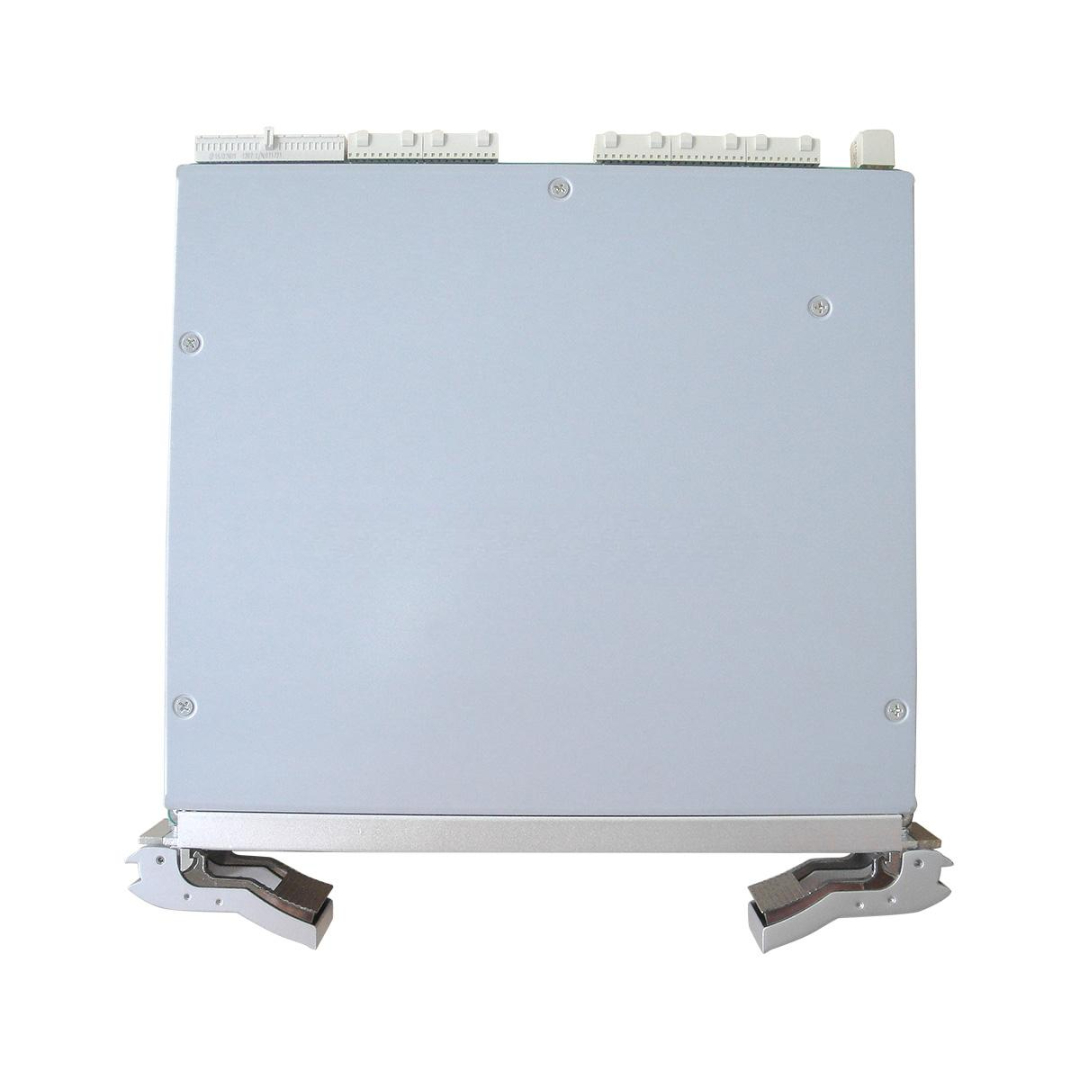

SSN1IXCSA Huawei High Quality Infinite Connect Timing Board
The SSN1IXCSA Huawei Infinite Connect Timing Board is a precision-engineered timing and synchronization board designed for Huawei’s OptiX OSN series, including OSN3500 and OSN7500. This board plays a critical role in distributing accurate clock signals across the transport network, supporting high-stability synchronization for SDH, Ethernet, and hybrid services.
The SSN1IXCSA ensures that all network elements stay in perfect sync with the master timing source, helping prevent frame slips, jitter, and synchronization-related service interruptions. Ideal for carrier-grade networks and time-sensitive applications in telecom, power grid, government, and enterprise environments.
Key Features
-
Model: SSN1IXCSA
-
Condition: 100% Brand New, Original Huawei
-
Function: Clock distribution and synchronization control
-
Clock Sources: Supports internal, external, line timing, and SSM-based selection
-
Stratum Level: Stratum 3E synchronization accuracy
-
Timing Algorithms: Automatic switching and holdover protection
-
Alarm Monitoring: Supports synchronization status alarms and error reporting
-
Hot-Swappable: Supports online insertion/removal without affecting services
-
Management: Full remote control and monitoring via Huawei U2000/NCE-T
Technical Specifications
| Specification | Details |
|---|---|
| Model | SSN1IXCSA |
| Function | Synchronization Clock Source Selection and Output |
| Supported Clocks | External Clock, Line Clock, System Clock |
| Stratum Level | Stratum 3E |
| Clock Interface Type | 2 × 2.048 MHz external timing ports |
| Holdover Performance | ±4.6 ppm (typical) |
| Synchronization Modes | Automatic, Manual, Forced |
| Switching Protection | Hitless switching and holdover mode supported |
| Alarm Monitoring | SYNC LOS, SSM mismatch, clock switching alarm |
| Operating Temperature | -5°C to +55°C |
| Humidity | 5% – 95% RH, non-condensing |
| Power Consumption | ≤ 15W (typical) |
| Management Platform | Huawei U2000 / NCE-T |
| Warranty | 1–3 Years Manufacturer Warranty |
SSN1IXCSA Huawei Applications
-
Telecom Transport Networks — Ensures accurate SDH/Ethernet service synchronization
-
Mobile Backhaul — Provides reliable clock signal distribution for 3G/4G/5G sites
-
Power & Utility Infrastructure — Maintains high-precision time base for SCADA and real-time control
-
Government & Defense Networks — Enables secure and consistent timing for mission-critical systems
-
Metro & Core Networks — Ideal for synchronization across multiple network domains
Customization & OEM Options
-
Clock Source Configuration — Custom clock source priority and switching logic
-
Pre-Tested Integration — Delivered pre-integrated with OSN subracks and service boards
-
Labeling & Packaging — OEM branding and customized labeling available
-
Enhanced Holdover Mode — Advanced tuning and extended backup holdover upon request
-
Stress Testing — Factory burn-in and timing accuracy validation for high-reliability applications
SSN1IXCSA Huawei Wholesale & Global Supply
-
Huawei Original OEM Stock — Factory-verified and traceable via barcode serial
-
Bulk Availability — Ready inventory for large-scale rollouts and replacements
-
Secure Packaging — Shockproof and electrostatic-safe packaging for export logistics
-
Documentation Ready — Complete with technical manual, test report, and installation guide
-
Global Shipping & Support — Logistics support for global locations with expert technical backing
Why Choose SSN1IXCSA Huawei Infinite Connect Timing Board
-
Carrier-Class Synchronization — Stratum 3E precision and flexible clock source selection
-
Seamless Integration — Compatible with Huawei OSN3500, OSN7500, and other platforms
-
High Stability & Redundancy — Hitless switching with automatic fallback protection
-
Versatile Timing Control — Suitable for SDH, Ethernet, and hybrid network environments
-
Proven Field Reliability — Trusted in telecom, utility, and enterprise networks worldwide
Contact Us Now for pricing, lead times, and datasheets for the SSN1IXCSA Huawei Infinite Connect Timing Board — the trusted choice for precise, reliable network synchronization.
