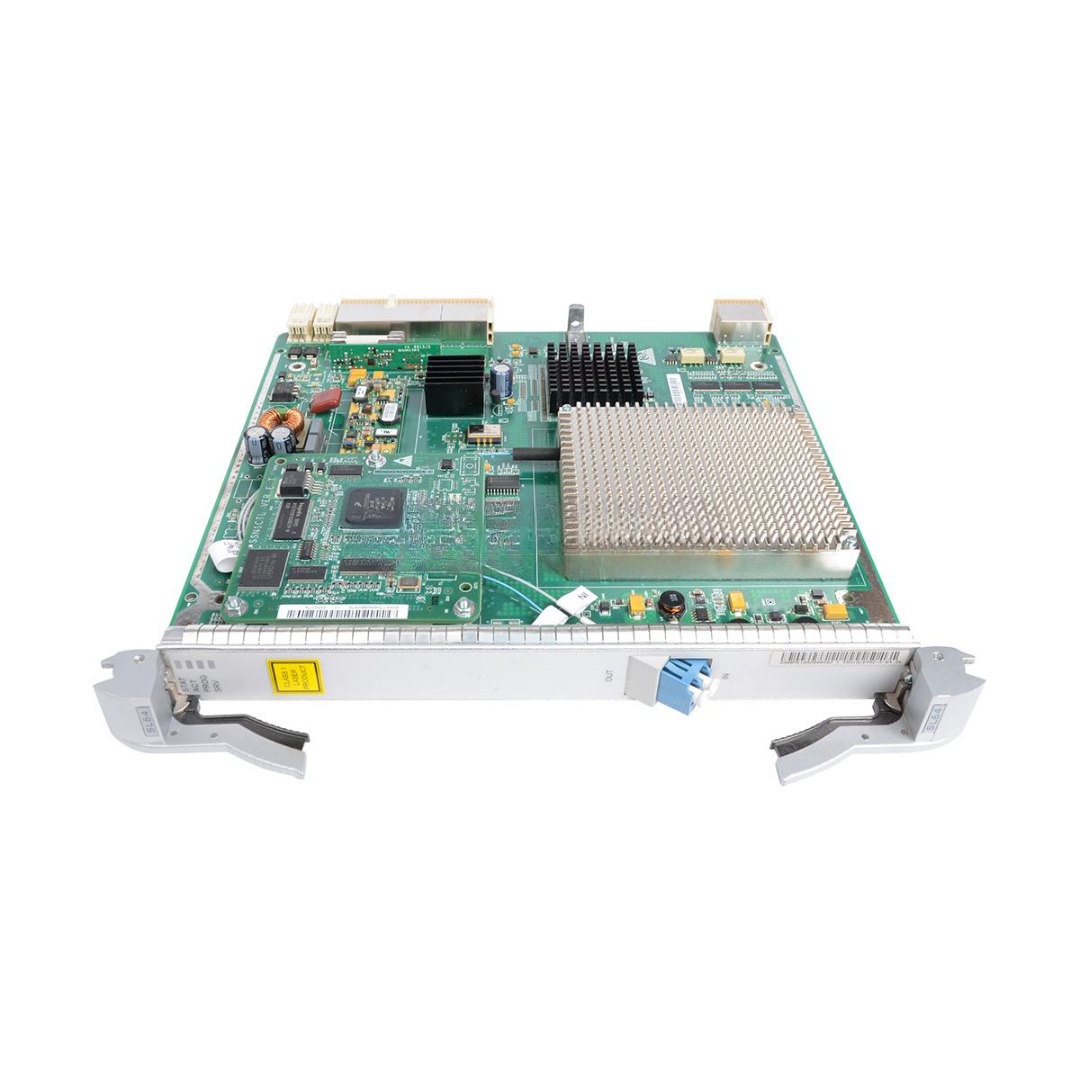

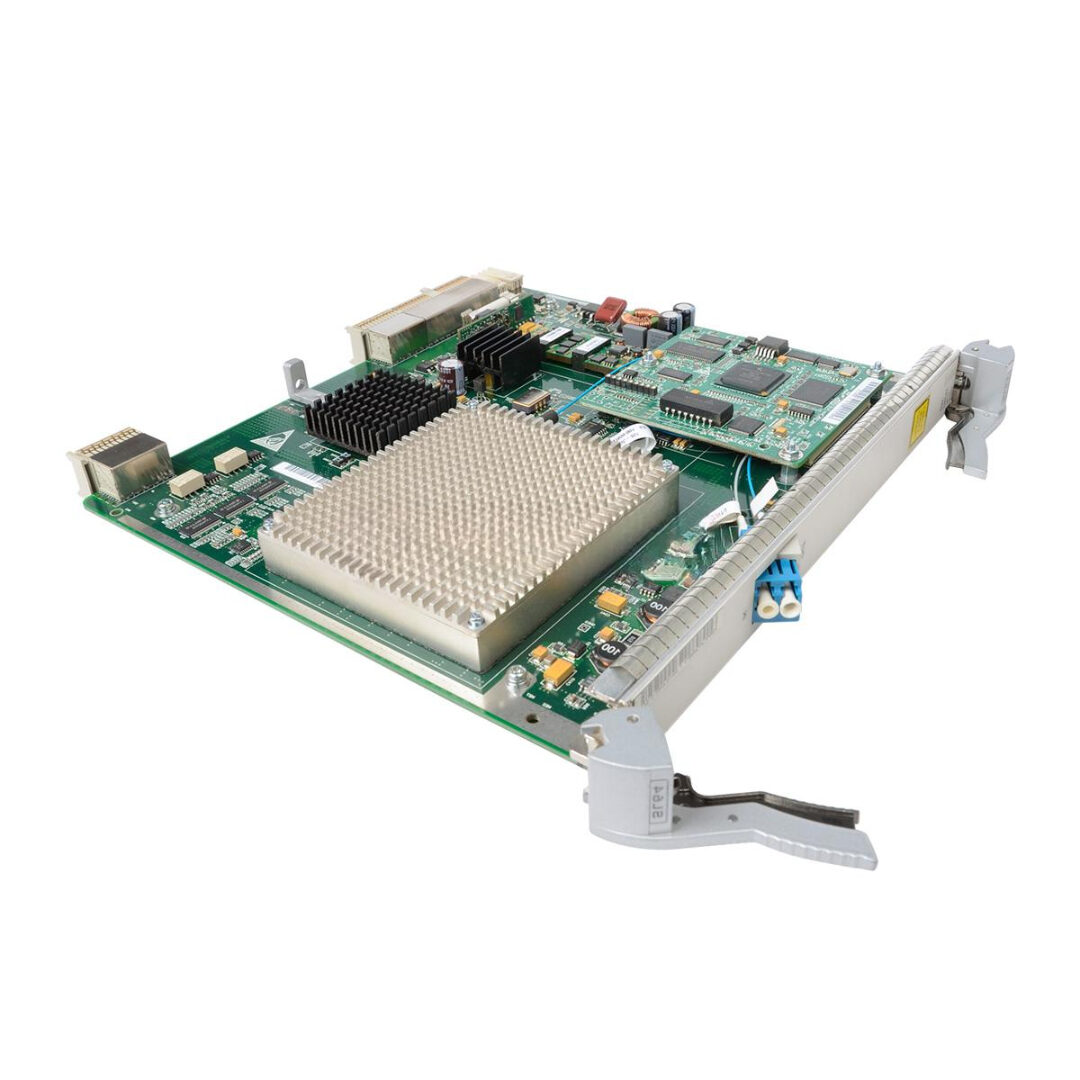

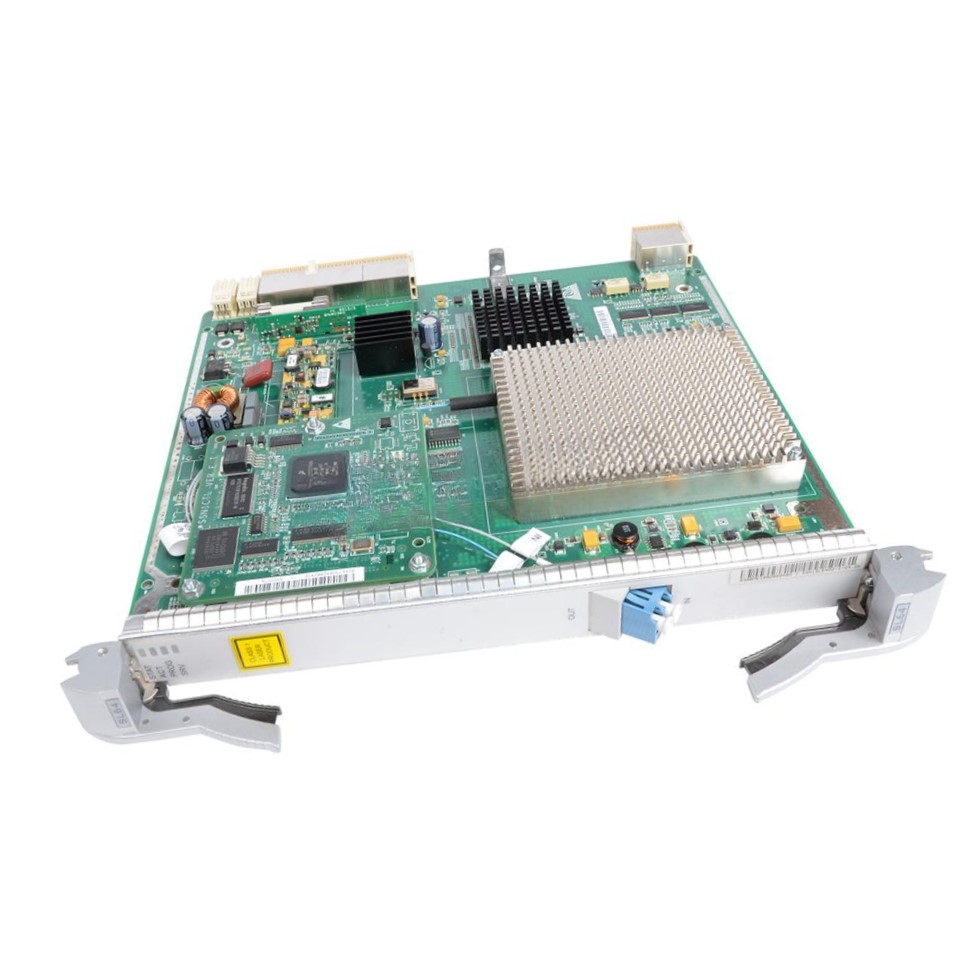

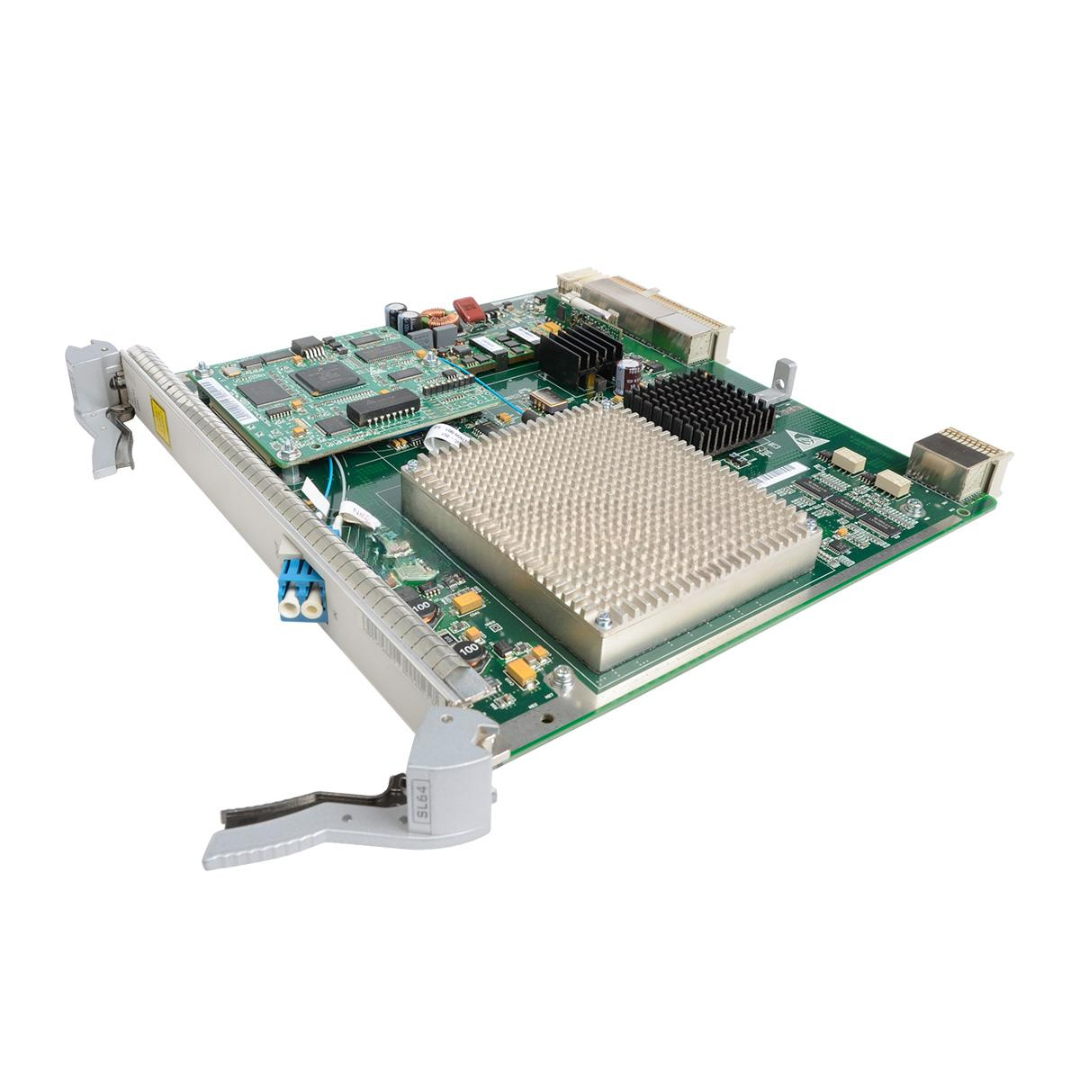

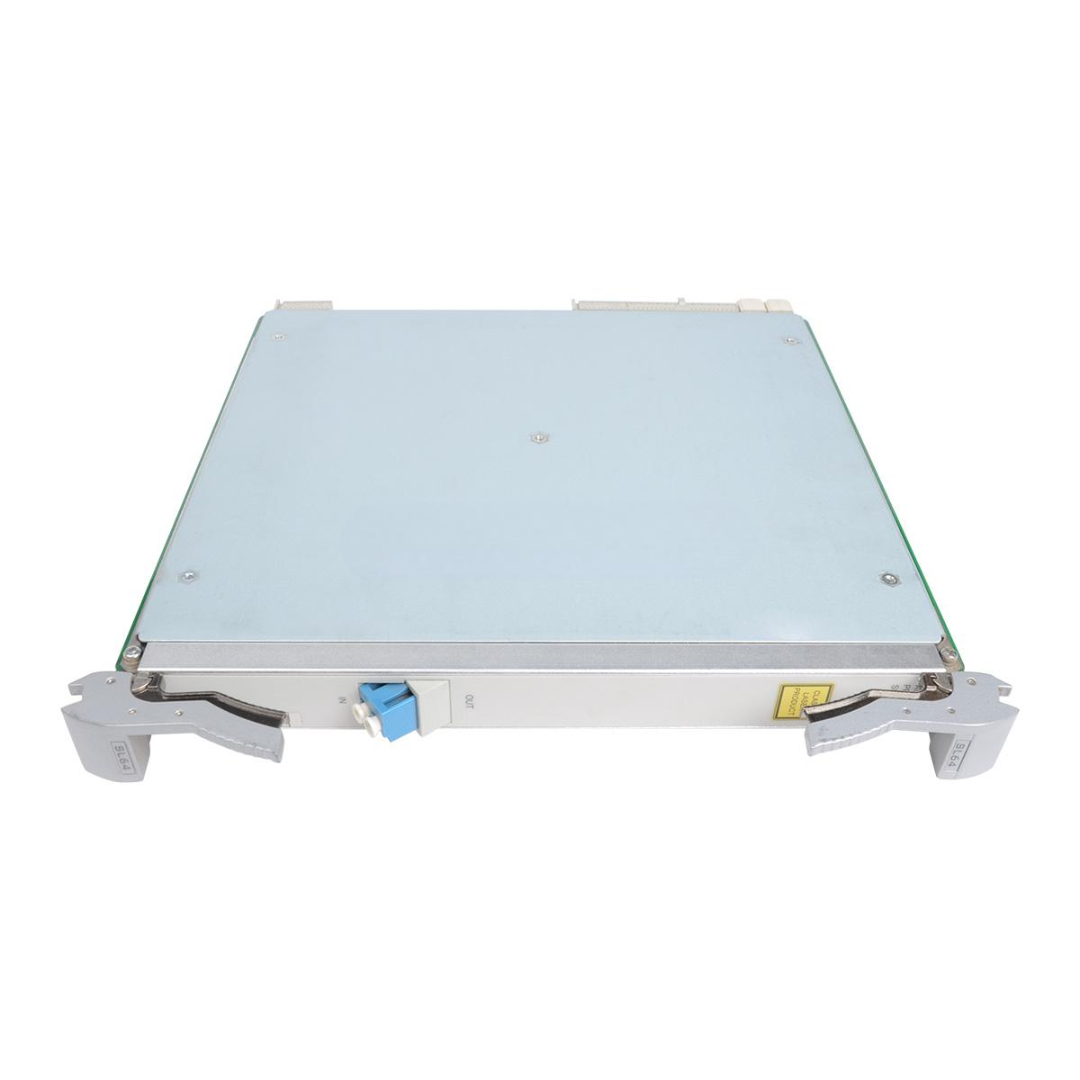

SSN1SL64(Ls-64.2,LC) Huawei High Quality Interface Board
The SSN1SL64(Ls-64.2, LC) Huawei is a high-performance 10G STM-64 optical interface board engineered for Huawei’s SDH transmission systems. Supporting a single LC/UPC interface, it enables STM-64 level transmission (9.953 Gbps) using the Ls-64.2 long-distance optical standard, achieving transmission distances of up to 40 km over single-mode fiber.
Designed for core optical networks, carrier-grade backbone links, and metro aggregation, this board delivers reliable high-speed transport with support for performance monitoring, alarms, and loopback diagnostics.
Key Features
-
Model: SSN1SL64(Ls-64.2,LC)
-
Port Configuration: 1 × STM-64 (10 Gbps)
-
Interface Type: LC/UPC, single-mode
-
Transmission Standard: Ls-64.2 (Intermediate-reach, up to 40 km)
-
Application: SDH core transport and high-speed interconnect
-
Hot-Swappable: Yes
-
Platform Compatibility: OSN3500 / OSN6800 / OSN7500
-
Functions: 10G SDH access, loopback testing, error detection, alarms
Technical Specifications
| Specification | Details |
|---|---|
| Board Model | SSN1SL64(Ls-64.2,LC) |
| Port Count | 1 × STM-64 Optical Interface |
| Line Rate | 9.953 Gbps |
| Interface Connector | LC/UPC Single-mode |
| Reach | Up to 40 km (Ls-64.2 standard) |
| Wavelength | C-Band, DWDM |
| Fiber Type | G.652 Single-mode |
| Supported Protocols | ITU-T G.707, G.783, G.691, G.959.1 |
| Alarm & Monitoring | LOS, LOF, MS-AIS, B1/B2/B3 error detection |
| Power Consumption | ≤ 20W |
| Operating Temperature | -5°C to +55°C |
| Humidity | 5% – 95% RH, non-condensing |
| Installation | Plug-in module for Huawei OSN subracks |
| Warranty | 1–3 Years Manufacturer Warranty |
Applications of SSN1SL64(Ls-64.2, LC) Huawei
-
Metro Core & Backbone Networks – Stable STM-64 10G transmission
-
Carrier Transport Layers – Redundant and high-speed trunk links
-
Data Center Interconnection – Long-distance fiber connectivity
-
Inter-City Links – Efficient transmission up to 40 km
-
Telecom, Power Grid, and Government Networks – Carrier-grade design
Customization & OEM Services
-
OEM Branding – Custom part numbers, labels, and barcodes
-
Pre-Configured Units – Thresholds and loopback settings per customer spec
-
Test Reports – Include BER, stress tests, and documentation
-
Bundle Options – With matching SFPs/XFPs, patch cords, and enclosures
-
Extended Docs – CLI manuals, configuration guides, and MIBs
Wholesale Supply & Logistics
-
100% Genuine Huawei – Verified serial numbers and barcodes
-
Global Inventory Access – Fast delivery across regions
-
ESD-Safe Packaging – Anti-static bags with hard-case options
-
Bulk Pricing – For integrators, telecom operators, and resellers
-
Technical Advisory – Expert assistance with integration and deployment
Why Choose SSN1SL64(Ls-64.2, LC) Huawei
-
Reliable 10G SDH Transmission – Supports high-bandwidth, stable transport
-
Long-Distance Reach – Up to 40 km without external amplification
-
Interoperable Design – Seamless integration with Huawei OSN platforms
-
Carrier-Grade Quality – Proven for mission-critical environments
-
Easy Maintenance – Hot-swappable and field-serviceable
Contact Us Today to get pricing, availability, and expert consultation on the SSN1SL64(Ls-64.2,LC) — Huawei’s trusted interface board for 10G SDH connectivity across enterprise and carrier networks.
