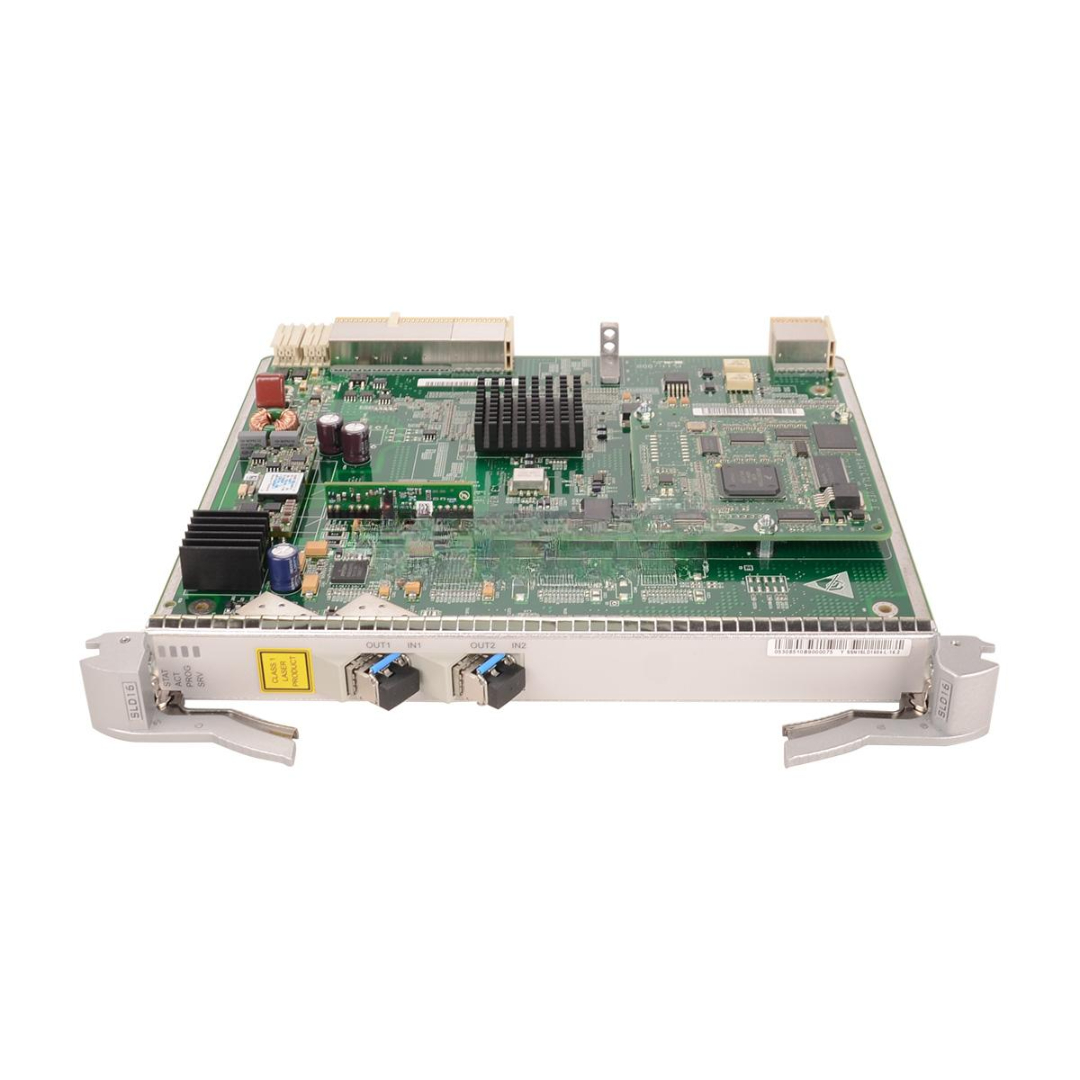

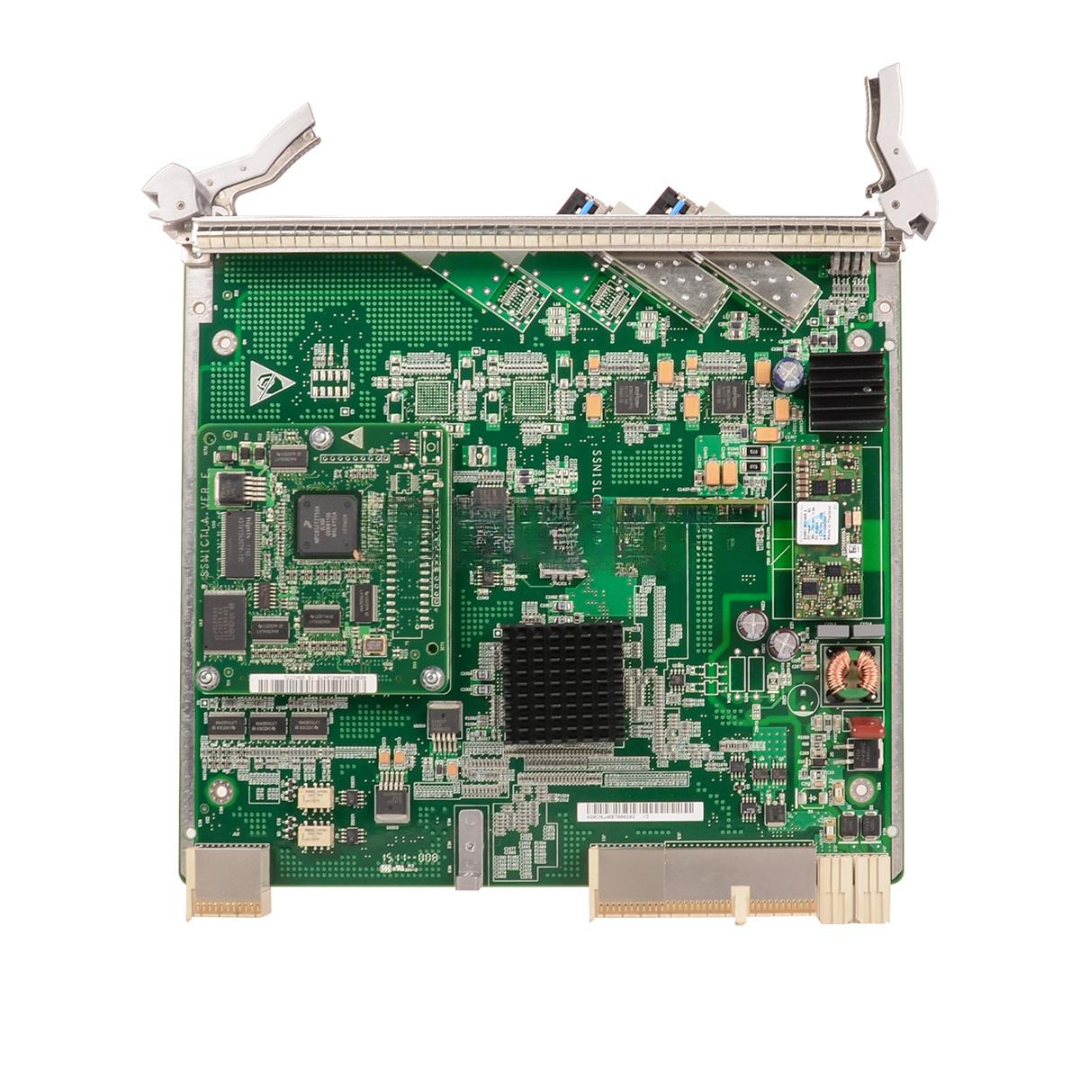

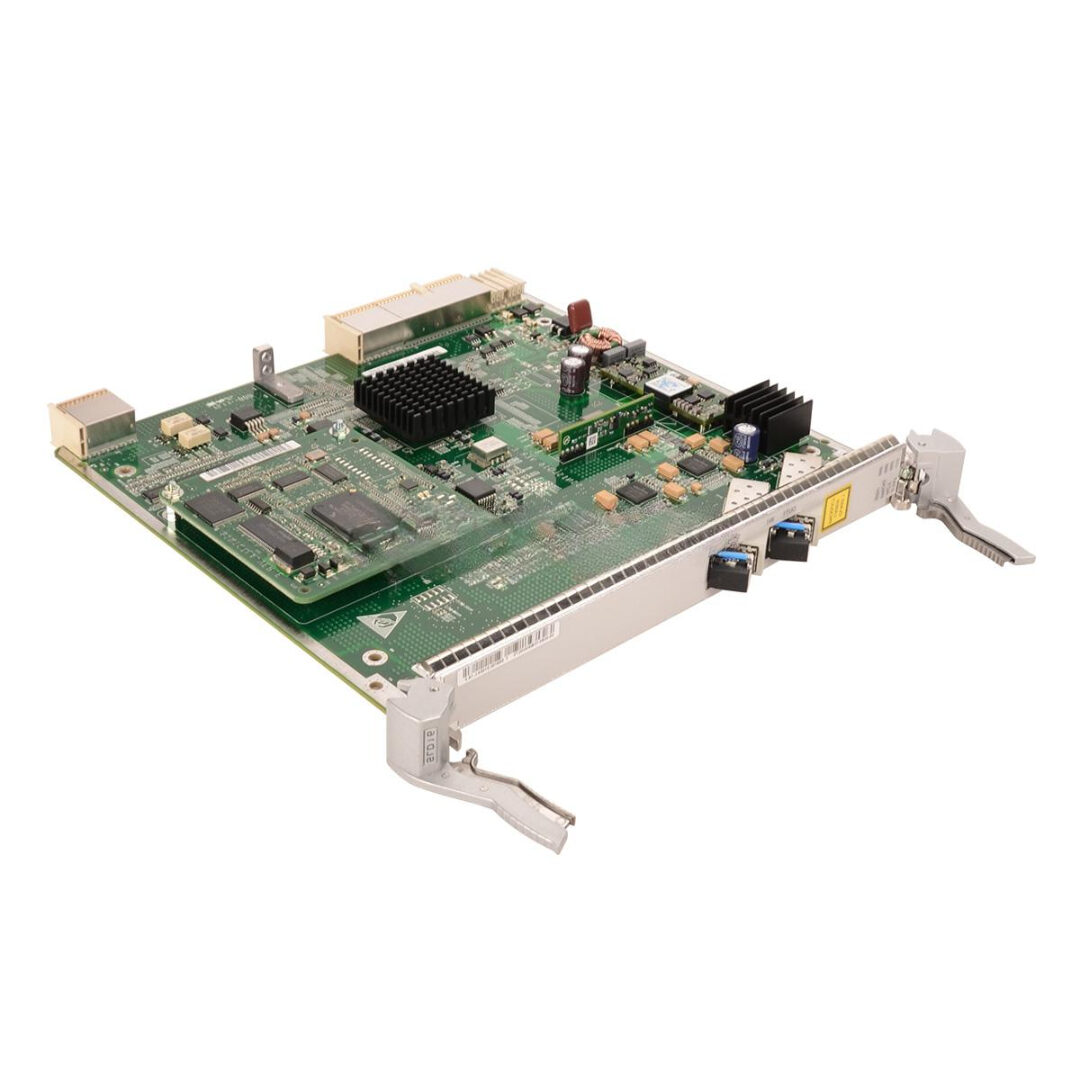

SSN1SLD16(L-16.2,LC) Huawei Brand New 2-Port Interface Board
The SSN1SLD16(L-16.2,LC) Huawei is a high-performance 2-port optical interface board designed for the Huawei OptiX OSN Series transmission systems. Supporting long-haul transmission over single-mode fiber (SMF), this board is engineered to deliver robust and reliable STM-16 services in large-scale optical networks. It uses LC optical connectors and conforms to the ITU-T G.707 standard for SDH interfaces.
With its powerful optical transmission capabilities, the SSN1SLD16 board supports line rates up to 2.5 Gbps per port, enabling it to handle dense service requirements while maintaining low power consumption and efficient space utilization in Huawei’s modular OSN platforms.
Key Features
- Model: SSN1SLD16(L-16.2,LC)
- Condition: 100% Brand New, Original Huawei OEM
- Interface Type: STM-16, SDH
- Ports: 2 Optical Ports
- Connector Type: LC
- Transmission Rate: 2.5 Gbps per port
- Transmission Distance: Up to 40 km (over standard G.652 SMF)
- Optical Type: Long-haul (L-16.2)
- Compatibility: Fits Huawei OSN1500, OSN2500, OSN3500, OSN7500
- Hot Swappable: Yes
- Protection Mode: Supports MSP (1+1), SNCP, and more
- Monitoring: Real-time performance and alarm monitoring via NMS
Technical Specifications
| Specification | Details |
|---|---|
| Model | SSN1SLD16(L-16.2,LC) |
| Service Type | SDH (STM-16) |
| Number of Ports | 2 Optical Ports |
| Connector Type | LC Duplex |
| Transmission Distance | Up to 40 km |
| Bit Rate | 2.488 Gbps |
| Laser Type | Cooled DFB Laser |
| Wavelength | 1550 nm |
| Output Power | -2 to +3 dBm |
| Receiver Sensitivity | ≤ -28 dBm |
| Form Factor | Huawei OSN Board |
| Power Consumption | ≤ 20W |
| Operating Temperature | -5°C to +45°C |
| Storage Temperature | -40°C to +70°C |
| Compliance | ITU-T G.707, RoHS, CE, FCC |
SSN1SLD16(L-16.2,LC) Huawei Applications
- Metro & Core Transport Networks – Reliable high-speed SDH service transmission
- Carrier Networks – Backbone connectivity in national and regional telecom networks
- Power & Utilities – Used in critical infrastructure for secure data transport
- Enterprise & Government – Long-distance optical links between campuses or facilities
- Data Centers – Transport layer integration for synchronous traffic
Customization & OEM Options
- Label Branding — OEM logo and custom serials upon request
- Pre-Integration — Delivered with pre-installed boards in chassis
- Extended Temperature Version — Available for rugged environments
- Testing Services — Factory-tested with BER and optical certification
- Localization — Documentation and compliance customized per region
Wholesale & Global Supply Information
- Original Huawei OEM Board — Direct from authorized sources
- Volume Availability — Ideal for integrators and large network builds
- Logistics — Global export-ready packaging with documentation
- Bulk Discounts — Competitive pricing for resellers and contractors
- Technical Support — NMS integration and board deployment assistance
Why Choose the SSN1SLD16(L-16.2,LC) Huawei
Supports Long-Haul 2.5G SDH Transmission
Dual-Port High-Density for OSN Subracks
Huawei OEM Quality and Stability
Low Power, High Performance for Mission-Critical Networks
Seamless Integration with Huawei U2000 NMS
Request a Quote or Technical Datasheet
Empower your optical transmission layer with the Huawei SSN1SLD16(L-16.2,LC) — engineered for performance, uptime, and seamless service delivery across long distances.
Contact us today for wholesale pricing, OEM branding, and fast delivery options.
