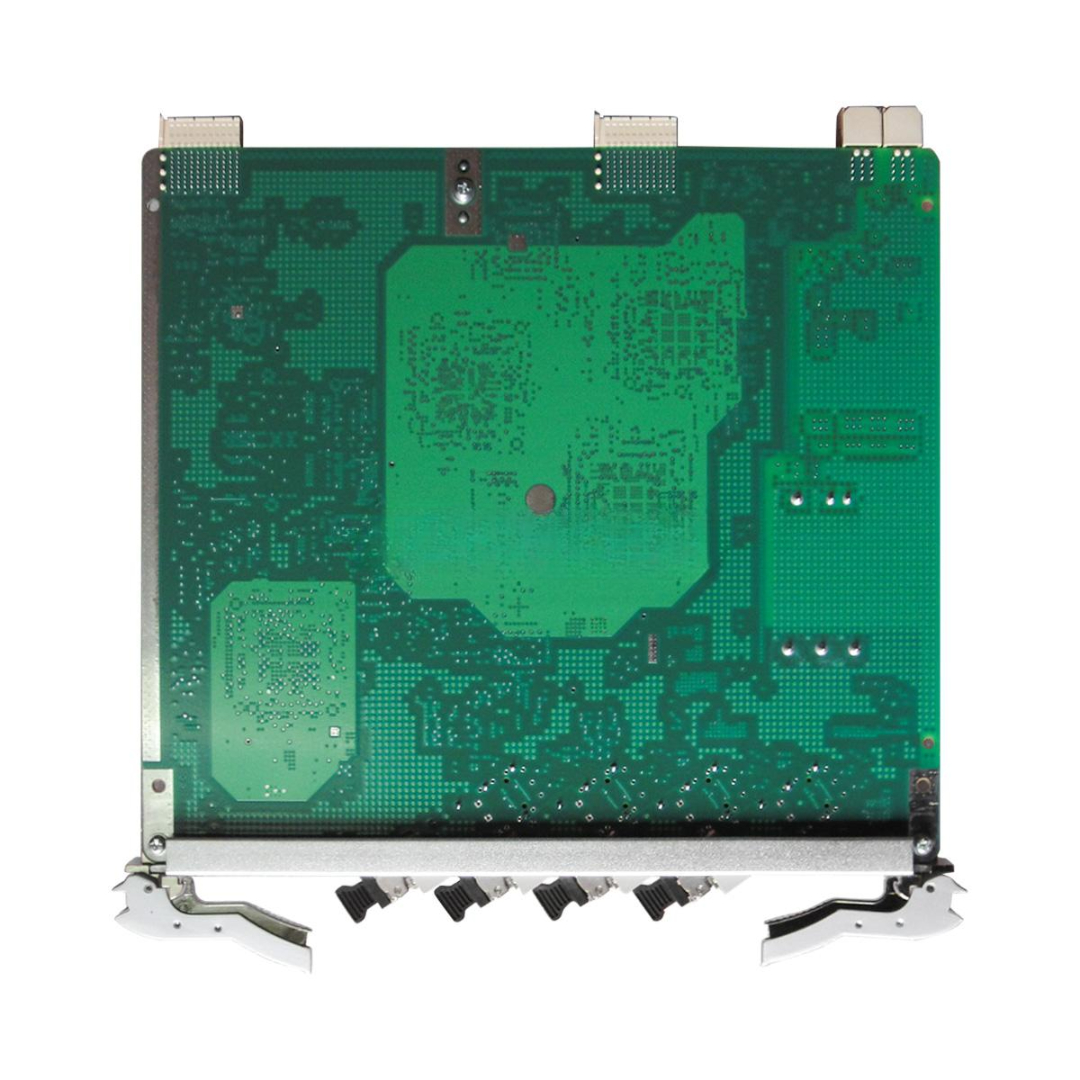

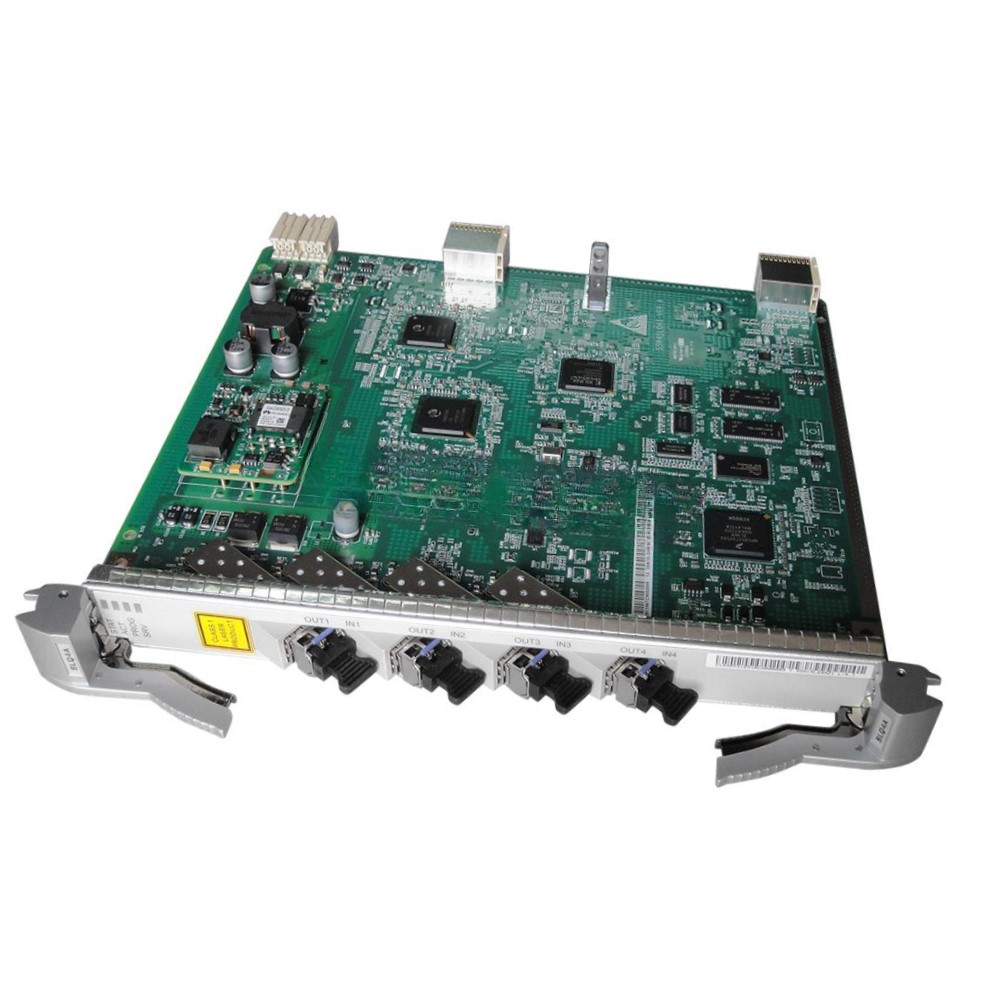

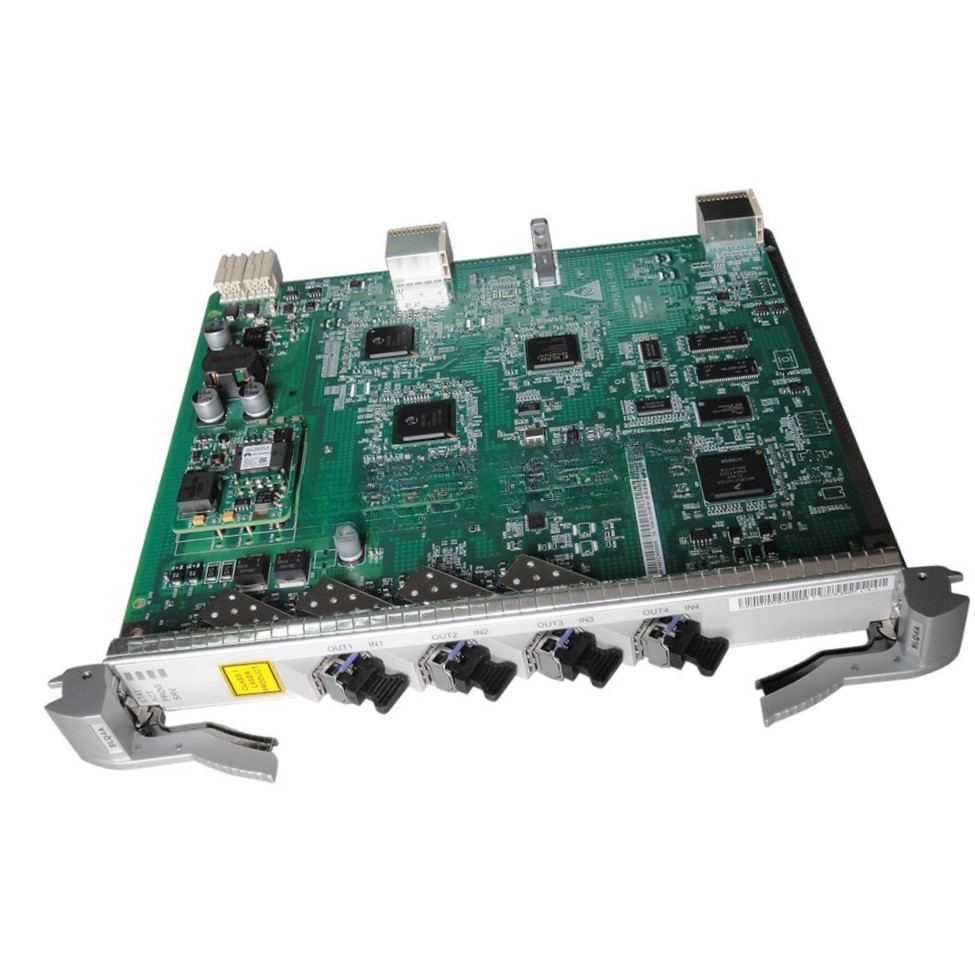

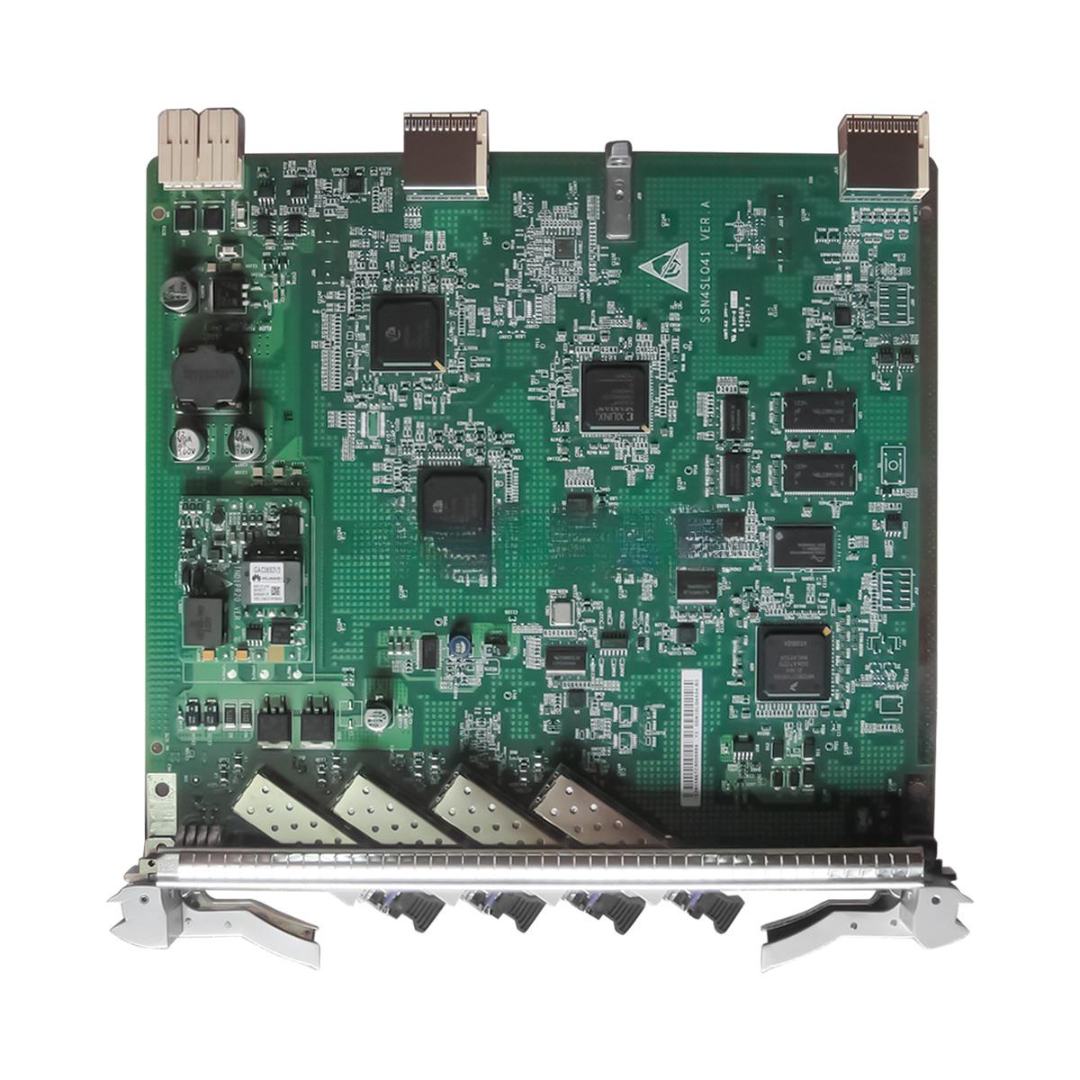

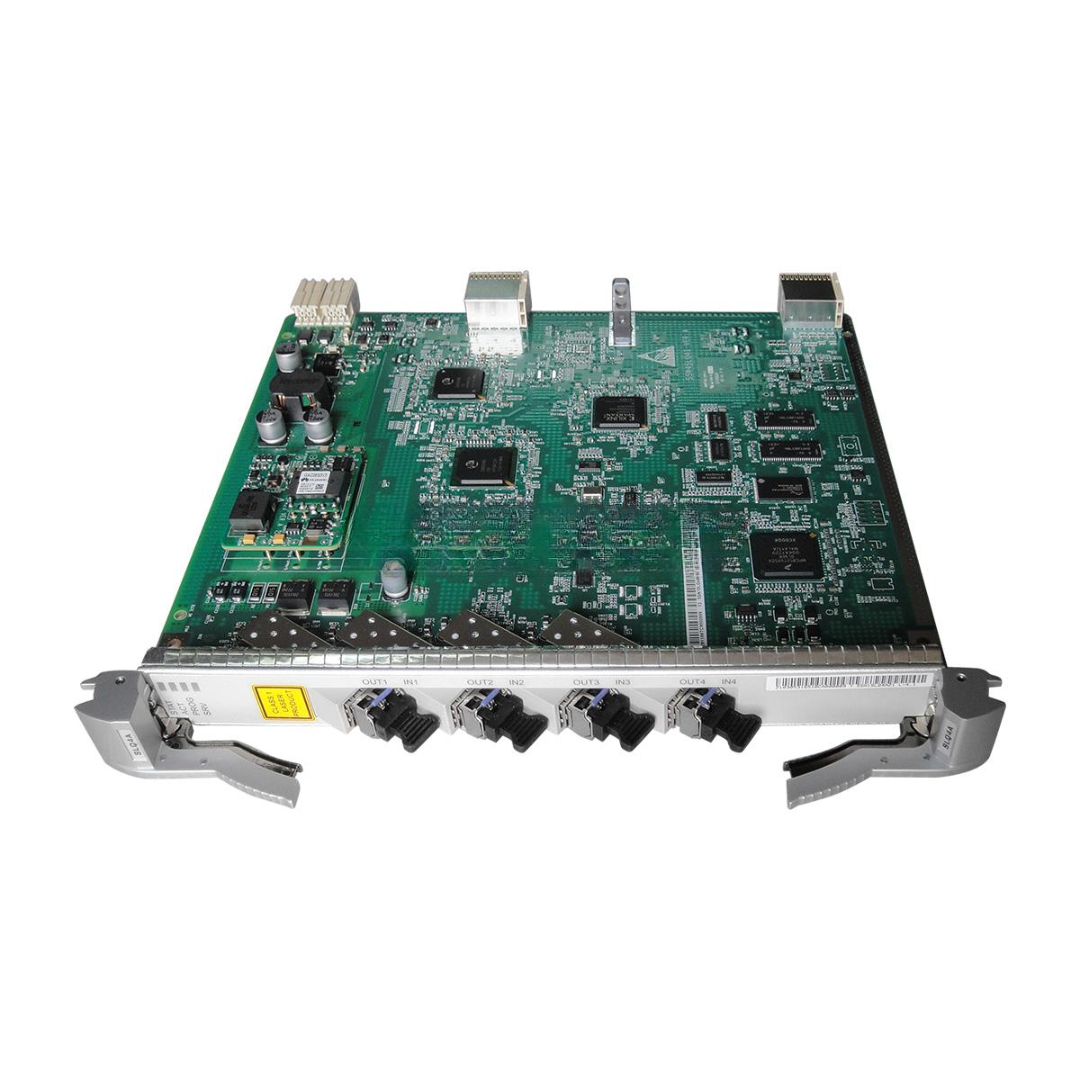

SSN1SLQ4A(L-4.1,LC) Huawei High Quality Interface Board
The SSN1SLQ4A(L-4.1,LC) Huawei is a robust STM-4 4-port optical interface board designed for high-capacity SDH transmission across metro and backbone networks. Each port supports 622 Mbps (STM-4) using the L-4.1 long-reach standard, enabling transmission distances up to 15 km over LC-type single-mode fiber.
Optimized for Huawei’s OptiX series — including OSN1500, OSN2500, and OSN3500 — the board is engineered for seamless service delivery, efficient multiplexing, and advanced error monitoring. Its hot-swappable design ensures easy maintenance without service interruption.
Key Features
-
Model: SSN1SLQ4A(L-4.1,LC)
-
Port Type: 4 × STM-4 (622 Mbps)
-
Interface: LC/UPC Single-mode Fiber
-
Standard: L-4.1 (Long-reach, up to 15 km)
-
Hot-Swappable: Yes
-
SDH Functions: Signal access, performance monitoring, loopback testing
-
Platform Compatibility: Huawei OSN1500 / OSN2500 / OSN3500
Technical Specifications
| Specification | Details |
|---|---|
| Board Model | SSN1SLQ4A(L-4.1,LC) |
| Service Type | 4 × STM-4 Optical Interfaces |
| Line Rate | 622 Mbps per port |
| Connector Type | LC/UPC Single-mode |
| Reach | Up to 15 km (L-4.1 Standard) |
| Wavelength | 1310 nm |
| Fiber Type | Single-mode (ITU-T G.652) |
| Protocols Supported | ITU-T G.707, G.783, G.957 |
| Alarms & Monitoring | LOS, LOF, MS-AIS, B1/B2 error checks |
| Power Consumption | ≤ 15W |
| Operating Temperature | -5°C to +55°C |
| Humidity | 5% – 95% RH (non-condensing) |
| Form Factor | Standard Huawei OSN service board |
| Warranty | 1–3 Years Manufacturer Warranty |
SSN1SLQ4A(L-4.1,LC) Huawei Applications
-
Metro SDH Networks – Aggregating STM-4 services from access layers
-
Telecom Core Networks – Reliable long-distance optical links
-
Enterprise WANs – Fast STM-4 backbone connectivity
-
Utilities & Transport – High-speed data transport for SCADA & control
-
Government & Defense – Secure STM-4 infrastructure
Customization & OEM Services
-
Custom Branding – Logo and part number labeling available
-
Pre-Configured Boards – Set thresholds, loopbacks, and alarms
-
Bundled Solutions – With OSN chassis, patch cords, and optics
-
Technical Documents – Manuals, MIBs, and CLI configuration files
-
Extended Testing – Burn-in and temperature stress testing options
Wholesale Supply & Global Delivery
-
Original Huawei Parts – New, sealed, and traceable
-
Fast Shipping – Immediate dispatch from global warehouses
-
Safe Packaging – Anti-static and shock-proof handling
-
Bulk Availability – Special pricing for resellers and integrators
-
Tech Support – Engineering help for deployment and testing
Why Choose SSN1SLQ4A(L-4.1,LC) Huawei
-
High Density – 4 STM-4 ports per board for efficient slot usage
-
Long Reach Capability – Up to 15 km optical transmission
-
High Reliability – Trusted in carrier-grade deployments
-
SDH Standard Compliance – ITU-T aligned performance
-
Easy Maintenance – Hot-swappable and field-proven
Contact Us Today for a quote, lead time, or technical consultation regarding the SSN1SLQ4A(L-4.1,LC) Huawei High Quality Interface Board — the ideal STM-4 solution for your enterprise or telecom network.
