SSN1SLQ4A(L-4.2,LC) Huawei Brand New 4-Port Interface Board

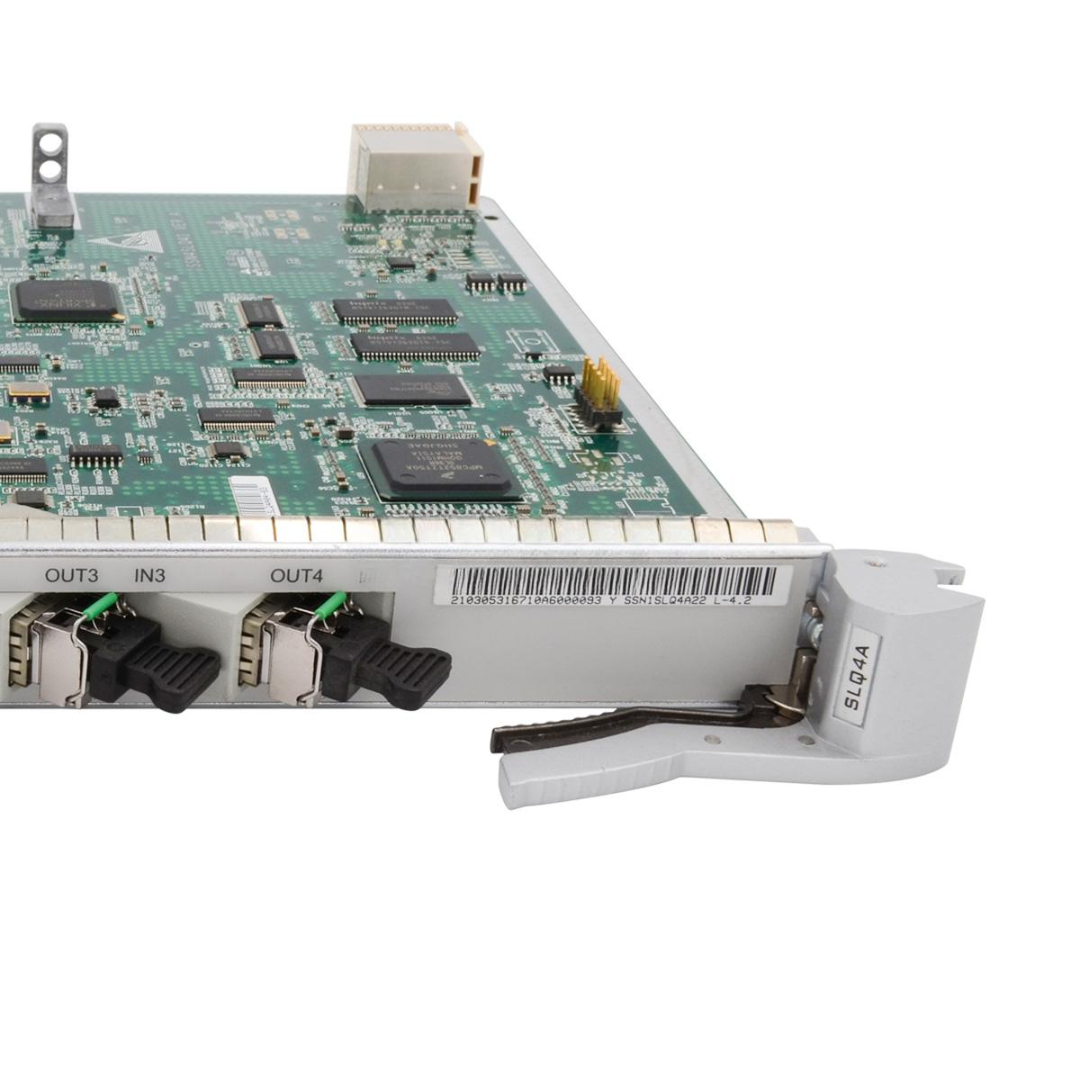

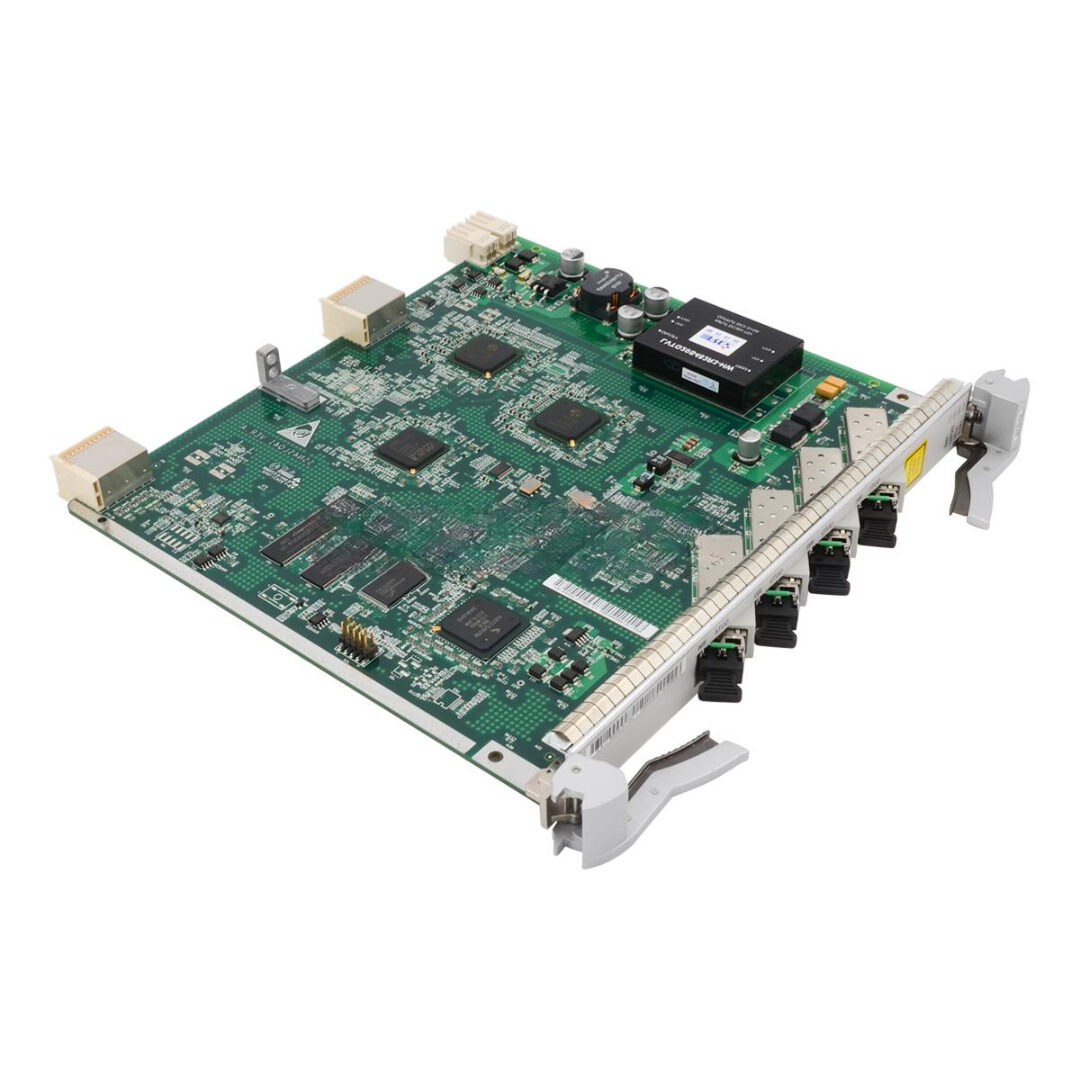

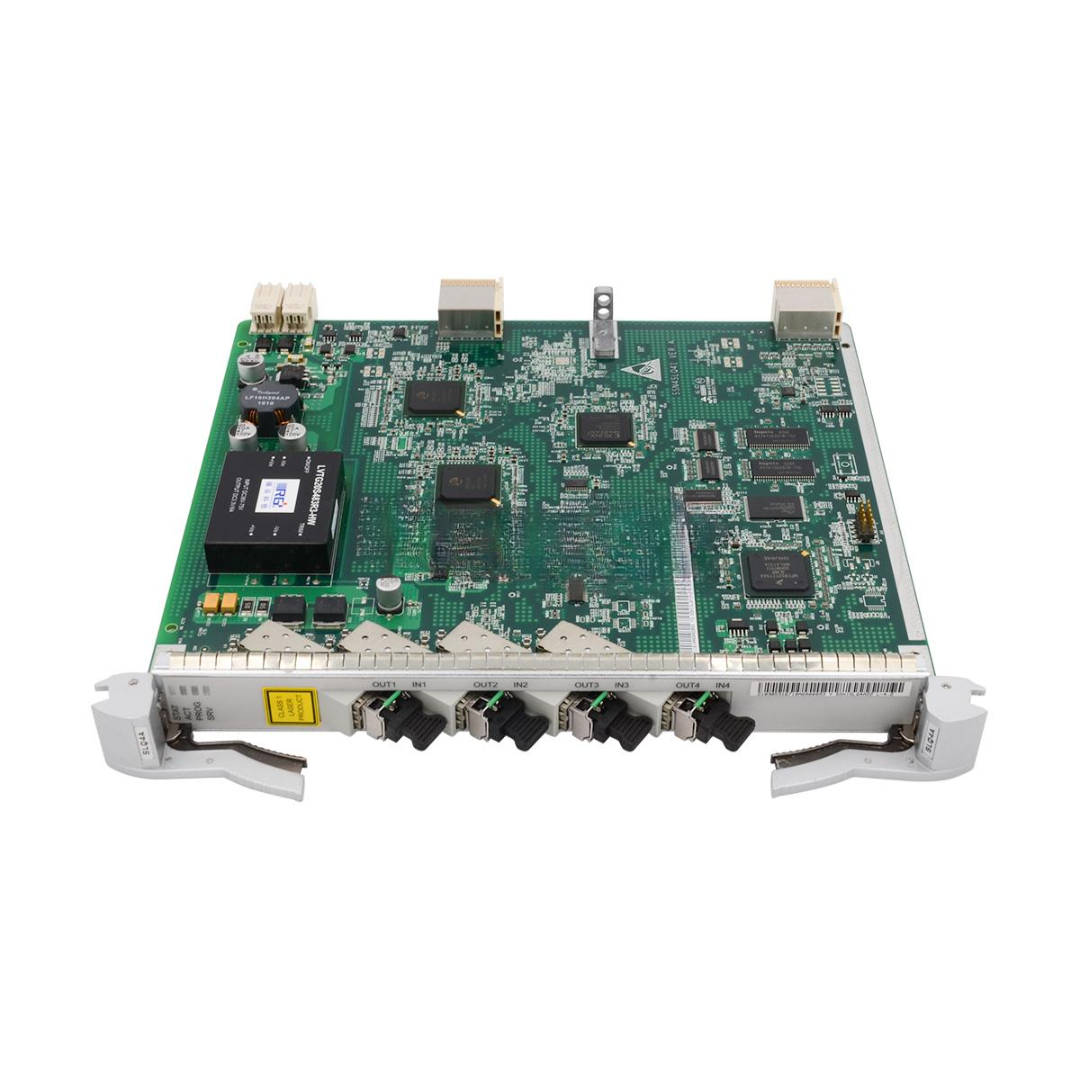

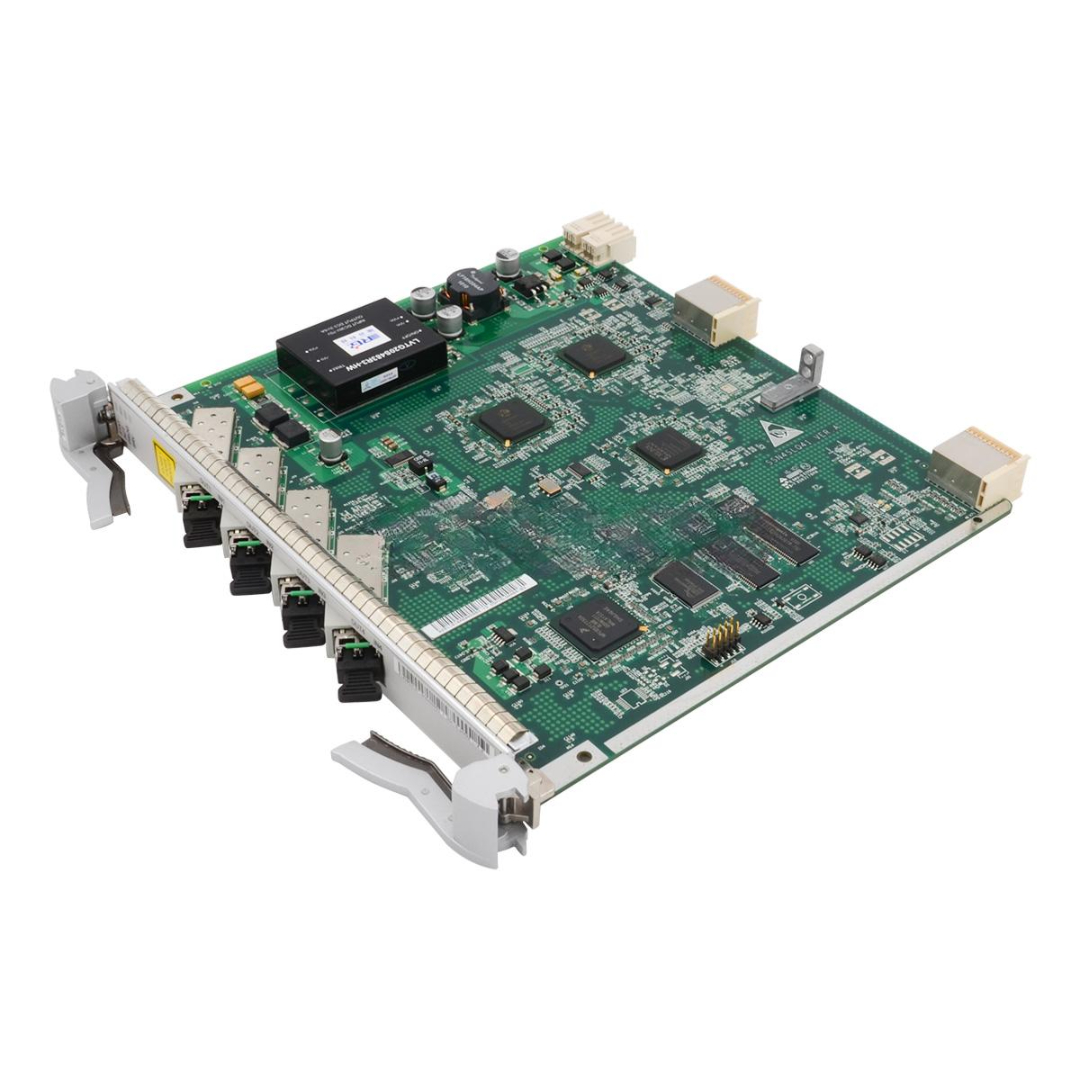

The SSN1SLQ4A(L-4.2,LC) Huawei is a 4-port STM-4 optical interface board built to deliver high-speed optical transmission at 622 Mbps per port. Designed for Huawei’s SDH-based MSTP platforms, this board uses L-4.2 standard transmission (up to 40 km reach) via LC-type single-mode fiber interfaces. It ensures robust and reliable service delivery in metro core and aggregation networks.
Fully compatible with Huawei OSN1500, OSN2500, and OSN3500 transmission platforms, the SSN1SLQ4A is engineered for carrier-grade performance, providing seamless SDH signal termination, loopback testing, and real-time performance monitoring.
Key Features
-
Model: SSN1SLQ4A(L-4.2,LC)
-
Service Type: STM-4 Optical Interface Board
-
Port Count: 4 Ports
-
Data Rate: 622 Mbps per port
-
Interface Type: LC/UPC
-
Reach: Up to 40 km (L-4.2 standard)
-
Hot-Swappable: Yes
-
Platform Compatibility: OSN1500 / OSN2500 / OSN3500
-
Functionality: SDH transport, loopback diagnostics, and alarms
Technical Specifications
| Specification | Details |
|---|---|
| Board Model | SSN1SLQ4A(L-4.2,LC) |
| Service Rate | 4 × STM-4 @ 622 Mbps |
| Connector Type | LC/UPC Single-mode |
| Fiber Standard | ITU-T G.652 |
| Reach | Up to 40 km (L-4.2 standard) |
| Standards Compliance | ITU-T G.707, G.783, G.957 |
| Power Consumption | ≤ 15W |
| Temperature Range | -5°C to +55°C |
| Humidity | 5% – 95% RH (non-condensing) |
| Monitoring Features | LOS, LOF, MS-AIS, B1 error detection |
| Installation | Hot-swappable, universal service slot |
| Warranty | 1–3 Years Manufacturer Warranty |
SSN1SLQ4A(L-4.2,LC) Huawei Applications
-
Metro Core Networks – High-speed aggregation and switching
-
Carrier Transport Rings – STM-4 transmission with built-in redundancy
-
Enterprise WAN Backbones – Reliable long-distance optical connectivity
-
Utilities and Public Sector – SCADA data transport and secure comms
-
Transport Infrastructure – STM-4 transmission for signaling and control
Customization & OEM Support
-
Custom Branding – Logos, labels, part numbers
-
Pre-Configuration – Alarm profiles, loopback settings
-
Solution Kits – Bundled with chassis, patch cords, manuals
-
Extended Testing – Burn-in testing for high-availability environments
-
Documentation Packs – User manuals, CLI guides, and MIBs
Wholesale & Global Distribution
-
Genuine Huawei Stock – Factory sealed, QR/barcode traceable
-
Fast Global Shipping – With static-safe packaging
-
Available in Volume – Ideal for system integrators and operators
-
End-to-End Support – From design consultation to after-sales service
-
Documentation Ready – Full OEM files provided
Why Choose SSN1SLQ4A(L-4.2,LC) Huawei Interface Board
-
622M High-Speed Ports – Ideal for next-gen SDH deployments
-
Reliable & Long Reach – 40 km transmission with strong signal quality
-
Flexible Integration – Fits in multiple Huawei OSN platforms
-
Carrier-Grade SDH – Proven technology with full ITU compliance
-
Efficient Design – Conserves rack space and power
Contact Us Today to receive a competitive quote, technical specs, or a lead time for the SSN1SLQ4A(L-4.2,LC) Huawei 4-Port STM-4 Interface Board — a trusted solution for modern optical backbone networks.
