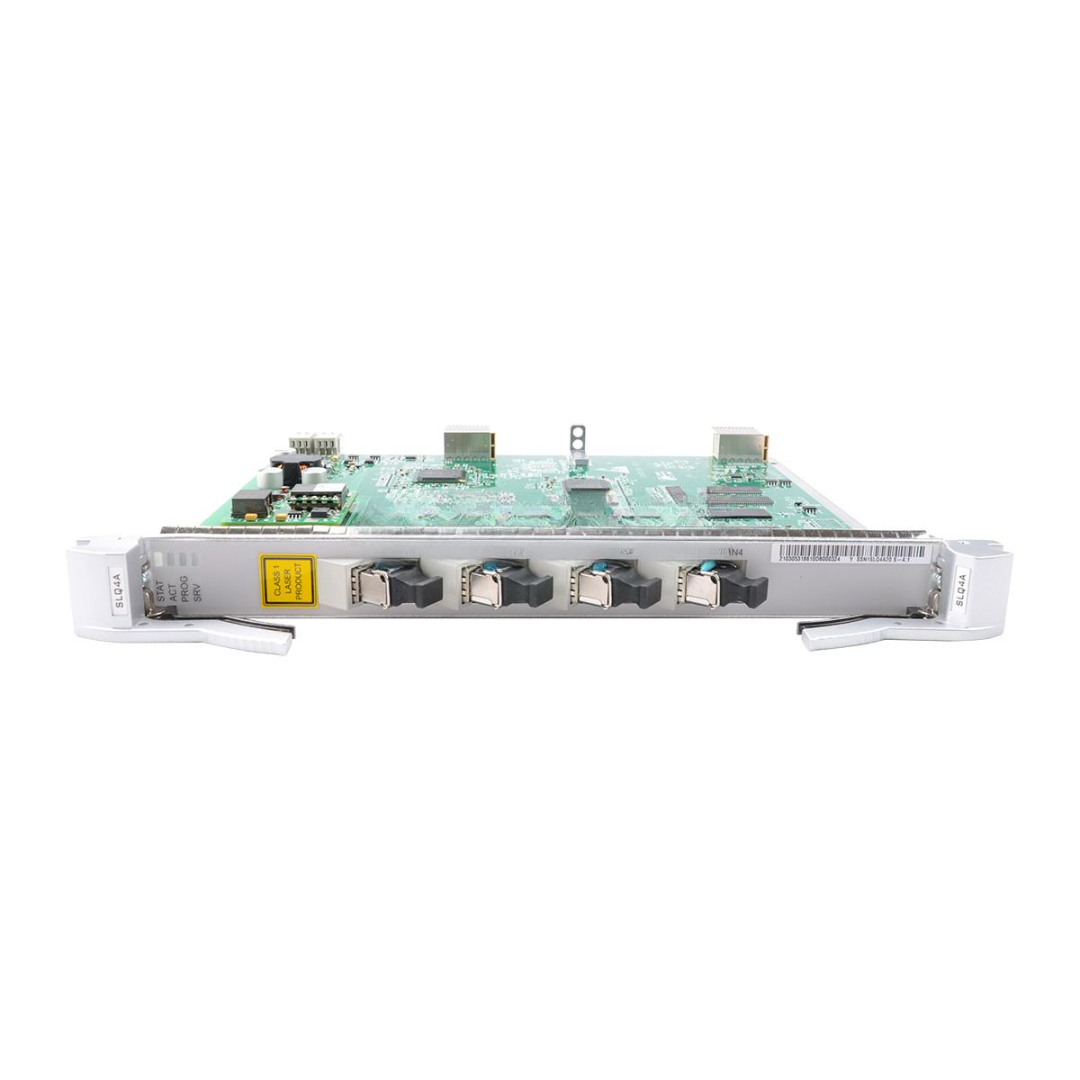

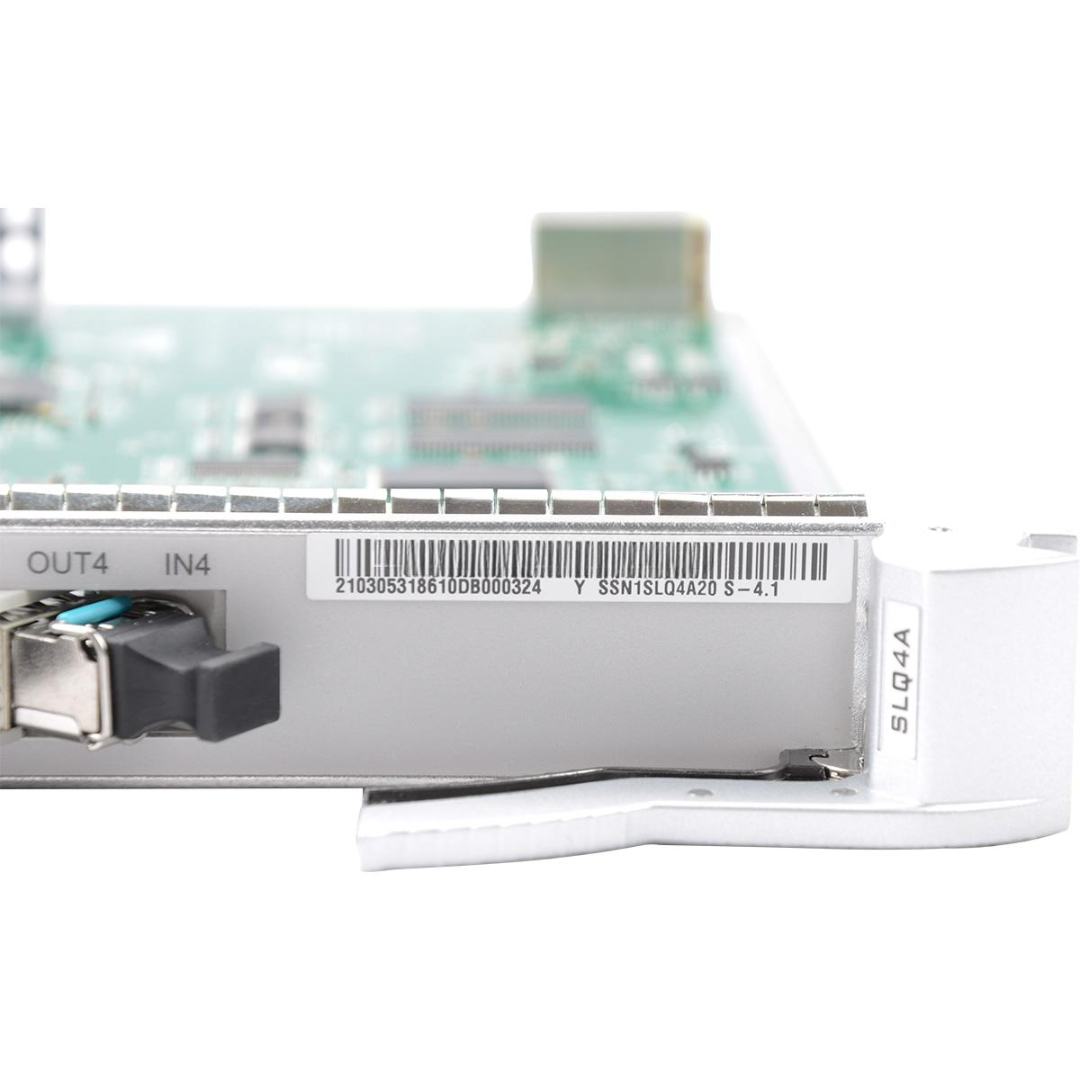

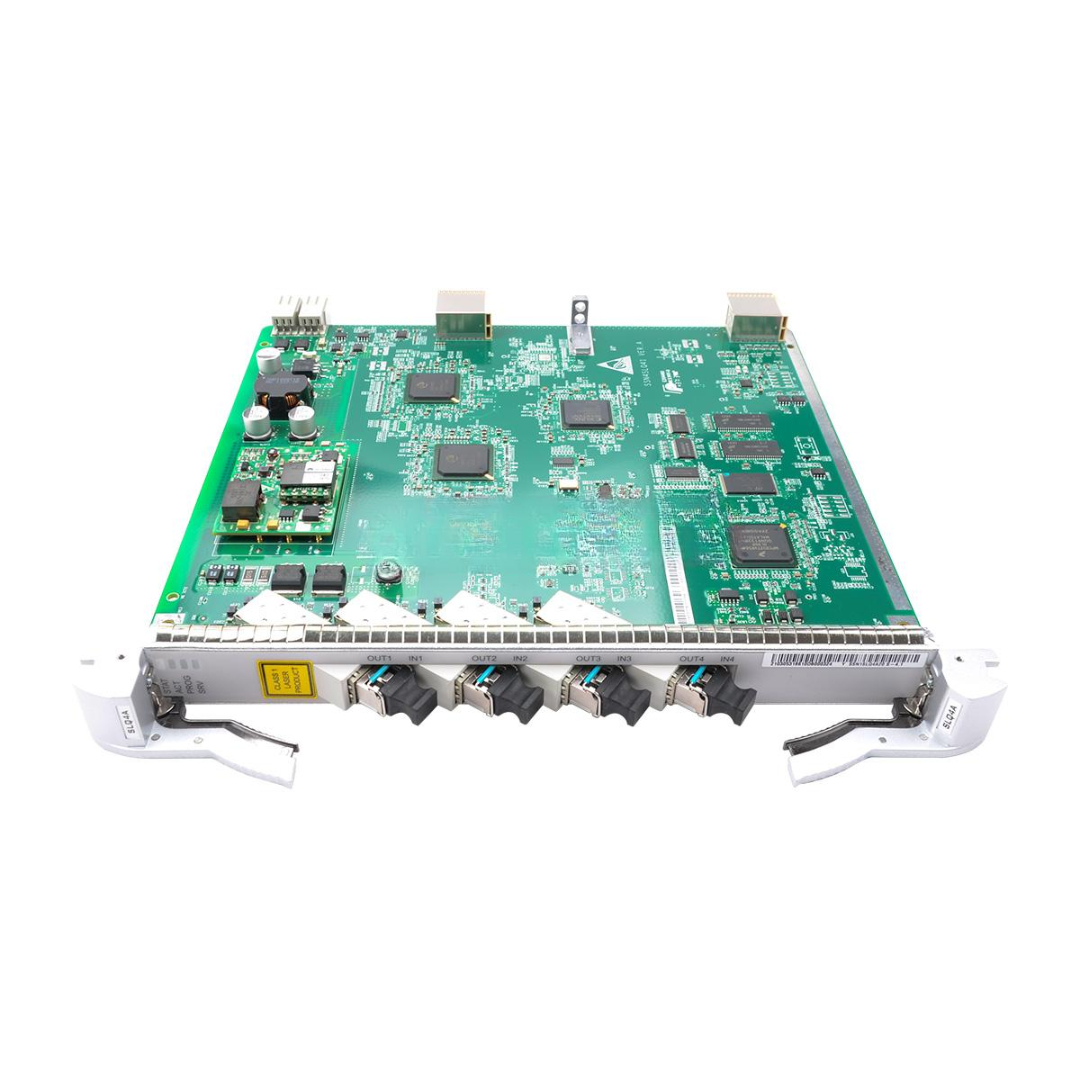

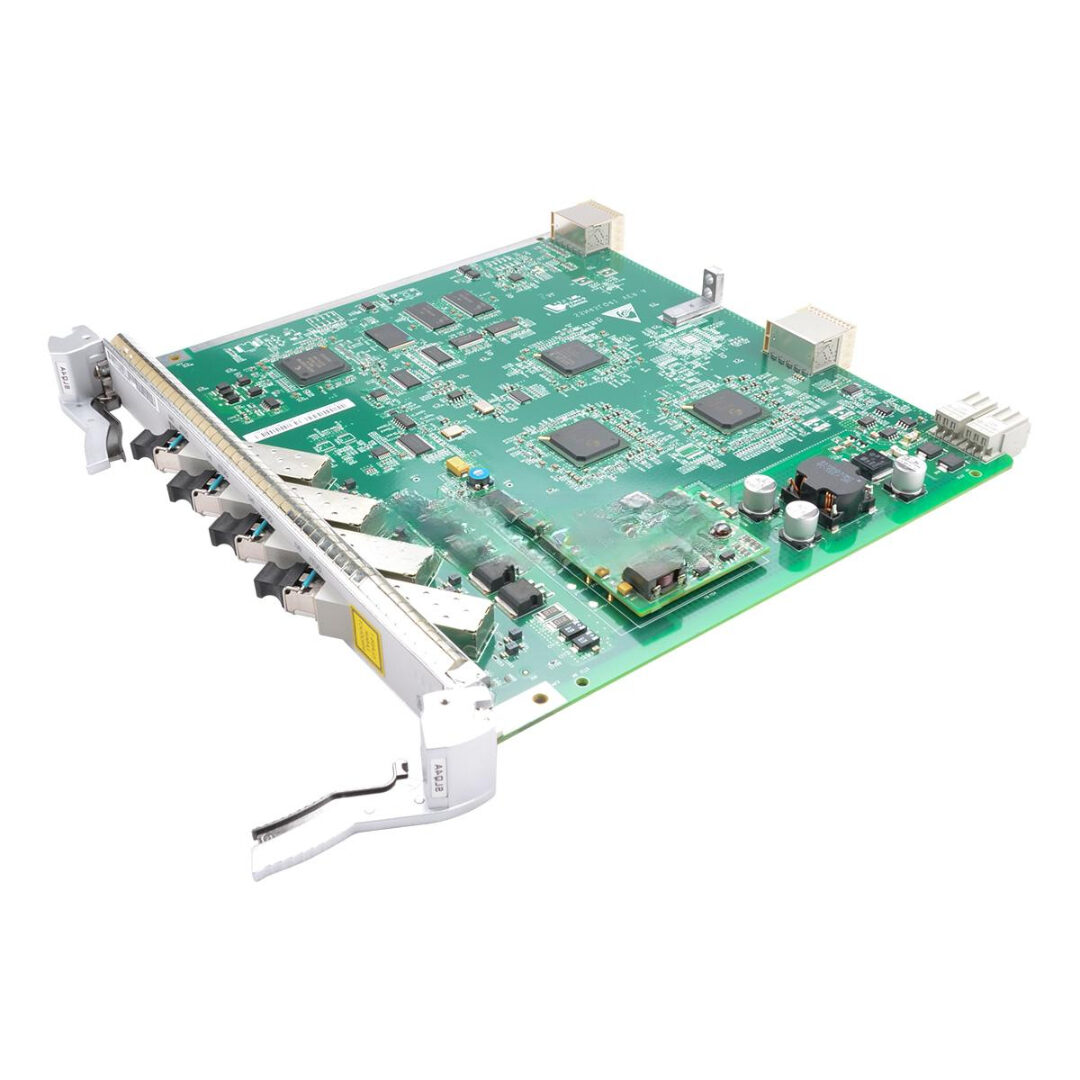

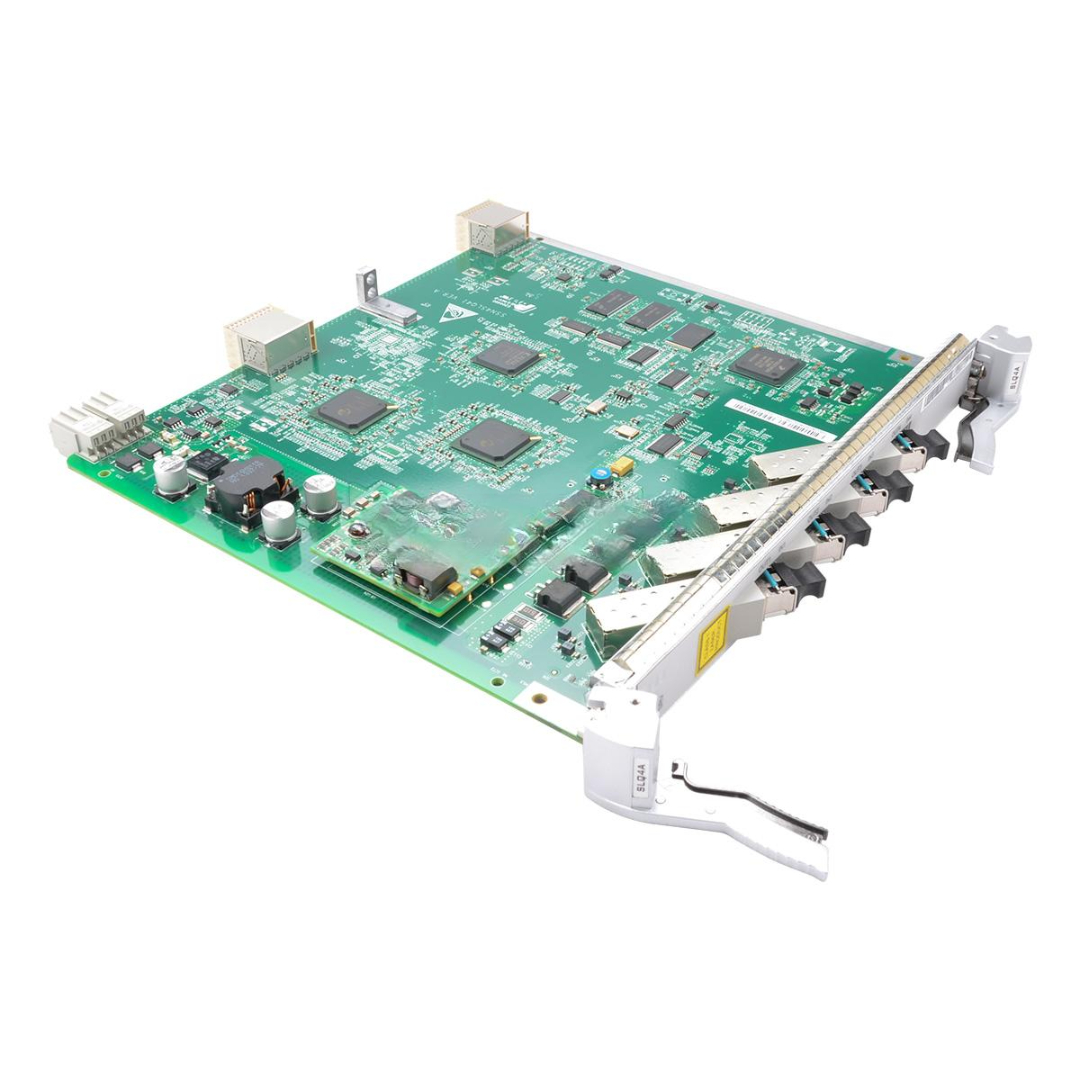

SSN1SLQ4A(S-4.1,LC) Huawei 4-Port STM-4 622M Interface Board
The SSN1SLQ4A(S-4.1,LC) Huawei is a high-performance STM-4 (622 Mbps) 4-port optical interface board designed for the Huawei OptiX OSN series, including OSN1500, OSN2500, and OSN3500 platforms. Supporting the S-4.1 short-reach specification (up to 2 km) over LC-type single-mode fiber, this board is ideal for metro aggregation, access rings, and carrier-grade SDH optical networks.
With built-in features such as loopback, alarm monitoring, and error detection, the SSN1SLQ4A ensures reliable and efficient transport of high-speed SDH services in both point-to-point and ring network topologies.
Key Features
-
Model: SSN1SLQ4A(S-4.1,LC)
-
Type: STM-4 Optical Interface Board
-
Port Quantity: 4 Optical Ports
-
Data Rate: 622 Mbps per port (STM-4)
-
Interface Type: LC/UPC Single-Mode
-
Reach: Up to 2 km (S-4.1 standard)
-
Network Compatibility: OSN1500 / OSN2500 / OSN3500
-
Hot-Swappable: Yes – supports live insertion/removal
-
Functionality: Frame alignment, B1/B2 error monitoring, alarm reporting, loopback testing
Technical Specifications
| Specification | Details |
|---|---|
| Board Model | SSN1SLQ4A(S-4.1,LC) |
| Service Type | 4 × STM-4 Optical Interfaces |
| Port Speed | 622 Mbps per port |
| Connector Type | LC/UPC Duplex |
| Transmission Distance | Up to 2 km |
| Fiber Type | Single-mode (G.652) |
| Protocol Compliance | ITU-T G.707, G.783, G.957 |
| Power Consumption | ≤ 12W (typical) |
| Operating Temperature | -5°C to +55°C |
| Humidity | 5% – 95% RH, non-condensing |
| Monitoring Features | LOS, LOF, MS-AIS, B1/B2 errors, loopbacks |
| Installation Slot | Line Interface Slot |
| Warranty | 1–3 Years Manufacturer Warranty |
SSN1SLQ4A(S-4.1,LC) Huawei Applications
-
Metro Optical Networks – High-bandwidth STM-4 links for aggregation layers
-
SDH Transport – Medium-distance (2 km) connections for carrier backbone networks
-
Industrial & Utilities – Secure and redundant transmission for automation systems
-
Enterprise Communications – Ring and point-to-point topologies for business services
-
Transport & Rail Systems – STM-4 transmission for signaling and command control
Customization & OEM Options
-
Custom Labeling – OEM part number and company logo branding available
-
Pre-Configured Boards – Factory pre-set loopbacks, alarms, and service mapping
-
Solution Bundles – Combine with chassis, SFPs, and fiber patch cables
-
Extended Testing – High-temperature, long-duration burn-in for critical applications
-
Software Image Preload – With version control and compliance packages
SSN1SLQ4A(S-4.1,LC) Huawei Wholesale & Global Supply
-
Huawei Original Equipment – Brand-new, factory-sealed units with QR/barcode
-
Rapid Dispatch – Stock ready for urgent project timelines
-
Safe Transit – Static-protected packaging for international shipments
-
Bulk Order Discounts – Scalable volumes for telecom and government infrastructure
-
End-to-End Support – Technical documentation, install guides, and configuration help
Why Choose SSN1SLQ4A(S-4.1,LC) Huawei Interface Board
-
Multi-Port STM-4 Capacity – Supports high-capacity transmission with fewer board slots
-
Reliable SDH Performance – Stable operation in diverse and rugged network environments
-
Proven Compatibility – Seamless integration with Huawei OSN1500, OSN2500, and OSN3500
-
Low Power, High Reliability – Energy efficient with extended operational lifespan
-
Global Telecom Proven – Widely deployed across enterprise and carrier-grade systems
Contact Us Today to request a quote, datasheet, or expert consultation on the SSN1SLQ4A(S-4.1,LC) Huawei 4-Port STM-4 622M Interface Board — a trusted solution for high-speed optical connectivity across modern SDH infrastructures.
