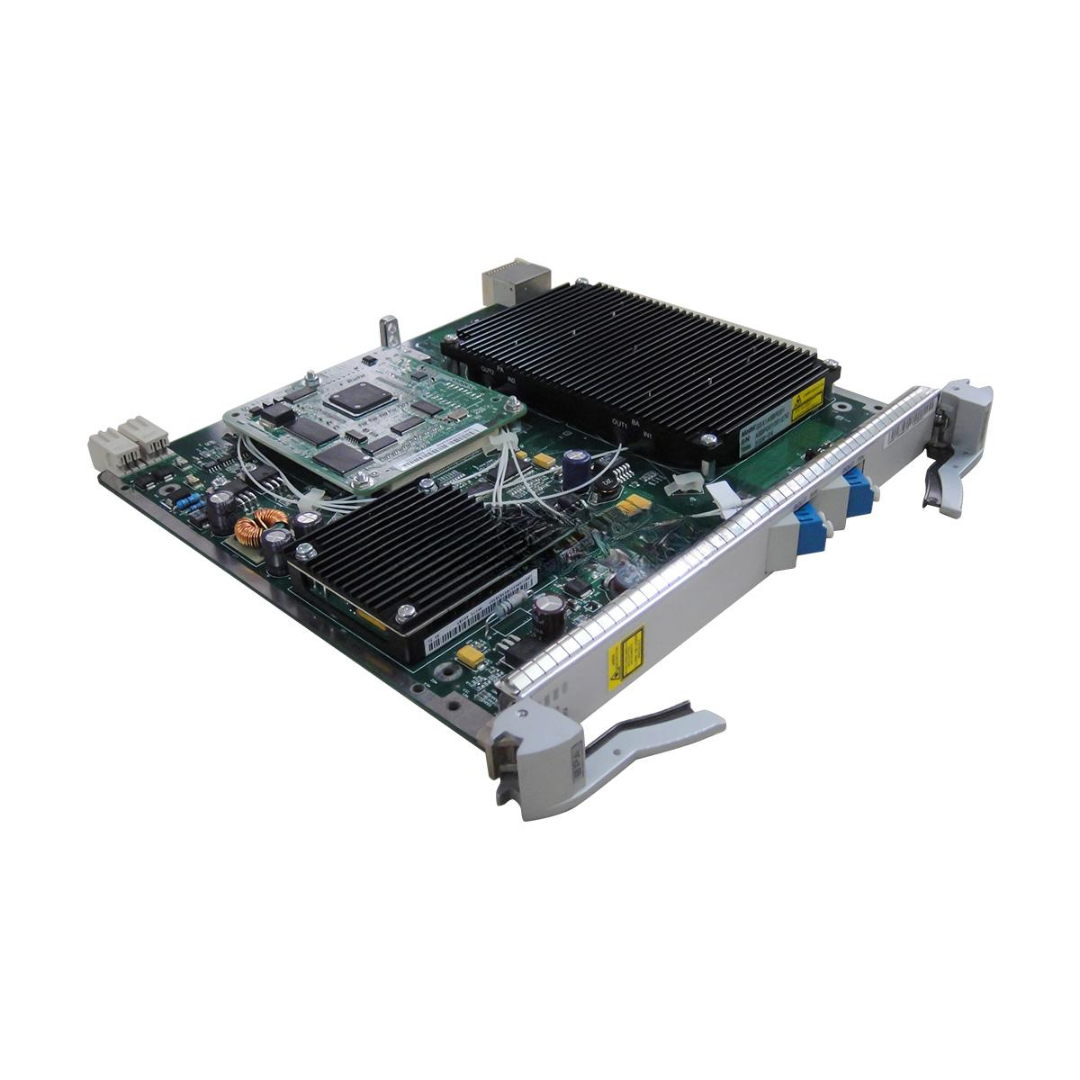

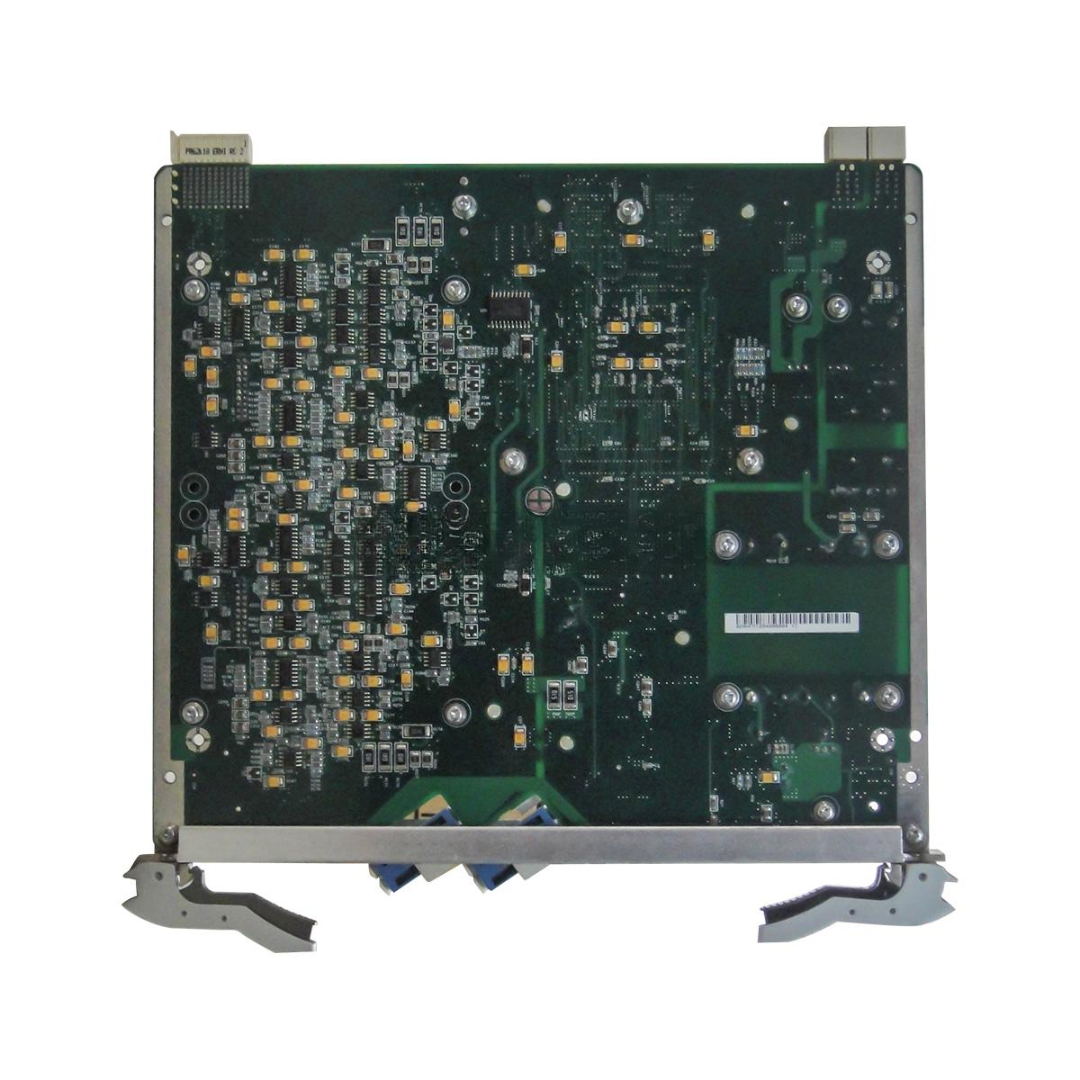

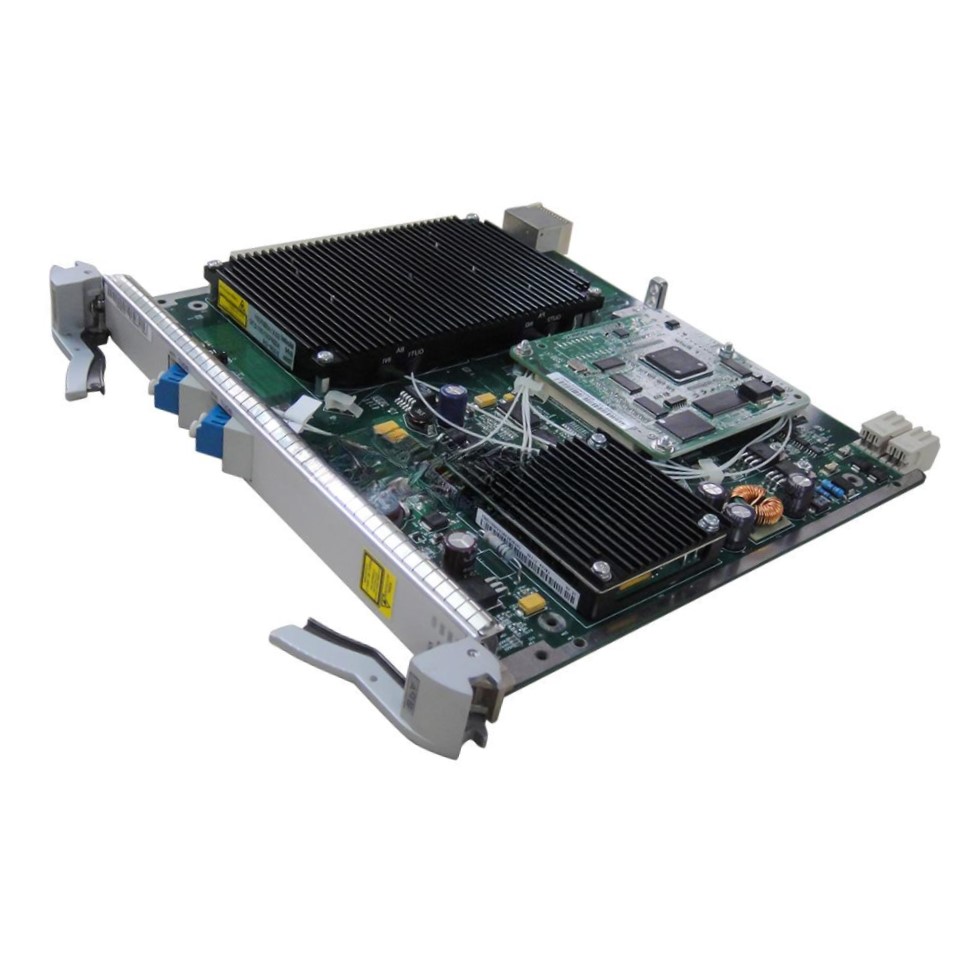

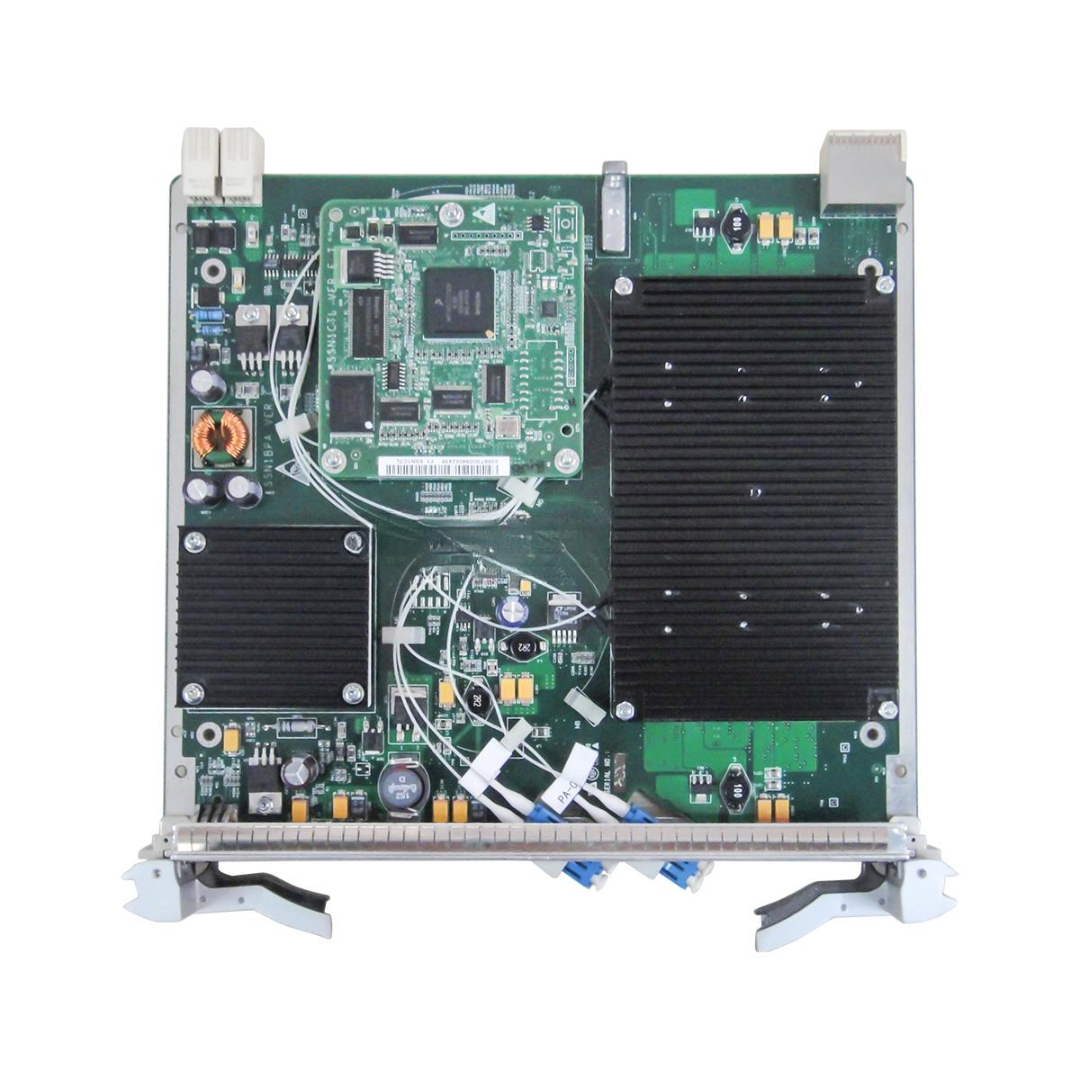

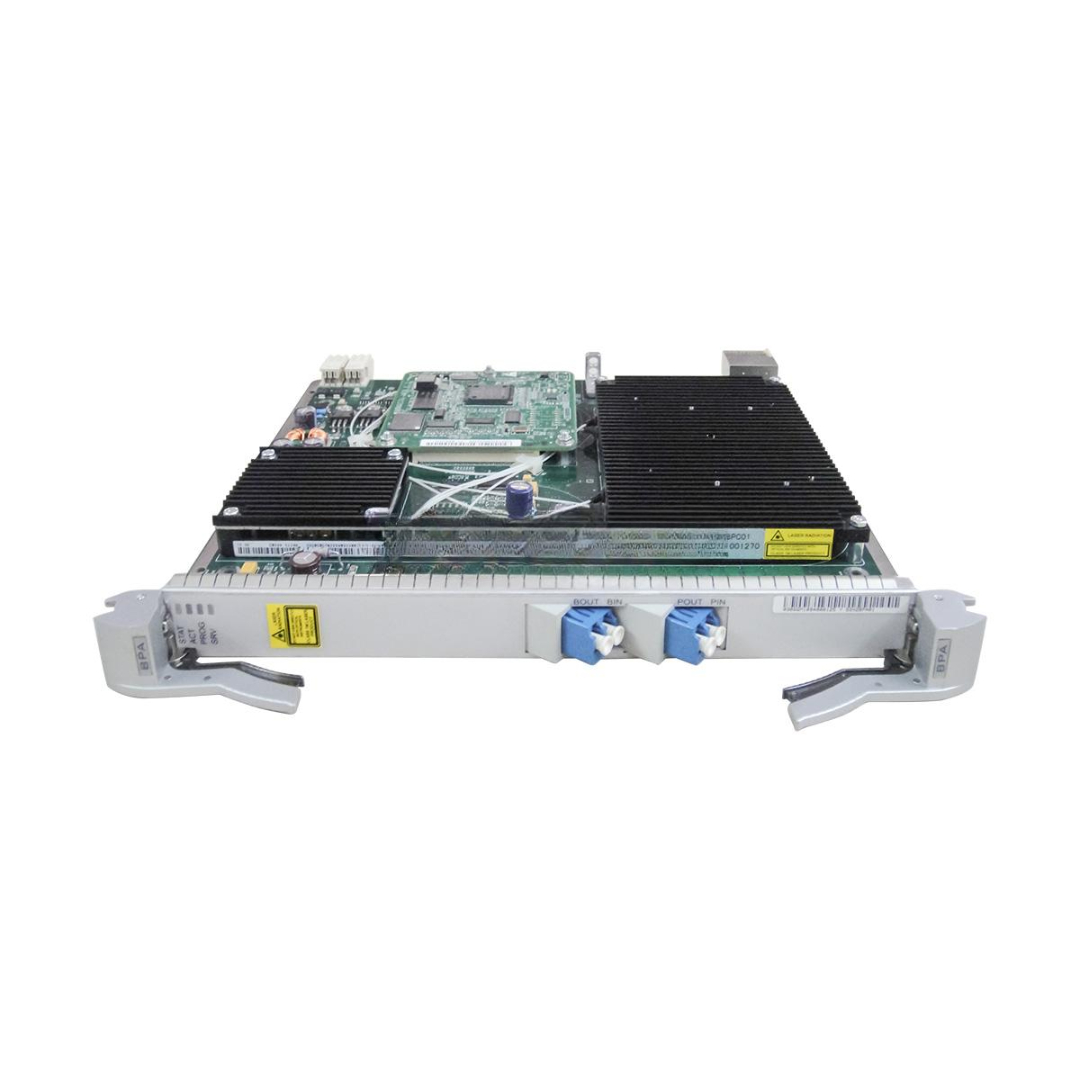

SSN2BPA(14/-38,LC) Huawei Brand New Optical Booster & Pre-Amplifier Unit
The SSN2BPA(14/-38,LC) is a high-performance optical amplifier board developed by Huawei for DWDM optical transmission systems. This dual-function unit integrates both booster amplification and pre-amplification capabilities, significantly enhancing optical signal strength at both the transmitter and receiver ends of long-haul and metro DWDM links. Featuring erbium-doped fiber amplifier (EDFA) technology, this board ensures high gain with low noise over the full C-band wavelength range.
Key Features
-
Model: SSN2BPA(14/-38,LC)
-
Product Type: Optical Booster & Pre-Amplifier
-
Amplifier Modes: Booster + Pre-Amp (dual-function)
-
Wavelength Band: C-Band (1528–1565 nm)
-
Connector Type: LC/UPC
-
Booster Output Power: +14 dBm
-
Pre-Amp Input Sensitivity: -38 dBm
-
Amplification Technology: Erbium-Doped Fiber Amplifier (EDFA)
-
Application: Long-haul and metro DWDM transmission
-
System Compatibility: Huawei OSN6800 / OSN8800 / OSN3500 series
-
Hot-Swappable: Yes
Technical Specifications
| Specification | Details |
|---|---|
| Model | SSN2BPA(14/-38,LC) |
| Part Number | Varies by region |
| Amplifier Type | EDFA (Booster + Pre-Amp) |
| Wavelength Range | 1528–1565 nm (C-Band) |
| Output Power (Booster) | +14 dBm |
| Input Sensitivity (Pre-Amp) | Down to -38 dBm |
| Noise Figure | ≤ 6 dB |
| Connector Type | LC/UPC |
| Power Consumption | ≤ 30W |
| Operating Temperature | -5°C to +45°C |
| Storage Temperature | -40°C to +70°C |
| Humidity | 5% to 95%, non-condensing |
| Board Compatibility | OSN6800 / OSN8800 / OSN3500 DWDM systems |
| Management Interface | T2000 NMS / U2000 platform |
SSN2BPA(14/-38,LC) Applications
-
Long-Haul DWDM Transmission – Extends reach between optical nodes
-
Metro Aggregation Networks – Boosts signal over metro fiber rings
-
Data Center Interconnection (DCI) – Maintains signal integrity across campuses
-
National Backbone Networks – Ensures stable transmission over 100+ km
-
Satellite & Defense Fiber Links – For secure and reliable long-range comms
Customization & OEM Options
-
Custom Branding: Add OEM labels, SKUs, or custom serial numbers
-
Gain Adjustment: Factory-tuned gain profiles available on request
-
Extended Testing: Environmental, vibration, and aging tests for mission-critical use
-
Installation Kits: Pre-packaged with fiber patch cords, cleaning tools, mounting accessories
SSN2BPA(14/-38,LC) Wholesale & Global Procurement
-
Genuine Huawei Equipment – Factory-sealed and original
-
Volume Stock Available – For ISPs, carriers, and system integrators
-
International Shipping – Export documentation and customs support included
-
After-Sales Support – Remote configuration, troubleshooting, and firmware updates
Why Choose SSN2BPA(14/-38,LC) Huawei Optical Amplifier
-
Full C-Band Coverage – Supports multiple DWDM channels simultaneously
-
Dual Amplifier Design – Combines booster and pre-amp in one board
-
Low Noise Figure – Ensures high OSNR for error-free transmission
-
Seamless Integration – Huawei OSN ecosystem compatibility
-
Carrier-Class Reliability – Designed for 99.999% network availability
Contact Us
Deploy the SSN2BPA(14/-38,LC) Optical Booster & Pre-Amplifier for a powerful upgrade to your DWDM backbone — boosting performance and reach with Huawei’s trusted amplification technology.
