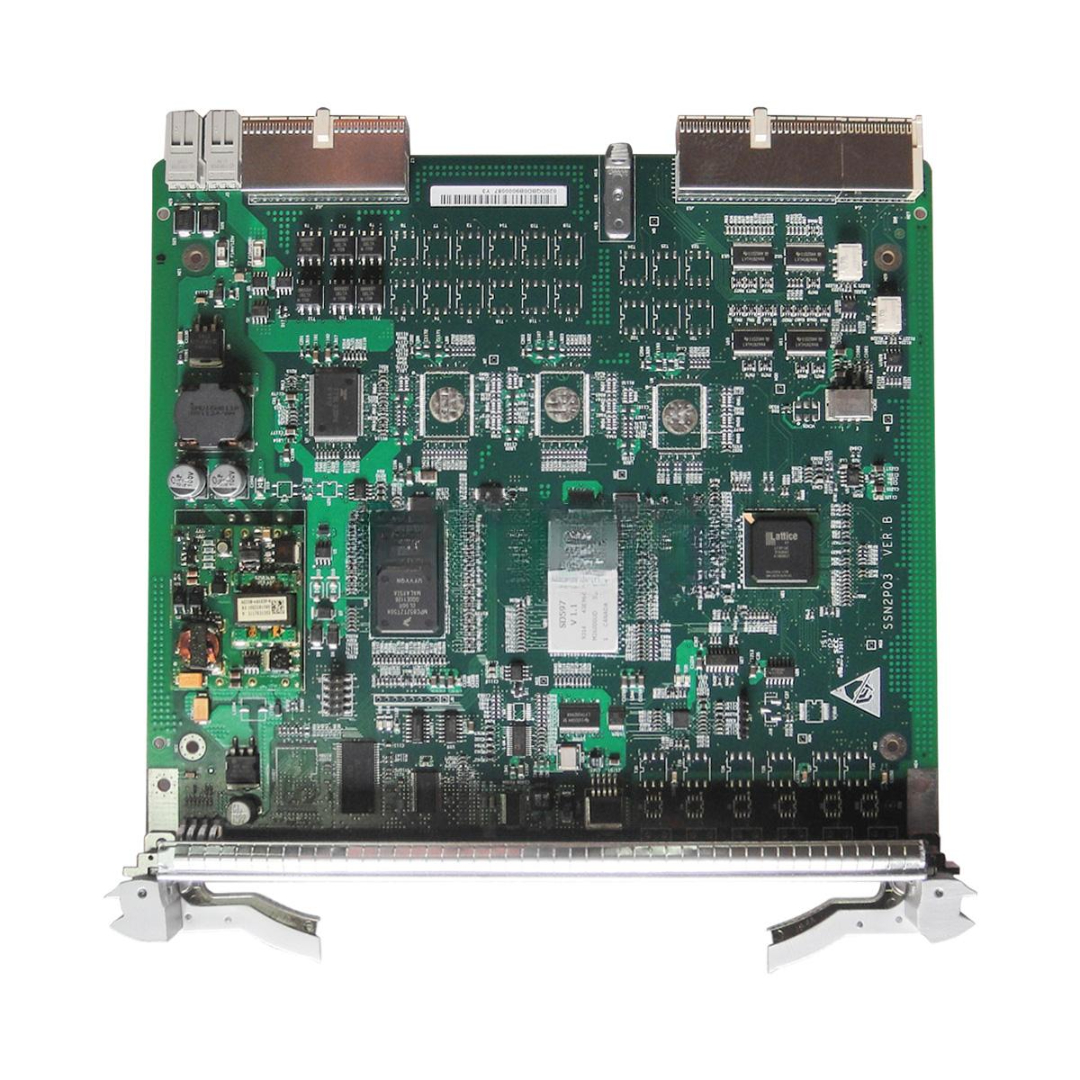

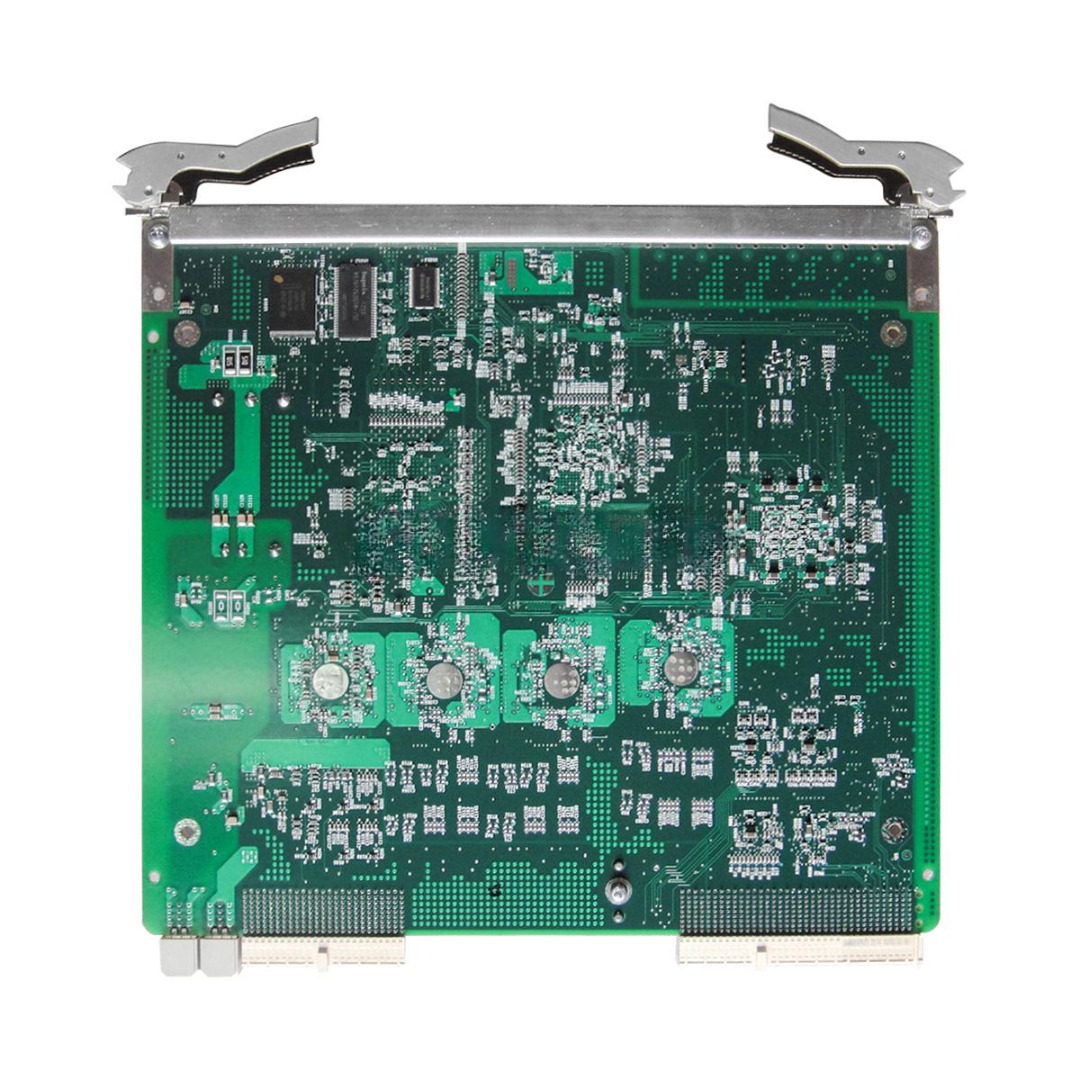

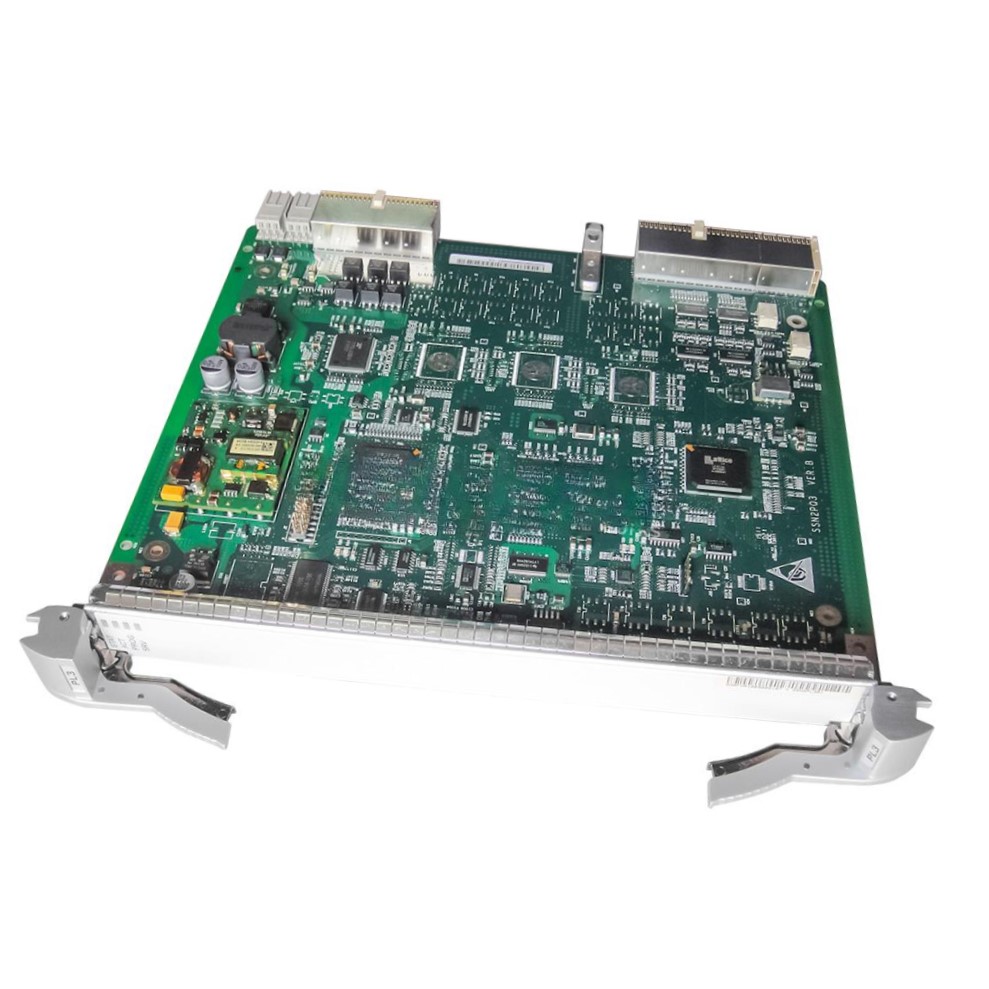

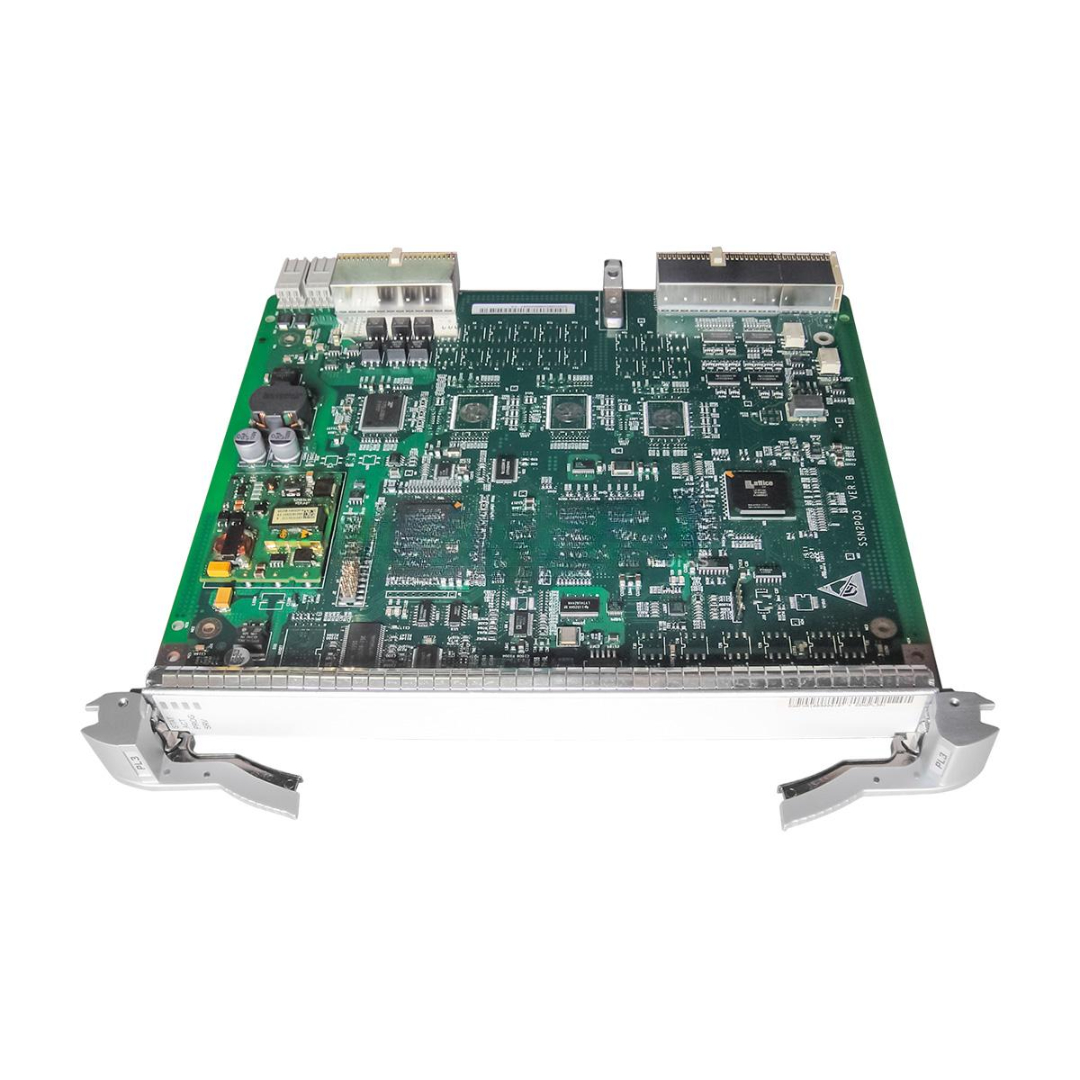

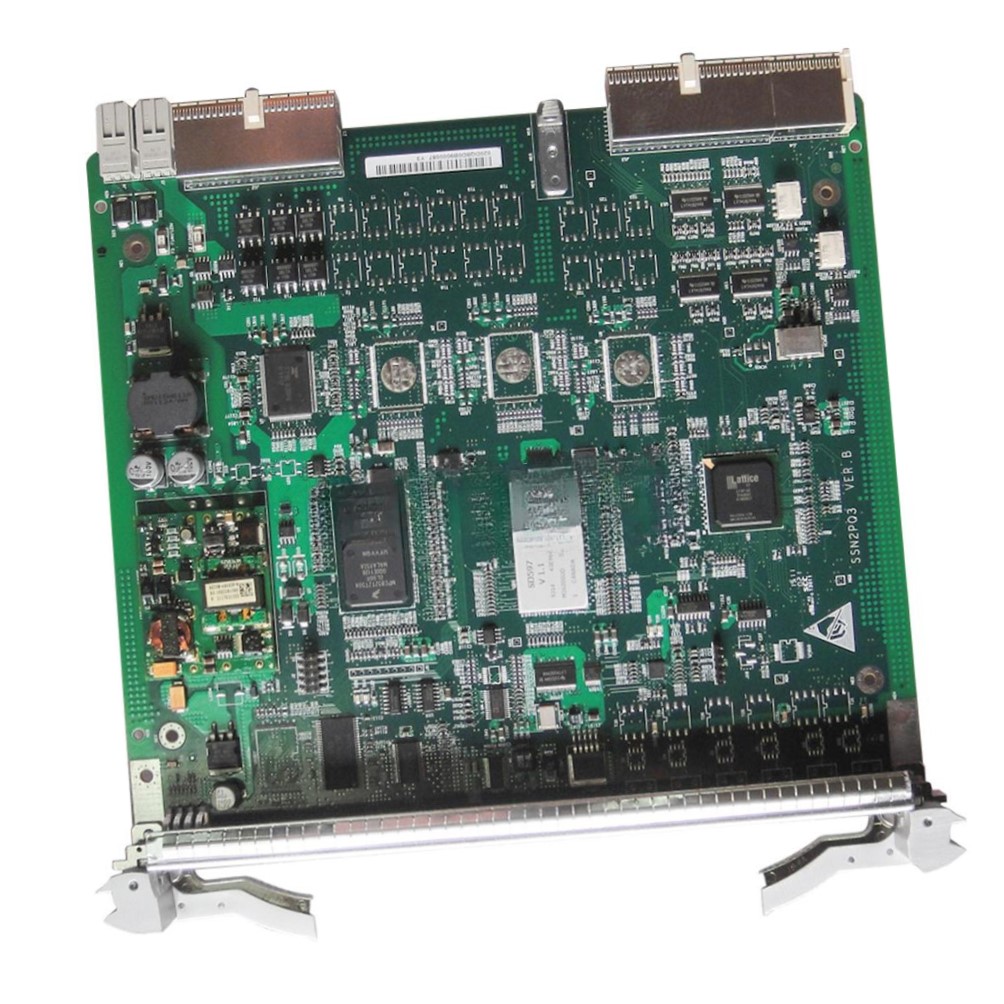

SSN2PL3 Huawei Brand New 3xE3/T3 Service Processing Board
The SSN2PL3 Huawei is a brand new 3xE3/T3 service processing board, designed to provide high-speed TDM access services in Huawei’s OSN series MSTP platforms, including OSN3500, OSN7500, and OSN2500. It supports three E3 or T3 channels and is primarily used for PDH/SDH signal access, ensuring seamless integration with legacy and hybrid telecom infrastructures. The board is engineered for reliable, carrier-grade E3/T3 service aggregation and transmission, maintaining excellent signal integrity and long-term stability.
Key Features
-
Model: SSN2PL3
-
Condition: 100% Brand New, Original Huawei OEM
-
Service Type: 3xE3 or 3xT3 TDM Service Access
-
Interface Support: 75-ohm coaxial (E3) or 100-ohm/120-ohm balanced (T3)
-
Line Rate: E3 (34.368 Mbps), T3 (44.736 Mbps)
-
Port Density: 3 x E3/T3 interfaces per board
-
Clock Synchronization: Supports network timing and clock recovery
-
Alarm Support: LOS, LOF, AIS, RDI, FEBE
-
Protection: Supports software-based service protection mechanisms
-
Hot-Swappable: Replace or upgrade without powering down system
Technical Specifications
| Specification | Details |
|---|---|
| Model | SSN2PL3 |
| Service Type | 3xE3 or 3xT3 TDM Channels |
| Interface | BNC (75Ω coaxial) for E3 / Balanced ports for T3 |
| Data Rate | E3: 34.368 Mbps / T3: 44.736 Mbps |
| Protocols Supported | ITU-T G.751, G.832 (E3), ANSI T1.107 (T3) |
| Network Elements | OSN3500, OSN7500, OSN2500 |
| Power Consumption | ≤12W (typical) |
| Operating Temperature | -5°C to +55°C |
| Humidity | 5% to 95% RH, non-condensing |
| Installation Slot | Service slot on OSN series subrack |
| Monitoring & Alarms | LOS, LOF, AIS, RDI, FEBE |
| Warranty | 1–3 Years Manufacturer Warranty |
SSN2PL3 Huawei Applications
-
Telecom Operators — Aggregating E3/T3 leased line services into metro and core SDH networks
-
Enterprise Networks — Providing legacy PDH interconnect for large-scale infrastructures
-
Mobile Backhaul — Transporting TDM voice/data for older BTS or microwave systems
-
Utility & Energy Networks — Robust E3/T3 interfaces for SCADA and grid communications
-
Government & Military Networks — Secure, stable legacy transmission support
Customization & OEM Options
-
Private Labeling — Add your company logo, barcodes, and custom asset tags
-
Pre-Configured Services — Set up board with pre-assigned port mappings and alarms
-
Extended QA & Burn-In — Optional extended testing cycles for mission-critical environments
-
Hybrid Solutions — Bundling with STM-1/4 or IP boards for mixed network environments
-
Documentation Packs — Custom datasheets and manuals with localized language or branding
SSN2PL3 Huawei Wholesale & Global Procurement
-
Factory-Direct Supply — Huawei OEM parts at bulk pricing
-
Certified Stock — 100% new, original, and fully tested units
-
Fast Lead Times — Available for urgent deployments
-
Secure Packaging — Anti-static sealed bags with foam-protected Huawei boxes
-
International Shipping — Global delivery with export-compliant documentation
-
Volume Discounts — Tiered pricing available for large orders or long-term contracts
-
Technical Assistance — Expert configuration help and compatibility validation
Why Choose the SSN2PL3 Huawei Service Board
-
Triple E3/T3 Support — High-density TDM service board for legacy aggregation
-
Carrier-Grade Stability — Reliable and durable for demanding telecom environments
-
Seamless SDH Integration — Ideal for hybrid networks with E3/T3 access requirements
-
Huawei OEM Quality — Engineered for longevity and network performance
-
Low Power Design — Efficient operation with low maintenance overhead
Contact Us Now for Datasheets, Pricing, and Bulk Orders
Enhance your legacy service capabilities with the SSN2PL3 Huawei 3xE3/T3 Service Processing Board — the ideal solution for stable and scalable TDM access in modern transmission networks.
