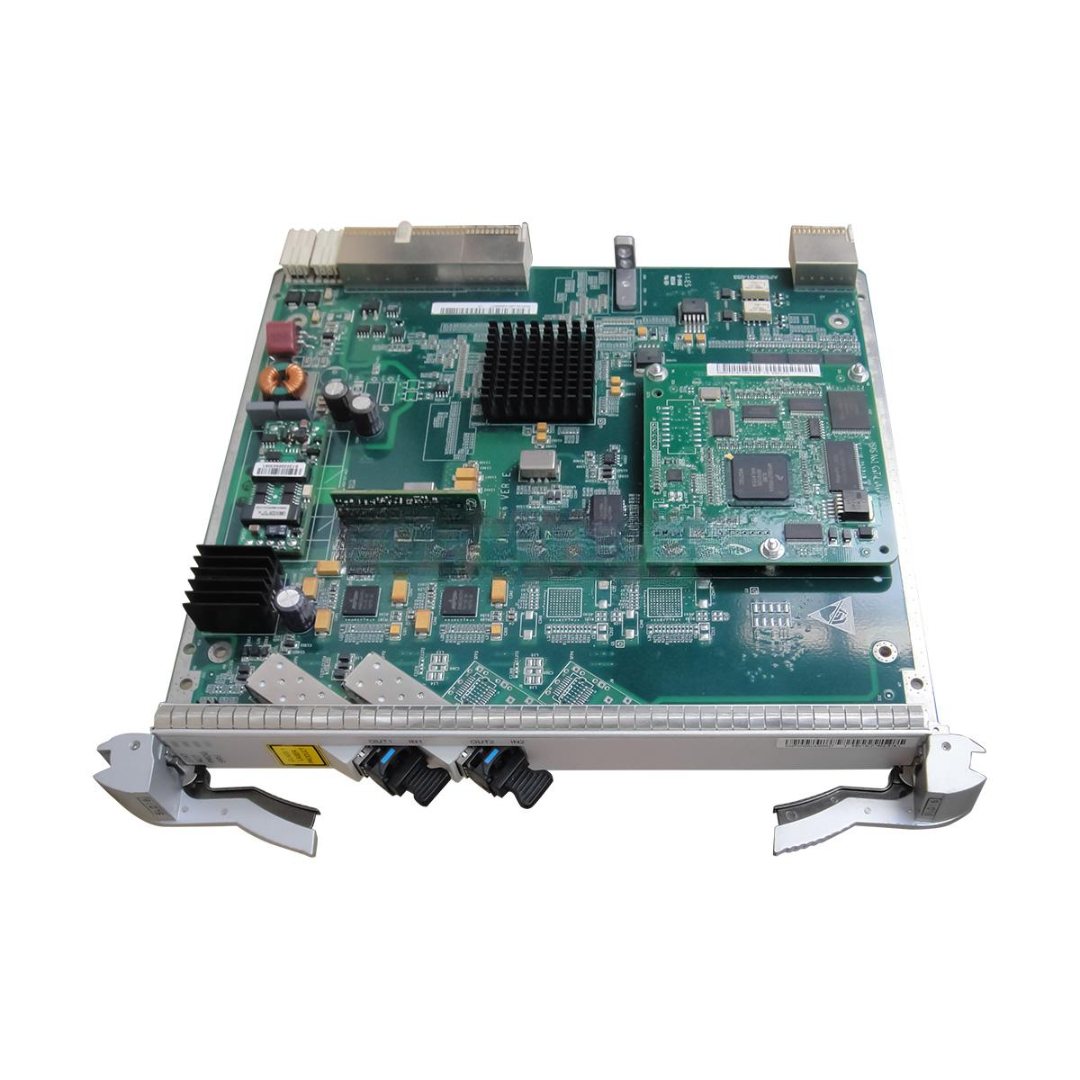

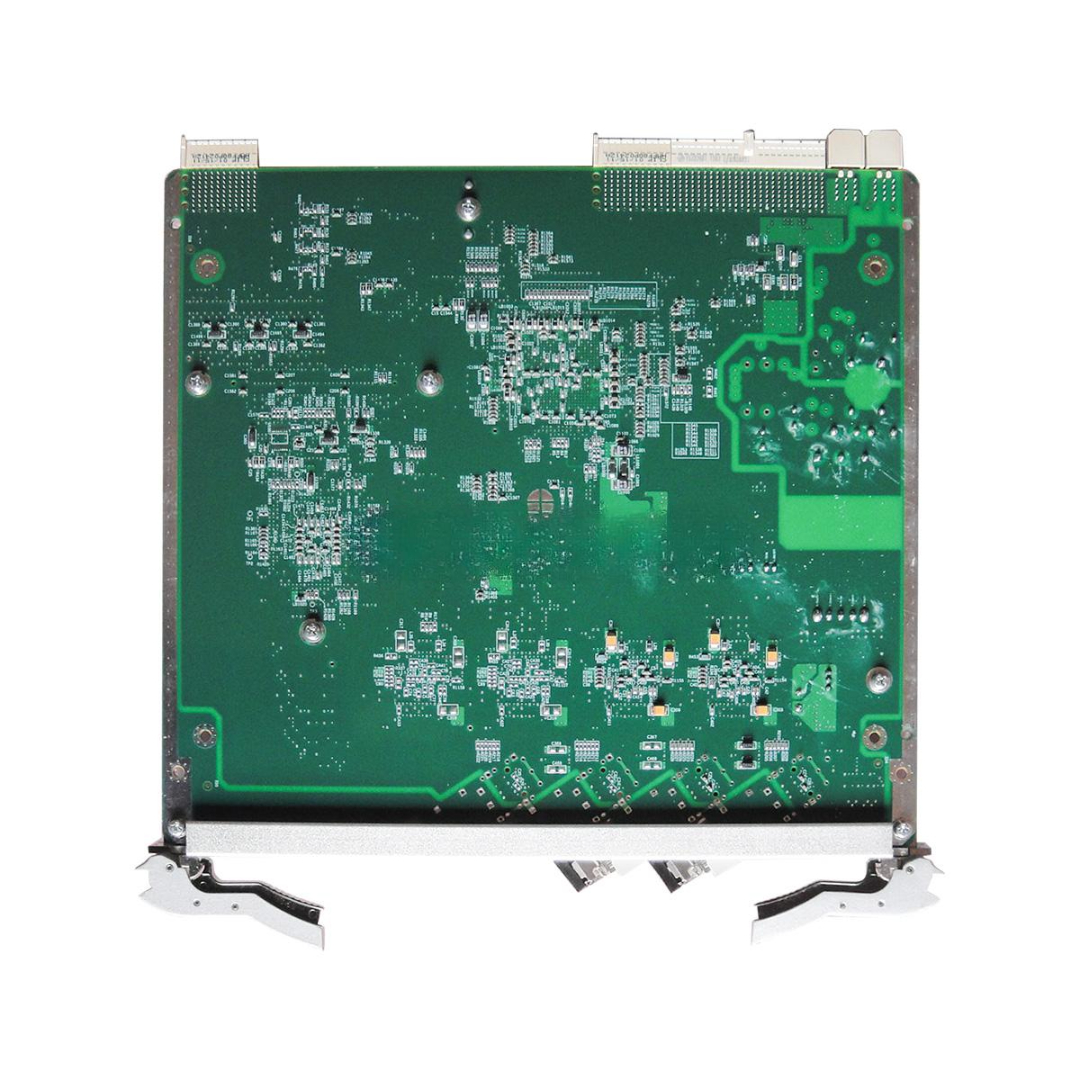

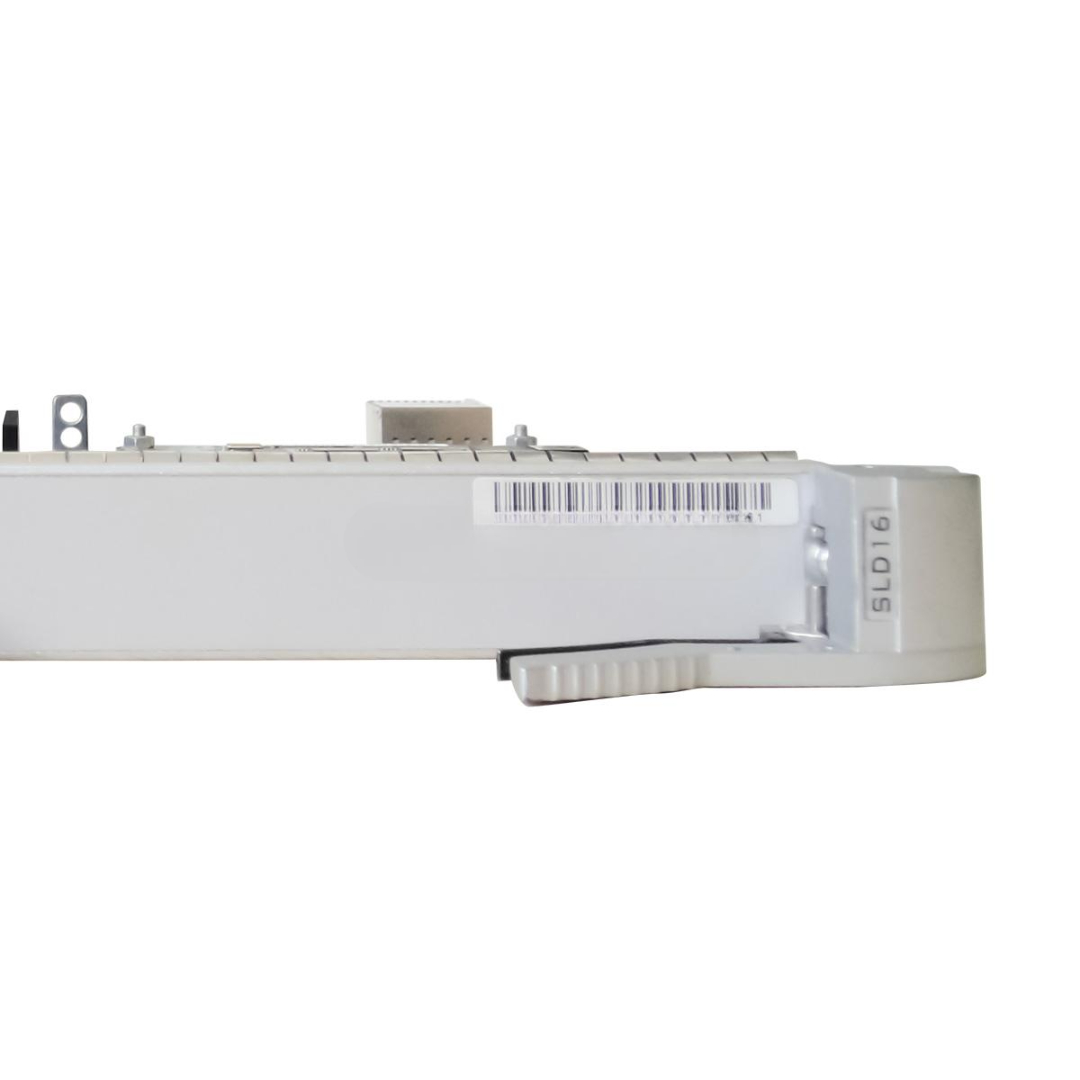

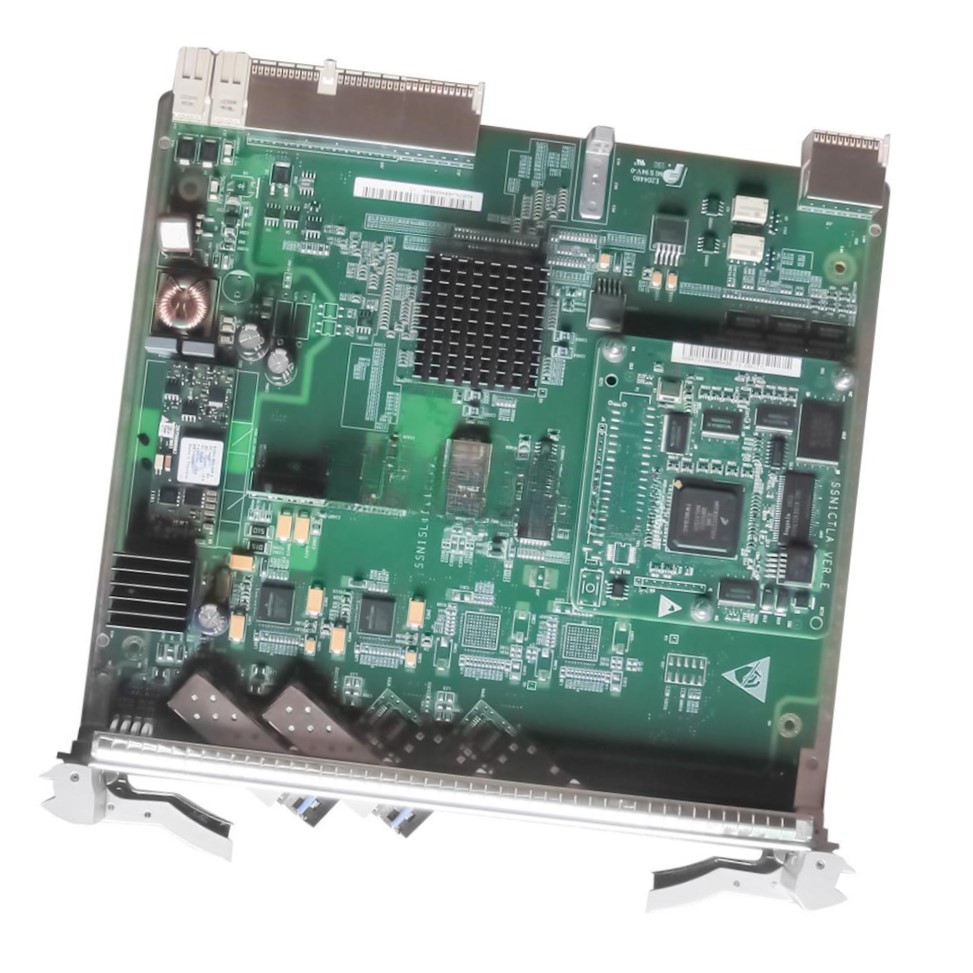

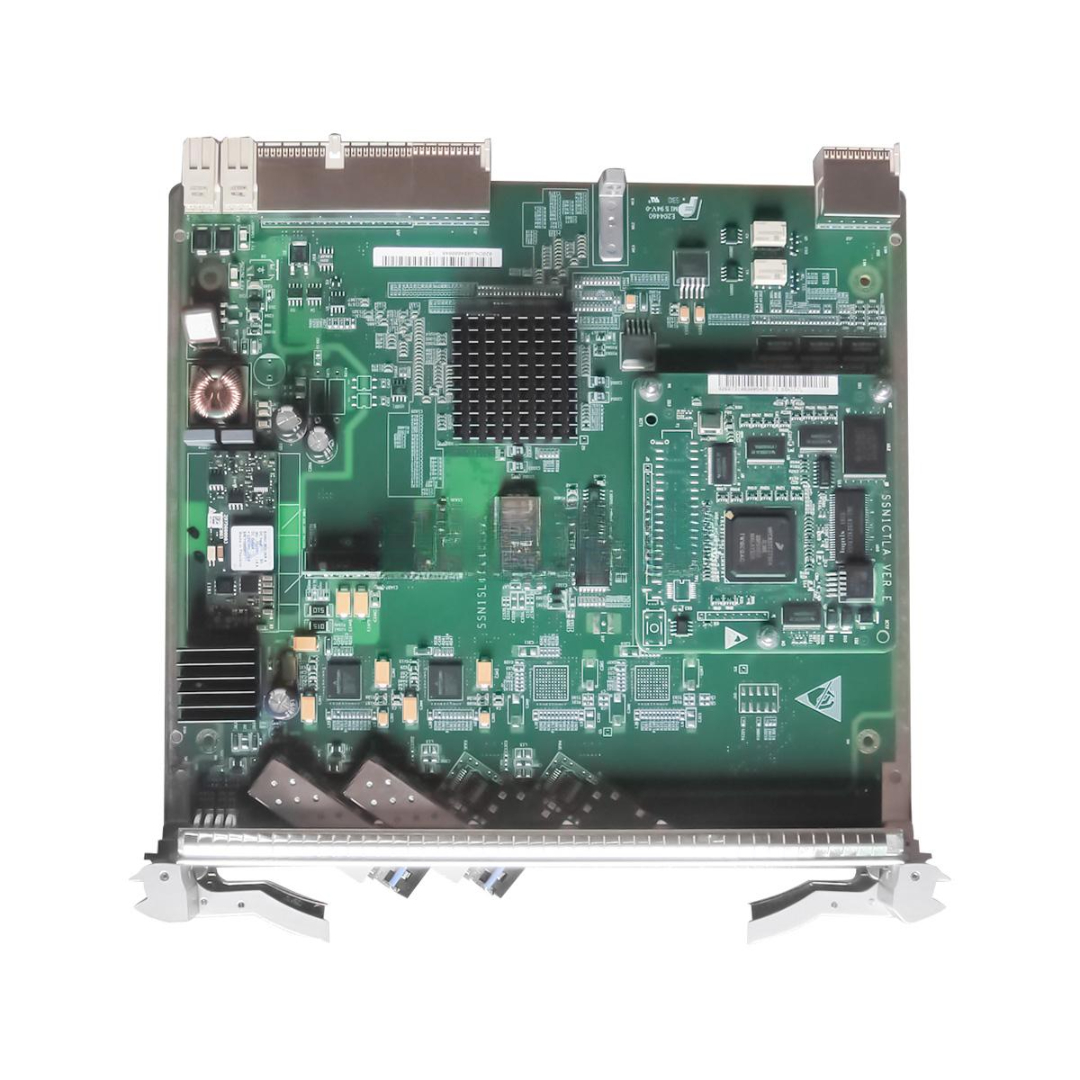

SSN4SLQ16(L-16.1,LC) Huawei Brand New 2.5G Optical Interface Board
The SSN4SLQ16(L-16.1,LC) Huawei is a high-performance 2.5G STM-16 optical interface board engineered for Huawei’s OptiX OSN series equipment. Supporting long-haul transmission (L-16.1) over single-mode fiber (SMF), this module is optimized for transmission distances up to 40 km at a wavelength of 1310 nm, using LC connectors.
Designed to provide reliable SDH/SONET connectivity in carrier-grade networks, the SSN4SLQ16 ensures high-speed, stable data transmission, efficient power usage, and integration with Huawei’s unified NMS platforms like U2000.
Key Features
- Model: SSN4SLQ16(L-16.1,LC)
- Condition: 100% Brand New, Original Huawei OEM
- Service Type: STM-16 (2.5 Gbps)
- Interface Type: L-16.1 (Long Reach, 40 km)
- Wavelength: 1310 nm
- Connector Type: LC
- Fiber Type: Single-mode Fiber (SMF)
- Platform Compatibility: Huawei OSN1500, OSN2500, OSN3500, OSN7500
- Hot Swappable: Yes
- Management: Fully integrated with Huawei U2000
Technical Specifications
| Specification | Details |
|---|---|
| Model | SSN4SLQ16(L-16.1,LC) |
| Bit Rate | 2.488 Gbps (STM-16) |
| Optical Interface Type | L-16.1 (Long Reach) |
| Connector Type | LC Duplex |
| Transmission Distance | Up to 40 km |
| Wavelength | 1310 nm |
| Fiber Type | Single-mode (G.652) |
| Laser Type | Cooled DFB |
| Transmit Power | -5 to 0 dBm |
| Receive Sensitivity | ≤ -28 dBm |
| DDM (Digital Monitoring) | Supported |
| Power Consumption | ≤ 10W |
| Operating Temp | -5°C to +45°C |
| Storage Temp | -40°C to +70°C |
| Standard Compliance | ITU-T G.707, G.957, RoHS |
| Hot-Pluggable | Yes |
SSN4SLQ16(L-16.1,LC) Huawei Applications
- Metro Core Networks — STM-16 transmission in high-capacity fiber rings
- Carrier SDH Infrastructure — Long-haul connectivity across cities and data hubs
- Government & Enterprise WANs — Reliable and secure fiber backbones
- Campus & Education Networks — Centralized inter-building SDH links
- Industrial & Transport Sectors — Mission-critical infrastructure transmission
Customization & OEM Options
- Private Labeling — Custom logo, model ID, and packaging
- Testing Reports — Optical BER, performance validation included upon request
- Multi-Region Compliance — CE/FCC/ROHS certifications for international use
- Special Temperature Grades — Industrial versions for harsh environments
- EEPROM Tailoring — Compatible with specific Huawei OSN firmware
Wholesale & Global Supply Details
- Genuine Huawei OEM Board
- Ample Stock Availability for large rollouts
- Rapid Global Fulfillment with export-compliant logistics
- Bulk Discounts for ISPs, system integrators, and resellers
- Technical Support Team for configuration and integration assistance
Why Choose the SSN4SLQ16(L-16.1,LC) Huawei
High-Speed 2.5G SDH transmission optimized for long-distance links
1310 nm Wavelength with up to 40 km range on single-mode fiber
Huawei Platform Compatible — Seamless operation in OSN systems
Hot Swappable Design — Minimal downtime during maintenance
Fully Managed through Huawei U2000 NMS
Request a Quote Now
Upgrade your SDH infrastructure with the Huawei SSN4SLQ16(L-16.1,LC) interface board — trusted worldwide for performance, stability, and service provider-grade optical transport.
Contact us today for wholesale pricing, technical datasheets, and bulk availability.
