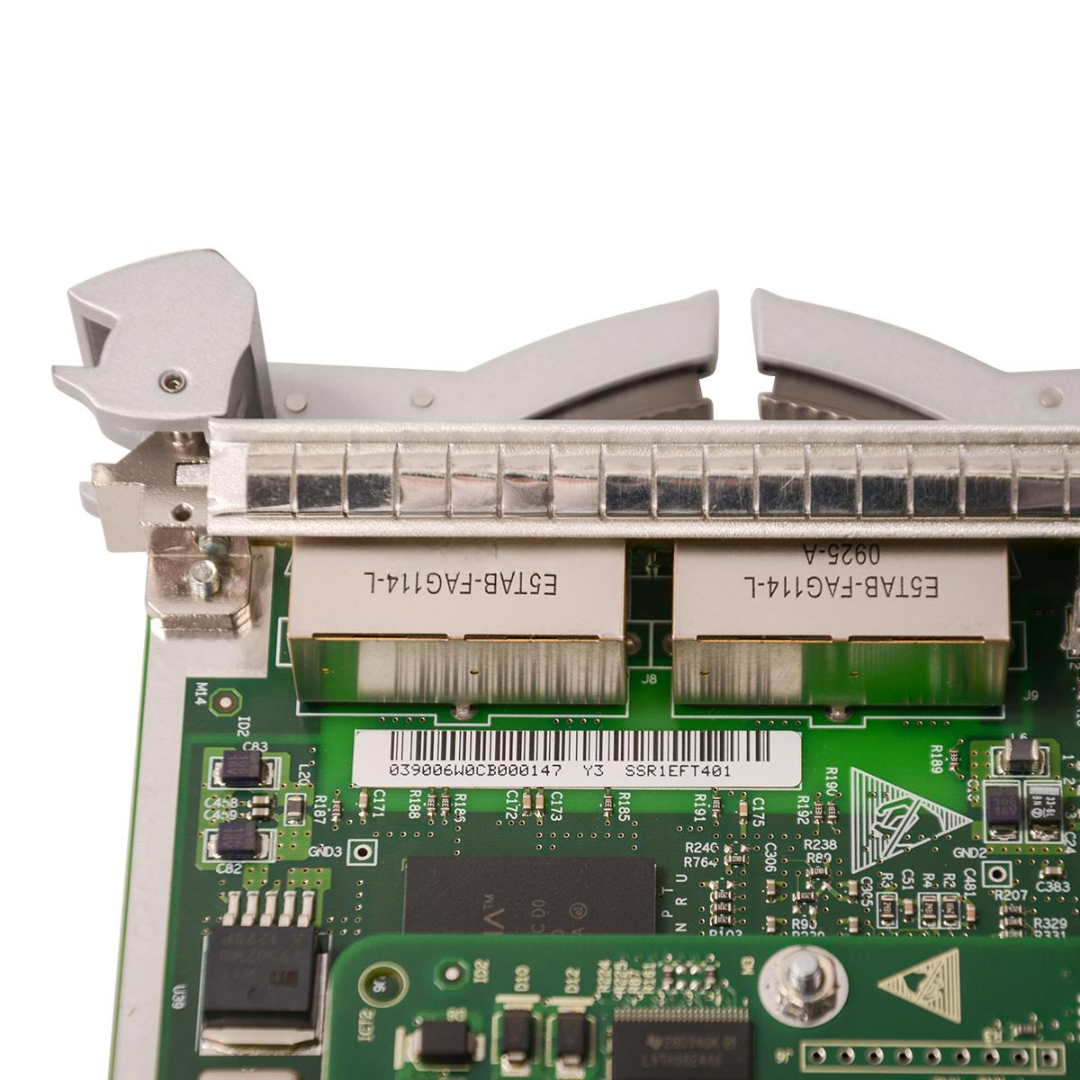

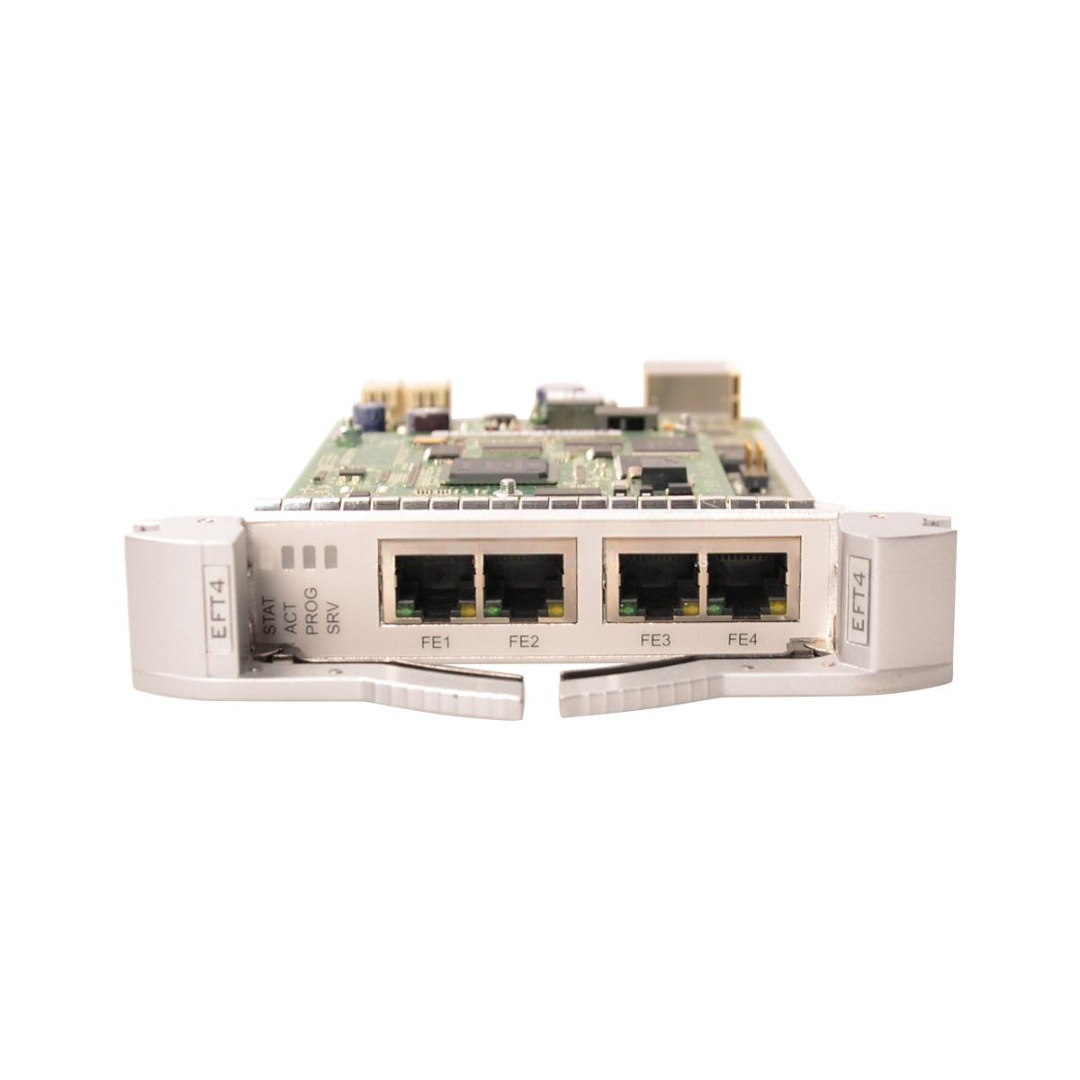

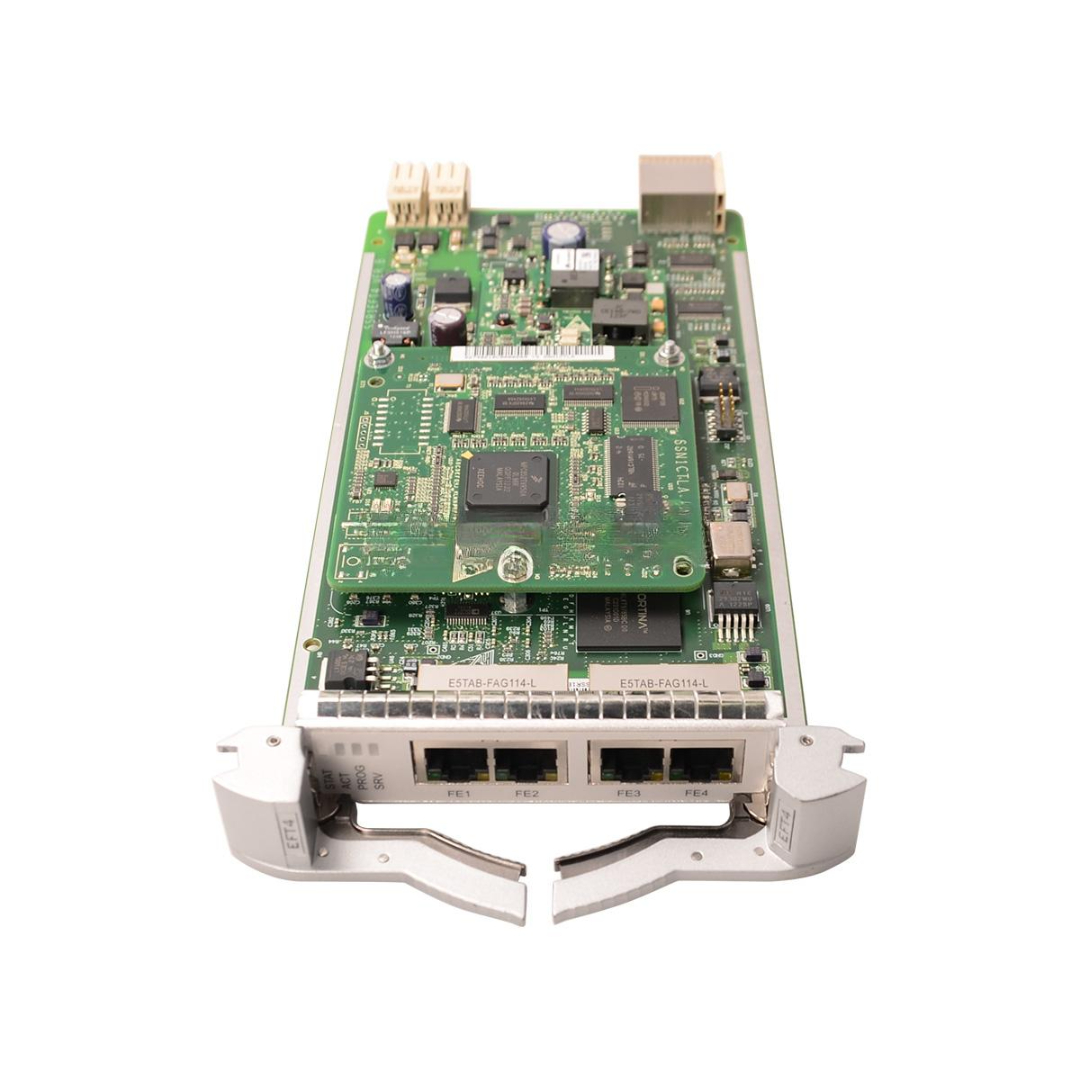

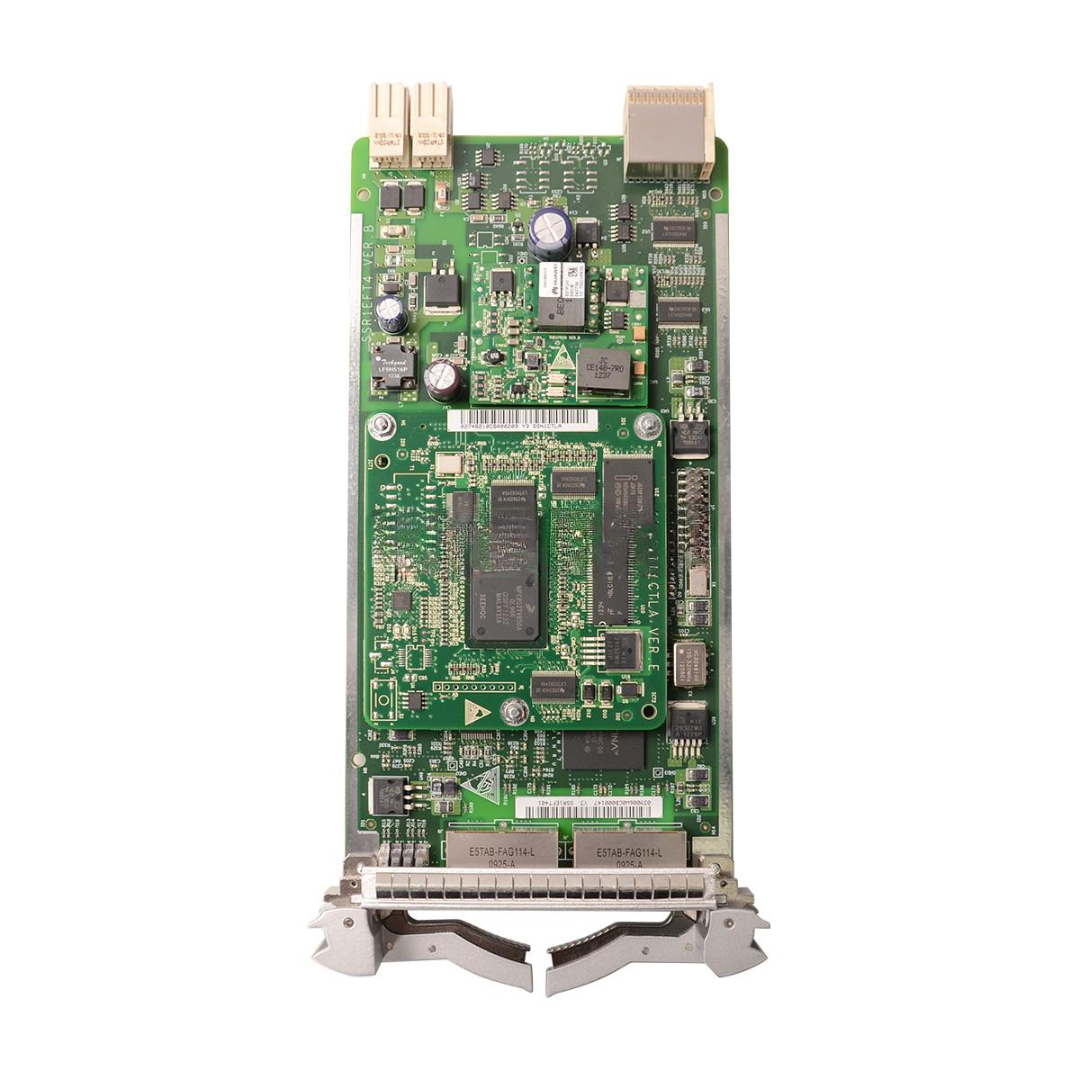

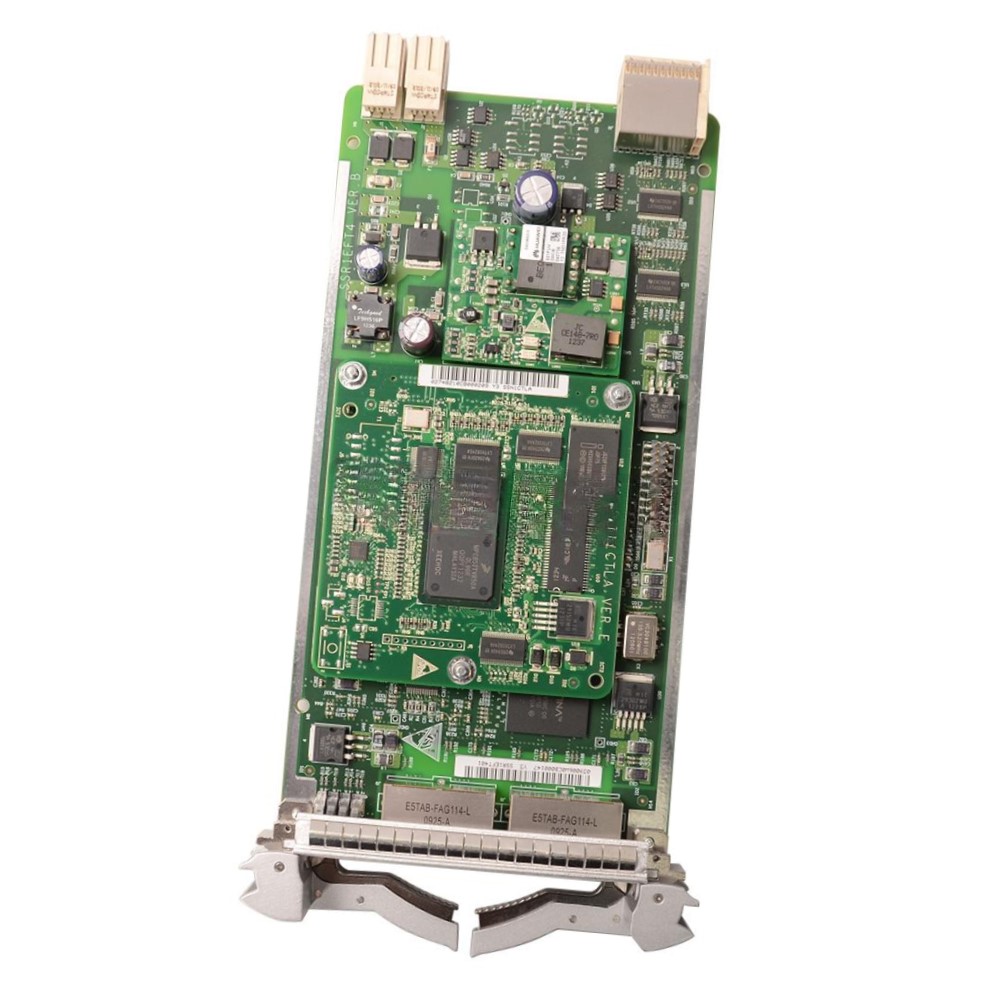

SSR1EFT4 Huawei Brand New Fast Ethernet Processing Board
The SSR1EFT4 Huawei is a high-performance Fast Ethernet Processing Board specifically designed for use in Huawei’s OptiX OSN series, including the OSN3500 and OSN7500 transmission platforms. Engineered to support multiple 10/100M Ethernet interfaces, this board facilitates smooth Ethernet aggregation and transmission within MSTP (Multi-Service Transport Platform) networks.
Ideal for enterprise access, legacy Ethernet networks, and metro aggregation scenarios, the SSR1EFT4 enables reliable Ethernet-over-SDH or Ethernet-over-WDM transport, providing telecom-grade performance, VLAN tagging, QoS, and link fault detection.
Key Features
-
Model: SSR1EFT4
-
Condition: 100% Brand New, Original Huawei
-
Port Configuration: 4 × 10/100Base-TX (RJ-45) Ethernet interfaces
-
Supported Services: Ethernet over SDH (EoS), Layer 2 switching
-
VLAN Support: IEEE 802.1Q VLAN tagging
-
QoS Features: Prioritization based on CoS, port-based traffic control
-
Loopback & Testing: Supports remote/local loopback, BER testing, link fault detection
-
Plug-and-Play: Hot-swappable for service continuity
-
Management Integration: Fully managed via Huawei U2000 or NCE-T
Technical Specifications
| Specification | Details |
|---|---|
| Model | SSR1EFT4 |
| Board Type | Fast Ethernet Processing Board |
| Ports | 4 × 10/100M Ethernet (RJ-45) |
| Interface Standard | IEEE 802.3, 802.1Q |
| Service Type | Ethernet over SDH (VC-12/VC-3 mapping supported) |
| Frame Size Support | Up to 1600 bytes |
| VLAN | IEEE 802.1Q VLAN, QinQ optional |
| MAC Learning | Dynamic and static MAC address support |
| Power Consumption | ≤20W (typical) |
| Operating Temperature | -5°C to +45°C |
| Humidity | 5% to 95% RH, non-condensing |
| Network Management | Huawei U2000 / NCE-T |
| Compatibility | OSN3500, OSN7500 |
| Warranty | 1–3 Years Manufacturer Warranty |
SSR1EFT4 Huawei Applications
-
Enterprise & Campus Networks – Aggregates multiple Fast Ethernet links over SDH backbone
-
Legacy Ethernet Transport – Supports 10/100 Mbps connections in carrier environments
-
Metro Access – Aggregates access-level Ethernet traffic for metro transport
-
Utility & Transportation Systems – Provides rugged, low-latency Ethernet links for SCADA and control
-
Government & Defense Networks – Secure, resilient Ethernet over SDH infrastructure
Customization & OEM Options
-
Private Branding – Company logos, custom product IDs, and packaging for OEM partners
-
Pre-Configured Settings – VLANs, MAC filters, or loopback modes can be factory set
-
Optional Bundles – Available with pre-tested Ethernet patch cords and configuration files
-
Stress Testing & QA – Extended thermal and burn-in testing for mission-critical deployment
-
Regional Firmware Settings – Custom SNMP settings, alarms, and logging formats
SSR1EFT4 Huawei Wholesale & Global Procurement
-
Original Huawei Equipment – 100% genuine with verifiable serial numbers and barcodes
-
Bulk Availability – Ready stock for high-volume projects and urgent rollouts
-
Secure Packaging – Anti-static sealed bags in factory OEM cartons
-
International Logistics – Export-compliant with customs documentation and fast delivery
-
Datasheets & Manuals – Full documentation and installation guides included
-
Technical Assistance – Integration help with Huawei OSN platforms and U2000/NCE
Why Choose SSR1EFT4 Huawei Fast Ethernet Board
-
Telco-Grade Ethernet – Stable, standards-compliant Fast Ethernet transport
-
Multi-Port Design – Supports four Ethernet links in one board
-
Efficient Aggregation – Ideal for EoS transport, reducing SDH overhead
-
OEM Quality – Backed by Huawei’s proven reliability and performance standards
-
Network Integration Ready – Seamlessly works with existing Huawei OSN systems
Contact Us for Bulk Orders, Technical Specs & Pricing
Enhance your SDH or MSTP Ethernet capabilities with the Huawei SSR1EFT4 Fast Ethernet Processing Board. Reach out today for wholesale pricing, datasheets, and deployment consultation.
