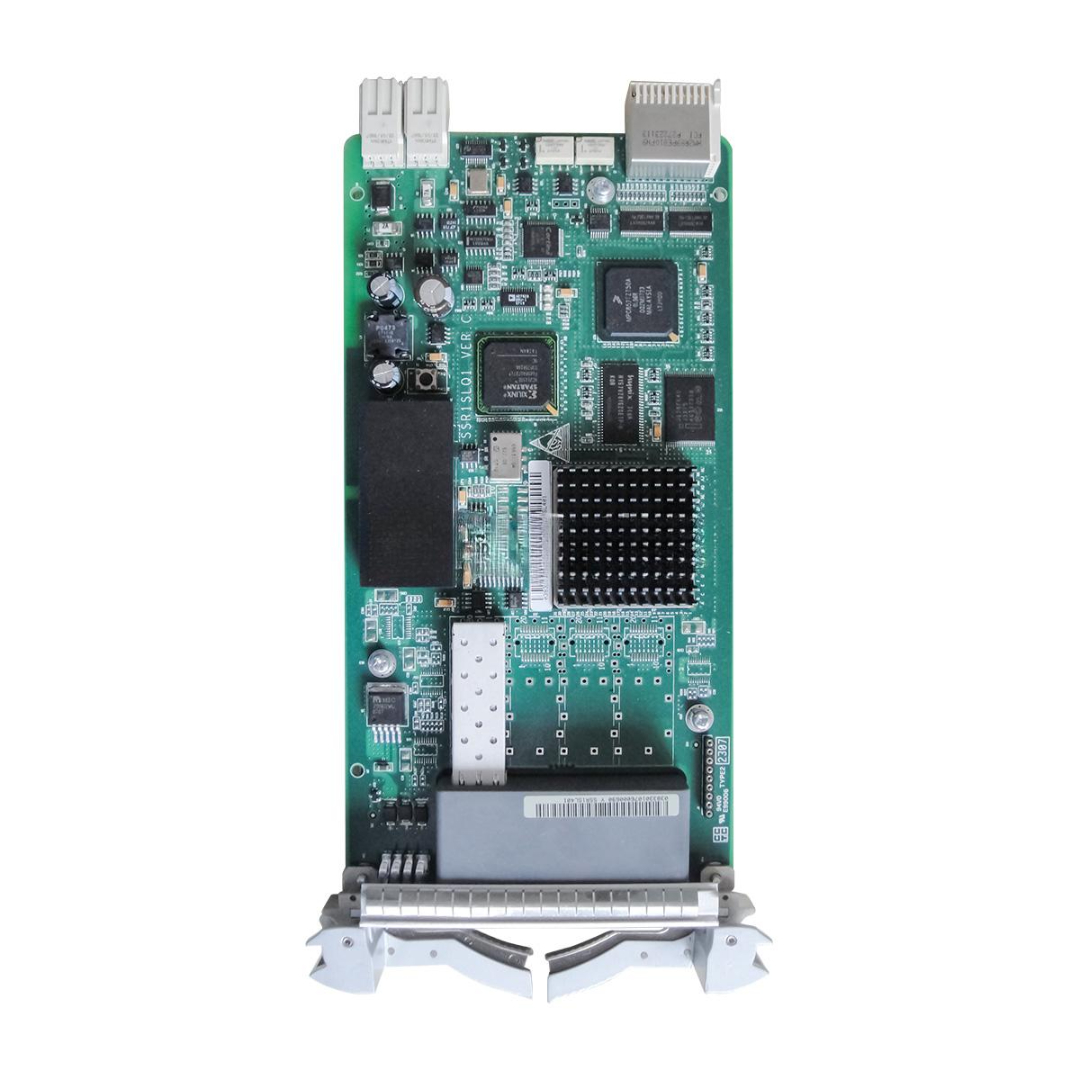

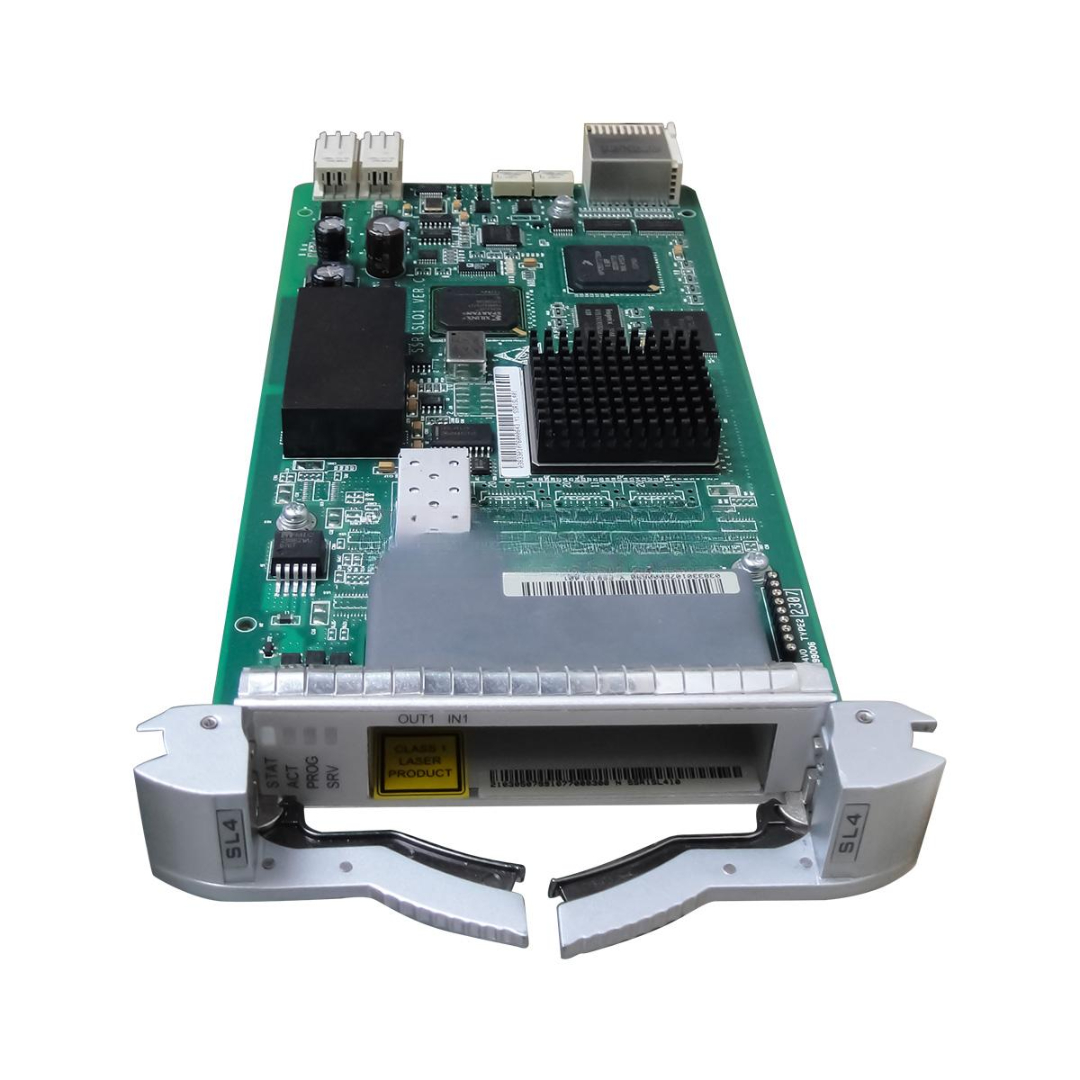

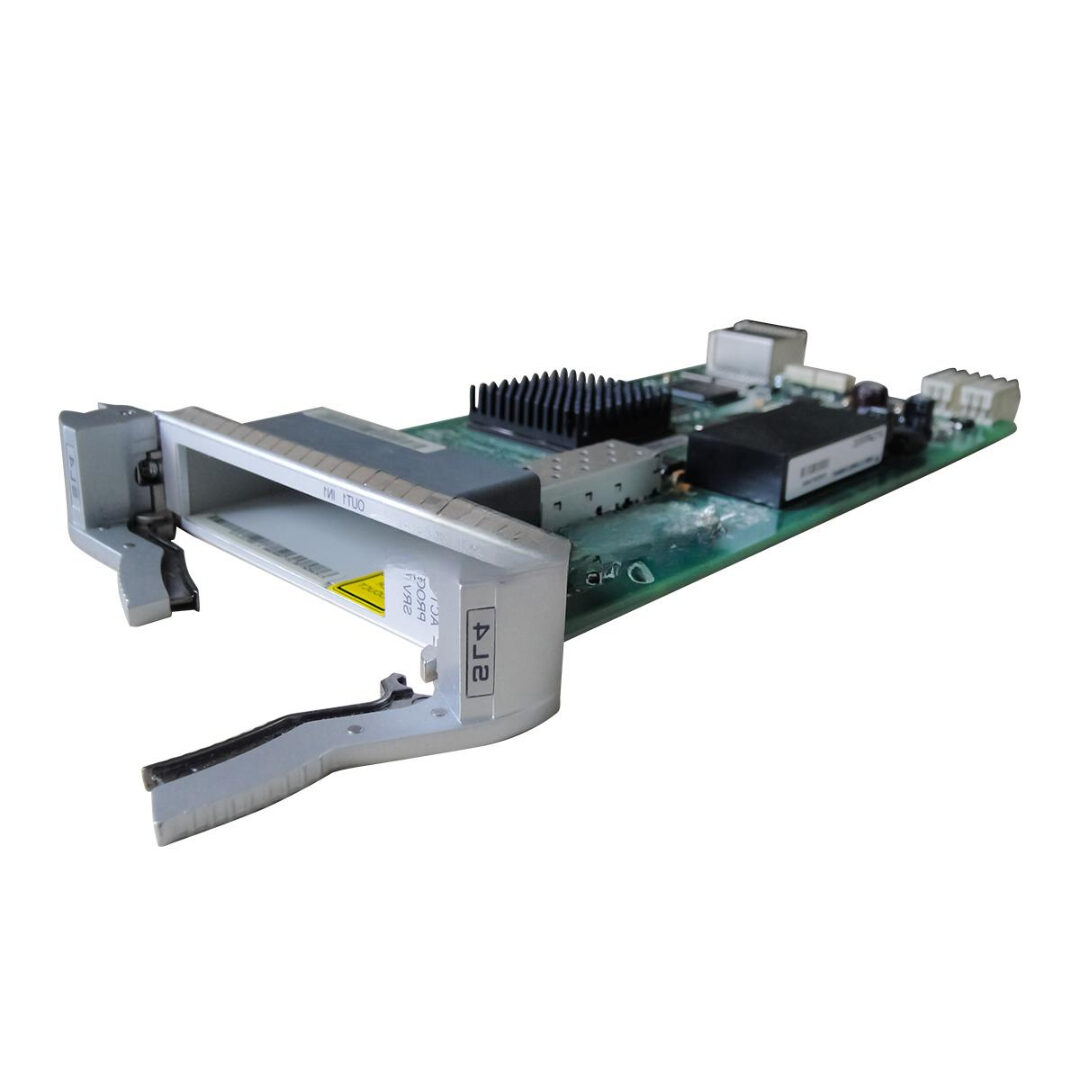

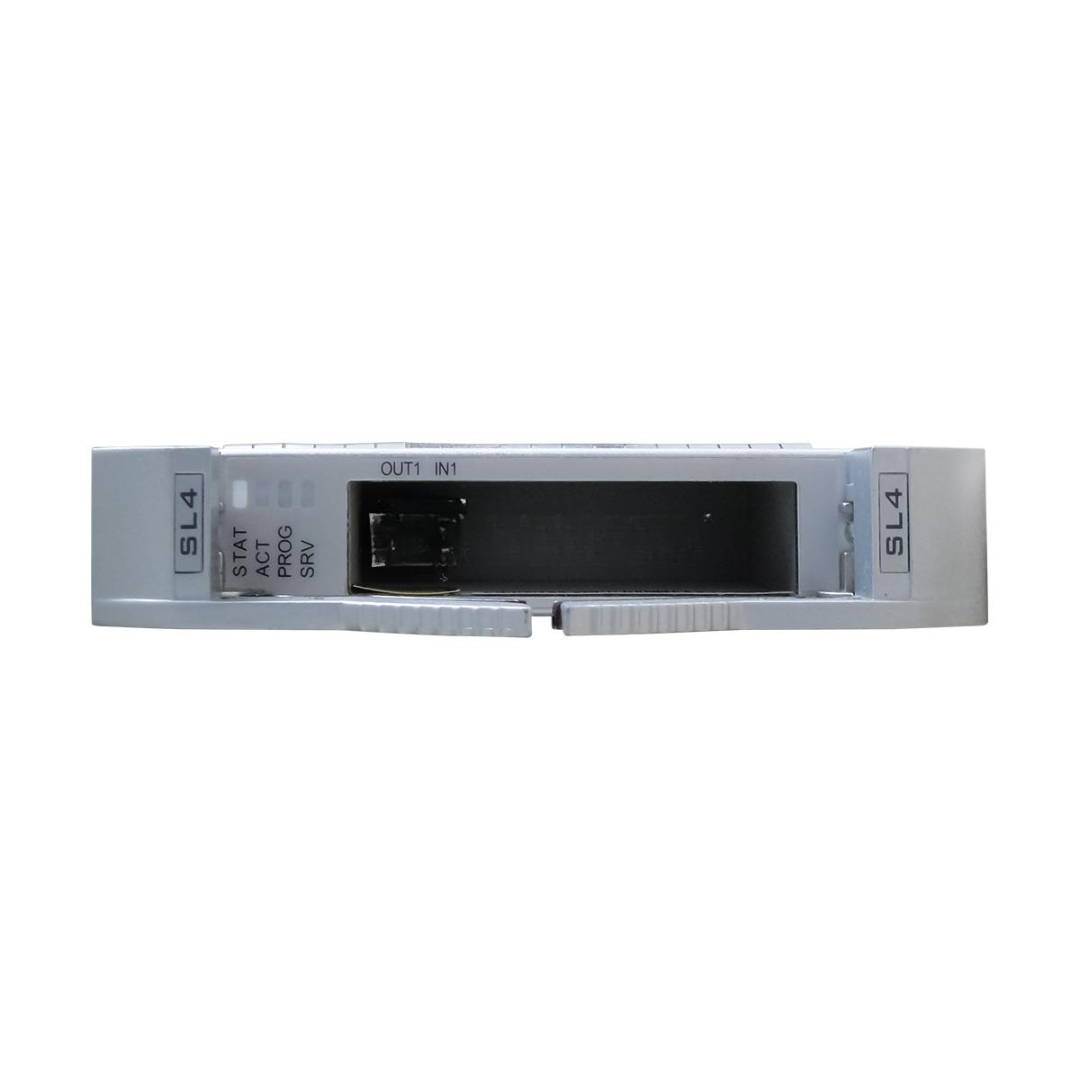

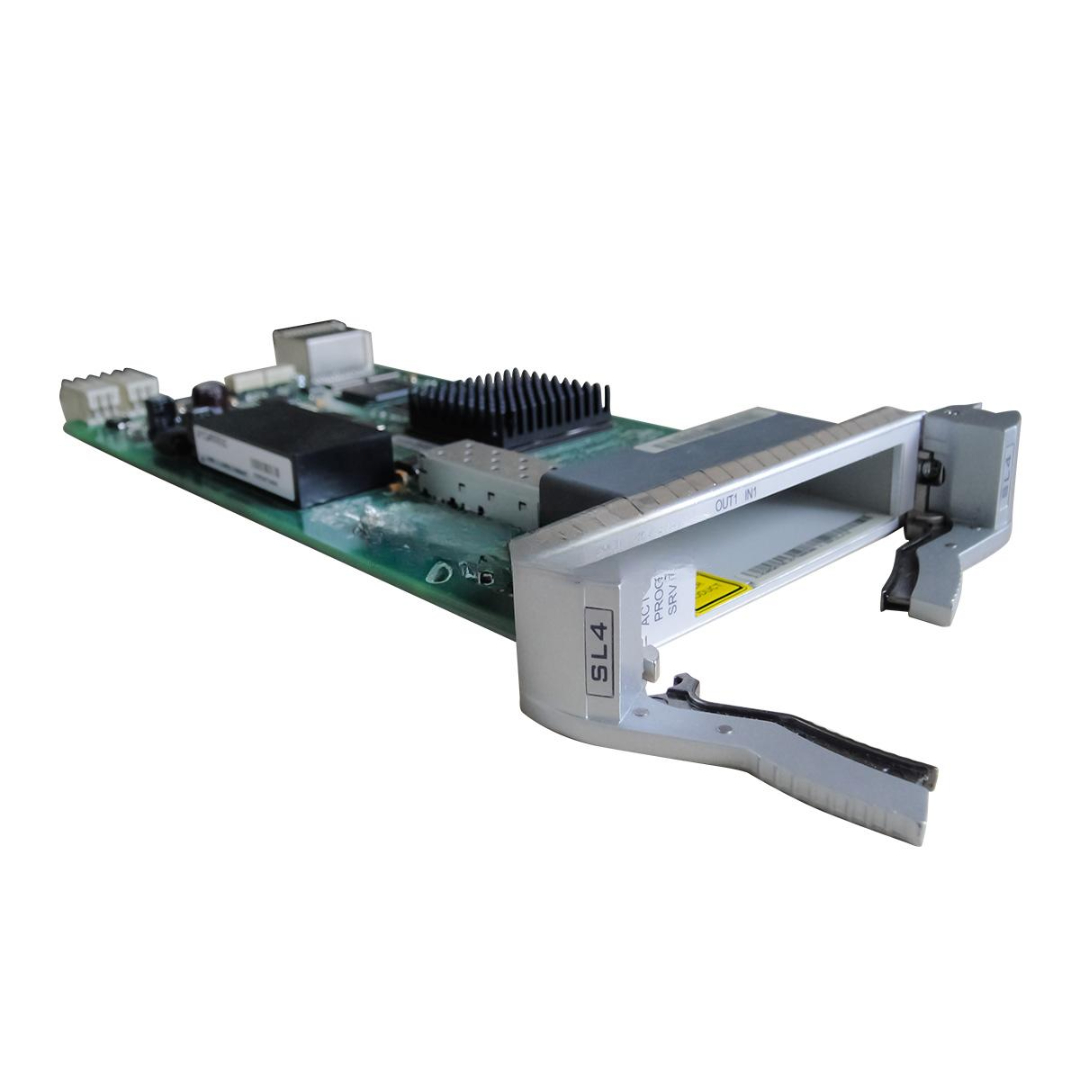

SSR1SL4(L-4.1,LC) Huawei High Quality 622M Interface Board
The SSR1SL4(L-4.1,LC) Huawei is a high-quality 622 Mbps STM-4 optical interface board developed by Huawei for use in SDH (Synchronous Digital Hierarchy) transport systems. Designed with L-4.1 optics and an LC duplex interface, it supports long-distance optical transmission of up to 40 km, making it ideal for both metro and backbone network deployments. The board ensures carrier-grade performance and is fully compatible with Huawei OSN platforms such as OSN1500, OSN2500, OSN3500, and OSN7500.
With powerful alarm monitoring, error detection, and plug-and-play capability, the SSR1SL4(L-4.1,LC) is well-suited for telecom operators and enterprises requiring secure, high-speed optical connections.
Key Features
-
Model: SSR1SL4(L-4.1,LC)
-
Condition: 100% Brand New, Huawei Original
-
Line Rate: STM-4 (622 Mbps)
-
Optical Interface: LC Duplex
-
Optical Reach: Up to 40 km (L-4.1 standard)
-
Wavelength: 1310 nm or 1550 nm (depending on SFP)
-
Protocol Compliance: ITU-T G.707, G.957
-
Hot-Swappable: Supports live insertion and removal
-
Error Monitoring: LOS, LOF, MS-AIS, B1/B2 error checking
-
Plug-in Design: Compact, easy to integrate into OSN subracks
Technical Specifications
| Specification | Details |
|---|---|
| Model | SSR1SL4(L-4.1,LC) |
| Interface Speed | 622 Mbps (STM-4) |
| Connector Type | LC Duplex |
| Transmission Distance | Up to 40 km (L-4.1 optics) |
| Fiber Type | Single-mode |
| Wavelength | 1310 nm or 1550 nm |
| Compatibility | OSN1500, OSN2500, OSN3500, OSN7500 |
| Power Consumption | ≤10W |
| Installation | Slot-based, hot-swappable |
| Operating Temperature | -5°C to +55°C |
| Humidity | 5% to 95% RH, non-condensing |
| Alarm Indicators | LOS, LOF, MS-AIS, RDI |
| Warranty | 1–3 Years Manufacturer Warranty |
SSR1SL4(L-4.1,LC) Huawei Applications
-
Metro Networks — Medium-distance backbone links in city-wide SDH transport
-
Carrier Networks — STM-4 access and aggregation for voice, data, and signaling
-
Enterprise Solutions — High-speed optical uplink between buildings or data centers
-
Government & Utilities — Critical service communication with secure SDH architecture
-
Transportation Systems — Reliable signaling and data for rail and roadway operations
Customization & OEM Options
-
Private Labeling — Add your company logo and part numbers
-
Optical Module Options — Custom wavelength or extended-reach SFPs available
-
Pre-Configuration — Board preset with alarms, wavelengths, and port ID
-
Burn-In Testing — For industrial, military, or mission-critical networks
-
Integration Kits — Includes patch cables, rack brackets, or fiber trays
SSR1SL4(L-4.1,LC) Wholesale & Global Supply
-
Huawei OEM Supply — 100% genuine, factory-sealed units
-
Worldwide Shipping — Export-ready with proper labeling and certifications
-
Fast Availability — In-stock boards for urgent deployment needs
-
Secure Packaging — Anti-static bags and foam-insulated OEM boxes
-
Bulk Discounts — Competitive rates for integrators and telecom providers
-
Support Included — Datasheets, configuration manuals, and expert guidance
Why Choose SSR1SL4(L-4.1,LC) Huawei Interface Board
-
Reliable 622 Mbps Transmission — Ideal for STM-4 backbone and access networks
-
Huawei Platform Integration — Seamless operation with OSN1500–7500 series
-
Field-Tested Stability — Proven design used in global carrier networks
-
Flexible Deployment — Supports a variety of SDH configurations
-
Low Power, Long Life — Efficient operation with low heat generation
Contact Us Now for pricing, datasheets, and bulk order support for the SSR1SL4(L-4.1,LC) Huawei 622M Interface Board — the trusted choice for stable and secure SDH optical transmission.
