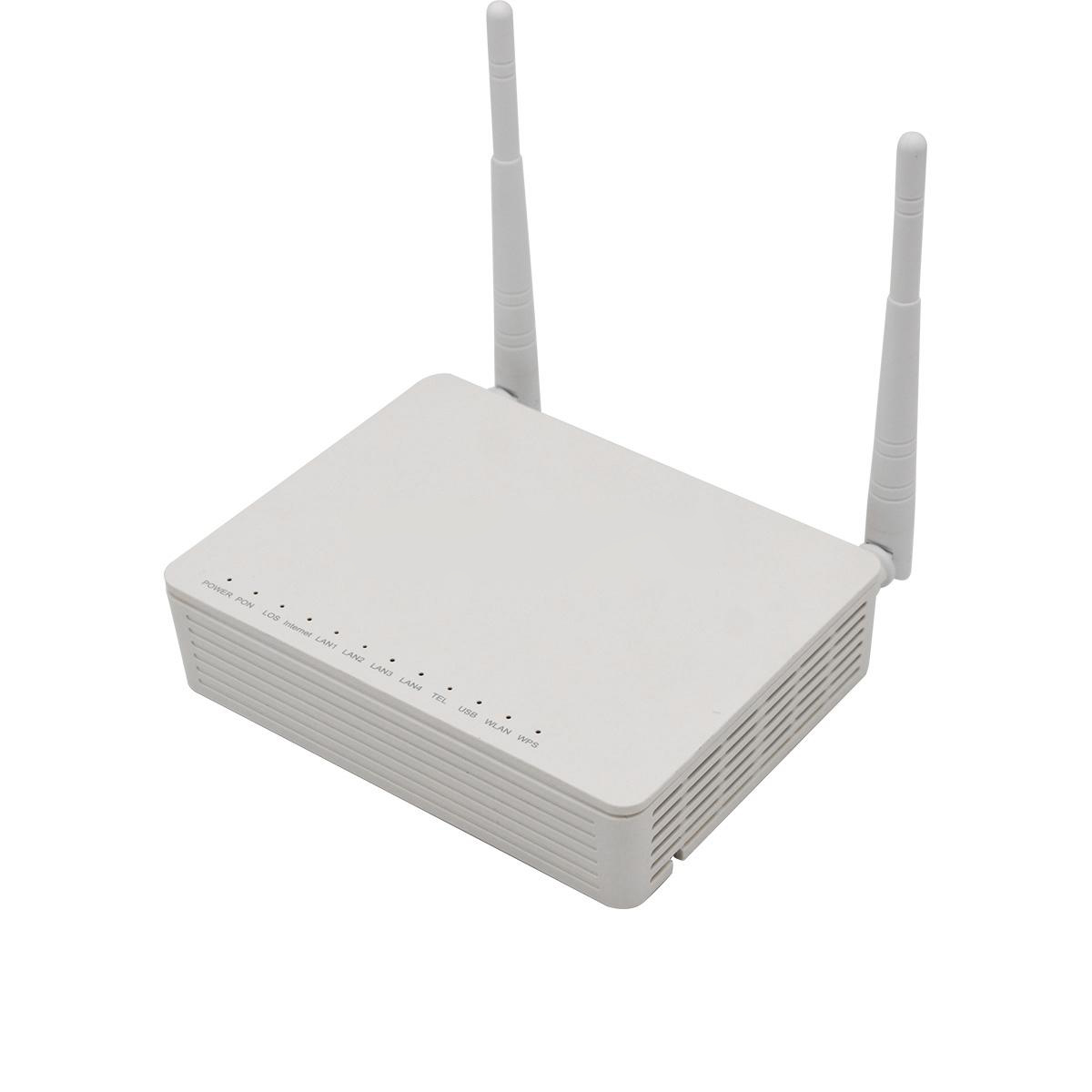

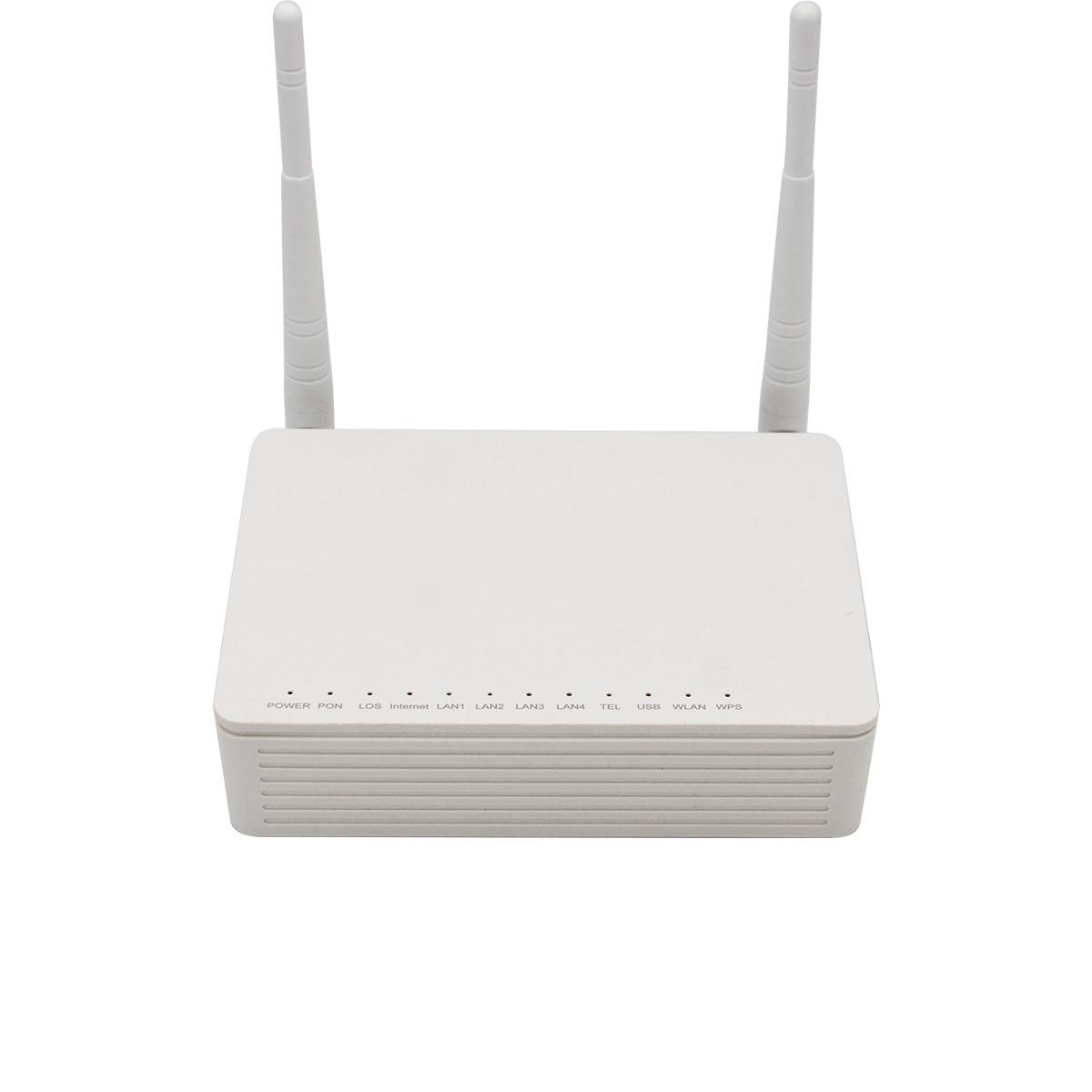

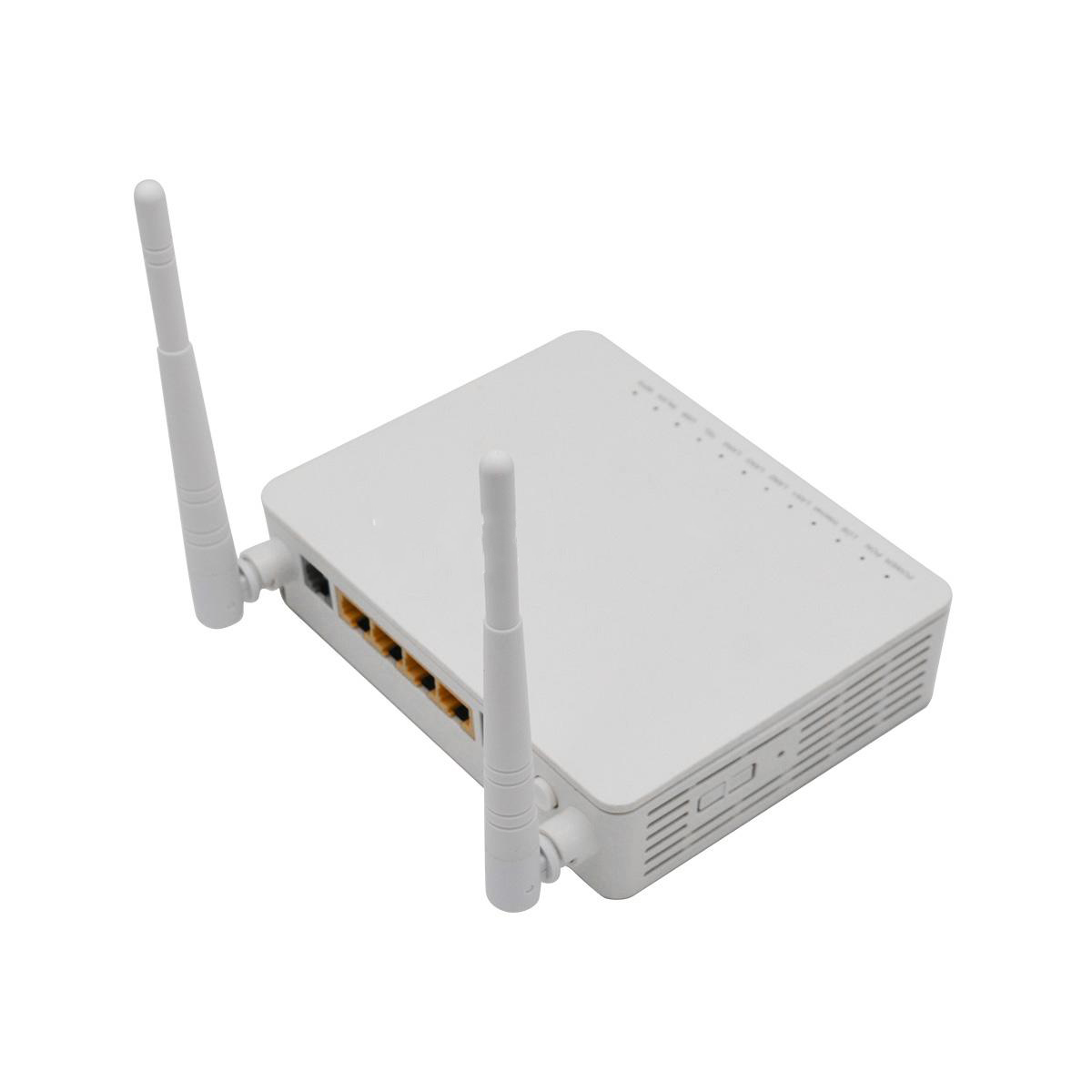

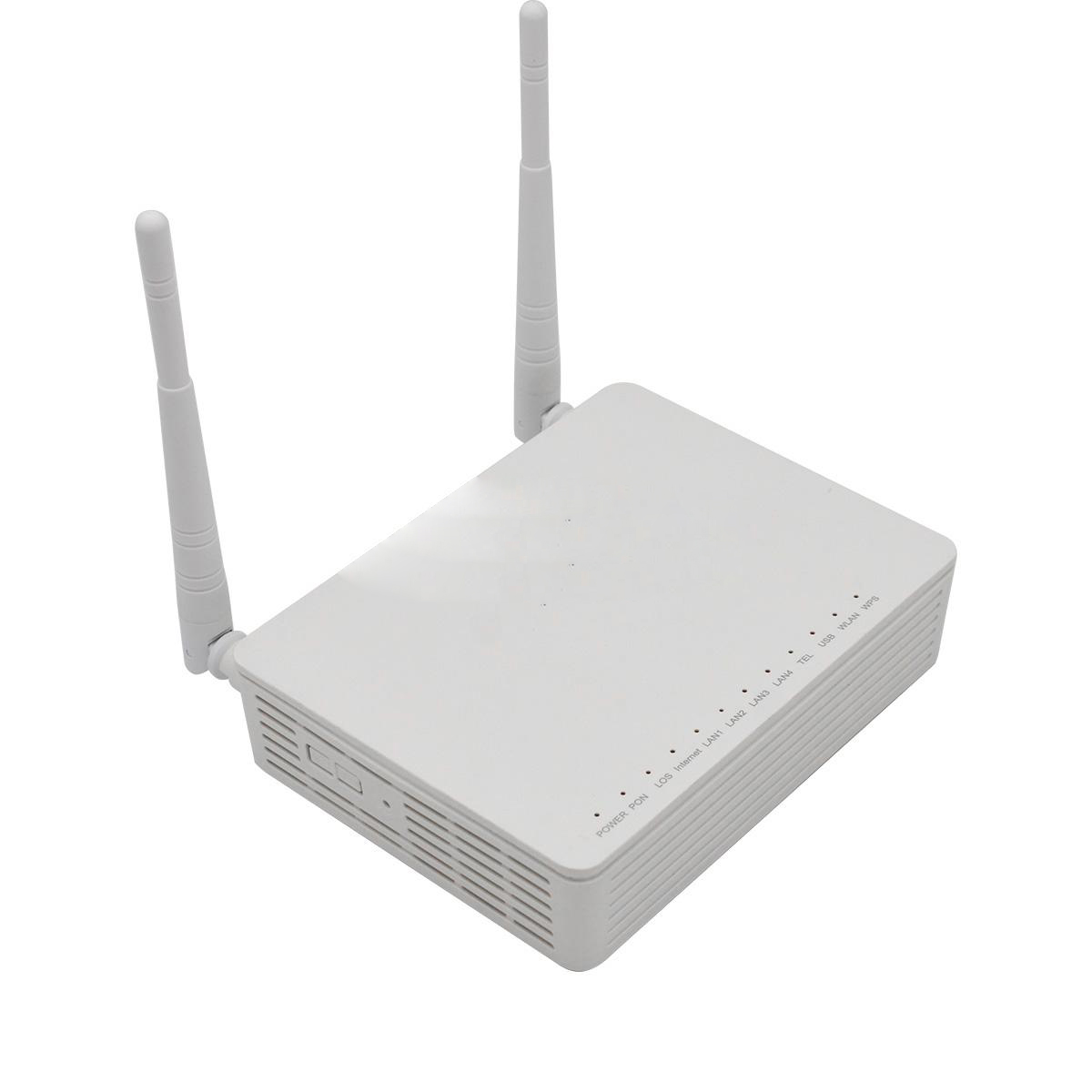

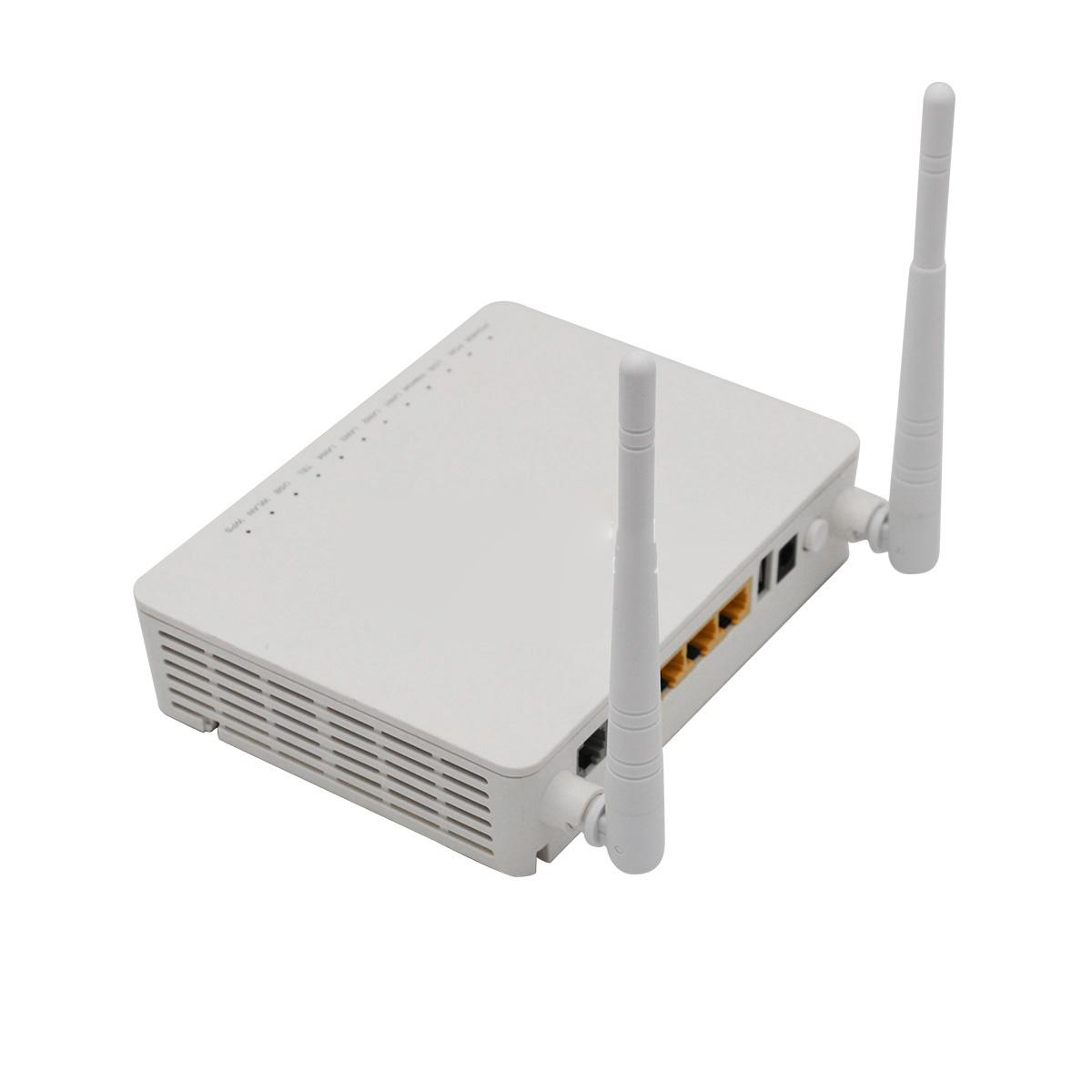

T919G GPON Terminal – 1*POTS + 2.4G WiFi, 3dBi Antenna | Original New TT919G ONT
The T919G GPON Terminal is a compact and high-performance GPON ONT (Optical Network Terminal) designed for modern FTTH (Fiber to the Home) and FTTO (Fiber to the Office) network environments. Equipped with 1 POTS port, 1 Gigabit Ethernet (GE) port, 3 Fast Ethernet (FE) ports, and integrated 2.4GHz WiFi with a 3dBi antenna, this ONT offers reliable broadband, voice, and wireless services—all in a single cost-effective unit.
With pre-installed ENG firmware and supplied with EU power adapter, the T919G is plug-and-play ready for quick deployment. It uses a standard SC/UPC connector for fiber input and supports a wide range of OLT platforms.
Tech Specs T919G
Technical Highlights
-
NNI Interface (Uplink): GPON
-

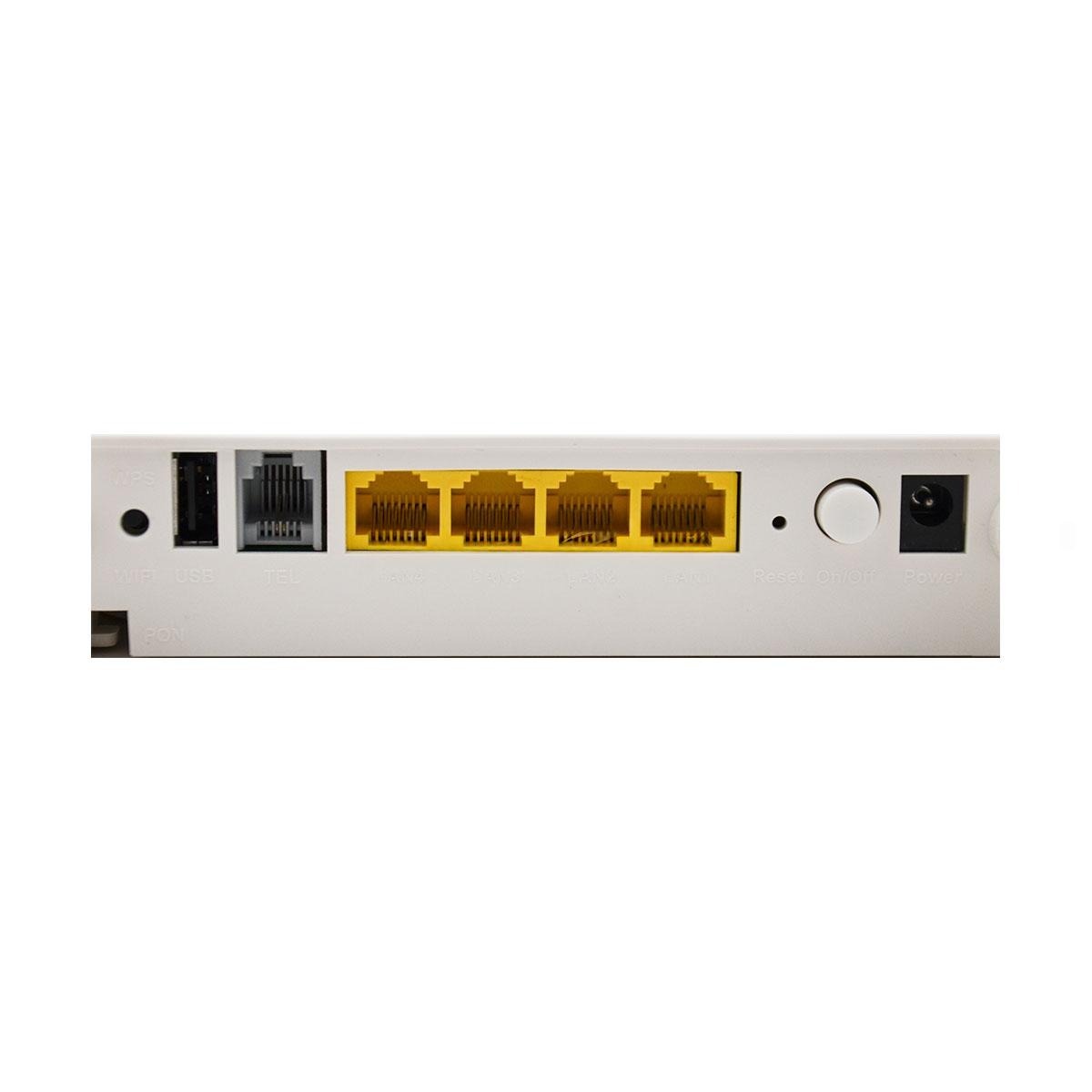

UNI Interfaces (User-side):
-
1 x GE (Gigabit Ethernet)
-
3 x FE (Fast Ethernet)
-
1 x POTS (RJ11 Voice Port)
-
2.4GHz WiFi with 3dBi antenna
-
-
WiFi Specifications:
-
IEEE 802.11b/g/n, 2.4GHz
-
Built-in antenna, 3dBi gain
-
Supports multiple SSIDs, WPA/WPA2 encryption
-
-
Connector Type:
-
SC/UPC (single-mode fiber)
-
-
Firmware & Power:
-
English firmware (ENG)
-
EU standard power adapter (included)
-
Key Features T919G
-
Multi-Port Configuration: Provides broadband, VoIP, and wireless services from one device
-
Stable Wireless Performance: Built-in 2.4GHz WiFi with 3dBi antenna for indoor coverage
-
Voice Support: Integrated POTS port for analog phone connection (VoIP-ready)
-
Standard SC/UPC Connector: Easy fiber connectivity
-
Wide OLT Compatibility: Works with Huawei, ZTE, Nokia, and most mainstream GPON OLTs
-
ENG Firmware: Intuitive English UI for local or remote configuration
-
Power Supply: Delivered with EU power adapter
Applications
-
Home Fiber Internet (FTTH): For stable, multi-device internet and VoIP use
-
Office Connectivity (FTTO): Use in small offices needing wired, WiFi, and voice access
-
ISP Deployment: Ideal for ISPs delivering triple-play services (Data, Voice, WiFi)
-
Rural/Suburban Fiber Rollouts: Reliable performance for underserved regions or budget-sensitive deployments
-
Multi-User Environments: Suitable for dorms, residential complexes, or shared apartments
