- Application:0.9mm FBT coupler
- Wavelength:1260-1650nm
- Certification:ISO9001
- Material:PVC
- Fiber Type:G657A
- Connector:SC/UPC/APC
- Operating temperature:-40~+85
- Return Loss:>55dB
-
- Supply Ability
- 100000 Piece/Pieces per Month fbt 1×2 without connector.
-
- Packaging Details
Poly bag packing for each item; outer package is carton case for fbt 1×2 without connector.
-
- Port
Shanghai/shenzhen and any port in China.
- Picture Example:
- Lead time:Quantity(sets)1 – 100101 – 800801 – 2000>2000Lead time (days)5710To be negotiated

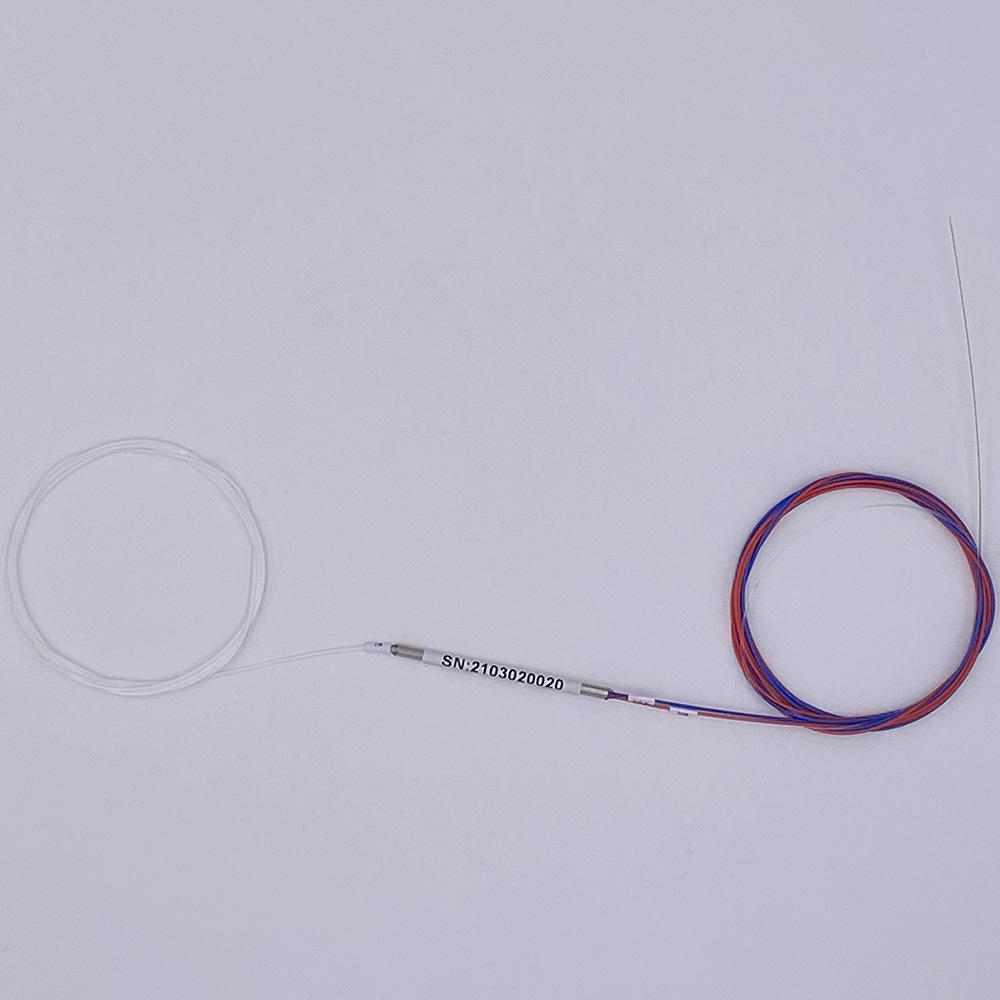

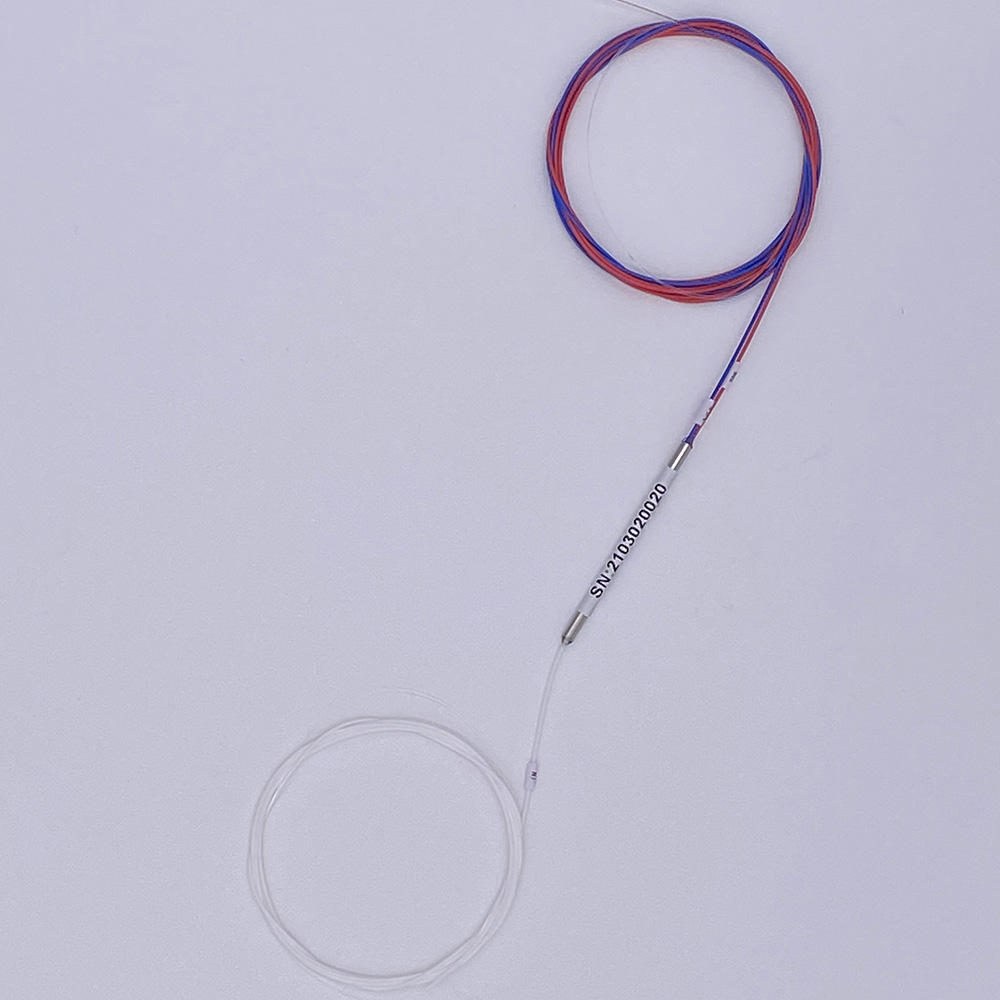

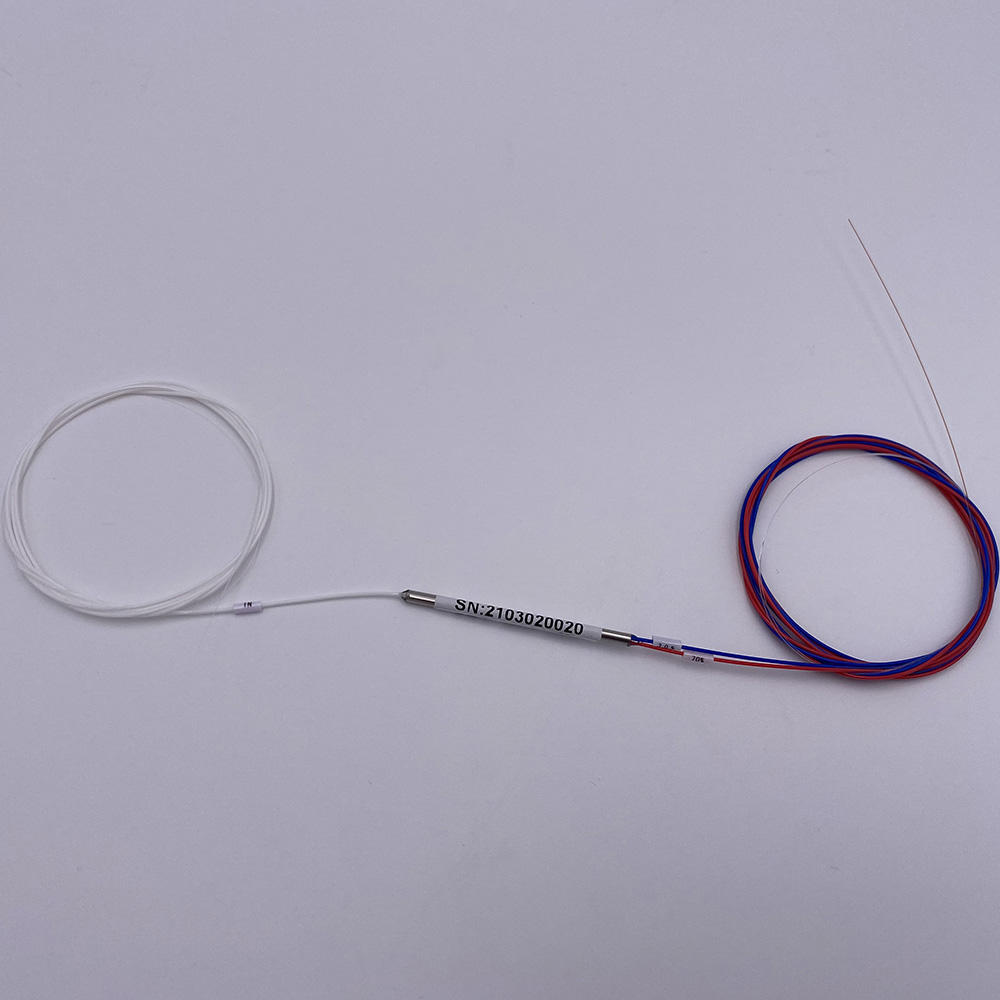

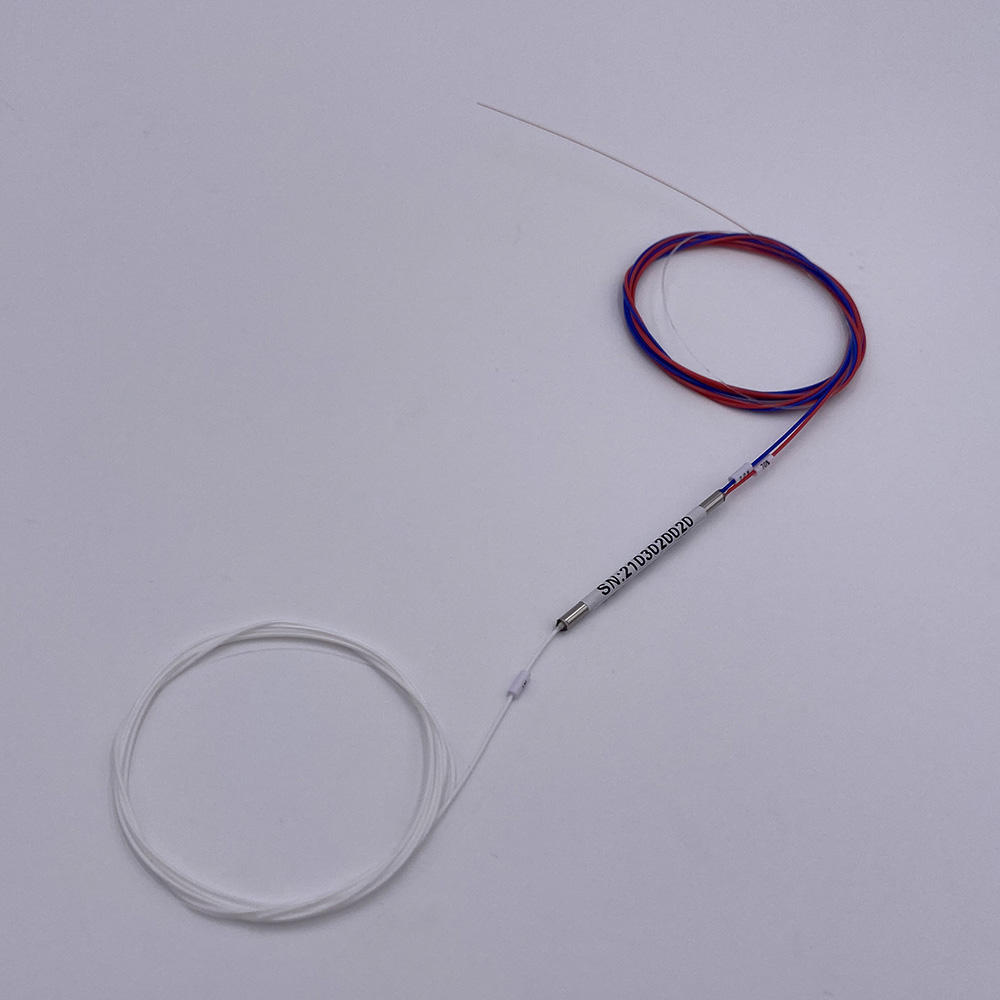

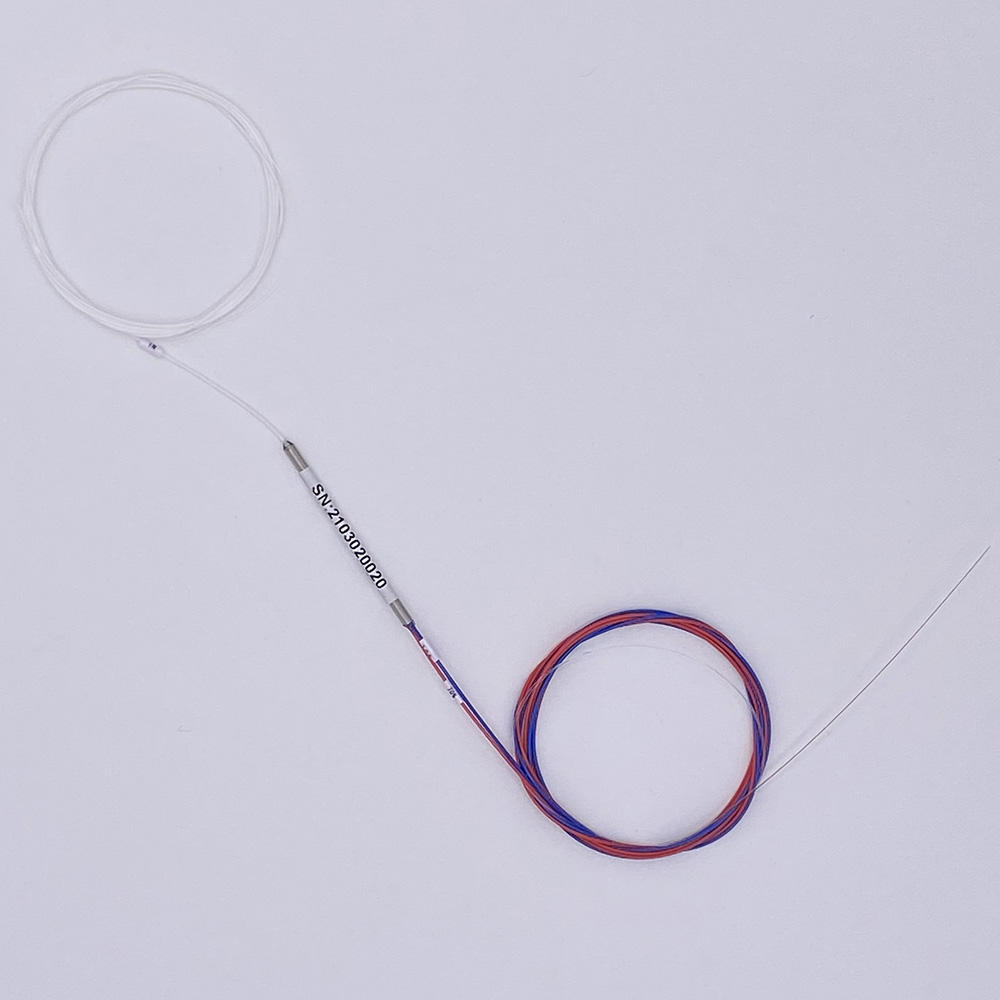

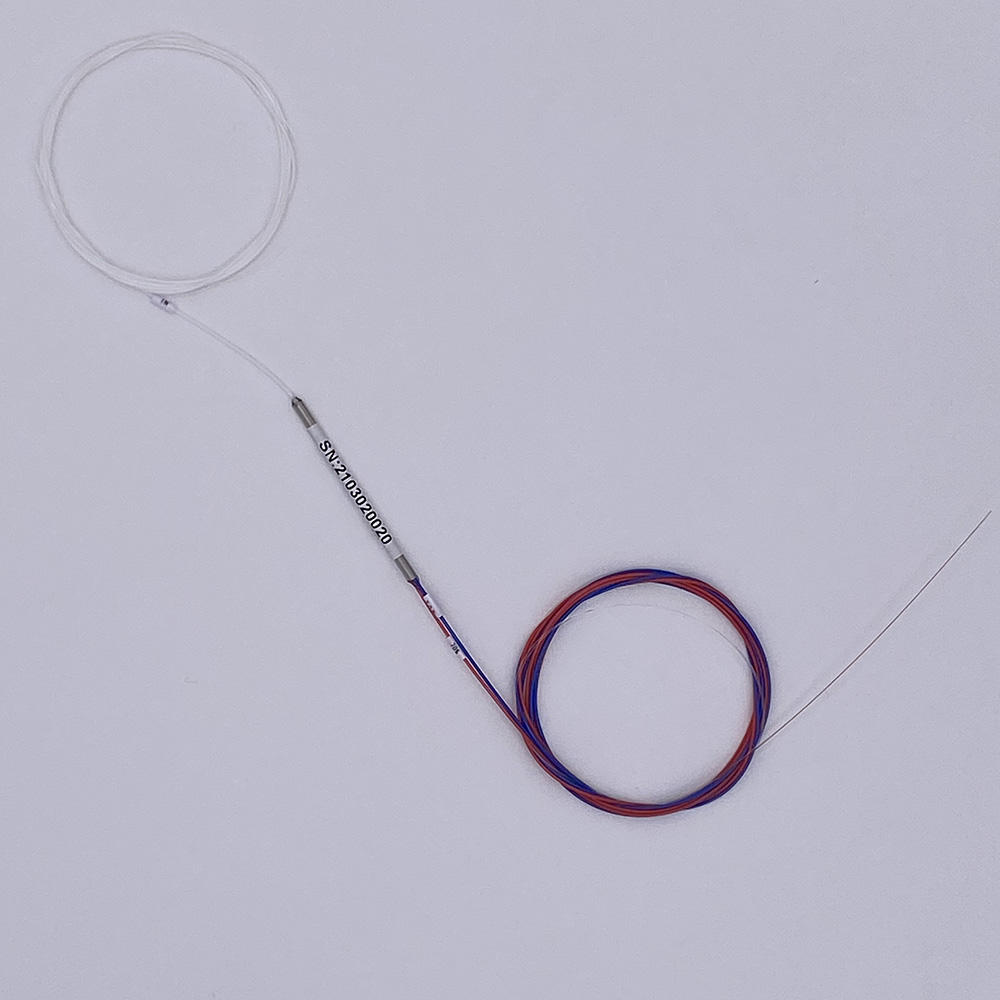

Three-window 2Way 1*2 50/50 40/60 30/70 20/80 10/90 Steel Tube Mini Type 0.9mm Fused FBT Fiber Optical Coupler without Connector
Application:
1. FTTX networks
2. PON networks
3. CATV links
4. Data Communication
Feature:
1. Low Insertion Loss
2. Low Polarization Dependent Loss
3. Wide Operation Wavelength
4. Wide Operation Temperature
5. High Stability and Reliability
6. Telcordia GR-1209 and GR-1221 Compliance
7. YD/T 2000.1-2009 Compliance (TLC Product Certificate Compliance)
Specification
Product Type FBT Coupler Port Configuration MxN
|
Center Wavelength |
1310nm/1490/1550nm |
|||
|
Bandwidth |
±20nm |
±40nm |
||
|
Excess Loss |
≤0.1dB(0.05dB typ.) |
|||
|
Coupling Ratio |
50/50 |
40/60 |
30/70 |
20/80 |
|
Typ. Insertion Loss(Db) |
3.05 |
4.2/2.4 |
5.4/1.8 |
7.1/1.1 |
|
Max. Insertion Loss(dB) |
3.4 |
4.4/2.5 |
5.6/1.8 |
7.4/1.1 |
|
Polarization Sensitivity |
0.1 |
0.1 |
0.15/0.1 |
0.15/0.1 |
|
Directivity |
(1*2) ≥55dB, (2*2)≥60dB |
|||
|
Operating temperature |
-40 ~ +80 °C for package A,B |
|||
|
-20 ~ +70 °C for package C,D |
||||
|
Thermal Stability |
≤0.1dB over -40 ~ +80 °C |
|||
|
Lead Length |
1m, others on request |
|||
|
Lead Type |
Bare fiber, 0.9mm , 2.0mm, 3.0mm |
|||
|
Package type |
A: Φ3.0mm*52mm |
B: Φ3.5mm*70mm |
||
|
C: 90mm*16mm*9mm |
C: 106mm*79mm*10mm |
