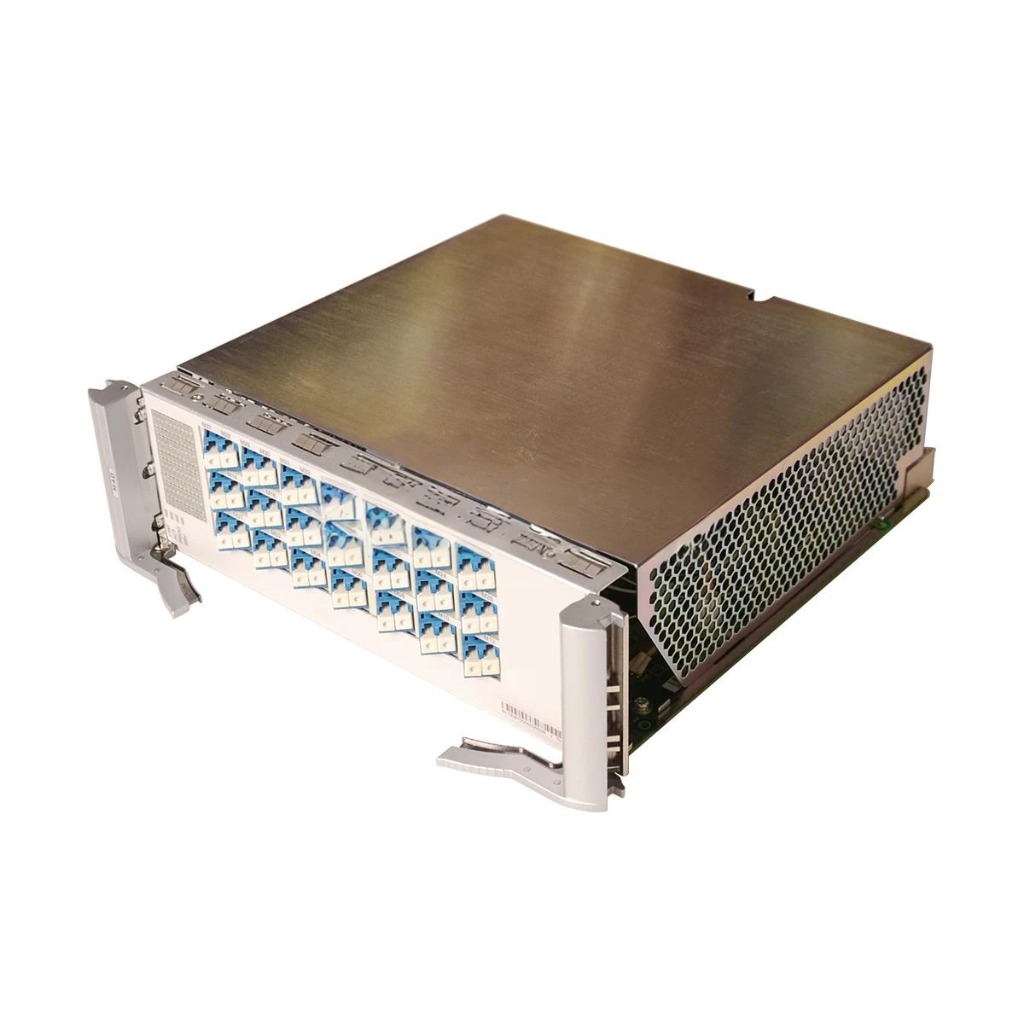

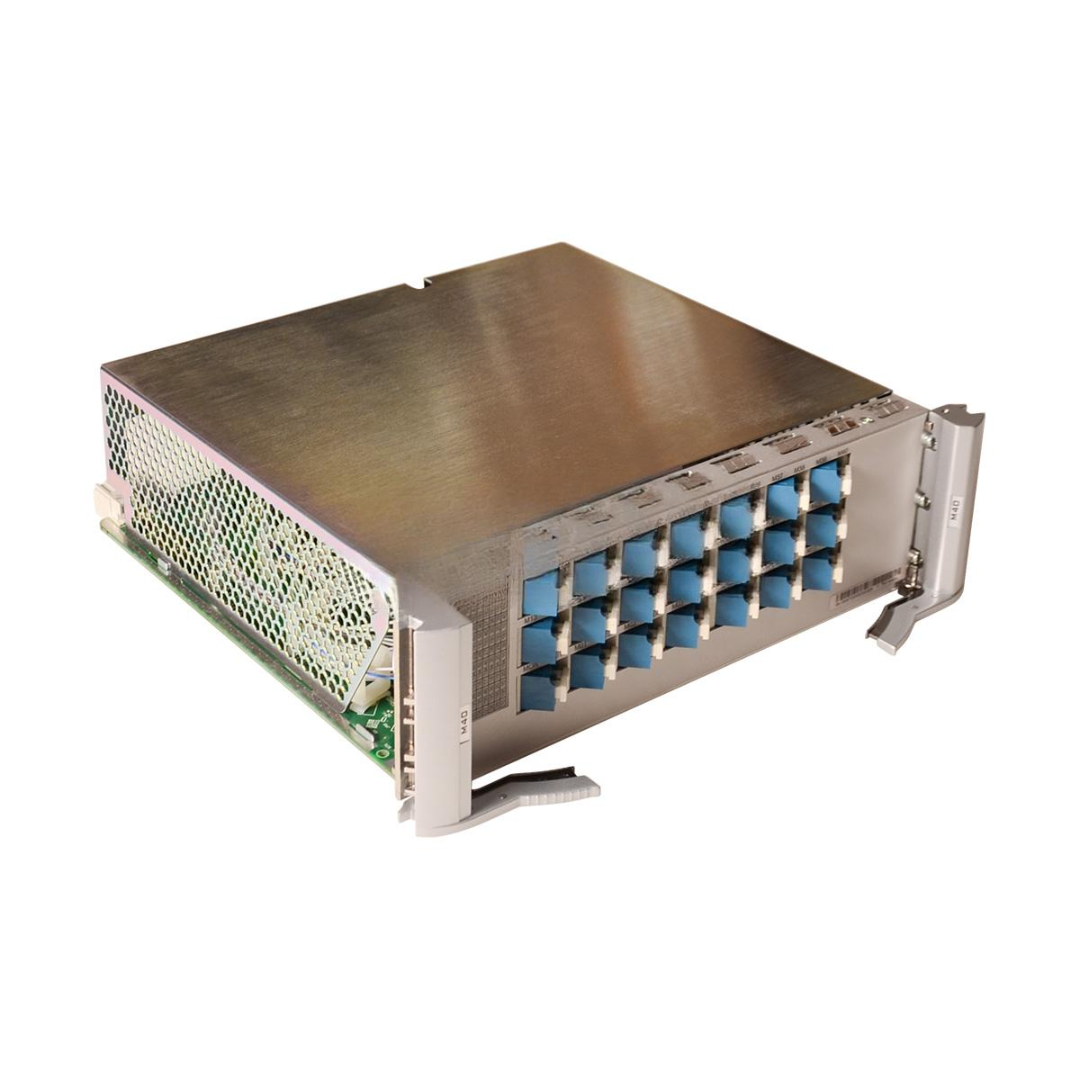

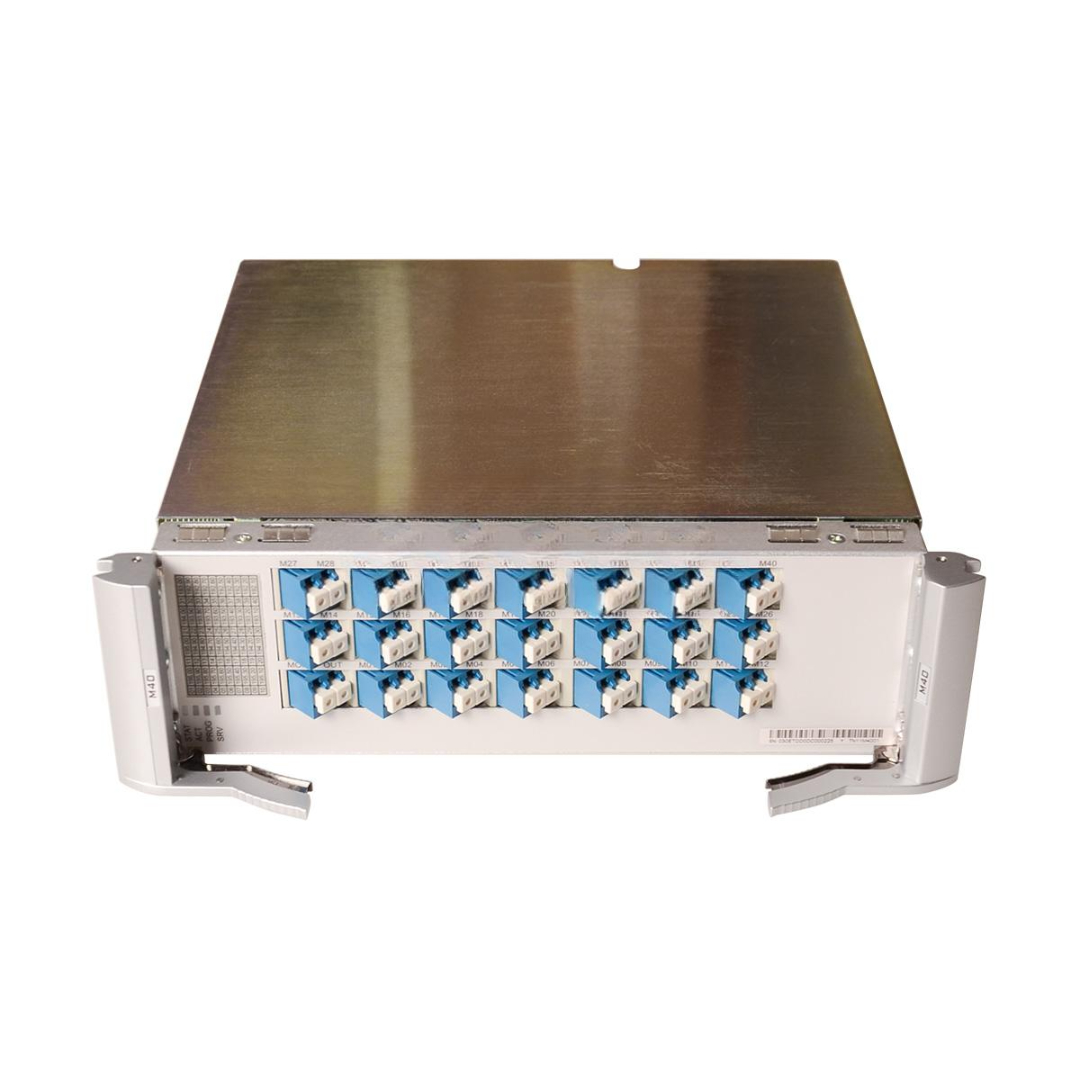

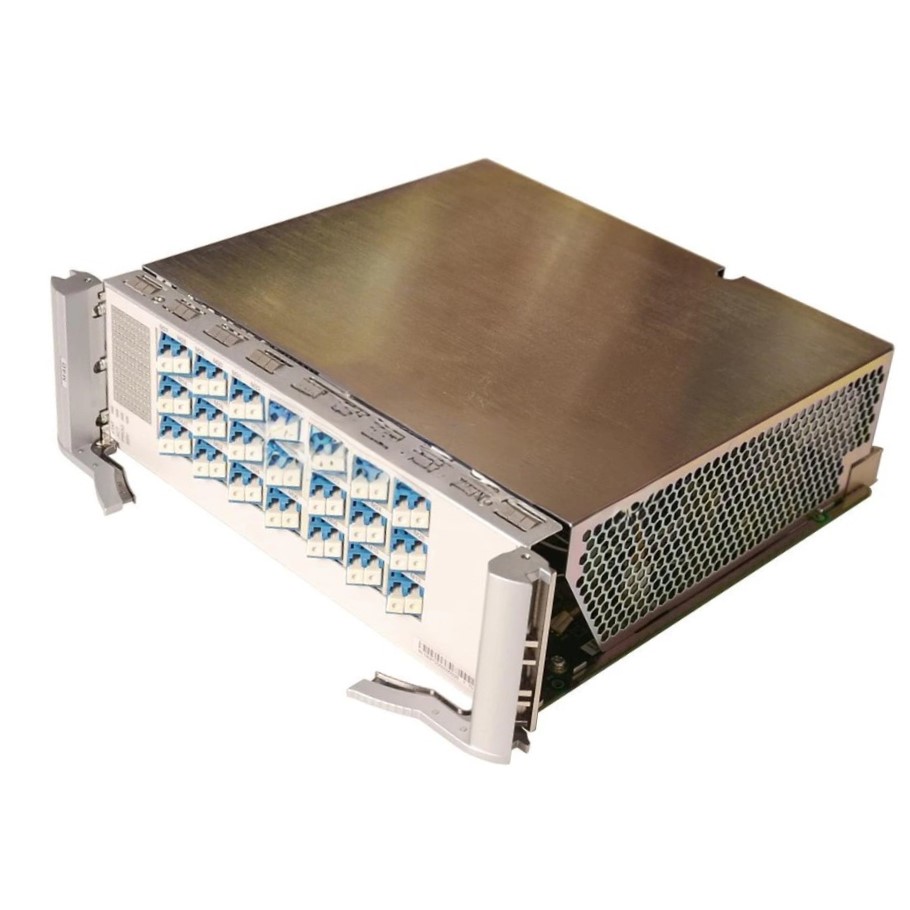

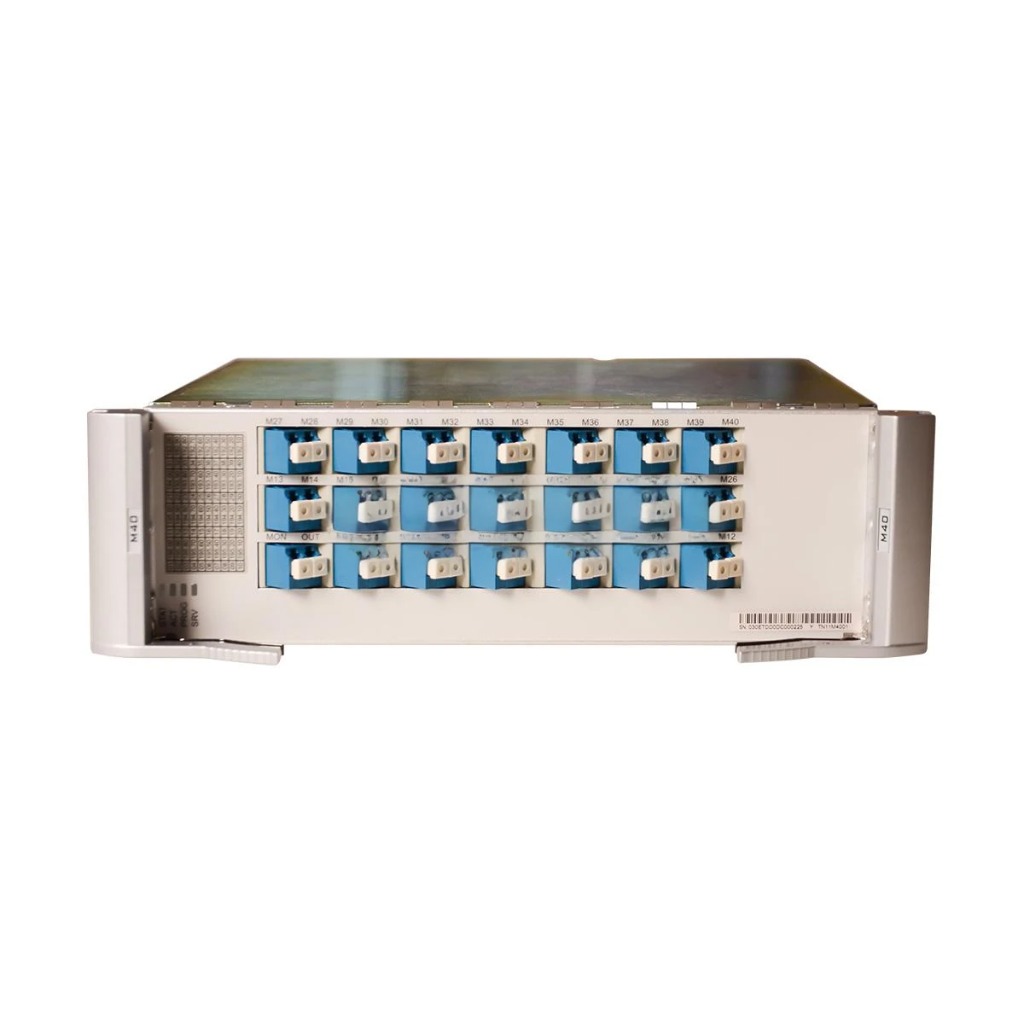

TN11M4002 Huawei Brand New 40-Channel Demultiplexing Board
The TN11M4002 Huawei is a 40-channel DWDM demultiplexing board designed for high-capacity optical transmission systems. Compatible with the Huawei OptiX OSN6800 and OSN8800 series, this module enables precise demultiplexing of a dense DWDM signal into individual ITU-compliant wavelengths for downstream processing. With passive, high-reliability AAWG (Athermal Arrayed Waveguide Grating) technology, this unit delivers consistent performance, low insertion loss, and high channel isolation.
Key Features
-
Model: TN11M4002
-
Condition: 100% Brand New, Original Huawei
-
Function: Passive optical demultiplexing for 40 DWDM channels
-
Channel Spacing: 100 GHz ITU-T Grid
-
Wavelength Range: C-band, typically from C21 to C60
-
Technology: Athermal AWG — no electrical power required
-
Form Factor: Plug-in board for OSN subracks
-
Compatibility: Works with Huawei OSN6800, OSN8800 DWDM platforms
-
Connector Type: LC/APC or SC/APC (project-dependent)
-
High Isolation: Minimizes crosstalk and preserves signal quality
-
Telecom-Grade Reliability: Built for 24/7 long-term deployment
Technical Specifications
| Specification | Details |
|---|---|
| Model | TN11M4002 |
| Board Type | DWDM Demultiplexing Board |
| Channel Count | 40 Channels |
| Wavelength Spacing | 100 GHz |
| Wavelength Range | ITU C21 – C60 |
| Technology | AAWG (Athermal Arrayed Waveguide Grating) |
| Insertion Loss | ≤ 5.5 dB |
| Adjacent Channel Isolation | ≥ 25 dB |
| Non-Adjacent Channel Isolation | ≥ 30 dB |
| Return Loss | ≥ 40 dB |
| Power Supply | Not Required (Passive Board) |
| Dimensions | Standard Huawei subrack form factor |
| Operating Temperature | -5°C to +45°C |
| Storage Temperature | -40°C to +70°C |
| Humidity | 5% – 95% (non-condensing) |
| Connector Type | LC/APC or SC/APC |
| Warranty | 1 Year Manufacturer Warranty |
TN11M4002 Huawei Applications
-
Telecom Backbone & Metro Networks – Ideal for DWDM wavelength separation
-
Huawei OSN6800 / OSN8800 – Seamless integration with Huawei WDM platforms
-
Data Center Interconnection (DCI) – Efficient handling of 40 DWDM channels
-
Enterprise Optical Infrastructure – High-capacity transport for multiple services
-
ISP & Carrier Networks – Scalable solution for growing bandwidth demand
TN11M4002 Huawei Customization & OEM Options
-
Connector Customization: LC/APC, SC/APC or project-specific connector types
-
Wavelength Configuration: Custom ITU channel ranges (upon request)
-
Private Labeling: Branding and packaging options for OEM partners
-
Rack Compatibility: Matching installation kits for non-Huawei systems
TN11M4002 Huawei Wholesale & Bulk Supply
-
Bulk Purchase Discounts: For telecom operators, integrators, and ISPs
-
In-Stock Availability: Short lead times for urgent deployments
-
Global Export Logistics: DG-certified handling and packaging
-
Full Technical Support: Pre-sales engineering and after-sales service
-
Guaranteed Originality: 100% authentic Huawei board with certification
Why Choose TN11M4002 Huawei DWDM Demux Board
-
Proven Huawei Quality — Engineered for critical optical backbone networks
-
Efficient DWDM Expansion — Add up to 40 channels with minimal infrastructure
-
Carrier-Grade Performance — Passive, reliable, and interference-resistant
-
Flexible Deployment — Compatible with a range of Huawei WDM systems
Contact Us for Bulk Orders or Technical Consultation
Upgrade your optical transport system with the Huawei TN11M4002 40-Channel Demultiplexing Board — a trusted solution for expanding bandwidth in dense wavelength division multiplexing networks.
