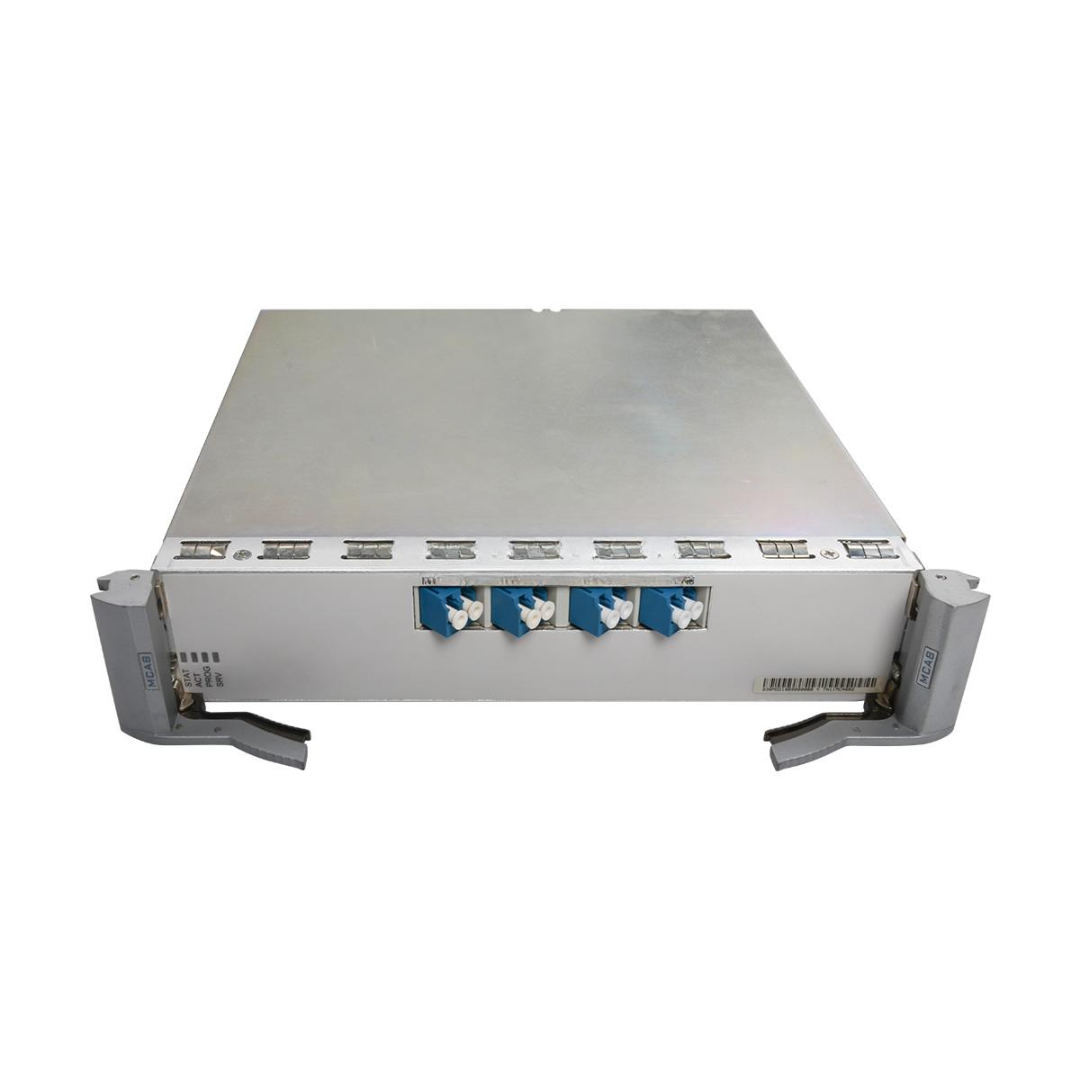

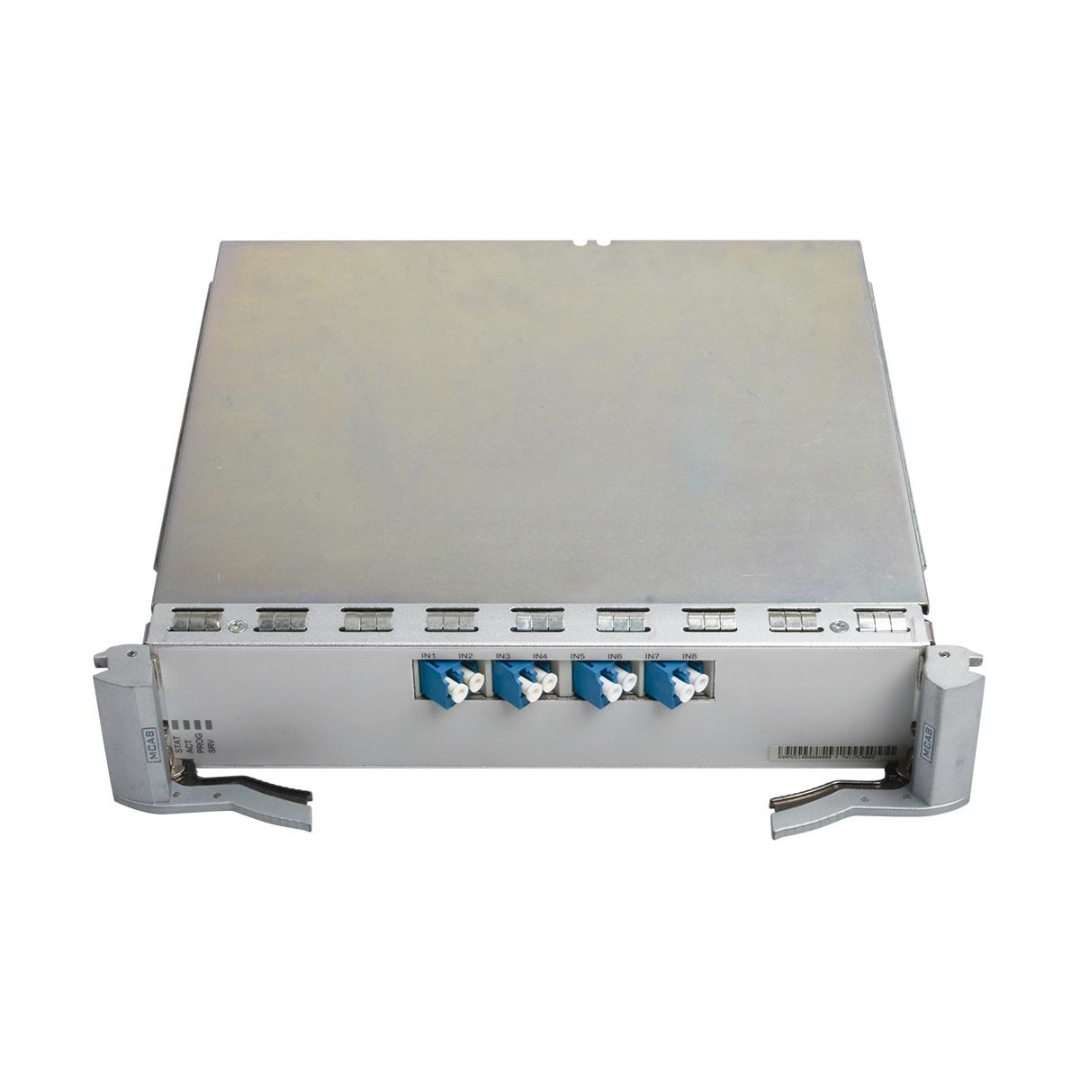

TN11MCA8 Huawei High Quality Channel Spectrum Analysis Board
The TN11MCA8 Huawei is a high-performance Channel Spectrum Analysis (CSA) board developed by Huawei for the OptiX OSN6800 and OSN8800 WDM systems. It provides real-time optical spectrum analysis, wavelength monitoring, and power measurement functions for multi-channel DWDM systems. With its powerful OSA capabilities, the TN11MCA8 is vital for network fault diagnosis, optical performance monitoring, and wavelength optimization in dynamic transmission environments.
Key Features
-
Model: TN11MCA8
-
Condition: 100% Brand New, Original Huawei
-
Function: Channel Spectrum Analysis (CSA) for DWDM networks
-
Wavelength Range: 1529.16 nm to 1560.61 nm (C-band)
-
Channel Spacing: Supports 50 GHz/100 GHz channel grids
-
Real-Time Monitoring: Detects optical signal power, OSNR, and central wavelength
-
Integration: Directly integrates with Huawei U2000 or NCE-T for visual spectrum display
-
Application: Used in signal quality analysis, optical channel verification, and troubleshooting
-
Data Export: Supports history logging and remote access for centralized diagnostics
-
Installation: Plug-in module, hot-swappable without service disruption
Technical Specifications
| Specification | Details |
|---|---|
| Board Name | TN11MCA8 |
| Function Type | Channel Spectrum Analysis Board |
| Applicable Systems | Huawei OSN6800, OSN8800 |
| Optical Interface Type | LC (monitor port input) |
| Wavelength Monitoring | 1529.16 nm to 1560.61 nm |
| Channel Grid | 50 GHz/100 GHz ITU-T compliant |
| Dynamic Range | ≥ 30 dB |
| Wavelength Accuracy | ±0.05 nm |
| OSNR Accuracy | ±1.5 dB |
| Power Accuracy | ±1.5 dB |
| Operating Temperature | -5°C to +45°C |
| Power Consumption | ≤ 35W (typical) |
| Dimensions | Standard service board (fits OSN slots) |
| Warranty | 1–3 Years Manufacturer Warranty |
TN11MCA8 Huawei Applications
-
Wavelength Division Multiplexing (WDM) Systems — Monitor per-channel health and power
-
Long-Haul Optical Links — Ensure optimal spectrum use and early fault detection
-
Network Maintenance & Troubleshooting — Real-time spectrum analysis for root cause diagnostics
-
Service Provisioning Validation — Ensure correct wavelength/channel assignments
-
Carrier & ISP Networks — Continuous quality assurance in large optical mesh networks
Customization & OEM Options
-
Factory Pre-Configuration — Threshold alarms, channel templates, and grid options
-
Private Labeling — Logo branding and unique board ID codes for OEM clients
-
Remote Monitoring Integration — Custom SNMP traps and integration with third-party NMS
-
Pre-Test Reports — Full optical spectrum snapshot with each unit (optional)
-
Extended QA — Performance burn-in for mission-critical and high-availability deployments
TN11MCA8 Huawei Wholesale & Global Procurement
-
Huawei Original Stock — 100% authentic OEM board with verifiable serials
-
Bulk Supply Available — Suitable for integrators, operators, and optical labs
-
Secure Packaging — Shock-absorbing ESD protection and OEM-labeled carton
-
Fast International Delivery — Global logistics with compliance for optical modules
-
Tech Support Included — Configuration, installation, and monitoring guidance available
Why Choose the TN11MCA8 Huawei Channel Spectrum Analyzer
-
High Accuracy Optical Spectrum Monitoring — Ideal for dense C-band DWDM networks
-
Real-Time Visualization — Integrated with Huawei U2000/NCE for live spectrum display
-
Carrier-Grade Reliability — Trusted by telecom giants for fault isolation
-
Essential for DWDM Networks — Maintain wavelength precision and signal health
-
Comprehensive Diagnostics — Power, OSNR, and wavelength drift detection in one board
Contact Us for Datasheets, Pricing, and Bulk Orders
Upgrade your optical DWDM infrastructure with the Huawei TN11MCA8, a reliable and accurate channel spectrum analysis board that ensures service quality, fast troubleshooting, and network optimization.
