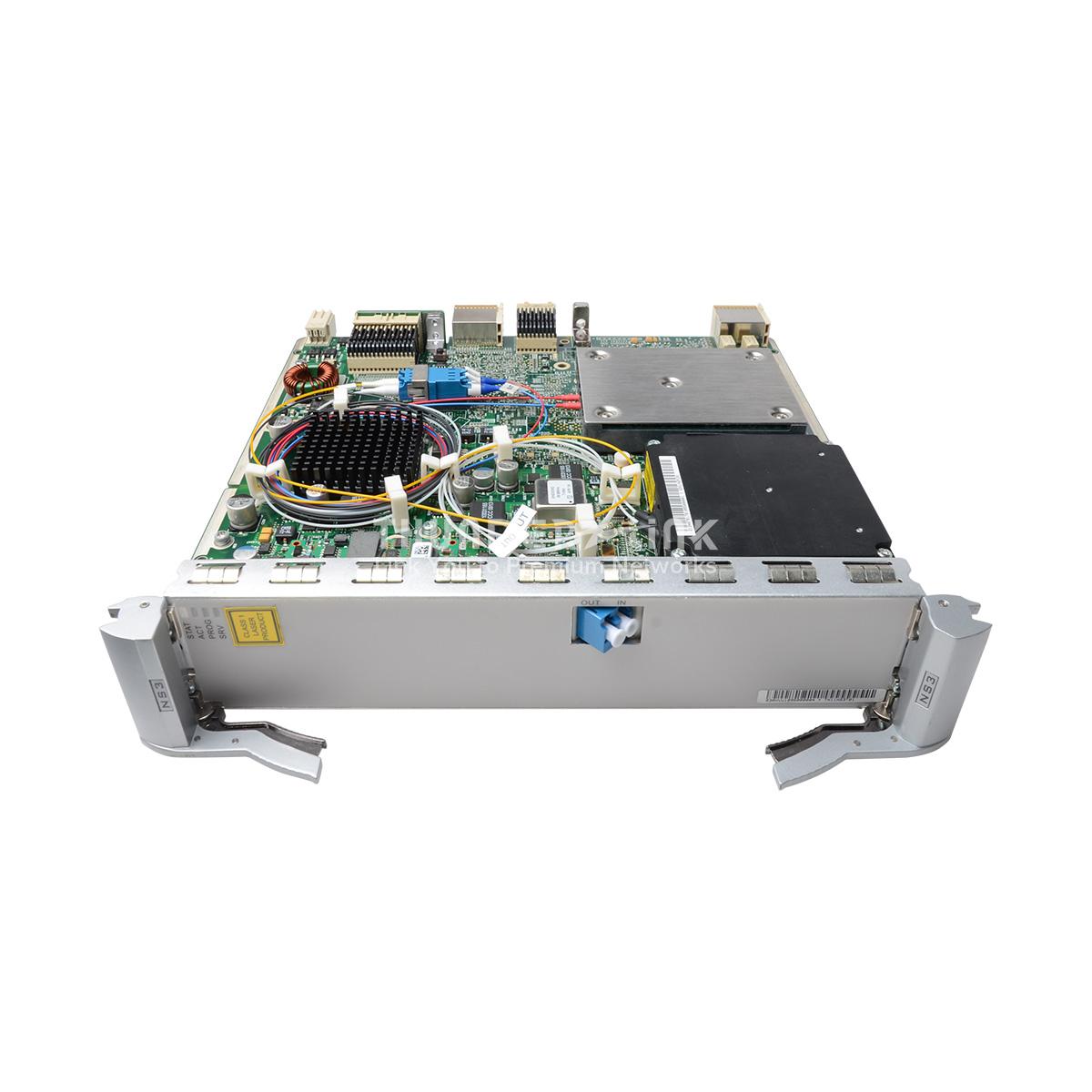

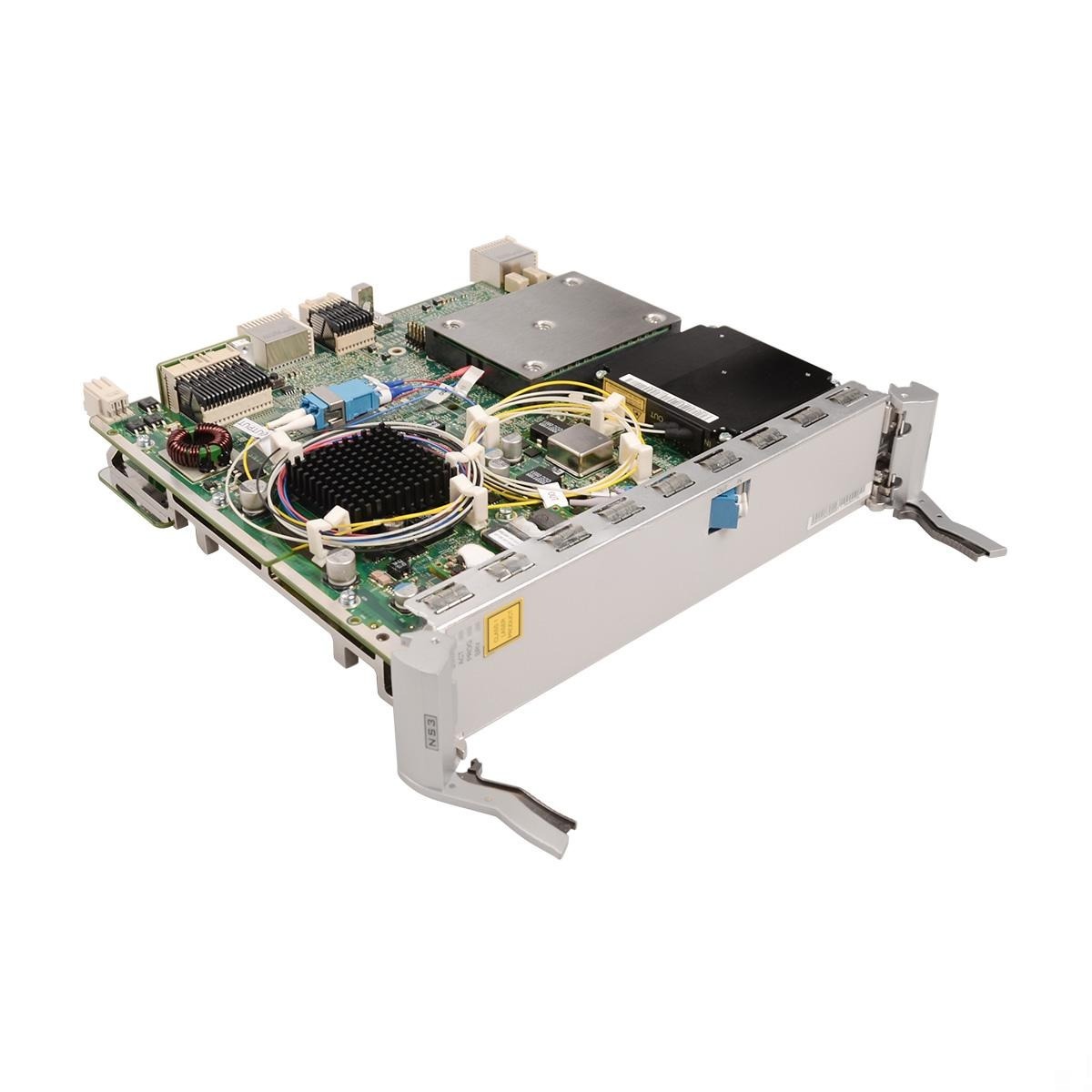

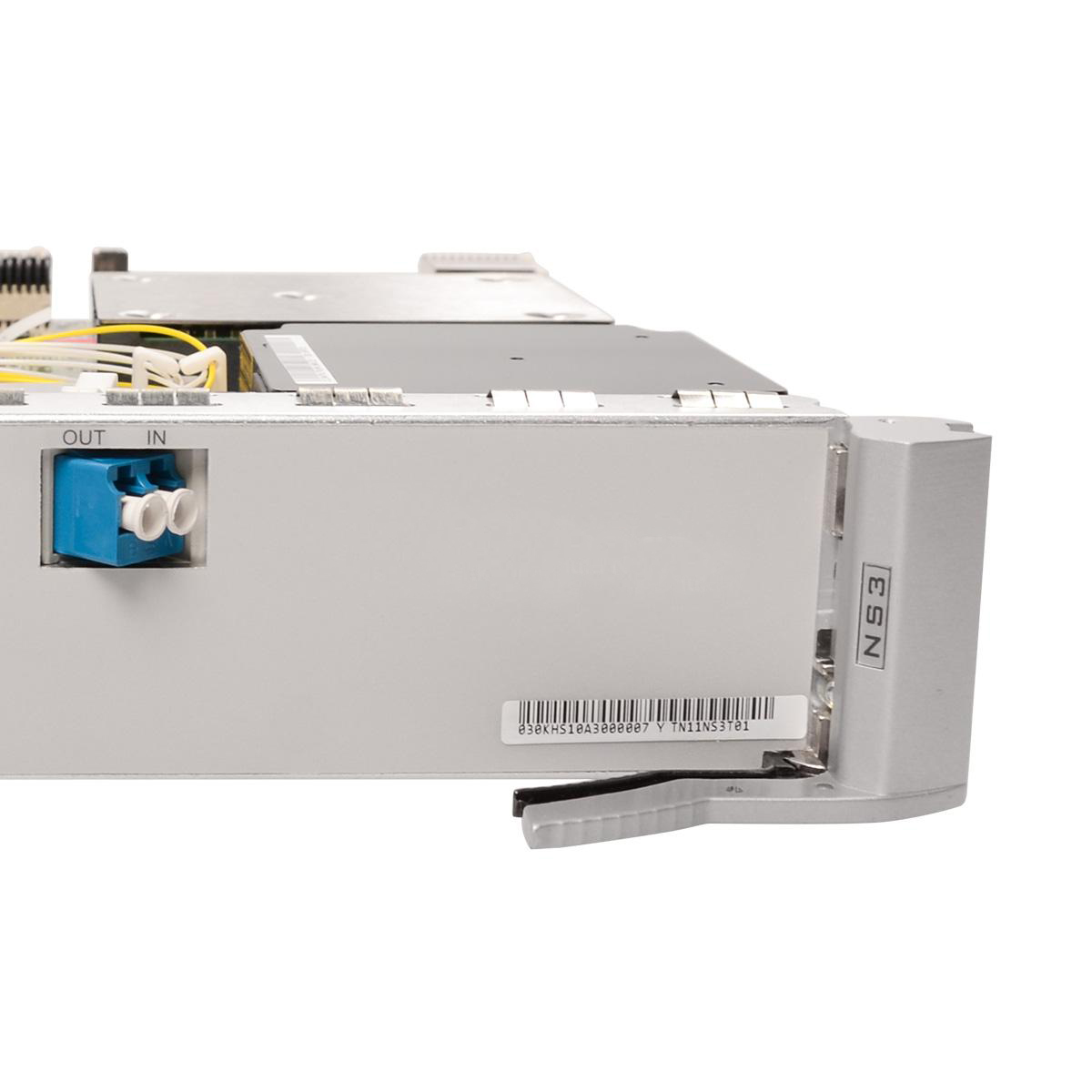

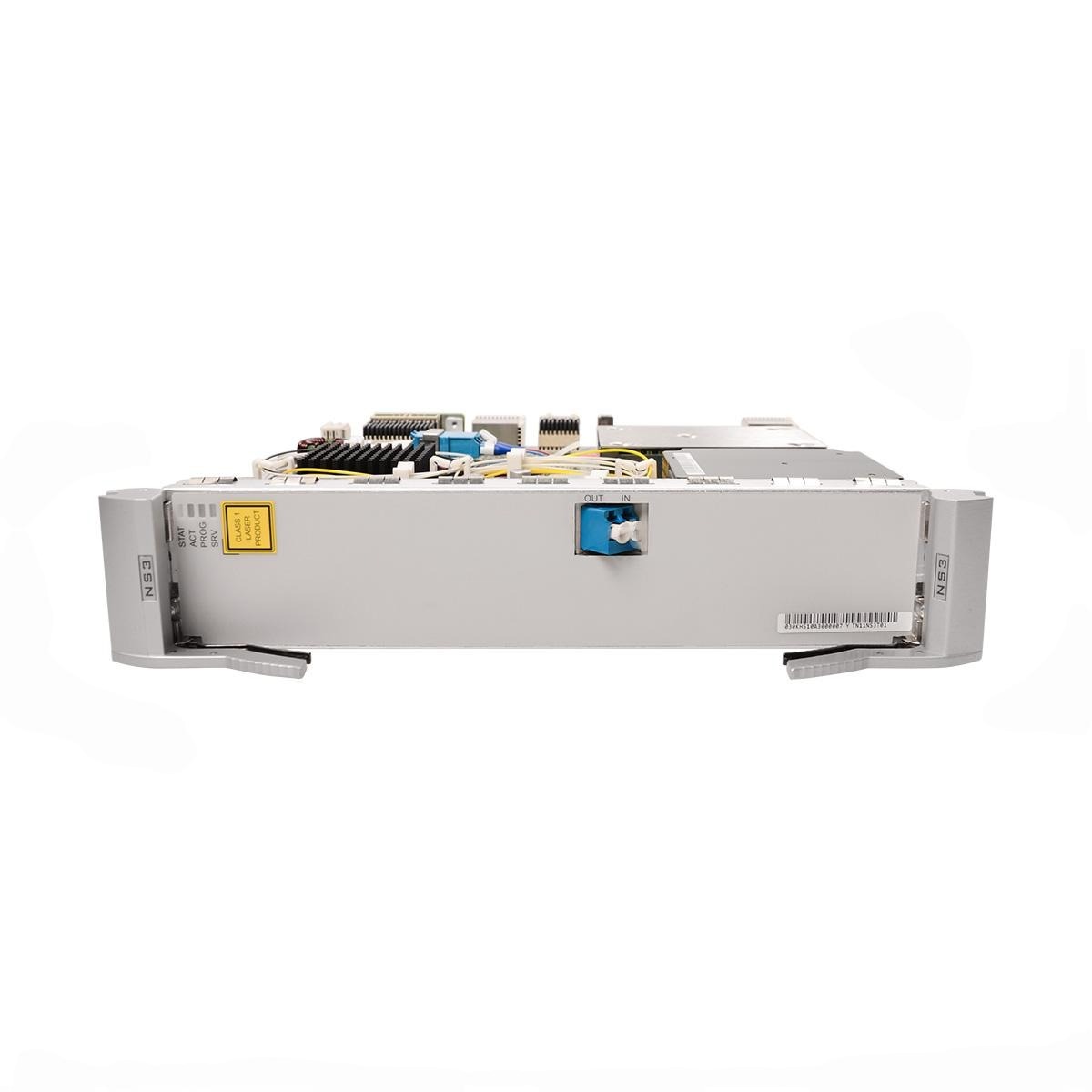

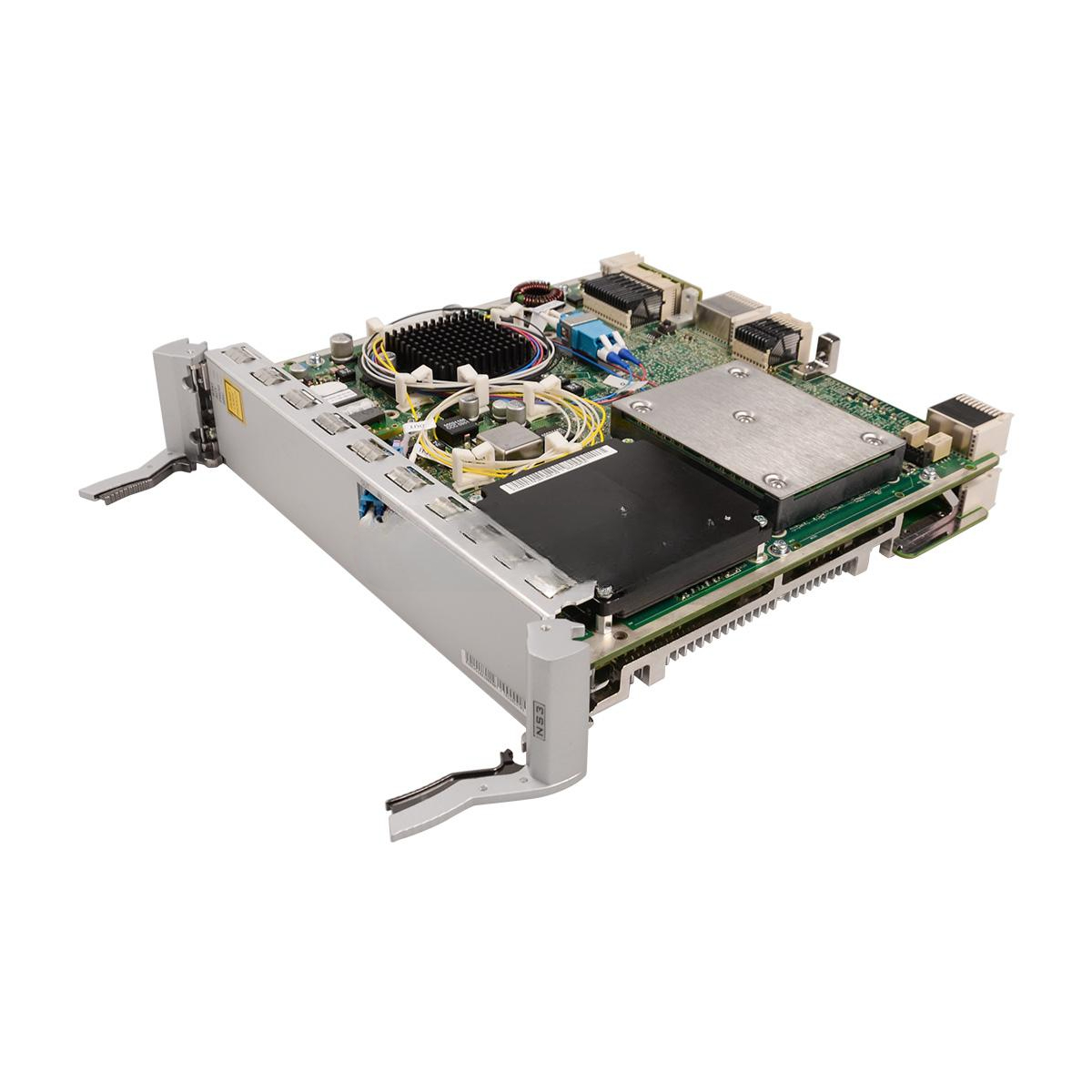

TN11NS3T01 Huawei Brand New 40G Line Service Processing Board
The TN11NS3T01 Huawei is a high-quality, brand new 40G Line Service Processing Board designed for Huawei’s optical transport network (OTN) systems. It delivers stable, high-speed data transmission and advanced signal processing, ensuring reliable performance for backbone and metro network applications.
This board provides flexible service access, multiplexing, and grooming of 40 Gbit/s line signals, supporting a wide range of service types with superior transmission quality and high integration. It is an ideal choice for operators, ISPs, and large enterprise networks seeking to expand or upgrade their OTN infrastructure with industry-leading Huawei equipment.
Key Features
Model: TN11NS3T01
Condition: 100% Brand New, Original Huawei
Board Type: 40G Line Service Processing Board
Function: Supports access, multiplexing, and grooming of 40 Gbit/s line signals
Transmission: High-speed, stable optical signal processing
Compatibility: Fully compatible with Huawei’s OTN platforms (e.g., OptiX OSN series)
Reliability: Hot-swappable module with intelligent monitoring and protection
Flexibility: Supports various client-side and line-side service interfaces
Management: Remote configuration and performance monitoring through Huawei U2000 NMS
Quality: Industrial-grade design with low power consumption and long service life
Tech Specs
| Parameter | Value |
|---|---|
| Operating Frequency Range (THz) | 192.10 to 196.05 |
| Maximum Mean Launched Power (dBm) | 0 |
| Minimum Mean Launched Power (dBm) | -5 |
| Minimum Extinction Ratio (dB) | N/A |
| Center Frequency Deviation (GHz) | ±2.5 |
| Maximum -20 dB Spectral Width (nm) | N/A |
| Maximum -3 dB Spectral Width (nm) | 0.3 |
| Dispersion Tolerance (ps/nm) | -500 to +500 |
Receiver Specifications (Point R)
| Parameter | Value |
|---|---|
| Receiver Type | PIN |
| Operating Wavelength Range (nm) | 1529 to 1561 |
| Receiver Sensitivity, EOL (FEC on) (dBm) | -16 |
| Minimum Receiver Overload (FEC on) (dBm) | 0 |
| Maximum Reflectance (dB) | -27 |
Mechanical Specifications
| Parameter | Value |
|---|---|
| Dimensions (mm) | 264.6 (H) × 50.8 (W) × 220 (D) |
| Weight (kg) | 2.2 |
TN11NS3T01 Huawei Applications
The TN11NS3T01 is ideal for:
• Core and Metro Transport Networks — Enhances bandwidth and signal processing for backbone connections
• Large Data Centers — High-capacity interconnect for data transmission across sites
• Carrier & ISP Networks — Flexible deployment for service expansion and network upgrades
• Enterprise OTN Solutions — Reliable transport for mission-critical applications
