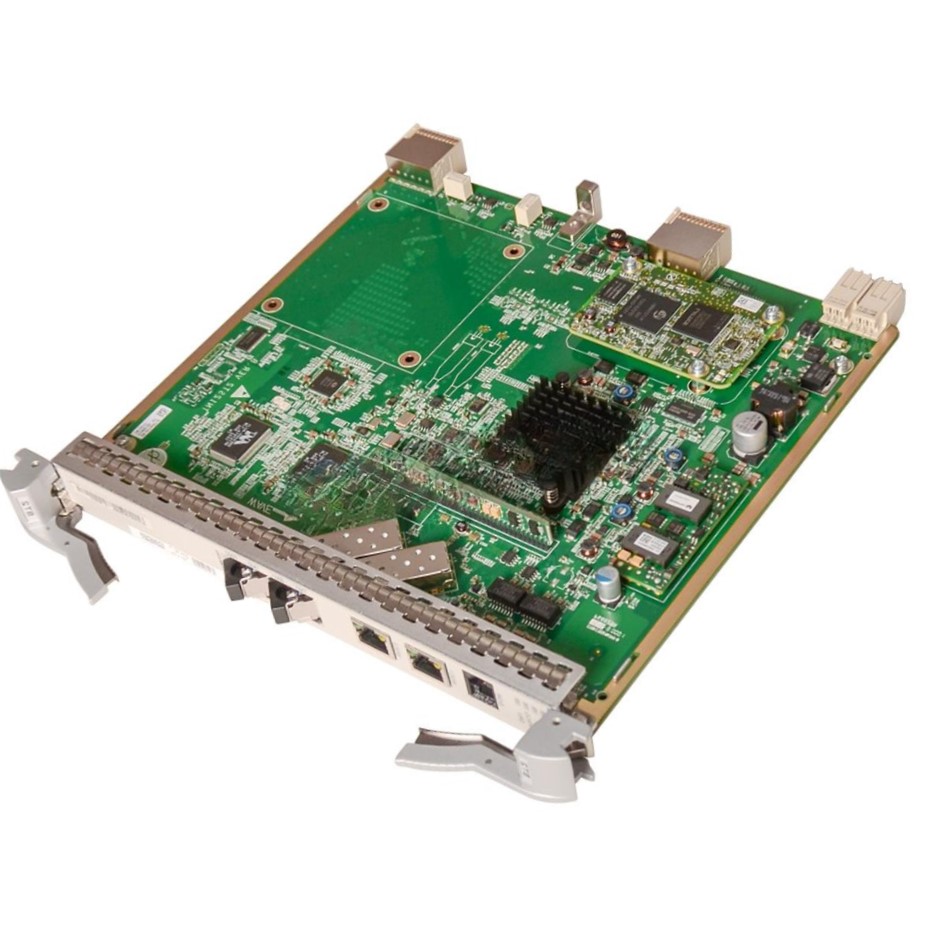

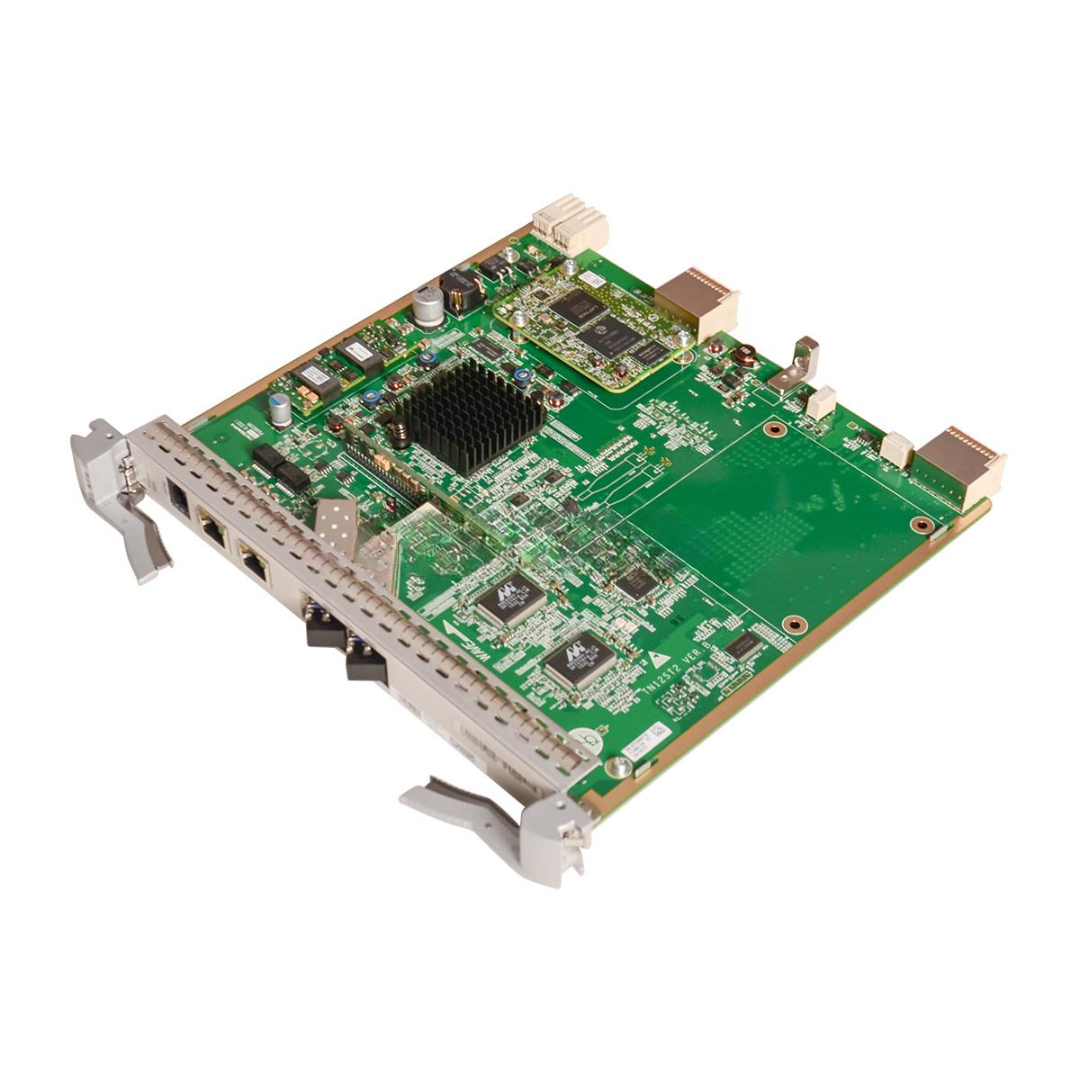

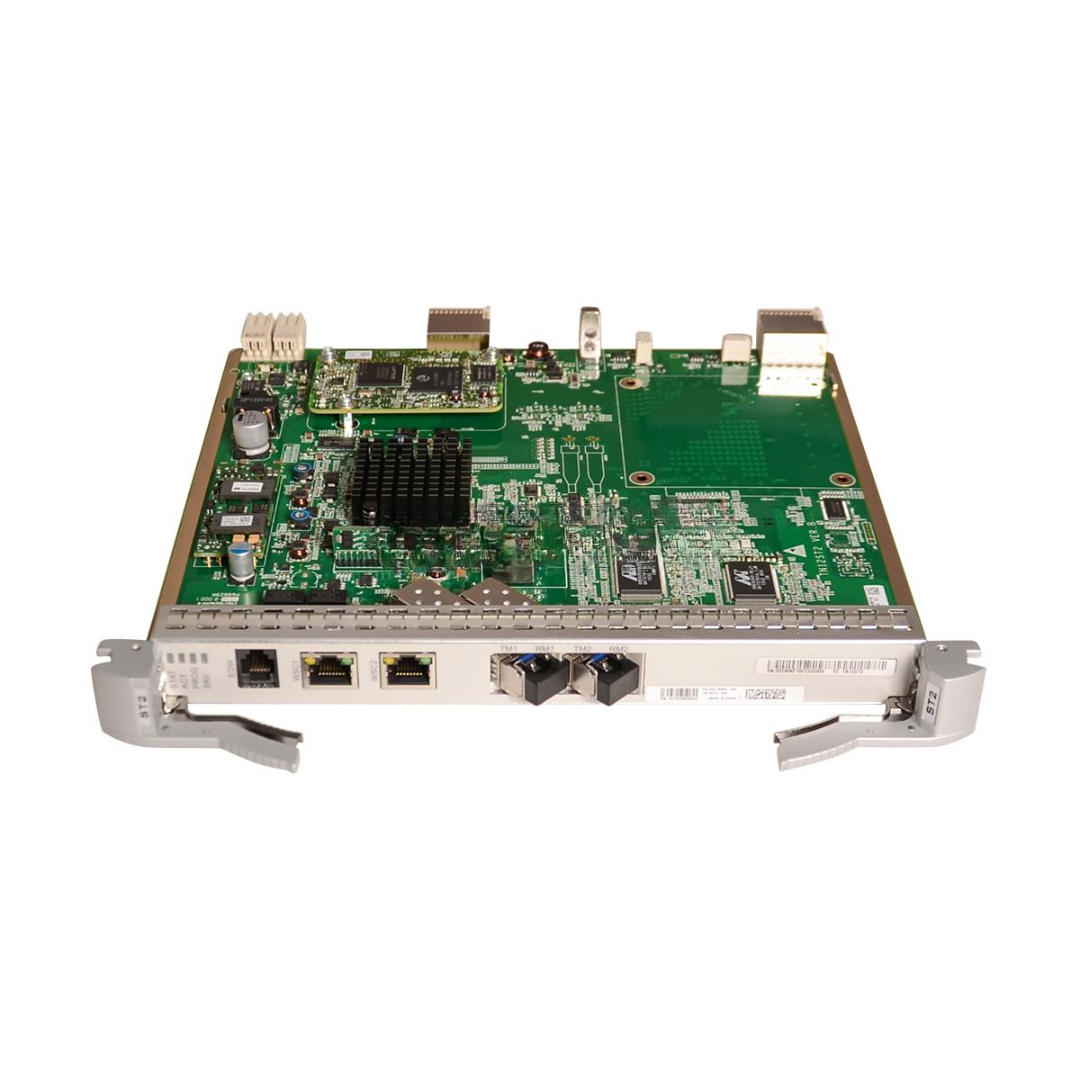

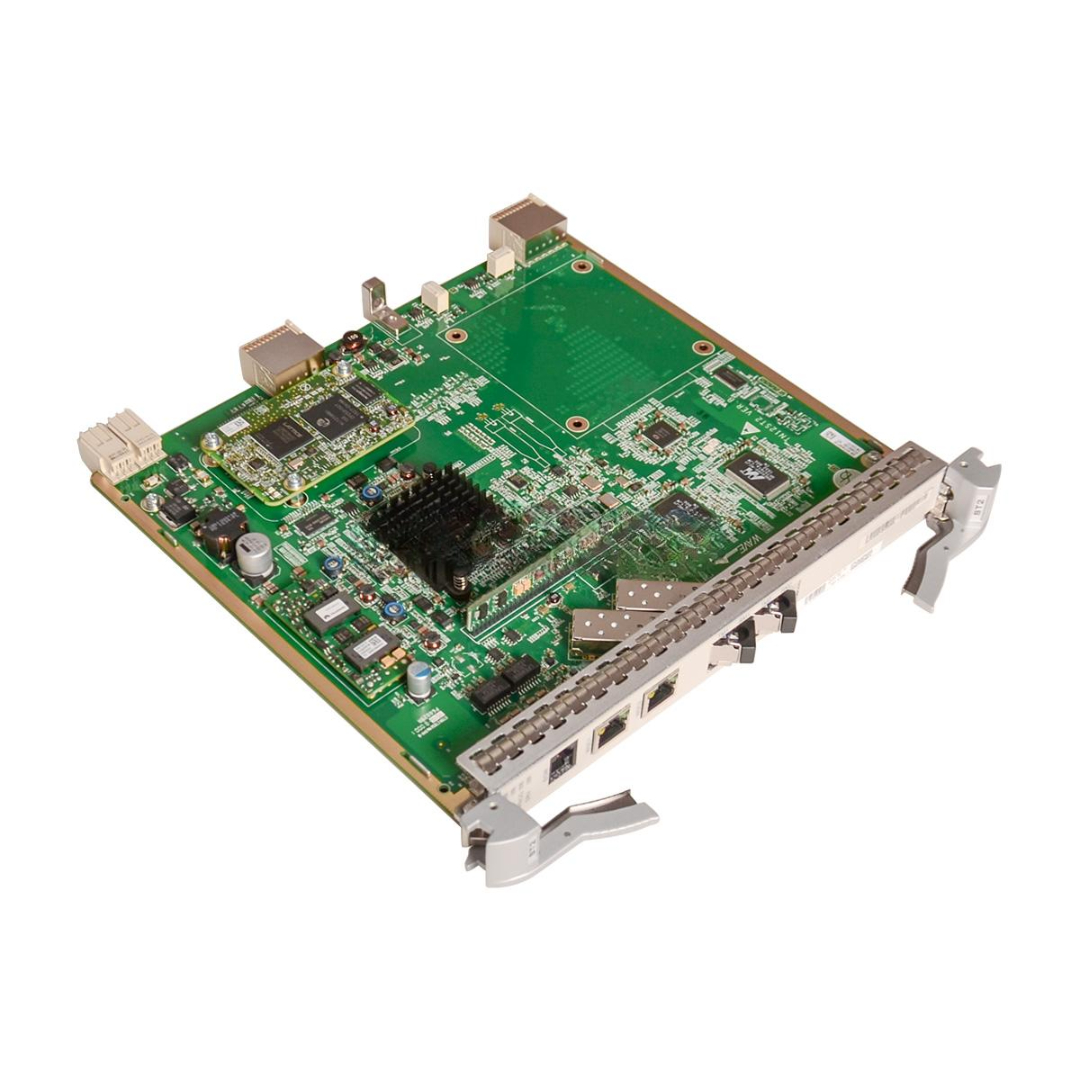

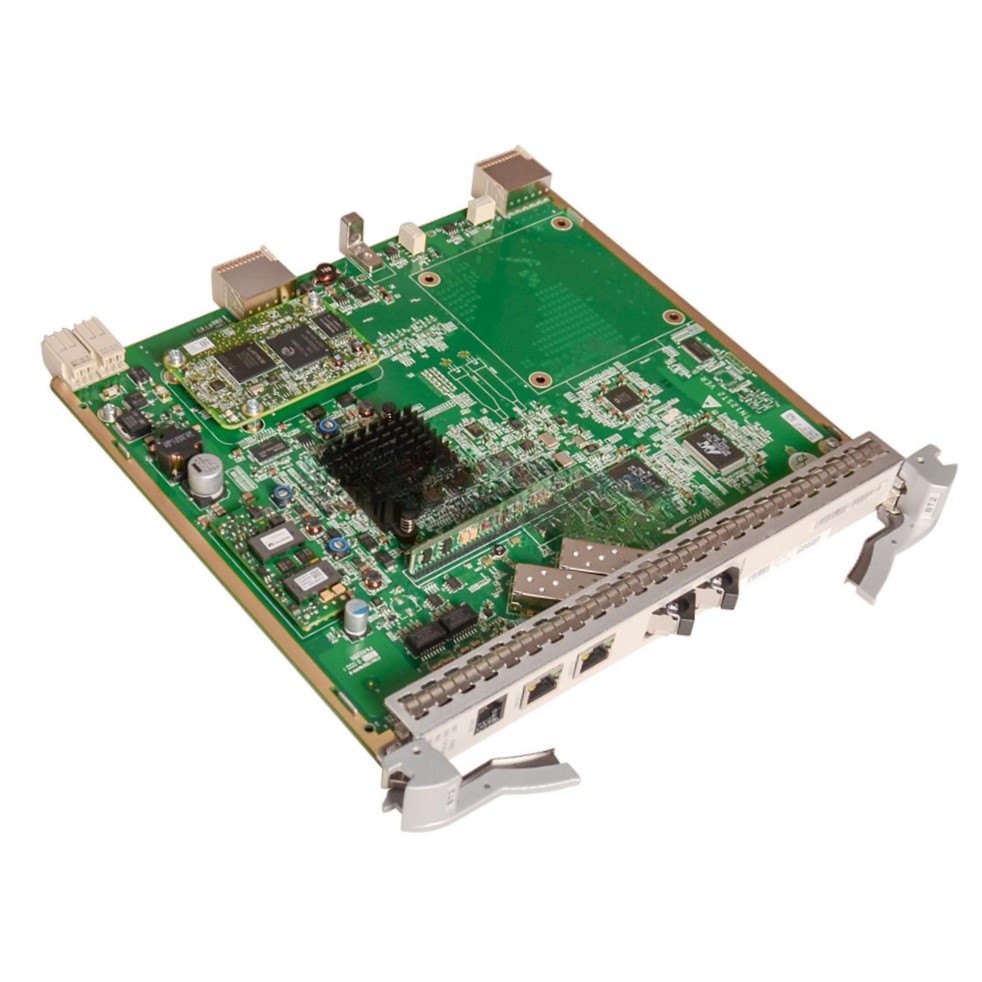

TN11ST2 Huawei High Quality Bi-directional Super Channel
The TN11ST2 Huawei is a bi-directional Super Channel optical interface board designed for high-capacity, long-haul optical transmission in Huawei’s OptiX OSN6800 and OSN8800 series WDM platforms. Engineered with advanced coherent transmission technology, the TN11ST2 supports dual-carrier 100G/200G line-side transmission, enabling efficient ultra-broadband transport over DWDM systems with reduced spectrum footprint.
This board is ideal for metro-core, long-haul, and ultra-long-haul networks, offering operators a flexible and future-proof path to 100G and beyond. Its compact design and low power consumption also make it well-suited for high-density deployments in national and cross-border optical backbone networks.
Key Features
-
Model: TN11ST2
-
Condition: 100% Brand New, Huawei Original
-
Line Rate: 2 × 100 Gbps Coherent DP-QPSK
-
Super Channel Design: Combines dual wavelengths in one line interface
-
Transmission Distance: Up to 2000 km with DCM-free design
-
Client-Side Interfaces: 2 × OTU4 or 2 × 100GE optical ports
-
Line-Side Interface: Coherent CFP/CFP2 pluggable modules
-
Advanced Modulation: DP-QPSK/BPSK with adaptive FEC
-
Software-Defined Configurations: Supports 100G/200G modes
-
Protection & Monitoring: Full performance monitoring, alarms, and loopback
-
Forwarding Technology: Optical-layer Super Channel signal processing
Technical Specifications
| Specification | Details |
|---|---|
| Model | TN11ST2 |
| Board Type | Bi-directional Super Channel Coherent Line Board |
| Client Interfaces | 2 × 100GE/OTU4 optical ports |
| Line Interfaces | 2 × Coherent CFP/CFP2 ports (100G each) |
| Modulation Formats | DP-QPSK, BPSK |
| FEC Type | SD-FEC, oFEC, Enhanced FEC |
| Transmission Distance | Up to 2000 km (depending on modulation & network) |
| Wavelength Range | C-band (DWDM grid, 50 GHz/75 GHz spacing supported) |
| Power Consumption | ≤95W (typical, depends on optics) |
| OSN Compatibility | OSN8800 T64/T32, OSN6800 |
| Operating Temperature | -5°C to +45°C |
| Humidity | 5% – 95% RH, non-condensing |
| Protocol Compliance | ITU-T G.709, G.694.1, G.872, IEEE 802.3ba |
| Warranty | 1–3 Years Manufacturer Warranty |
TN11ST2 Huawei Applications
-
National Backbone Networks — Inter-city and long-distance optical transmission with high bandwidth
-
Data Center Interconnection (DCI) — High-speed super channel between major data hubs
-
Cloud and 5G Transport — Supports massive bandwidth aggregation for 5G fronthaul/backhaul
-
Cross-Border Optical Links — Efficient solution for long-haul connectivity in international networks
-
High-Capacity Metro-Core Rings — Scalable platform for growing IP/MPLS or OTN traffic demands
Customization & OEM Options
-
Custom Line Modulation — Configure for BPSK (long reach) or QPSK (high capacity) as needed
-
Client Port Mapping — Preloaded 100GE/OTU4 configuration with channelized VLAN or QoS
-
Optics Flexibility — Choose from Huawei certified CFP/CFP2 modules (10 km to long-haul reach)
-
OEM Labeling — Custom branding available for integrators or carriers
-
Pre-Tested Bundles — Full transmission chain pre-tested with EDFA/OLP units upon request
TN11ST2 Huawei Wholesale & Global Procurement
-
Original Huawei Stock — Guaranteed genuine parts with factory QC and serial verification
-
Export-Ready Packaging — Anti-static, shock-resistant foam boxed for international delivery
-
Bulk Order Availability — Fast turnaround for large-scale network projects
-
Documentation Included — Full Huawei datasheets, MIBs, CLI guides, and installation manuals
-
End-to-End Support — Integration consultation, configuration assistance, and technical help
Why Choose TN11ST2 Huawei Bi-directional Super Channel
-
Maximized Bandwidth — 200G super channel over a single pair of fiber
-
Efficient Spectrum Use — Ideal for DWDM networks with limited spectrum resources
-
Future-Proof — Compatible with evolving 400G and ROADM technologies
-
Field-Proven Performance — Widely deployed in Tier-1 and national networks
-
Flexible Topologies — Works with mesh, linear, ring, and ASON architectures
Contact Us Now for Bulk Orders, Quotes & Technical Documents
Elevate your transport network with the TN11ST2 Huawei Super Channel Board — the perfect choice for service providers, enterprises, and national networks seeking ultra-high capacity and long-haul coherent performance in a compact and flexible solution.
