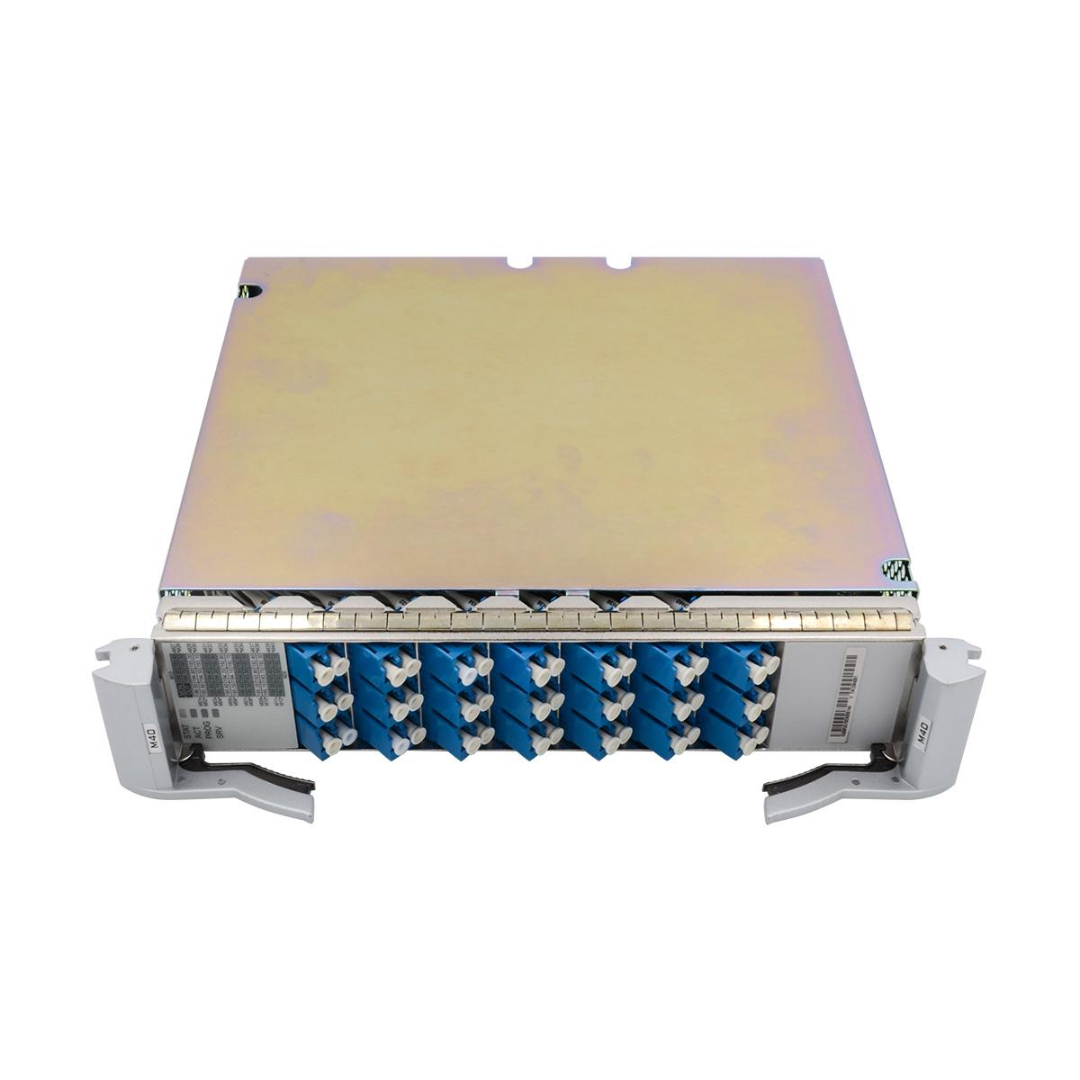

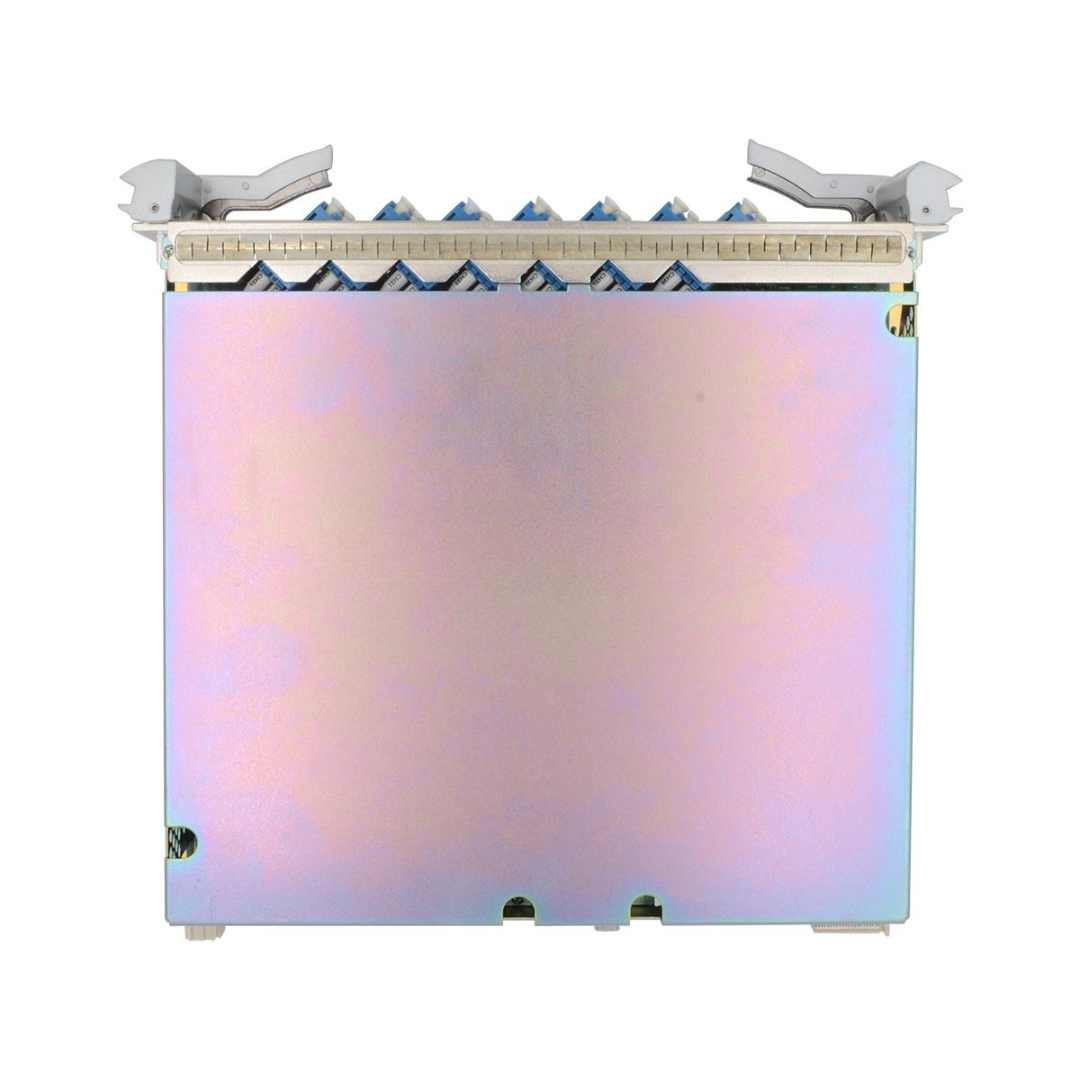

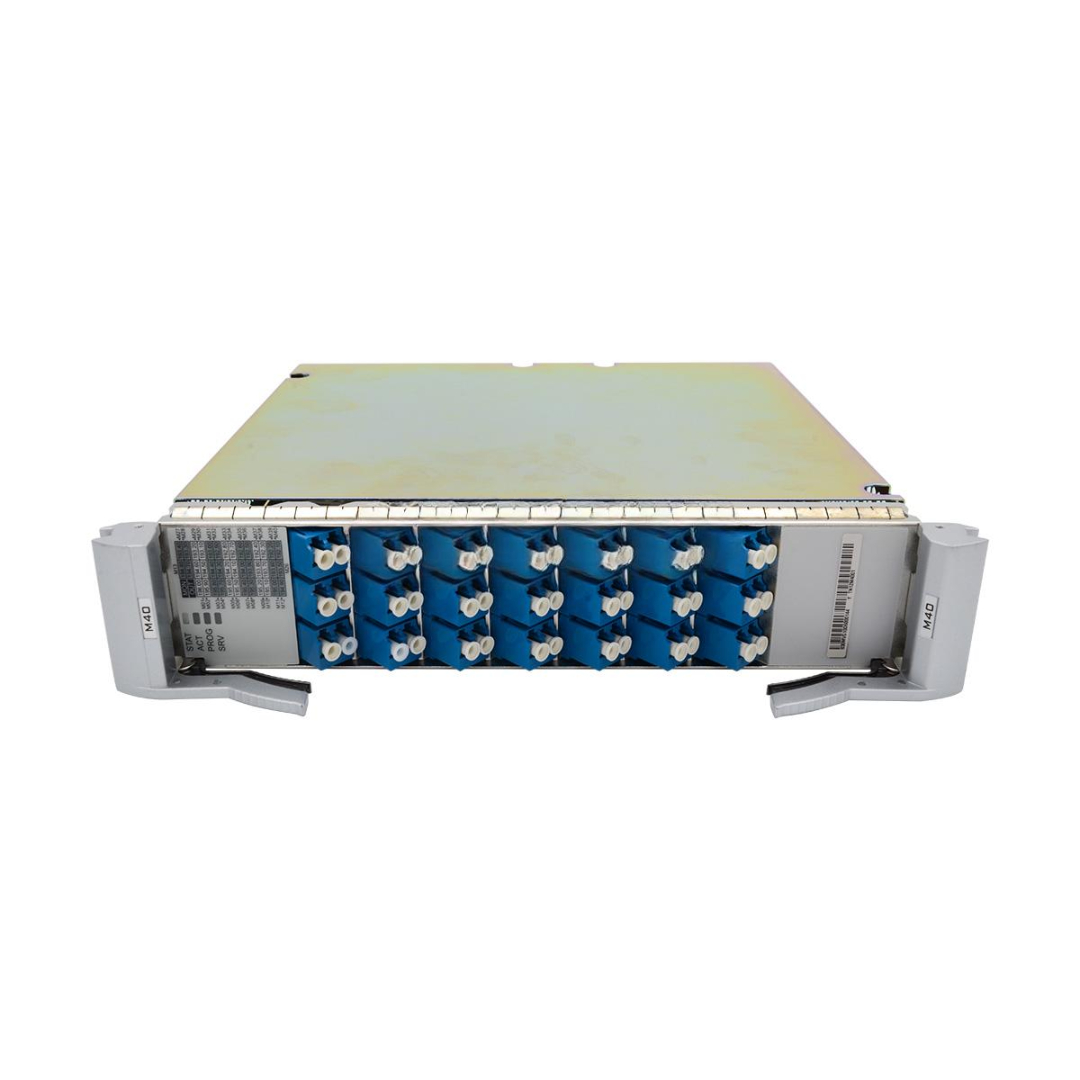

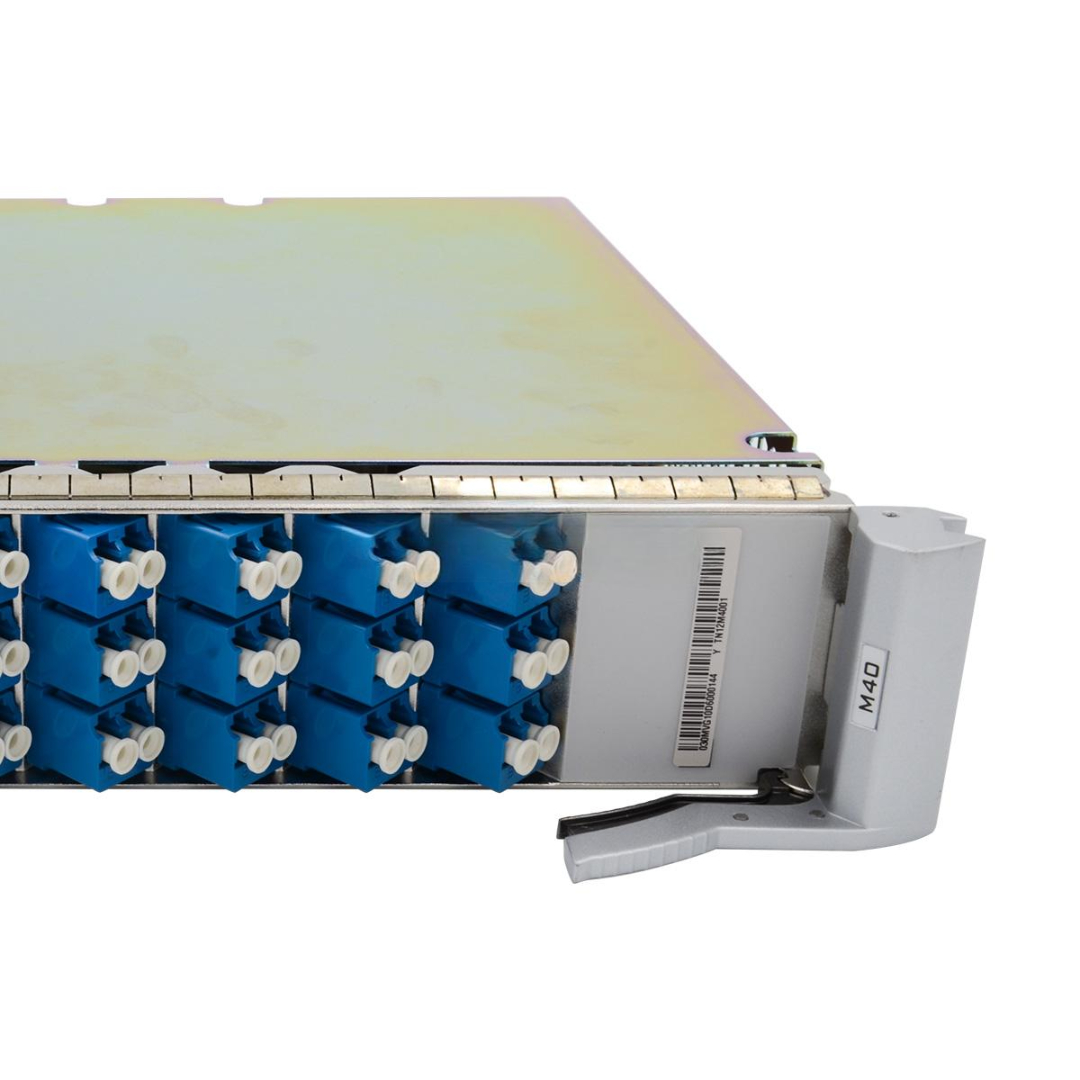

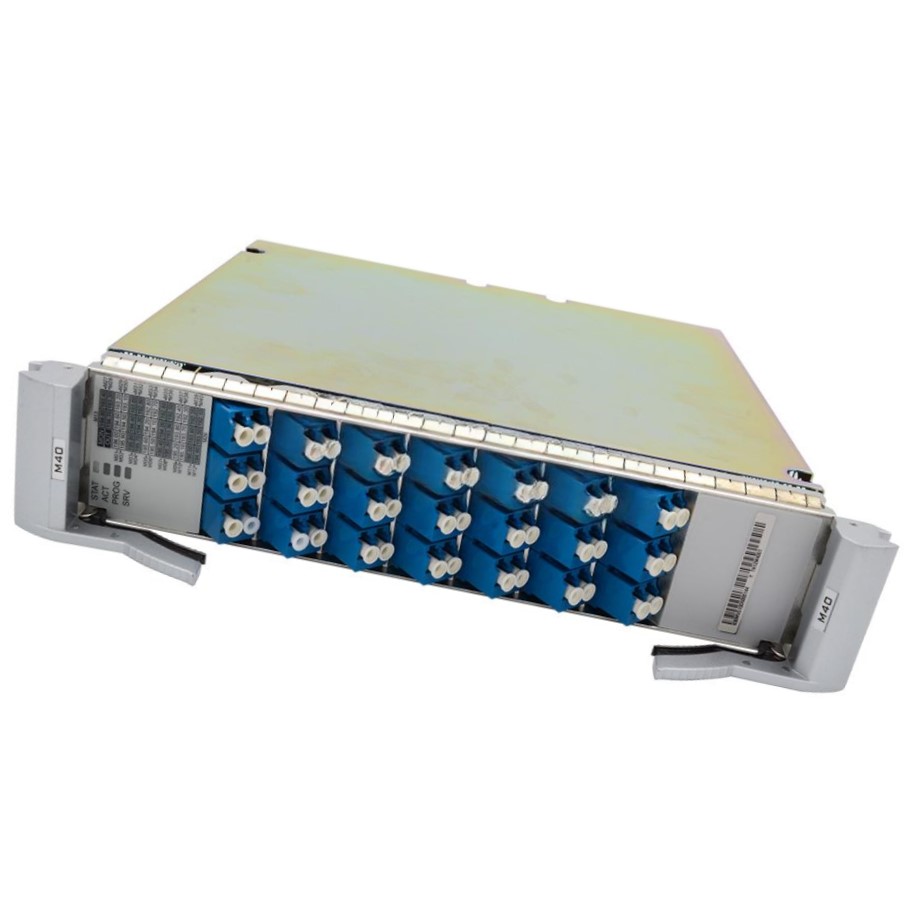

TN12M4001 Huawei Brand New 40-Channel Multiplexing Board
The TN12M4001 Huawei Multiplexing Board is a high-performance passive DWDM Mux module designed to aggregate 40 individual ITU-T standard wavelengths into a single fiber for efficient long-haul transmission. It is compatible with Huawei’s OSN6800 and OSN8800 series, enabling dense wavelength division multiplexing in core, metro, and DCI networks. Using AAWG (Athermal Arrayed Waveguide Grating) technology, the board ensures excellent reliability and performance without requiring power.
Key Features
-
Model: TN12M4001
-
Condition: 100% Brand New, Original Huawei
-
Function: Combines 40 separate DWDM channels into one fiber
-
Channel Spacing: 100 GHz (per ITU-T Grid)
-
Wavelength Range: ITU Channels C21 to C60 (C-band)
-
Passive Technology: AAWG — no external power or cooling required
-
Form Factor: Plug-in board for Huawei OSN6800/8800 subracks
-
Low Insertion Loss: Ensures efficient signal transmission
-
High Channel Isolation: Minimizes interference between channels
-
Telecom-grade Design: Long-term reliability for carrier networks
Technical Specifications
| Specification | Details |
|---|---|
| Model | TN12M4001 |
| Board Type | DWDM Multiplexing Board |
| Channel Count | 40 Channels |
| Channel Spacing | 100 GHz (DWDM standard) |
| Wavelength Range | C21 – C60 (C-band) |
| Technology | Athermal AWG |
| Insertion Loss | ≤ 5.5 dB |
| Channel Isolation | ≥ 25 dB (adjacent), ≥ 30 dB (non-adjacent) |
| Return Loss | ≥ 40 dB |
| Power Supply | Not Required (Passive Board) |
| Connector Type | LC/APC or SC/APC |
| Operating Temperature | -5°C to +45°C |
| Storage Temperature | -40°C to +70°C |
| Humidity | 5% – 95% (non-condensing) |
| Compatible Equipment | Huawei OSN6800, OSN8800 |
| Form Factor | Standard plug-in Huawei WDM board |
| Warranty | 1-Year Manufacturer Warranty |
TN12M4001 Huawei Applications
-
DWDM Aggregation — Combines multiple wavelengths onto a single optical fiber
-
Huawei WDM Platforms — Full compatibility with OSN6800 and OSN8800 systems
-
Data Center Interconnect (DCI) — Efficient multi-channel optical trunking
-
Carrier Core and Metro Networks — Simplifies fiber infrastructure expansion
-
Enterprise Optical Systems — Enables high-bandwidth services over fewer fibers
Customization & OEM Services
-
Connector Options: LC/APC, SC/APC, or customized per project
-
Channel Plans: Flexible ITU channel configurations available
-
Private Labeling: OEM branding, custom logos, and packaging
-
Bundle Solutions: Mux/Demux pairs, chassis, and patch cables on request
TN12M4001 Huawei Wholesale & Bulk Procurement
-
Factory Direct Pricing: Competitive rates for telecom projects and resellers
-
Inventory Availability: In-stock for fast delivery worldwide
-
Export Packaging: DG-certified handling and safe international shipment
-
Project Support: Pre-sale planning and post-sale technical guidance
-
Guaranteed Originality: 100% authentic Huawei product with verification
Why Choose TN12M4001 Huawei Mux Board
-
High Channel Capacity — Combines 40 DWDM channels into one fiber
-
Passive Operation — No power, no maintenance, fully passive reliability
-
Carrier-Grade Quality — Built for mission-critical telecom networks
-
Simple Integration — Plug-and-play with Huawei WDM systems
Contact Us for Quotes, Bulk Orders, and Technical Consultation
Deploy the Huawei TN12M4001 40-Channel Multiplexing Board for robust, scalable optical transmission solutions across metro, backbone, and enterprise networks.
