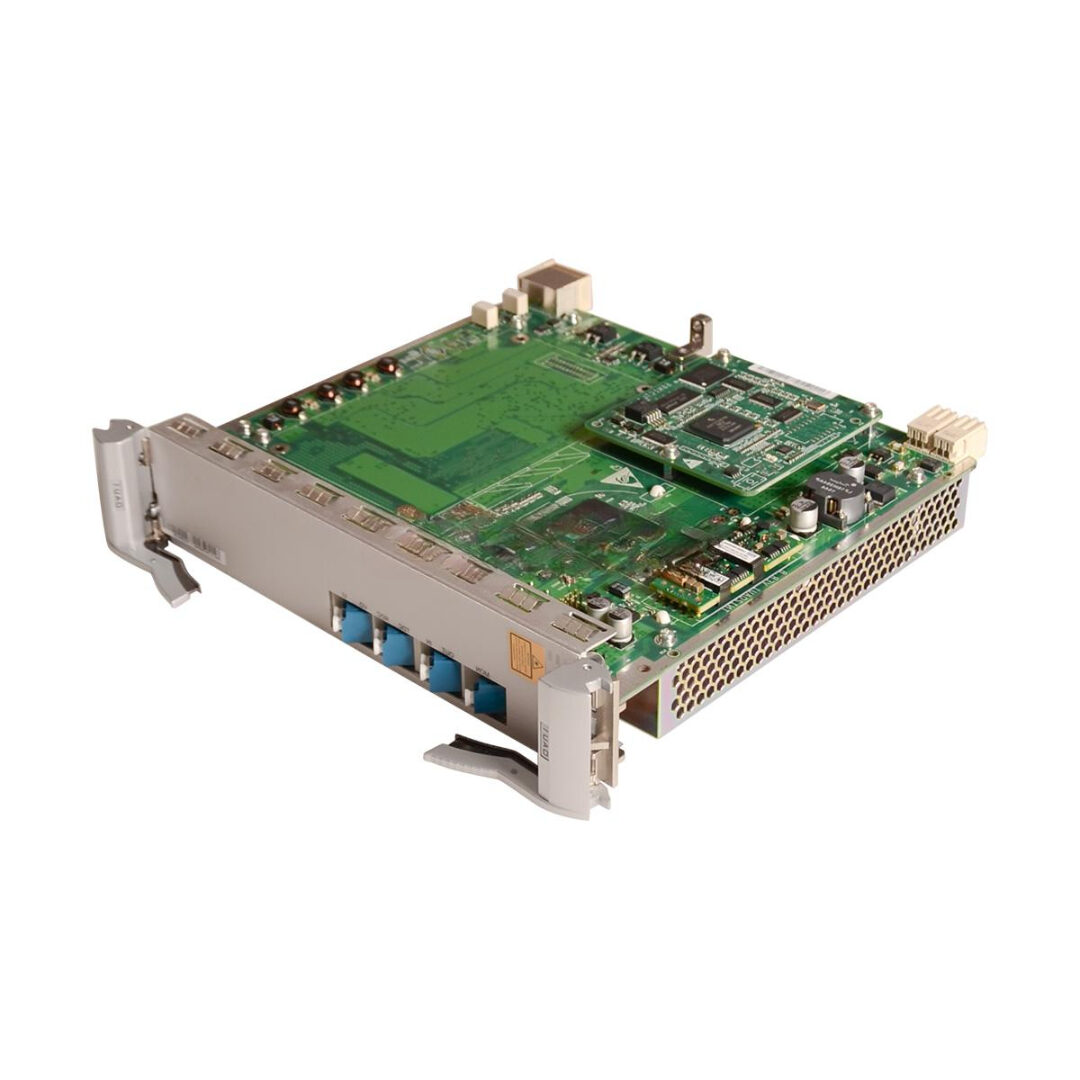

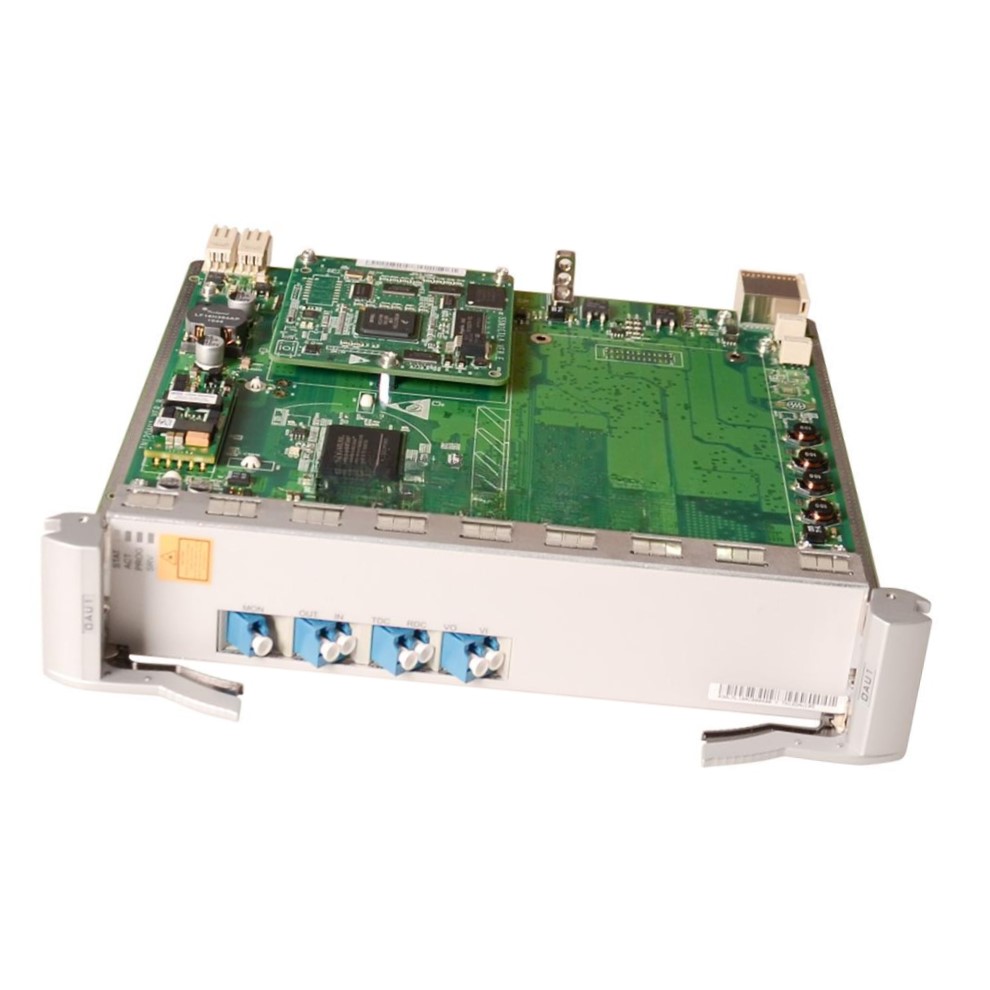

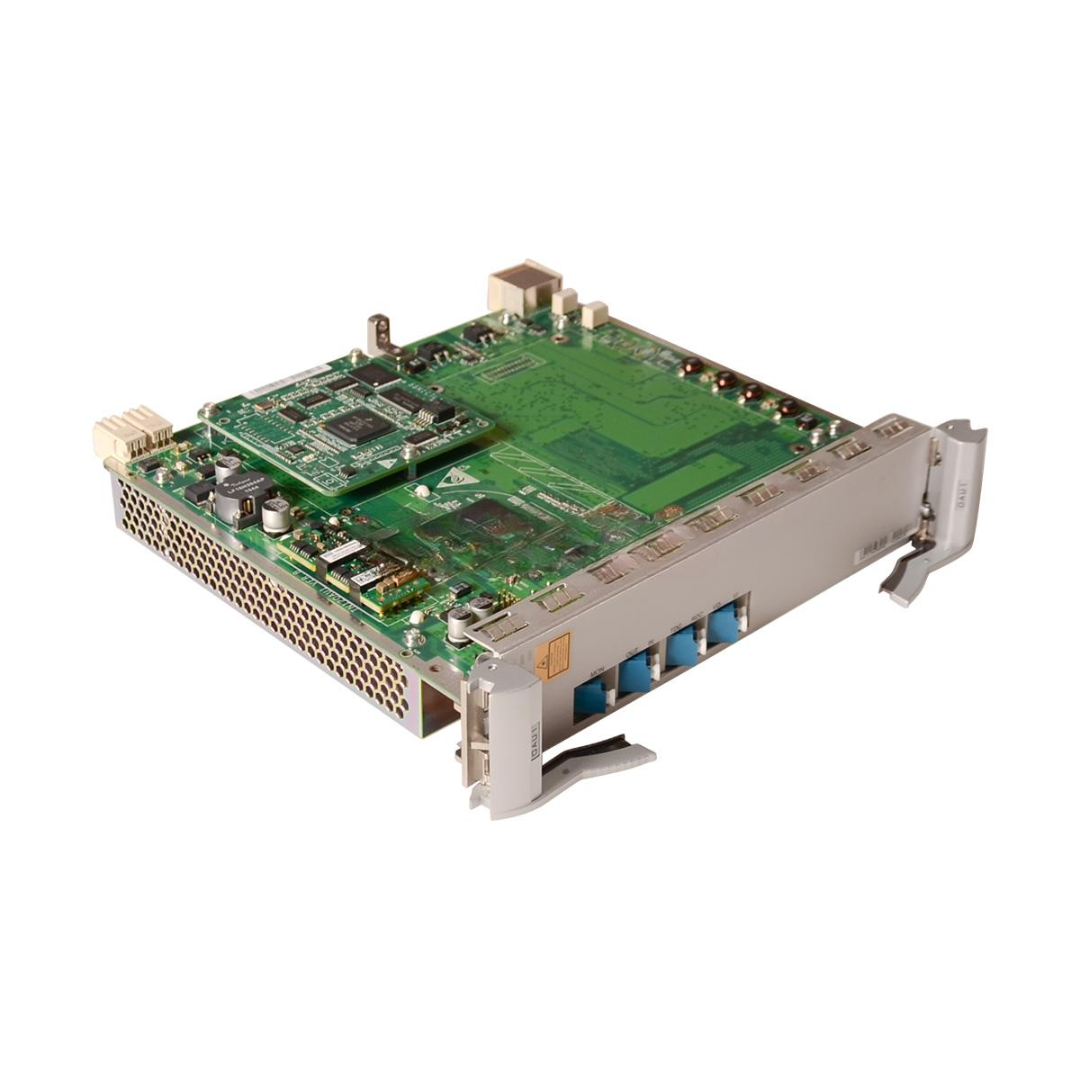

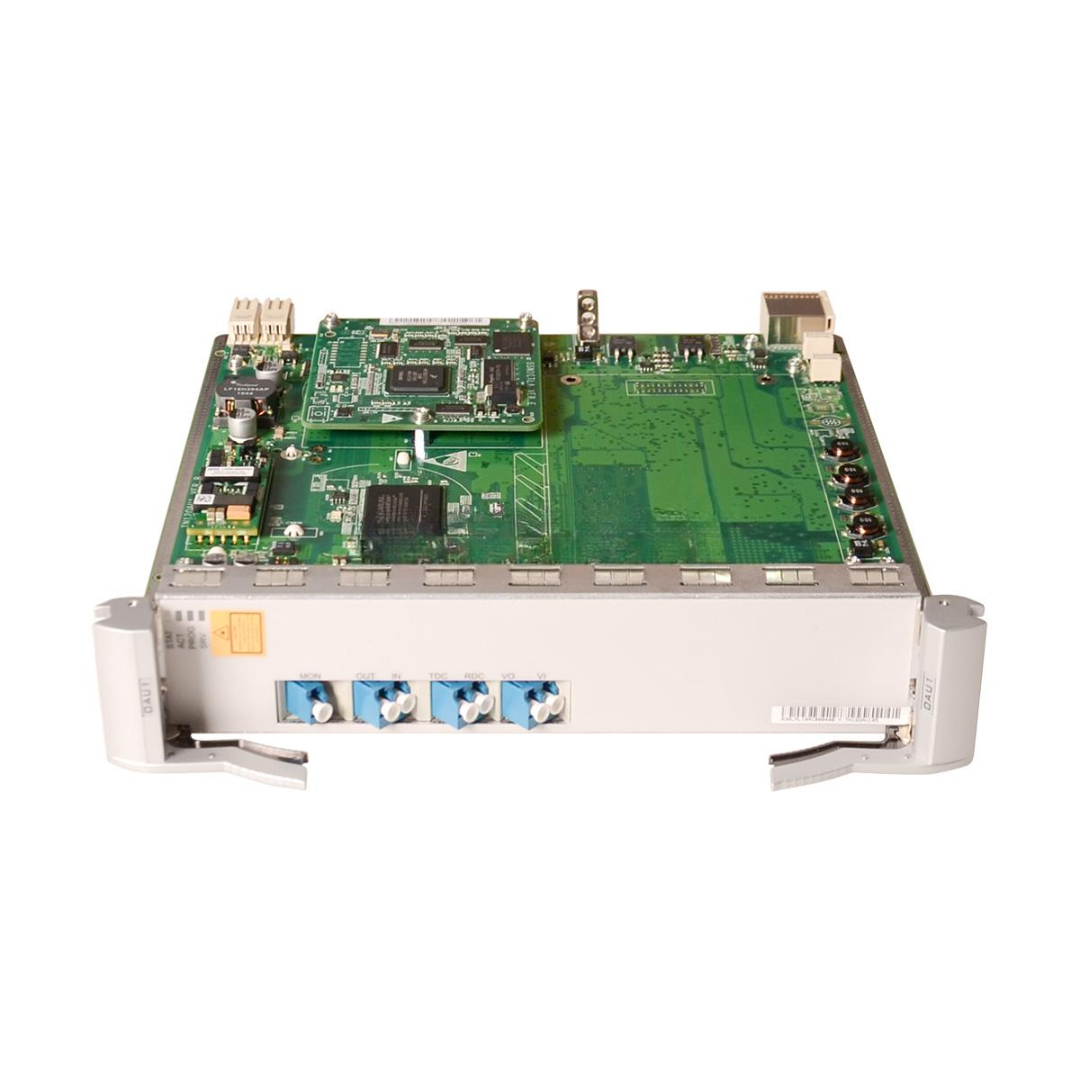

TN12OAU101 Huawei High Quality C-BAND Optical Amplifier Unit
The TN12OAU101 Huawei is a robust, high-performance C-BAND Optical Amplifier Unit designed for seamless integration into Huawei’s OSN6800 and OSN8800 DWDM transmission platforms. Operating within the C-band wavelength range (1528.77–1563.86 nm), the TN12OAU101 is engineered to amplify optical signals for long-haul and ultra-long-haul transmission, ensuring stable, high-quality signal propagation across dense wavelength-division multiplexing (DWDM) systems.
This unit supports various amplification modes—Booster, Pre-Amplifier, and In-Line Amplifier—making it suitable for a wide range of backbone and metropolitan network applications. With automatic gain and power control features, the TN12OAU101 delivers optimal performance, minimal noise, and intelligent adaptation to varying transmission conditions.
Key Features
Model: TN12OAU101
Condition: 100% Brand New, Original Huawei
Amplifier Type: EDFA (Erbium-Doped Fiber Amplifier) for C-BAND
Wavelength Range: 1528.77 nm to 1563.86 nm
Amplification Modes: Booster / Pre-Amplifier / In-Line Amplifier
Gain Control: Automatic Gain Control (AGC) / Automatic Power Control (APC)
Output Power: Up to +24 dBm (model and mode dependent)
Input Power Range: -30 dBm to 0 dBm
Connector Type: LC/APC Optical Interface
Monitoring & Alarms: Real-time input/output power, gain levels, temperature, and fault alarms
Hot-Swappable: Yes, plug-and-play compatible with live OSN systems
Technical Specifications
| Specification | Details |
|---|---|
| Model | TN12OAU101 |
| Type | Optical Amplifier Unit (C-BAND, EDFA) |
| Operating Band | C-BAND (1528.77 nm to 1563.86 nm) |
| Amplifier Modes | Booster, Pre-Amplifier, In-Line Amplifier |
| Gain Control | AGC/APC |
| Gain Range | 20–25 dB (typical) |
| Output Power | Up to +24 dBm |
| Connector Type | LC/APC |
| Compatibility | Huawei OSN6800, OSN8800 DWDM Subracks |
| Power Consumption | ≤25W (typical) |
| Installation Slot | Amplifier board slot in OSN chassis |
| Operating Temp | -5°C to +45°C |
| Humidity | 5% to 95% RH, non-condensing |
| Protocol Compliance | ITU-T G.661, G.662, G.663 |
| Warranty | 1–3 Years Manufacturer Warranty |
TN12OAU101 Huawei Applications
-
Long-Haul DWDM Transport — Amplifies DWDM signals to overcome fiber attenuation across regional and national links
-
Metro Network Expansion — Extends signal reach within urban core and aggregation rings
-
Backbone Transmission — Supports high-capacity, multi-wavelength backbone networks
-
ROADM Networks — Enhances dynamic wavelength routing with stable optical amplification
-
Power, Rail, and Government Infrastructure — Supports secure and mission-critical transmission systems
Customization & OEM Options
-
OEM Branding — Custom labeling with your logo and product number for private deployments
-
Tailored Gain Profiles — Pre-configured for specific output levels and DWDM channel plans
-
Bundled Solutions — Amplifier with optical tap, patch cords, and pre-fitted mounting kits
-
Stress-Tested Units — Thermal cycling, high-humidity, and long-duration burn-in available
-
Configurable Alarms — Factory-set thresholds for gain deviation, power loss, and over-temperature
-
Network Ready — Compatible with Huawei U2000/NCE-T management system out of the box
TN12OAU101 Huawei Wholesale & Global Procurement
-
Authentic Huawei OEM — Verified factory-new stock with original serial numbers
-
Bulk Order Discounts — Special pricing available for network integrators and telecom carriers
-
Immediate Stock Availability — Ready-to-ship inventory for time-sensitive deployments
-
Secure Packaging — Anti-static sealed bags with foam inserts and OEM-labeled cartons
-
Global Shipping Support — Export-certified logistics with end-to-end tracking
-
Technical Guidance — Dedicated pre-sales and post-sales engineering support
Why Choose TN12OAU101 Huawei C-BAND Optical Amplifier Unit
-
Flexible Deployment — Suitable for a wide range of DWDM amplification roles
-
Superior Optical Performance — Low-noise amplification and stable power output
-
Carrier-Grade Reliability — Field-proven in global telecom infrastructure
-
Seamless Integration — Native compatibility with Huawei OSN6800/8800 and U2000
-
Cost-Effective — High optical gain without expensive regeneration hardware
Contact Us for Bulk Orders, Pricing & Technical Datasheets
Enhance your DWDM network reach and performance with the Huawei TN12OAU101 C-BAND Optical Amplifier Unit. Get in touch now for real-time availability, custom configurations, wholesale pricing, and integration consultation.
