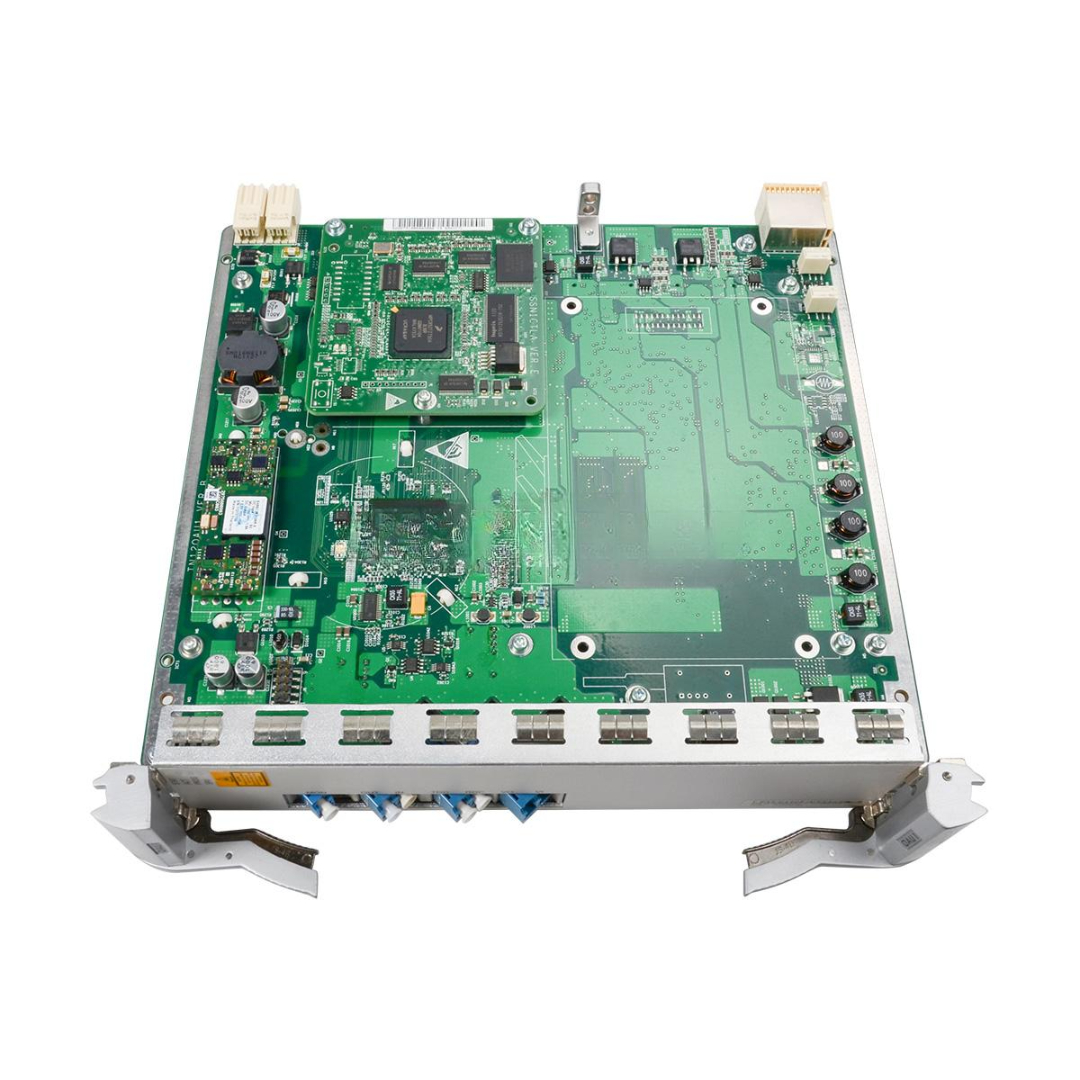

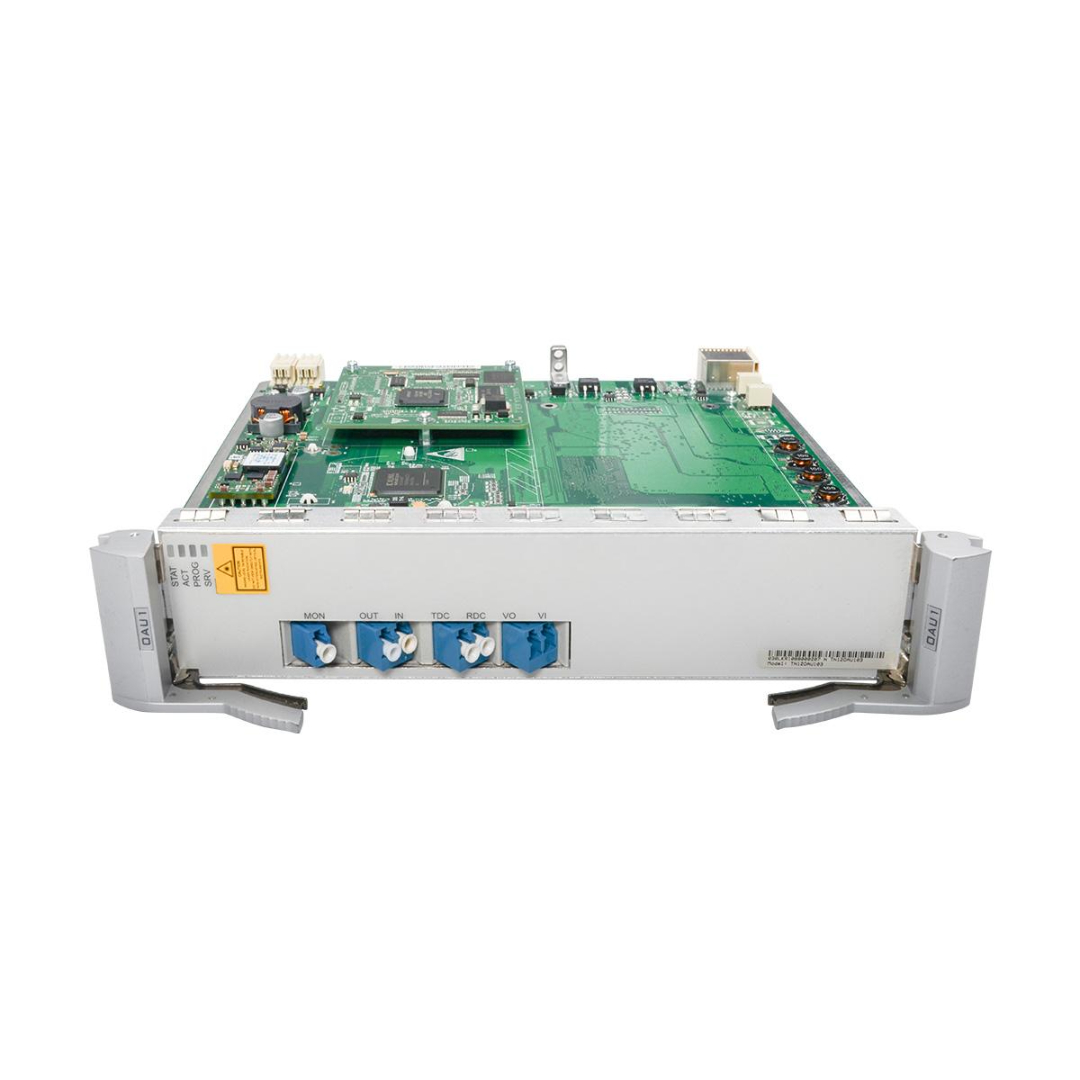

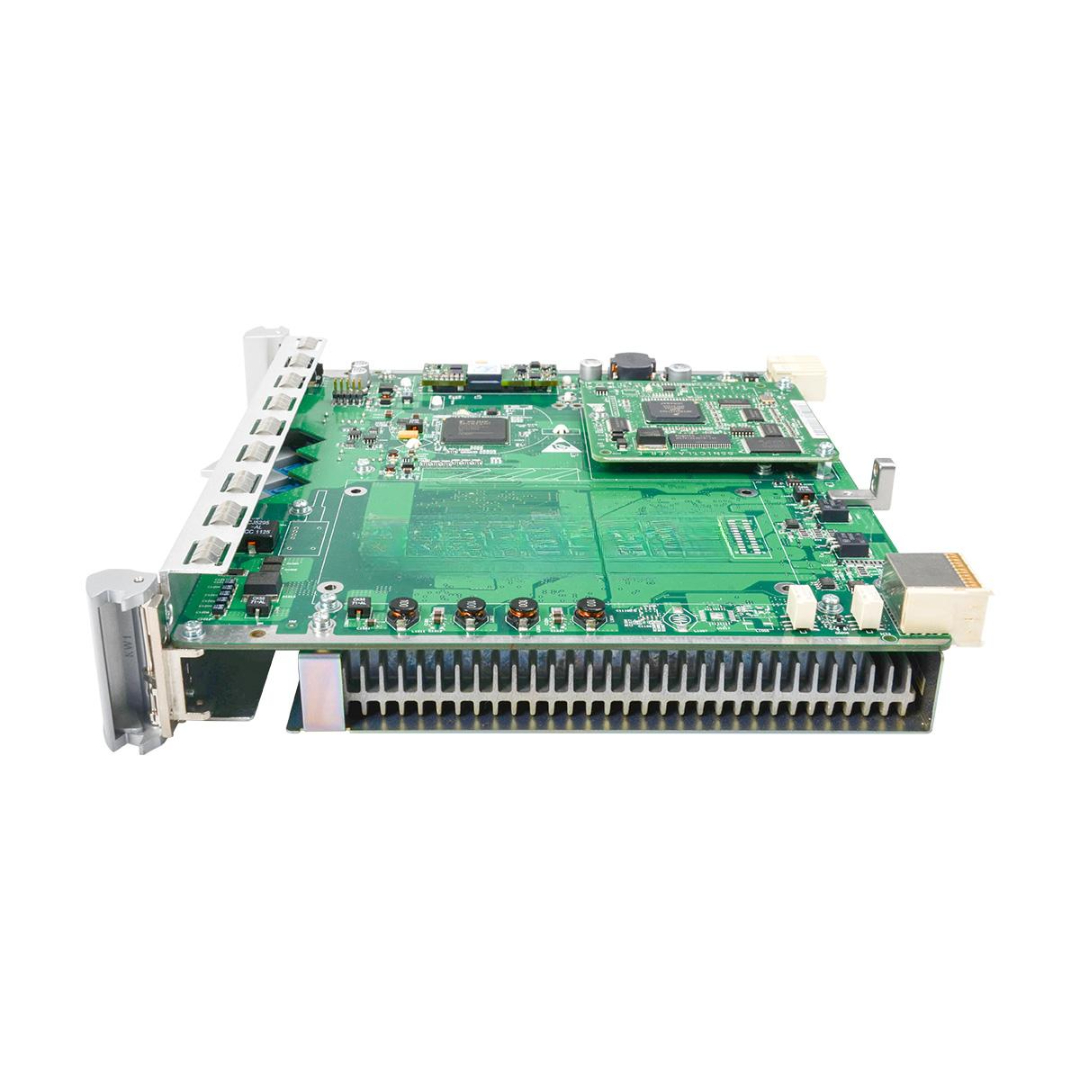

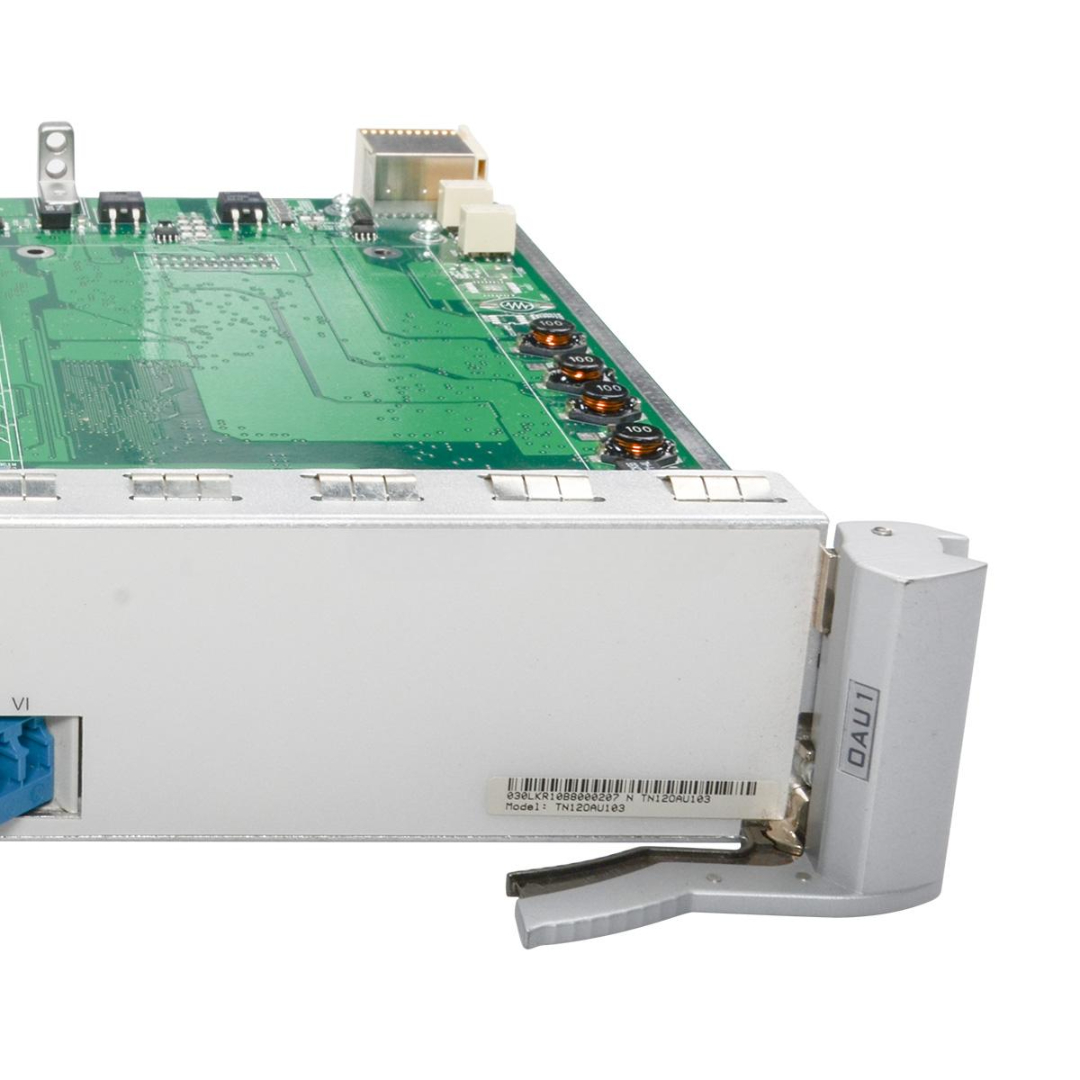

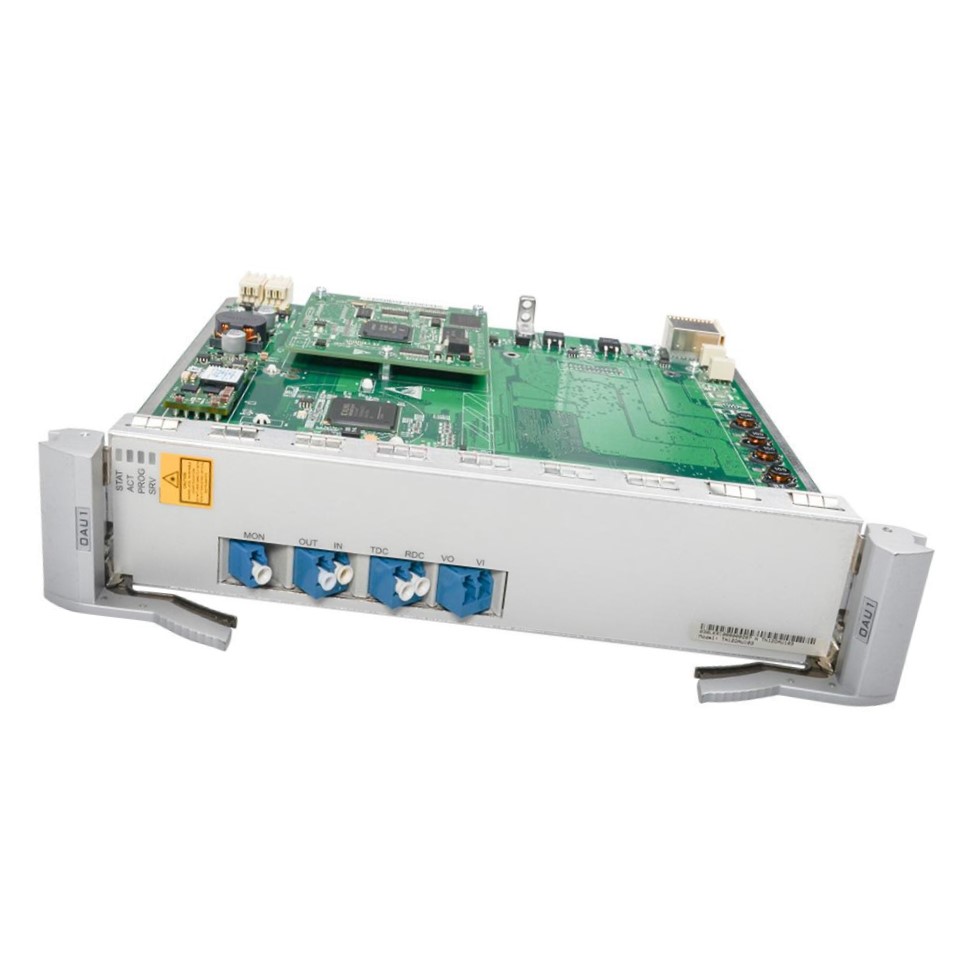

TN12OAU103 Huawei Brand New C-BAND Optical Amplifier Unit
The TN12OAU103 Huawei is a C-Band Optical Amplifier Unit (OAU) developed by Huawei for the OptiX OSN6800/8800 optical transmission systems. This brand new, original Huawei board is engineered to amplify optical signals over long distances in Dense Wavelength Division Multiplexing (DWDM) networks. Equipped with erbium-doped fiber amplifier (EDFA) technology, the TN12OAU103 enhances the performance and reach of optical links by providing high-output gain and low noise across the entire C-band spectrum.
Key Features
-
Model: TN12OAU103
-
Product Type: Optical Amplifier Unit (EDFA)
-
Amplifier Type: Booster or In-Line Amplifier
-
Wavelength Band: C-Band (1528 nm to 1565 nm)
-
Amplification Mode: Erbium-Doped Fiber Amplification (EDFA)
-
Optical Interfaces: Supports LC/UPC connectors
-
Gain Range: 16 dB to 25 dB (typical)
-
Maximum Output Power: Up to +17 dBm
-
Noise Figure: ≤ 6 dB
-
System Compatibility: OSN 6800 / OSN 8800 series
-
Hot-Swappable: Yes, without service interruption
Technical Specifications
| Specification | Details |
|---|---|
| Model | TN12OAU103 |
| Part Number | 03030NMM |
| Wavelength Range | 1528–1565 nm (C-band) |
| Gain Range | 16–25 dB |
| Output Power | +13 to +17 dBm (model dependent) |
| Input Power | -30 dBm to 0 dBm |
| Noise Figure | ≤ 6 dB |
| Connector Type | LC/UPC |
| Operating Temperature | -5°C to +45°C |
| Storage Temperature | -40°C to +70°C |
| Humidity | 5% to 95%, non-condensing |
| Board Dimensions | Compatible with 1-slot in Huawei OSN subracks |
| Power Consumption | ≤ 30W |
| Management | Managed via T2000/NMS and SNMP |
TN12OAU103 Huawei Applications
-
Long-Haul Optical Transport – Boost signal strength over 100+ km
-
Metro and Core Networks – Amplify multiple DWDM channels simultaneously
-
Extended Reach WDM – Used as booster, preamplifier, or in-line amplifier
-
Data Center Interconnects (DCI) – Maintain high signal quality between sites
-
National Backbone Networks – Ensure high-capacity transmission across regions
TN12OAU103 Huawei Customization & OEM Options
-
Custom Labeling: OEM sticker with reseller brand or internal asset tags
-
Optional Gain Profiles: Tuned to specific link budgets or channel plans
-
Pre-deployment Testing: Burn-in tests and wavelength accuracy reports
-
Accessory Kits: Patch cords, pigtails, and installation tools
TN12OAU103 Huawei Wholesale & Global Procurement
-
Original Huawei Equipment – Direct from certified Huawei manufacturing
-
Bulk Stock Available – Suited for carriers, ISPs, and integrators
-
Global Logistics – Fast shipping with full export documentation
-
After-Sales Support – Technical advice, remote diagnostics, and firmware help
Why Choose TN12OAU103 Huawei Optical Amplifier
-
C-Band Coverage – Supports dense channel deployment with consistent gain
-
EDFA Technology – Superior signal amplification with low noise
-
Field-Proven Design – Widely deployed in global DWDM networks
-
Flexible Functionality – Works as booster, in-line, or preamp
-
Huawei Reliability – Designed for 24/7 operation in telecom environments
Contact Us
Optimize your DWDM network performance with the Huawei TN12OAU103 Optical Amplifier Unit — the trusted solution for high-gain, low-noise signal amplification in backbone and metro optical transmission systems.
