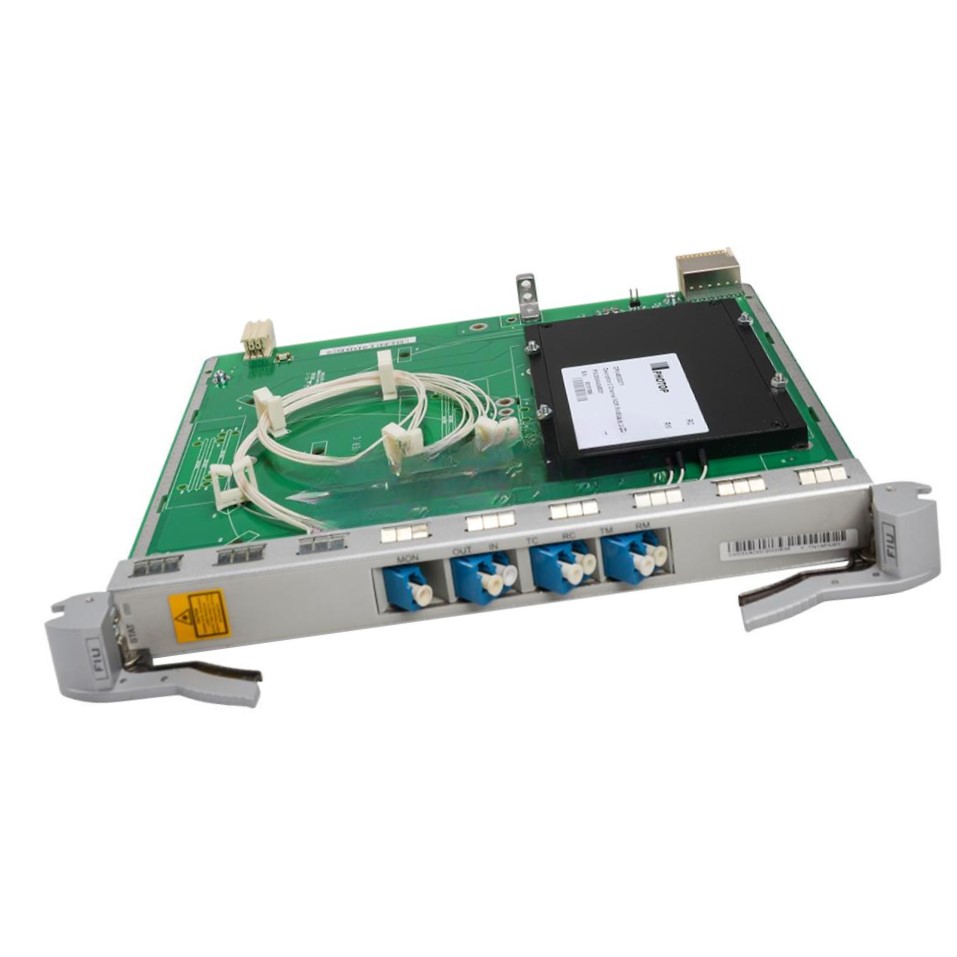

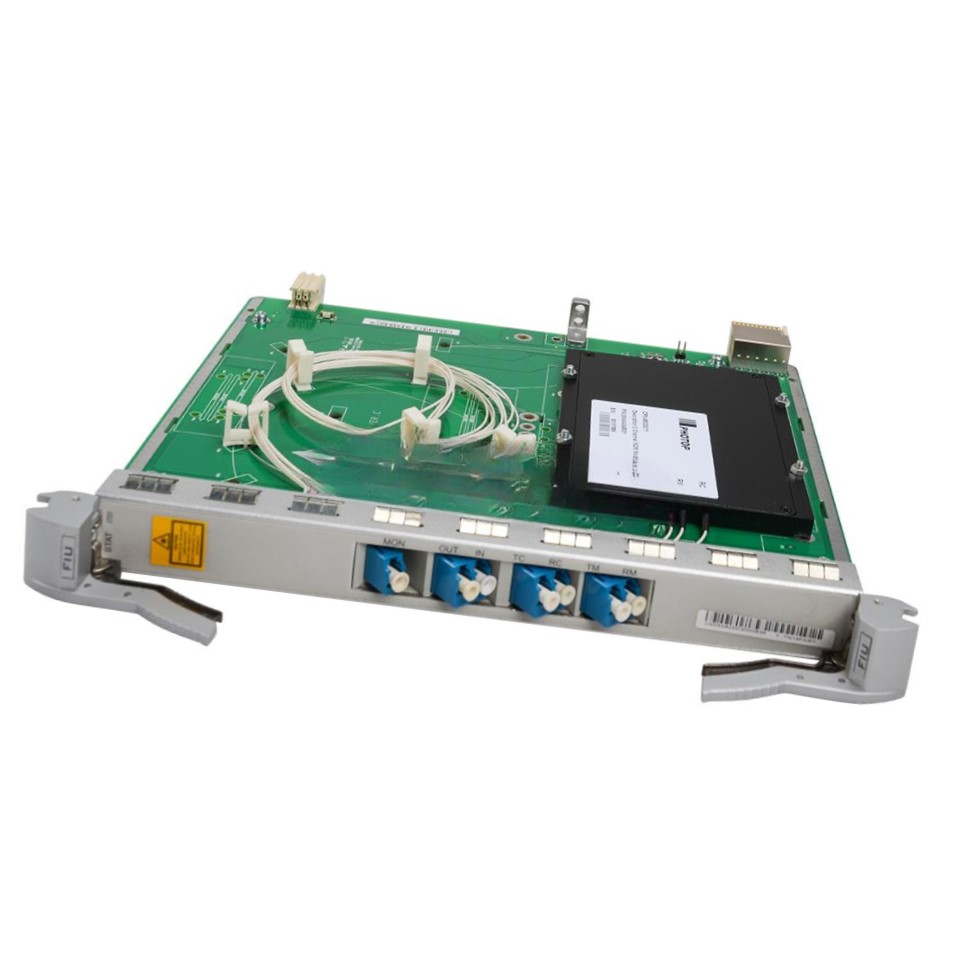

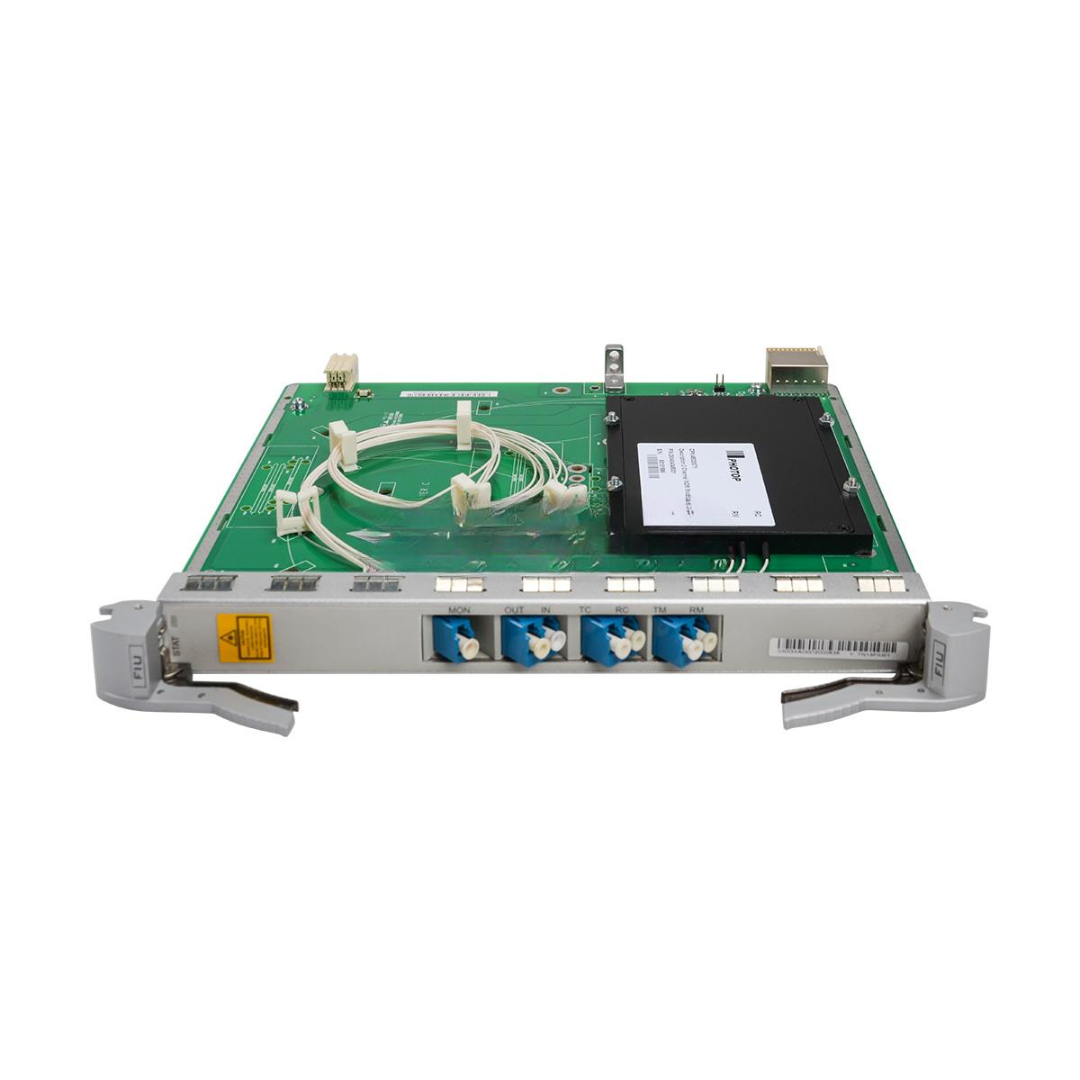

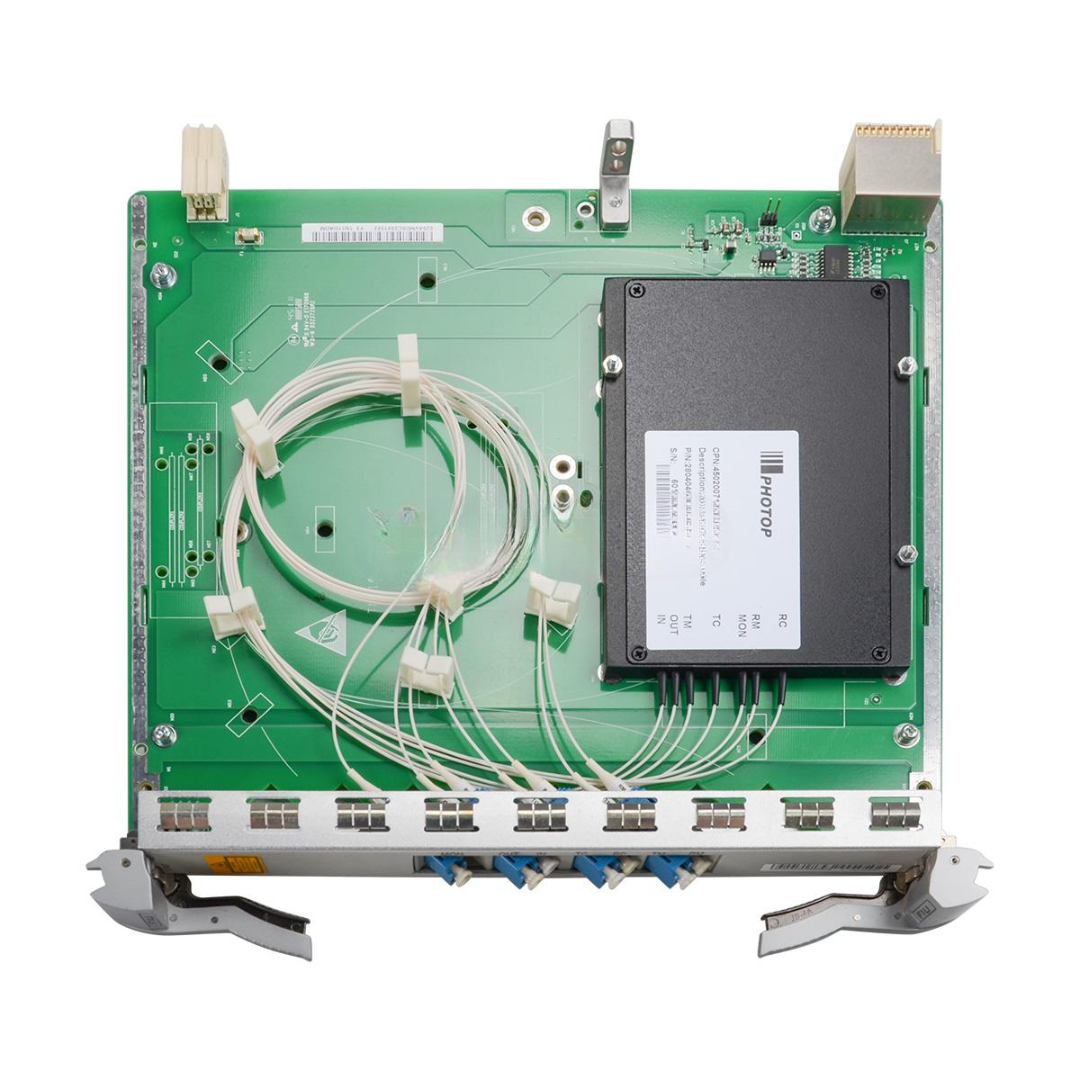

TN13FIU01 Huawei High Quality OSN6800 Fiber Interface Board
The TN13FIU01 Huawei Fiber Interface Unit is a critical component designed for the Huawei OSN6800 WDM transmission system. As a next-generation Fiber Interface Board, the TN13FIU01 provides reliable optical connection, power monitoring, and signal management for fiber routes between Wavelength Cross-Connect (WXC) or Optical Add/Drop Multiplexing (OADM) boards and external DWDM links.
Engineered for high-density, high-capacity optical networks, this board enables enhanced protection and monitoring in long-haul and metro DWDM applications, ensuring optimal signal performance and system stability.
Key Features
-
Model: TN13FIU01
-
Condition: 100% Brand New, Original Huawei
-
Equipment Compatibility: Huawei OSN6800
-
Primary Function: Fiber connection and signal interface between internal WDM boards and external transmission fibers
-
Monitoring Support: Optical power monitoring for both transmit (Tx) and receive (Rx) directions
-
Optical Connectors: LC/PC interfaces
-
Wavelength Support: C-band DWDM
-
Installation: Occupies standard service slot in OSN6800 subrack
-
Protection Function: Supports optical supervisory channel (OSC) signal pass-through
-
Hot-Swappable: Allows live replacement and upgrade without disrupting service
Technical Specifications
| Specification | Details |
|---|---|
| Model | TN13FIU01 |
| Board Type | Fiber Interface Unit |
| Platform Compatibility | OSN6800 |
| Optical Interface | LC/PC connectors |
| Operating Wavelength | C-band DWDM |
| Insertion Loss | < 1 dB |
| OSC Pass-Through | Supported |
| Power Monitoring | Tx and Rx directions |
| Operating Temperature | -5°C to +45°C |
| Storage Temperature | -40°C to +70°C |
| Humidity | 5% – 95% RH, non-condensing |
| Power Consumption | ≤ 5W |
| Compliance | ITU-T G.694.1, RoHS, CE |
| Warranty | 1–3 Years Manufacturer Warranty |
TN13FIU01 Huawei Applications
-
Metro & Core DWDM Networks – Acts as the fiber termination point for WXC/OADM boards
-
Long-Haul Transmission – Enhances monitoring and interface between WDM layers and external links
-
Carrier-Class Backbones – Ensures stable DWDM link deployment in dense wavelength environments
-
Enterprise and ISP Networks – Supports high-availability fiber connectivity with OSC compatibility
-
Network Maintenance – Provides optical signal detection to simplify troubleshooting and monitoring
Customization & OEM Options
-
Pre-Configured OSC Routing – Custom supervisory channel settings based on deployment plan
-
Private Label Branding – OEM labeling and barcoded packaging available
-
Optical Patch Cables Included – Optional LC/PC single-mode jumpers bundled
-
Monitoring Calibration – Factory-tuned optical power thresholds for specialized builds
-
Compatibility Kits – Optional integration packages for hybrid systems with OSN8800 or NCE-T
TN13FIU01 Huawei Wholesale & Global Procurement
-
Genuine Huawei Supply – Authentic Huawei manufacturing origin with SN tracking
-
Bulk Inventory Available – Ready-to-ship stock for rapid deployment or spares support
-

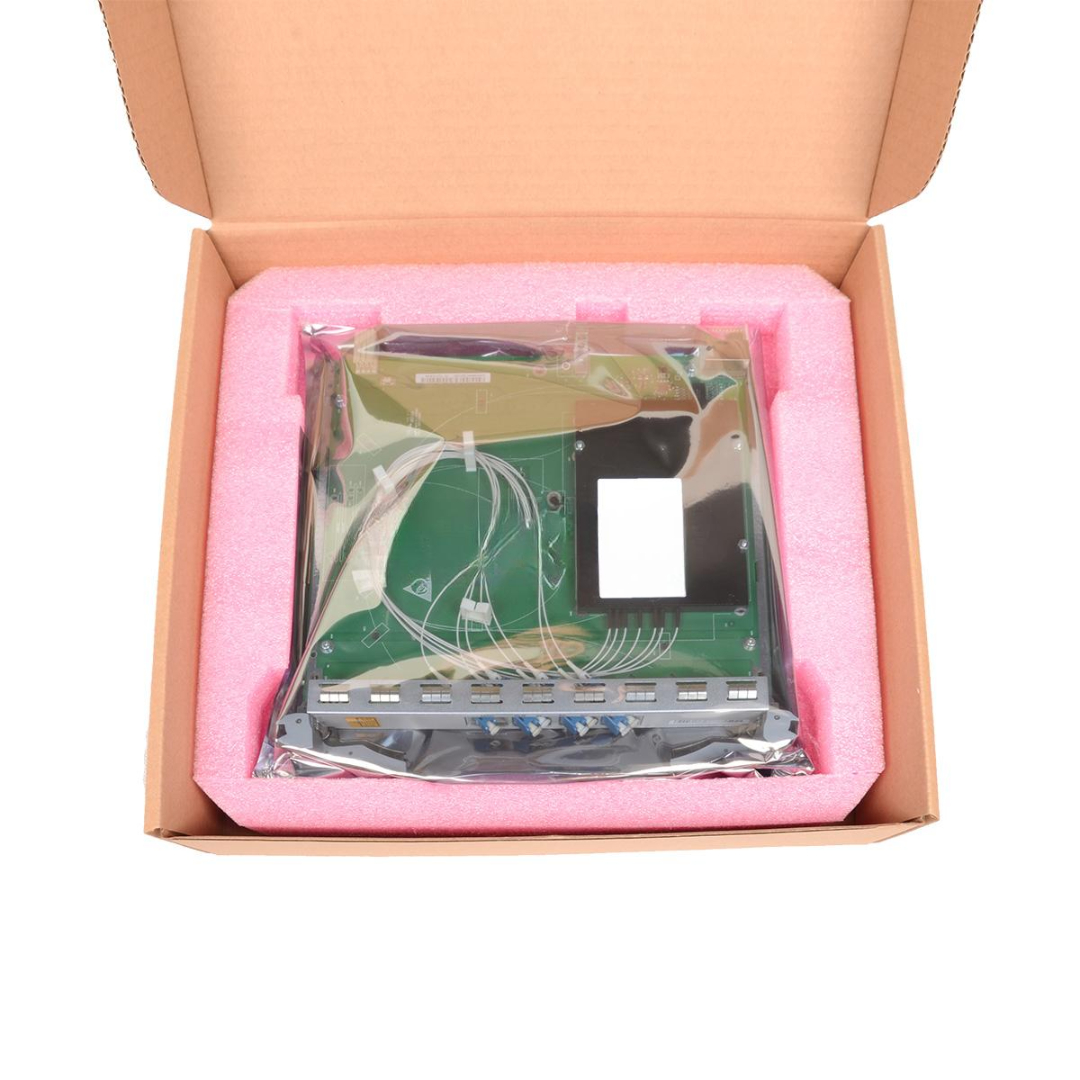

Secure Shipping – Foam-padded and anti-static packaging for global logistics
-
Technical Documentation Included – Schematics, MIBs, configuration guides available
-
End-to-End Support – Consultation, design support, and post-sale maintenance assistance
Why Choose the TN13FIU01 Huawei Fiber Interface Board
-
Essential Fiber Interface – Reliable, monitored connection for C-band DWDM services
-
Part of Huawei OSN6800 Ecosystem – Seamless integration with core optical transport solutions
-
Monitoring Built-In – Enables real-time Tx/Rx signal analysis for troubleshooting
-
Service Continuity – Hot-swappable, carrier-grade design ensures uninterrupted operations
-
Trusted Worldwide – Proven performance in major telecom and backbone deployments
Contact Us for Pricing, Lead Time, and Bulk Orders
Get the Huawei TN13FIU01 Fiber Interface Board today to strengthen your OSN6800 deployment with reliable fiber management and real-time optical monitoring. Ideal for metro, long-haul, and backbone DWDM infrastructures.
