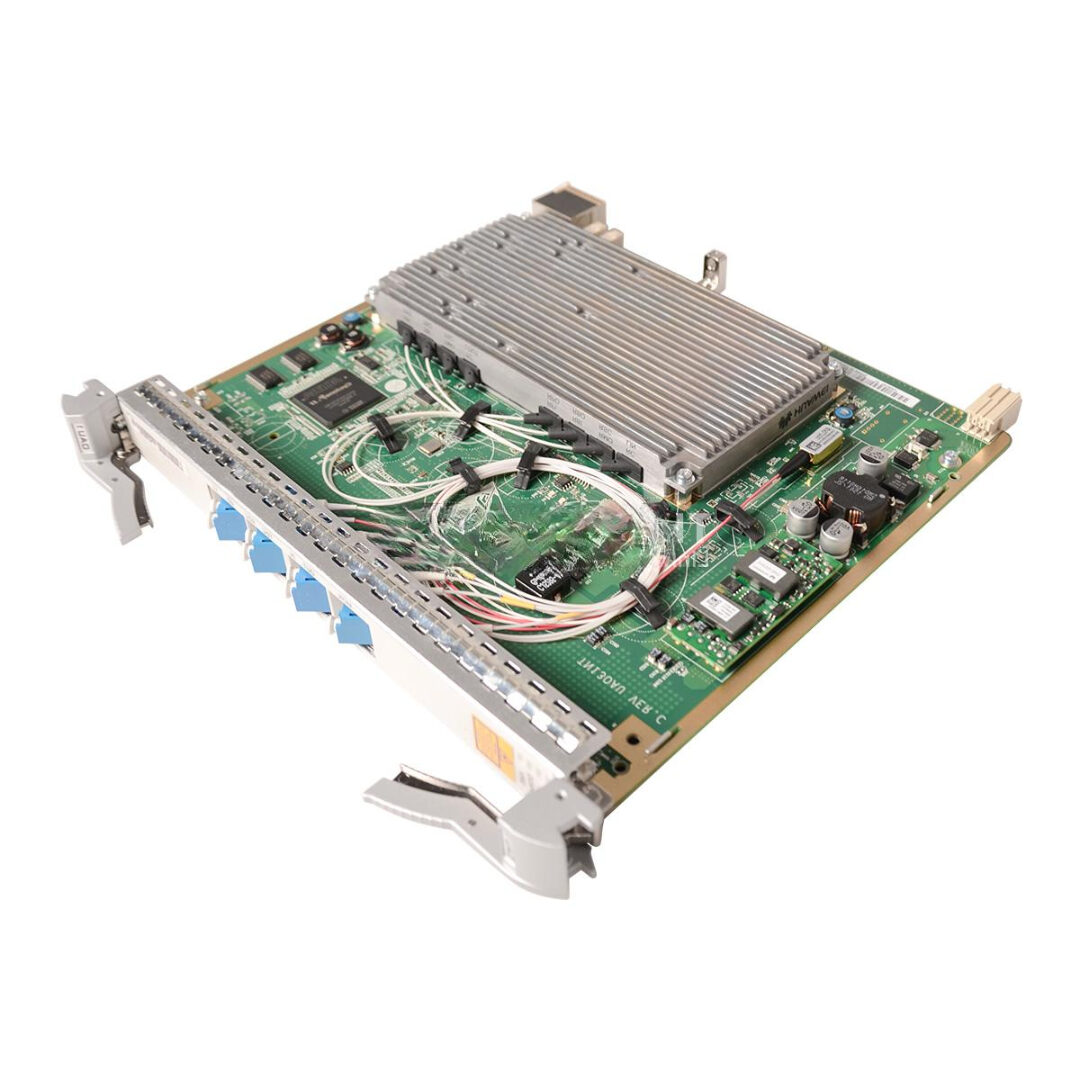

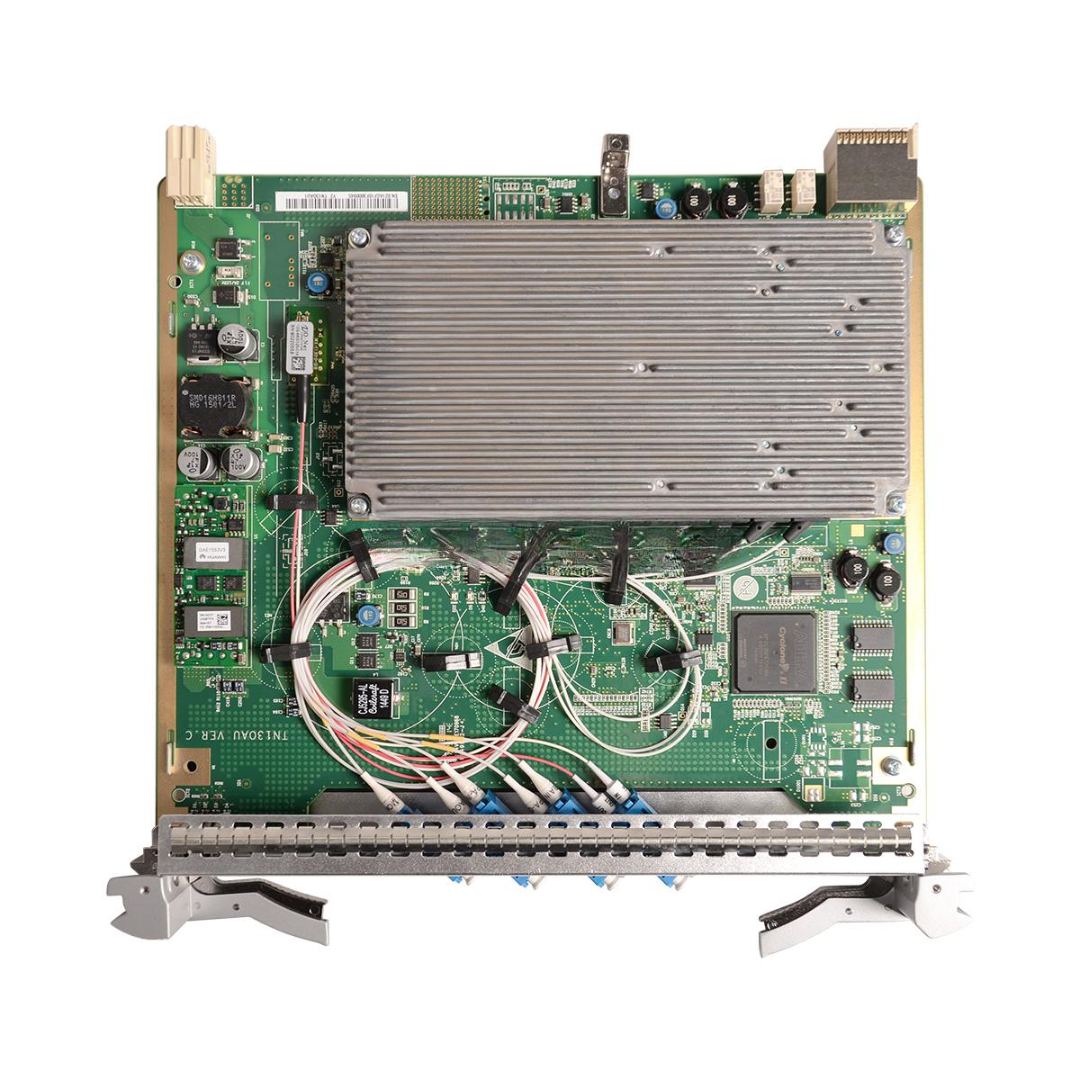

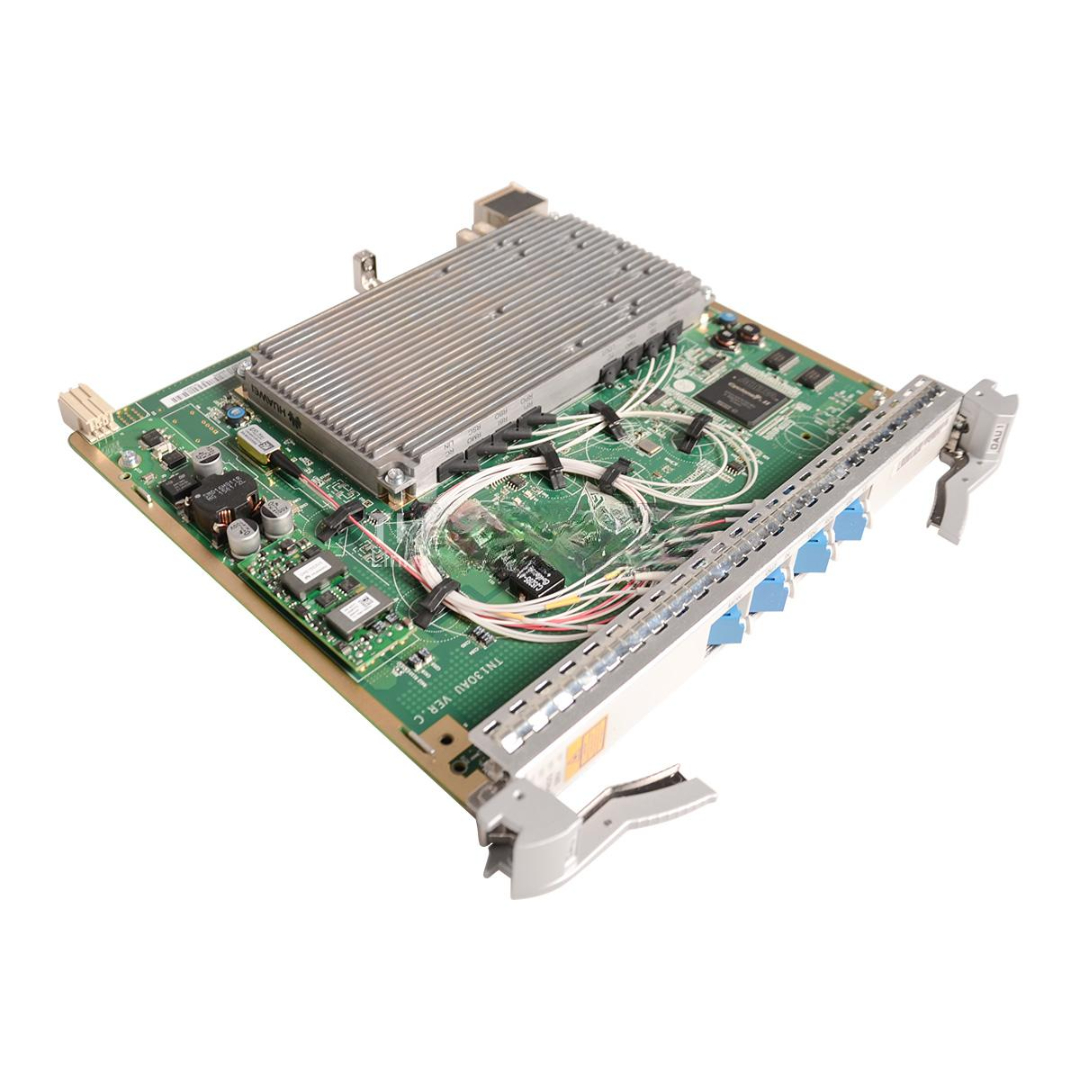

TN13OAU106 Huawei High Quality C-BAND Optical Amplifier Unit
The TN13OAU106 Huawei is a high-performance C-BAND Optical Amplifier Unit, purpose-built for Huawei’s DWDM transmission systems, especially within the Huawei OSN6800 and OSN8800 series. This unit is designed to amplify optical signals in the C-band wavelength range (1528.77–1563.86 nm), ensuring ultra-long-distance transmission over fiber optic networks with minimal signal degradation. Its robust design and advanced functionality make it ideal for backbone and metro networks demanding high-capacity, long-haul optical transport.
Key Features
Model: TN13OAU106
Condition: 100% Brand New, Original Huawei
Amplifier Type: C-BAND Optical Amplifier (EDFA – Erbium-Doped Fiber Amplifier)
Wavelength Range: 1528.77 nm to 1563.86 nm
Gain Range: High-gain support for long-haul signal transmission
Operating Mode: Automatic Gain Control (AGC) / Automatic Power Control (APC)
Connector Type: LC/APC
Integrated Functions:
-
Optical performance monitoring
-
Power equalization
-
Automatic channel gain balancing
-
Input/output optical power alarms
Hot-Swappable: Plug-and-play compatible with live systems
Alarms & Diagnostics: Real-time monitoring for gain, input/output power, temperature
Technical Specifications
| Specification | Details |
|---|---|
| Model | TN13OAU106 |
| Type | EDFA (Erbium-Doped Fiber Amplifier) |
| Operating Band | C-BAND (1528.77–1563.86 nm) |
| Amplifier Mode | Booster, Pre-Amplifier, In-line Amplifier |
| Operating Modes | AGC (Automatic Gain Control), APC |
| Input Power Range | -30 dBm to 0 dBm |
| Output Power | +13 to +24 dBm (model dependent) |
| Gain Flatness | ±1 dB across full operating range |
| Connector Type | LC/APC |
| Compatibility | Huawei OSN6800, OSN8800 DWDM Subracks |
| Power Consumption | ≤25W (typical) |
| Installation Slot | Amplifier board slot in Huawei OSN chassis |
| Operating Temp | -5°C to +45°C |
| Humidity | 5% to 95% RH, non-condensing |
| Compliance | ITU-T G.661, G.662, G.663 |
| Warranty | 1–3 Years Manufacturer Warranty |
TN13OAU106 Huawei Applications
-
Long-Haul Optical Transport – Boosts optical signals for 100G/200G/400G DWDM networks
-
Metro Aggregation Networks – Ensures signal quality over large metro-area deployments
-
Core Backbone Links – High-reliability amplification for inter-city and cross-country fiber routes
-
Carrier Networks – Optimized for Tier-1 operators deploying dense optical mesh networks
-
Enterprise & ISP Infrastructure – Enhances network reach and bandwidth availability
Customization & OEM Options
-
Private Branding – Laser-engraved labeling with company logo & custom part numbers
-
Wavelength Optimization – Tailored gain profiles for specific DWDM channel plans
-
Pre-Configured Settings – Factory-tuned power levels, alarms, and monitoring thresholds
-
Extended QA Testing – Custom environmental stress tests for extreme operating conditions
-
Integrated Kits – Delivered with fiber patch cords, monitoring splitters, and mounting accessories
-
Network Tuning Services – Remote support for gain calibration and optical power balancing
TN13OAU106 Huawei Wholesale & Global Procurement
-
Direct OEM Sourcing – Genuine Huawei EDFA modules with certification and serial verification
-
Volume Discounts – Competitive pricing on MOQ and bulk orders for network rollouts
-
Fast Lead Times – Warehoused stock for immediate global dispatch
-
Secure Packaging – Anti-static sealed bags, foam inserts, and shock-proof OEM cartons
-
Global Shipping Compliance – IATA-compliant for lithium and optical gear shipping
-
Technical Assistance – Remote setup support, NMS integration, and post-sale guidance
Why Choose TN13OAU106 Huawei C-BAND Optical Amplifier Unit
-
Superior Optical Gain – Optimized for high-capacity DWDM applications
-
Carrier-Grade Design – Built for 24/7 uptime in mission-critical networks
-
Huawei OEM Assurance – Proven reliability with long MTBF and firmware stability
-
Flexible Integration – Seamlessly fits into existing OSN6800/8800 platforms
-
Cost-Effective Expansion – Extend optical reach without costly regeneration nodes
Contact Us Now for Pricing, Datasheets & Bulk Orders
Boost your optical transmission capabilities with the Huawei TN13OAU106 C-BAND Optical Amplifier Unit — engineered for performance, trusted by global carriers. Get in touch for real-time inventory, technical datasheets, and personalized wholesale quotations.
