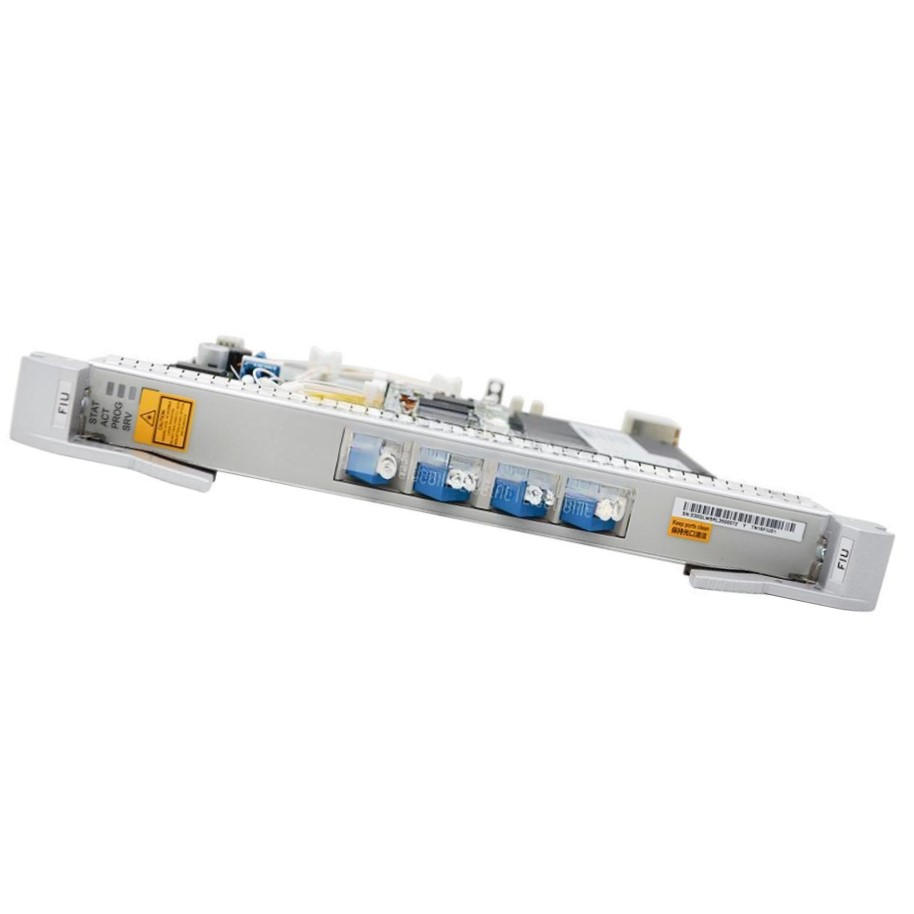

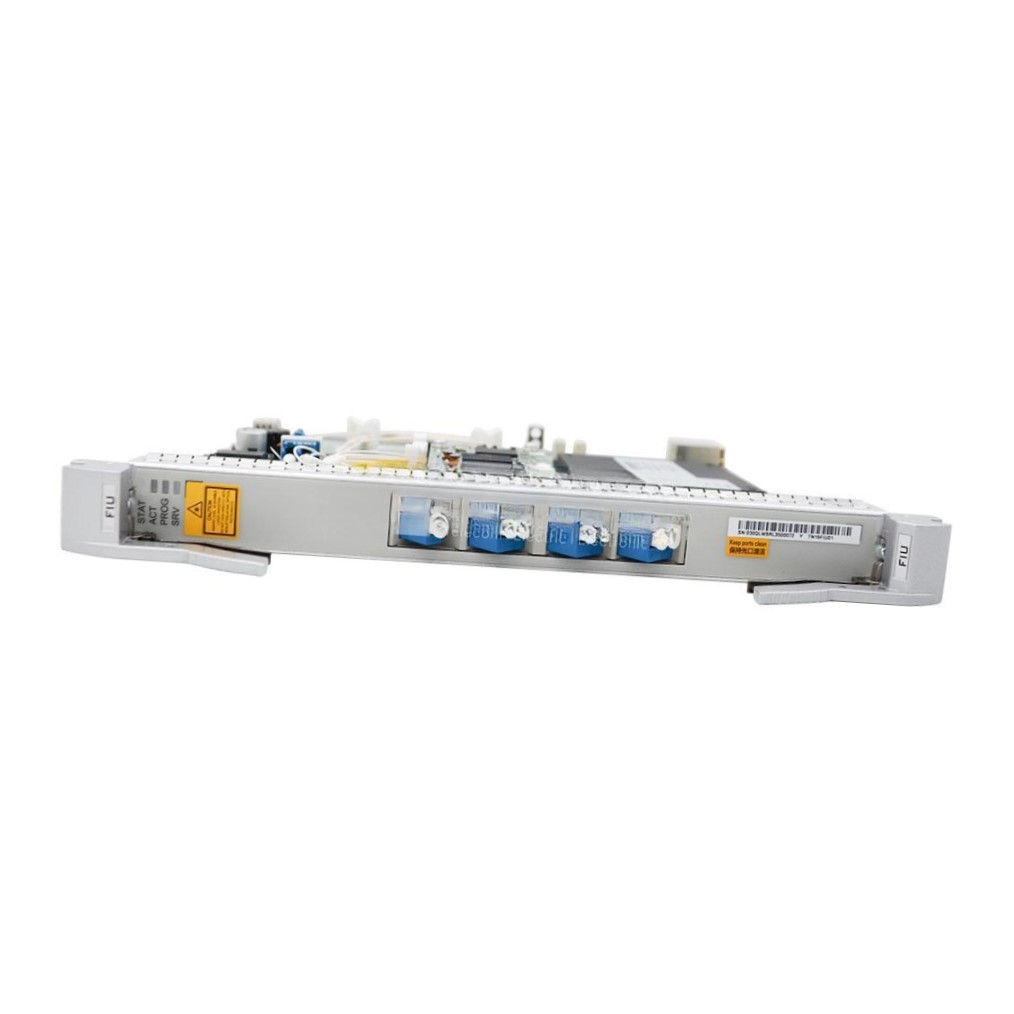

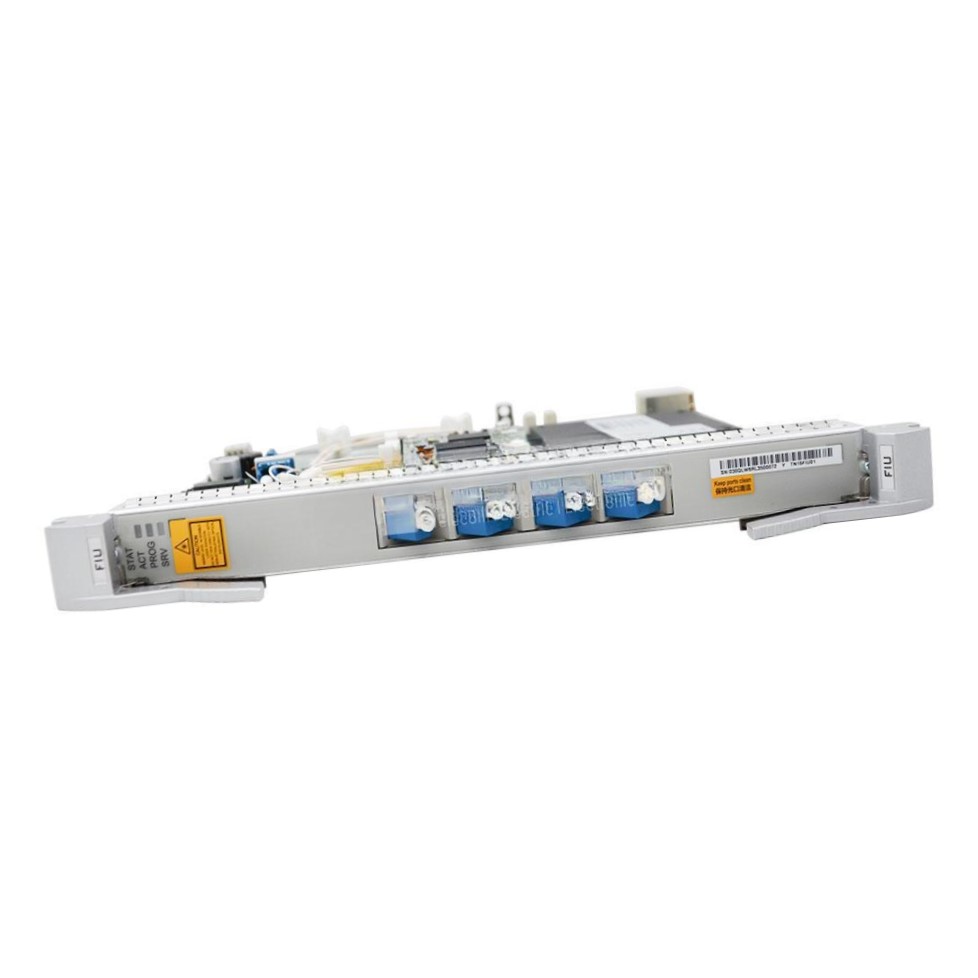

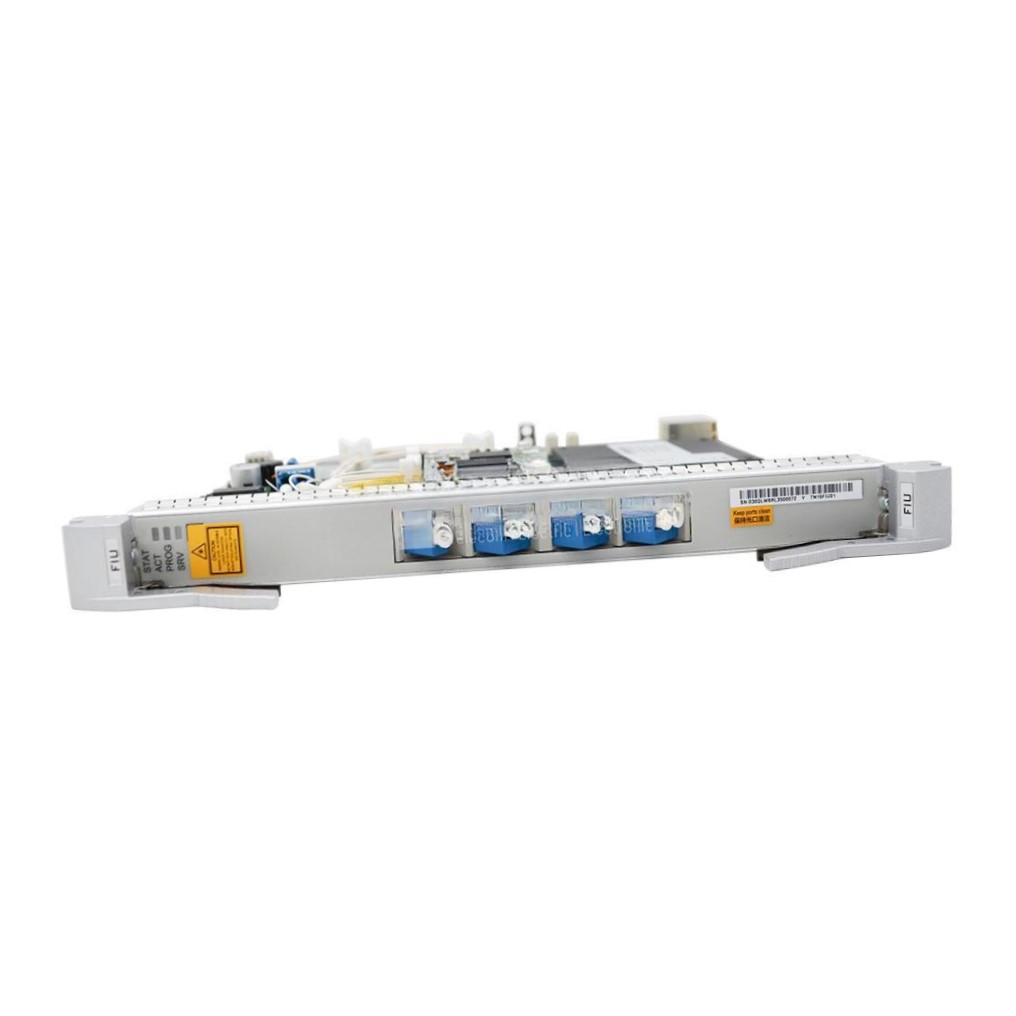

TN14FIU01 Huawei High Quality Fiber Interface Board
The TN14FIU01 Huawei Fiber Interface Unit is a versatile and high-performance optical fiber interface board designed for use in Huawei OptiX OSN series transmission platforms, including OSN6800 and OSN8800. This board is responsible for managing fiber connection routing, signal adaptation, and loss reduction in WDM/OTN networks. It serves as a key optical interface component for protection, monitoring, and fiber jump interconnection between boards and external systems.
Built for reliability, the TN14FIU01 supports multiple optical channel directions and enables streamlined optical layer architecture with low insertion loss and high isolation. It is essential for complex deployments involving optical multiplexing, demultiplexing, and fiber cross-connections.
Key Features
-
Model: TN14FIU01
-
Condition: 100% Brand New, Huawei Original
-
Function: Fiber jump connection interface unit for WDM/OTN systems
-
Application: Supports optical interconnection between transceiver boards and multiplexing units
-
Low Insertion Loss: Maintains signal integrity with minimal loss
-
Multi-Directional Support: Handles fiber routing for multiple wavelengths and channel paths
-
Plug-and-Play: Hot-swappable module for quick replacement and upgrades
-
Build Quality: Optical-grade components with robust connectors and board design
-
Visual Labeling: Easy fiber routing identification for on-site maintenance
Technical Specifications
| Specification | Details |
|---|---|
| Model | TN14FIU01 |
| Board Type | Fiber Interface Unit (FIU) |
| Compatible Equipment | OSN6800, OSN8800 |
| Optical Ports | 8–16 fiber connectors (depends on configuration) |
| Insertion Loss | ≤ 1.0 dB (typical) |
| Return Loss | ≥ 45 dB |
| Connector Type | LC/APC or SC/APC (based on version) |
| Optical Channel Support | Up to 40 DWDM wavelengths |
| Mounting | Installed in optical layer slot of Huawei OSN nodes |
| Hot-Swappable | Yes |
| Operating Temperature | -5°C to +45°C |
| Storage Temperature | -40°C to +70°C |
| Humidity | 5% – 95% RH, non-condensing |
| Warranty | 1–3 Years Manufacturer Warranty |
TN14FIU01 Huawei Applications
-
WDM Optical Layer Infrastructure — Interface between transceiver modules and multiplexers
-
Long-Haul DWDM Networks — Ensures high-quality fiber signal routing with minimal interference
-
Data Center Interconnect (DCI) — Used in dense fiber environments for orderly and manageable optical jumpers
-
OTN Backbone Networks — Supports the physical layer of coherent 100G/200G/400G transport
-
Monitoring & Protection Systems — Helps connect OLP, OSU, or OTU boards to detection or bypass circuits
Customization & OEM Options
-
Connector Type Customization — Choose between LC/APC, SC/APC, or FC/APC based on your patch panel
-
Pre-Labeled Fiber Paths — Color-coded or labeled jumpers for faster installation
-
Rack Kits Available — OEM fiber guide kits for better routing in subrack environments
-
Private Branding — OEM logo printing for integrators or system resellers
-
Channel Planning — Pre-defined fiber jump mappings for custom node configurations
TN14FIU01 Huawei Wholesale & Global Procurement
-
Huawei Original Components — Sourced directly from authorized Huawei supply chains
-
Secure Packaging — Anti-static, foam-inserted packaging for global shipping safety
-
Bulk Stock Readiness — Ready inventory for deployment in large network rollouts
-
Documentation Provided — OEM installation guides and fiber mapping diagrams
-
Global Delivery — Shipped with customs and telecom certifications for international clearance
-
Support Services — Pre-sale consultation and after-sale fiber routing assistance
Why Choose TN14FIU01 Huawei Fiber Interface Unit
-
Stable Optical Connectivity — Ensures accurate and low-loss fiber signal transmission
-
Ease of Maintenance — Simplifies on-site fiber routing and reconfiguration
-
Network Flexibility — Ideal for complex optical node design and multi-wavelength networks
-
Reliable Huawei Engineering — Field-proven in thousands of global carrier deployments
-
Scalable Design — Ready for integration in high-capacity WDM and OTN systems
Contact Us Now for Quotes, Bulk Orders, and Technical Datasheets
Upgrade your optical transport platform with the TN14FIU01 Huawei Fiber Interface Board — a compact and essential optical interface solution trusted by global carriers and data centers for seamless fiber management in high-speed DWDM and OTN networks.
