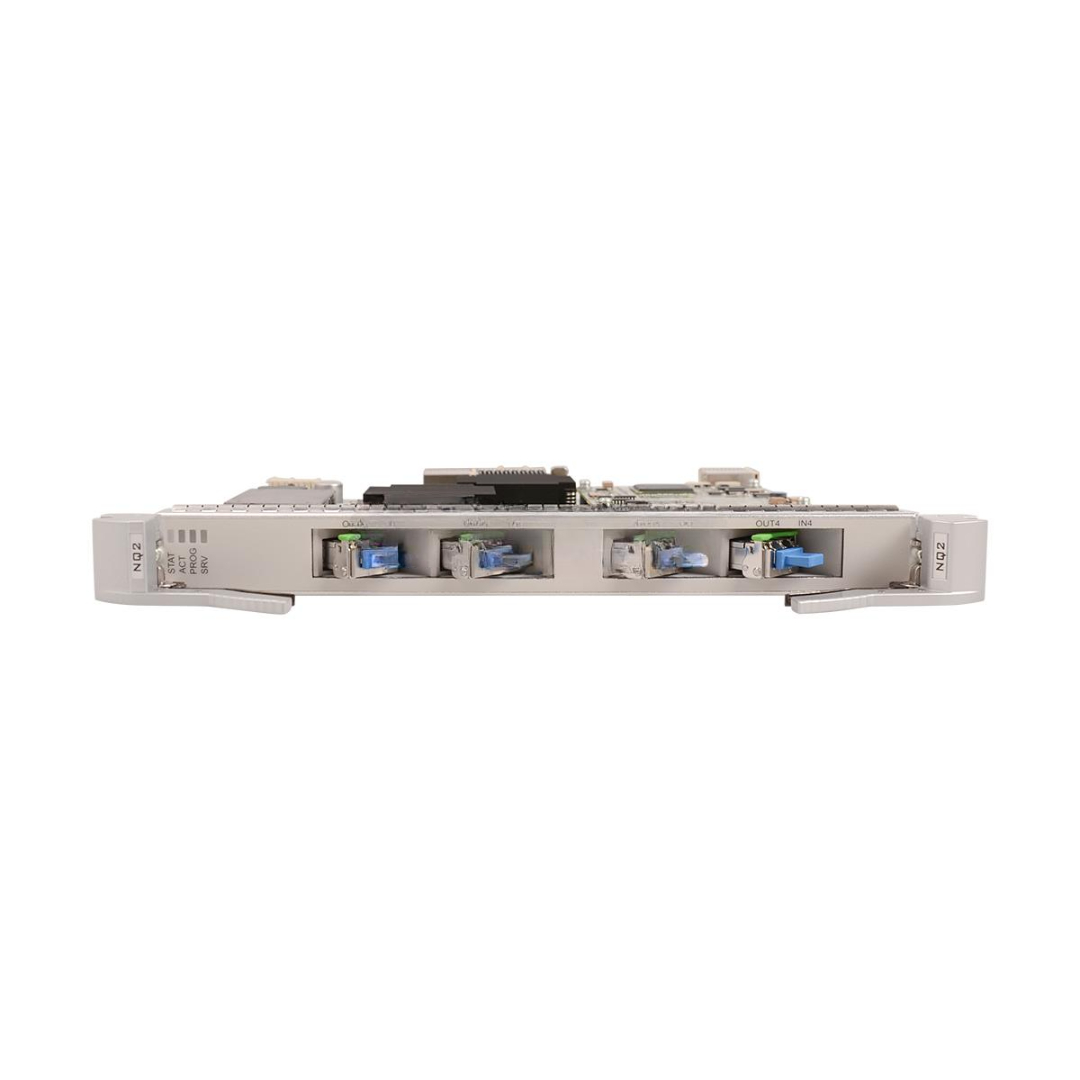

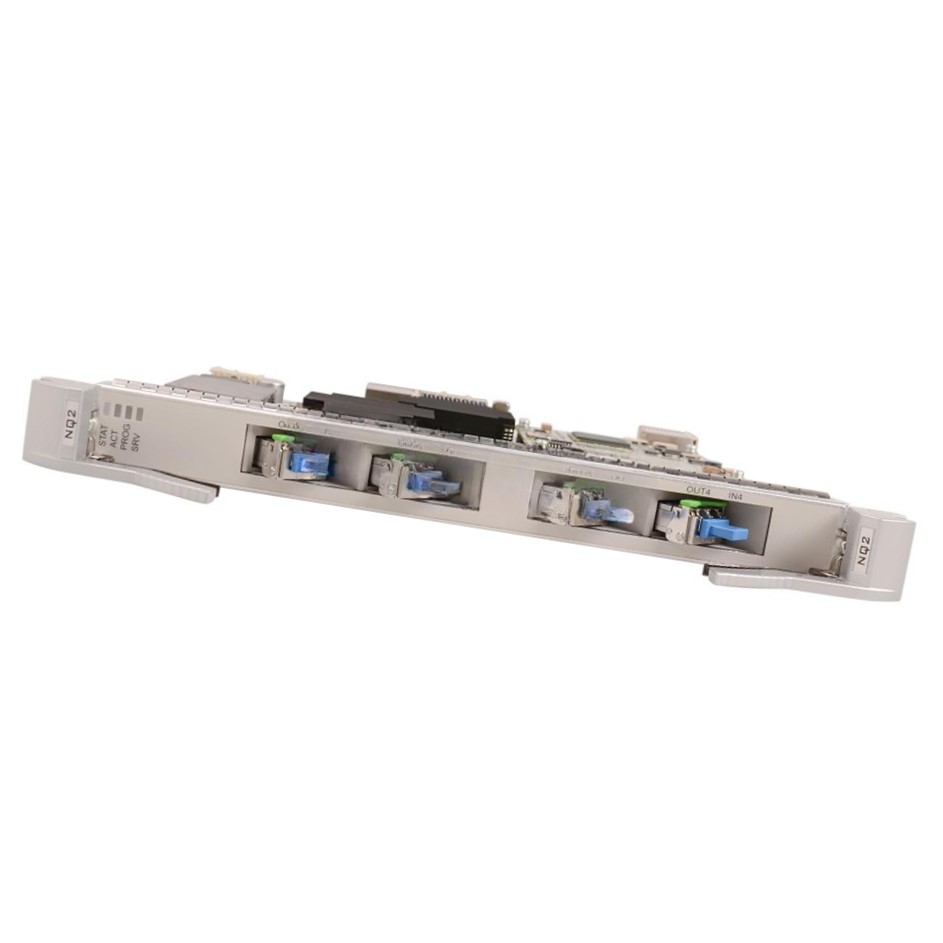

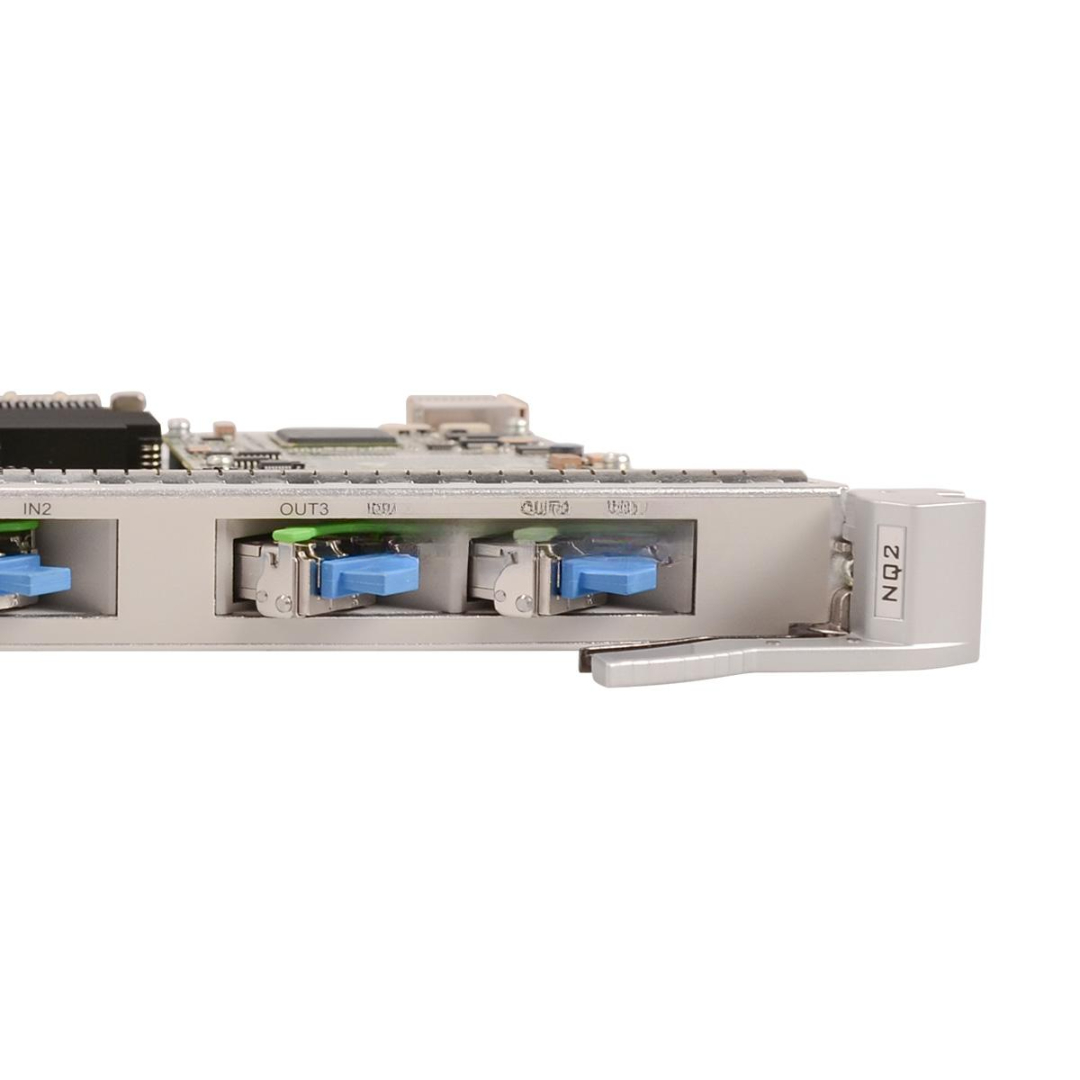

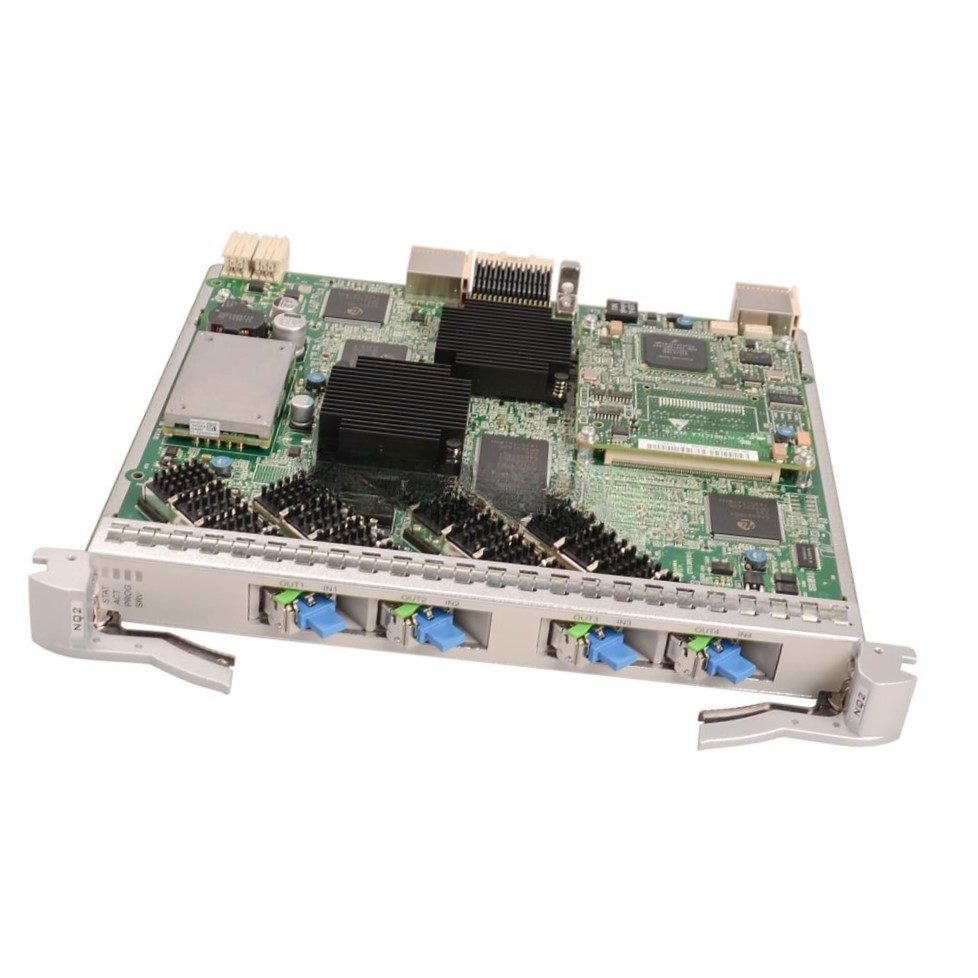

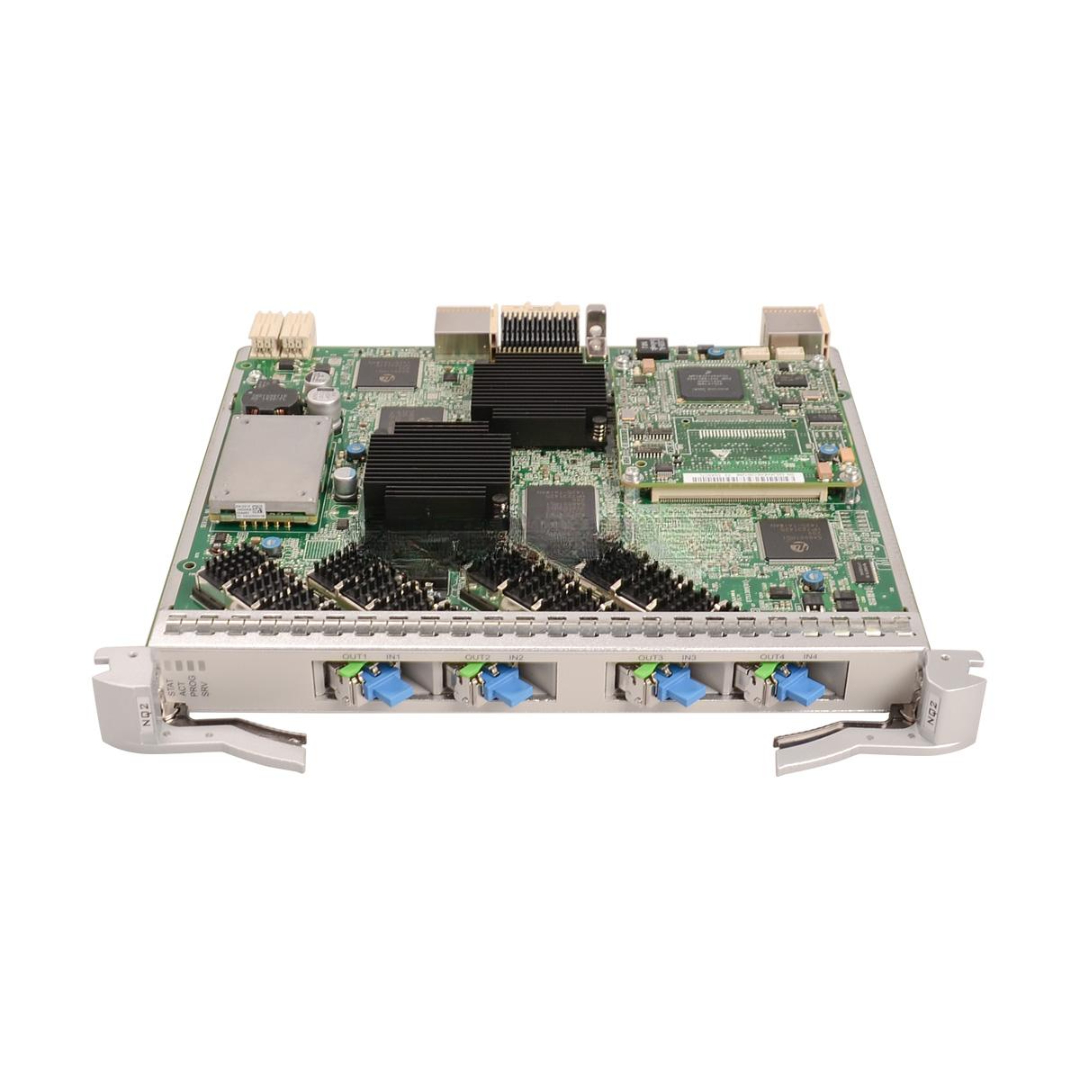

TN52NQ2 Tunable Huawei Brand New Line Processing Board
The TN52NQ2 Tunable Huawei is a Huawei brand new line processing board designed for high-performance, tunable optical signal transmission in DWDM networks. As part of the Huawei OSN6800/8800 WDM platforms, this board supports 10G tunable DWDM line interfaces, making it ideal for long-haul and metro-core applications that demand flexible wavelength planning, robust transmission quality, and dynamic reconfigurability.
The TN52NQ2 integrates advanced forward error correction (FEC), automatic laser tuning, and comprehensive monitoring features. It plays a key role in modern optical transport networks (OTNs), particularly where wavelength flexibility, automation, and high-capacity are critical.
Key Features
-
Model: TN52NQ2
-
Condition: 100% Brand New, Original Huawei
-
Interface: 10G Tunable DWDM Line Interface
-
Wavelength Range: Full C-band tunable (50GHz spacing)
-
Laser Tuning: Automatic and manual tuning supported
-
Application: Supports 10G services like STM-64, 10GE LAN, 10GE WAN
-
FEC Type: Super FEC or Enhanced FEC for improved transmission performance
-
Compatibility: OSN 6800, OSN 8800 series WDM/OTN systems
-
Hot-Swappable: Plug-and-play replacement without service interruption
-
Management: Fully managed through Huawei U2000/NCE-T
Technical Specifications
| Specification | Details |
|---|---|
| Model | TN52NQ2 |
| Service Type | 10G Tunable DWDM Optical Line |
| Transmission Rate | 9.953–11.1 Gbps (10G services) |
| Wavelength Range | C-band (1528.77 nm – 1563.86 nm) |
| Spacing | 50 GHz ITU Grid |
| Supported Services | STM-64, OTU2, 10GE LAN/WAN |
| FEC | Super FEC (GFEC/EFEC compliant with G.975/G.709) |
| Interface Type | LC/PC Duplex (with external pluggable optics) |
| Laser Type | Tunable DWDM (external SFP+/XFP) |
| Transmission Distance | Up to 120 km with appropriate optics |
| Power Consumption | ≤ 20W (typical) |
| Operating Temperature | -5°C to +45°C |
| Humidity | 5% – 95%, non-condensing |
| Protocols Supported | ITU-T G.709, G.694.1, G.975 |
| Platform Compatibility | Huawei OSN6800 / OSN8800 |
| Warranty | 1–3 Years Manufacturer Warranty |
TN52NQ2 Tunable Huawei Applications
-
Metro & Long-Haul DWDM Networks — Ideal for dynamically assigned wavelengths and automated routing
-
Core Backbone Transmission — Efficient wavelength utilization for STM-64/10G Ethernet services
-
Enterprise & Government Networks — Flexible DWDM transport for large-scale secure data links
-
DCI (Data Center Interconnect) — High-speed tunable transmission between data centers
-
Disaster Recovery Networks — Tunable capabilities ensure fast re-routing in emergencies
Customization & OEM Options
-
Pre-configured Wavelength Plans — Custom-tuned boards for rapid integration
-
Private Labeling — OEM branding and serial number customization available
-
Custom Testing Profiles — Stress-tested for high-loss or long-distance deployments
-
Accessory Kits — Fiber patch cords, DWDM MUX/DEMUX units, and connectors upon request
-
Regional Compliance — Firmware tailored for specific regulatory environments
TN52NQ2 Tunable Huawei Wholesale & Global Procurement
-
Huawei Factory Original — Guaranteed genuine product, new in sealed anti-static packaging
-
Bulk Inventory Ready — Ideal for large-scale network expansion and spares stockpiling
-
Secure Packaging — ESD-safe, shockproof packaging with international shipping support
-
Global Distribution — Fast delivery to North America, Middle East, Europe, Asia, and Africa
-
Technical Documentation — Installation guides, datasheets, and optical power budgets provided
-
Support Services — NMS configuration, wavelength planning, and integration support available
Why Choose TN52NQ2 Tunable Huawei Line Board
-
Tunable Wavelength Technology — Simplifies inventory and supports flexible deployments
-
High-Speed Performance — 10G transmission with long-reach capabilities
-
OTN-Ready — Supports G.709 framing and advanced FEC for superior error correction
-
Compatible & Scalable — Seamless operation within Huawei OSN6800/8800 frameworks
-
Trusted Huawei Engineering — Field-proven hardware used by Tier-1 operators globally
Contact Us for Pricing, Technical Support & Bulk Orders
Enhance your DWDM transport capabilities with the Huawei TN52NQ2 Tunable Line Processing Board — built for flexibility, precision, and carrier-grade reliability. Get in touch today for wholesale pricing, detailed datasheets, and deployment consultation.
