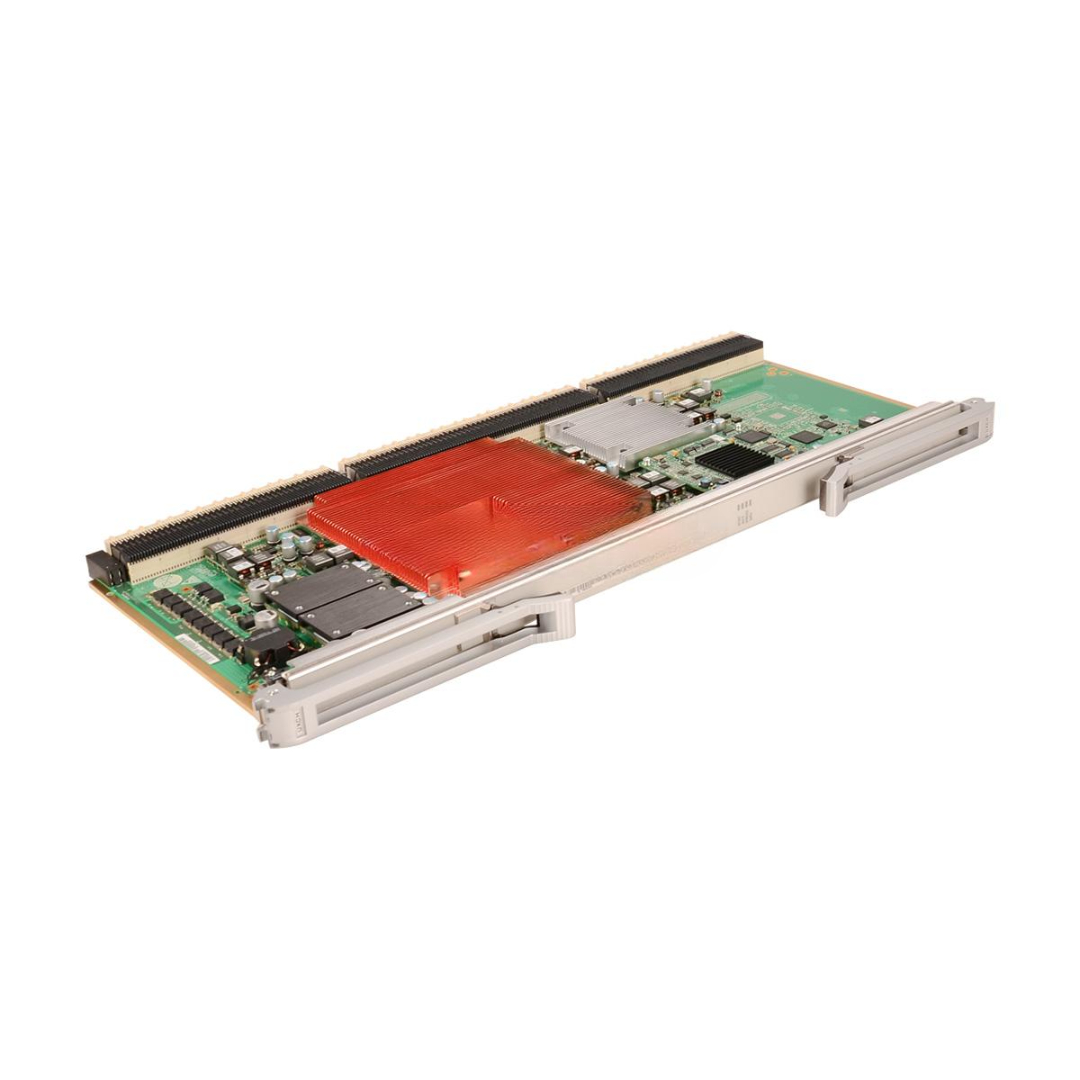

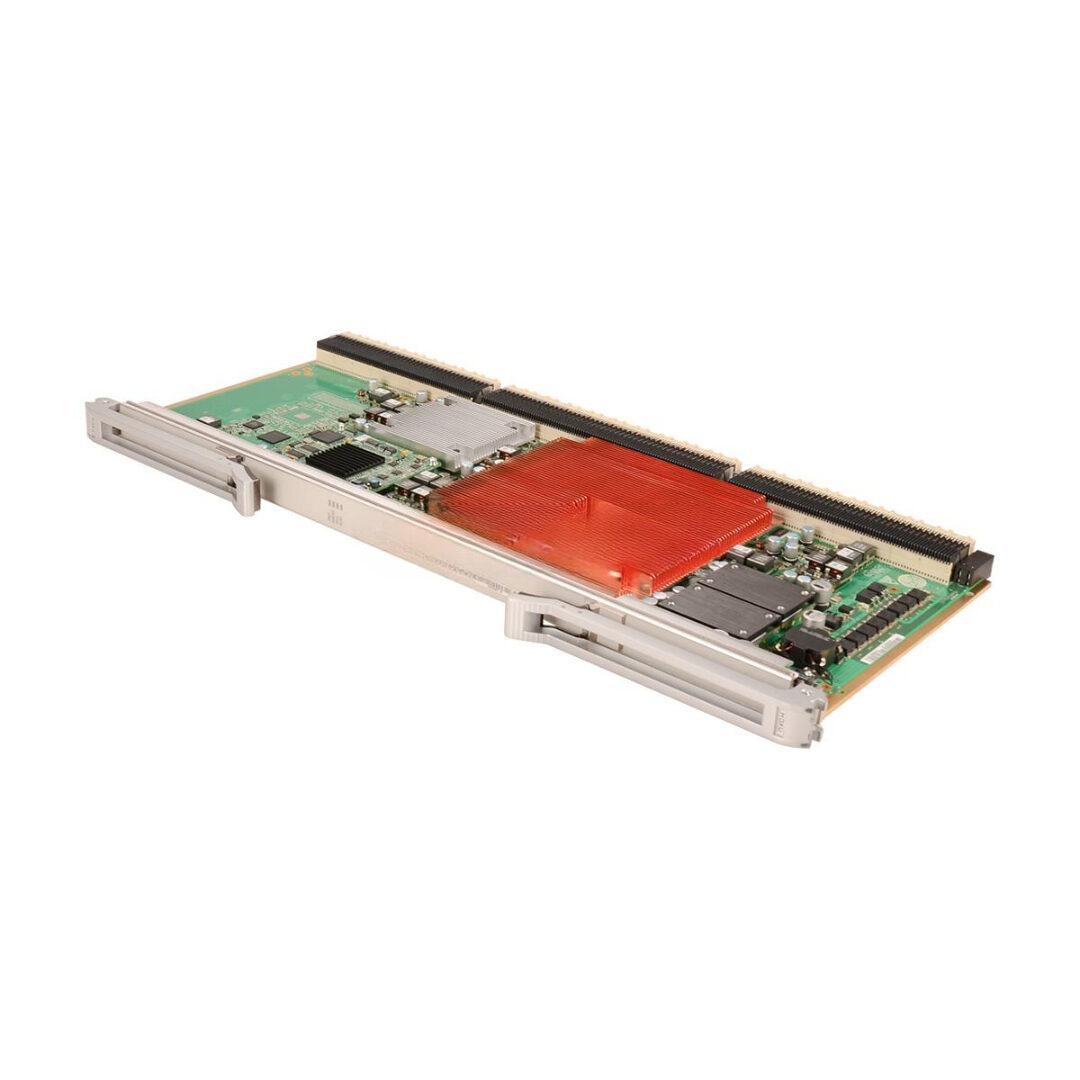

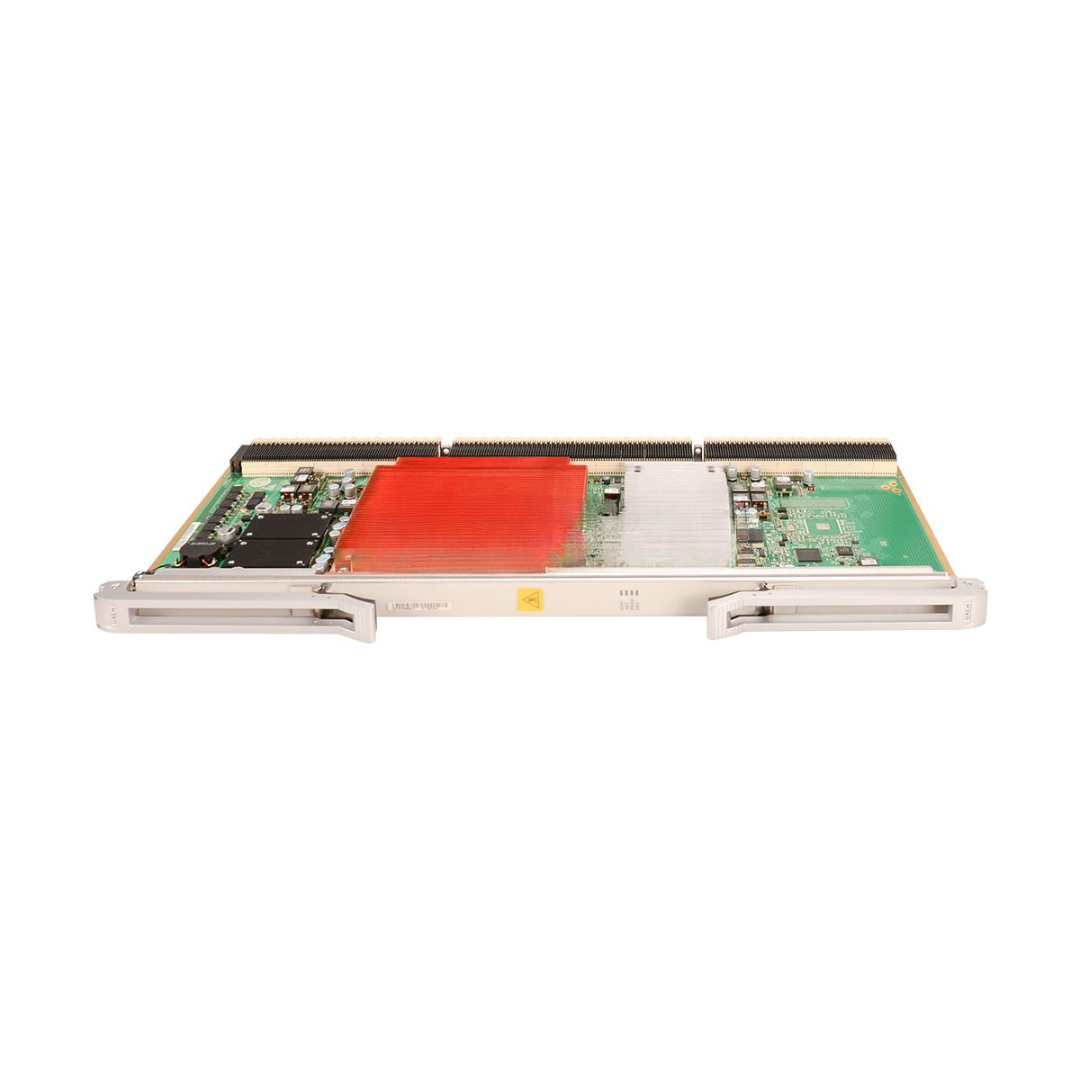

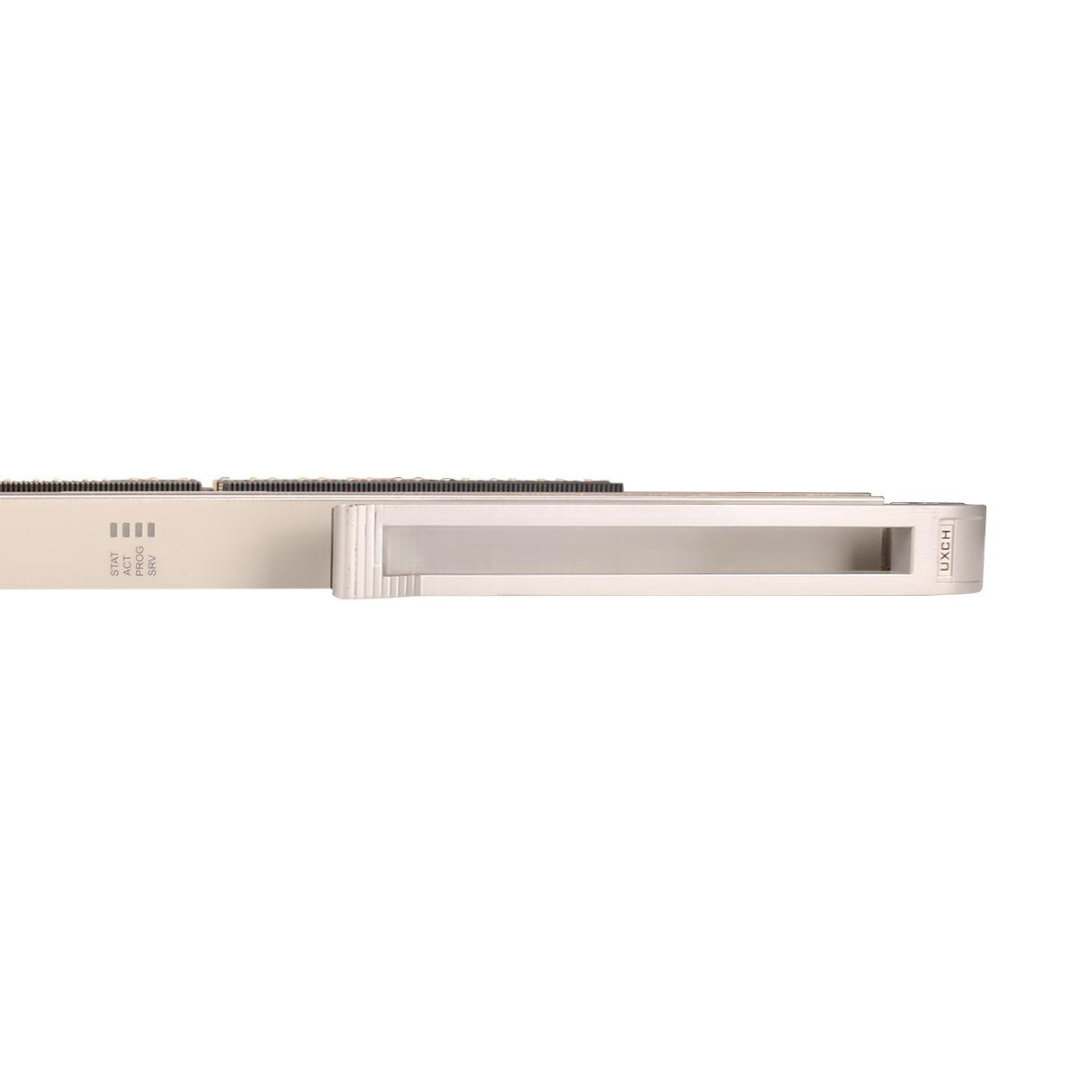

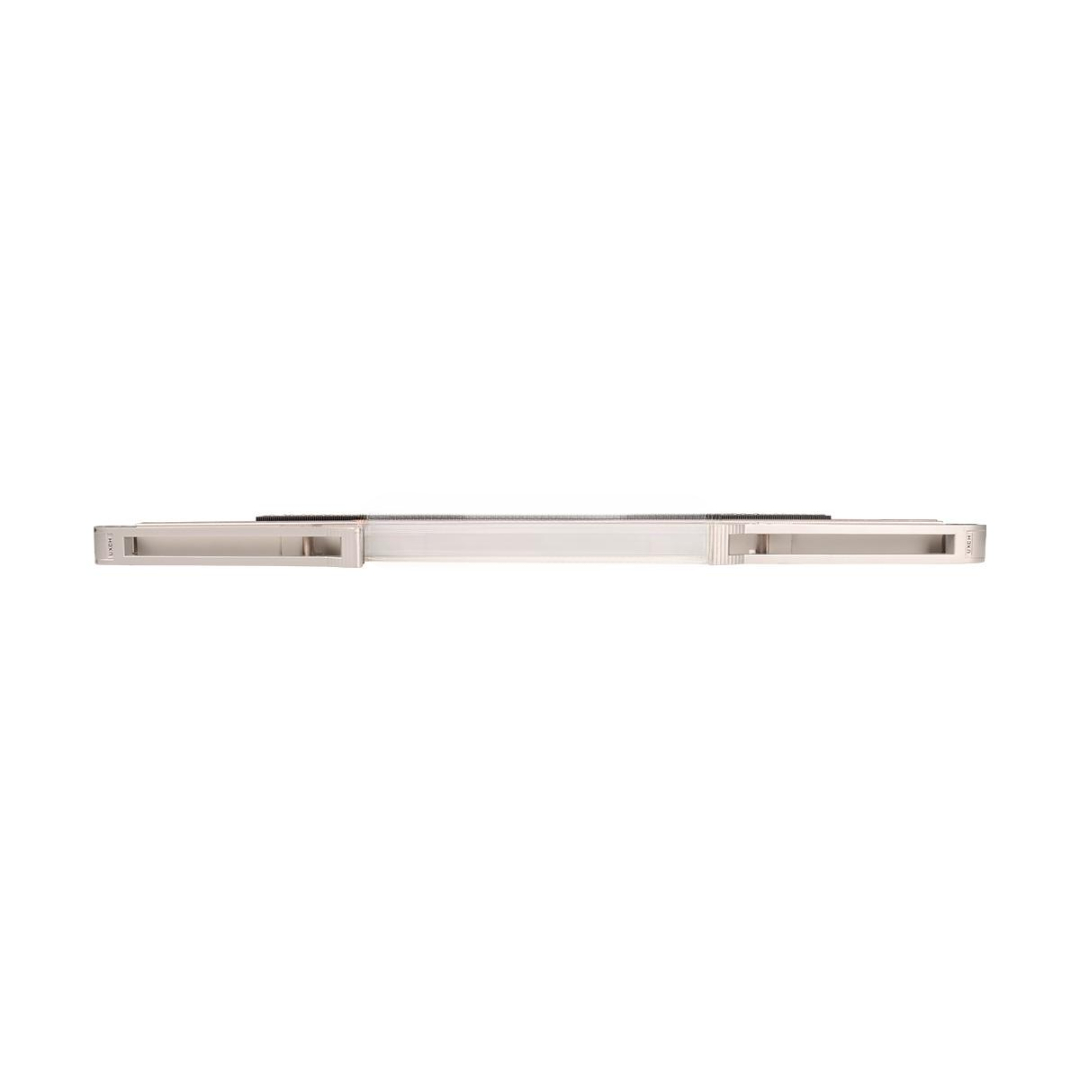

TN52UXCH Huawei Brand New Universal Cross Connect Board
The TN52UXCH Huawei Brand New Universal Cross Connect Board, designed for seamless electrical-layer grooming and switching within Huawei’s OptiX OSN series, including OSN8800 and OSN6800 optical transport platforms. Supporting up to 40G grooming capacity per subrack, it allows for flexible signal interconnection, protection switching, and service cross-connections at the VC-12/VC-3/VC-4/ODUk levels. This board enhances network efficiency, reduces delay, and simplifies complex service aggregation and dispatching.
Ideal for core and aggregation layer deployments in large-scale SDH, OTN, and MSTP networks.
Key Features
-
Model: TN52UXCH
-
Condition: 100% Brand New, Original Huawei
-
Service Type: Universal Electrical-Layer Cross-Connect Board
-
Supported Layers: VC-12, VC-3, VC-4, ODUk
-
Cross-Connect Capacity: Up to 40G per subrack
-
Functionality: Grooming, switching, protection, interconnection
-
Compatible Subracks: OSN8800, OSN6800
-
Hot-Swappable: Yes, for minimal downtime
-
Alarm & Monitoring: Real-time fault and performance supervision
-
Built-in Clock Support: Supports clock tracing and quality level indicators
Technical Specifications
| Specification | Details |
|---|---|
| Model | TN52UXCH |
| Type | Universal Cross-Connect Board |
| Cross-Connect Capacity | Up to 40 Gbps per subrack |
| Service Types | SDH (VC-12/VC-3/VC-4), OTN (ODUk) |
| Compatibility | OSN8800, OSN6800 |
| Functionality | Electrical-layer grooming, switching, and dispatching |
| Protocols | ITU-T G.707, G.709, G.783 |
| Power Consumption | ≤ 30W (typical) |
| Operating Temperature | -5°C to +45°C |
| Humidity Range | 5% – 95% RH, non-condensing |
| Installation | Universal service slot on OSN subrack |
| Warranty | 1–3 Years Manufacturer Warranty |
TN52UXCH Huawei Applications
-
Core Optical Transport Nodes — High-capacity grooming and dispatch for OTN/SDH networks
-
Telecom Aggregation Sites — Efficient handling of large volumes of multi-rate services
-
Metro Networks — Flexible bandwidth provisioning and service adaptation
-
Multi-Service Backhaul — Enables smooth transition between SDH and OTN layers
-
Enterprise & Government Backbone — Secure, high-availability interconnection platform
Customization & OEM Options
-
Labeling Options — Support for custom part numbers or branded labels
-
Pre-Configured Settings — Factory-configured service mapping and protection
-
Subrack Bundles — Integrated delivery with OSN frames and matching fan/power boards
-
Enhanced QC — Extended factory testing for critical environments
-
Software Support — Matching U2000/NCE management templates for rapid deployment
Wholesale & Global Supply Information
-
Bulk Availability — Large stock volumes available for telecom contractors and integrators
-
Packaging — Anti-static sealed packaging in Huawei original cartons
-
Shipping Options — Global shipping with tracking and export compliance
-
Rapid Delivery — Lead time optimized for urgent rollouts
-
Documentation Access — Full tech packs including MIB files, datasheets, and CLI guides
Why Choose TN52UXCH Huawei Universal Cross Connect Board
Unified Electrical Grooming — SDH and OTN service cross-connect on one platform
Carrier-Grade Reliability — Trusted in Tier-1 operator networks worldwide
Full Compatibility — Seamlessly integrates with OSN8800 and OSN6800
Efficient Resource Use — Simplifies grooming without optical-layer conversion
Huawei OEM Quality — Durable, high-performance board with extensive QA
Request Pricing, Specs, or Place Your Order Now
Upgrade your optical transport system with the Huawei TN52UXCH cross-connect board.
Contact us today for bulk pricing, datasheets, or OEM configurations tailored to your network.
