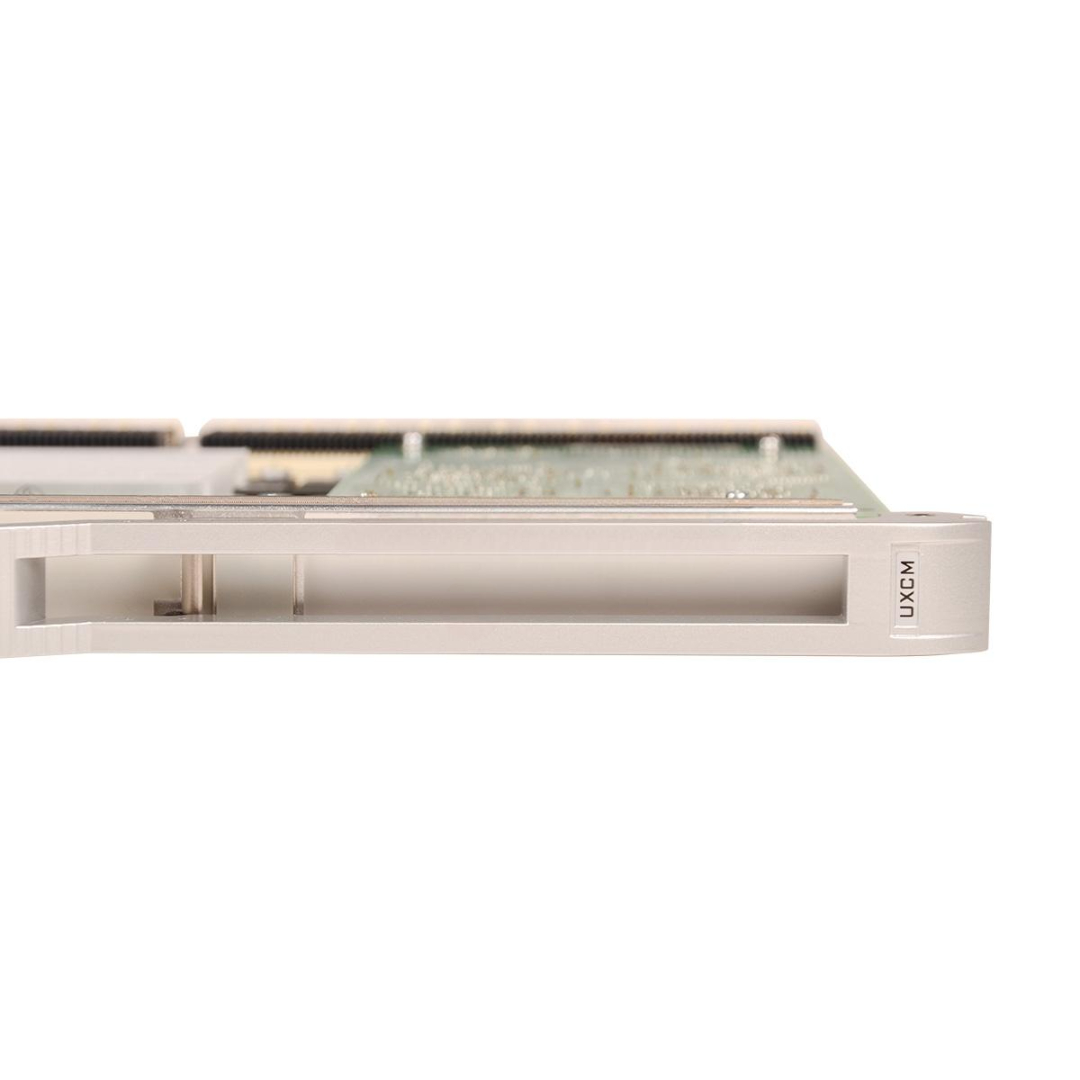

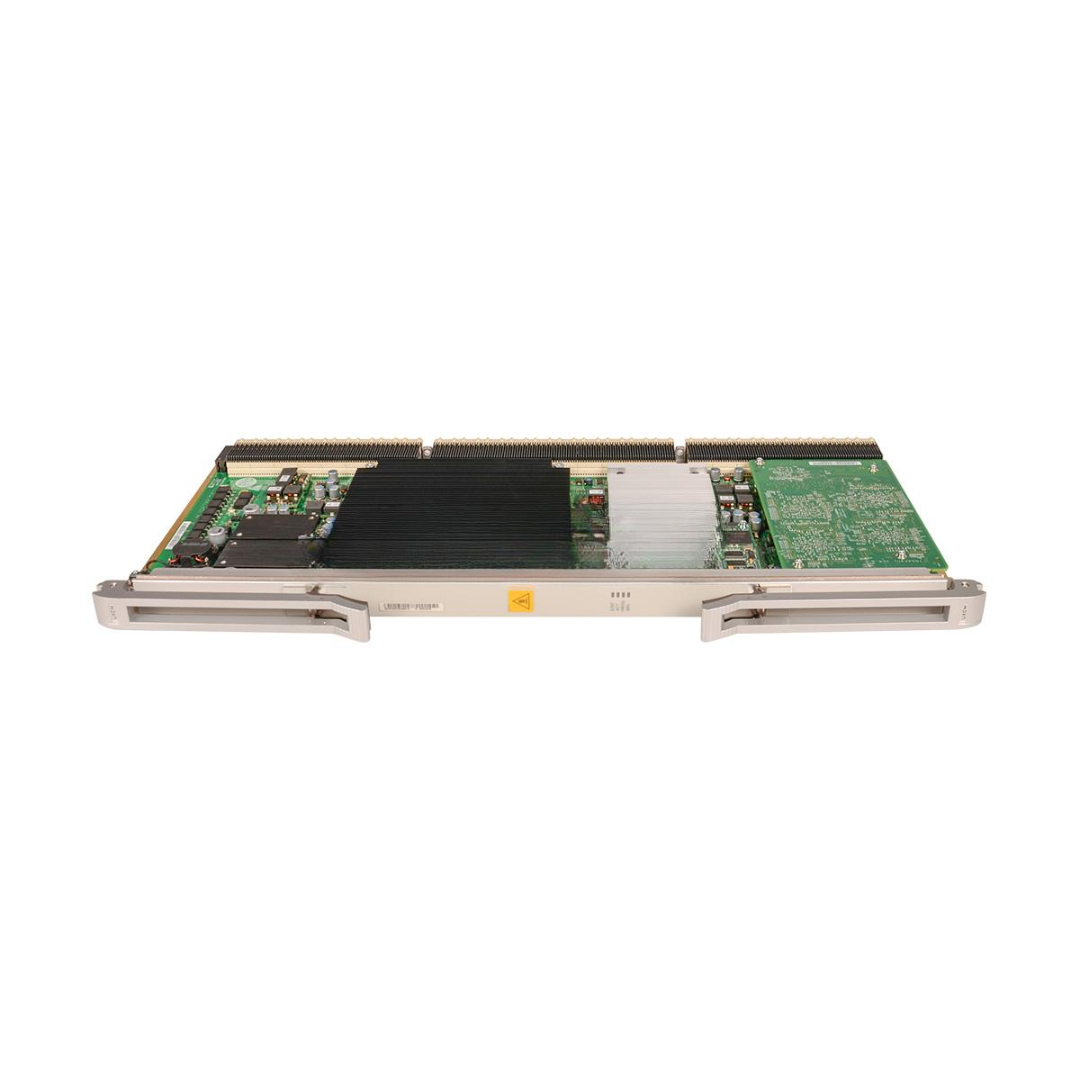

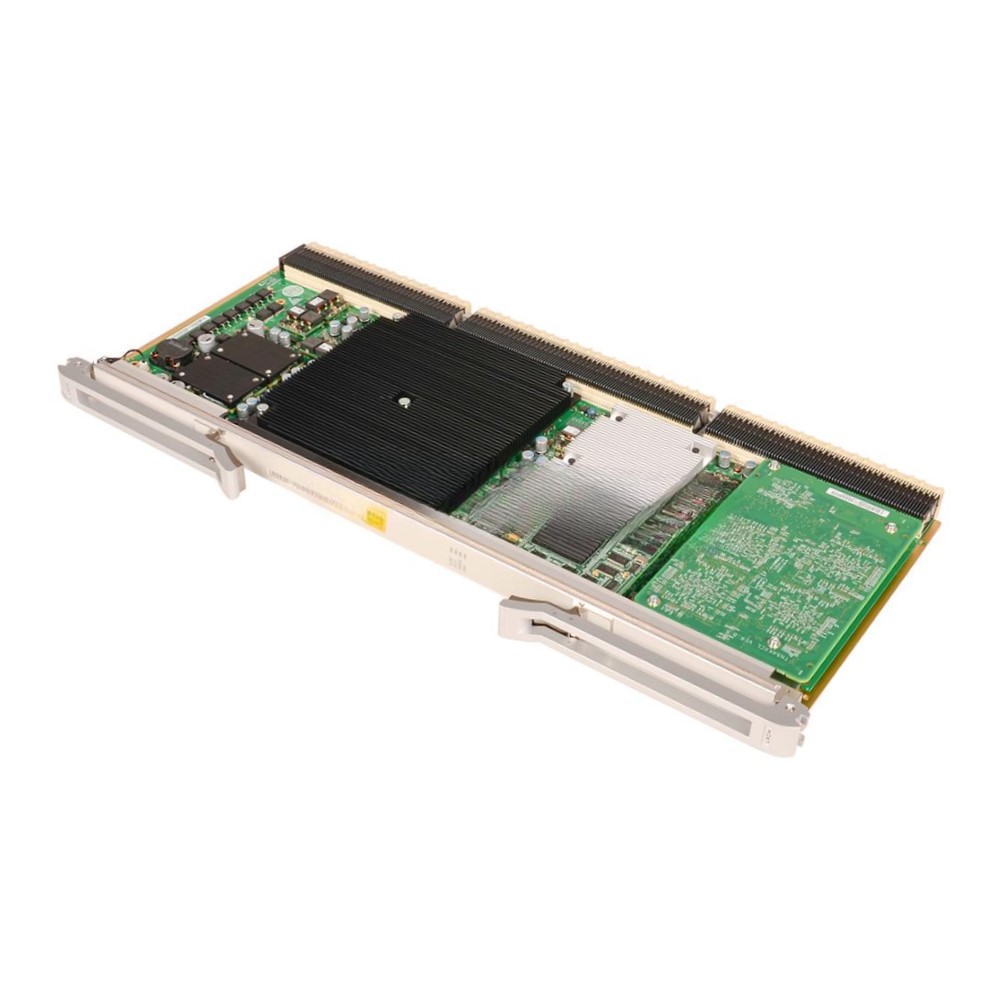

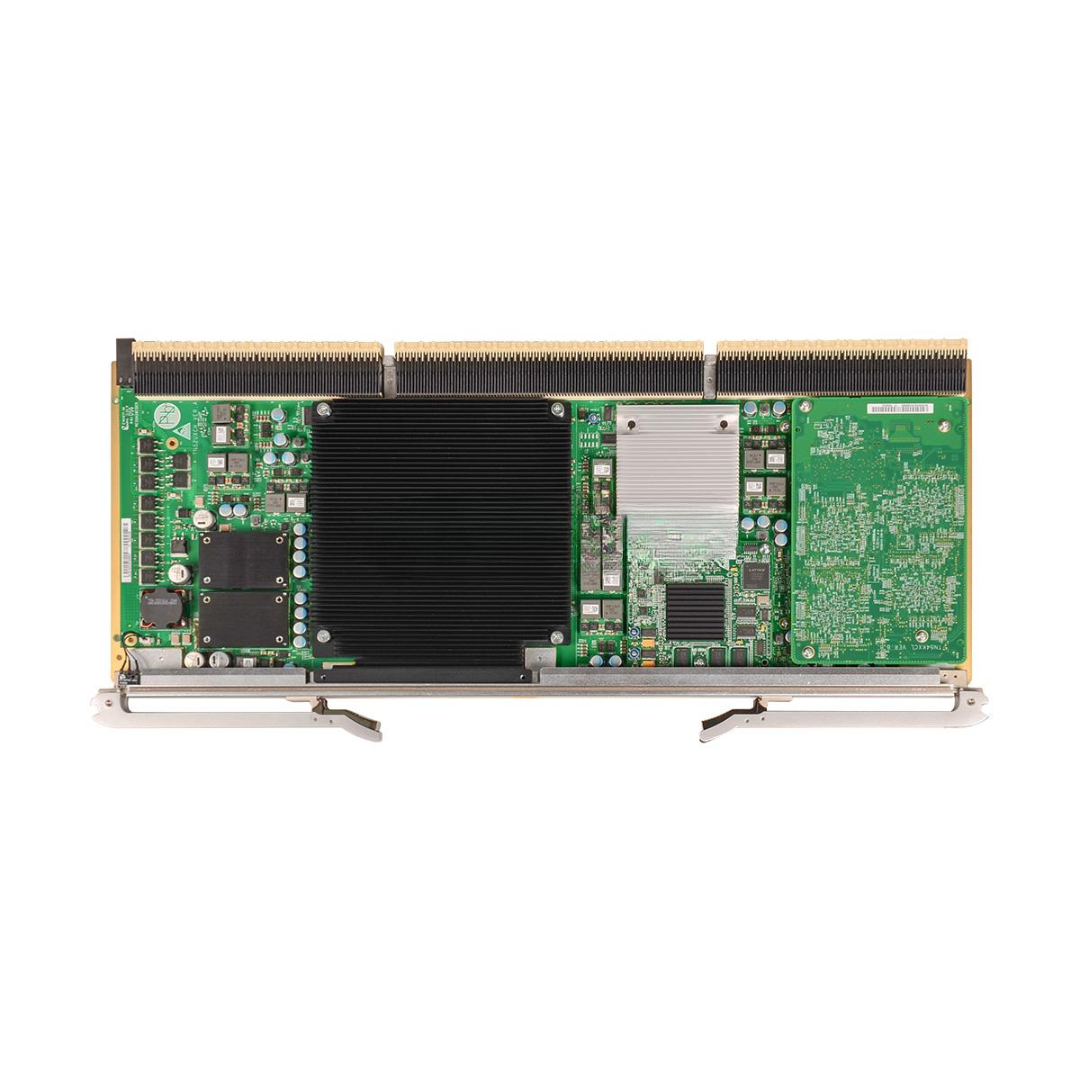

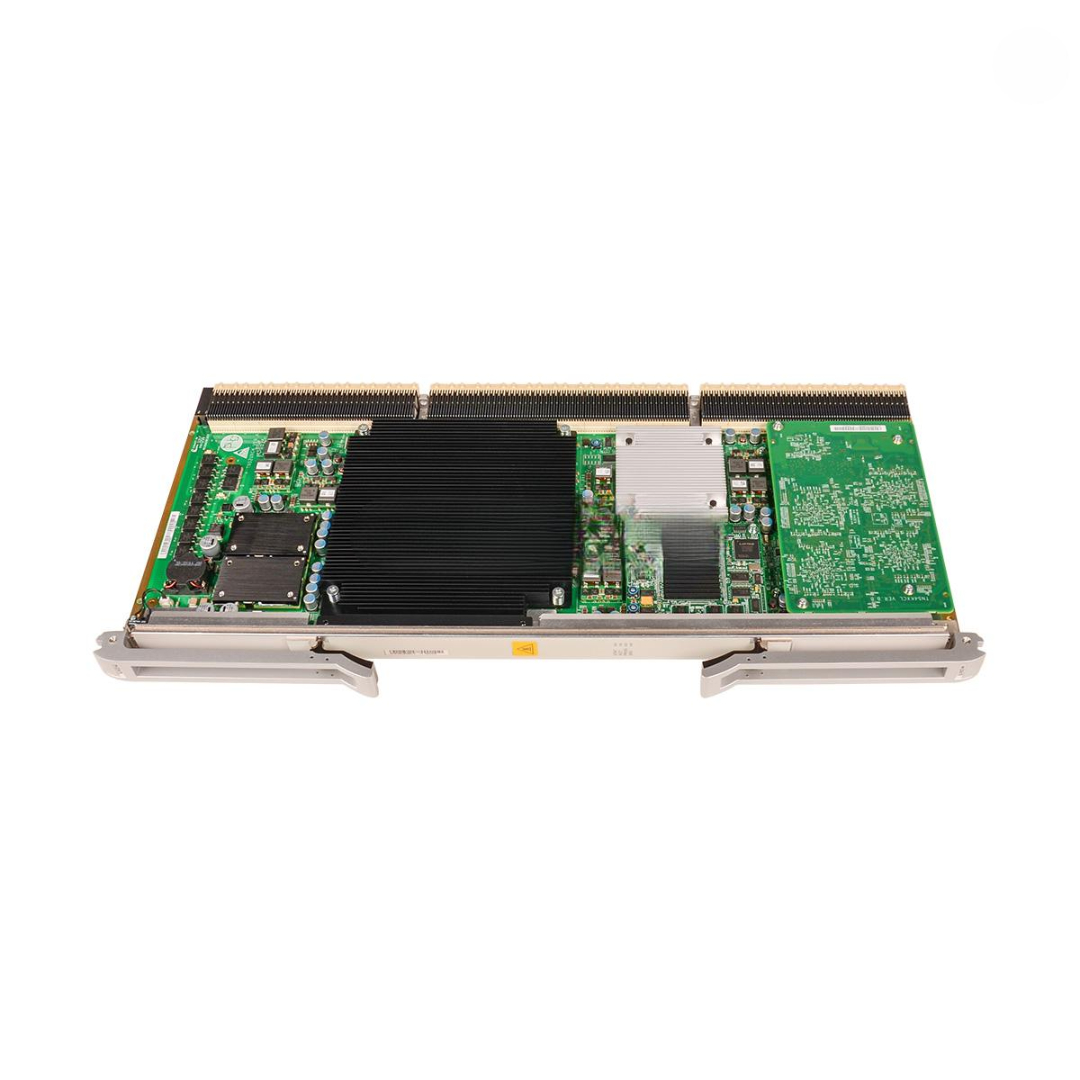

TN52UXCM Huawei Brand New Universal Cross Connect Board
The TN52UXCM Huawei is a universal cross-connect and multiplexing service board designed for advanced OTN/SDH applications in Huawei OSN transmission platforms such as the OSN8800 and OSN6800 series. This versatile board provides high-capacity grooming, service cross-connect, and flexible port configuration, enabling optimized bandwidth utilization across metro and core optical transport networks.
Ideal for telecom carriers and data center networks, the TN52UXCM ensures seamless service adaptation, efficient network resource allocation, and superior switching performance for 2.5G/10G/40G/100G services.
Key Features
-
Model: TN52UXCM
-
Condition: 100% Brand New, Original Huawei
-
Service Type: Universal cross-connect for OTN/SDH services
-
Switching Capacity: Supports high-speed grooming and service multiplexing
-
Compatibility: OSN6800 and OSN8800 series
-
Protection: Supports multiple levels of redundancy and service protection
-
Functionality: Grooming, regeneration, and dynamic cross-connections
-
Hot-Swappable: Yes – plug-and-play board for fast deployment or replacement
-
Management: NMS integrated with full alarm and performance monitoring
Technical Specifications
| Specification | Details |
|---|---|
| Model | TN52UXCM |
| Type | Universal Cross-Connect / Multiplexing Board |
| Switching Capacity | Up to 320Gbit/s (matrix-dependent) |
| Compatible Platforms | OSN6800, OSN8800 |
| Supported Services | OTN, SDH, PDH, Ethernet, VC-12/VC-3/VC-4/ODU0/ODU1/ODU2 |
| System Adaptation | Supports TCM, PM/SM, and LO/HO ODU layer cross-connection |
| Protection | MSP, SNCP, ODUk SNCP |
| Power Consumption | ≤ 55W (typical) |
| Operating Temperature | -5°C to +45°C |
| Storage Temperature | -40°C to +70°C |
| Humidity | 5% to 95% RH, non-condensing |
| Slot Requirement | Universal service slot |
| Compliance | ITU-T G.709, G.798, G.872 |
| Warranty | 1–3 Years Manufacturer Warranty |
TN52UXCM Huawei Applications
-
Core and Metro Optical Networks — High-performance OTN/SDH cross-connect functionality
-
Telecom Operators — Bandwidth optimization through dynamic grooming
-
Large Enterprises & ISPs — Service multiplexing for efficient transport over existing infrastructure
-
Data Center Interconnect (DCI) — OTN adaptation and service restoration
Customization & OEM Options
-
Private Labeling — Company branding and customized part labeling available
-
Port Configuration — Pre-loaded logical connections or service mapping
-
Custom Cross-Connect Matrices — Tailored for client traffic requirements
-
Burn-in Testing — Extended environmental and stress testing on request
-
Documentation & Scripts — Customized configuration scripts or deployment manuals
Wholesale & Global Supply Information
-
Direct Factory Supply — Huawei original parts with full traceability
-
Bulk Inventory Available — For global telecom rollouts and urgent shipments
-
Secure Packaging — Anti-static and foam-inlay boxes for safe transport
-
Worldwide Delivery — Compliant with international shipping standards
-
Technical Support — Assistance with NMS integration, fault isolation, and live deployment
-
Warranty Support — Full after-sales service with RMA options
Why Choose TN52UXCM Huawei Universal Cross Connect Board
Flexible Service Grooming — Scalable cross-connect for OTN/SDH multi-rate traffic
Reliable Huawei OEM Build — Field-tested in carrier-grade transport environments
Intelligent Management — Integrated alarms, status, and performance monitoring
Cost Optimization — Reduces equipment footprint and enhances bandwidth use
Plug-and-Play — Hot-swappable design for easy field upgrades or replacements
Contact Us Now for Pricing, Lead Time & Datasheets
Upgrade your optical transport infrastructure with the TN52UXCM Huawei — a universal, high-efficiency cross-connect solution trusted by Tier 1 operators worldwide.
Reach out today to request a quote, datasheet, or bulk procurement info!
