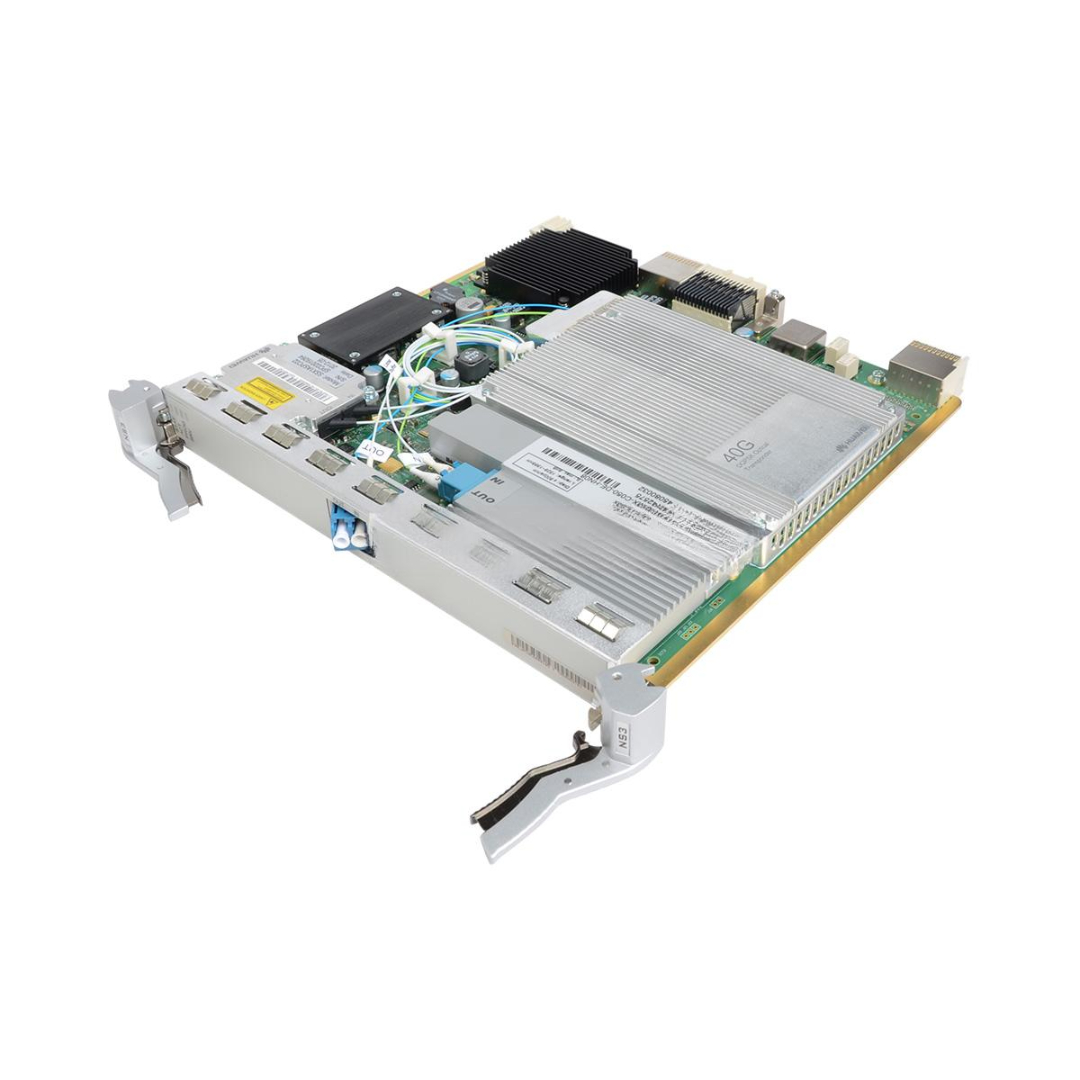

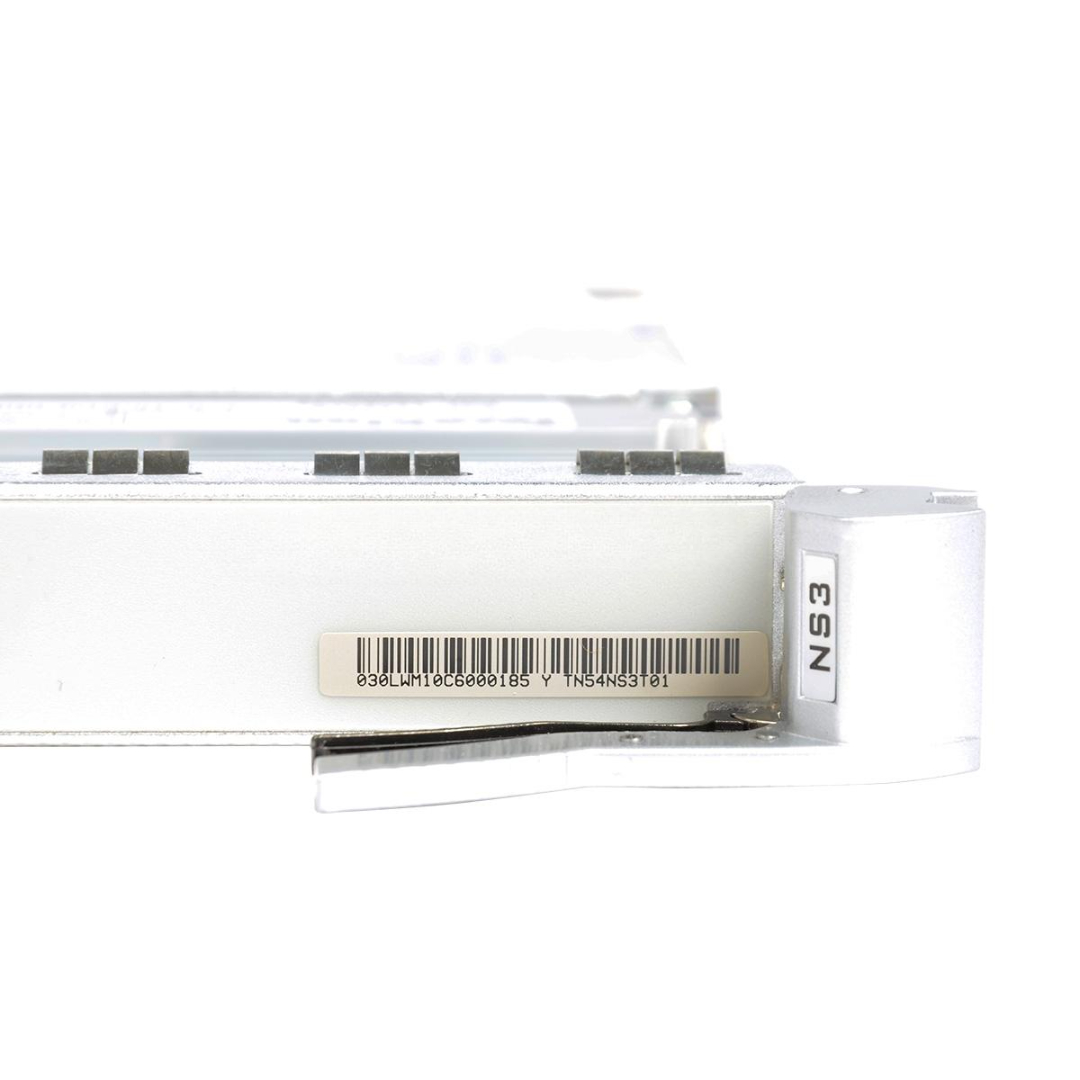

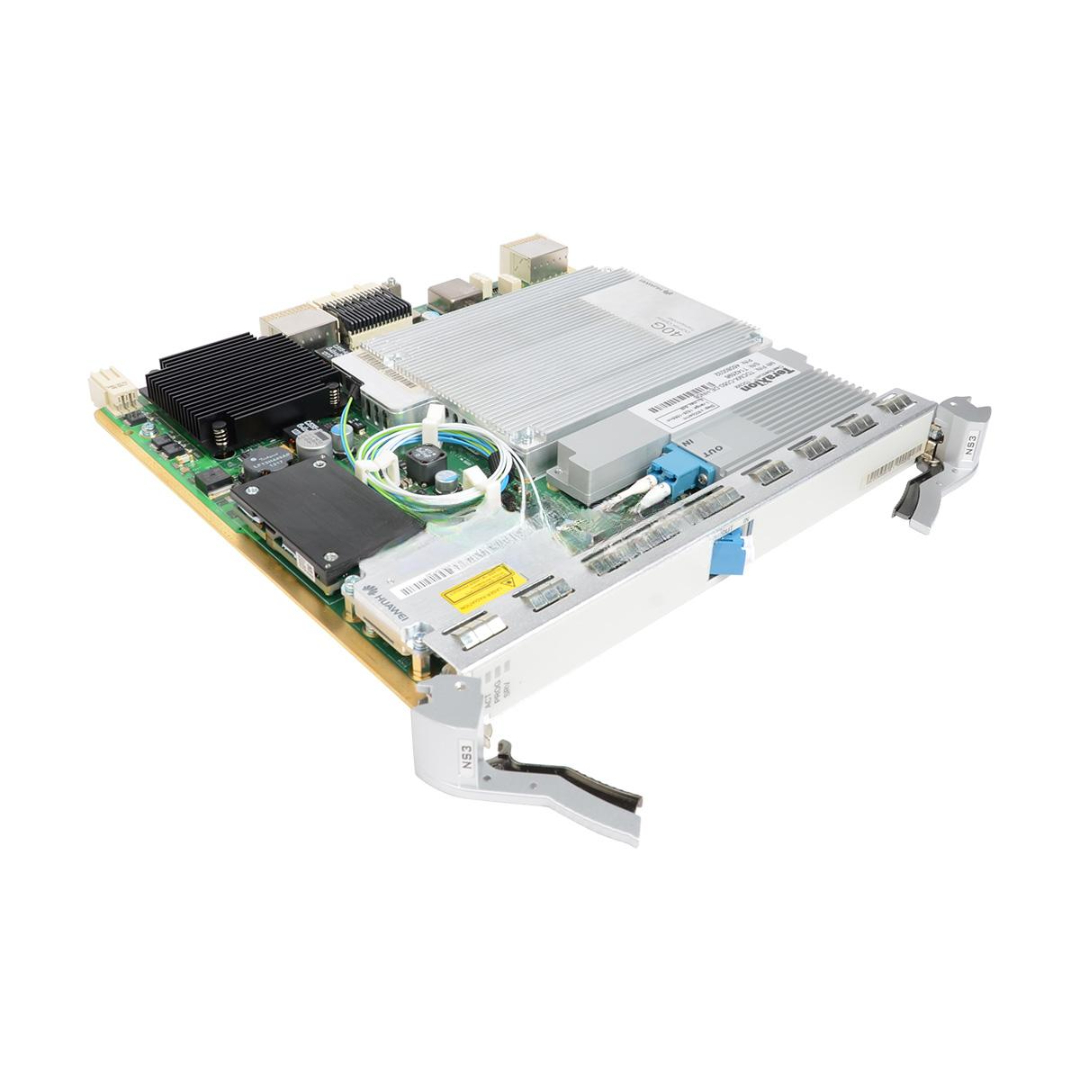

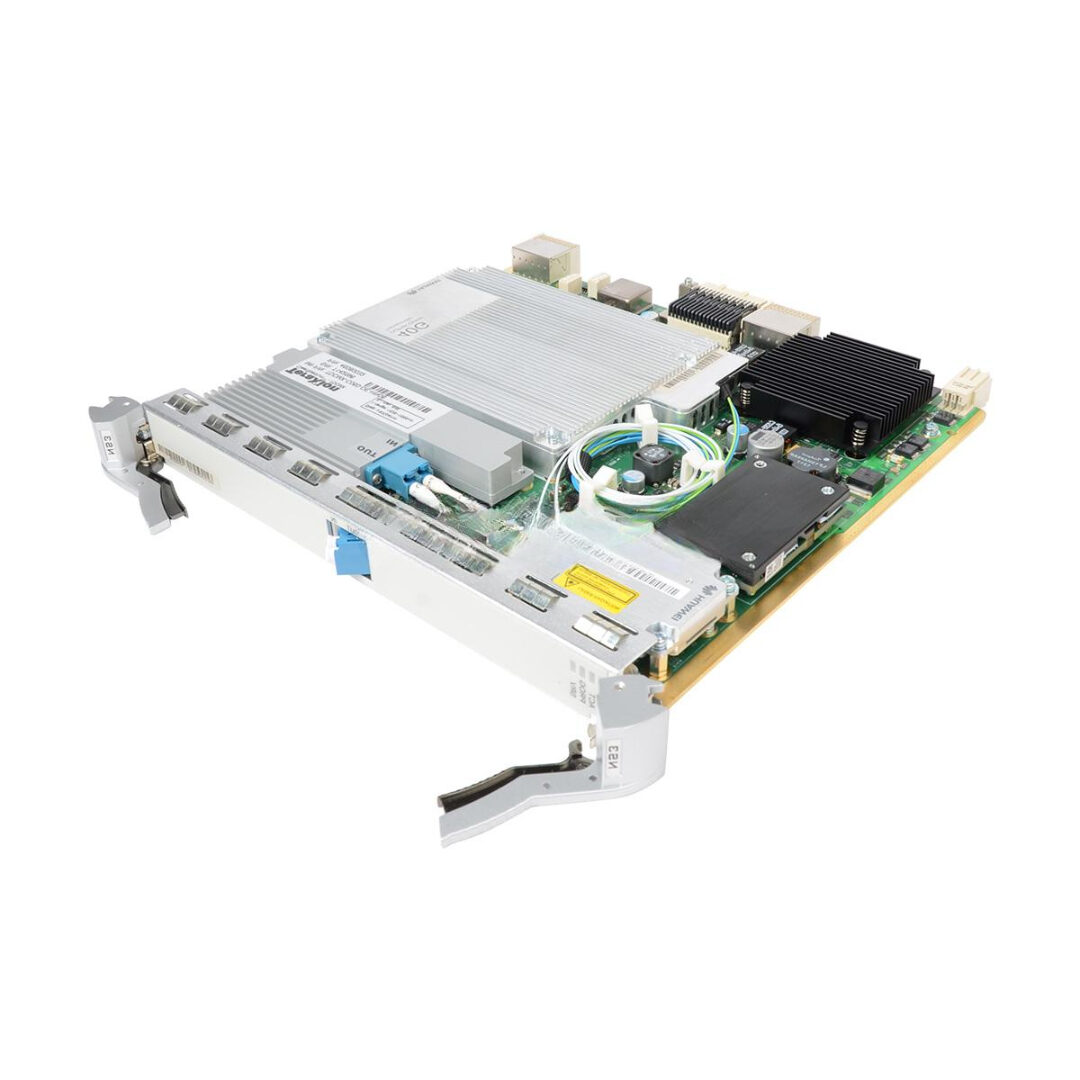

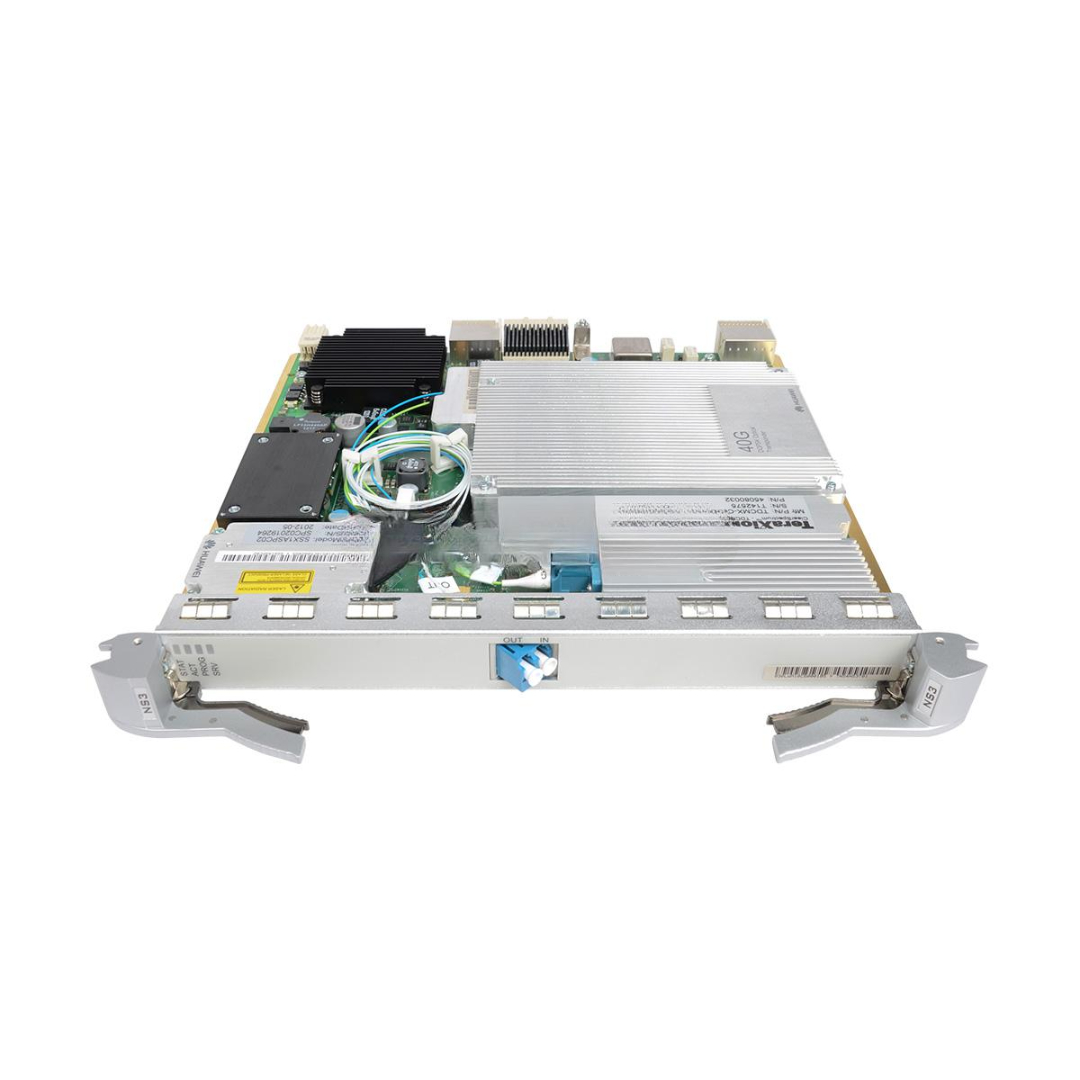

TN54NS3T01 Huawei High Quality Line Service Processing Board
The TN54NS3T01 Huawei is a high-performance 100G line service processing board designed by Huawei for use in its OptiX OSN6800 and OSN8800 WDM platforms. This board supports the reception and transmission of 100G Ethernet client services, mapping them into OTU4 signals for high-speed optical transport over DWDM networks. With enhanced Forward Error Correction (FEC) and full compliance with OTN standards, the TN54NS3T01 is engineered for core, metro, and long-haul network applications.
Key Features
-
Model: TN54NS3T01
-
Condition: 100% Brand New, Original Huawei
-
Service Type: 100GE to OTU4 mapping
-
Client Interface: 100G Ethernet (100GE), supports CFP optical modules
-
Line Interface: OTU4 over DWDM
-
FEC Support: GFEC, HFEC, and SD-FEC for extended reach and signal integrity
-
Protocol Compliance: Fully supports ITU-T G.709, G.798, and IEEE 802.3ba
-
Monitoring Functions: Optical power monitoring, BIP8, BER, LOS, LOF, OOF
-
Protection Mechanisms: Supports 1+1 linear protection, ODUk SNCP
-
Hot-Swappable: Non-disruptive plug-in and replacement
Technical Specifications
| Specification | Details |
|---|---|
| Board Name | TN54NS3T01 |
| Function | 100GE to OTU4 Mapping and Transport |
| Client Port Type | 1 × 100GE via CFP module |
| Line Rate | 111.8 Gbps (OTU4) |
| OTN Encapsulation | ODU4 |
| FEC Types | GFEC, HFEC, SD-FEC |
| Optical Interface | CFP port (supports LR4, ER4, coherent optics) |
| Power Consumption | ≤ 90W (typical) |
| Operating Temperature | -5°C to +45°C |
| Humidity | 5% to 95% RH, non-condensing |
| Dimensions | Standard Huawei OSN6800/OSN8800 service board size |
| Supported Platforms | Huawei OSN6800, OSN8800 |
| Warranty | 1–3 Years Manufacturer Warranty |
TN54NS3T01 Huawei Applications
-
Metro and Backbone DWDM Networks — For transporting 100G Ethernet traffic across long distances
-
Data Center Interconnection (DCI) — Enables high-speed and low-latency optical links
-
IP + Optical Converged Networks — Provides high-capacity connectivity between routers and optical layers
-
Carrier-Class Transmission — Delivers stable 100GE over OTN with strong error correction
-
Content Providers & ISPs — Cost-effective 100G infrastructure for cloud and streaming
Customization & OEM Options
-
Pre-Burned Configuration — Custom wavelength presets and client service parameters
-
CFP Optics Selection — Choose from LR4, ER4, ZR, or coherent modules depending on reach requirements
-
Branding Options — OEM logo printing and custom part number labeling available
-
Compliance Testing — Optional factory burn-in reports, BER logs, and FEC calibration
-
Bundled Kits — Available with optical patch cables, CFP modules, and ready-to-deploy rack kits
TN54NS3T01 Huawei Wholesale & Global Procurement
-
Huawei OEM Original — 100% genuine TN54NS3T01 units with verified serial numbers
-
Bulk Inventory — Stock ready for global telecom projects and urgent deliveries
-
Secure Packaging — Anti-static ESD-safe packaging with foam insert and Huawei labeling
-
Fast Shipping — Global express delivery with customs documentation for optics
-
After-Sales Support — Full technical assistance with integration, testing, and troubleshooting
Why Choose the TN54NS3T01 Huawei
-
High-Performance 100G Transport — Efficient and reliable OTU4 transmission
-
FEC-Enhanced Reliability — Extended reach with minimal signal degradation
-
Carrier-Grade Quality — Designed for continuous 24/7 operation in core networks
-
Future-Proof Compatibility — Supports latest 100GE standards and coherent optics
-
Trusted Worldwide — Used by Tier-1 operators, ISPs, and data centers globally
Contact Us for Datasheets, Pricing, and Bulk Orders
Empower your optical transport network with the Huawei TN54NS3T01, the ultimate 100G line board for seamless, high-speed, and standards-compliant Ethernet transmission.
