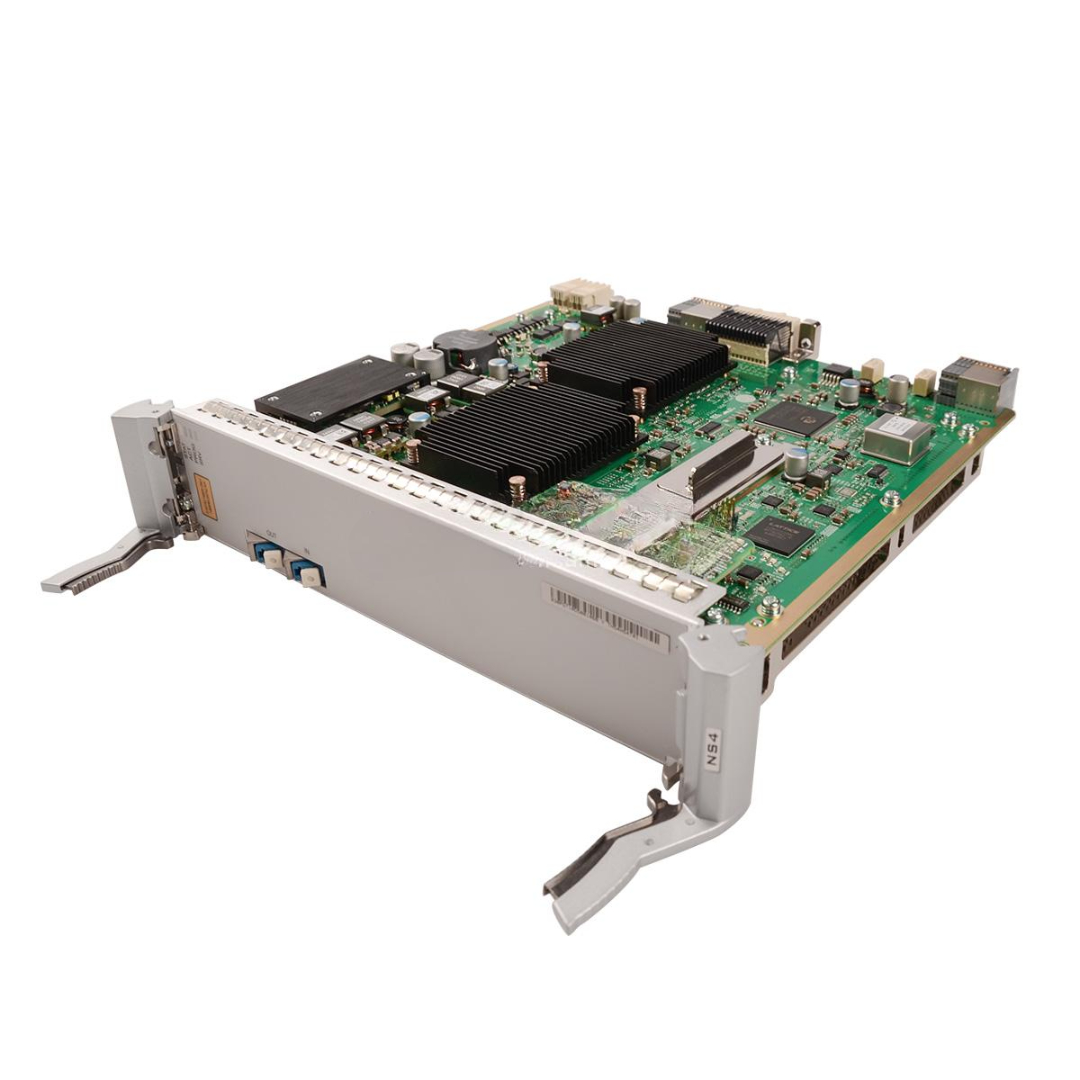

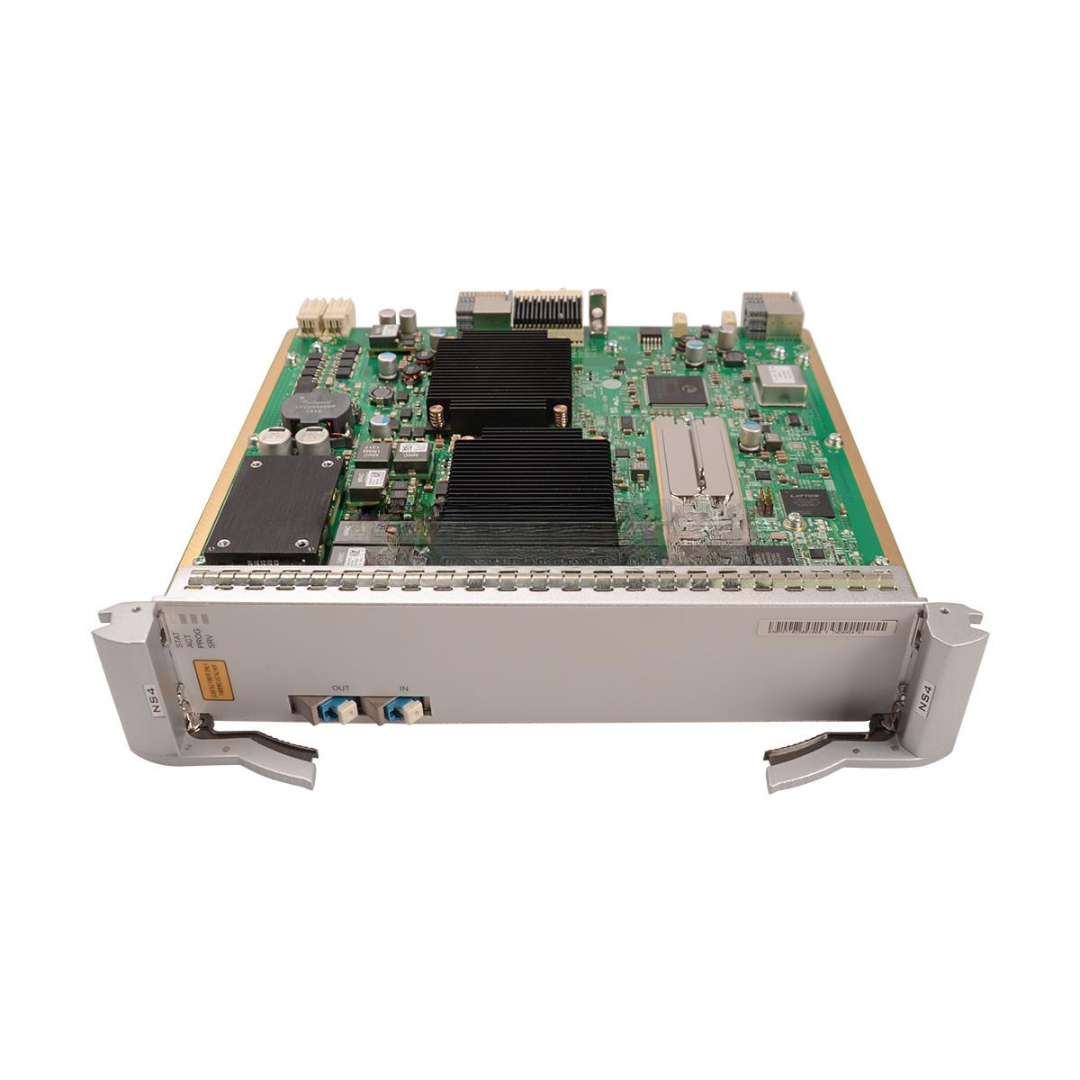

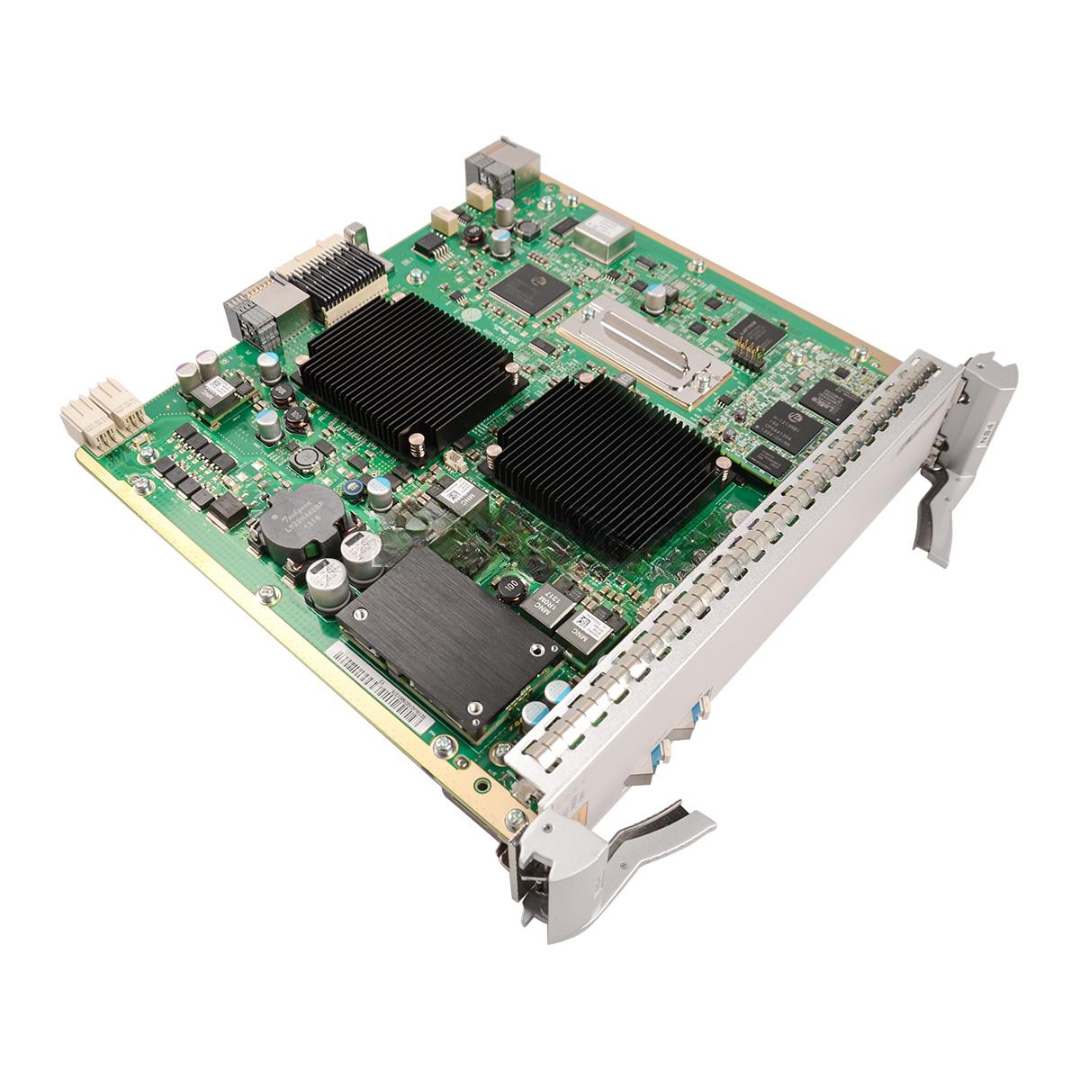

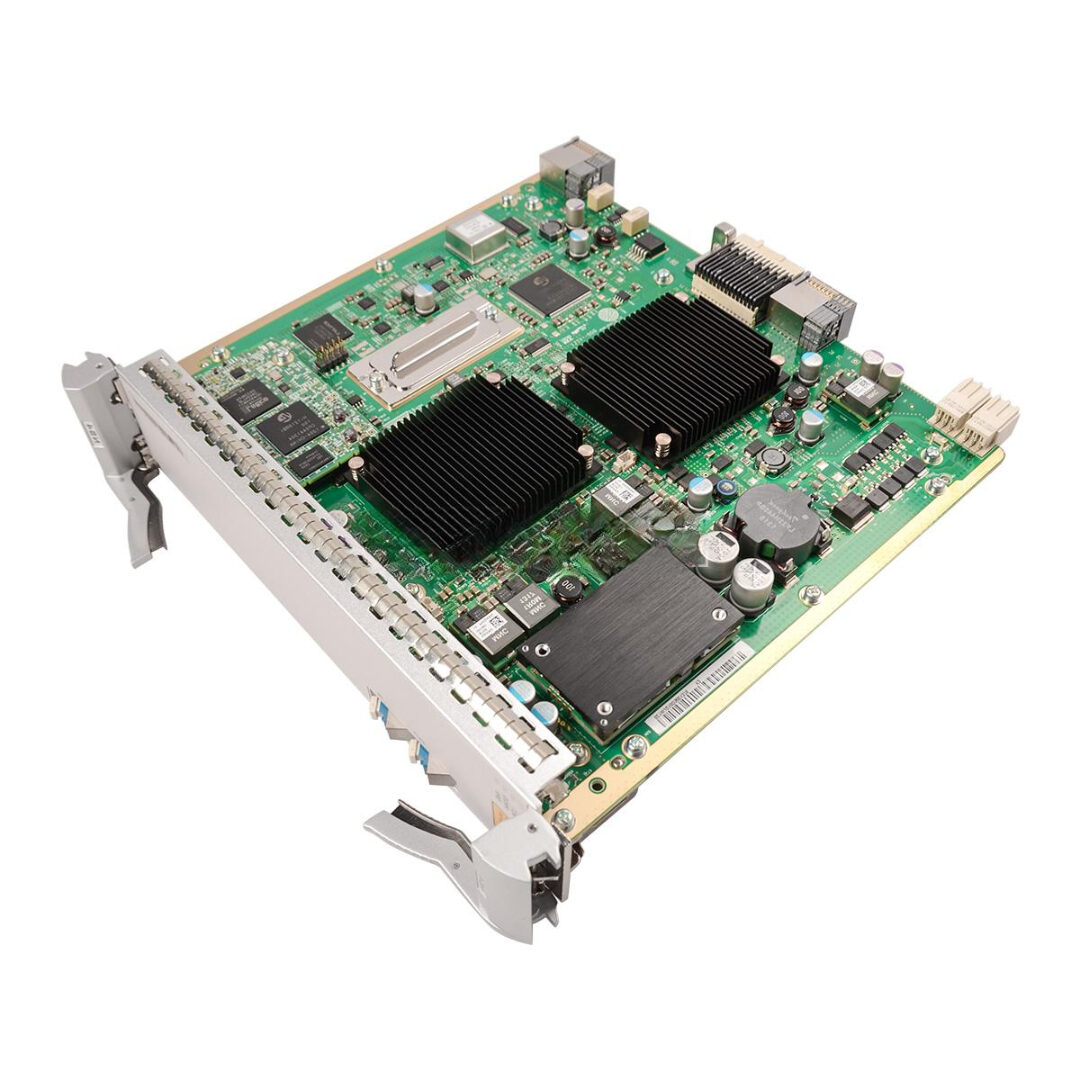

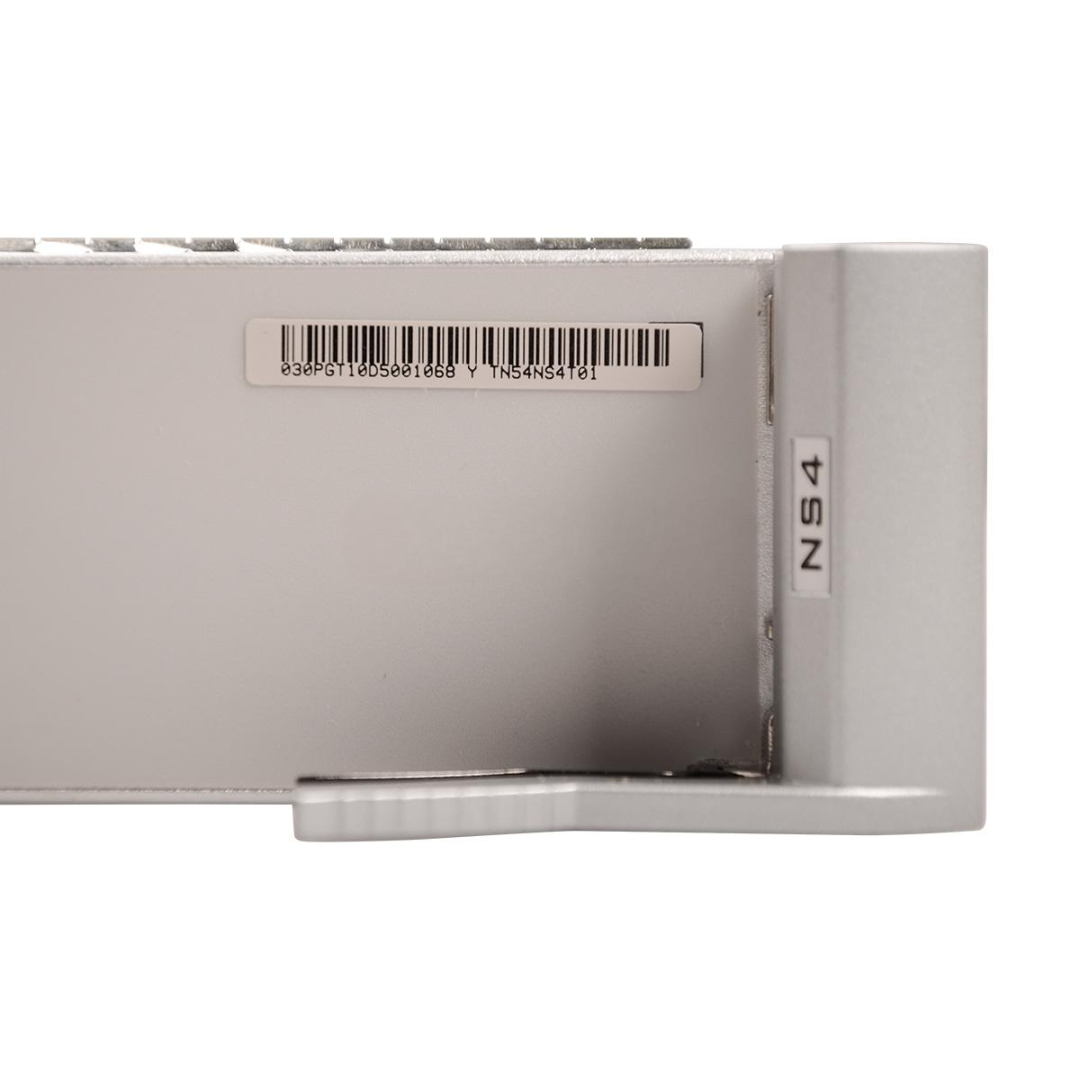

TN54NS4T01 Huawei High Quality 100G Service Processing Board
The TN54NS4T01 Huawei is a 100G service processing board designed for Huawei’s OptiX OSN6800 and OSN8800 series. It enables high-speed 100G Ethernet services over OTN, offering advanced encapsulation, grooming, and multiplexing capabilities. This board is widely used in backbone and metro core networks, supporting efficient packet and optical service integration with industry-leading performance and reliability.
Key Features
-
Model: TN54NS4T01
-
Condition: 100% Brand New, Original Huawei
-
Service Type: 100GE client-side to OTN line-side mapping
-
Interface Type: 1 × 100GE (via CFP optical module)
-
Encapsulation: Supports OTU4 mapping for 100G Ethernet
-
OTN Support: Complies with ITU-T G.709 and G.798 standards
-
Forwarding Capability: Line-rate 100G processing with low latency
-
Traffic Functions: FEC (Forward Error Correction), performance monitoring, and signal regeneration
-
Protection: Supports ODUk SNCP, 1+1 linear MSP, and client-side protection
-
Hot-Swappable: Easily replaceable without service interruption
Technical Specifications
| Specification | Details |
|---|---|
| Board Name | TN54NS4T01 |
| Function | 100G Ethernet service mapping to OTU4 |
| Client Interface | 1 × 100GE (CFP module slot) |
| Line Rate | 111.8 Gbps (OTU4) |
| FEC Types | GFEC, HFEC, SD-FEC |
| Forwarding Type | Layer 1 and Layer 2 Ethernet pass-through |
| Latency | Ultra-low latency processing |
| Monitoring | LOS, LOF, FEC error count, optical power |
| Power Consumption | ≤ 85W (typical) |
| Installation Slot | Service board slot in OSN6800/OSN8800 subrack |
| Operating Temperature | -5°C to +45°C |
| Humidity | 5% – 95% RH, non-condensing |
| Supported Systems | OSN6800, OSN8800 |
| Warranty | 1–3 Years Manufacturer Warranty |
TN54NS4T01 Huawei Applications
-
Metro Core & Backbone Networks — Aggregates high-capacity traffic with 100G OTN
-
Data Center Interconnect (DCI) — Delivers 100G Ethernet transport over long distances
-
Carrier Networks — Scalable bandwidth solution for next-gen IP & optical convergence
-
Content Delivery Networks (CDN) — High-throughput links for video and data distribution
-
Cloud & ISP Infrastructures — Optimized for bandwidth-heavy environments
Customization & OEM Options
-
Pre-Configured Services — VLAN tagging, encapsulation profiles, and port settings
-
CFP Module Selection — Choose from SR10, LR4, ER4, or coherent CFP optics
-
Private Branding — Custom labeling and unique OEM part number support
-
Extended Testing Options — Temperature cycling, long-haul loopback verification
-
Custom Packaging — White-label shipping kits for system integrators
TN54NS4T01 Huawei Wholesale & Global Procurement
-
Huawei OEM Factory Supply — Genuine inventory, ready for deployment
-
Volume Discounts — Special pricing for bulk orders and telecom rollouts
-
Secure International Shipping — Compliant with optical module transport regulations
-
Protective Packaging — Anti-static foam, sealed Huawei-labeled boxes
-
Technical Assistance — Installation guides, configuration templates, and remote support
Why Choose the TN54NS4T01 Huawei 100G Board
-
High-Speed 100G Transport — Delivers ultra-fast Ethernet over robust OTN links
-
Field-Proven Performance — Deployed in global carrier networks with high reliability
-
Future-Proof Design — Fully compliant with evolving 100G standards and services
-
Carrier-Class Quality — Manufactured to Huawei’s stringent OEM specifications
-
Flexible Integration — Works with diverse CFP modules for varied distance needs
Contact Us Today for Pricing, Datasheets & Bulk Orders
Deploy the Huawei TN54NS4T01 100G service board to upgrade your optical backbone with next-generation bandwidth, advanced signal integrity, and operational flexibility.
