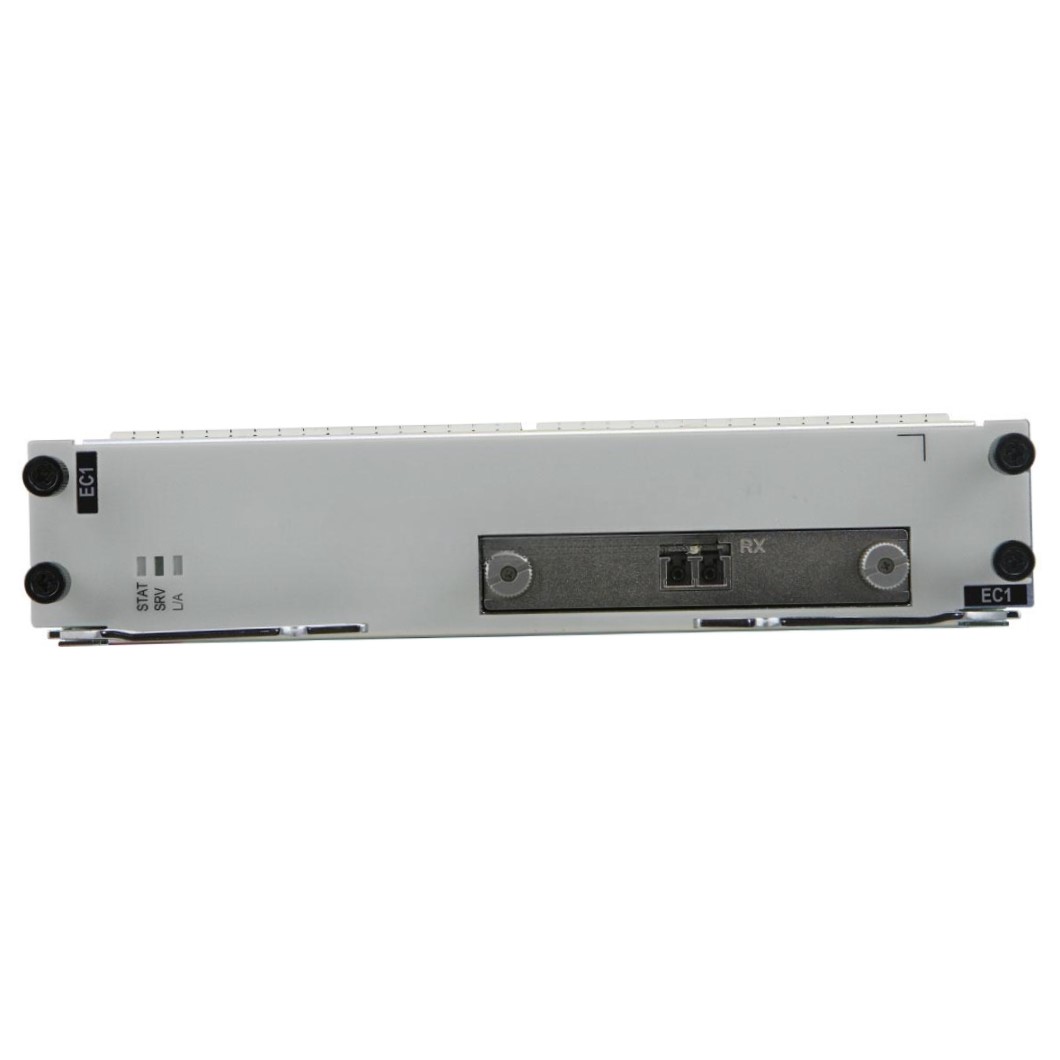

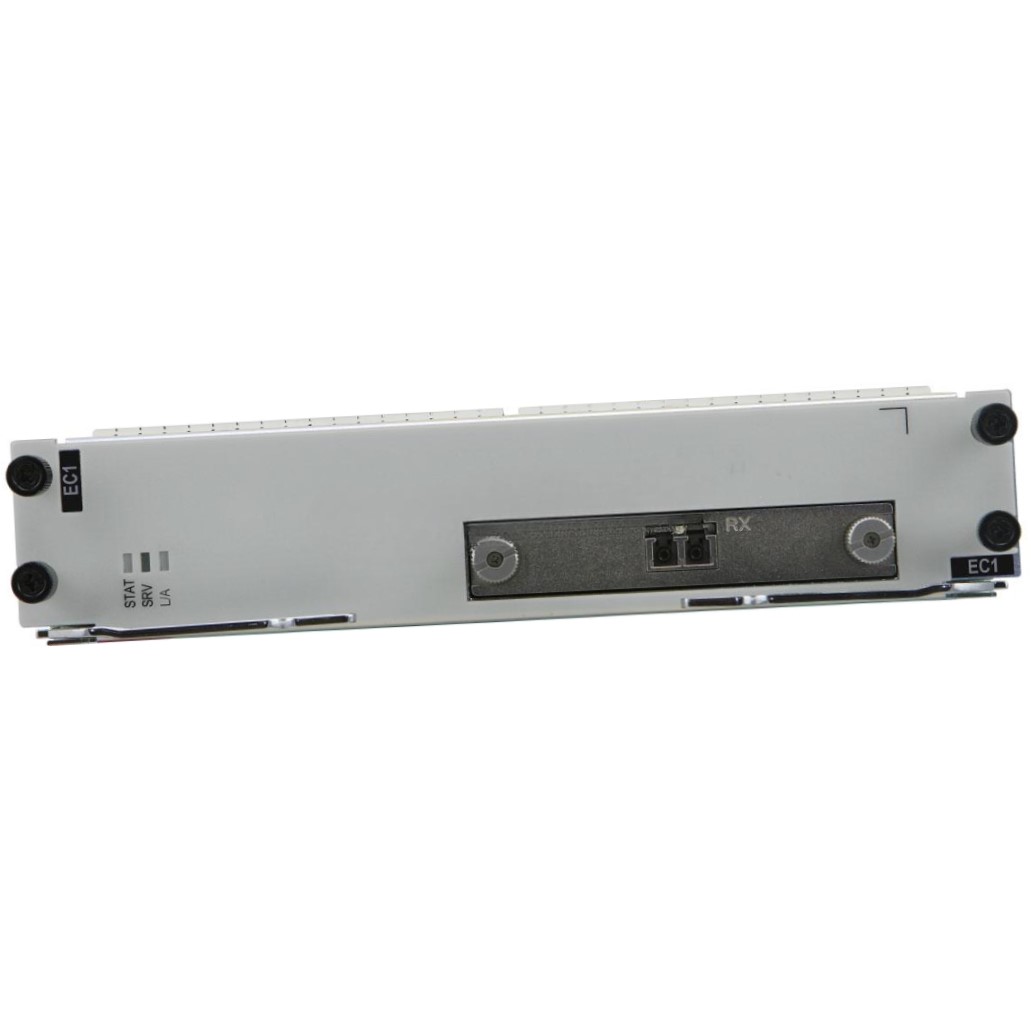

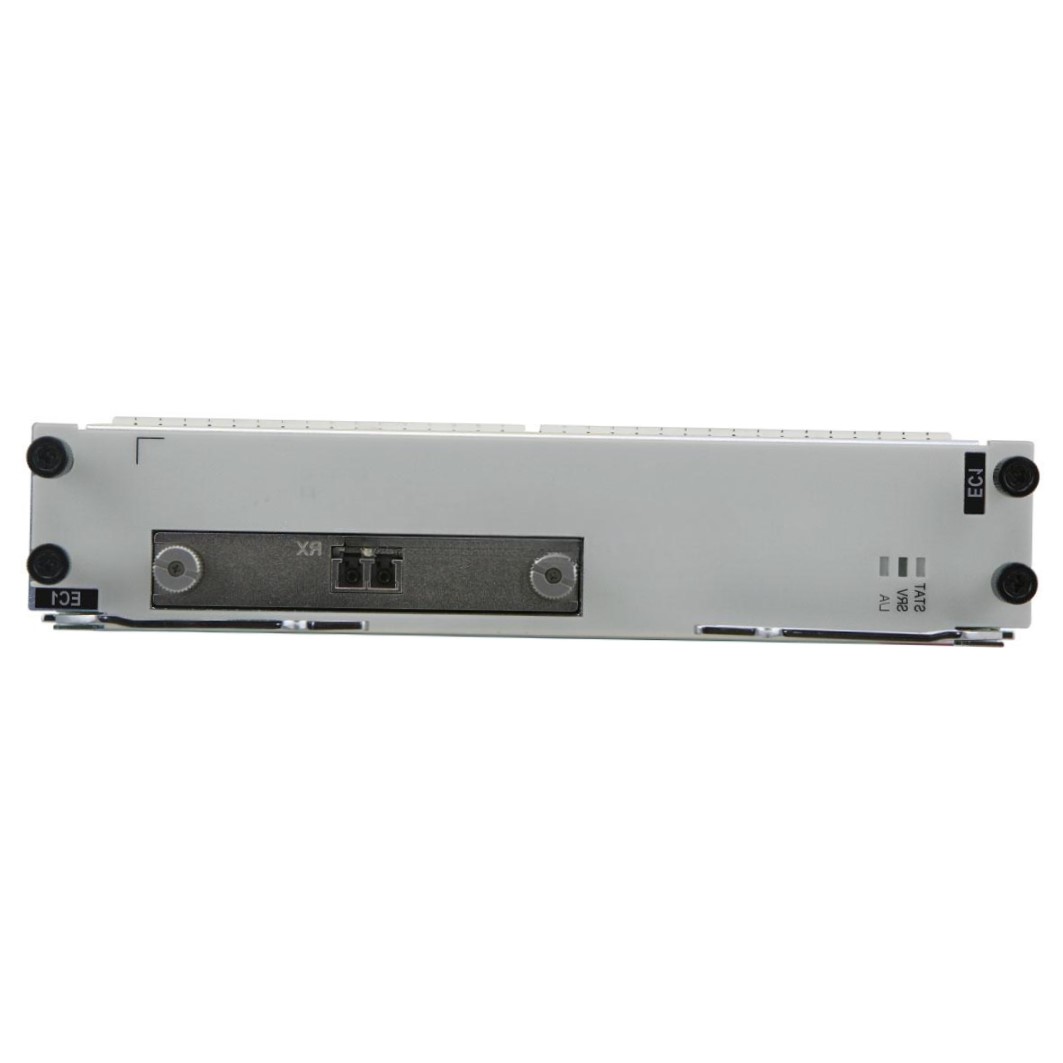

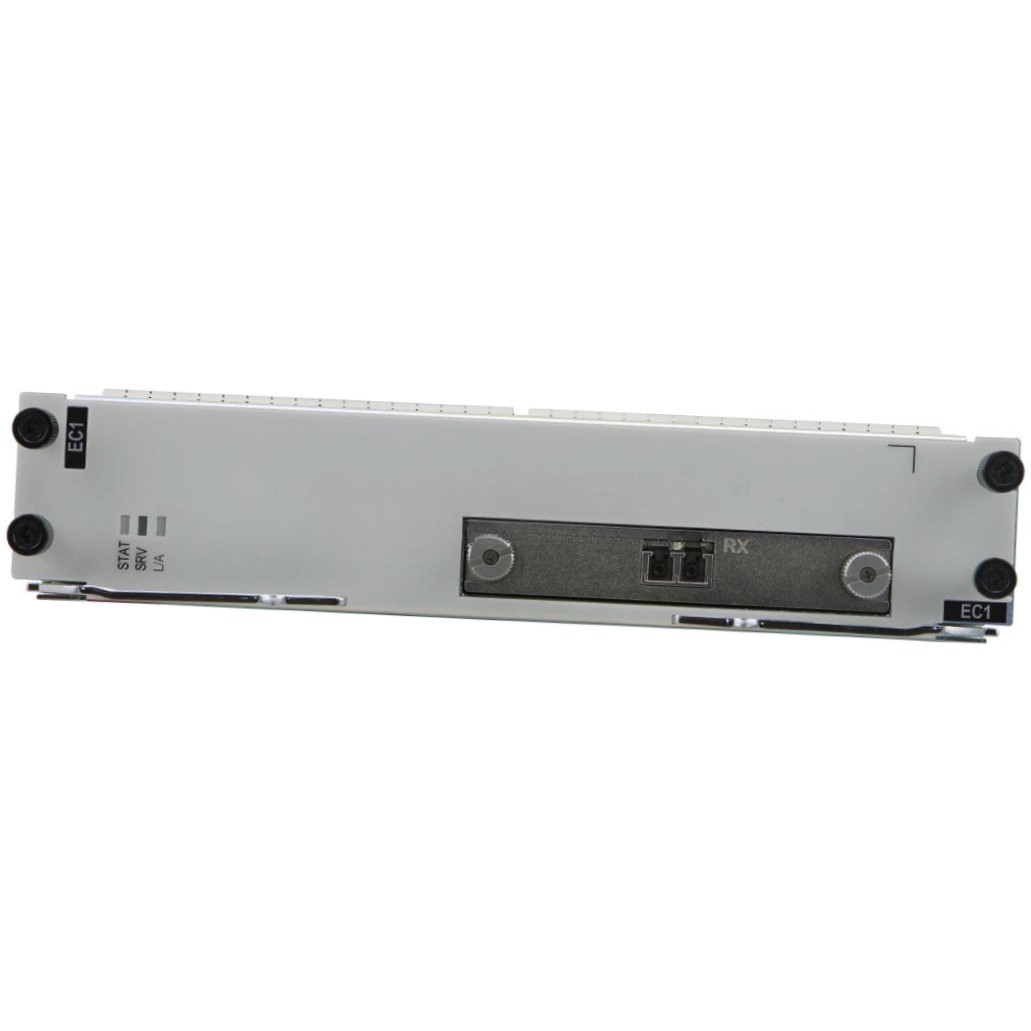

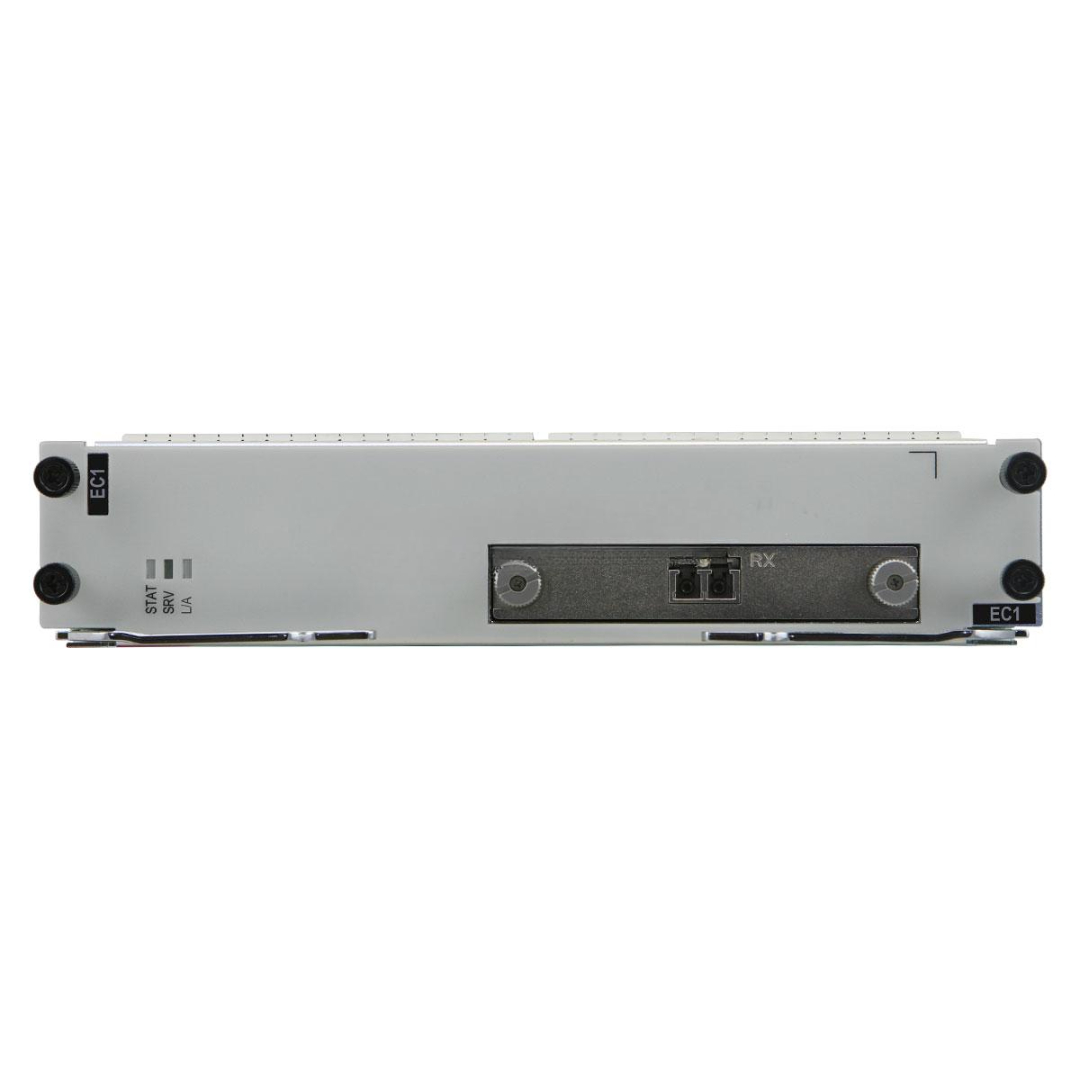

TNZ5EC1 Huawei Brand New 1-port 100GE (CFP) Processing Board
The TNZ5EC1 Huawei 100GE high-speed service processing board designed for ultra-broadband backbone and metro transmission networks. Supporting one 100 Gigabit Ethernet (100GE) interface via CFP optical modules, it enables ultra-fast, reliable service transport over DWDM networks using OTN encapsulation and mapping.
Ideal for use in Huawei OSN series optical transport platforms such as OSN 8800 and OSN 9800, the TNZ5EC1 delivers high-capacity bandwidth, low latency, and robust error correction—making it the optimal solution for next-gen data centers, cloud interconnects, and carrier-grade core transmission.
Key Features
-
Model: TNZ5EC1
-
Port Configuration: 1 x 100GE (CFP optical interface)
-
Mapping Protocol: 100GE → ODU4 → OTU4
-
Service Type: 100 Gigabit Ethernet
-
Application Platform: Huawei OSN 8800 / 9800 series
-
Line Rate: 111.81 Gbps (OTU4 compliant)
-
Client Signal Support: IEEE 802.3ba-compliant 100GE
-
Forward Error Correction: GFEC / SD-FEC supported
-
Hot-Swappable: Yes
Technical Specifications
| Parameter | Details |
|---|---|
| Board Name | TNZ5EC1 |
| Port Quantity | 1 × 100GE CFP slot |
| Interface Type | CFP (hot-pluggable optical module) |
| Client Service | 100GE (100 Gigabit Ethernet) |
| Line Mapping | 100GE → ODU4 → OTU4 |
| Line Rate | ~111.81 Gbps (OTU4 standard) |
| FEC (Forward Error Correction) | SD-FEC / GFEC supported |
| Protocol Standards | IEEE 802.3ba, ITU-T G.709, G.872 |
| Transmission Distance | Depends on CFP module (e.g., LR4, ER4) |
| Power Consumption | < 60W |
| Operating Temperature | -5°C to +45°C |
| Storage Temperature | -40°C to +70°C |
| Installation | Hot-swappable into OSN 8800/9800 chassis |
| Typical Application | Data center interconnect, core network |
| Compliance | RoHS, CE, FCC |
| Warranty | 1–3 Years Manufacturer Warranty |
TNZ5EC1 Huawei Applications
-
Core Backbone Networks – High-speed optical transmission for 100GE core links
-
Data Center Interconnect (DCI) – Efficient bandwidth transport for hyperscale facilities
-
Cloud & ISP Infrastructure – Ultra-reliable transport for cloud services and ISPs
-
Metro Aggregation – High-capacity aggregation of enterprise and residential traffic
-
International/Submarine Hubs – Supports long-haul transmission over DWDM/OTN
Customization & OEM Options
-
Custom CFP Modules – Choose LR4, ER4, ZR, or coherent optics per deployment need
-
Labeling & Branding – Custom faceplate labels or serials on request
-
Special Environment Versions – Rugged/industrial versions available for harsh sites
-
Packaging Options – Bulk or individually packed with shock protection
-
Compatibility Tests – Verified compatibility with legacy or mixed platforms
Wholesale & Global Supply
-
Huawei Original Board – 100% new, factory-sealed, certified from Huawei supply
-
Bulk Inventory – Ideal for operators, integrators, and maintenance reserves
-
Global Shipping – Fast delivery with international compliance documentation
-
Discounted Pricing – Competitive rates for volume purchases
-
Full Support – Technical guidance for setup, configuration, and replacement
Why Choose the TNZ5EC1 Huawei
-
Carrier-Grade Reliability – Optimized for high-availability core networks
-
Flexible CFP Interface – Supports various 100GE transceiver types
-
Future-Ready Design – Compliant with OTN and 100GE standards
-
Easy Integration – Seamless deployment in Huawei OSN 8800 / 9800 series
-
Global Compatibility – Suited for both metro and long-haul scenarios
Contact us today to request a quote, technical datasheet, or compatibility consultation for the Huawei TNZ5EC1 100GE Processing Board — your trusted solution for high-speed optical backbone transformation.
