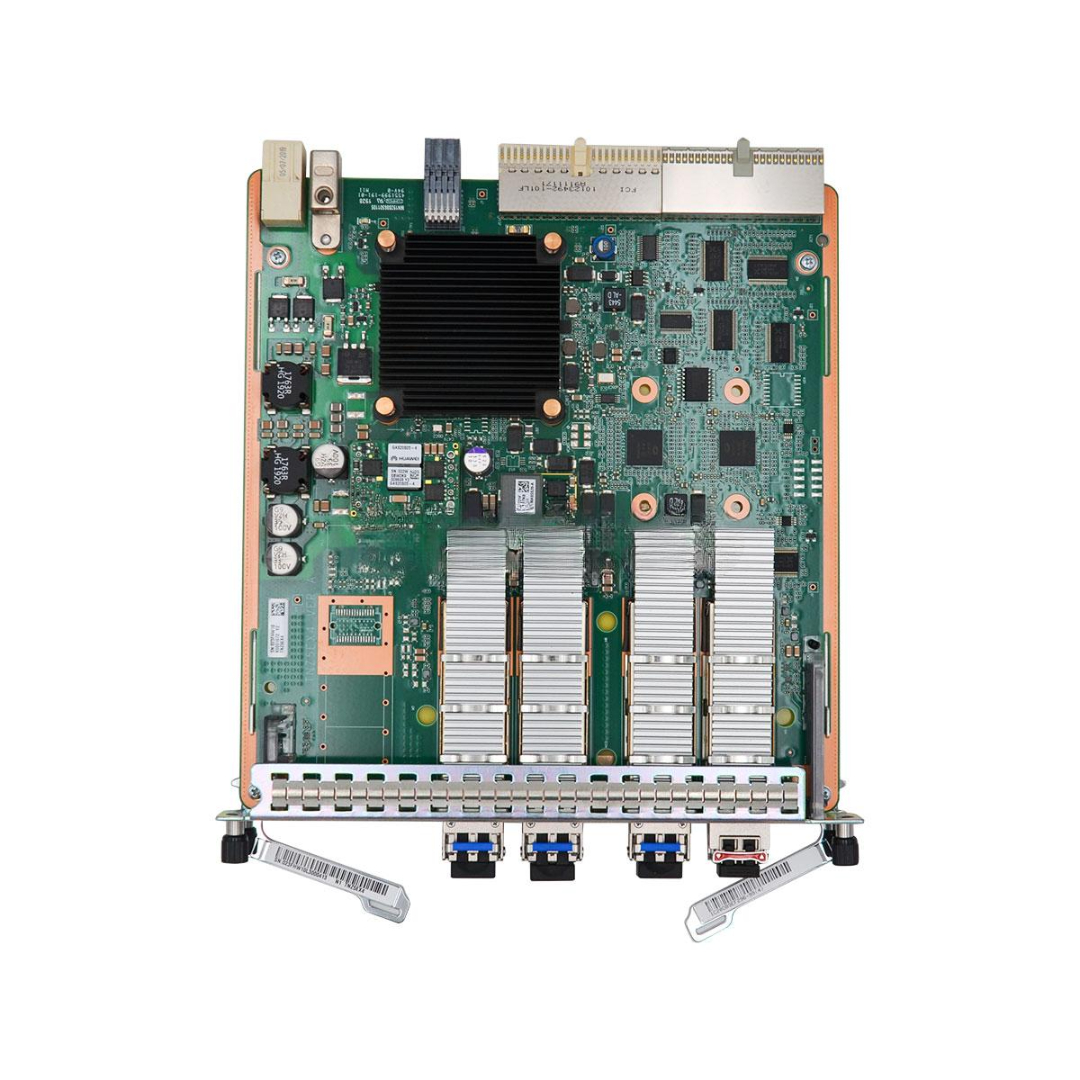

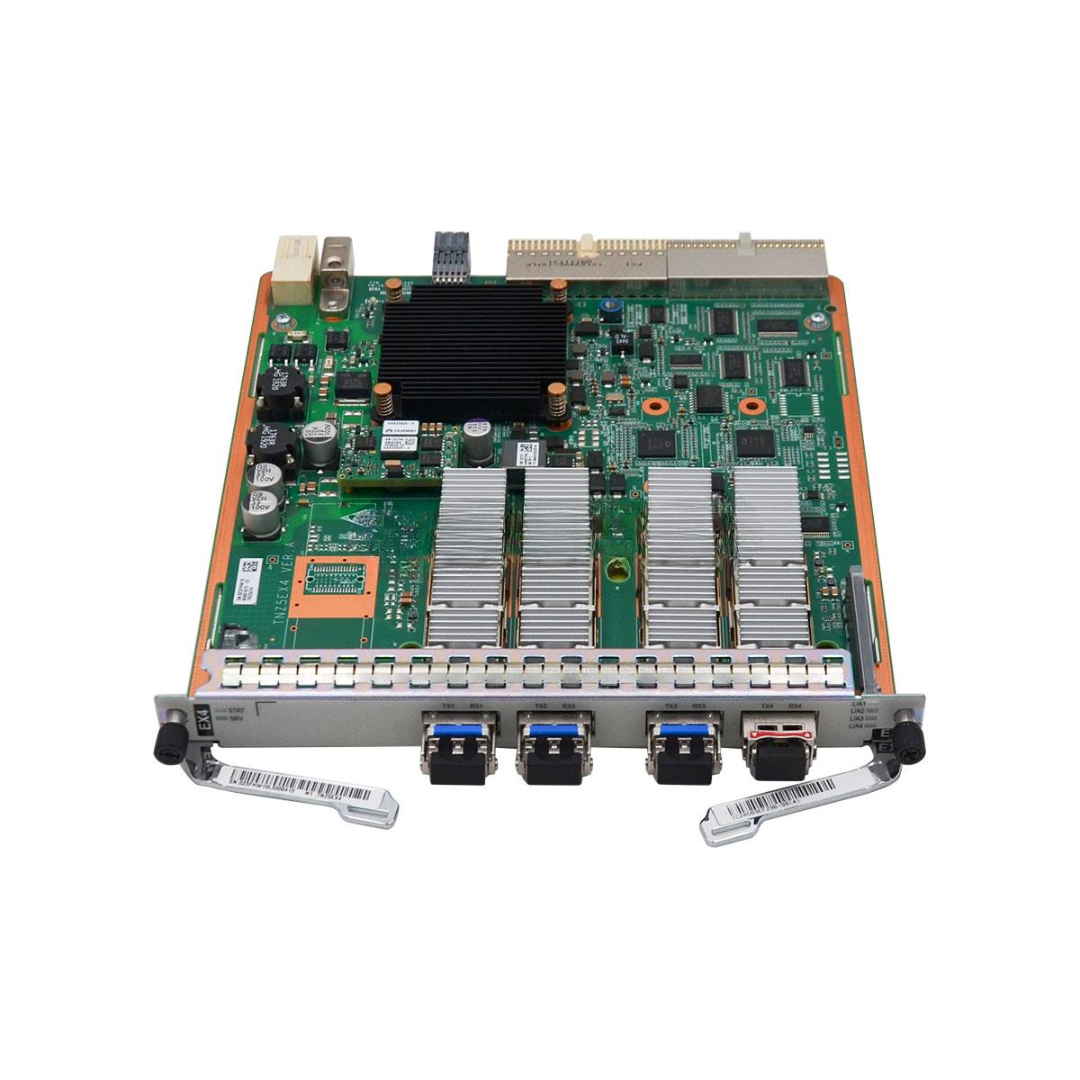

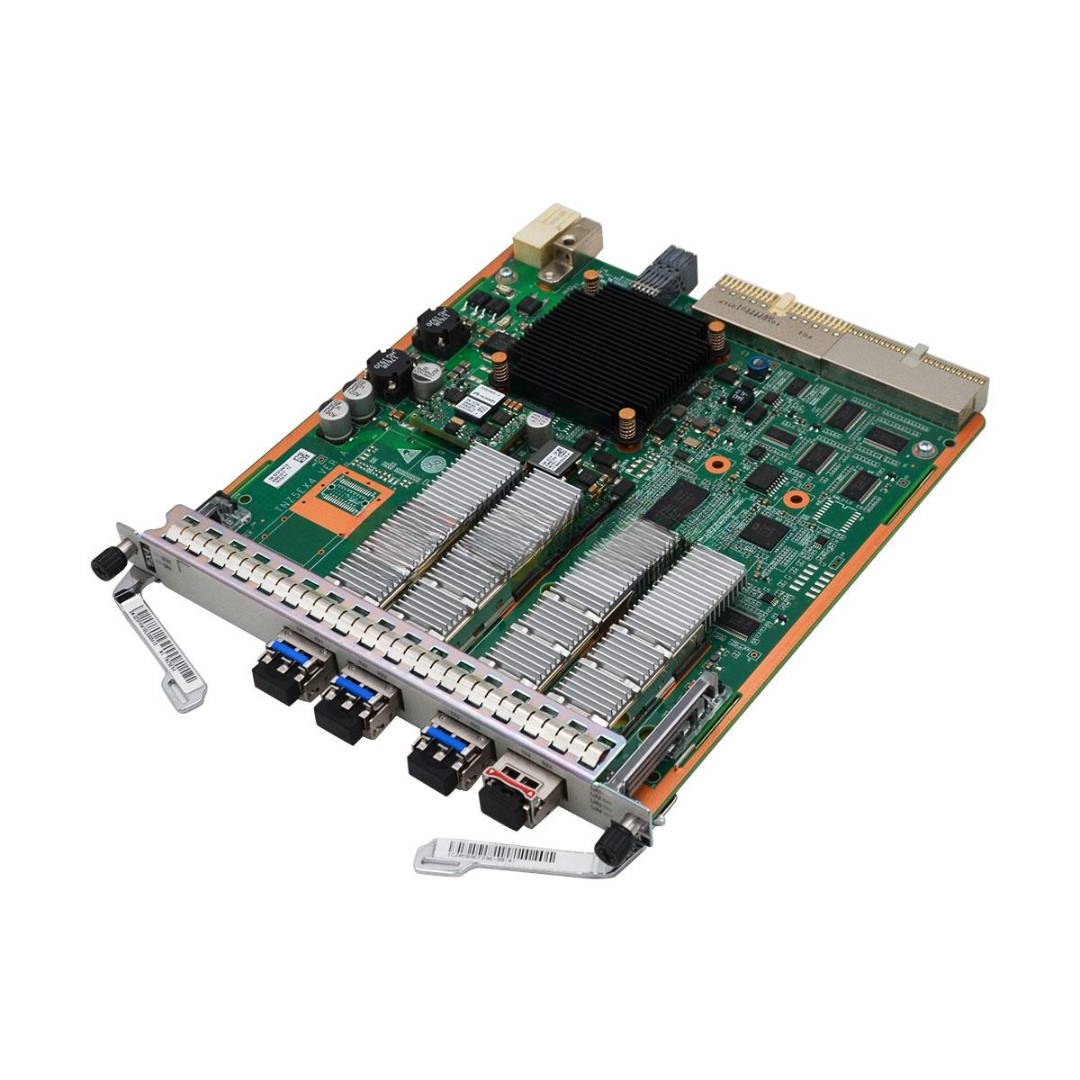

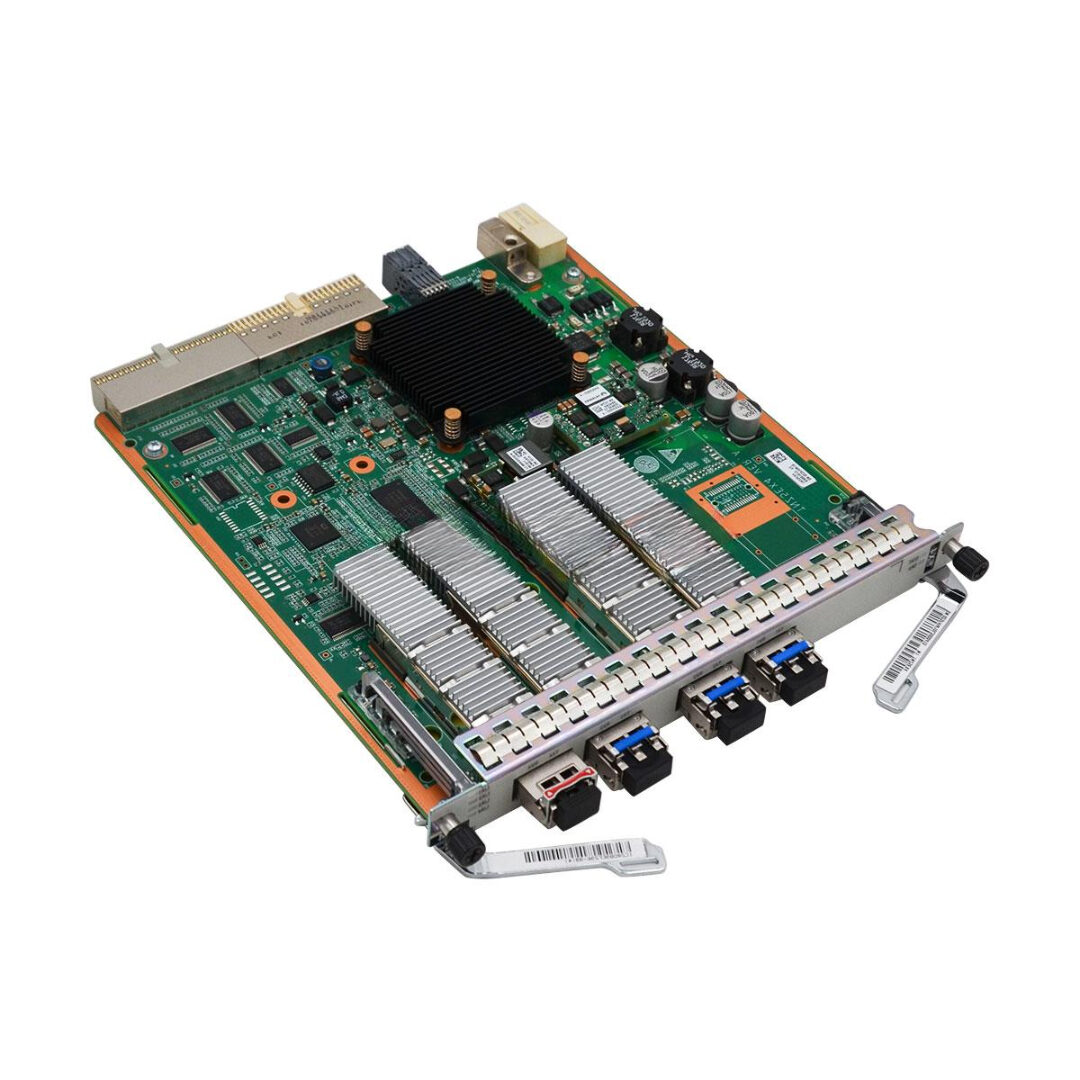

TNZ5EX4 Huawei Brand New 4-port 10GE (XFP) Processing Board
The TNZ5EX4 Huawei is a high-performance 4-port 10GE XFP service processing board, engineered for Huawei’s OSN series optical transport platforms (such as OSN 8800 and OSN 9800). It delivers high-capacity, low-latency 10G Ethernet transmission over optical networks using OTN mapping for reliable transport and efficient bandwidth utilization.
Supporting four 10 Gigabit Ethernet (10GE) client-side interfaces via hot-pluggable XFP modules, the TNZ5EX4 is optimized for carrier-grade service aggregation, metro access, and data center interconnect applications.
Key Features
-
Model: TNZ5EX4
-
Port Configuration: 4 x 10GE (XFP optical interfaces)
-
Service Mapping: 10GE → ODU2e → OTU2e
-
Data Rate: 10.7 Gbps per port
-
Form Factor: Universal service slot for OSN 8800/9800
-
FEC Support: SD-FEC/GFEC enabled
-

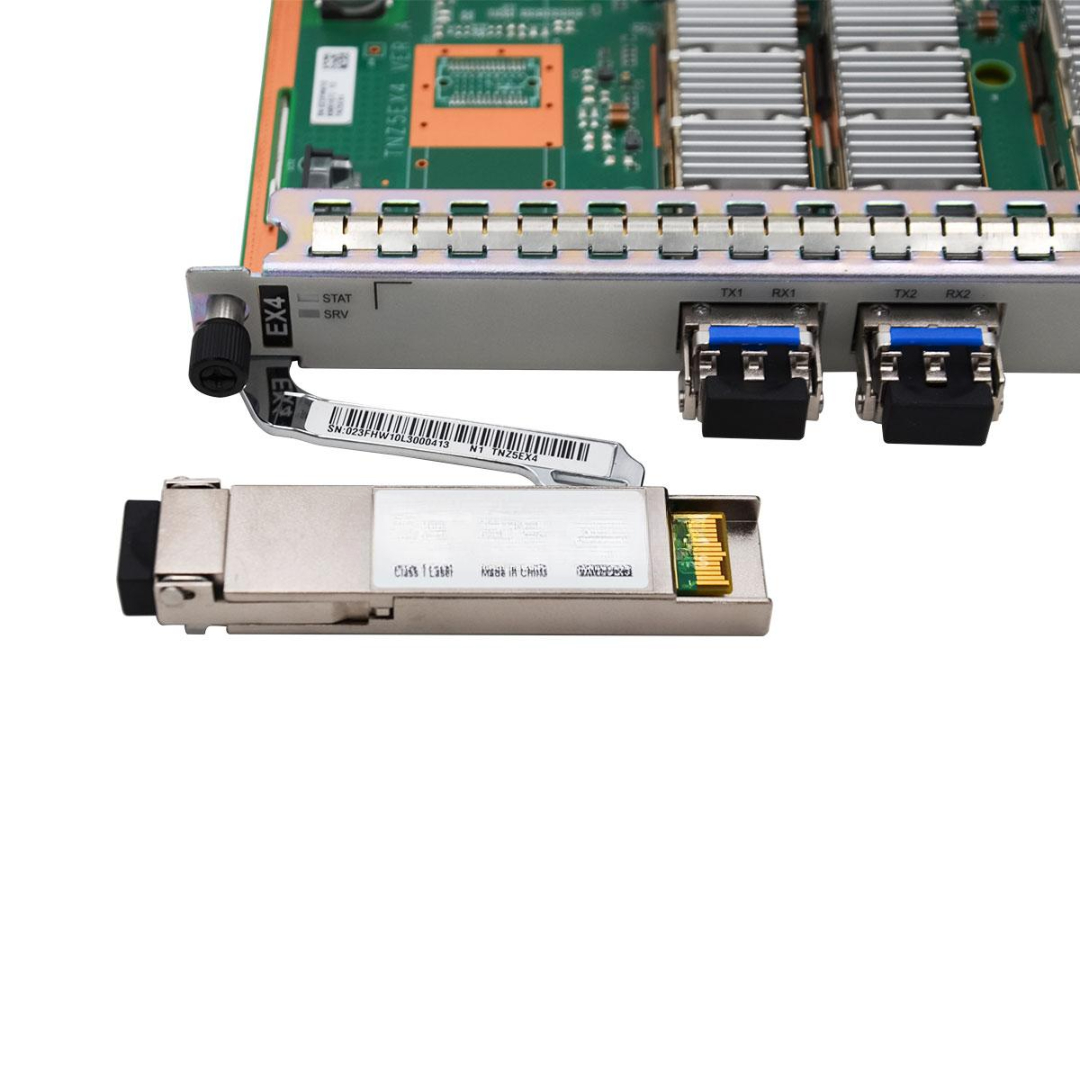

Plug-and-Play: Hot-swappable XFP transceiver support
-
Control Plane: Integrated with NMS for fault/performance management
Technical Specifications
| Parameter | Details |
|---|---|
| Board Name | TNZ5EX4 |
| Client Interfaces | 4 x 10GE (XFP) |
| Interface Type | XFP (hot-pluggable) |
| Line Mapping | 10GE → ODU2e → OTU2e |
| Client Signal Support | IEEE 802.3ae (10GBASE-R) |
| Line Rate | ~11.1 Gbps (OTU2e standard) |
| Forward Error Correction | GFEC / SD-FEC |
| Supported Modules | 10G XFP LR, ER, ZR, DWDM (WDM ready) |
| Transmission Distance | Dependent on XFP type (up to 80 km or more) |
| Power Consumption | < 60W |
| Operating Temp | -5°C to +45°C |
| Storage Temp | -40°C to +70°C |
| Network Management | U2000 NMS, SNMP, CLI |
| Compliance | IEEE 802.3ae, ITU-T G.709, RoHS |
| Warranty | 1–3 Years Manufacturer Warranty |
TNZ5EX4 Huawei Applications
-
10G Metro Access — Aggregates 10G Ethernet traffic from edge nodes
-
Carrier Ethernet Networks — Scalable backbone for business services
-
Data Center Interconnect (DCI) — Medium-distance cloud and enterprise links
-
OTN Backhaul — Cost-effective transport over DWDM/OTN networks
-
Multiservice Platforms — Deployable in unified IP + OTN infrastructure
Customization & OEM Options
-
XFP Selection — Choose LR, ER, ZR, DWDM optics per site requirements
-
Labeling & Branding — Custom labels or branding for project integration
-
Temperature-Hardened Versions — Rugged models available for outdoor/harsh deployments
-
Bulk Packaging — Cost-efficient trays or padded retail boxes
-
Extended Compliance — Region-specific certifications on request
TNZ5EX4 Huawei Wholesale & Global Supply Info
-
Huawei Original Product — Factory-new and sealed from Huawei
-
In-Stock & Ready to Ship — Rapid delivery for urgent network rollouts
-
Bulk Supply Support — Scalable for carriers, integrators, and ISPs
-
Global Export Service — Documentation for CE, RoHS, FCC, and customs clearance
-
Volume Discounts — Competitive pricing for large orders
-
Technical Support — Setup and compatibility assistance available
Why Choose the TNZ5EX4 Huawei
-
High-Density 10GE — Four 10GE interfaces on one compact board
-
Flexible Optics Support — Works with all standard 10G XFP modules
-
OTN-Ready — Seamless mapping to ODU2e/OTU2e for backbone transport
-
Plug-and-Play Design — Hot-swappable, carrier-grade reliability
-
Huawei Platform Compatibility — Designed for OSN 8800 and OSN 9800 systems
Get in Touch Today to request technical datasheets, price quotes, or integration consultation for the Huawei TNZ5EX4 4-port 10GE Processing Board — ideal for building scalable, high-performance optical networks.
