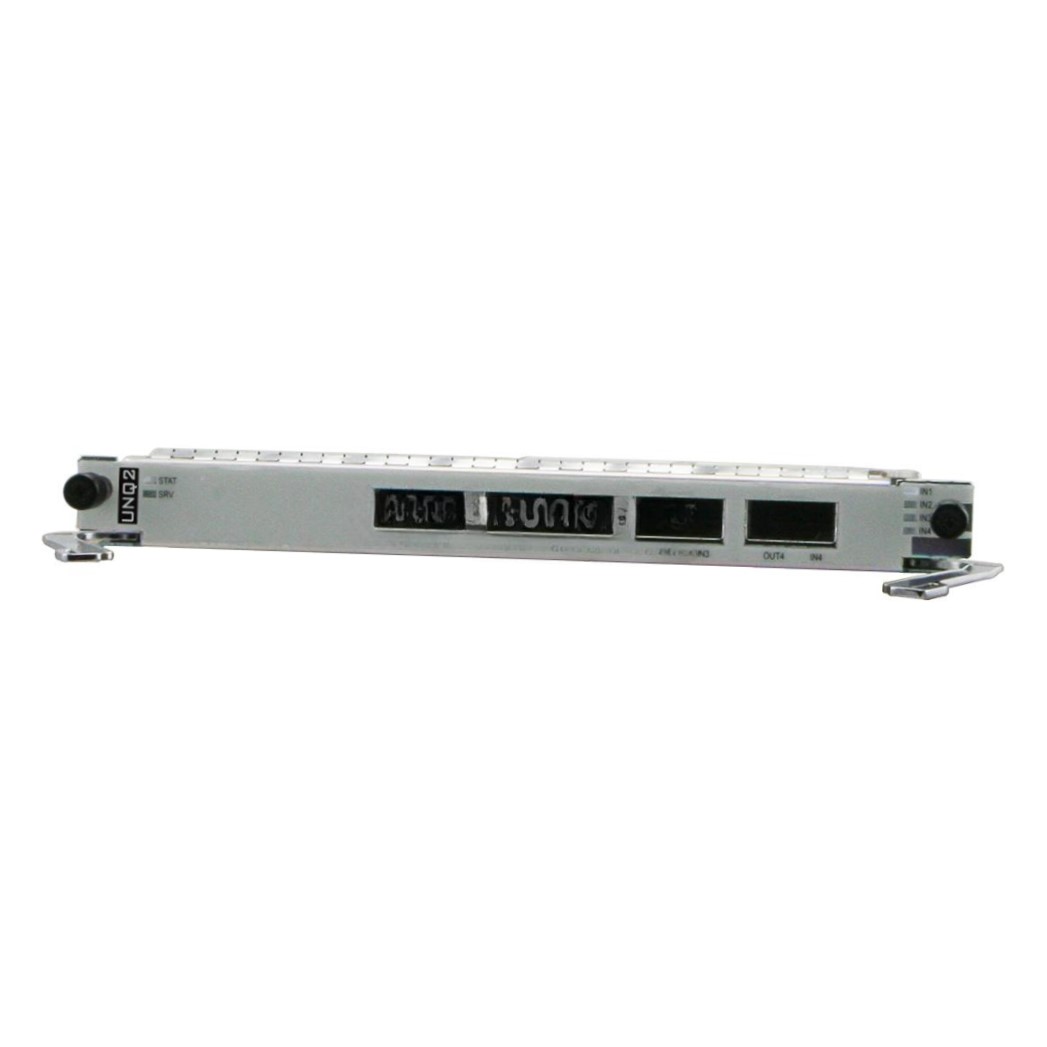

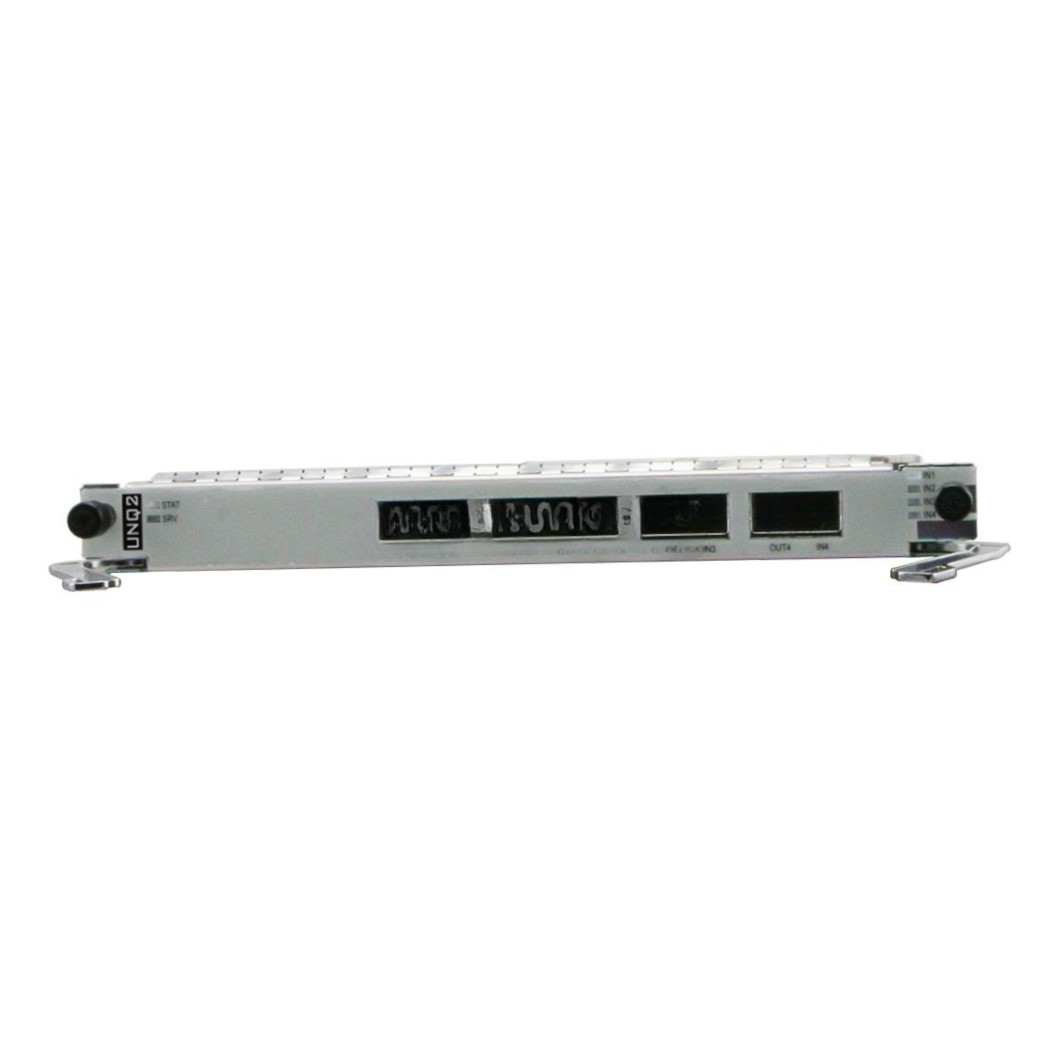

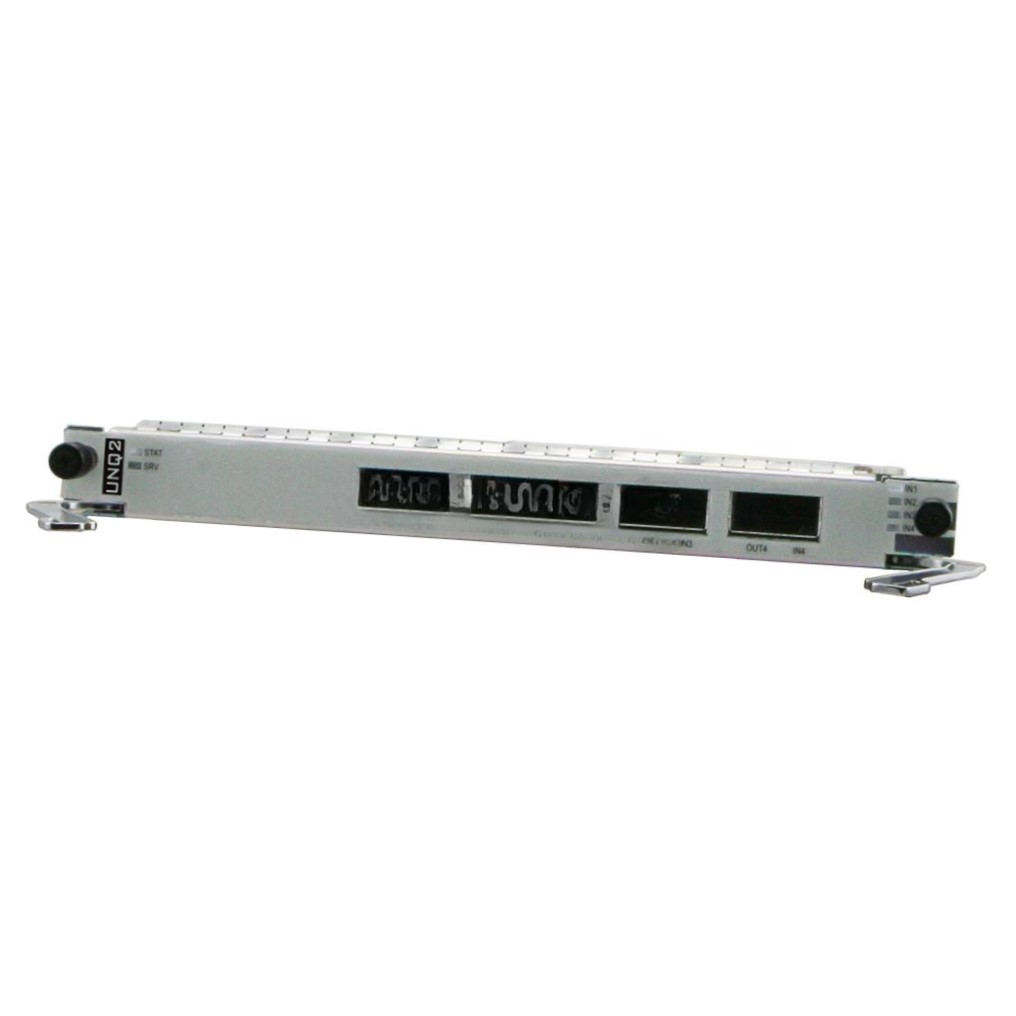

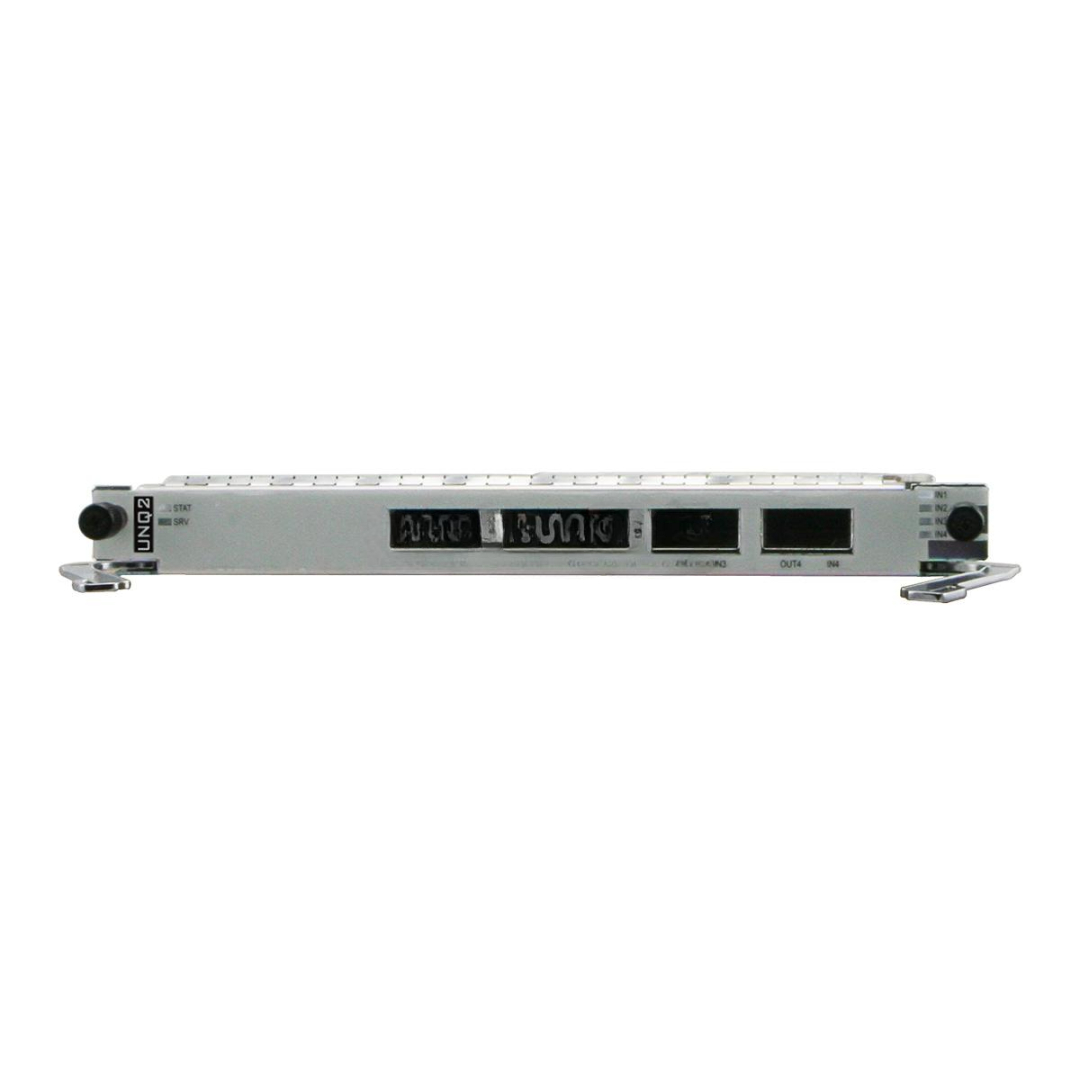

TNZ5UNQ2 Huawei Brand New Universal Line Processing Board
The TNZ5UNQ2 Huawei high-performance universal line processing board designed for use in OptiX OSN 9800 series optical transport platforms. This board delivers multi-service adaptation and high-capacity switching, supporting 100GE/OTU4 signals and enabling seamless transmission across next-generation OTN (Optical Transport Network) infrastructures.
Equipped with advanced SD-FEC and multi-rate client adaptation, the TNZ5UNQ2 is optimized for carrier-grade backbone, metro aggregation, and cloud data interconnection scenarios. It supports mapping of 100GE client signals to ODU4, enabling efficient bandwidth management and flexible optical networking.
Key Features
-
Model: TNZ5UNQ2
-
Type: Universal Line Service Processing Board
-
Client Service Support: 100GE, OTU4
-
Mapping Capabilities: 100GE/OTU4 → ODU4
-
FEC Support: SD-FEC/Beyond FEC
-
Switch Fabric Interconnection: Fully compatible with cross-connect matrix
-
Pluggable Optics: CFP/CFP2 module compatible
-
Hot-Pluggable: Designed for live system maintenance
-
Standard Compliance: IEEE 802.3ba, ITU-T G.709, G.798
Technical Specifications
| Parameter | Details |
|---|---|
| Board Model | TNZ5UNQ2 |
| Service Interface | 100GE/OTU4 |
| Client Signal Adaptation | 100GE → ODU4 or OTU4 |
| Line Rate | 112 Gbps (OTU4 standard rate) |
| Pluggable Module Support | CFP / CFP2 optical modules |
| FEC Type | SD-FEC or Beyond FEC |
| Laser Type | Dependent on module (e.g., LR4, ER4, coherent) |
| Cross-Connect Support | Yes, with Huawei OSN9800 switching fabric |
| Management | U2000, SNMP, CLI |
| Operating Temperature | -5°C to +45°C |
| Storage Temperature | -40°C to +70°C |
| Power Consumption | < 90W (typical) |
| Compliance | ITU-T G.709, G.798, IEEE 802.3ba, RoHS |
| Hot-Swappable | Yes |
| Warranty | 1–3 Years Huawei OEM Warranty |
TNZ5UNQ2 Huawei Applications
-
Core Network Transport — High-speed 100G traffic aggregation and long-haul transmission
-
Metro Optical Backbone — Flexible OTN service delivery and grooming
-
Data Center Interconnect (DCI) — High-bandwidth cloud and enterprise data transmission
-
5G and IP Backhaul — OTN-based transport for mobile and IP networks
-
Service Provider Networks — Universal board for multi-protocol adaptation and convergence
Customization & OEM Options
-
Brand Labeling: Custom branding and serial ID options available
-
Optical Modules: Compatible with various CFP/CFP2 100G optics (LR4, ZR, coherent)
-
Compliance Docs: Country-specific CE, FCC, RoHS, etc. upon request
-
Environmental Versions: Industrial temp ranges available for harsh environments
-
Firmware Tuning: Tailored performance settings and pre-configured provisioning
-
Bulk Packaging: Available in standard trays or customized boxed kits
Wholesale & Global Supply Info
-
Huawei OEM Quality: 100% Original, brand new from certified supply chain
-
Global Shipping: Fast worldwide delivery with customs-compliant packaging
-
Inventory Readiness: Bulk stock available for large-scale deployments
-
Project Pricing: Volume discounts for integrators and telecom operators
-
Technical Documentation: Full user guides, MIBs, and configuration templates
-
Professional Support: Compatibility and integration consultation available
Why Choose the TNZ5UNQ2 Huawei
-
Flexible Client Services — Supports both 100GE and OTU4 service interfaces
-
OTN Core Compatibility — Designed for Huawei OSN9800 cross-connect environments
-
Future-Ready Architecture — Ideal for evolving service types and protocols
-
Hot-Pluggable & Reliable — Supports quick replacements without downtime
-
Carrier-Class Design — High availability, redundancy, and field-tested robustness
Get in Touch Now for pricing, project quotations, and detailed technical datasheets on the Huawei TNZ5UNQ2 Universal Line Processing Board — designed for next-generation optical transport networks.
