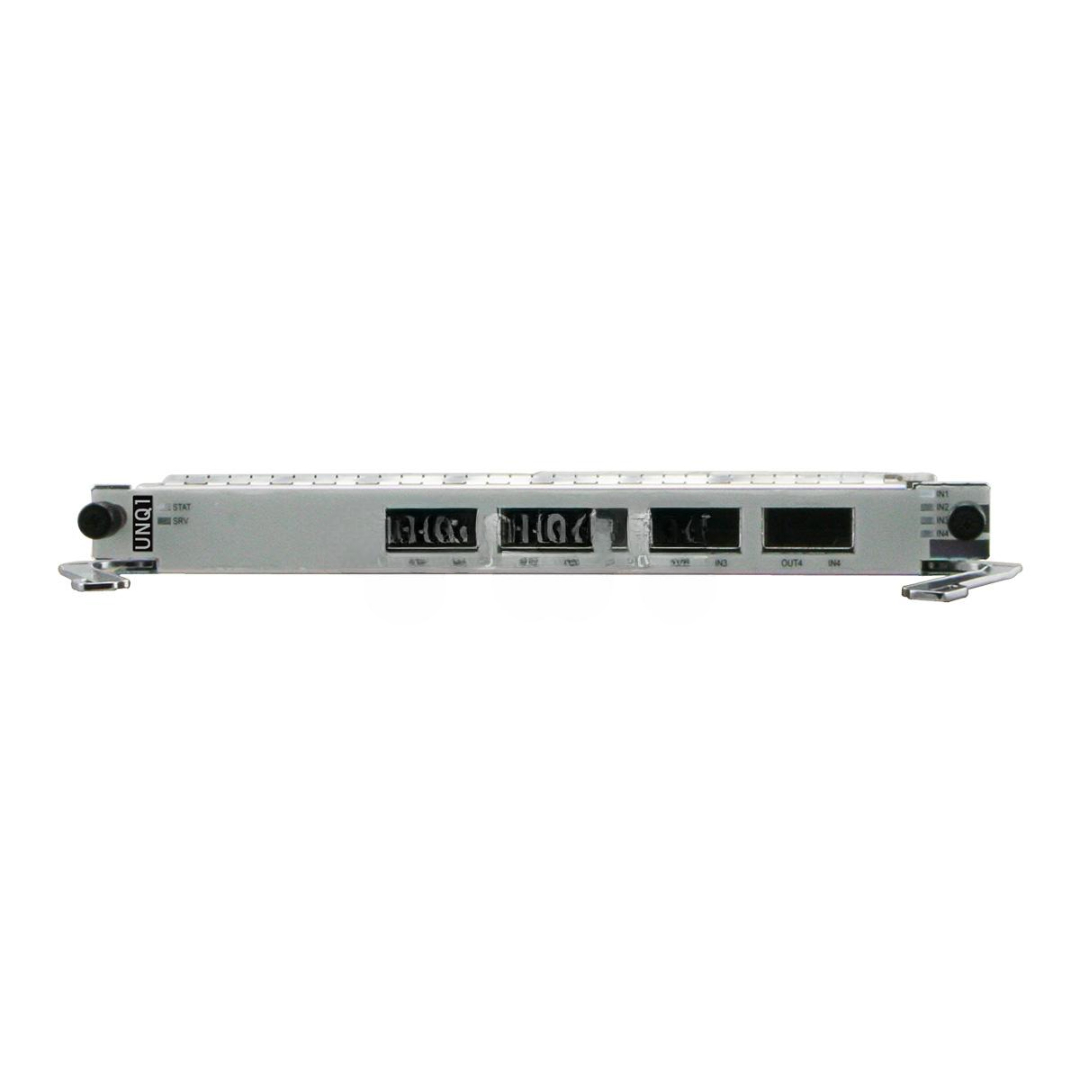

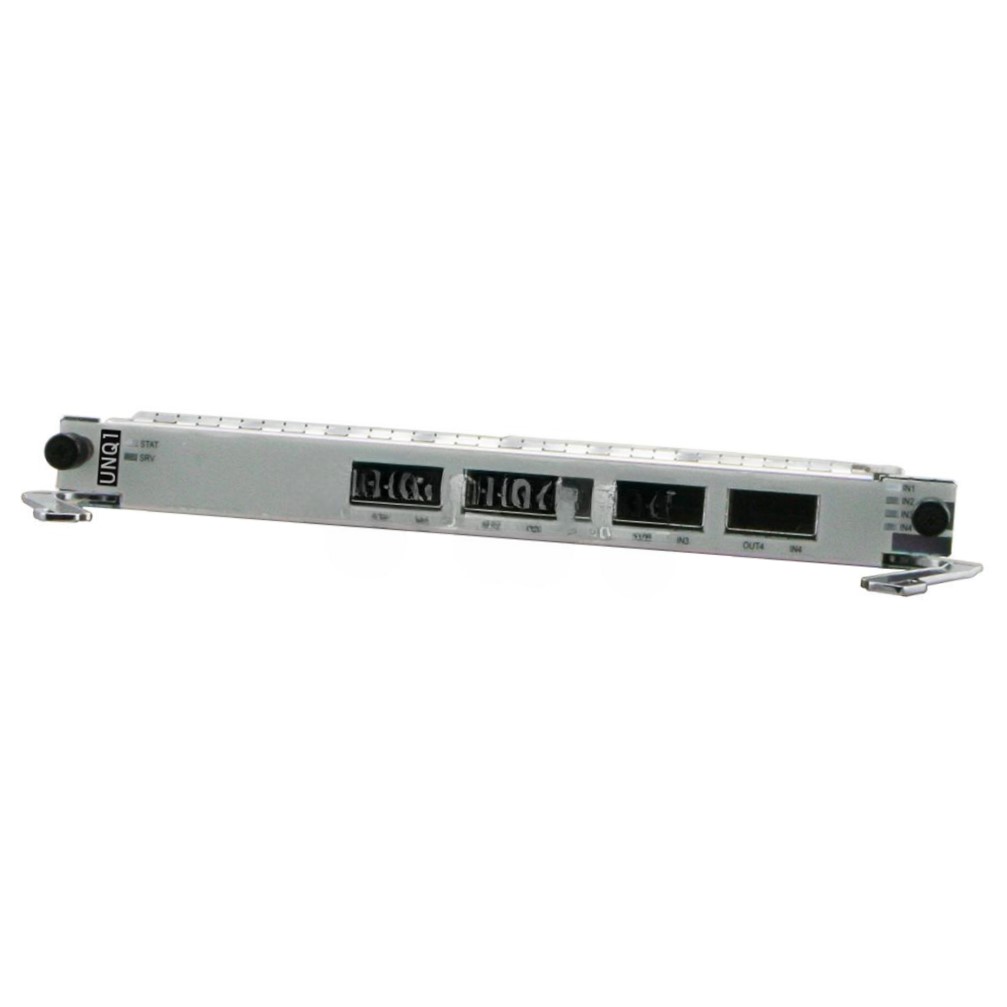

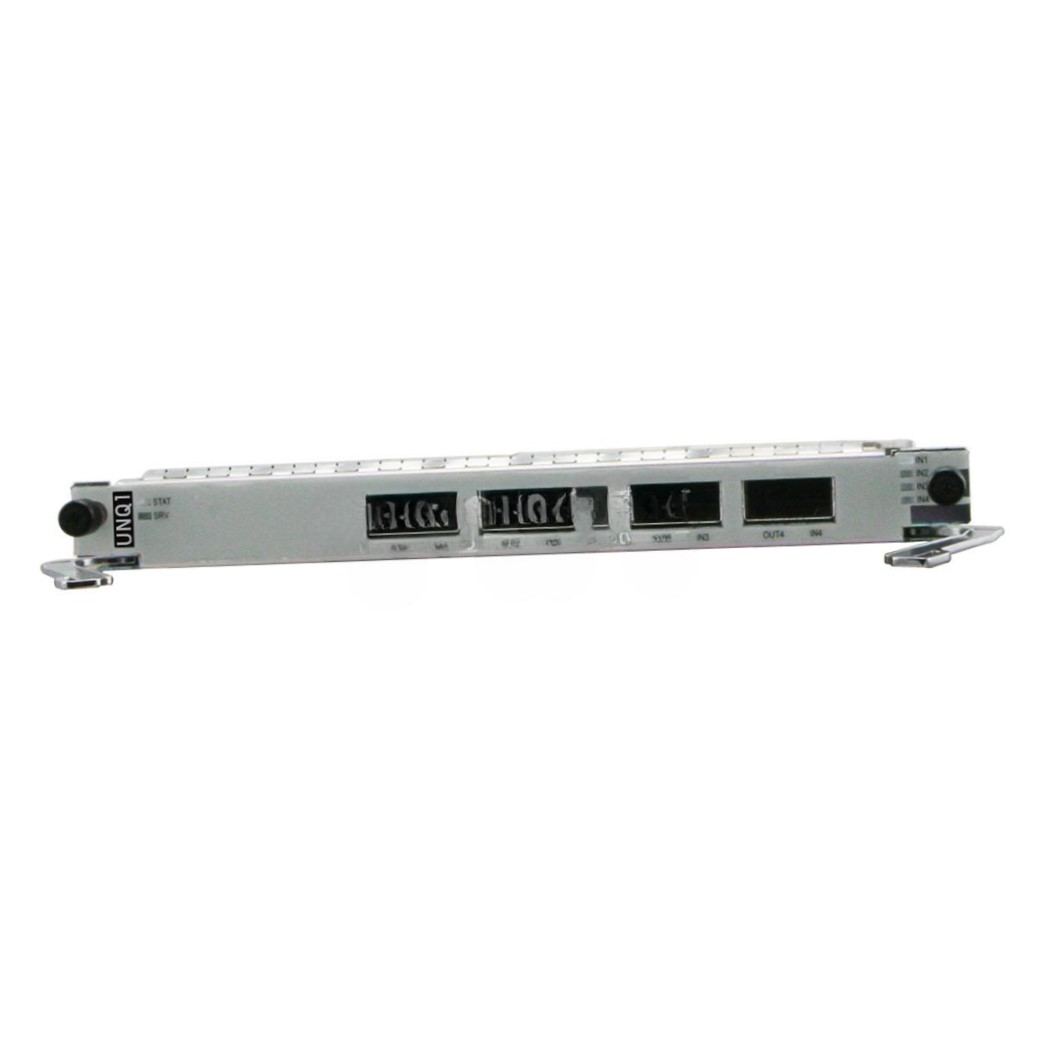

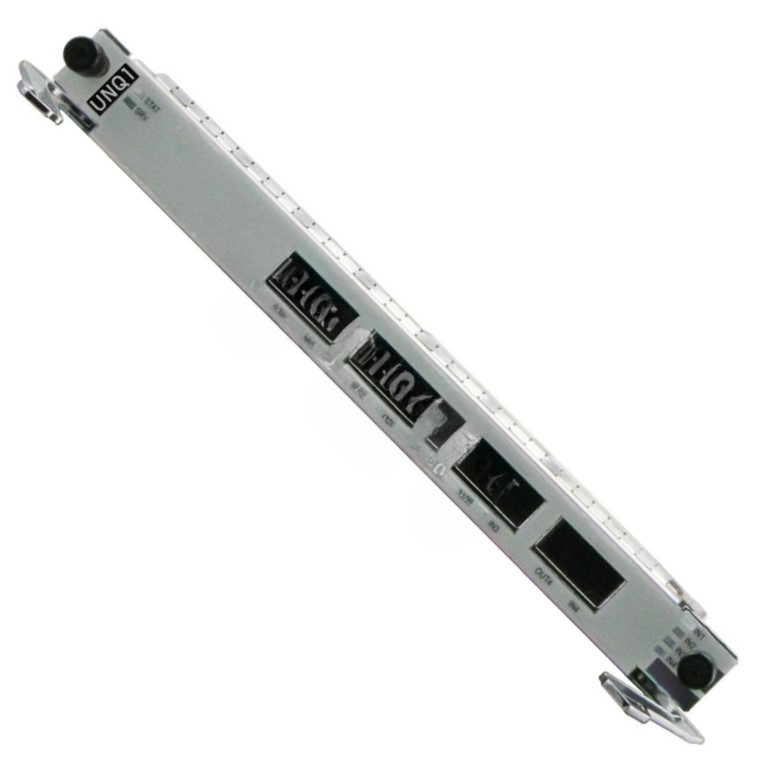

TNZ6UNQ1 Huawei Brand New Universal Line Processing Board
The TNZ6UNQ1 Huawei is a next-generation universal line processing board designed for the OptiX OSN 9800 series. Engineered to deliver high-speed, large-capacity service transport, it supports 100GE, OTU4, and ODU4 services, enabling seamless convergence and switching in ultra-broadband optical transport networks.
As a core component in Huawei’s OTN architecture, the TNZ6UNQ1 leverages advanced SD-FEC technology, supports client signal adaptation, and enables transparent signal mapping to OTN channels. This board ensures carrier-grade performance, high flexibility, and smooth evolution toward 100G/200G/400G transport layers.
Key Features
-
Model: TNZ6UNQ1
-
Function: Universal line processing for high-speed client signals
-
Client Services Supported: 100GE, OTU4
-
OTN Mapping: 100GE/OTU4 → ODU4
-
FEC: Supports SD-FEC and Beyond FEC
-
Compatible Subrack: OptiX OSN 9800 series
-
Pluggable Module Interface: CFP/CFP2 (depending on optical module type)
-
Hot-Pluggable: Yes
-
Compliance: IEEE 802.3ba, ITU-T G.709, G.798, RoHS
Technical Specifications
| Parameter | Details |
|---|---|
| Board Model | TNZ6UNQ1 |
| Service Types | 100GE, OTU4 |
| Line Mapping | 100GE or OTU4 to ODU4 |
| Switching Capability | Compatible with Huawei OTN cross-connect matrix |
| Pluggable Optics | CFP/CFP2 Optical Modules (based on application) |
| Forward Error Correction | SD-FEC / Enhanced FEC |
| Laser Type | Dependent on optical module (e.g., LR4, ZR, coherent) |
| Power Supply | From OSN9800 system chassis |
| Power Consumption | ≤ 90W (Typical) |
| Operating Temperature | -5°C to +45°C |
| Storage Temperature | -40°C to +70°C |
| Management Interface | CLI, SNMP, Huawei U2000 NMS |
| Hot-Swappable | Supported |
| Standard Compliance | ITU-T G.709, G.798, IEEE 802.3ba, RoHS |
| Warranty | 1–3 Years Huawei OEM Warranty |
TNZ6UNQ1 Huawei Applications
-
Carrier Networks — Long-haul transport and metro aggregation for 100G services
-
DCI (Data Center Interconnect) — High-speed optical connectivity between data centers
-
Enterprise Backbones — Mission-critical network infrastructure with OTN transparency
-
Cloud Networking — Cloud access and core backbone interconnects
-
5G Transport — High-capacity backhaul for 5G traffic delivery
-
SDN/NFV Environments — Integration into programmable network architectures
Customization & OEM Options
-
Brand Personalization: Your logo and serial number laser-engraved
-
Module Compatibility: Works with Huawei or third-party CFP/CFP2 optics
-
Compliance Certificates: CE, FCC, RoHS available on request
-
Industrial-Temp Versions: Extended range variants available for harsh conditions
-
Packaging: Bulk or retail packaging, depending on logistics needs
-
Pre-Configuration Services: Boards can be shipped with pre-loaded firmware
Wholesale & Global Supply Information
-
100% Original Huawei OEM: Factory-sealed and authenticity guaranteed
-
Bulk Availability: In-stock for urgent deployments and data center rollouts
-
Fast Global Delivery: Priority shipping with customs-friendly packaging
-
Project Pricing: Attractive tiered discounts for large-volume purchases
-
Comprehensive Support: Documentation, technical guides, and live consultation
Why Choose TNZ6UNQ1 Huawei
Future-Proof 100GE/OTU4 Support — Designed for high-speed optical networking
Flexible Signal Adaptation — Compatible with major client protocols
Advanced FEC Technology — Ensures signal integrity over long distances
Universal Compatibility — Works within Huawei’s flagship OSN9800 platform
Efficient Power Design — Reliable operation with low energy consumption
Field-Proven OEM Quality — Backed by Huawei’s carrier-class standards
Contact Us Today for pricing, inventory availability, and technical datasheets for the Huawei TNZ6UNQ1 Universal Line Processing Board — perfect for next-gen optical transport applications.
