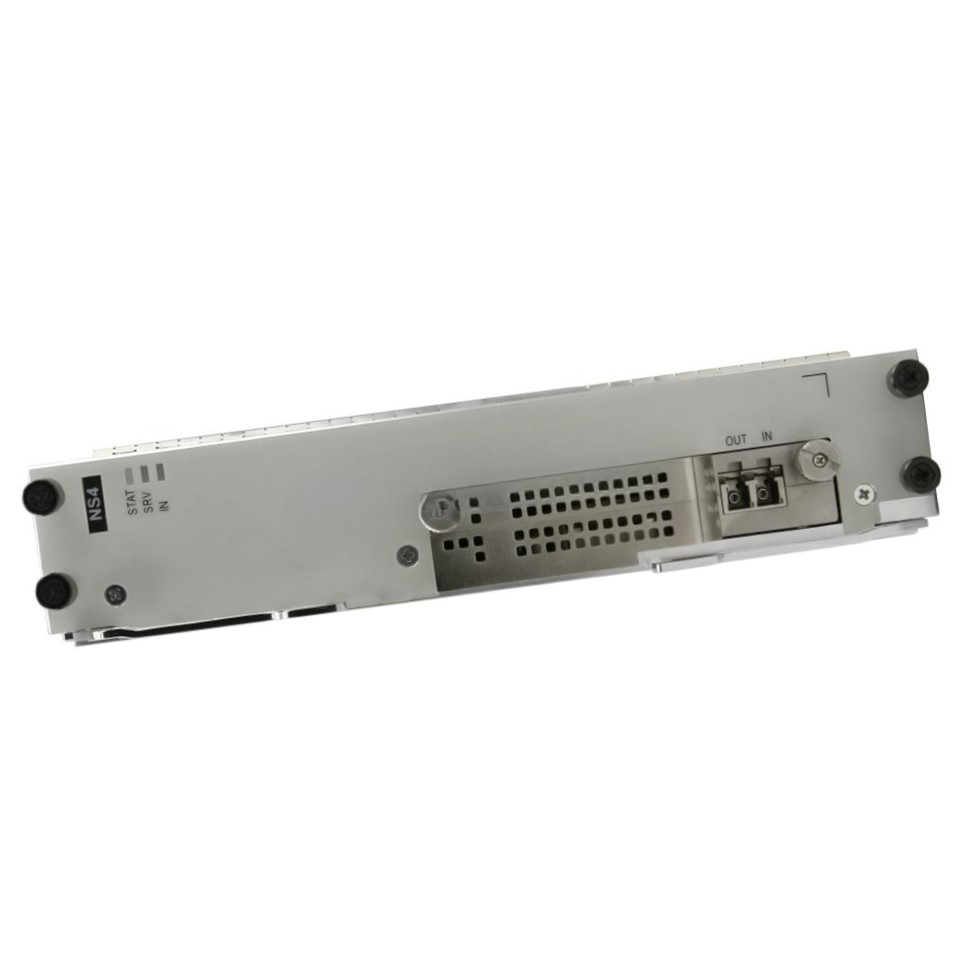

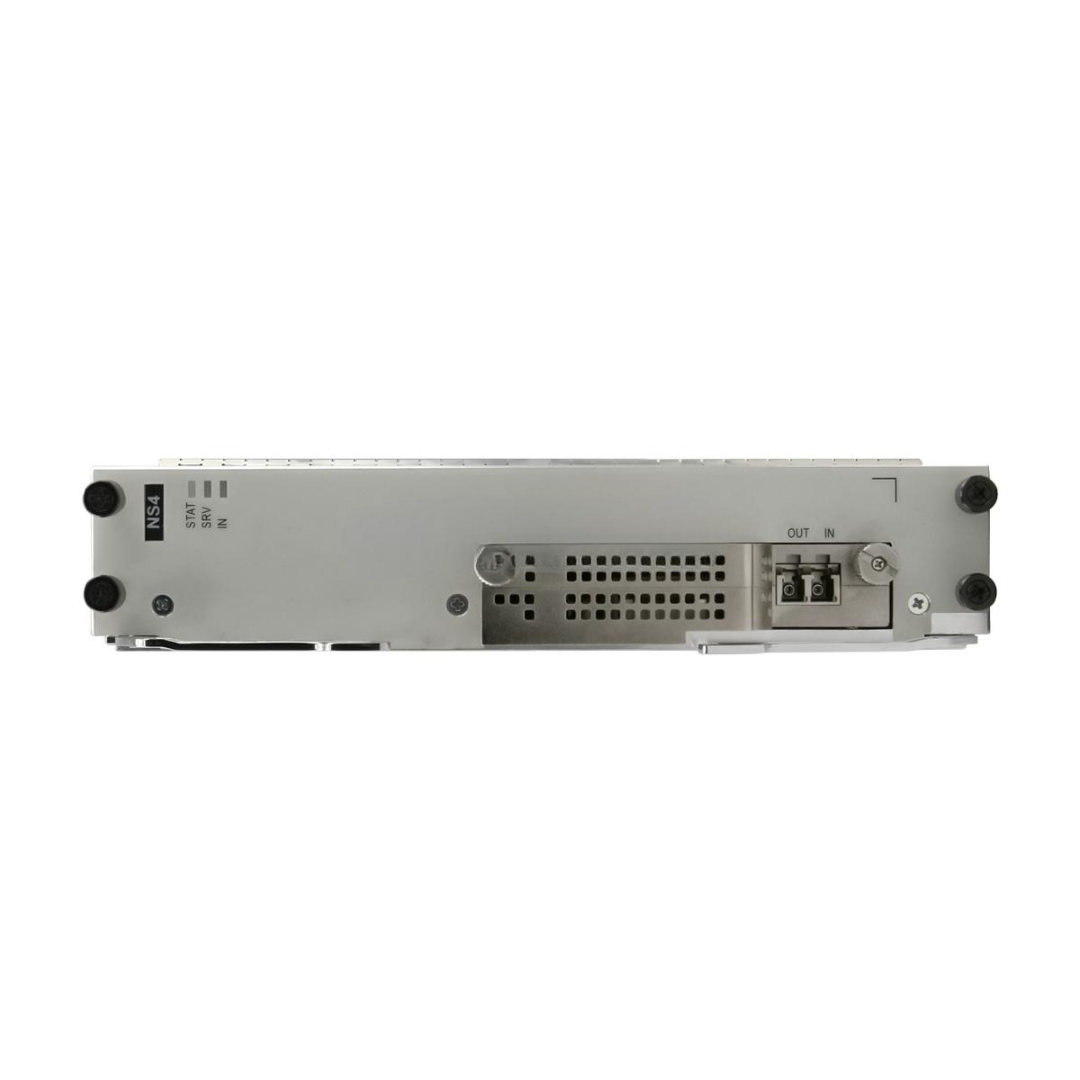

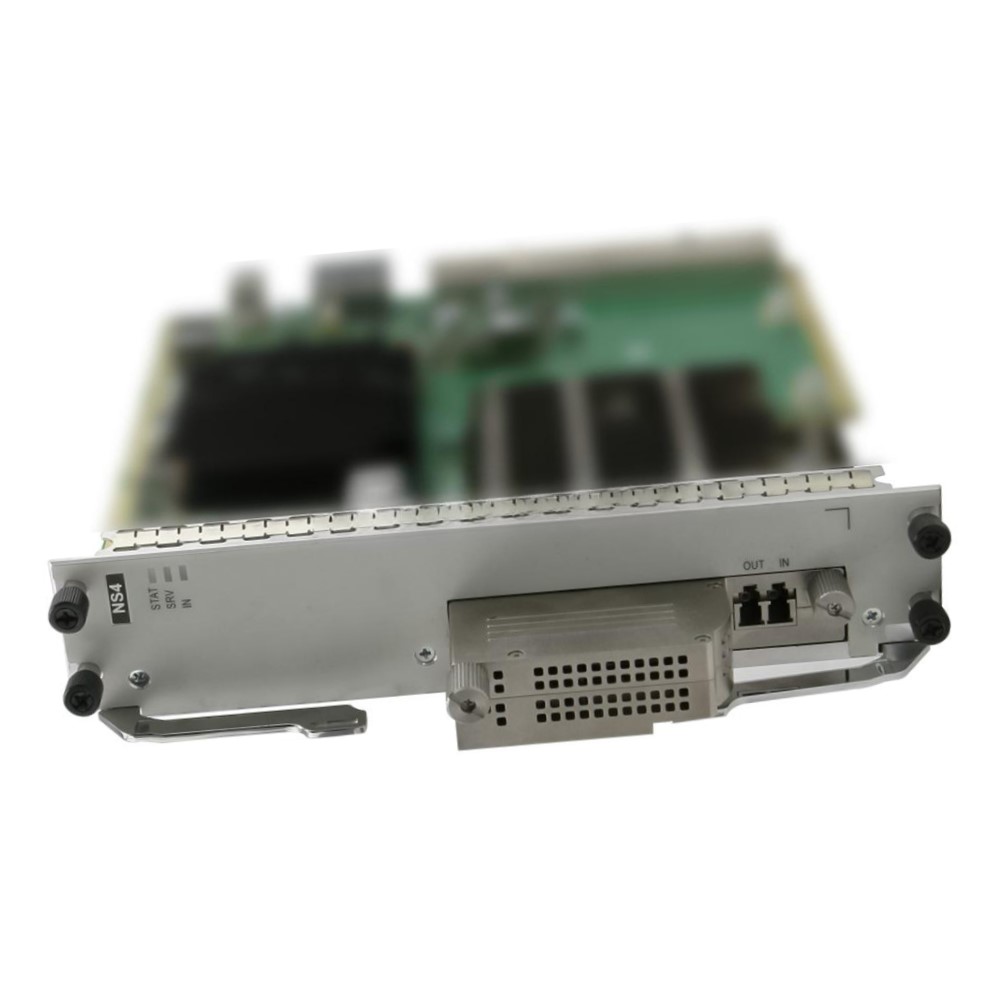

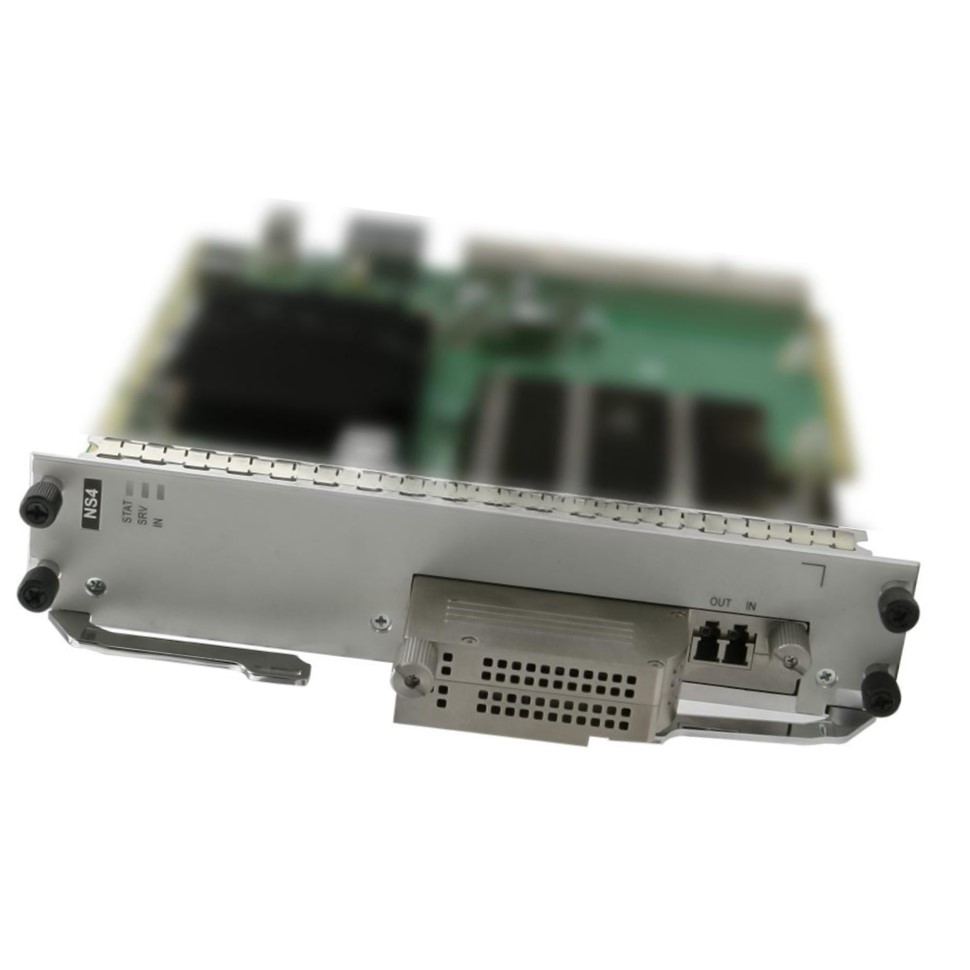

TNZ8NS4 Huawei Brand New Universal Line Processing Board
The TNZ8NS4 Huawei is a high-performance Universal Line Processing Board designed for the next-generation Huawei OSN 9800 and OptiXtrans E series optical transport platforms. It provides four client-side 100GE interfaces and supports flexible service adaptation for 100GE, OTU4, and ODU4 over OTN (Optical Transport Network).
With advanced SD-FEC (Soft-Decision Forward Error Correction) and high-density port architecture, the TNZ8NS4 enables high-capacity, long-haul, and ultra-reliable optical transmission. It supports multiplexing, switching, and grooming functions, making it ideal for metro, backbone, and cloud-oriented transport networks.
Key Features
-
Model: TNZ8NS4
-
Condition: 100% Brand New, Original Huawei OEM
-
Client Interfaces: 4 × 100GE/OTU4
-
Transmission Rate: Up to 400 Gbps
-
FEC Technology: SD-FEC, B-FEC
-
Supported Services: 100GE, OTU4, ODU4
-
Line Encoding: G.709-compliant OTN framing
-
Platform Compatibility: OSN 9800 Series, OptiXtrans E9600
-
Pluggable Optics: CFP/CFP2 module support
-
Management: Via Huawei U2000 or NCE Transport SDN platform
Technical Specifications
| Specification | Details |
|---|---|
| Product Model | TNZ8NS4 |
| Port Configuration | 4 × 100GE/OTU4 client interfaces |
| Service Types | 100GE, OTU4, ODU4 |
| OTN Mapping | ODU4 encapsulation for 100GE and OTU4 |
| FEC Support | SD-FEC, B-FEC |
| Max Data Rate | 400 Gbps aggregate |
| Optical Interface | CFP/CFP2 modules |
| Power Consumption | ≤ 110W (typical) |
| Operating Temperature | -5°C to +45°C |
| Storage Temperature | -40°C to +70°C |
| Cooling Method | Air-cooled through system ventilation |
| Board Management | U2000 NMS or Huawei SDN Controller |
| Standard Compliance | ITU-T G.709, G.798, IEEE 802.3ba, RoHS |
| Warranty | 1–3 Years Huawei Manufacturer Warranty |
TNZ8NS4 Huawei Applications
-
Metro Core Networks — High-density 100G transmission for metro aggregation
-
Data Center Interconnect (DCI) — Fast, long-distance interconnect between data centers
-
5G Transport Networks — Ultra-reliable, low-latency backhaul and core links
-
National Backbone — High-throughput transport in tier-1 carrier backbones
-
Cloud-Optimized Infrastructure — Support for hybrid cloud, AI, and edge compute traffic
-
OTN Mesh Networks — Flexible service routing and recovery in meshed architectures
Customization & OEM Options
-
Custom Branding: Private labeling available with custom serials and asset tags
-
Module Compatibility: Huawei-certified CFP/CFP2 or third-party optics supported
-
Test & Burn-in Reports: Factory optical tests and BER results on request
-
Packaging Choices: Bulk, rack-ready, or anti-static factory trays
-
Compliance Certificates: CE, FCC, RoHS, and country-specific docs available
-
Firmware Preloading: Board version pre-flashing and configuration
Wholesale & Global Supply Information
-
Huawei Original OEM Quality — Direct from authorized supply chain
-
Bulk Inventory — Immediate availability for large projects
-
Worldwide Shipping — Secure, certified logistics to any region
-
Volume Discounts — Special pricing for ISPs, integrators, and resellers
-
Technical Assistance — Remote support for deployment and compatibility
-
Documentation Support — Full specs, installation guides, and MIB files
Why Choose the TNZ8NS4 Huawei
High-Density 100GE/OTU4 Ports — Supports 4x 100G services on one board
Future-Proof Transport — Ready for cloud, 5G, and large-scale DCI
Carrier-Class Design — Engineered for 24/7 operation with built-in redundancy
Advanced FEC — Enhanced error correction for long-haul optical links
Huawei System Integration — Seamless with OSN 9800 and OptiXtrans platforms
SDN-Ready — Supports intelligent, programmable networking
Contact Us Now to request pricing, technical datasheets, or a volume quote for the TNZ8NS4 Huawei Universal Line Processing Board. Get reliable, scalable transport infrastructure with the trusted performance of Huawei.
