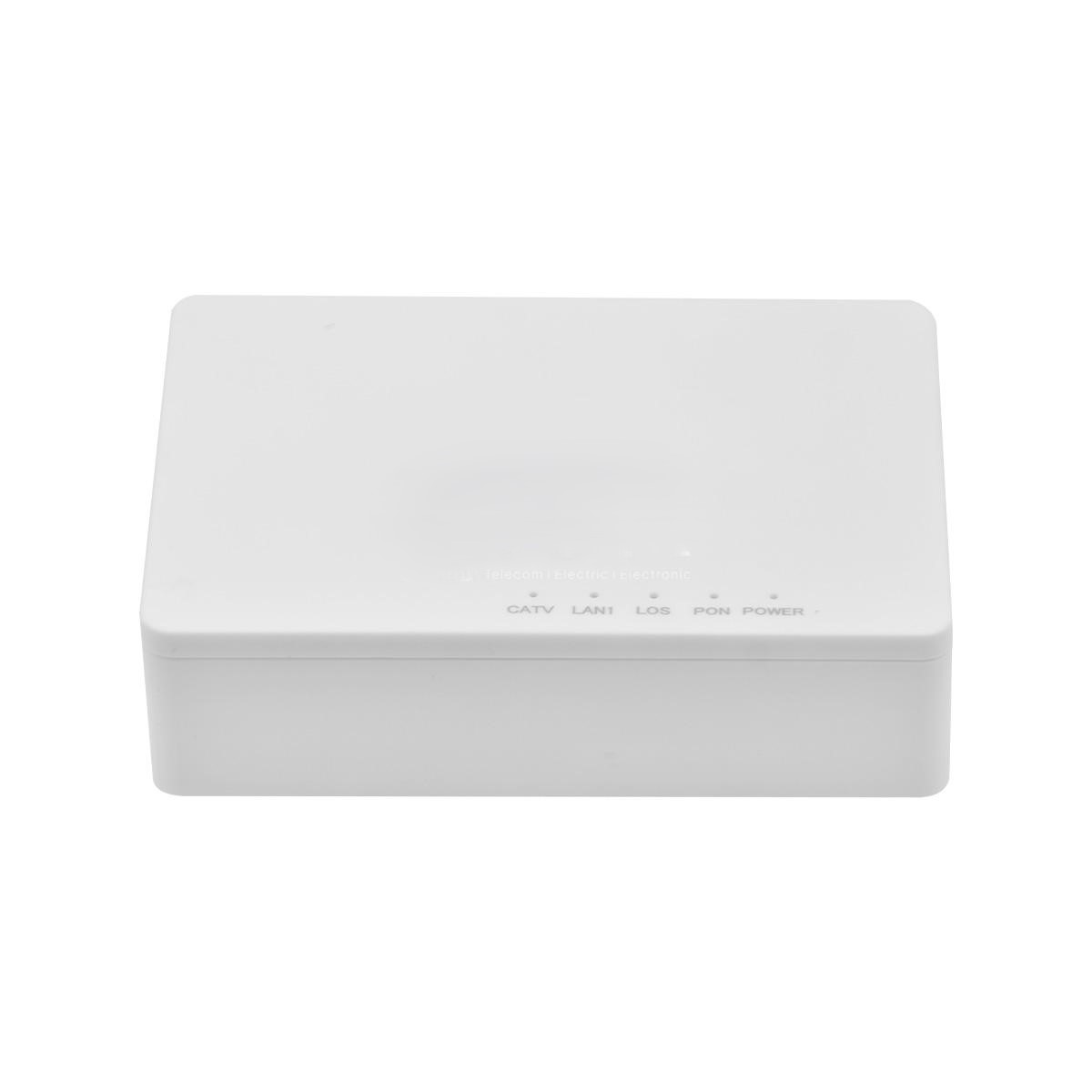

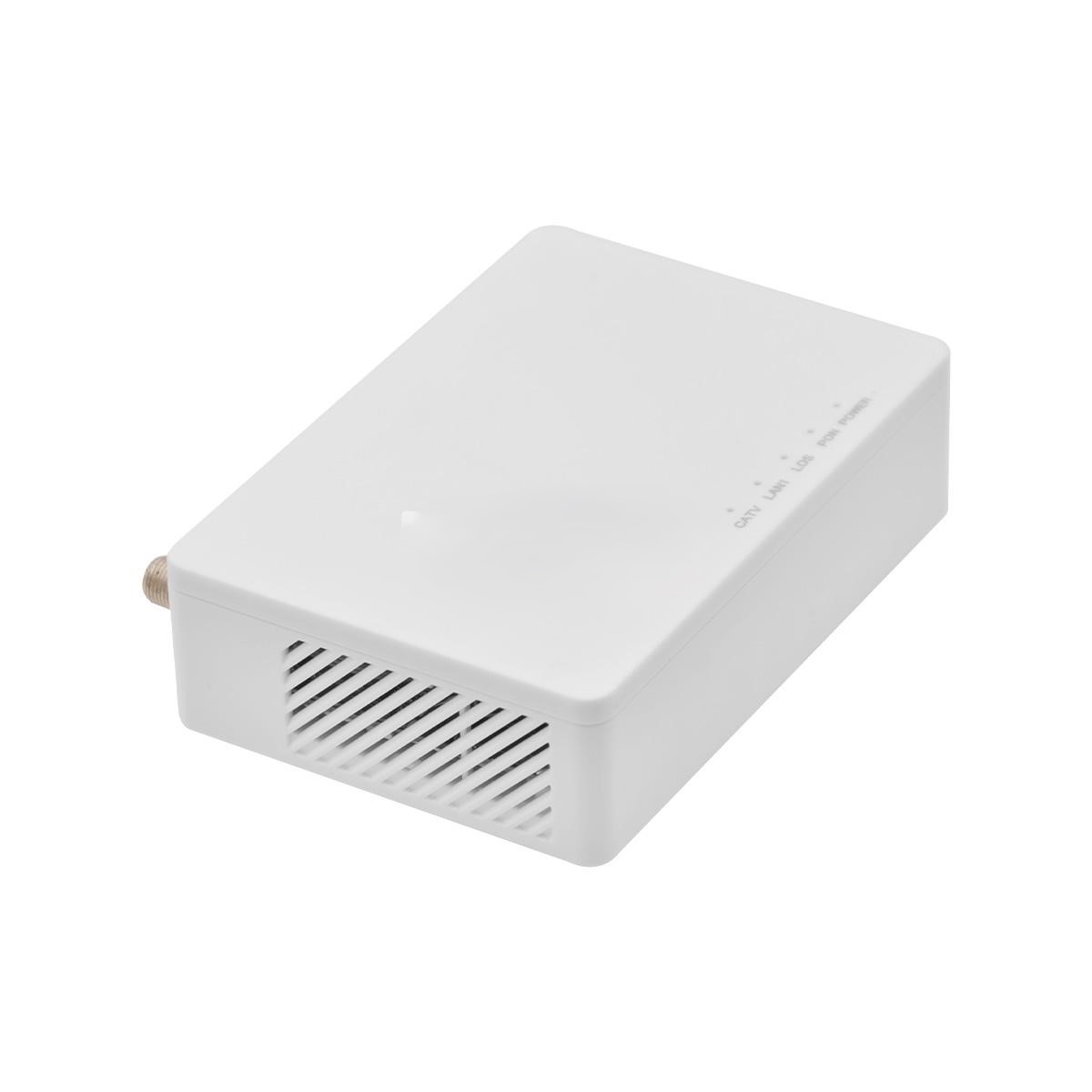

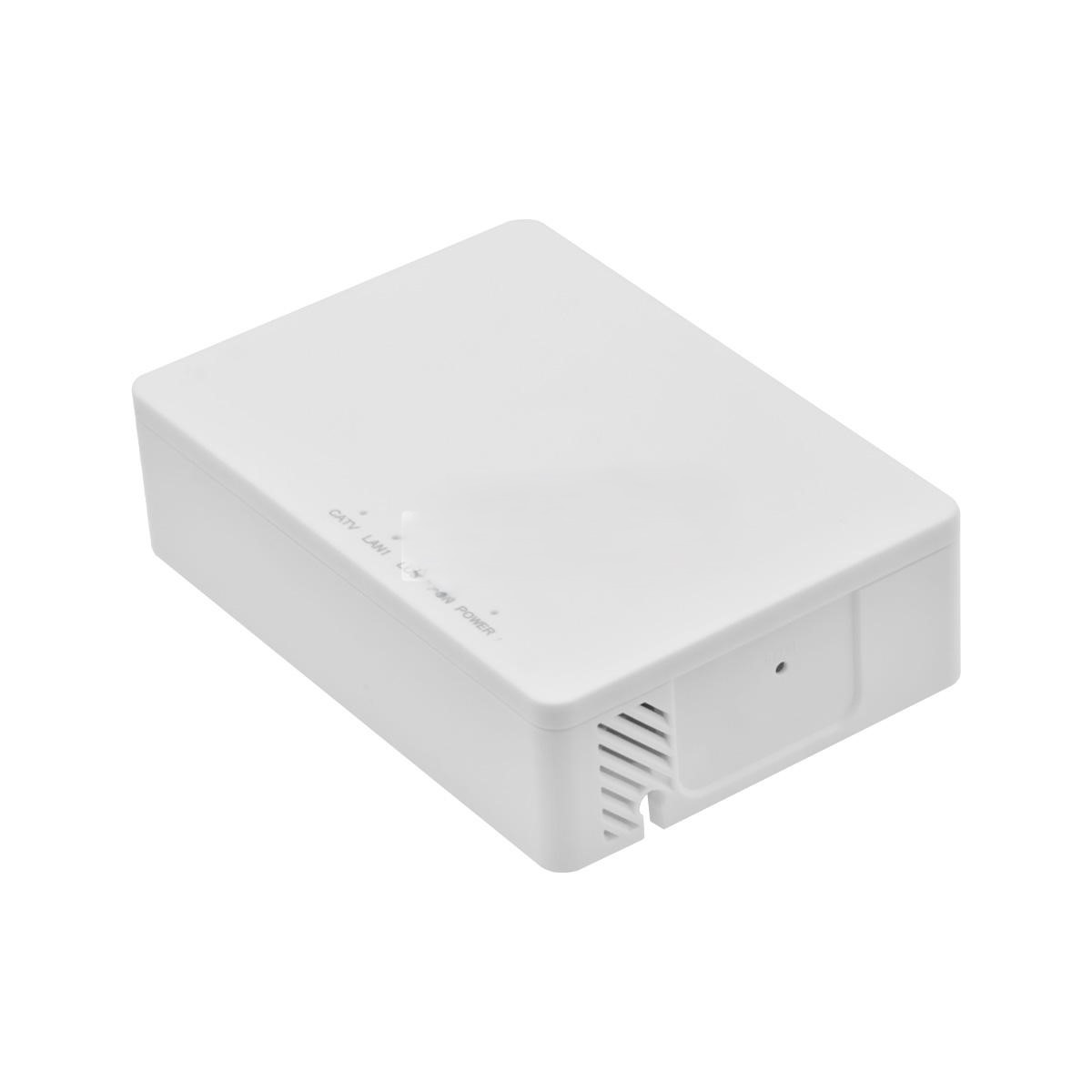

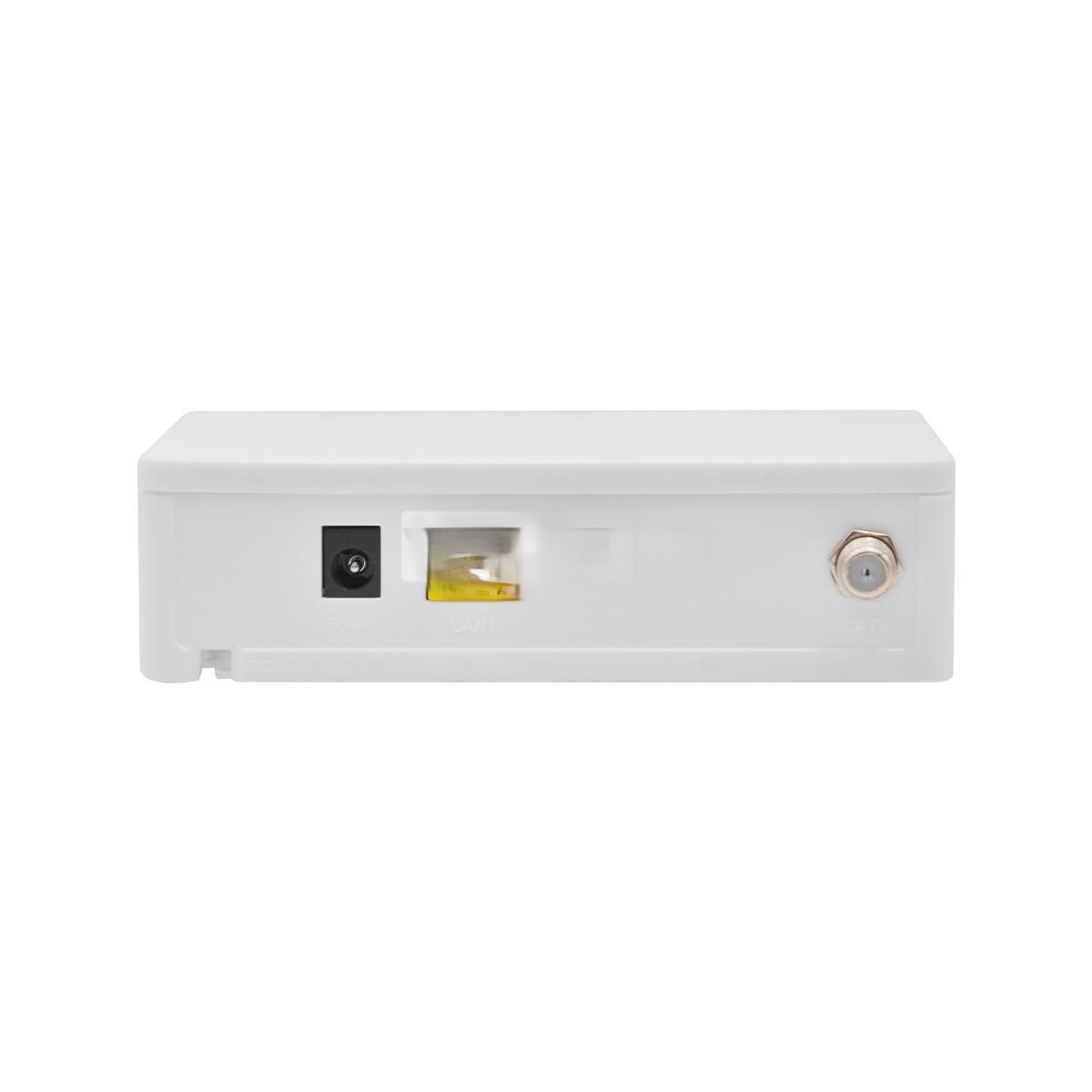

TT919C GE CATV GPON ONT – 1GE + CATV Optical Network Terminal
The TT919C GE CATV GPON ONT is a compact and reliable fiber optic terminal designed for delivering high-speed internet and analog television services over a GPON network. With one Gigabit Ethernet port and a CATV RF output, it’s ideal for residential FTTH (Fiber-to-the-Home) installations or small business environments.
Key Features:
-
GPON Uplink (SC/APC)
Supports GPON Class B+ with a reach of up to 20 km, enabling broad deployment in fiber networks. -
1 x Gigabit Ethernet Port
Provides high-speed wired internet access for end users. -
CATV RF Output
Supports analog TV services, compatible with optical CATV input in the 1550 nm range and RF output from 40 to 1000 MHz. -
Broad Compatibility
Works with a range of GPON OLTs, including models from major vendors such as Huawei and ZTE. -
TR-069 Remote Management
Enables centralized remote monitoring and configuration through TR-069 protocols. -
Custom Branding Options
Supports OEM customization for logo and web interface branding.
Specification TT919C GE CATV |
|
| Network-side Port | GPON |
| User-side Ports | 1GE+CATV |
| Optical port | 1xGPON interface (SC/APC) Class B+ Tx Power: 0.5~5dbm Receiver sensitivity: -27dBm Overload optical power: -8dBm Connection Loss: ＜1dbm Total Optical Loss: ＜2dbm Operating Wavelength Range: TX-1310nm; RX-1490nm Transmission Distance: 0 ~ 20km |
| CATV port | Optical receiving wavelength: 1550nm Optical input range: -16dBm to +2dBm Output resistance: 75 ohms Optical reflection loss: 40 dB RF Frequency range: 40 MHz to 1000 MHz AGC: -12 dBm ~ 0dBm MER: ≥32dB@-11dBm |
| Weight | About 200 g |
Technical Specifications:
| Parameter | Details |
|---|---|
| Uplink Port | 1 x GPON (SC/APC) |
| User Ports | 1 x GE, 1 x CATV |
| GPON Class | B+ |
| Tx Power | 0.5 to 5 dBm |
| Receiver Sensitivity | -27 dBm |
| Overload Optical Power | -8 dBm |
| Tx/Rx Wavelength | TX: 1310 nm, RX: 1490 nm |
| Max Transmission Distance | 20 km |
| CATV Input Wavelength | 1550 nm |
| CATV Input Range | -16 to +2 dBm |
| RF Output Impedance | 75 Ohm |
| RF Frequency Range | 40 MHz to 1000 MHz |
| AGC Range | -12 to 0 dBm |
| MER Performance | ≥32 dB @ -11 dBm optical input |
| Weight | Approx. 200 g |
Applications:
-
Home Internet and TV Services
Ideal for delivering triple-play services (data, voice, video) in home settings. -
Small Business Connectivity
Provides fast and stable network access with TV signal distribution. -
Integrated FTTH Deployments
Suited for telecom operators and ISPs deploying fiber networks with combined data and CATV offerings.
