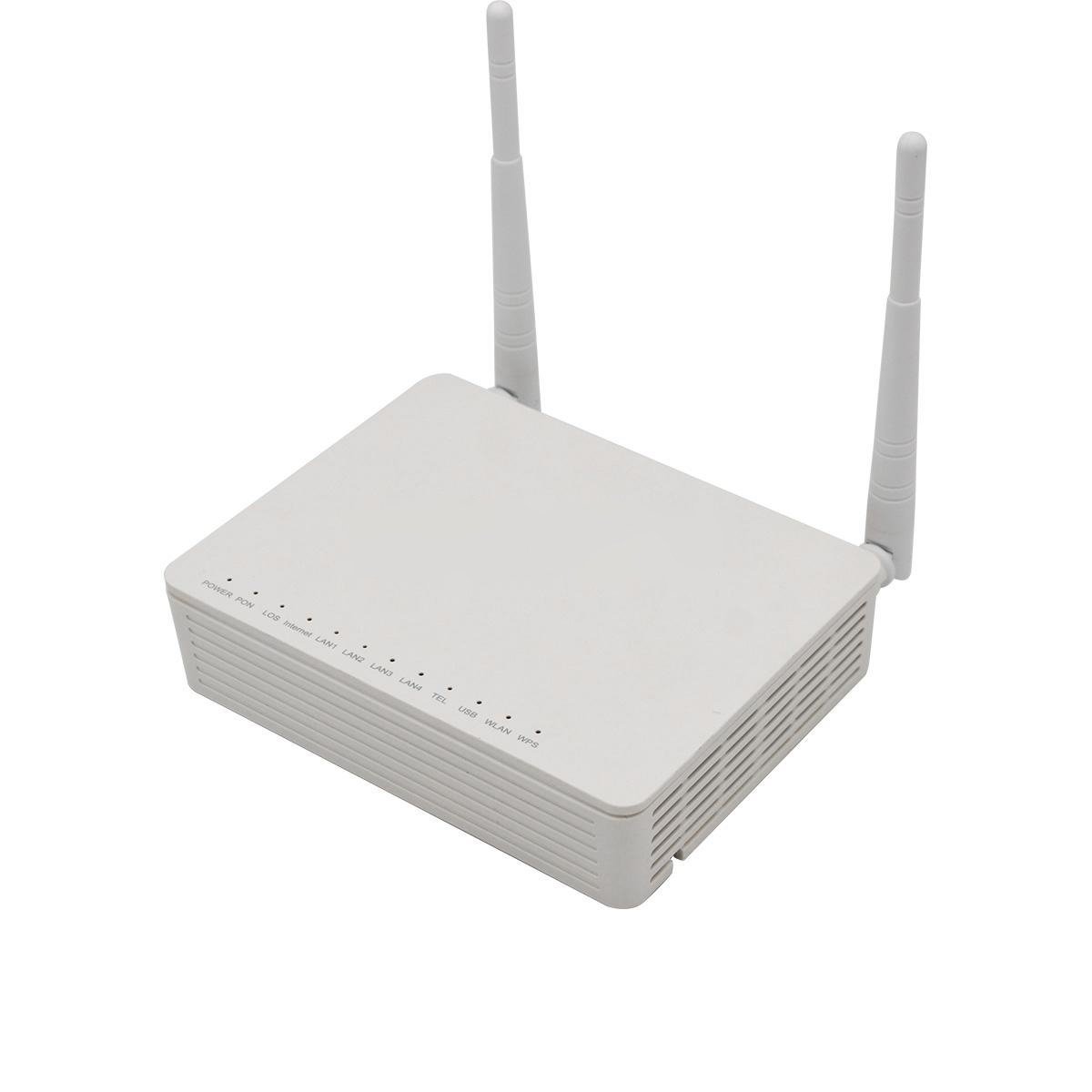

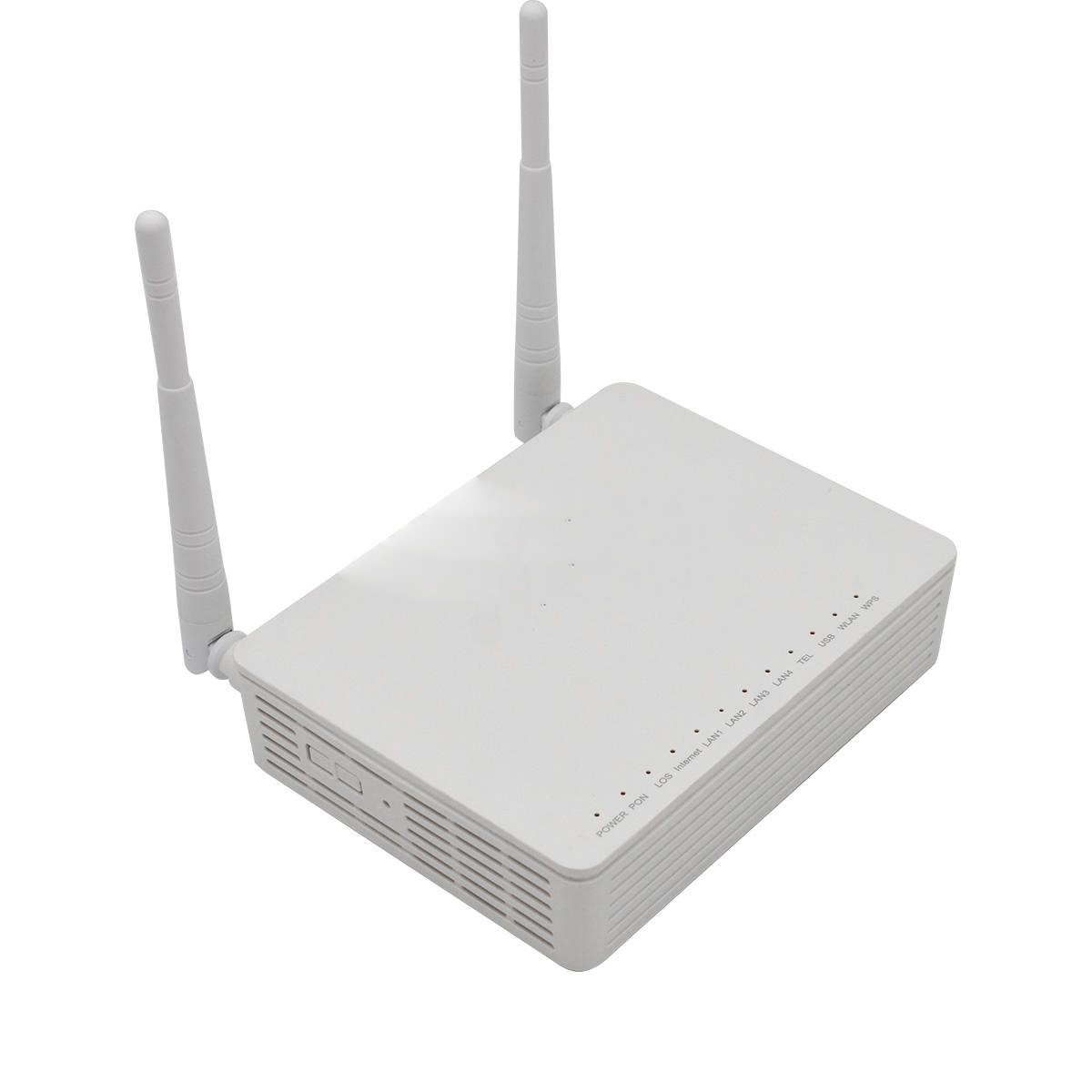

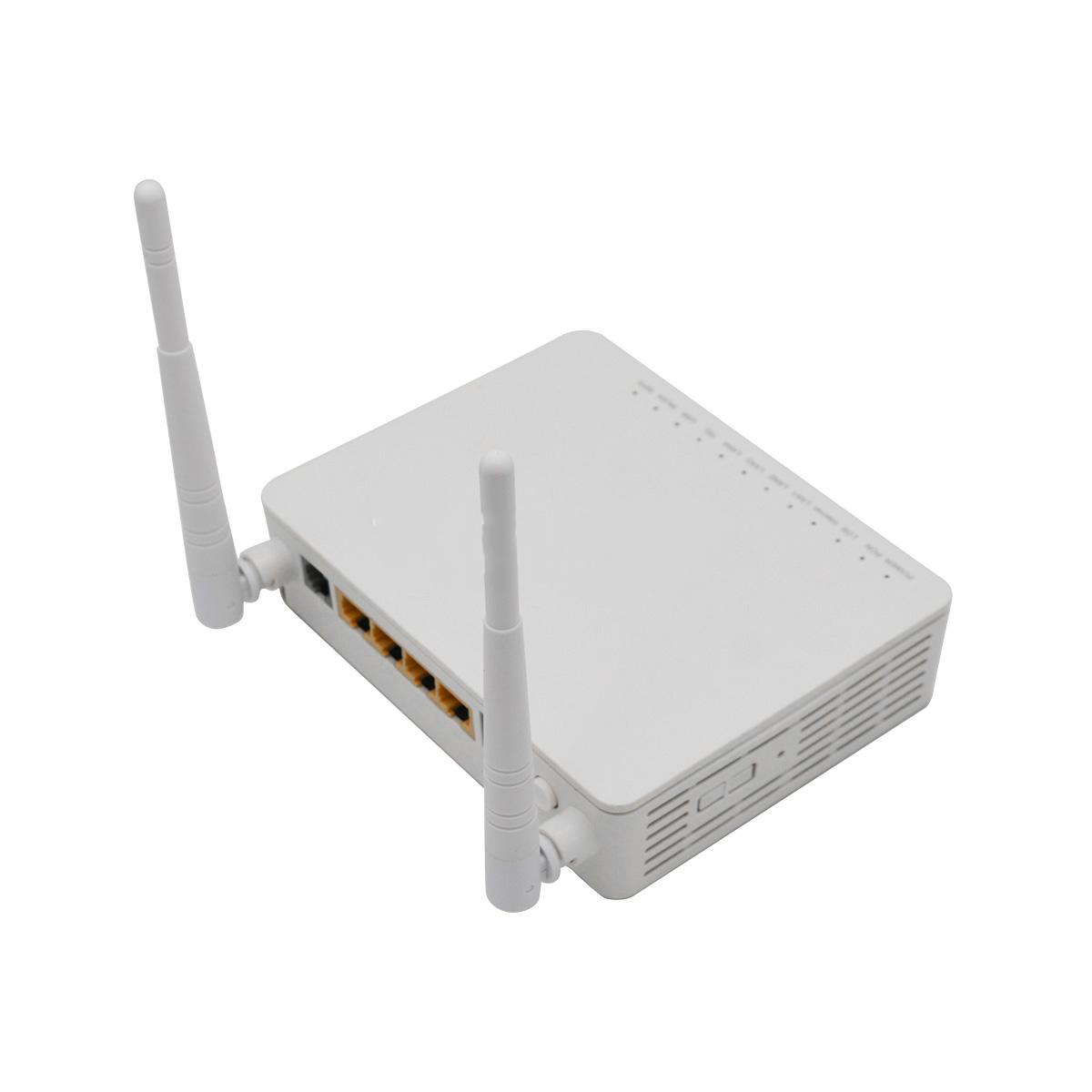

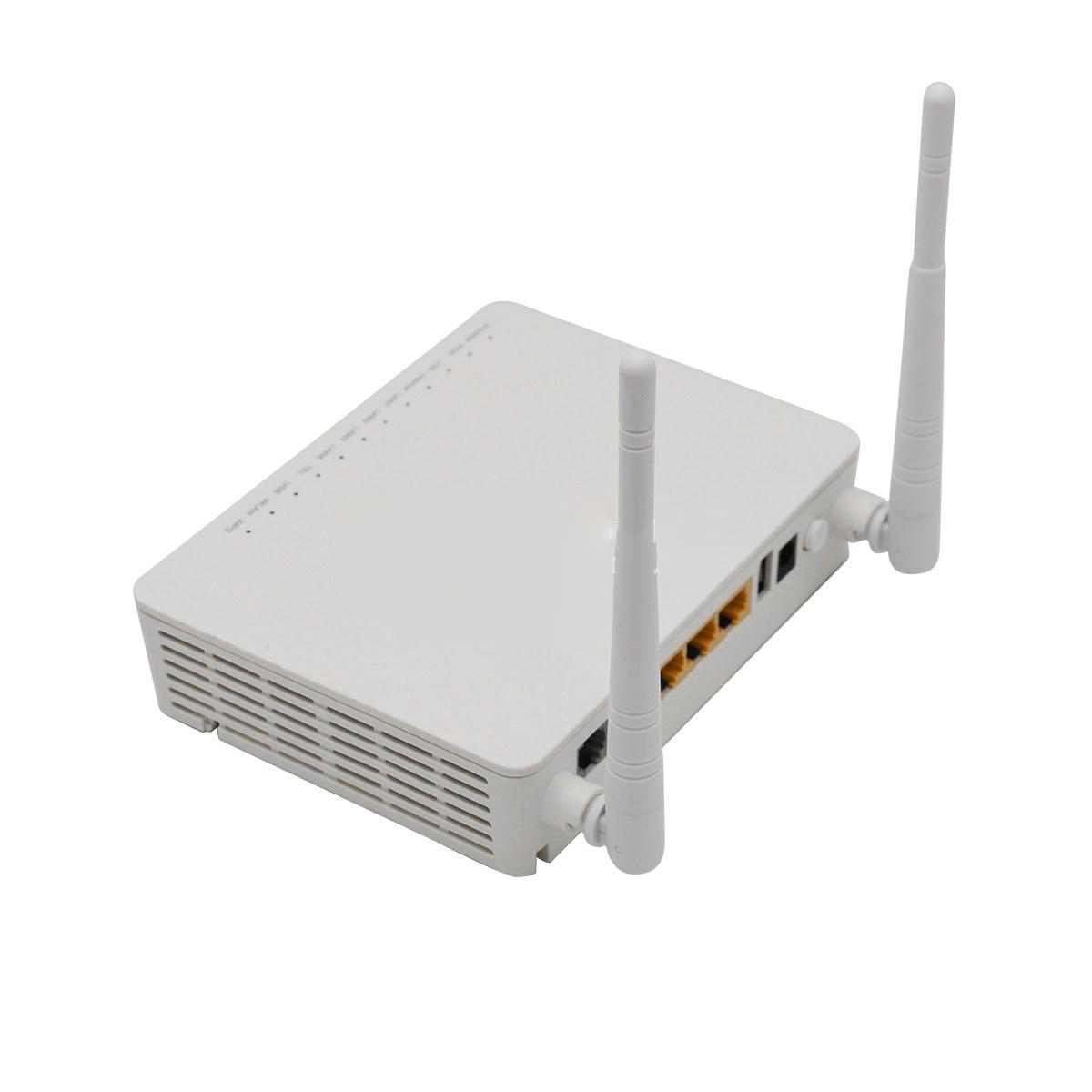

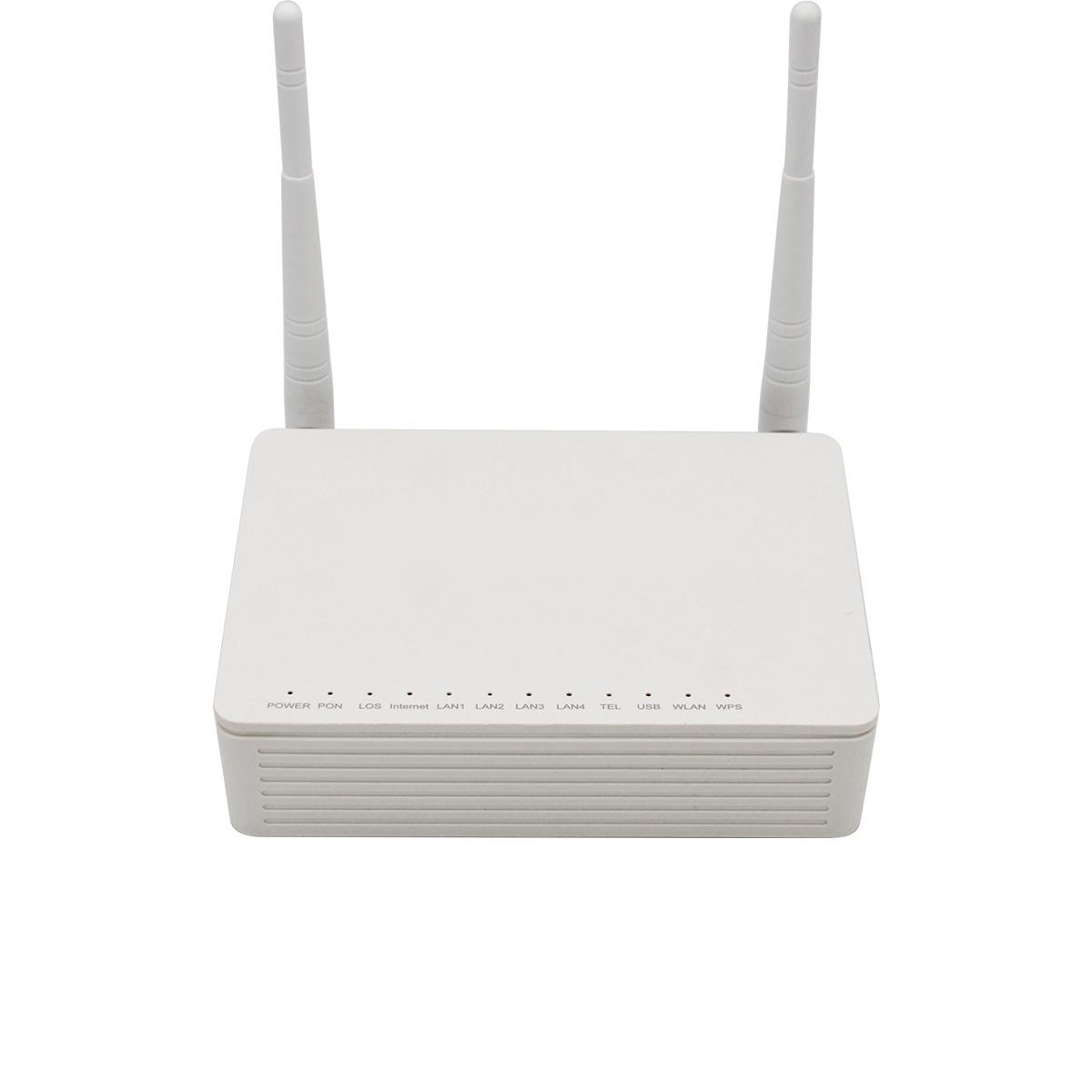

TT919G7 GPON ONT – 1GE + 3FE + 1*POTS + 2.4G WiFi | 5dBi | ZTE Chip | GPON/EPON Supported
The TT919G7 is a cost-effective, high-performance GPON Optical Network Terminal (ONT) equipped with 1 Gigabit Ethernet, 3 Fast Ethernet ports, 1 POTS port for VoIP, and 2.4GHz WiFi with a 5dBi high-gain antenna. Powered by a ZTE original 800MHz chipset, this terminal is ideal for delivering triple-play services—internet, voice, and wireless connectivity—within fiber-to-the-home (FTTH) environments.
With dual-mode GPON/EPON compatibility, the TT919G7 offers flexible deployment options for telecom operators, ISPs, and integrators. It comes preloaded with ENG firmware and interface, and is compatible with a wide range of OLT platforms, including Huawei, ZTE, and Nokia.
Tech Specs TT919G7
Technical Specifications TT919G7
| Feature | Description |
|---|---|
| Model | TT919G7 |

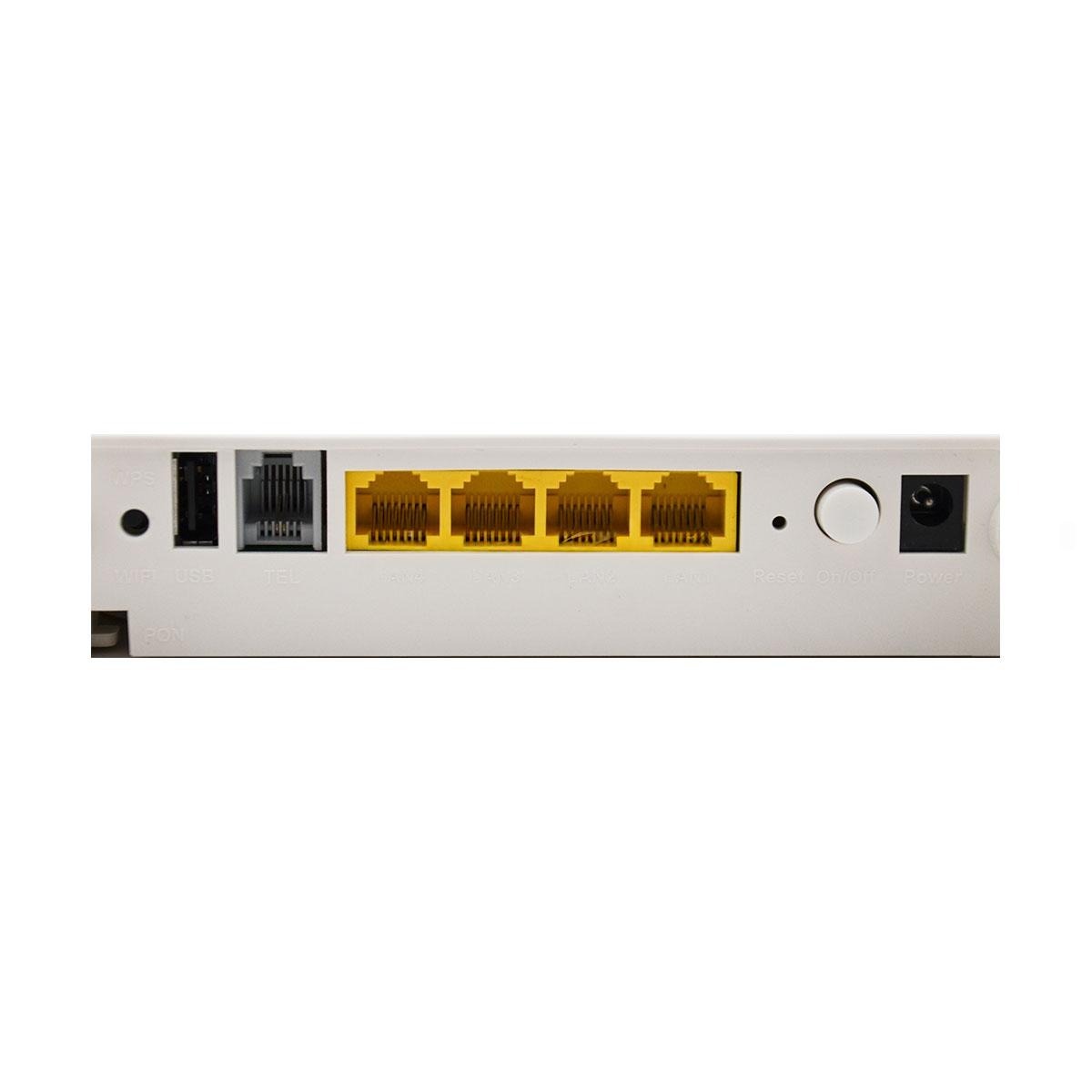

| Ethernet Ports | 1 x GE + 3 x FE (RJ45) |
| Voice Port | 1 x POTS (RJ11, VoIP support) |
| WiFi | 2.4GHz, IEEE 802.11 b/g/n, 5dBi internal antenna |
| WiFi Speed | Up to 300Mbps |
| CPU | ZTE Original Chipset, 800MHz |
| Supported Modes | GPON & EPON (auto-adapt) |
| Connector Type | SC/UPC |
| Firmware/UI | English firmware and web interface |
| Management Protocols | OMCI, Web-based GUI |
| Power Supply | EU Standard Adapter |
| Dimensions | Compact desktop design |
| OLT Compatibility | Huawei, ZTE, Nokia, FiberHome (standard OLTs) |
Key Features
-
Triple Play Support: Integrated broadband, VoIP, and wireless in one device
-
Dual-Mode PON: Compatible with both GPON and EPON networks
-
Strong Wireless Signal: 2.4GHz WiFi with 5dBi antenna for extended range
-
VoIP Ready: RJ11 POTS port for high-quality voice service
-
ZTE 800MHz CPU: Ensures stability, speed, and efficient packet forwarding
-
Broad OLT Compatibility: Works with Huawei, ZTE, and other industry-standard OLTs
-
Easy to Manage: English web interface with OMCI protocol for remote provisioning
-
Cost-Effective: Optimized for mass deployment in FTTH rollouts
-
Compact & Sleek: Space-saving design suitable for desktop use
Applications
-
Residential FTTH Broadband: Internet + voice + WiFi access in homes
-
Small Office Networks (SOHO): Ideal for small business broadband with VoIP
-
Rural Internet Projects: Efficient and budget-friendly for wide deployments
-
ISP Triple-Play Services: Used in voice, video, and data bundling by ISPs
-
GPON/EPON Hybrid Networks: Supports migration or dual-infrastructure support
