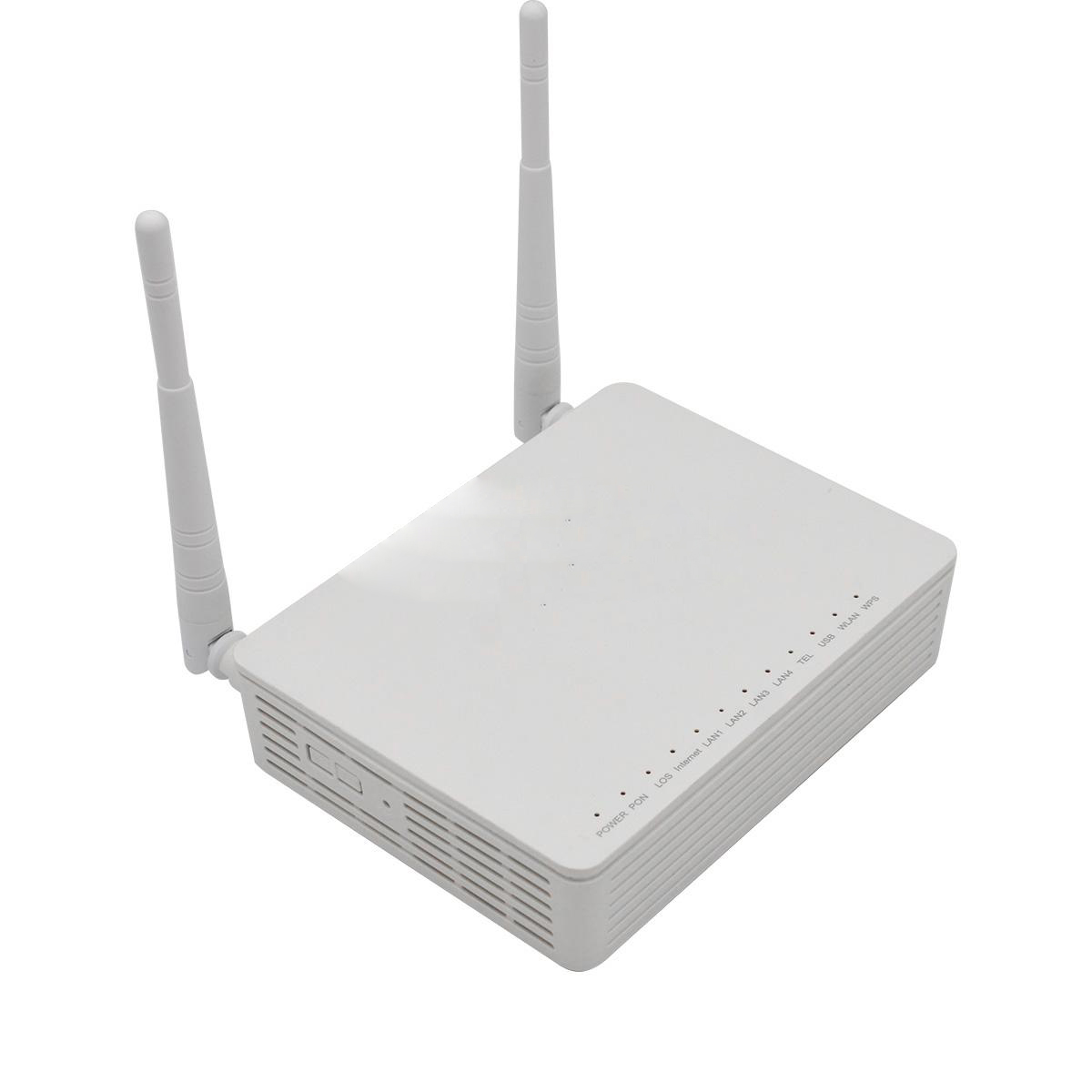

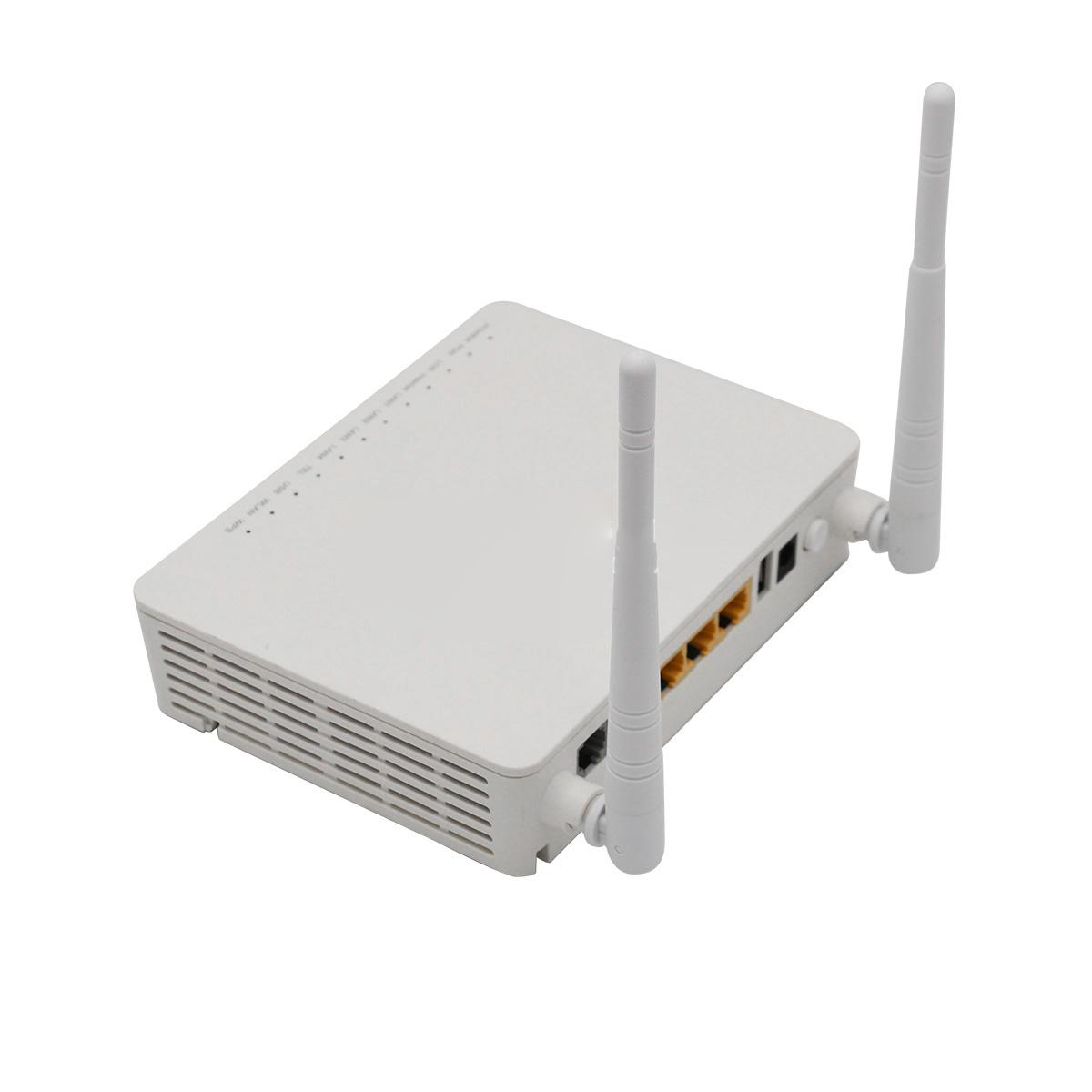

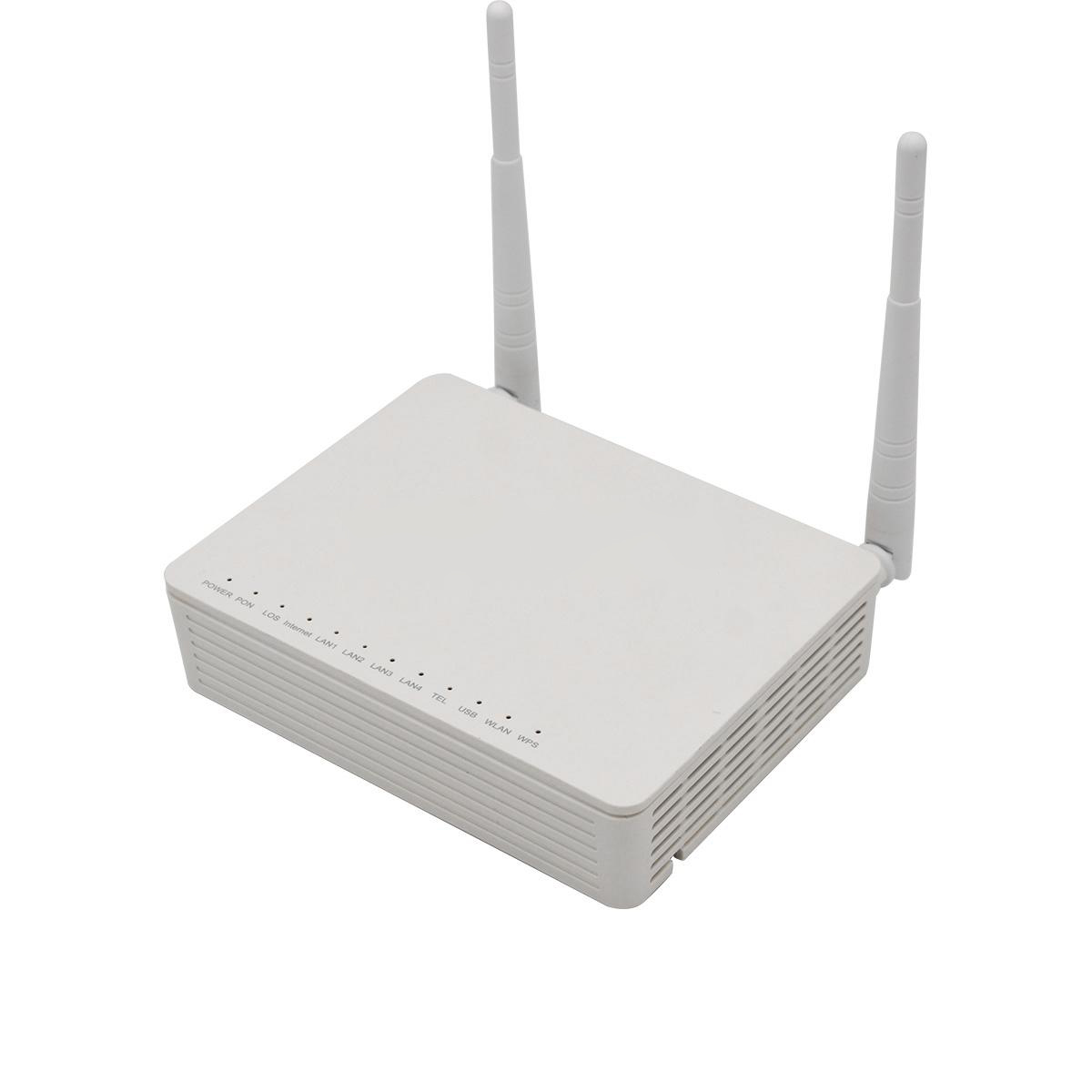

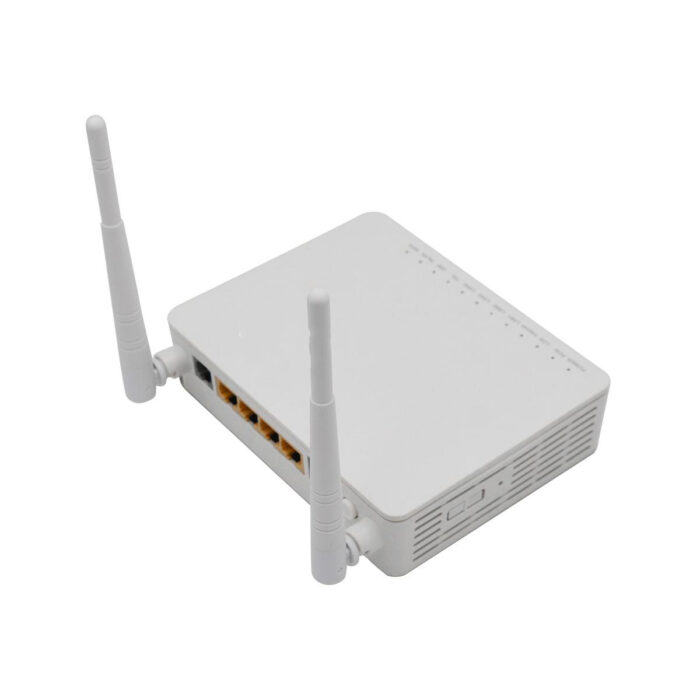

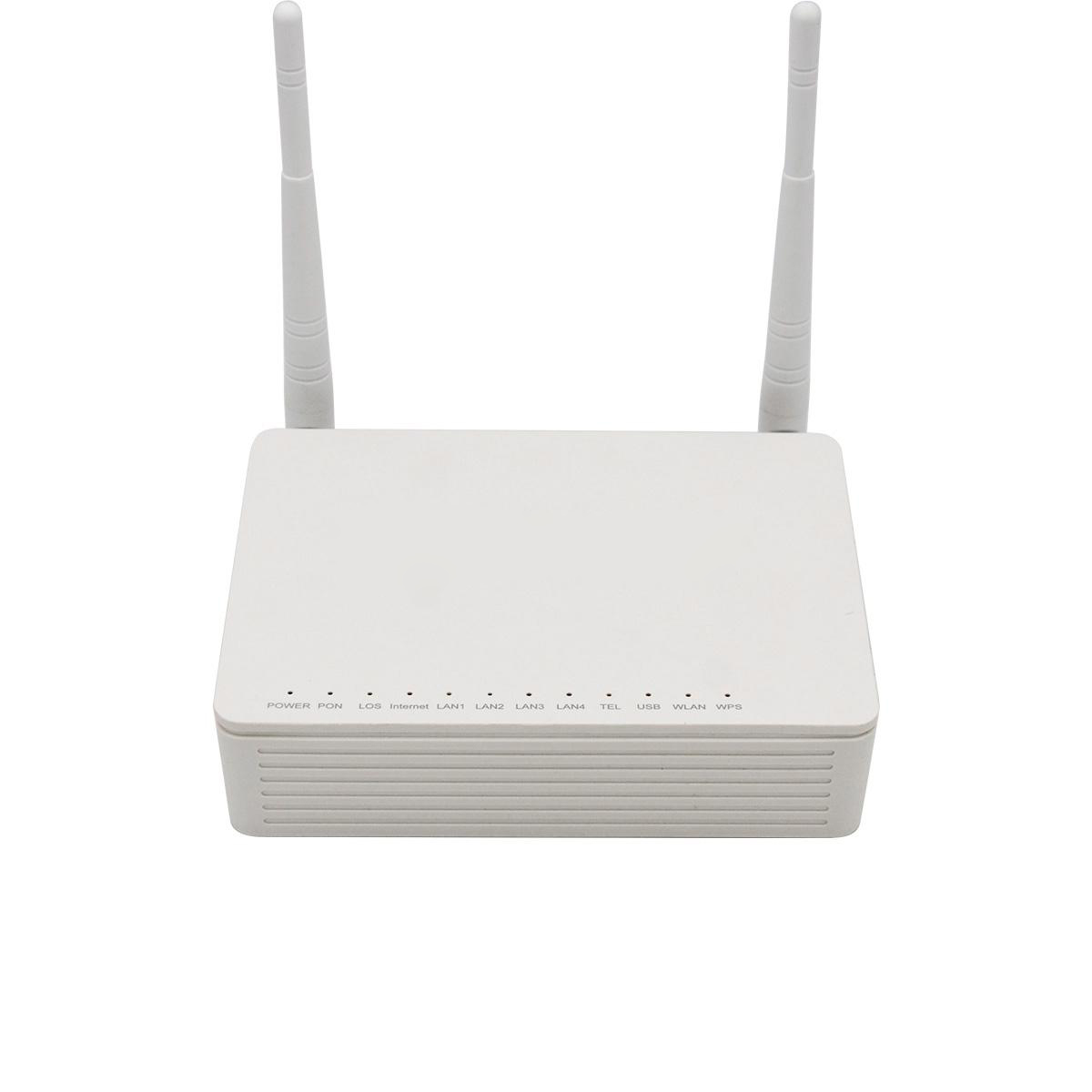

TT919G9 GPON Terminal – 1GE + 3FE + 1*POTS + 2.4G WiFi, 5dBi
The TT919G9 GPON ONT is a high-performance, triple-play optical network terminal built with a ZTE original chipset and optimized for next-generation FTTH (Fiber to the Home) networks. Equipped with 1 Gigabit Ethernet port, 3 Fast Ethernet ports, 1 POTS port, and 2.4GHz WiFi with a 5dBi high-gain antenna, this device delivers seamless broadband, voice, and wireless services.
Powered by an 800MHz CPU, and supporting Basic OMCI and TR069 ACS remote management, the TT919G9 is ideal for telecom carriers and ISPs seeking reliable and fully manageable customer premises equipment (CPE).
Tech Specs TT919G9
Technical Highlights:
-

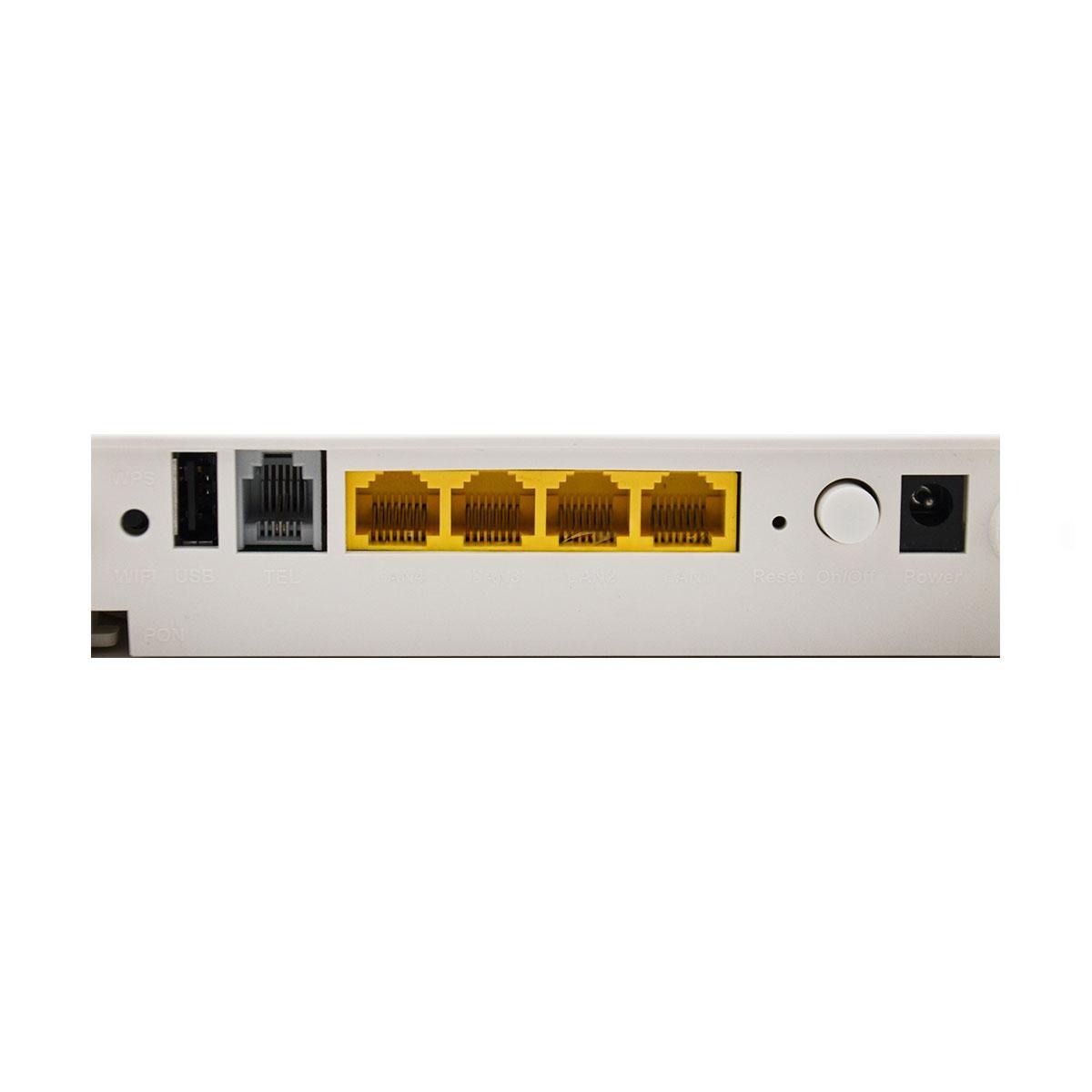

UNI Interfaces:
-
1 x GE (Gigabit Ethernet)
-
3 x FE (Fast Ethernet)
-
1 x POTS (RJ11) for VoIP
-
2.4GHz WiFi with 5dBi antenna
-
-
NNI Interface: GPON (also supports EPON)
-
WiFi Specs:
-
IEEE 802.11b/g/n (2.4GHz)
-
Internal 5dBi antenna
-
Strong indoor wireless coverage
-
-
Chipset & CPU:
-
ZTE original chipset
-
800MHz high-efficiency processor
-
-
Connector Type: SC/UPC
-
Firmware/UI: English firmware, English web interface
-
Management Protocols:
-
TR069 ACS (Auto Configuration Server)
-
Supports Basic OMCI
-
-
Compatibility:
-
Works with OLTs from Huawei, ZTE, Nokia, and other major vendors
-
Key Features: TT919G9
-
Triple-Play Ready: Provides high-speed data, VoIP, and WiFi in a single unit
-
High-Gain Wireless: Integrated 5dBi WiFi antenna ensures strong and stable signal coverage
-
Flexible Fiber Support: Dual-mode GPON/EPON auto-adaptation for flexible deployment
-
ZTE Original Chipset: Ensures reliability, stability, and extended service life
-
Remote Management: Fully manageable via TR069 ACS and OMCI, ideal for ISP networks
-
Broad Compatibility: Interoperable with all major brand OLTs (Huawei, ZTE, Nokia)
-
User-Friendly: Preloaded ENG firmware and intuitive English interface
-
Easy Setup: Plug-and-play with SC/UPC fiber connector and EU power adapter
Applications:
-
Residential FTTH Deployments: Triple-play support (Internet, Voice, WiFi) for homes and apartments
-
ISP and Carrier Networks: Remote provisioning and full TR069 management for large-scale rollouts
-
SMEs & SOHOs: Ideal solution for small offices needing fast internet, WiFi, and VoIP
-
Fiber Network Expansion: Works with both GPON and EPON systems for rural and urban coverage
-
Multi-Dwelling Units (MDUs): Efficient deployment in flats, dormitories, and residential complexes
