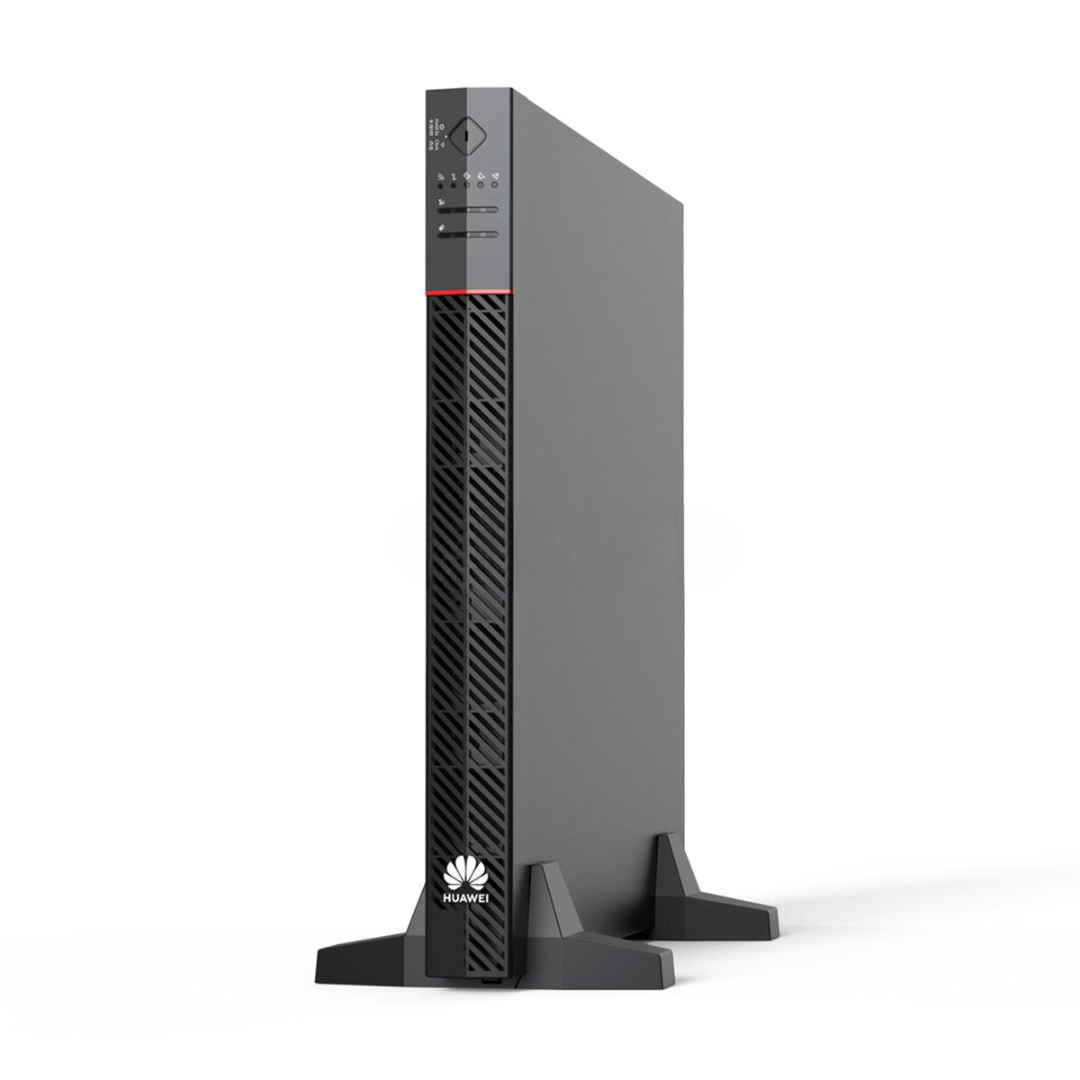

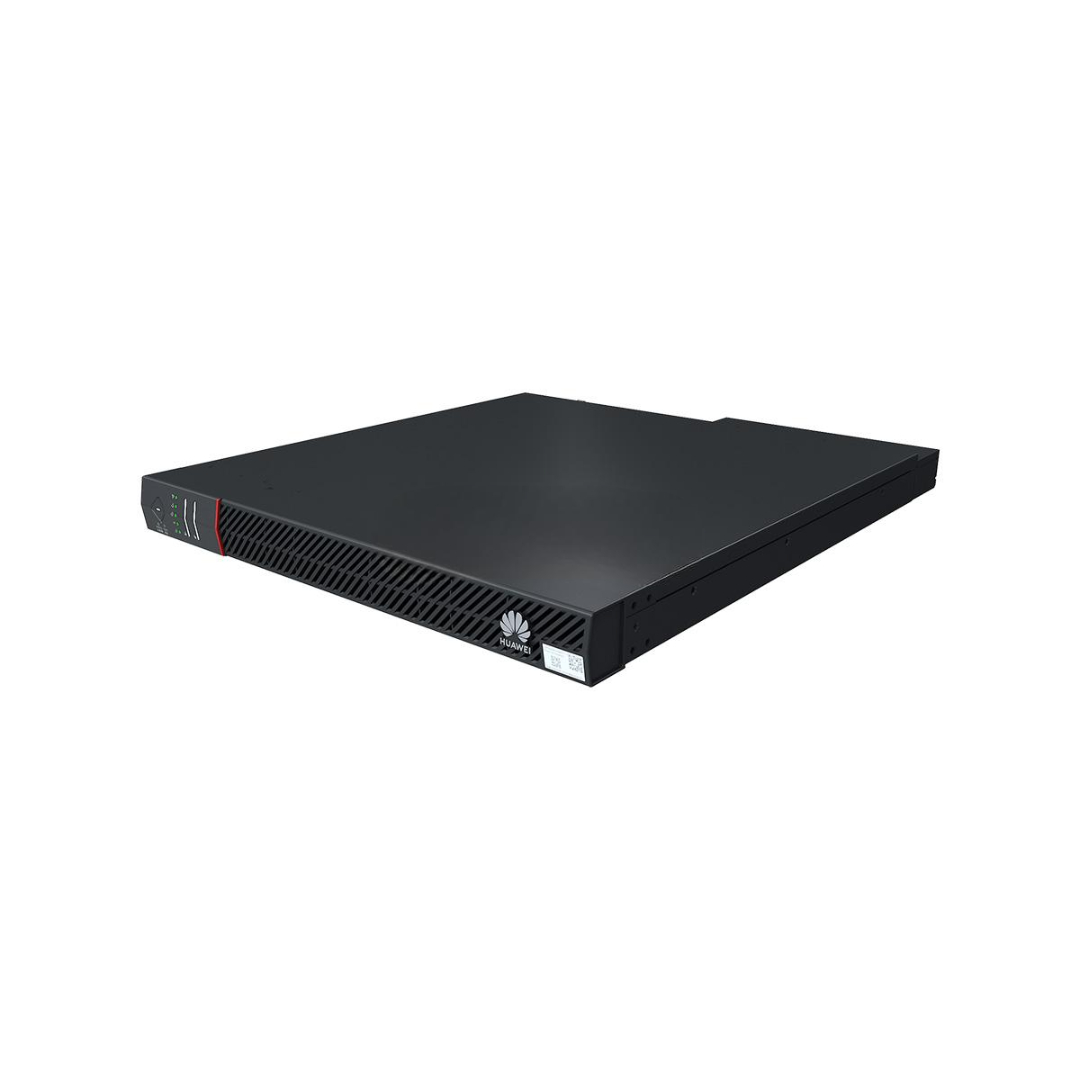

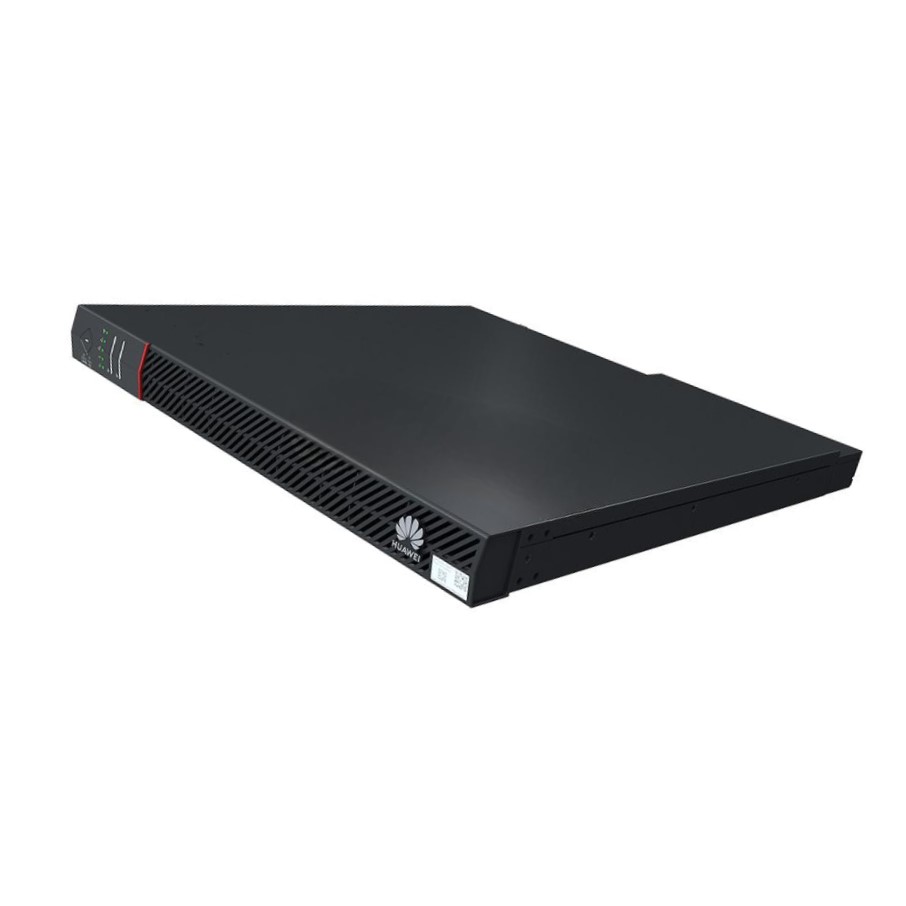

UPS2000-H Huawei Brand New 6 kVA / 10 kVA Online Double-Conversion UPS
The UPS2000-H Huawei is a compact, high-performance 6 kVA / 10 kVA uninterruptible power supply (UPS) system designed for small to medium-sized enterprises, branch offices, and critical IT equipment. It features online double-conversion topology, offering constant, high-quality AC power to sensitive loads with zero transfer time.
With support for rack or tower installation, scalable battery runtime, and LCD control interface, the UPS2000-H is ideal for scenarios requiring uninterrupted operation, surge protection, and power conditioning. It offers high efficiency (up to 96%), reducing energy loss and operational cost.
Key Features
-
Model: UPS2000-H
-
Rated Power: 6 kVA / 10 kVA
-
Topology: Online Double Conversion
-
Efficiency: Up to 96% in online mode
-
Installation: Rack or tower convertible (2U design)
-
Battery Configuration: Flexible, scalable external battery packs
-
Communication: RS232, USB, SNMP, dry contacts
-
LCD Interface: Intuitive local display with alarm and event logs
-
Power Factor: Unity (1.0 output PF)
Technical Specifications
| Specification | UPS2000-H 6 kVA | UPS2000-H 10 kVA |
|---|---|---|
| Model | UPS2000-H-6KRTL | UPS2000-H-10KRTL |
| Topology | Online Double Conversion | Online Double Conversion |
| Rated Power (kVA / kW) | 6 kVA / 6 kW | 10 kVA / 10 kW |
| Input Voltage | 220/230/240 V AC | 220/230/240 V AC |
| Input Voltage Range | 110 V – 300 V AC | 110 V – 300 V AC |
| Input Frequency | 50/60 Hz (auto sensing) | 50/60 Hz (auto sensing) |
| Output Voltage | 220/230/240 V ±1% | 220/230/240 V ±1% |
| Output Frequency | 50/60 Hz ±0.1% (Battery Mode) | 50/60 Hz ±0.1% (Battery Mode) |
| Battery Type | External battery packs | External battery packs |
| Battery Voltage | 192 V DC | 240 V DC |
| Communication Ports | RS232, USB, SNMP, Dry contacts | RS232, USB, SNMP, Dry contacts |
| LCD Display | Multi-function LCD + LED | Multi-function LCD + LED |
| Bypass | Automatic & Manual | Automatic & Manual |
| Efficiency (Online Mode) | Up to 95.5% | Up to 96% |
| Dimensions (W×D×H) | 438 × 630 × 86.1 mm (2U) | 438 × 630 × 86.1 mm (2U) |
| Weight | Approx. 14 kg (no battery) | Approx. 15 kg (no battery) |
| Noise Level | < 50 dB | < 55 dB |
| Operating Temp. Range | 0°C to 40°C | 0°C to 40°C |
| Humidity | 0%–95% RH (non-condensing) | 0%–95% RH (non-condensing) |
| Warranty | 1–3 Years Huawei Warranty | 1–3 Years Huawei Warranty |
UPS2000-H Huawei Applications
-
SMB Server Rooms – Continuous power to servers, routers, switches
-
Medical Clinics – Protects sensitive diagnostic equipment from outages
-
Retail & POS Systems – Maintains business continuity during blackouts
-
Bank Branches / ATMs – Secure power for network and transactional systems
-
Telecom Base Stations – Stable output for telecom racks and backhaul links
-
Edge Computing – Reliable protection for micro data centers
Customization & OEM Options
-
OEM Branding – Custom logo, color, barcode labeling options
-
Battery Bank Expansion – External battery cabinet integration
-
Bypass Cabinet Options – External maintenance bypass switches
-
Pre-Configuration – Pre-set voltage thresholds, network IP, SNMP settings
-
Accessories Included – Cables, manuals, software CD, and mounting rails
Wholesale Supply & Global Logistics
-
Verified Huawei Original – Traceable via serial & barcode system
-
In-Stock Availability – Ideal for urgent replacement & new builds
-
Secure Packaging – Shockproof and anti-static shipping protection
-
Bulk Discounts – Partner pricing for VARs, resellers, and integrators
-
Global Shipping – Air & sea delivery with import documentation
-
Technical Support – Pre-sale sizing consultation & post-sale troubleshooting
Why Choose UPS2000-H Huawei
-
High Efficiency Design – Reduces power bills and heat generation
-
Scalable Runtime – Flexible external battery configurations
-
High Reliability – Online topology with seamless failover
-
Compact Footprint – Rack-compatible 2U design saves space
-
Huawei Innovation – Backed by global R&D and support network
Contact Us Today for real-time pricing, availability, and technical advice on deploying the Huawei UPS2000-H 6 kVA / 10 kVA UPS — a dependable and scalable solution for mission-critical power continuity.
