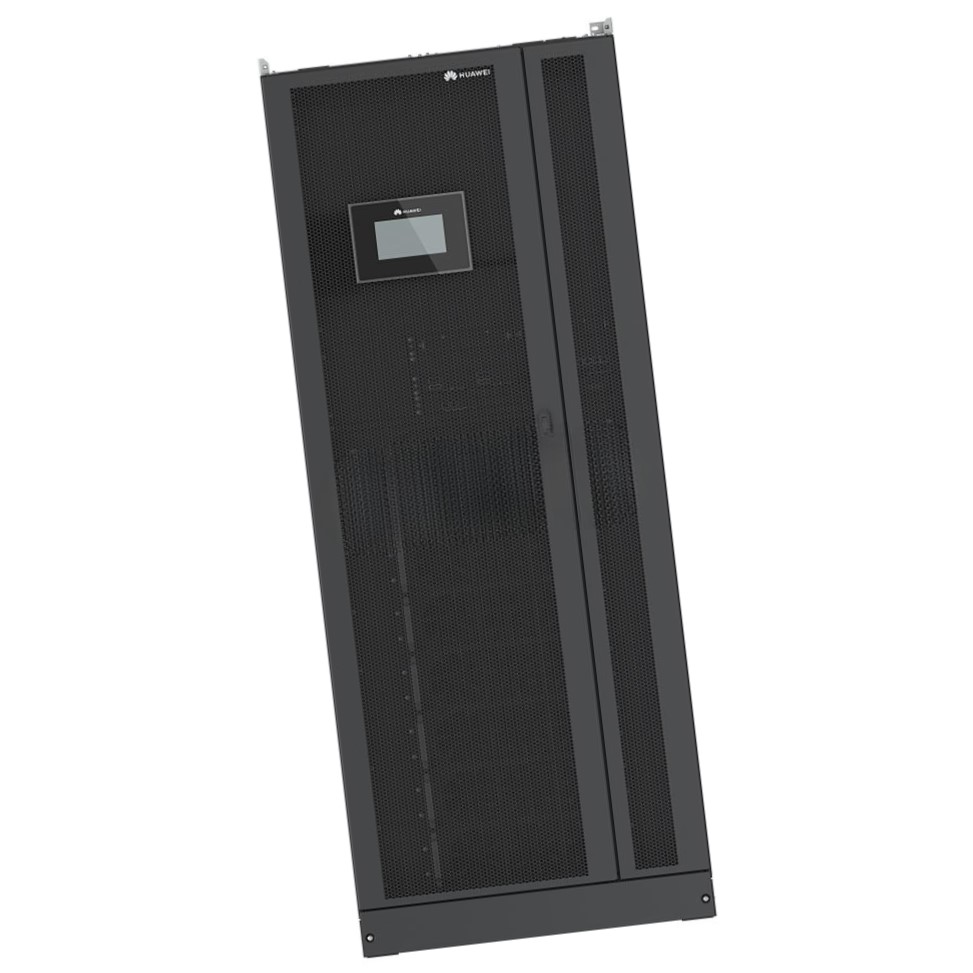

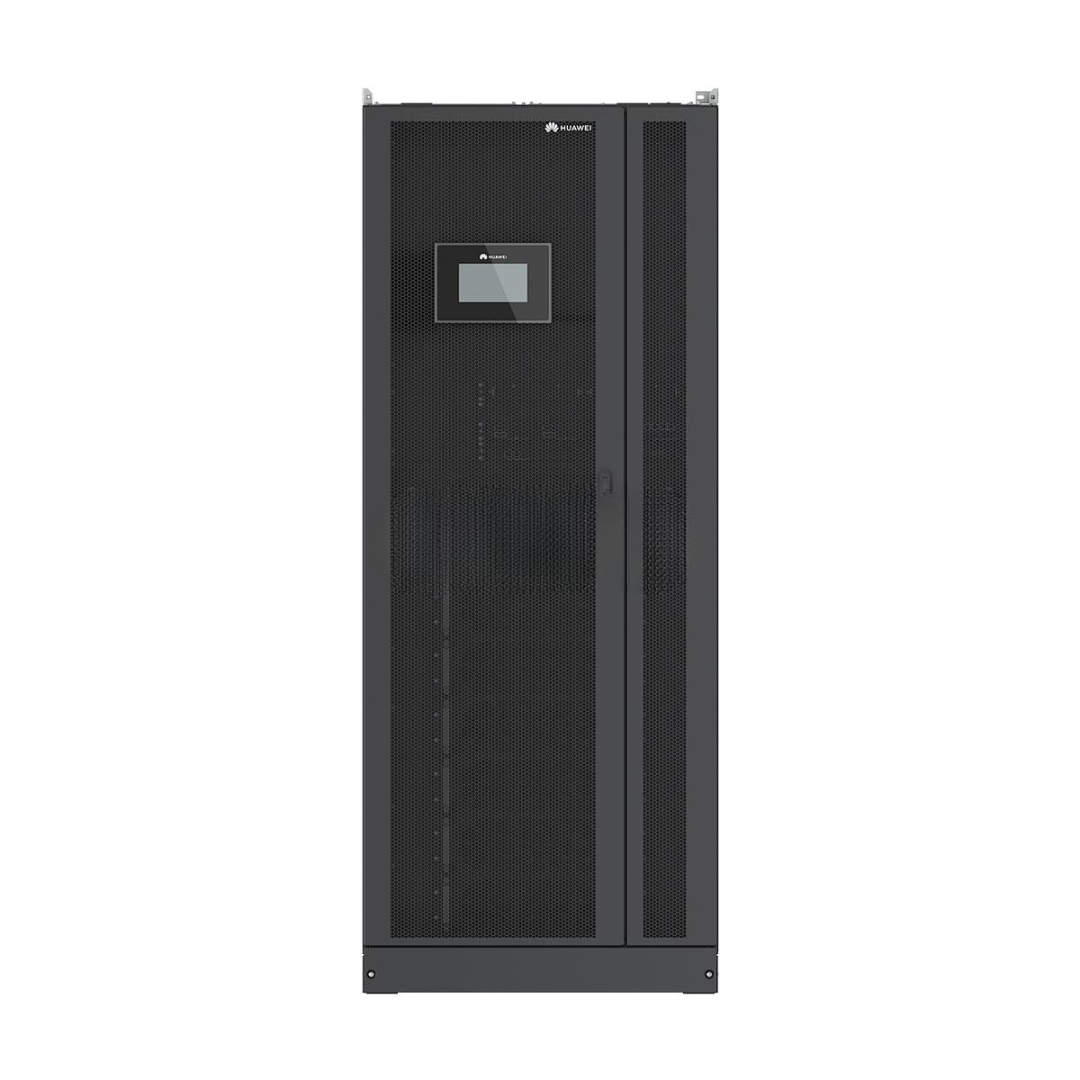

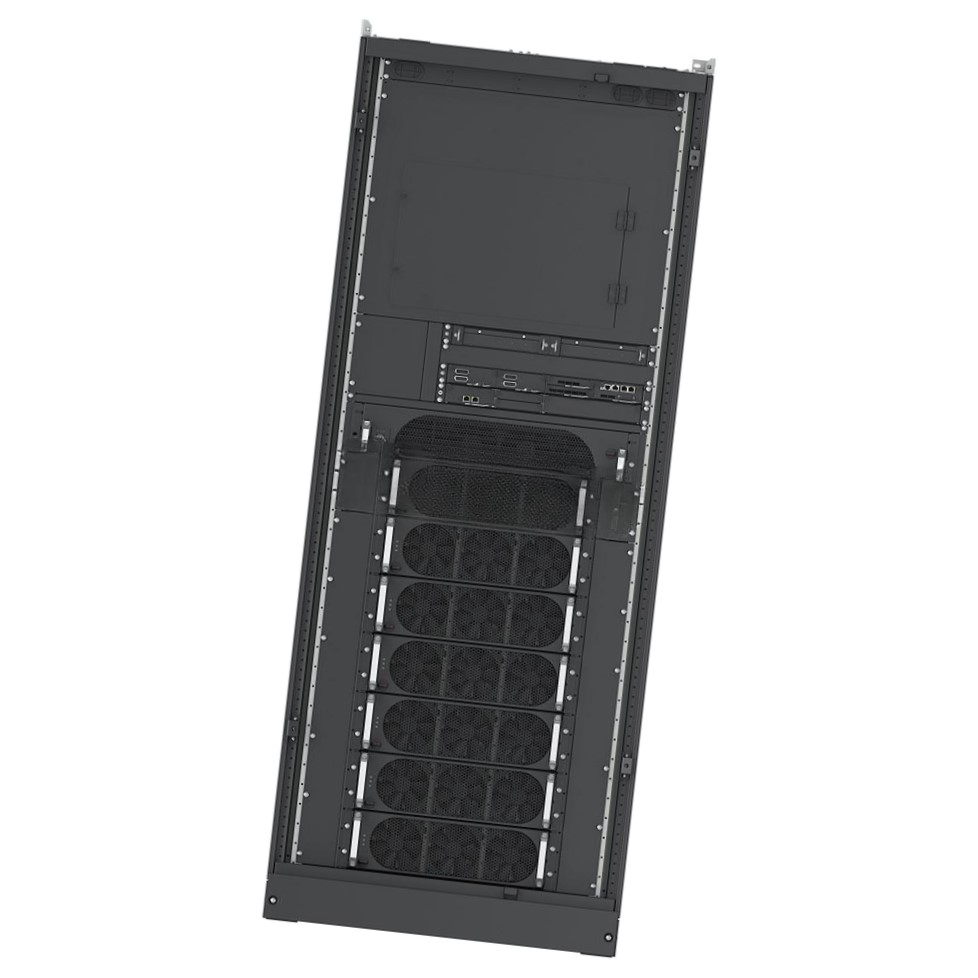

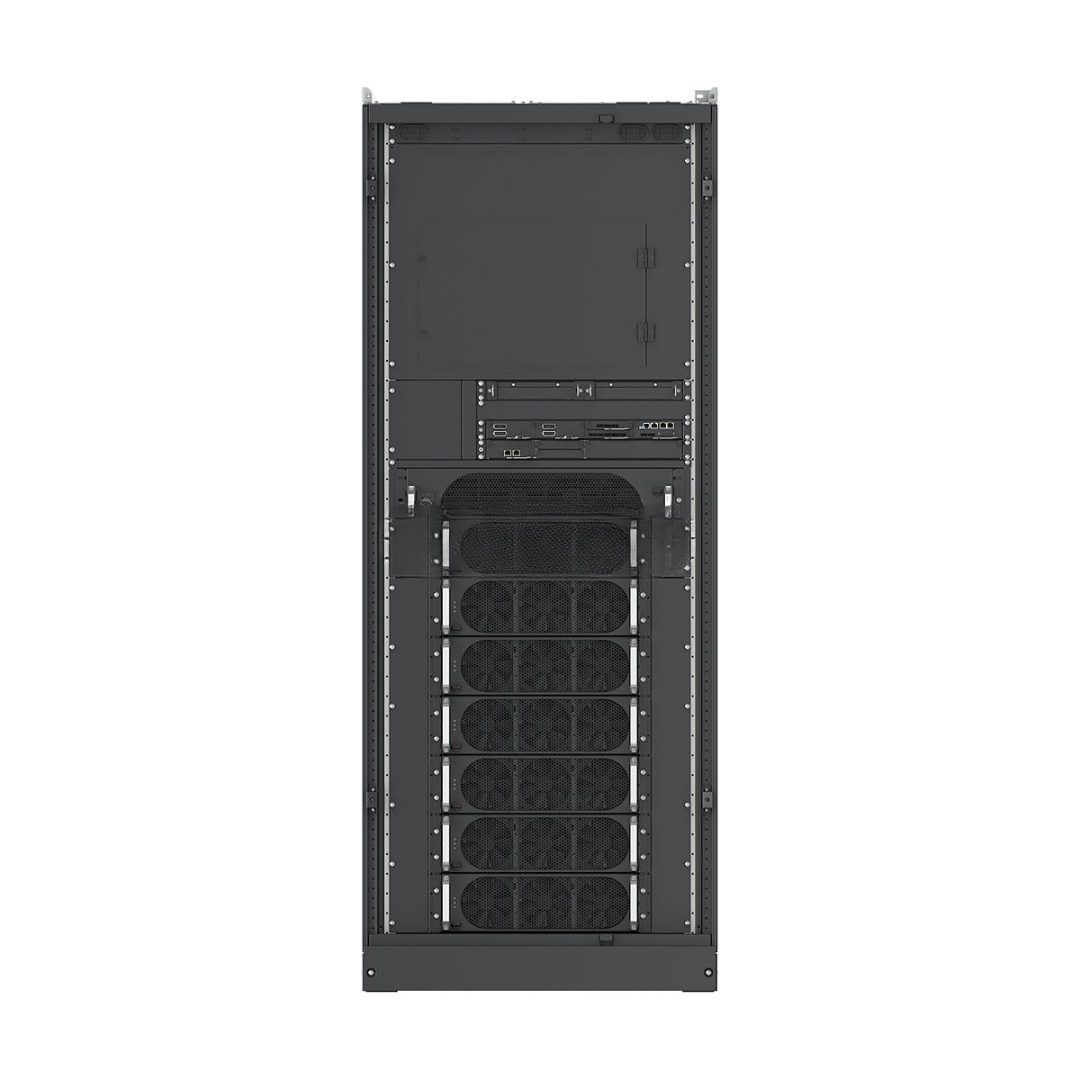

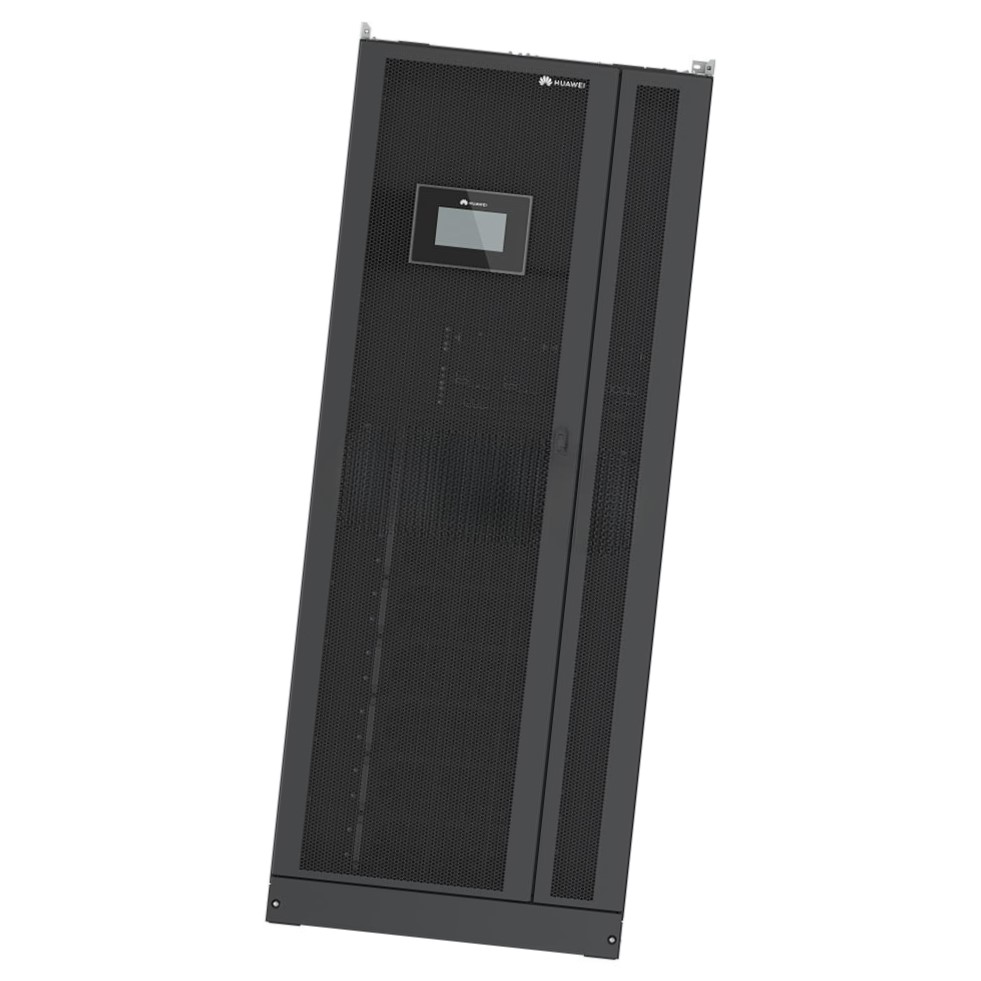

UPS5000-H-400kVA-NTN Huawei High Quality Modular UPS
The UPS5000-H-400kVA-NTN is a state-of-the-art, high-efficiency modular uninterruptible power supply developed by Huawei to meet the critical demands of medium to large-scale data centers, enterprise networks, telecom facilities, and industrial environments. With a scalable design up to 400 kVA / 360 kW, this UPS offers outstanding energy efficiency, space-saving modular architecture, and intelligent power protection.
Leveraging Huawei’s advanced modular technology, the UPS5000-H-400kVA supports hot-swappable 50 kVA power modules, N+X redundancy, and centralized battery management, ensuring maximum uptime and operational continuity.
Key Features
-
Model: UPS5000-H-400kVA-NTN
-
Rated Capacity: 400 kVA / 360 kW
-
Modular Architecture: Up to 8 × 50 kVA hot-swappable modules
-
High Efficiency: Up to 97.1% in double conversion mode
-
Redundancy: N+X intelligent redundancy supported
-
Input/Output Voltage: 380/400/415V AC, 3-phase 4-wire
-
Battery Compatibility: Lead-acid and Huawei SmartLi® Lithium batteries
-
Management: Integrated with NetEco intelligent monitoring platform
-
Installation: Compact floor-standing cabinet for indoor deployment
Technical Specifications
| Specification | Details |
|---|---|
| Model | UPS5000-H-400kVA-NTN |
| Rated Capacity | 400 kVA / 360 kW |
| Module Configuration | 8 × 50 kVA hot-swappable modules |
| Input Voltage | 380/400/415V AC, 3-phase 4-wire |
| Input Frequency | 50/60 Hz |
| Output Voltage | 380/400/415V AC, adjustable |
| Efficiency (Online Mode) | Up to 97.1% |
| ECO Mode Efficiency | Up to 99% |
| Battery Type | Lead-acid or Lithium-ion |
| Topology | Double conversion (VFI) |
| Communication Interfaces | SNMP, RS485, RS232, dry contacts |
| Cooling | Forced air cooling |
| Operating Temperature | 0°C to +40°C |
| Relative Humidity | 0–95% RH, non-condensing |
| Cabinet Dimensions (approx) | 1200 × 850 × 2000 mm (W × D × H) |
| Certification | IEC62040-1/-2/-3, CE, UL |
| Warranty | 1–3 Years Manufacturer Warranty |
UPS5000-H-400kVA Applications
-
Medium to Large Data Centers – Centralized power protection with scalability
-
Telecom Sites – Reliable backup for switching and core network infrastructure
-
Healthcare Facilities – Ensuring continuous power for medical systems
-
Industrial and Commercial Buildings – High-availability backup for control systems
-
Transportation Hubs – Uninterrupted operations in airports and rail networks
Customization & OEM Options
-
OEM Branding – Custom logo, model label, and barcode configuration
-
Battery Solutions – Huawei SmartLi or traditional VRLA options
-
Pre-configured Systems – Tailored UPS setups with predefined runtime and alarms
-
Burn-in & Factory Testing – Extended soak and load testing available
-
Documentation Kits – User guides, O&M manuals, and MIB files included
Wholesale Supply & Global Logistics
-
Genuine Huawei Equipment – Serial and barcode verification
-
Global Fulfillment – Inventory across Asia, Europe, and Middle East
-
Secure Packaging – Shock-resistant and ESD-compliant shipping crates
-
Bulk Availability – Ideal for system integrators, EPCs, and contractors
-
Support Services – Pre-sale consultation and after-sale engineering support
Why Choose UPS5000-H-400kVA-NTN Huawei?
-
Flexible Scalability – Expand capacity as demand grows
-
Industry-Leading Efficiency – Reduce energy losses and operating costs
-
Robust Reliability – Built-in redundancy ensures uninterrupted protection
-
Compact Design – High power density in a minimal footprint
-
Smart Management – Remote monitoring and diagnostics with NetEco
Contact Us Today to learn more about the UPS5000-H-400kVA-NTN Huawei Modular UPS, request technical documentation, or get a customized quote for your backup power needs in mission-critical environments.
