- Private Mold:NO
- Products Status:Stock
- Ports:8
- Transmission Rate:10/100/1000Mbps
- Function:POE
- Communication Mode:Full-Duplex & Half-Duplex
- Switch Capacity:2G
- Brand Name:HTF
- Model Number:HT-POE8610G
- Place of Origin:Guangdong, China
- Interface:1~8 port 10/100/1000Mbps PoE ports
- 1000M SFP:1 SFP
- 1000M UPLINK:1 UPLINK
- MAC:2K
- PoE Port Power:30W Max
- Metal case:Desktop/Wall mounted
- Manufacturer:Shenzhen
- Power input:AC 100-265V 50/60Hz
- Operating Temperature:0℃~40℃ (32℉~104℉)
- Warranty:12 months
- Selling Units:Single item
- Single package size: 23.8X18.6X7 cm
- Single gross weight:1.500 kg
- Package Type:Neutral gift box
- Lead time:Quantity(pieces)1 – 23 – 10001001 – 2000>2000Lead time (days)31520To be negotiated
Feature
* St * 8 10/100/1000Mbps Auto-Negotiation RJ45 ports with 8 PoE ports (port-1~port-8)
* 1Gigabit SFP uplink port, 1Gigabit RJ45 uplink port
* 250M cable power support 150W MAX power output
* Supports IEEE 802.3x flow control for Full-duplex Mode and back pressure for Half-duplex
* Mode LED indicators for monitoring power, link, activity and speed
* Desktop mode with Metal Case
* Each POE port Up to 30W of power on
* Compatible With All IEEE 802.3at or Legacy
* Safe: Low Power Devices Receive Only the Power They Need
* Automatic Detection and Protection of Non–standard Ethernet
* Terminals Supports 10/100 Base-T applications
* Plug-and-Play no configuration required Internal power supply Easy installation and maintenance
* complies to IEEE 802.3af/at PoE standard and is backward
* 1Gigabit SFP uplink port, 1Gigabit RJ45 uplink port
* 250M cable power support 150W MAX power output
* Supports IEEE 802.3x flow control for Full-duplex Mode and back pressure for Half-duplex
* Mode LED indicators for monitoring power, link, activity and speed
* Desktop mode with Metal Case
* Each POE port Up to 30W of power on
* Compatible With All IEEE 802.3at or Legacy
* Safe: Low Power Devices Receive Only the Power They Need
* Automatic Detection and Protection of Non–standard Ethernet
* Terminals Supports 10/100 Base-T applications
* Plug-and-Play no configuration required Internal power supply Easy installation and maintenance
* complies to IEEE 802.3af/at PoE standard and is backward
Products Description
Model
|
HT-POE8610G
|
1000M POE Rj45
|
8
|
1000M UPLINK
|
1 SFP ports, 1 Gigabit LAN port
|
Exchange Mechanism
|
Store-and-forward
|
Bandwidth
|
5.6G
|
MAC
|
1K
|
Environmental
|
Working Temperature: -10℃~55℃ Storage temperature: -40℃~70℃ |
Storage temperature: -40℃~70℃
|
|
Environmental
|
Working Humidity :10%~90% RH non-condensing
Storage Humidity:5%~90% RH non-condensing |
Power input
|
AC 100-240V 50/60Hz MAX65W
|
POE
|
IEEE802.3af/at, per PoE Port up to 30W,
|
Standards Protocols |
IEEE 802.3
|
IEEE 802.3i 10BASE-T
|
|
Standards Protocols
|
IEEE 802.3u 100BASE-TX
|
IEEE 802.3ab 1000BASE-T
|
|
IEEE 802.3z 1000BASE-X
|
|
IEEE 802.3af/at
|
|
IEEE 802.3x
|
|
Speed
|
Ethernet 10Mbps half-duplex, 20Mbps full-duplex
|
Speed
|
Fast Ethernet 100Mbpshalf-duplex, 200Mbps full-duplex
|
Gigabit Ethernet 2000Mbps full-duplex
|
|
Network Media |
10Base-T: Pair 2 Category 3(Cat3) and above UTP/STP(≤150m)
|
Network Media
|
100Base-TX: Pair 2 Category 5(Cat5) and above UTP/STP(≤150m)
|
1000Base-T: Pair 4 Category 5(Cat5e) and above UTP/STP(≤150m)
|
|
1000Base-SX:62.5μm/50μm MMF(2m~550m)
|
|
1000Base-LX:62.5μm/50μm MM(2m~550m) or 10μm SMF(2m~5000m)
|

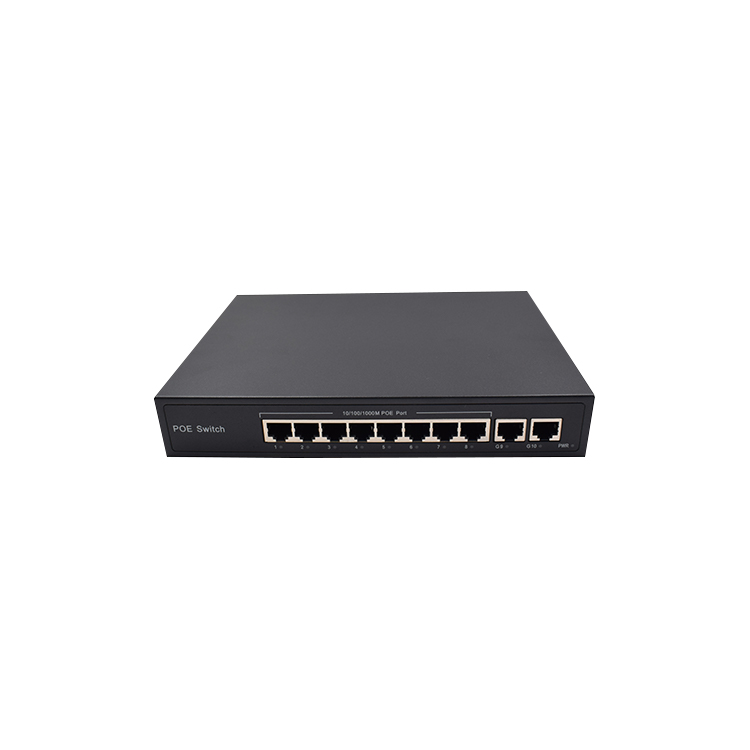

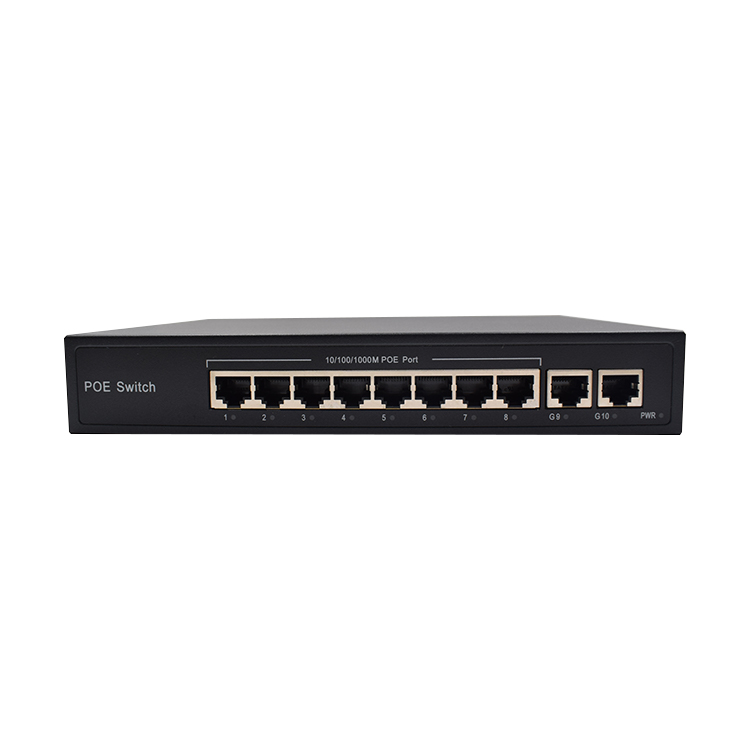

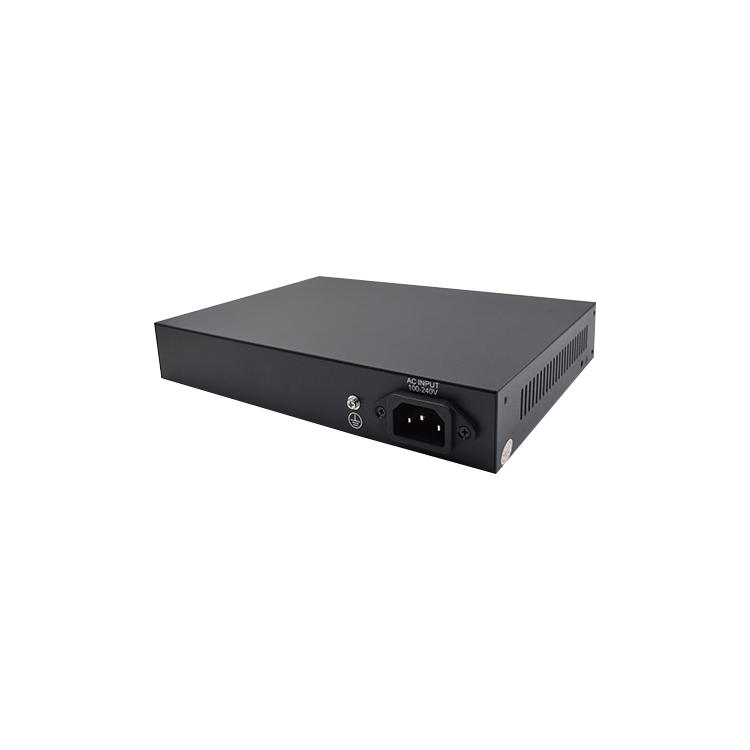

Product Photos
