- Product Name:CPRI 4 Core PDLC
- Certification:ISO9001:2015
- Product name:Fiber Optic Patch Cod
- Color:Black
- Wavelength:1310/1550nm
- Material:PVC, LSZH
- Fiber Type:G652D
- Insertion loss:0.3dB
- Return loss:50dB
- Selling Units:Single item
- Single package size: 34X24X16 cm
- Single gross weight:0.500 kg
- Package Type:plastic bag and carton,we can do package according to client’s request
- Picture Example:
- Lead time:Quantity(pieces)1 – 1000>1000Lead time (days)3To be negotiated
Outdoor FTTA Waterproof CPRI 2 Core PDLC to Lc/Sc/Fc Fiber Optic Patch Cable Jumper Fibre Cabel Lead Cord
PDLC duplex singlmode waterproof fiber patch cable with PDLC connector from Tyco/ZTE/Huawei Which compatible waterproof sealing on one end of the cable and standard LC/SC/FC/ST connector on the other end. The connector is designed to exceed the requirements of ODVA, and meet IP66/67 environmental sealing ratings and is the ideal choice for a low cost and easy to use solution in industrial, fiber to the Antenna, or any other harsh environmental applications. The LC connector is designed according to the IEC60603-7 interface standard, which allows mating to other similar mechanical locking systems. PDLC single mode duplex waterproof fiber optical cable will not get damage even stepped, and are anti-rodents, and suit to use in harsh
| Product Type | Waterproof Cable | Fiber Type | Singlemode OS2 9/125 |
| Connector 1 | PD LC | Connector2 | LC/FC/SC/ST/E2000 |
| Trunk Diameter | 7.0mm | Branch Diameter | 3.0mm |
| Insertion Loss | ≤0.30dB | Return Loss | LC≥50dB,E2000APC≥60dB |
| Storage Temperature | -55°C-85°C | Operating Temperature | -40°C-85°C |
Cable Specification:
| Fiber Count | Cable Dimension mm |
Cable Weight kg/km |
Tensile N |
Crush N/100mm |
Min. Bend Radius mm |
Range of Temperature |
|||
| Long Term | Short Term | Long Term | Short Term | Dynamic | Static | ||||
| 4 | 7.0 | 42.3 | 200 | 400 | 1100 | 2200 | 20D | 10D | -30-+70 |
| Note: 1. All the values in the table, which are for reference only, are subject to change without notice; 2. The cable dimension and weight are subject to the simplex cable of 2.0 outer diameter; 3. D is outer diameter of the round cable; |

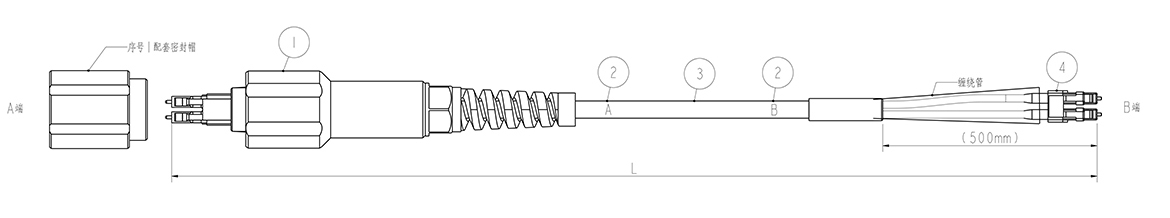

Patch cable drawing:
